Presentation Transcript
slide1

Aerodrome Lighting

Level One 412.02

OHP # 1

slide2

All Weather Markings

Level One 412.02

OHP # 2

slide3

Danger/Unserviceable Markings

Level One 412.02

OHP # 3

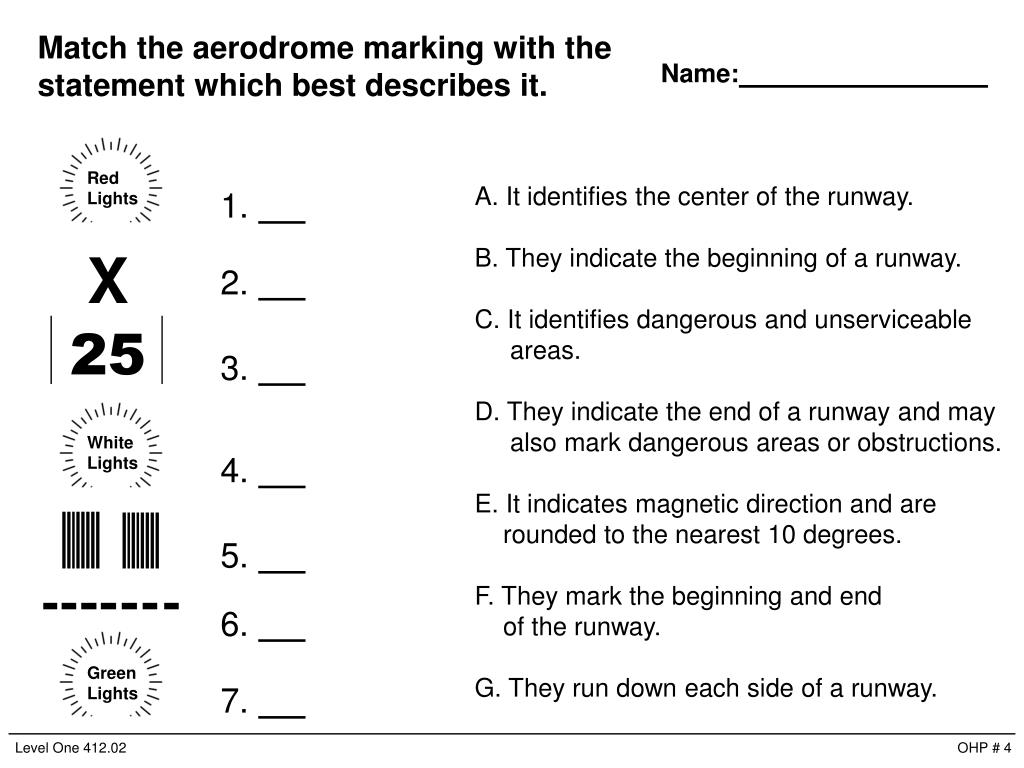

slide4

Match the aerodrome marking with the

statement which best describes it.

Name:

Red

Lights

A. It identifies the center of the runway.

B. They indicate the beginning of a runway.

C. It identifies dangerous and unserviceable

areas.

D. They indicate the end of a runway and may

also mark dangerous areas or obstructions.

E. It indicates magnetic direction and are

rounded to the nearest 10 degrees.

F. They mark the beginning and end

of the runway.

G. They run down each side of a runway.

1.

X

2.

25

3.

White

Lights

4.

5.

6.

Green

Lights

7.

Level One 412.02

OHP # 4
