C17110 and C17410 coppers

C17110 and C17410 coppers.  Chemical composition (wt%) : copper = alloy balance Be Ni Co Fe Zr Sn Al Si Zn Cr Pb

gershom
Download Presentation

C17110 and C17410 coppers

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. C17110 and C17410 coppers  Chemical composition (wt%) : copper = alloy balance Be Ni Co Fe Zr Sn Al Si Zn Cr Pb C171100.34 1.3 - - 0.1 0.03 - - - - - C174100.31 0.02 0.5 0.03 - 0.005 0.04 0.02 < 0.01 < 0.005 0.003  Thermo-mechanical treatment : C17110 TH01 = solution annealed + cold worked to 1/4 hard + precipitation hardened C17410 TH02 = solution annealed + cold worked to 1/2 hard + precipitation hardened 300 - 400oC Be-enriched g phase 750 - 800oC LHC Vacuum Design Meeting Karine COUTURIER/EST-SM

  2. Tensile properties at RT L = longitudinal direction - T = transversal direction Rp 0.2 / MPa Rm / MPa A / % C17110 / TH01 506 628 24.1 C17410 / TH02 626 736 18.7 LHC Vacuum Design Meeting Karine COUTURIER/EST-SM

  3. Tensile properties at 4.2 K L = longitudinal direction - T = transversal direction Rp 0.2 / MPa Rm / MPa A / % C17110 / TH01 580 850 40.6 C17410 / TH02 740 937 37.5 LHC Vacuum Design Meeting Karine COUTURIER/EST-SM

  4. Comparison : Tensile properties  lower yield and tensile strengths  higher elongation at breakdown LHC Vacuum Design Meeting Karine COUTURIER/EST-SM

  5. Comparison with C17200 copper More traditional grade with higher Be content (2 wt%) Used in LEP ring at present TH02 thermo-mechanical treatment  Tensile properties at room and low temperatures :  improved formability  Improved electrical conductivity : C17200/TH02C17110/TH01 C17410/TH02 Total alloying (wt%) 3.2 1.77  0.943 % IACS 22-25 49.3 53.3 LHC Vacuum Design Meeting Karine COUTURIER/EST-SM

  6. Conclusion  Advantages of C17110 and C17410 coppers in TH02 state : - higher ductility, improved formability  easier product forming  simple manufacturing process - higher electrical conductivity  improved electrical output compared to more traditional C17200 beryllium copper  Are those new coppers interesting for LHC applications ? Is Rp 0.2 value sufficient ? Is material choice still open ?  STAINLESS firm propose to visit CERN during the first week of May. LHC Vacuum Design Meeting Karine COUTURIER/EST-SM

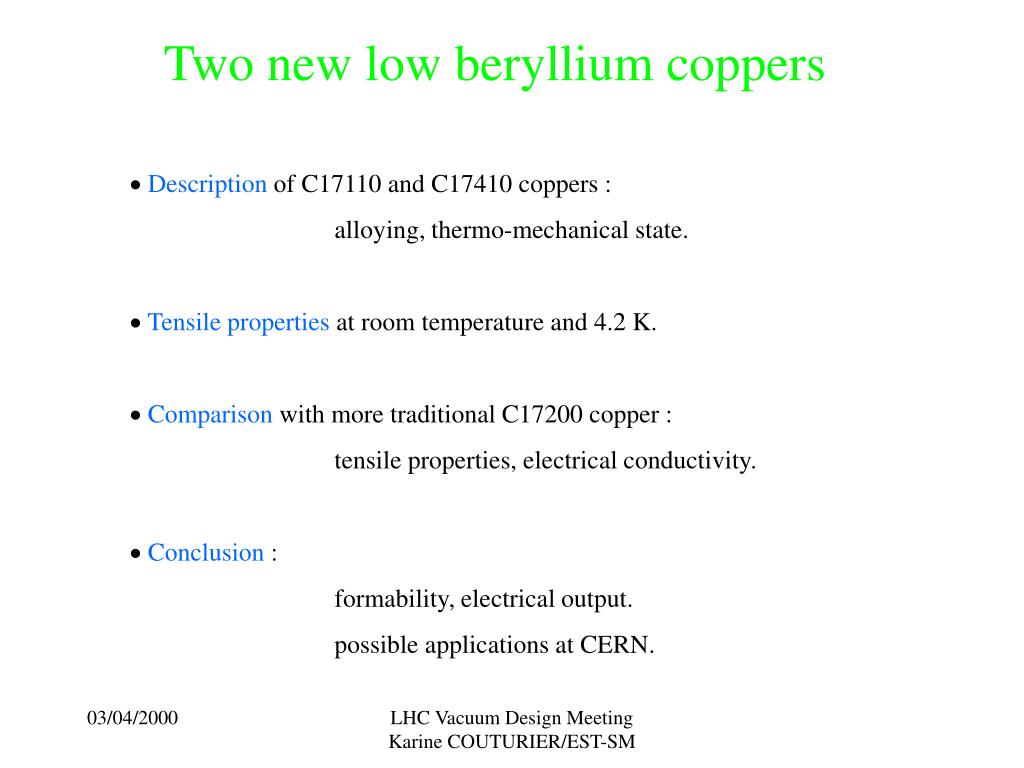

  7. Two new low beryllium coppers Description of C17110 and C17410 coppers : alloying, thermo-mechanical state.  Tensile properties at room temperature and 4.2 K.  Comparison with more traditional C17200 copper : tensile properties, electrical conductivity.  Conclusion : formability, electrical output. possible applications at CERN. LHC Vacuum Design Meeting Karine COUTURIER/EST-SM
