  1. Muscle Tissue Chapter 8 Bio201

  2. Functions of Skeletal Muscle • Movement of body • Posture maintenance • Storing and moving substances within the body

  3. Functions of Skeletal Muscle • Heat production - 85% of body heat is generated by skeletal muscle 25 - 40 % of energy from nutrients is converted to ATP by cellular respiration 60 - 75 % of energy from nutrients is converted to heat

  4. Histology • Muscle consists of elongated cells called muscle fibers Sarco = fleshy • Sarcolemma - cell membrane • Sarcoplasm – cytoplasm

  5. Histology • Transverse (T) tubule - tubular invagination of sarcolemma that surrounds each myofibril • Sarcoplasmic reticulum (SR) - smooth endoplasmic reticulum that stores Ca2+, has enlarged portions called cisternae that surround the transverse tubules

  6. Histology • Myofibrils – cross section of muscle cell consists of small cylinders called myofibrils which may number several 100 to several 1000/cell (exercise increases myofibril production; lack of exercise decreases myofibrils (atrophy)) Each myofibril consists of myofilaments (protein)

  7. Histology • thick myofilaments = myosin • thin myofilaments = actin, troponin, tropomyosin

  8. Histology • Sarcomere - myofilaments don't extend entire length of muscle fiber; they are stacked into compartments called sarcomeres Sarcomeres are the functional unit of a skeletal muscle (contractile unit) Sarcomere extends from Z disc to Z disc

  9. Histology Parts of sarcomere • A band - myosin + overlapping actin • I band - only actin, troponin, tropomyosin (2 I bands / sarcomere) • Z disc – through center of I band

  10. Neuromuscular Junction • Neuromuscular junction (NMJ) - (one per muscle fiber and usually in middle) = axon terminal (synaptic end bulb) + motor end plate (sarcolemma under motor neuron) • Acetylcholine (Ach), a neurotransmitter, is released at the NMJ by a motor neuron causing a muscle impulse, which in turn will cause the muscle to contract

  11. Neuromuscular Junction • Problems at the NMJ Curare - binds to ACh receptors in skeletal muscle membrane; competes with ACh but does not stimulate the ACh receptor; therefore muscle paralysis

  12. Neuromuscular Junction Botulism - toxin inhibits ACh release (from the bacteria Clostridium botulinum); therefore: muscle paralysis • A dilute solution of botulinum toxin can be injected into a muscle that is in spasm to help it relax Myasthenia gravis - antibodies destroy ACh receptors; therefore muscle paralysis

  13. Neuromuscular Junction Organophosphates (in some pesticides) - inhibits acetylcholinesterase; therefore muscle spasms Tetanus - affects nervous system (from the bacteria Clostridium tetani) - this anaerobic bacteria produces a toxin that blocks an inhibitory neurotransmitter in the central nervous system, causing spasms and painful convulsions; therefore tetanus shots immunize against the toxin

  14. Motor Units • Motor unit - motor neuron (densely branched) + all the skeletal muscle fibers it services (5 fibers to 2000 muscle fibers) • One entire muscle has many motor units • Not all are stimulated at same time • The smaller the number of muscle fibers/motor unit, the more precise the control of the muscle fibers

  15. Sliding Filament Mechanism • Sliding Filament Mechanism means: myosin (thick myofilaments) cross bridges pull actin (thin myofilaments) inward during contraction

  16. Sliding Filament Mechanism • Sliding Filament Mechanism means: myosin (thick myofilaments) cross bridges pull actin (thin myofilaments) inward during contraction • At rest Calcium in SR (terminal cisternae)

  17. Sliding Filament Mechanism Troponin-tropomyosin prevents myosin from binding to sites on actin ATP bonded to myosin cross bridges (concentration of ATP is high in relaxed muscle)

  18. Sliding Filament Mechanism • Excitation-Contraction Coupling Motor neuron releases acetylcholine at the NMJ causing a muscle impulse (excitation) In response to the muscle impulse, the SR releases calcium into the sarcoplasm

  19. Sliding Filament Mechanism Calcium interacts with troponin and tropomyosin in the thin filament changing their shape, exposing binding sites for myosin (thick filament) on actin Myosin breaks down ATP and uses the energy released to pull the thin filament toward the middle of the sarcomere, contraction

  20. Sliding Filament Mechanism Contraction will continue as an endless repeating cycle as long as calcium and ATP are present

  21. Sliding Filament Mechanism • To relax following contraction ACh is inactivated by acetycholinesterase (from sarcolemma surface) Calcium is actively transported back into SR Troponin-tropomyosin reattach to actin preventing attachment of myosin cross bridges to actin ATP attaches to myosin cross bridge

  22. ATP and Muscle Function • Sources of ATP Stored ATP - lasts only 6 seconds during bursts of muscle contraction ATP generated from creatine phosphate (CP) (CP + ADP → creatine + ATP) - together ATP that is stored and CP provide muscle power for 10-15 sec (CP replenished during resting periods)

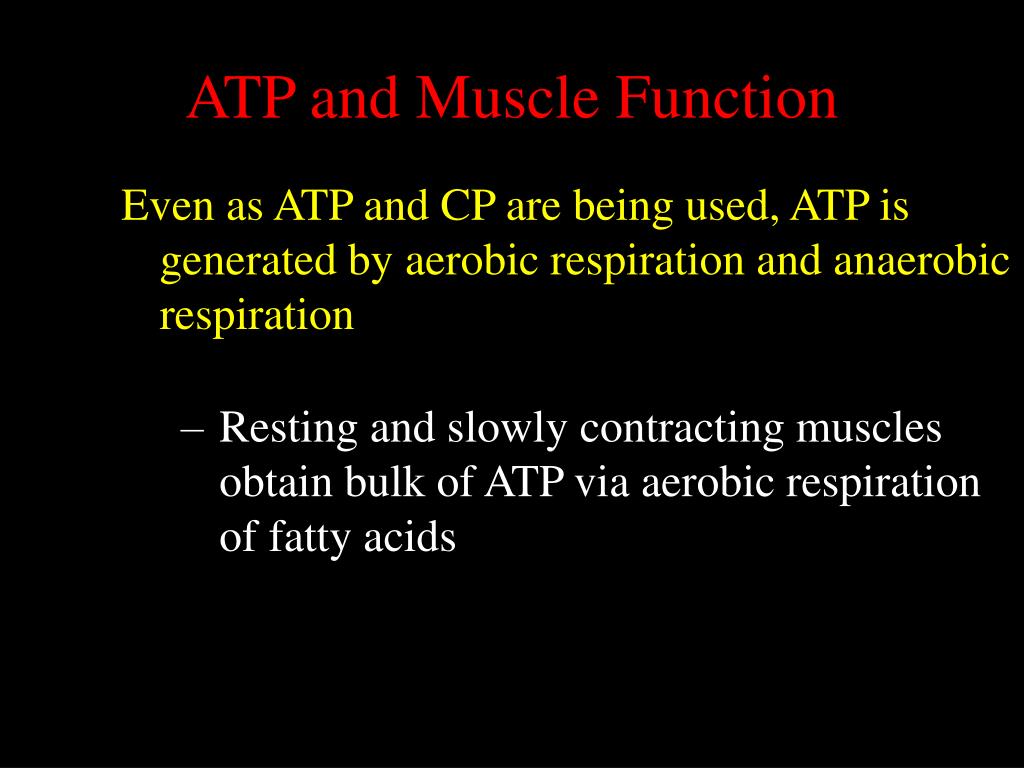

  23. ATP and Muscle Function Even as ATP and CP are being used, ATP is generated by aerobic respiration and anaerobic respiration • Resting and slowly contracting muscles obtain bulk of ATP via aerobic respiration of fatty acids

  24. ATP and Muscle Function • In actively contracting muscles, glucose (from blood and breakdown of glycogen) is primary fuel supply Aerobic pathway: glucose + O2 → CO2 + H2O + 36ATP Anaerobic pathway: glucose → lactic acid + 2 ATP

  25. ATP and Muscle Function • Anaerobic respiration causes oxygen debt to occur Aerobic pathway produces 20X more ATP than anaerobic respiration but takes 2 1/2 times longer

  26. Oxygen Debt • Oxygen Debt: Amount of oxygen needed to metabolize the accumulated lactic acid and to restore ATP levels Muscle fatigue is result of ATP depletion and accumulation of lactic acid Oxygen debt results in labored breathing in order to pay back the O2 debt

  27. All or None Principal • All or None Principle - individual muscle fibers of a motor unit will contract to its fullest extent of its immediate ability when stimulated by a nerve impulse of threshold level - the principle does not apply to the entire muscle but only to motor units
