Plutonium chemistry
Plutonium Chemistry

  • From: Chemistry of actinides

    • Nuclear properties and isotope production

    • Pu in nature

    • Separation and Purification

    • Atomic properties

    • Metallic state

    • Compounds

    • Solution chemistry

Pu nuclear properties
Pu nuclear properties

  • Isotopes from 228≤A≤247

  • Important isotopes

    • 238Pu

      • 237Np(n,g)238Np

        • 238Pu from beta decay of 238Np

        • Separated from unreacted Np by ion exchange

      • Decay of 242Cm

      • 0.57 W/g

      • Power source for space exploration

        • 83.5 % 238Pu, chemical form as dioxide

        • Enriched 16O to limit neutron emission

          • 6000 n s-1g-1

          • 0.418 W/g PuO2

      • 150 g PuO2 in Ir-0.3 % W container

Pu nuclear properties1
Pu nuclear properties

  • 239Pu

    • 2.2E-3 W/g

    • Basis of formation of higher Pu isotopes

    • 244-246Pu first from nuclear test

  • Higher isotopes available

    • Longer half lives suitable for experiments

Pu in nature
Pu in nature

  • Most environmental Pu due to anthropogenic sources

  • 239,244Pu can be found in nature

    • 239Pu from nuclear processes occurring in U ore

      • n,g reaction

        • Neutrons from

          • SF of U

          • neutron multiplication in 235U

          • a,n on light elements

        • 24.2 fission/g U/hr, need to include neutrons from 235U

  • 244Pu

    • Based on Xe isotopic ratios

      • SF of 244Pu

    • 1E-18 g 244Pu/g bastnasite mineral

Pu solution chemistry

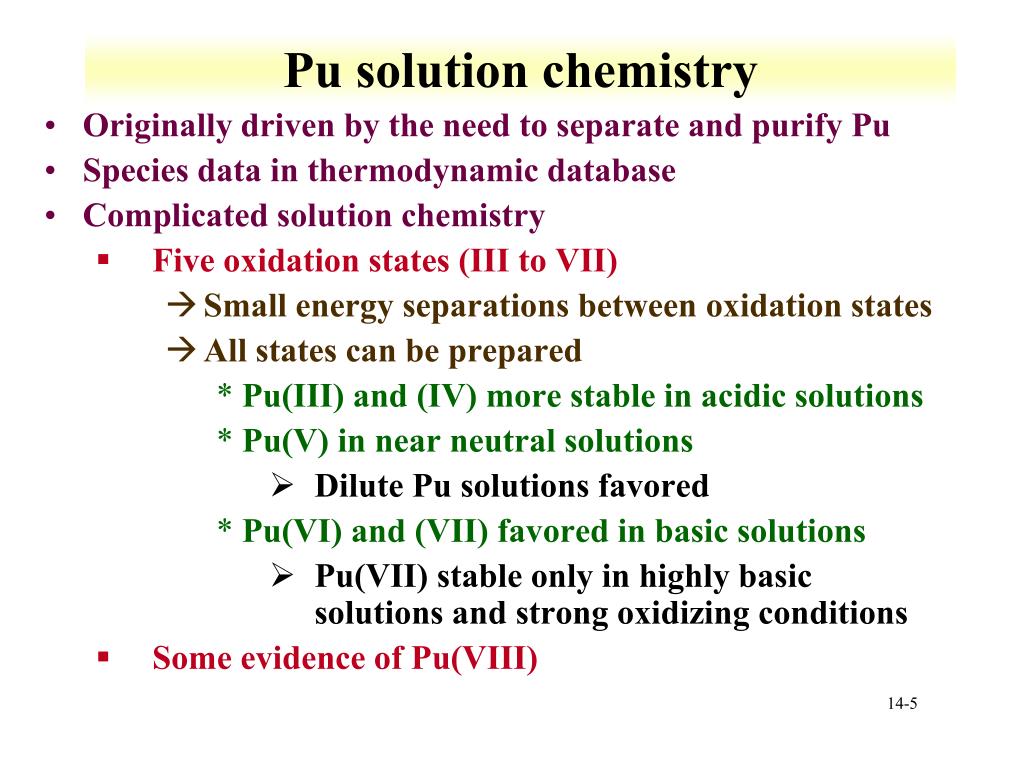

Pu solution chemistry

  • Originally driven by the need to separate and purify Pu

  • Species data in thermodynamic database

  • Complicated solution chemistry

    • Five oxidation states (III to VII)

      • Small energy separations between oxidation states

      • All states can be prepared

        • Pu(III) and (IV) more stable in acidic solutions

        • Pu(V) in near neutral solutions

          • Dilute Pu solutions favored

        • Pu(VI) and (VII) favored in basic solutions

          • Pu(VII) stable only in highly basic solutions and strong oxidizing conditions

    • Some evidence of Pu(VIII)

Pu solution chemistry1
Pu solution chemistry

  • Spectroscopic properties

    • A few sharp bands from 5f-5f transitions

      • More intense than 4f of lanthanides

      • Relativistic effects accentuate spin-orbit coupling

      • Transitions observed spectroscopically

        • Forbidden transitions

        • Sharp but not very intense

  • Pu absorption bands in visible and near IR region

    • Characteristic for each oxidation state

Pu redox solution chemistry
Pu redox solution chemistry

  • Potentials close to 1 V for 4 common states

  • Kinetics permit coexistence of oxidation states

    • Pu(IV) and Pu(V) tend toward disproportionation

      • 3Pu4++2H2O2Pu3++PuO22++4H+

        • K=0.0089 at 1.0 M I

      • 3PuO2++4H+Pu3++2PuO22++2H2O

    • Pu concentration

    • Ionic strength

    • pH

  • Kinetics for disproportionation based on time and Pu concentration

    • Moles seconds (M s)

  • Some redox couples are quasi- or irreversible

    • Breaking or forming oxo bonds

      • i.e., Pu(V)/Pu(III), Pu(VI)/Pu(III)

  • Equilibrium between redox states

    • K=Pu(III)Pu(VI)/Pu(IV)Pu(V)

      • K=13.1, corrected for hydrolysis

  • Plutonium chemistry

    Fig. 7.117 Oxidation state distribution diagram showing the predominant oxidation state of

    plutonium in 1 M (H,Na)ClO4 solution as a function of pH and (a) average oxidation state

    Pu(IV), and (b) average oxidation state Pu(V)

    Fig. 7.118 Kinetics for disproportionation of plutonium in 1 M (H,Na)ClO4 solution at

    (a) pH 1 and average oxidation state Pu(IV), and (b) pH 3 and average oxidation state

    Pu(V) (calculations courtesy of T. W. Newton of Los Alamos).

    Pu solution chemistry oxidation state preparation
    Pu solution chemistry: oxidation state preparation predominant oxidation state of

    • Pu(III)

      • Generally below pH 4

      • Dissolve a-Pu metal in 6 M HCl

      • Reduction of higher oxidation state with Hg or Pt cathode

        • 0.75 V vs NHE

      • Hydroxylamine or hydrazine as reductant

    • Pu(IV)

      • Electrochemical oxidation of Pu(III) at 1.2 V

        • Thermodynamically favors Pu(VI), but slow kinetics due to oxo formation

    • Pu(V)

      • Electrochemical reduction of Pu(VI) at pH 3 at 0.54 V (vs SCE)

        • Near neutral in 1 micromole/L Pu(V)

    • Pu(VI)

      • Treatment of lower oxidation states with hot HClO4

      • Ozone treatment

    • Pu(VII)

      • Oxidation in alkaline solutions

        • Hexavalent Pu with ozone, anodic oxidation

    Pu solution chemistry redox
    Pu solution chemistry: Redox predominant oxidation state of

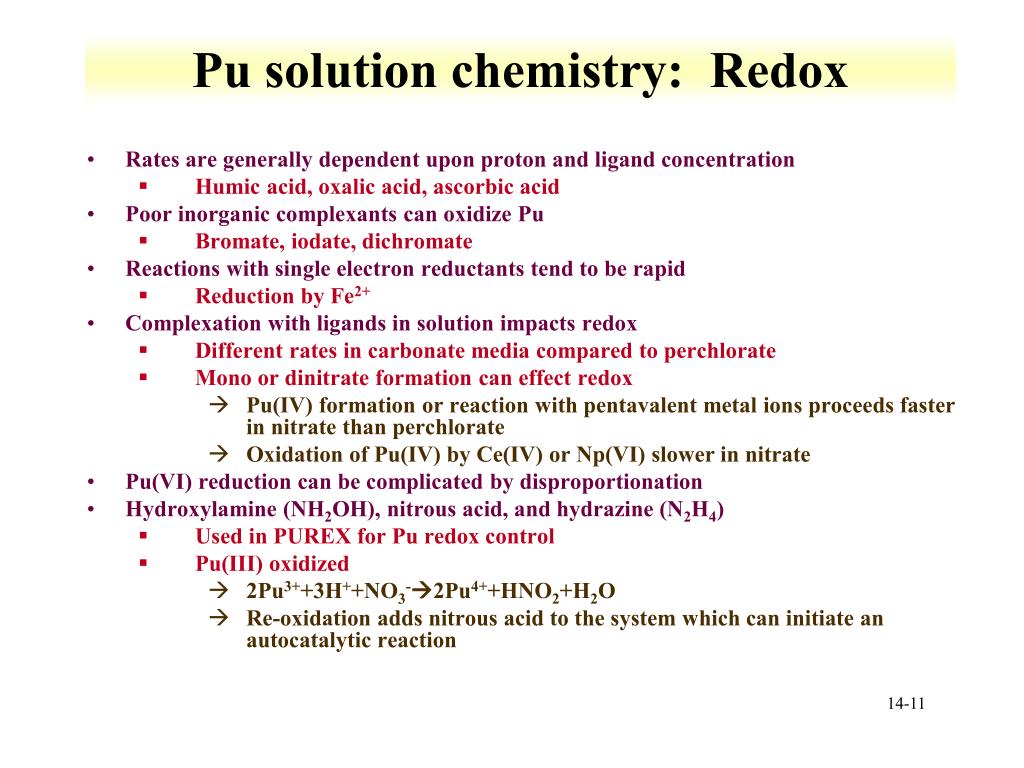

    • Rates are generally dependent upon proton and ligand concentration

      • Humic acid, oxalic acid, ascorbic acid

    • Poor inorganic complexants can oxidize Pu

      • Bromate, iodate, dichromate

    • Reactions with single electron reductants tend to be rapid

      • Reduction by Fe2+

    • Complexation with ligands in solution impacts redox

      • Different rates in carbonate media compared to perchlorate

      • Mono or dinitrate formation can effect redox

        • Pu(IV) formation or reaction with pentavalent metal ions proceeds faster in nitrate than perchlorate

        • Oxidation of Pu(IV) by Ce(IV) or Np(VI) slower in nitrate

    • Pu(VI) reduction can be complicated by disproportionation

    • Hydroxylamine (NH2OH), nitrous acid, and hydrazine (N2H4)

      • Used in PUREX for Pu redox control

      • Pu(III) oxidized

        • 2Pu3++3H++NO3-2Pu4++HNO2+H2O

        • Re-oxidation adds nitrous acid to the system which can initiate an autocatalytic reaction

    Pu aqueous chemistry
    Pu aqueous chemistry predominant oxidation state of

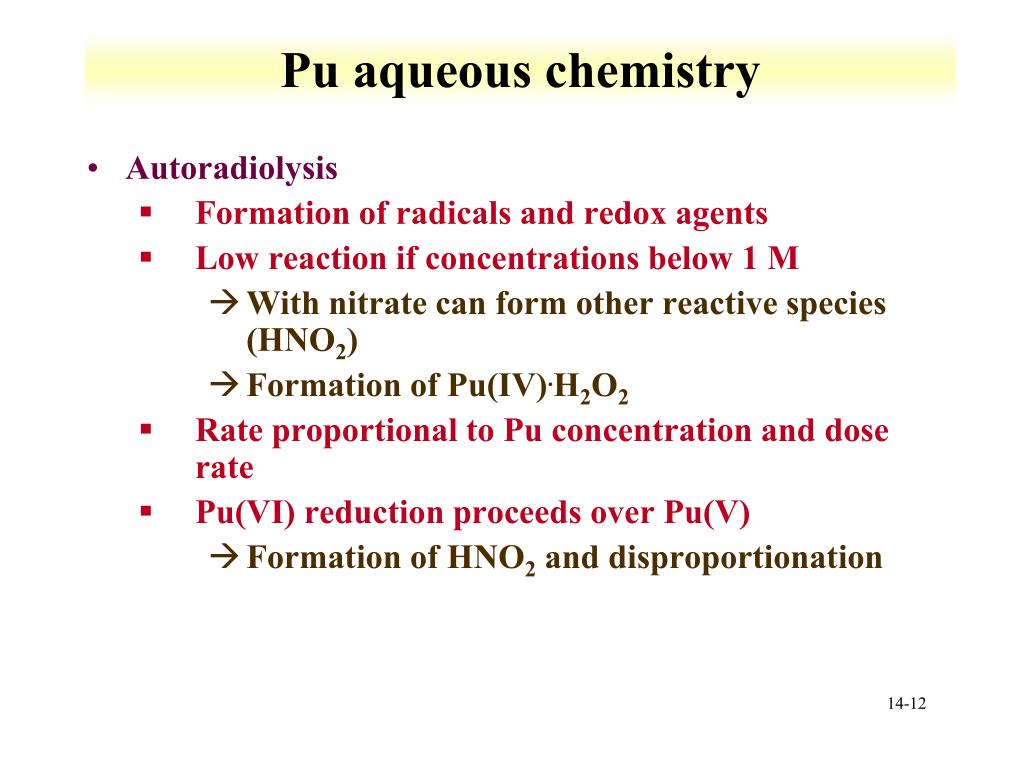

    • Autoradiolysis

      • Formation of radicals and redox agents

      • Low reaction if concentrations below 1 M

        • With nitrate can form other reactive species (HNO2)

        • Formation of Pu(IV).H2O2

      • Rate proportional to Pu concentration and dose rate

      • Pu(VI) reduction proceeds over Pu(V)

        • Formation of HNO2 and disproportionation

    Pu hydrolysis
    Pu hydrolysis predominant oxidation state of

    • Size and charge

      • Smaller ions of same charge higher hydrolysis

        • For tetravalents

          • Pu>Np>U>Pa>Th

    Pu hydrolysis 10 mm
    Pu hydrolysis 10 mM predominant oxidation state of

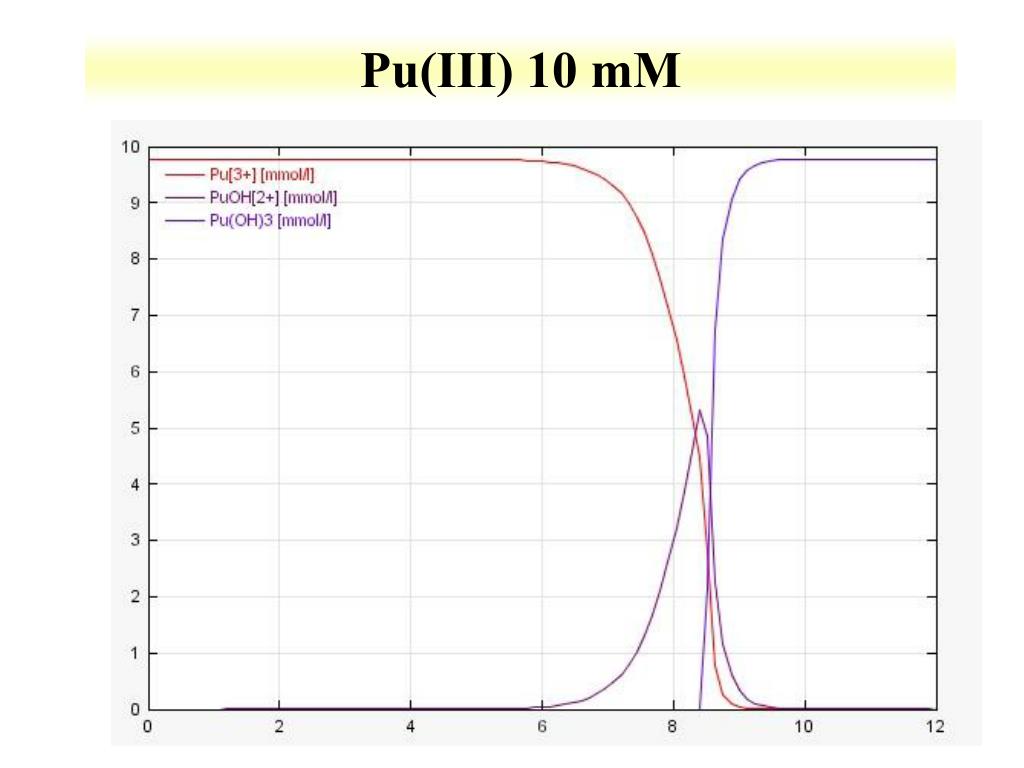

    Pu iii 10 mm
    Pu(III) 10 mM predominant oxidation state of

    Pu iv 10 mmol l
    Pu(IV) 10 mmol/L predominant oxidation state of

    Pu v 10 mmol l
    Pu(V) 10 mmol/L predominant oxidation state of

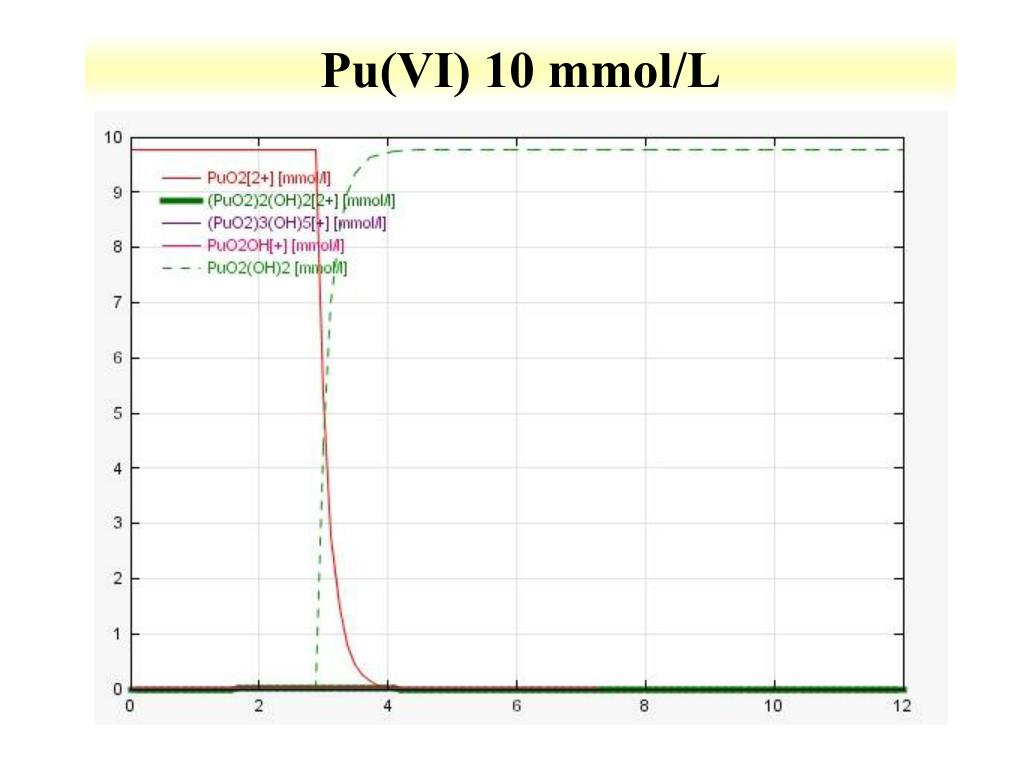

    Pu vi 10 mmol l
    Pu(VI) 10 mmol/L predominant oxidation state of

    Pu colloid chemistry
    Pu colloid chemistry predominant oxidation state of

    • In many systems solubility derived Pu(IV) concentrations vary due to colloid formation

    • Colloids are 1- to 1000-nm size particles, remain suspended in solution

    • x-ray diffraction patterns show Pu(IV) colloids are similar to the fcc structure of PuO2

      • Basis for theory that colloids are tiny crystallites PuO2,

        • May include some water saturated of hydrated surface

    • Prepared by addition of base or water to acidic solutions

    Pu aqueous chemistry xafs of colloids
    Pu aqueous chemistry: XAFS of colloids predominant oxidation state of

    • demonstrated that average fcc structure is overly simplistic

    • additional chemical forms are present that affect solubility

    • Variations in measured Pu(IV) concentrations may be related to the local structure

    • colloids displays many discrete Pu–O distances

      • 2.25 Å Pu-OH to 3.5 Å

    • amplitude of Pu–Pu is reduced, decrease in number of nearest neighbors

      • four H atoms incorporated into the Pu(IV) colloid structure could result in one Pu vacany.

    • EXAFS reveals that many atoms in the colloid structure are distributed in a non-Gaussian way when

      • several different oxygen containing groups are present

        • O2–,, OH-, and OH2

    Pu aqueous chemistry1
    Pu aqueous chemistry predominant oxidation state of

    • Complexing ions

      • General oxidation state trends for complexation constants

        • Pu(IV)>Pu(VI)≈Pu(III)>Pu(V)

    • Oxoanions

      • Pu complexes based on charge and basicity of ligand

        • ClO4-<IO3-<NO3-<SO42-<<CO32-<PO43-

          • 7 to 12 ligands (higher value for Pu(IV)

    • Carbonate

      • Inner and outer sphere complexation with water

        • Outer interaction form chains and layer structures

      • Bidentate with small bite angle

      • Pu(III) carbonate

        • Oxidize rapidly to tetravalent state

        • Complexation values consistent with Am(III)

      • Pu(IV) carbonate

        • Pu(CO3)n4-2n, n from 1 to 5

          • n increases with pH and carbonate concentration

    Pu aqueous chemistry2
    Pu aqueous chemistry predominant oxidation state of

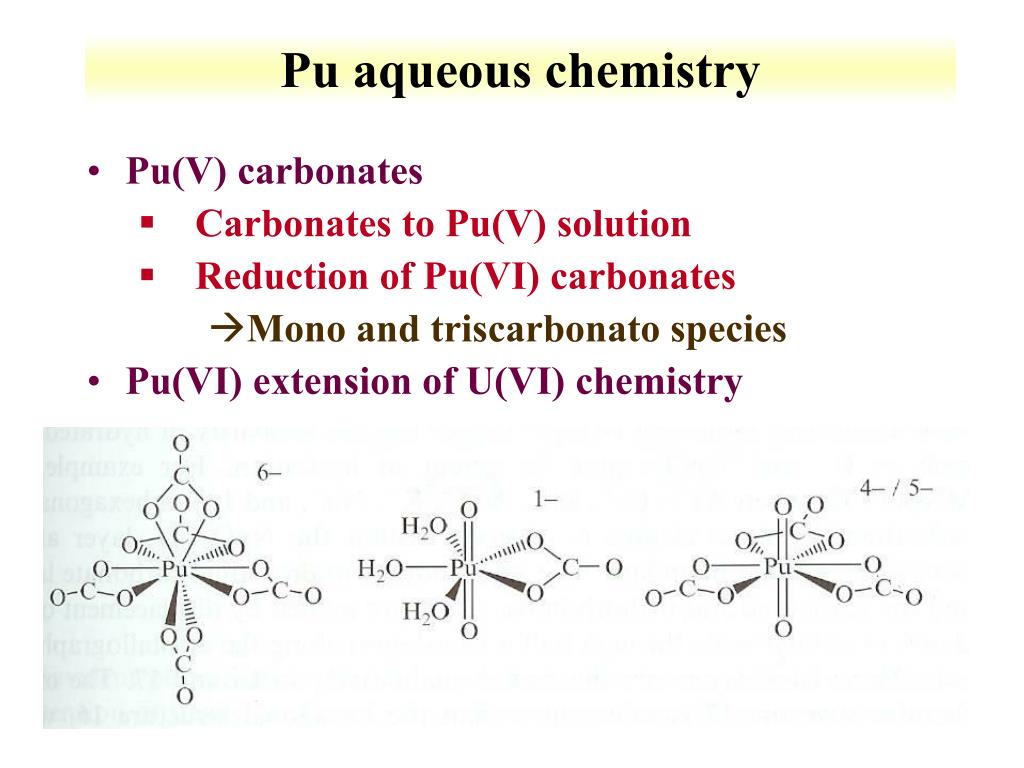

    • Pu(V) carbonates

      • Carbonates to Pu(V) solution

      • Reduction of Pu(VI) carbonates

        • Mono and triscarbonato species

    • Pu(VI) extension of U(VI) chemistry

    Pu solution chemistry2
    Pu solution chemistry predominant oxidation state of

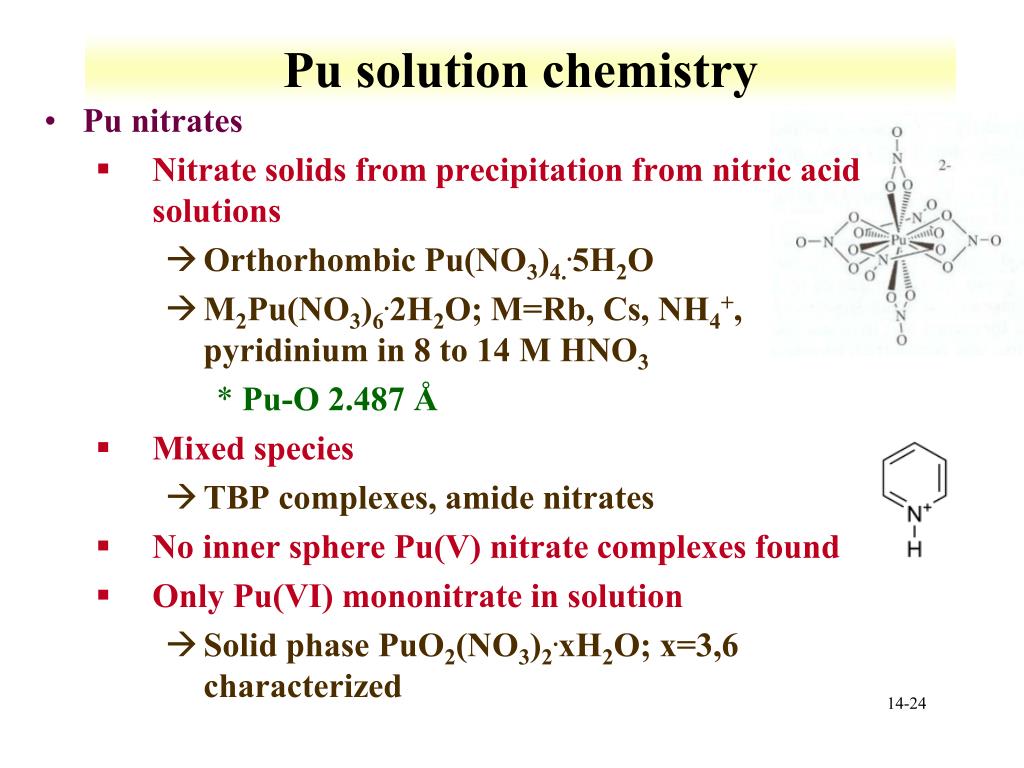

    • Pu nitrates

      • First Pu complexes and important species in reprocessing and separations

      • Bidentate and planar geometry

        • Similar to carbonates but much weaker ligand

      • 1 or more nitrates in inner sphere

      • Pu(III) species have been prepared but are unstable

      • Pu(IV) species

        • Pu(NO3)n4-n, n=1-6

          • Tris and pentanitrato complexes not as prevalent

        • Removal of water from coordination sphere with nitrate complexation

          • Pu-O; 2.49 Å for Nitrate, 2.38 Å for H2O

        • Spectrophotometric determination of complexation constants with nitrate and perchlorate

      • Pu(NO3)62- complexes with anion exchange resin

      • For Pu(IV) unclear if penta- or hexanitrato species

        • Evidence suggests hexanitrato species in the presence of resins

    Pu solution chemistry3
    Pu solution chemistry predominant oxidation state of

    • Pu nitrates

      • Nitrate solids from precipitation from nitric acid solutions

        • Orthorhombic Pu(NO3)4..5H2O

        • M2Pu(NO3)6.2H2O; M=Rb, Cs, NH4+, pyridinium in 8 to 14 M HNO3

          • Pu-O 2.487 Å

      • Mixed species

        • TBP complexes, amide nitrates

      • No inner sphere Pu(V) nitrate complexes found

      • Only Pu(VI) mononitrate in solution

        • Solid phase PuO2(NO3)2.xH2O; x=3,6 characterized

    Pu separations
    Pu separations predominant oxidation state of

    • 1855 MT Pu produced

      • Current rate of 70-75 MT/years

      • 225 MT for fuel cycle

      • 260 MT for weapons

    • Large scale separations based on manipulation of Pu oxidation state

      • Aqueous (PUREX)

      • Non-aqueous (Pyroprocessing)

    • Precipitation methods

      • Basis of bismuth phosphate separation

        • Precipitation of BiPO4 in acid carries tri- and tetravalent actinides

          • Bismuth nitrate and phosphoric acid

          • Separation of solid, then oxidation to Pu(VI)

        • Sulfuric acid forms solution U sulfate, preventing precipitation

      • Used after initial purification methods

      • LaF3 for precipitation of trivalent and tetravalent actinides

    Pu separations1
    Pu separations predominant oxidation state of

    • Solvent extraction

      • Some novel chemistry with third phase formation

    Pu separations2
    Pu separations predominant oxidation state of

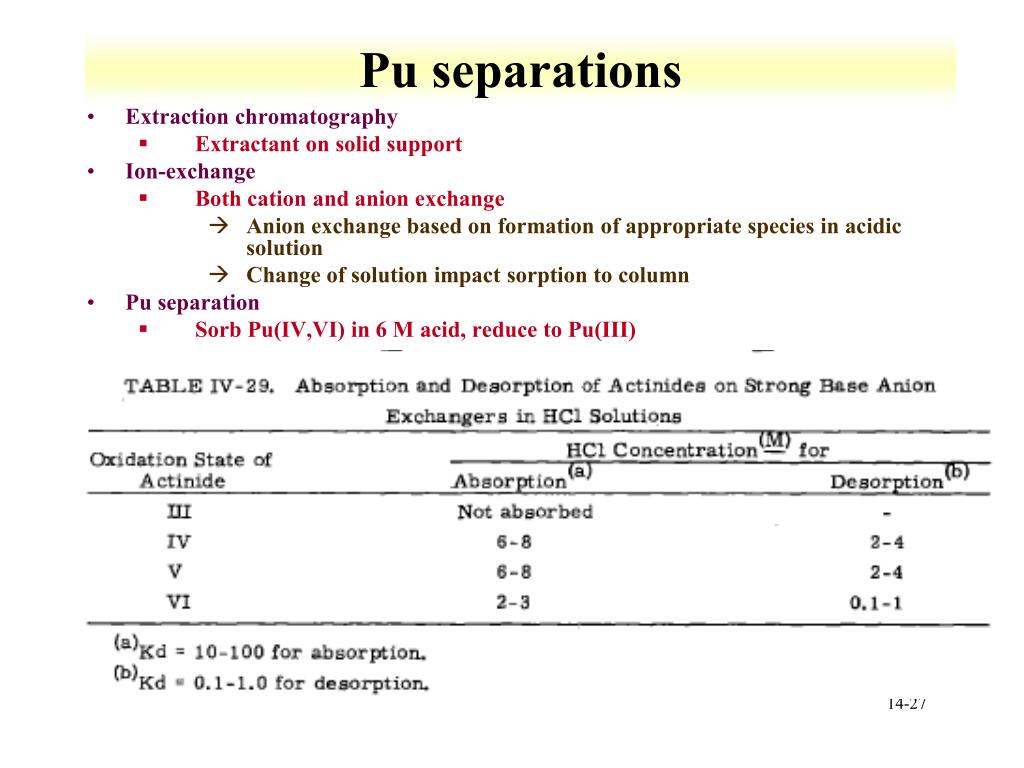

    • Extraction chromatography

      • Extractant on solid support

    • Ion-exchange

      • Both cation and anion exchange

        • Anion exchange based on formation of appropriate species in acidic solution

        • Change of solution impact sorption to column

    • Pu separation

      • Sorb Pu(IV,VI) in 6 M acid, reduce to Pu(III)

    Pu anion exchange

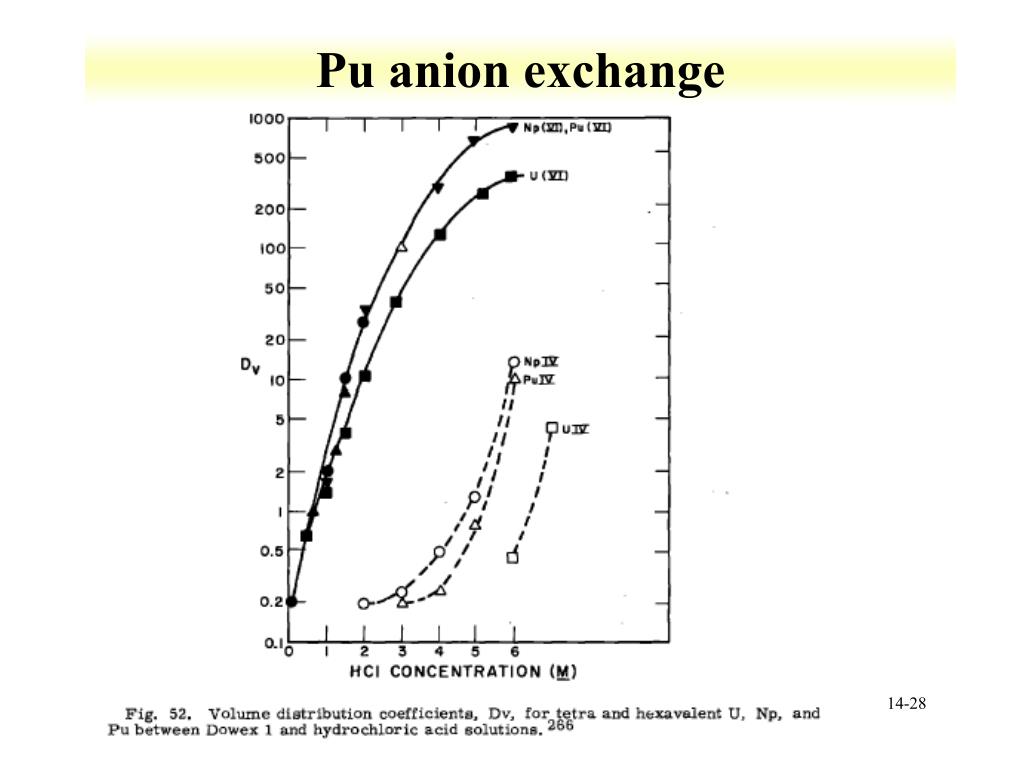

    Pu anion exchange predominant oxidation state of

    Pu cation exchange
    Pu cation exchange predominant oxidation state of

    • General cation exchange trends for Pu

      • HNO3, H2SO4, and HClO4 show stronger influence than HCl

      • Strong increase in distribution coefficient in HClO4 at high acidities exhibited for Pu(III) and Pu(VI)

    Pu separations3

    O predominant oxidation state of













    Pu separations

    • Alkaline solutions

      • Need strong ligands that can compete with hydroxide to form different species

        • F-, CO32-, H2O2

          • High solubility, based on oxidation state

          • Stabilize Pu(VII)

    • Room temperature ionic liquids

      • Quaternary ammonium with anions

        • AlCl4-, PF6-

      • Liquid-liquid extraction

      • Electrochemical disposition

    Pu separations4
    Pu separations predominant oxidation state of

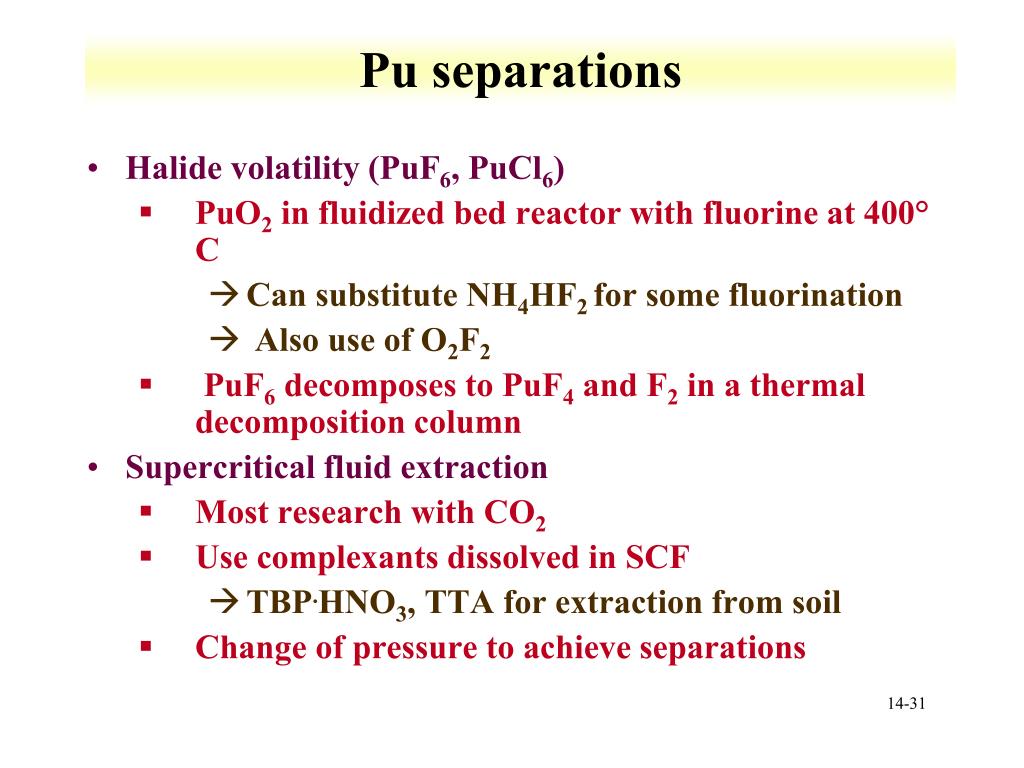

    • Halide volatility (PuF6, PuCl6)

      • PuO2 in fluidized bed reactor with fluorine at 400° C

        • Can substitute NH4HF2for some fluorination

        • Also use of O2F2

      • PuF6 decomposes to PuF4 and F2 in a thermal decomposition column

    • Supercritical fluid extraction

      • Most research with CO2

      • Use complexants dissolved in SCF

        • TBP.HNO3, TTA for extraction from soil

      • Change of pressure to achieve separations

    Metallic pu
    Metallic Pu predominant oxidation state of

    • Interests in processing-structure-properties relationship

    • Reactions with water and oxygen

    • Impact of self-irradiation

    Preparation of pu metal
    Preparation of Pu metal predominant oxidation state of

    • Ca reduction

    • Pyroprocessing

      • PuF4 and Ca metal

        • Conversion of oxide to fluoride

        • Start at 600 ºC goes to 2000 ºC

        • Pu solidifies at bottom of crucible

      • Direct oxide reduction

        • Direct reduction of oxide with Ca metal

        • PuO2, Ca, and CaCl2

      • Molten salt extraction

        • Separation of Pu from Am and lanthanides

        • Oxidize Am to Am3+, remains in salt phase

        • MgCl2 as oxidizing agent

          • Oxidation of Pu and Am, formation of Mg

          • Reduction of Pu by oxidation of Am metal

    Pu metal
    Pu metal predominant oxidation state of

    • Electrorefining

      • Liquid Pu oxidizes from anode ingot into salt electrode

      • 740 ºC in NaCl/KCl with MgCl2 as oxidizing agent

        • Oxidation to Pu(III)

        • Addition of current causes reduction of Pu(III) at cathode

        • Pu drips off cathode

    Pu metal1
    Pu metal predominant oxidation state of

    • Zone refining (700-1000 ºC)

      • Purification from trace impurities

        • Fe, U, Mg, Ca, Ni, Al, K, Si, oxides and hydrides

      • Melt zone passes through Pu metal at a slow rate

        • Impurities travel in same or opposite direction of melt direction

      • Vacuum distillation removes Am

      • Application of magnetic field levitates Pu

    Pu phase stability
    Pu phase stability predominant oxidation state of

    • 6 different Pu solid phases

      • 7th phase at elevated pressure

      • fcc phase least dense

    • Energy levels of allotropic phases are very close to each other

      • Pu extremely sensitive to changes in temperature, pressure, or chemistry

    • Densities of the allotropes vary significantly

      • dramatic volume changes with phase transitions

    • Crystal structure of the allotropes closest to room temperature are of low symmetry

      • more typical of minerals than metals.

    • Pu expands when it solidifies from a melt

    • Low melting point

    • Liquid Pu has very large surface tension with highest viscosity known near the melting point.

    • Pu lattice is very soft vibrationally and very nonlinear

    Plutonium chemistry

    Plutonium exhibits six different crystallographic phases at ambient pressure (it has a seventh phase under pressure). In addition, unlike most metals, plutonium contracts on melting. Transformations to different crystal structures occur readily and are accompanied by very large volume changes. Aluminum expands monotonically on heating in the solid phase, and it also expands on melting. The dashed lines show that thermal contraction on cooling the liquid (L) phase of plutonium extrapolates to that of the β-phase; the thermal contraction on cooling the ε-phase extrapolates to that of the γ-phase.

    Plutonium chemistry

    Figure 16. Plutonium Instability with Temperature and Pressure

    Plutonium is notoriously unstable under almost any external disturbance. Over a span of only 600°, it exhibits six different allotropic phases with large accompanying volume changes before it melts. Pressures on the order of kilobar (100 megapascals) are sufficient to squeeze out the high-volume allotropes (Morgan 1970). Small chemical

    additions can stabilize these high-volume phases.

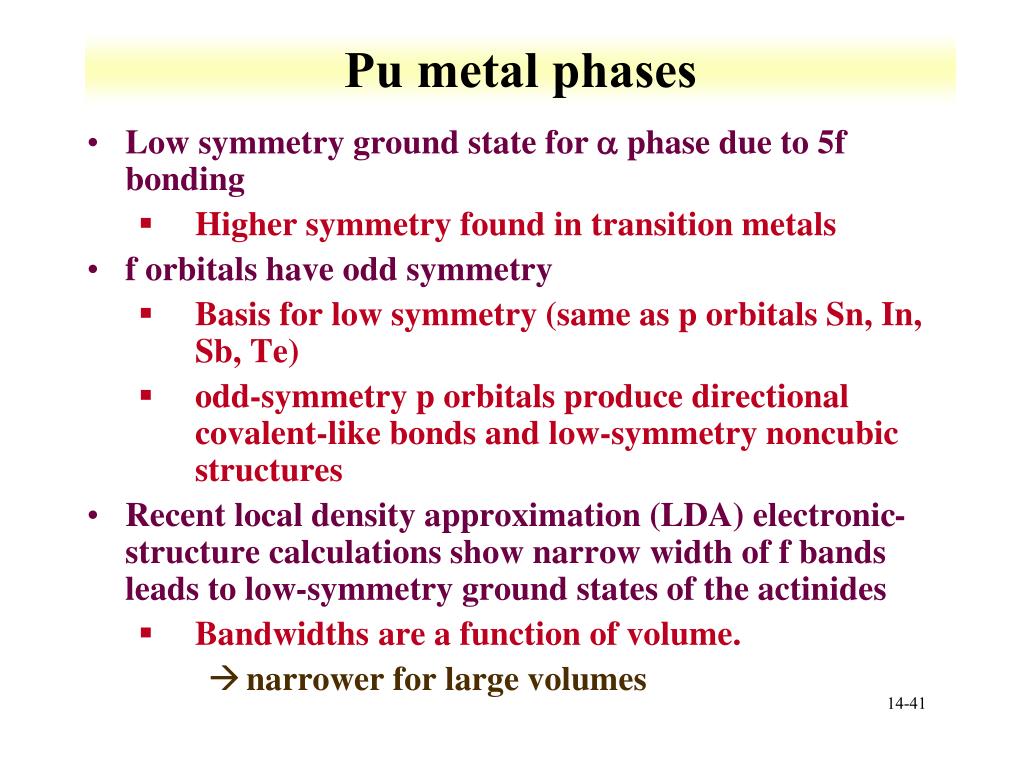

    Pu metal phases
    Pu metal phases Pressure

    • Low symmetry ground state for a phase due to 5f bonding

      • Higher symmetry found in transition metals

    • f orbitals have odd symmetry

      • Basis for low symmetry (same as p orbitals Sn, In, Sb, Te)

      • odd-symmetry p orbitals produce directional covalent-like bonds and low-symmetry noncubic structures

    • Recent local density approximation (LDA) electronic-structure calculations show narrow width of f bands leads to low-symmetry ground states of the actinides

      • Bandwidths are a function of volume.

        • narrower for large volumes

    Pu metal phase
    Pu metal phase Pressure

    • For actinides f electron bonding increases up to Pu

      • Pu has the highest phase instability

    • At Am the f electrons localize completely and become nonbonding

      • At Am coulomb forces pull f electrons inside the valence shell

      • leaving 2 or 3 in the s-p and d bands

    • f-f interaction varies dramatically with very small changes in interatomic distances

      • lattice vibrations or heating

    • f-f and f-spd interactions with temperature may results in localization as Pu transforms from the α- to the δ-phase

    • Low Pu melting temperature due to f-f interaction and phase instability

      • Small temperature changes induce large electronic changes

      • small temperature changes produce relatively large changes in free energy

    • Kinetics important in phase transitions

    Metallic pu1
    Metallic Pu Pressure

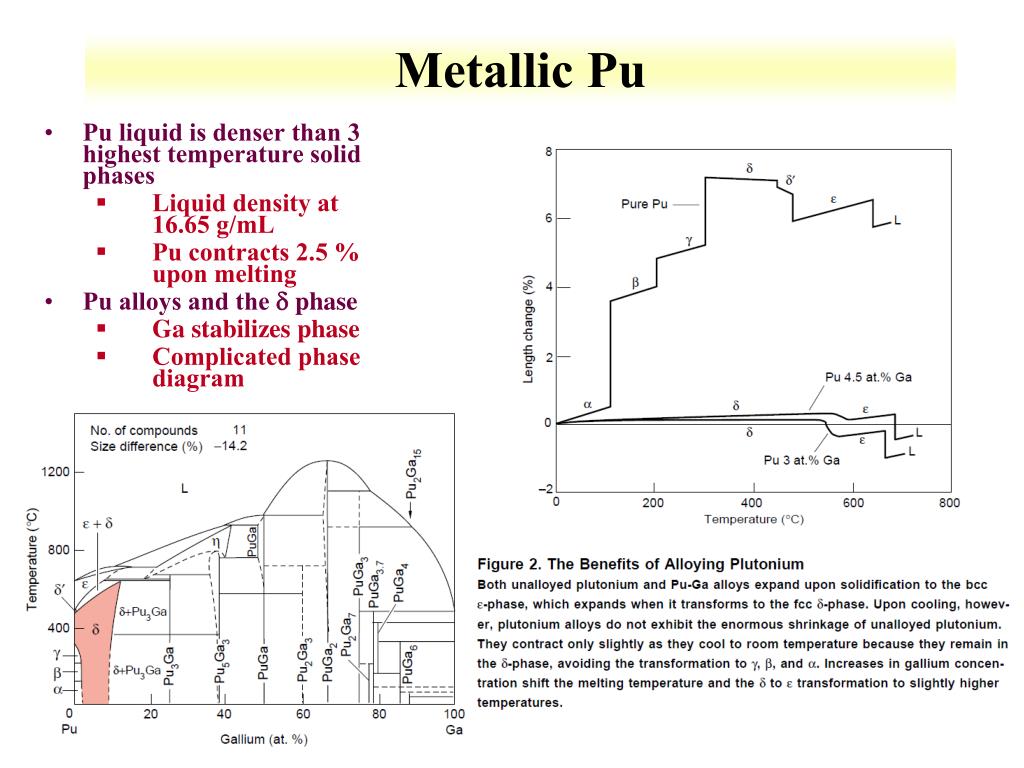

    • Pu liquid is denser than 3 highest temperature solid phases

      • Liquid density at 16.65 g/mL

      • Pu contracts 2.5 % upon melting

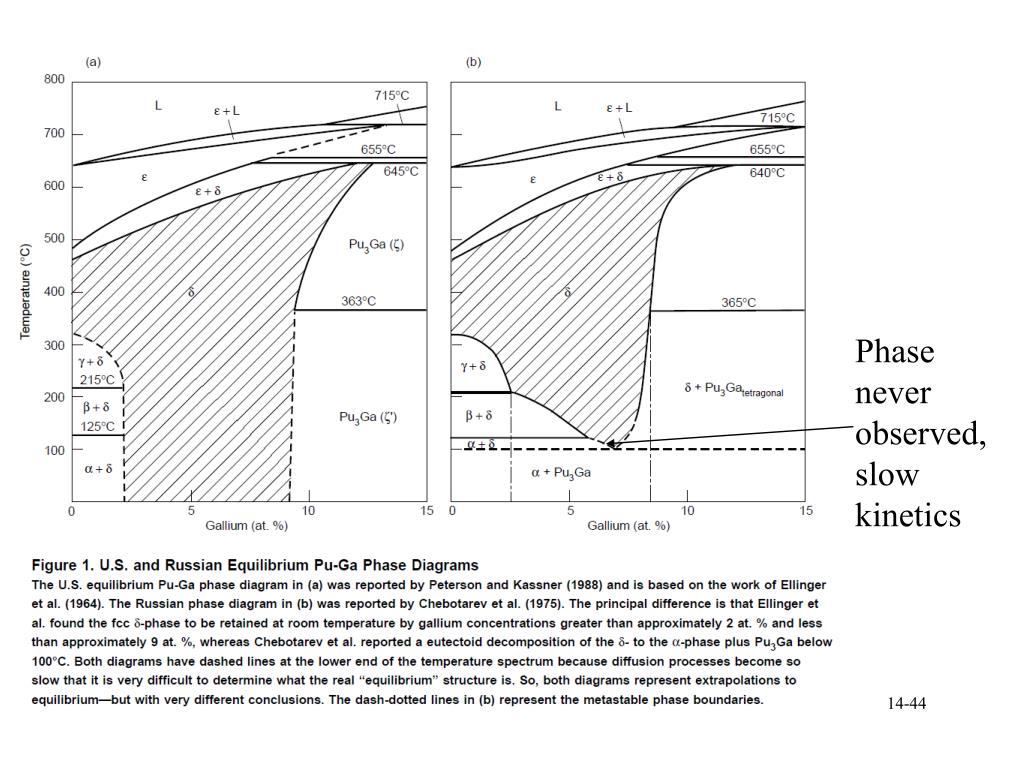

    • Pu alloys and the d phase

      • Ga stabilizes phase

      • Complicated phase diagram

    Metallic pu2
    Metallic Pu Pressure

    • Electronic structure shows competition between itinerant and localized behavior

      • Boundary between magnetic and superconductivity

      • 5f electrons 2 to 4 eV bands, strong mixing

        • Polymorphism

        • Solid state instability

        • Catalytic activity

    • Isolated Pu 7s25f6, metallic Pu 7s26d15f5

      • Lighter than Pu, addition f electron goes into conducting band

      • Starting at Am f electrons become localized

        • Increase in atomic volume

    Relativistic effect
    Relativistic Effect Pressure

    • 5f electrons extend relatively far from the nucleus compared to the 4f electrons

      • 5f electrons participate in chemical bonding

    • much-greater radial extent of the probability densities for the 7s and 7p valence states compared with 5f valence states

    • 5f and 6d radial distributions extend farther than shown by nonrelativistic calculations

    • 7s and 7p distributions are pulled closer to the ionic cores in relativistic calculations

    Pu metal corrosion and oxidation
    Pu metal corrosion and oxidation Pressure

    • Formation of oxide layer

      • Can include oxides other than dioxide

      • Slow oxidation in dry air

        • Greatly enhanced oxidation rate in presence of water or hydrogen

    • Metal has pyrophoric properties

    • Corrosion depends on chemical condition of Pu surface

      • Pu2O3 surface layer forms in absence or low amounts of O2

        • Promotes corrosion by hydrogen

    • Pu hydride (PuHx, where 1.9 < x < 3) increases oxidation rate in O2 by 1013

    • PuO2+x surface layer forms on PuO2 in the presences of water

      • enhances bulk corrosion of Pu metal in moist air

    Plutonium chemistry

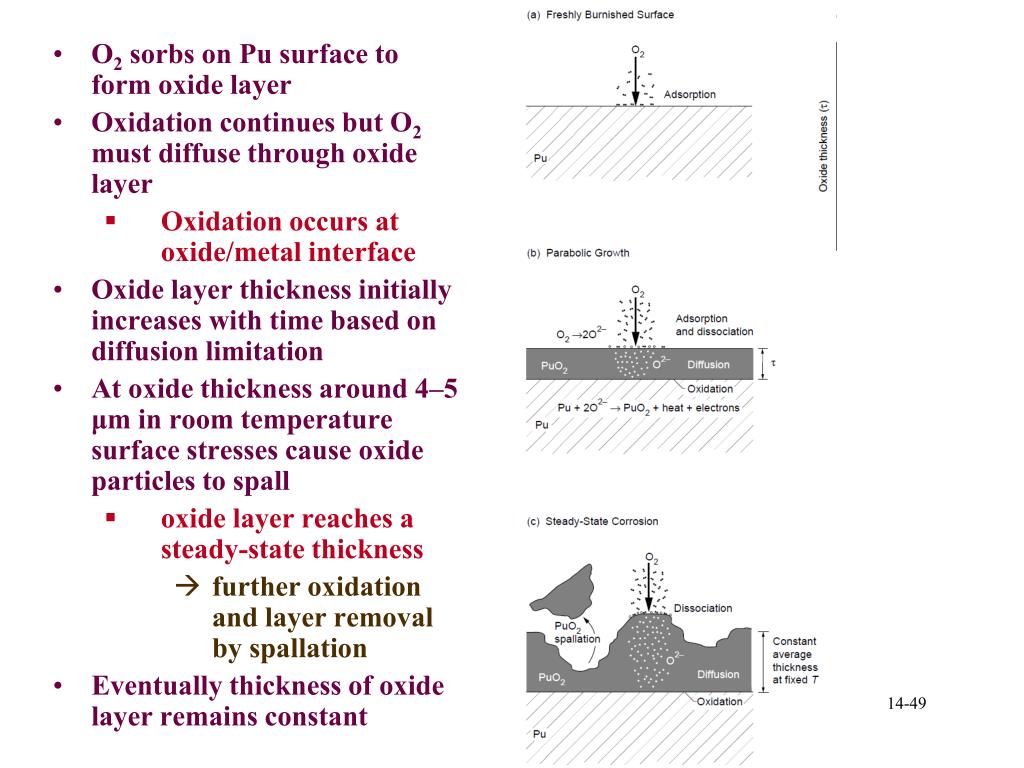

    • O Pressure2 sorbs on Pu surface to form oxide layer

    • Oxidation continues but O2 must diffuse through oxide layer

      • Oxidation occurs at oxide/metal interface

    • Oxide layer thickness initially increases with time based on diffusion limitation

    • At oxide thickness around 4–5 μm in room temperature surface stresses cause oxide particles to spall

      • oxide layer reaches a steady-state thickness

        • further oxidation and layer removal by spallation

    • Eventually thickness of oxide layer remains constant

    Steady state in dry air at room temperature
    Steady state in dry air at room temperature Pressure

    • steady-state layer of Pu2O3 at oxide-metal interface

      • Pu2O3 thickness is small compared with the oxide thickness at steady state

      • Autoreduction of dioxide by the metal at the oxide metal interface produces Pu2O3

        • Pu2O3 reacts with the diffusing O2 to form dioxide

    Arrhenius curves for oxidation of unalloyed and alloyed plutonium in dry air and water vapor
    Arrhenius Curves for Oxidation of Unalloyed and Alloyed Plutonium in Dry Air and Water Vapor

    • ln of the reaction rate R versus 1/T

      • slope of each curve is proportional to the activation energy for the corrosion reaction

    • Curve 1 oxidation rate of unalloyed plutonium in dry air or dry O2 at a pressure of 0.21 bar.

    • Curve 2a increase in the oxidation rate when unalloyed metal is exposed to water vapor up to 0.21 bar, equal to the partial pressure of oxygen in air

    • Curves 2b and 2c show the moisture-enhanced oxidation rate at water vapor pressure of 0.21 bar in temperature ranges of 61°C–110°C and 110°C–200°C, respectively

    • Curves 1’ and 2’ oxidation rates for the δ-phase gallium-stabilized alloy in dry air and moist air (water vapor pressure ≤ 0.21 bar), respectively

    • Curve 3 transition region between the convergence of rates at 400°C and the onset of the autothermic reaction at 500°C

    • Curve 4 temperature-independent reaction rate of ignited metal or alloy under static conditions

      • rate is fixed by diffusion through an O2-depleted boundary layer of N2 at the gas-solid interface

    • Curve 5 temperature-dependent oxidation rate of ignited droplets of metal or alloy during free fall in air

    Oxide layer on plutonium metal under varying conditions
    Oxide Layer on Plutonium Metal under Varying Conditions Plutonium in Dry Air and Water Vapor

    • corrosion rate is strongly dependent on the metal temperature

      • varies significantly with the isotopic composition, quantity, geometry, and storage configuration

    • steady-state oxide layer on plutonium in dry air at room temperature (25°C) is shown at the top

      • (a) Over time, isolating PuO2-coated metal from oxygen in a vacuum or an inert environment turns the surface oxide into Pu2O3 by the autoreduction reaction

      • At 25°C, the transformation is slow

      • time required for complete reduction of PuO2 depends on the initial thickness of PuO2 layer

        • highly uncertain because reaction kinetics are not quantified

    • above 150°C, rapid autoreduction transforms a several micrometer-thick PuO2 layer to Pu2O3 within minutes

      • (b) Exposure of the steady-state oxide layer to air results in continued oxidation of the metal

    • Kinetic data indicate that a one-year exposure to dry air at room temperature increases the oxide thickness by about 0.1 μm

    • At a metal temperature of 50°C in moist air (50% relative humidity), the corrosion rate increases by a factor of approximately 104

      • corrosion front advances into unalloyed metal at a rate of 2 mm per year

    • 150°C–200°C in dry air, the rate of the autoreduction reaction increases relative to that of the oxidation reaction

      • steady-state condition in the oxide shifts toward Pu2O3,

    Rates for catalyzed reactions of pu with h 2 o 2 and air
    Rates for Catalyzed Reactions of Pu with H Plutonium in Dry Air and Water Vapor2, O2, and Air

    • Diffusion-limited oxidation data shown in gray compared to data for the rates of reactions catalyzed by surface compounds

    • oxidation rates of PuHx-coated metal or alloy in air

    • the hydriding rates of PuHx- or Pu2O3-coated metal or alloy at 1 bar of pressure,

    • oxidation rates of PuHx-coated metal or alloy in O2

    • rates are extremely rapid,

    • values are constant

      • indicate the surface compounds act as catalysts

    Hydride catalyzed oxidation of pu
    Hydride-Catalyzed Oxidation of Pu Plutonium in Dry Air and Water Vapor

    • After the hydride-coated metal or alloy is exposed to O2, oxidation of the pyrophoric PuHx forms a surface layer of oxide and heat

    • H2 formed by the reaction moves into and through the hydride layer to reform PuHx at the hydride-metal interface

    • sequential processes in reaction

      • oxygen adsorbs at the gas-solid interface as O2

      • O2 dissociates and enters the oxide lattice as an anionic species

      • thin steady-state layer of PuO2 may exist at the surface

      • oxide ions are transported across the oxide layer to the oxide-hydride interface

        • oxide may be Pu2O3 or PuO2–x (0< x <0.5

      • Oxygen reacts with PuHx to form heat (~160 kcal/mol of Pu) and H2

    • H2 produced at the oxide-hydride interface moves

    • through the PuHx layer to the hydride-metal interface

    • reaction of hydrogen with Pu produces PuH2 and heat

    Rupture in inner container for pu metal
    rupture in inner container for Pu metal Plutonium in Dry Air and Water Vapor

    Plutonium chemistry

    • increase in the inner Plutonium in Dry Air and Water Vaporvessel’s diameter near the ruptured endshows the extent of hydride-catalyzedcorrosion during a 3-hour period

    Pu oxide
    Pu oxide Plutonium in Dry Air and Water Vapor

    • Pu storage, fuel, and power generators

    • Important species

      • Corrosion

      • Environmental behavior

    • Different Pu oxide solid phases

      • PuO

      • Pu2O3

        • Composition at 60 % O

        • Different forms at PuOx

          • x=1.52, bcc

          • x=1.61, bcc

      • PuO2

        • fcc, wide composition range (1.6 <x<2)

    Pu oxide preparation
    Pu oxide preparation Plutonium in Dry Air and Water Vapor

    • Pu2O3

      • Hexagonal (A-Pu2O3) and cubic (C-Pu2O3)

        • Distinct phases that can co-exist

        • No observed phase transformation

          • Kinetic behavior may influence phase formation of cubic phase

            • C-Pu2O3 forms on PuO2 of d-stabilized metal when heated to 150-200 °C under vacuum

            • Metal and dioxide fcc, favors formation of fcc Pu2O3

            • Requires heating to 450 °C to produce hexagonal form

            • Not the same transition temperature for reverse reaction

            • Indication of kinetic effect

      • Formed by reaction of PuO2 with Pu metal, dry H2, or C

        • A-Pu2O3 formed

        • PuO2+Pu2Pu2O3 at 1500 °C in Ta crucible

          • Excess Pu metal removed by sublimation

        • 2PuO2+CPu2O3 + CO

    Pu oxide preparation1
    Pu oxide preparation Plutonium in Dry Air and Water Vapor

    • Hyperstoichiometric sesquioxide (PuO1.6+x)

      • Requires fast quenching to produce of PuO2 in melt

        • Slow cooling resulting in C-Pu2O3 and PuO2-x

        • x at 0.02 and 0.03

    • Substoichiometric PuO2-x

      • From PuO1.61 to PuO1.98

        • Exact composition depends upon O2 partial pressure

      • Single phase materials

        • Lattice expands with decreasing O

    Pu oxide preparation2
    Pu oxide preparation Plutonium in Dry Air and Water Vapor

    • PuO2

      • Pu metal ignited in air

      • Calcination of a number of Pu compounds

        • No phosphates

        • Pu crystalline PuO2 formed by heating Pu(III) or Pu(IV) oxalate to 1000 °C in air

          • Oxalates of Pu(III) forms a powder, Pu(IV) is tacky solid

        • Rate of heating can effect composition due to decomposition and gas evolution

      • PuO2 is olive green

        • Can vary due to particle size, impurities

      • Pressed and sintered for heat sources or fuel

      • Sol-gel method

        • Nitrate in acid injected into dehydrating organic (2-ethylcyclohexanol)

        • Formation of microspheres

          • Sphere size effects color

    Pu oxide preparation3
    Pu oxide preparation Plutonium in Dry Air and Water Vapor

    • PuO2+x, PuO3, PuO4

      • Tetravalent Pu oxides are favored

        • Unable to oxidize PuO2

          • High pressure O2 at 400 °C

          • Ozone

      • PuO2+x reported in solid phase

        • Related to water reaction

          • PuO2+xH2OPuO2+x + xH2

          • Final product PuO2.3, fcc

      • PuO3 and PuO4reported in gas phase

        • From surface reaction with O2

          • PuO4 yield decreases with decreasing O2 partial pressure

    Pu oxide1
    Pu oxide Plutonium in Dry Air and Water Vapor

    • Oxygen at 1.84 Å

      • Similar to Pu=O in Pu(V) complexes

        • 1.85 Å

      • Interpreted as mixture of Pu(IV) and Pu(V)

        • Oxidation by electron transfer to O

        • f4 to f3transition

    • Properties

      • Interstitial excess O and O vacancies are mobile

        • Interstitials are more mobile

      • Similar to O behavior in U

        • Studied by gas phase isotope exchange

    • Vaporization complicated

      • Some composition change upon heating

        • C-Pu2O3 decomposes to A-Pu2O3 and PuO1.6+x

        • Data on vaporization conflicting

          • Dependent upon technique, interaction with matrix

      • PuO2 goes to PuO1.831

        • Gas phase PuO2+ and PuO+

    Pu oxide2
    Pu oxide Plutonium in Dry Air and Water Vapor

    • Chemical properties

      • Thermodynamic parameter available for Pu oxides

      • Dissolution

        • High fired PuO2 difficult to dissolve

        • Rate of dissolution dependent upon temperature and sample history

          • Irradiated PuO2 has higher dissolution rate with higher burnup

        • Dissolution often performed in 16 M HNO3 and 1 M HF

          • Can use H2SiF6 or Na2SiF6

        • KrF2 and O2F2 also examined

        • Electrochemical oxidation

          • HNO3 and Ag(II)

        • Ce(IV) oxidative dissolution

    U pu oxides
    U-Pu-Oxides Plutonium in Dry Air and Water Vapor

    • MOX fuel

      • 2-30 % PuO2

    • Lattice follows Vegard’s law

    • Different regions

      • Orthorhombic U3O8 phase

      • Fluorite dioxide

        • Deviations from Vegard’s law may be observed from O loss from PuO2 at higher temperature

    Pu non aqueous chemistry
    Pu non-aqueous chemistry Plutonium in Dry Air and Water Vapor

    • Cyclooctatraene (C8H8) complexes

      • [NEt4]2PuCl6 + 2K2C8H8 Pu(C8H8)2+4KCl + 2[NEt4]Cl in THF

        • Slightly soluble in aromatic and chlorinated hydrocarbons

        • D8h symmetry

        • 5f-5f and 5f-6d mixing

          • Covalent bonding, molar absorptivity approaching 1000 L mol-1cm-1

    • Cyclopentadienyl (C5H5), Cp

      • PuCl3 with molten (C5H5)2Be

        • trisCp Pu

          • Reactions also possible with Na, Mg, and Li Cp

      • Cs2PuCl6+ 3Tl(C5H5) in acetonitrile

      • Formation of Lewis base species

        • CpPuCl3L2

          • From PuCl4L2 complex

      • Characterized by IR and Vis spectroscopy

    Pu electronic structure
    Pu electronic structure Plutonium in Dry Air and Water Vapor

    • Plutonocene

    • 8 C 2 pi orbitals form pi bonds

      • Combine with 6d Pu atomic orbitals

      • 5f form s, p, d, and f orbitals

        • 5fddirected toward C8 rings

          • Bond 49 % f character

          • Demonstrates covalency

          • Other interactions weaker

      • Stronger d interactions

        • Orbital 11% d character

    Review Plutonium in Dry Air and Water Vapor

    • Nuclear properties and isotope production

      • Production from 238U

      • Fissile and fertile isotopes

    • Pu in nature

      • Location, levels and how produced

    • Separation and Purification

      • Role of redox in aqueous and non-aqueous separations

    • Metallic state

      • Phases, alloys, and reactions with gases

    • Compounds

      • Preparation and properties

    • Solution chemistry

      • Oxidation state

      • Spectroscopic properties

      • Structure and coordination chemistry

    Questions Plutonium in Dry Air and Water Vapor

    • Which isotopes of Pu are fissile, why?

    • How can one produce 238Pu and 239Pu?

    • How is Pu naturally produced?

    • How is redox exploited in Pu separation? Describe Pu separation in Purex and molten salt systems.

    • What are some alloys of Pu?

    • How does Pu metal react with oxygen, water, and hydrogen?

    • How can different Pu oxidation states in solution be identified?

    • Name a stable Pu(VI) compound in solution, provide its structure.

    Pop quiz
    Pop Quiz Plutonium in Dry Air and Water Vapor

    • What is the reason that Pu metal has multiple phases?
