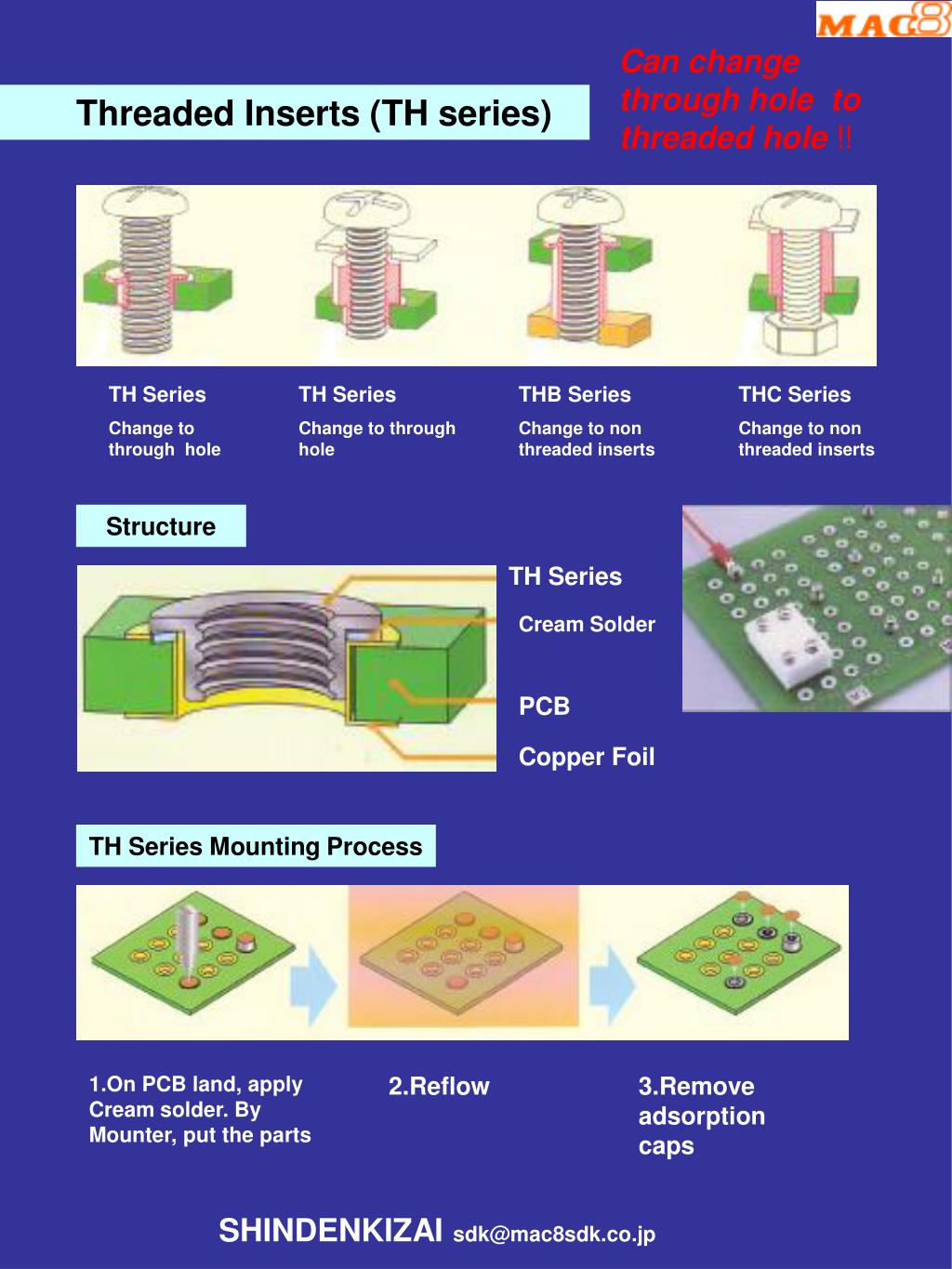

  1. Can change through hole to threaded hole !! Threaded Inserts (TH series) TH Series Change to through hole TH Series Change to through hole THB Series Change to non threaded inserts THC Series Change to non threaded inserts Structure TH Series Cream Solder PCB Copper Foil TH Series Mounting Process 1.On PCB land, apply Cream solder. By Mounter, put the parts 2.Reflow 3.Remove adsorption caps SHINDENKIZAI sdk@mac8sdk.co.jp

  2. Threaded Inserts TH series Through hole is changed to threaded hole(M1.0,M1.2,M1.4,M1.7,M2, M2.6, M3). Taping type has adsorption cap for vacuum pick. It needs to be removed after reflow. ■Material: Brass ■Finish: Sn plating over Ni ■Recommended PCB Thickness:1.6t for TH-1.6 Series, 0.8t for TH-0.8 Series ■Recommended Metal Mask Thickness:150-200μ ■Current Capacity   ■ Tightening Torque *we can provide the bulk type *Mounter should have automatic recognition system SHINDENKIZAI sdk@mac8sdk.co.jp

  3. Threaded Inserts TH-0.8 series ■Stand-off type threaded inserts. This is mounted on PCB by inserting into through-hole. ■Screws can be inserted from both component and solder side. ■Taping type has adsorption cap for vacuum pick. It needs to be removed after reflow. ■Mounter should have automatic recognition system. ■Bulk type (100pcs/pack) is available.■Recommended PCB Thickness: 0.8-1.5t ■Current Capacity    ■ Tightening Torque SHINDENKIZAI sdk@mac8sdk.co.jp

  4. Threaded Inserts TH-1.6 series ■Stand-off type threaded inserts. This is mounted on PCB by inserting into through-hole. ■Screws can be inserted from both component and solder side. ■Taping type has adsorption cap for vacuum pick. It needs to be removed after reflow. ■Mounter should have automatic recognition system. ■Bulk type (100pcs/pack) is available.■Recommended PCB Thickness: 1.6t and above ■Current Capacity    ■ Tightening Torque SHINDENKIZAI sdk@mac8sdk.co.jp

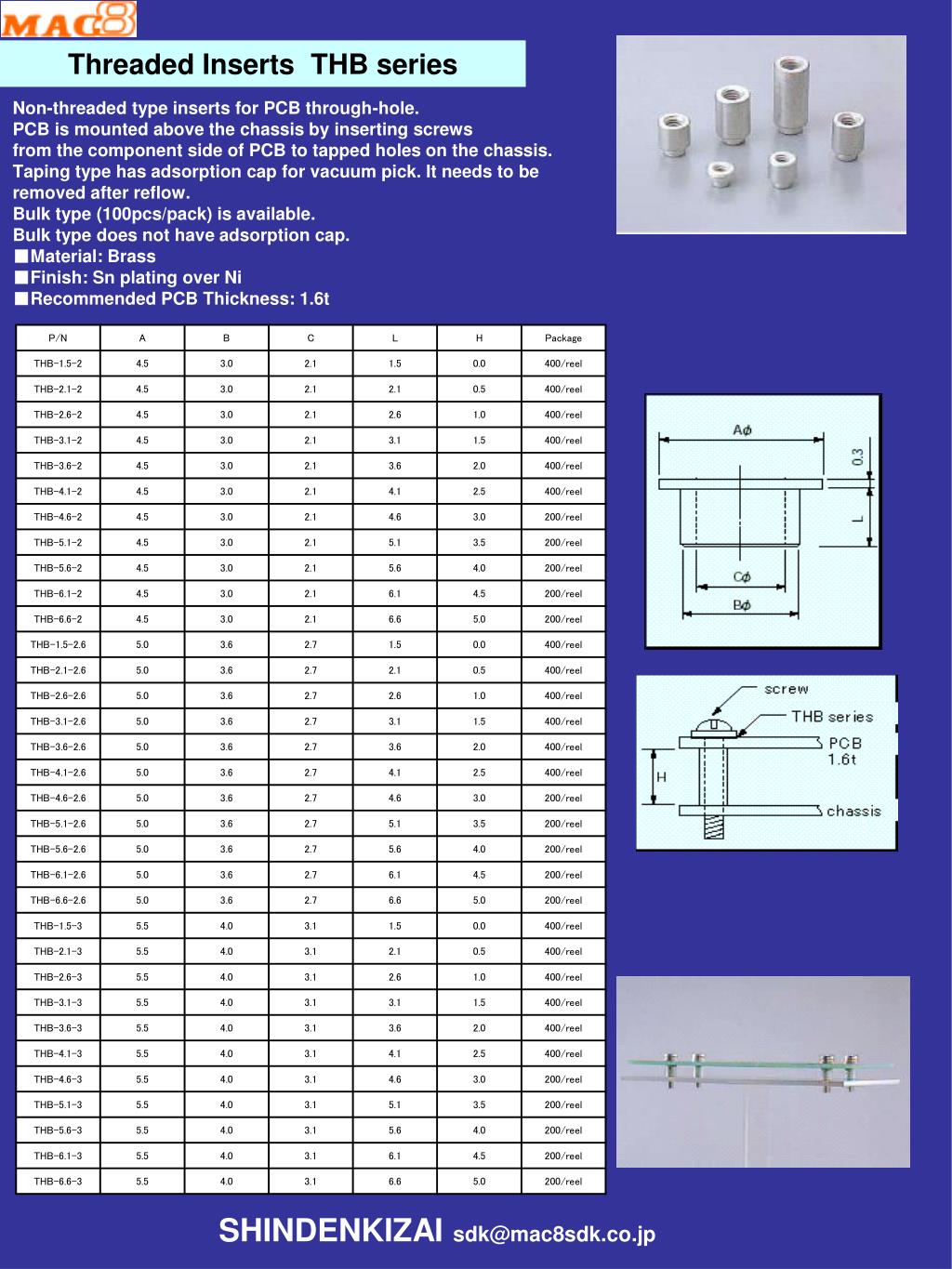

  5. Threaded Inserts THB series Non-threaded type inserts for PCB through-hole. PCB is mounted above the chassis by inserting screws from the component side of PCB to tapped holes on the chassis. Taping type has adsorption cap for vacuum pick. It needs to be removed after reflow. Bulk type (100pcs/pack) is available.Bulk type does not have adsorption cap. ■Material: Brass ■Finish: Sn plating over Ni ■Recommended PCB Thickness: 1.6t SHINDENKIZAI sdk@mac8sdk.co.jp

  6. Threaded Inserts THC1.6 series ■Stand-off type non-threaded inserts. This is mounted on PCB by inserting into through-hole. ■Taping type has adsorption cap for vacuum pick. It needs to be removed after reflow. ■Mounter should have automatic recognition system. ■Bulk type (100pcs/pack) is available.■Bulk type does not have adsorption cap. ■Material: Brass ■Finish: Sn plating over Ni ■Recommended PCB Thickness: 1.6t and above *You can order THC-0.8 Series SHINDENKIZAI sdk@mac8sdk.co.jp
