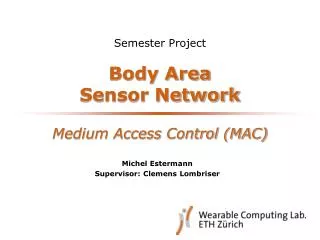

Semester Project. Body Area Sensor Network. Medium Access Control (MAC). Michel Estermann Supervisor: Clemens Lombriser. Medium Access Control Tasks. Provide reliable peer-to-peer communication in a multi-node network Control & allocate access to the medium

genica
Download Presentation

Body Area Sensor Network

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Semester Project Body Area Sensor Network Medium Access Control (MAC) Michel Estermann Supervisor: Clemens Lombriser

  2. Medium Access Control Tasks • Provide reliable peer-to-peer communication in a multi-node network • Control & allocate access to the medium • Provide and encapsulate functionality to higher layers: • Accept data to send • Return received data

  3. Requirements • Low overall power consumption • Short active listen time • Reduced idle listening • Low message overhead • No blocking through busy waiting • Simplicity

  4. Communication Test

  5. Communication Test

  6. Communication Test

  7. Conclusion • Small number of neighbours (~5-10) • Only 0dBm output power useful • Master is not useful • Limited carrier sensing • Need of a broadcast address & channel • Destination address in control messages required • Timer clock drift: around7•10-6

  8. BASN-MAC Key Concepts • Based on S-MAC (T-MAC) • Listen/sleep low duty-cycle • Interrupt driven (Timer of mC) • CSMA with RTS/CTS messages • Virtual clusters with same schedule • Dedicated channel for data transmission • No interruption during data transmission

  9. Low Duty-Cycle Schedule

  10. Initialization & Synchronization

  11. Schedule Correction Node 1 Node 2 diff = (next listen – delay) – (schedule entry – cur)

  12. Schedule Correction

  13. Communication

  14. Theoretical Datarate • Assumptions: • No collision, carrier idle, no packet loss, no waiting • Power up: 3ms • Avg. carrier sensing time: 5ms • Change to TX – send message –change to RX: 2ms • Listen time 100ms, periode 400ms • Max. data payload 24 Bytes • Max. number of frames 255 powerUp + 2*send + 2*receive + 3*CS = 26ms Data Transmission: (24 +5 Bytes *255) / 256kbps + 69ms =~300ms Datarate: 6120 bytes / 400ms = ~15 kB/s
