Presentation Transcript

  1. GBIC SHOP SUPERIOR FIBER SUPPLY https://www.gbic-shop.de/

  2. ABOUT US gbic-shop.de is a Manufacturer of active and passive network solutions. The BlueOptics and BlueLAN brands include the following products: Optical Transceivers, Active Optical Cable and Direct Attach Twinax Cable Solutions, MPO / MTP Solutions, SAS Solutions, Stacking Cables, Fiber Optic Patch Cords, PLC Splitters, Multiplexers, Demultiplexers, as well as other data center and cloud solutions. https://www.gbic-shop.de/

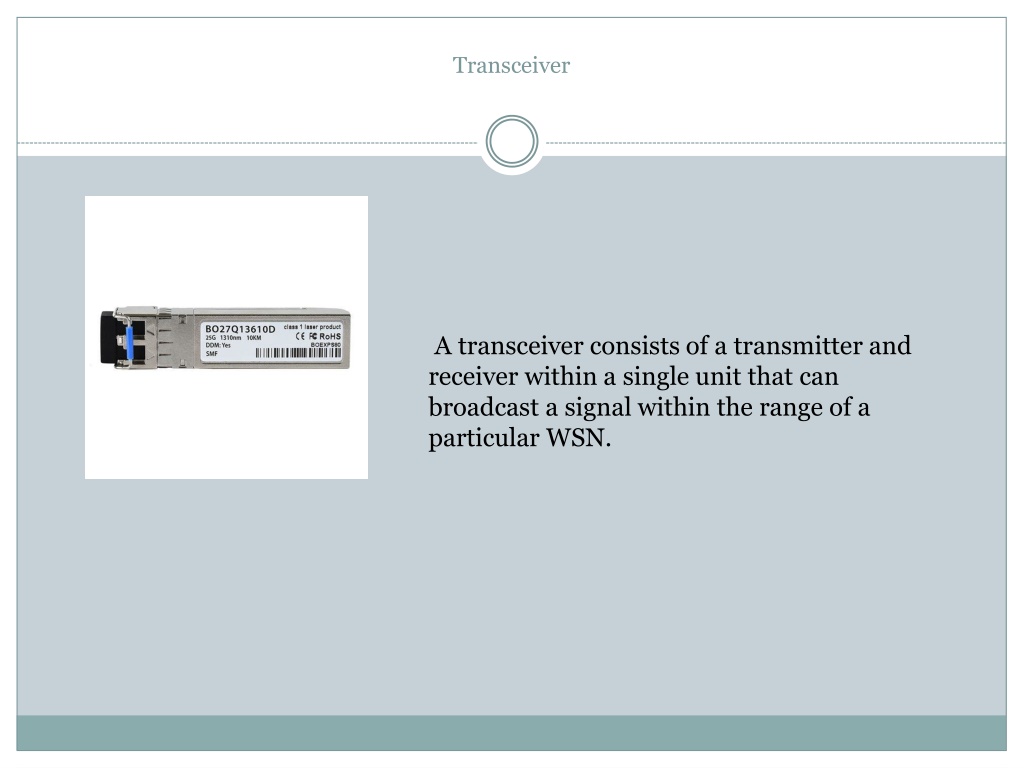

  3. Transceiver A transceiver consists of a transmitter and receiver within a single unit that can broadcast a signal within the range of a particular WSN.

  4. OSFP TRANCIEVER QSFP transceivers are Quad Small Form-Factor Transceivers and they're used for better bandwidth programs and longer distances. They also can be used for single-mode fibers and multi-mode fibers.

  5. Single mode QSFP transceivers have low tolerance for the optics used. Their middle is considerably smaller than multi-mode and as a result their wavelength is narrower. With its smaller core and narrower wavelength, the single-mode transceiver has the functionality to supply longer distance and lots larger bandwidth in transmission. These transceivers function particularly in 1310nm wavelength. There are many kinds of QSFP single mode transceivers, but typically they are able to attain as much as 40 kilometers. Most commonly they may be found with a duplex LC connector, but there are alternatives for QSFP transceiver with an MPO/MTP connector. • Multimode QSFP transceivers function a larger center and larger wavelength of optical mild. Because their center is significantly larger in comparison to single-mode, they are able to acquire a great deal extra light from the laser. To put matters in perspective, which means that their optics are less complicated to fabricate and consequently less expensive to purchase. Mainly those transceivers work with 850nm wavelength and are simplest used for quick distances, as much as 500 meters. Generally those transceivers use MPO/MTP connectors, but is not uncommon to find a Multi-mode QSFP transceiver with a duplex LC connector.

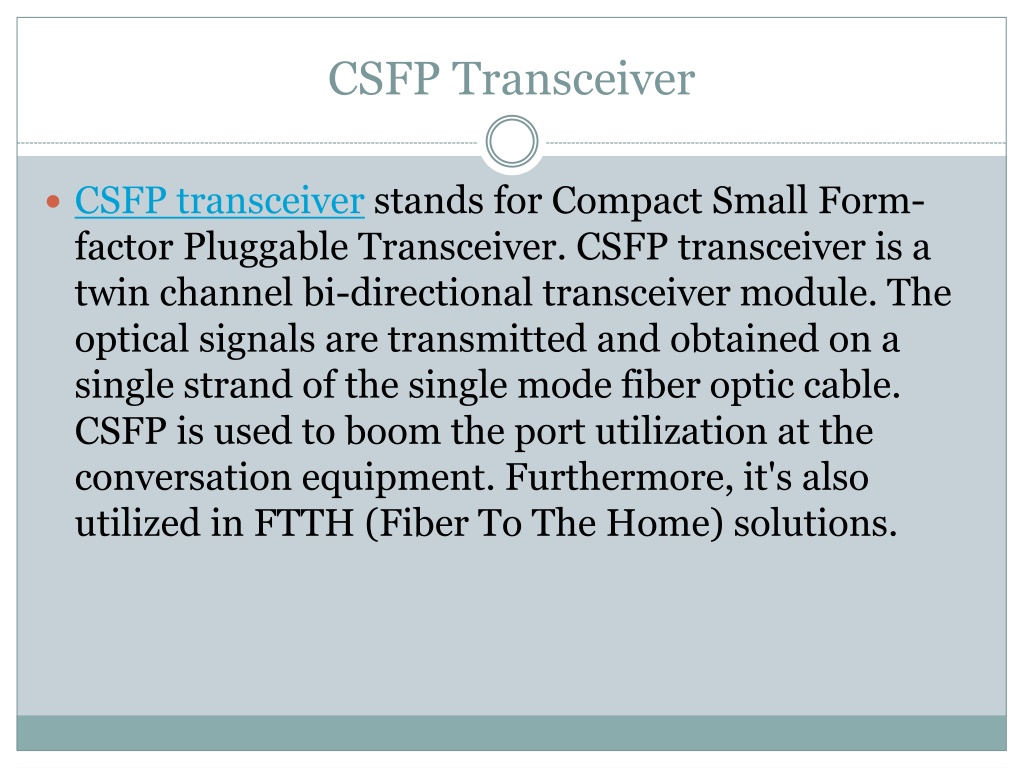

  6. CSFP Transceiver CSFP transceiver stands for Compact Small Form-factor Pluggable Transceiver. CSFP transceiver is a twin channel bi-directional transceiver module. The optical signals are transmitted and obtained on a single strand of the single mode fiber optic cable. CSFP is used to boom the port utilization at the conversation equipment. Furthermore, it's also utilized in FTTH (Fiber To The Home) solutions.

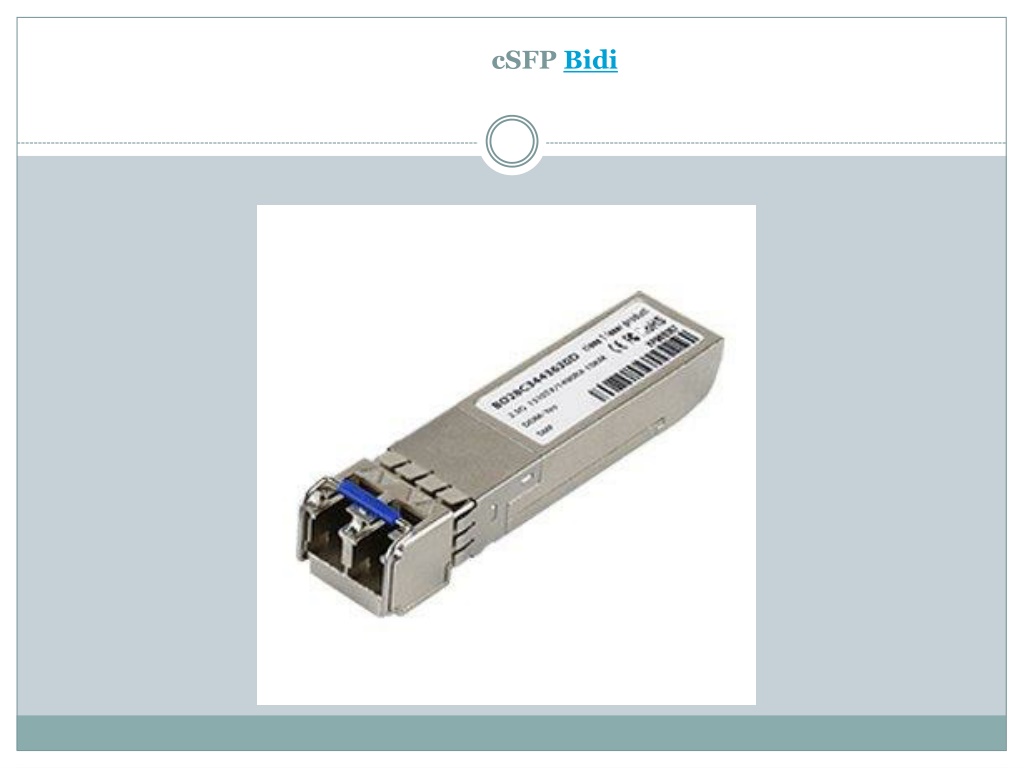

  7. cSFP Bidi

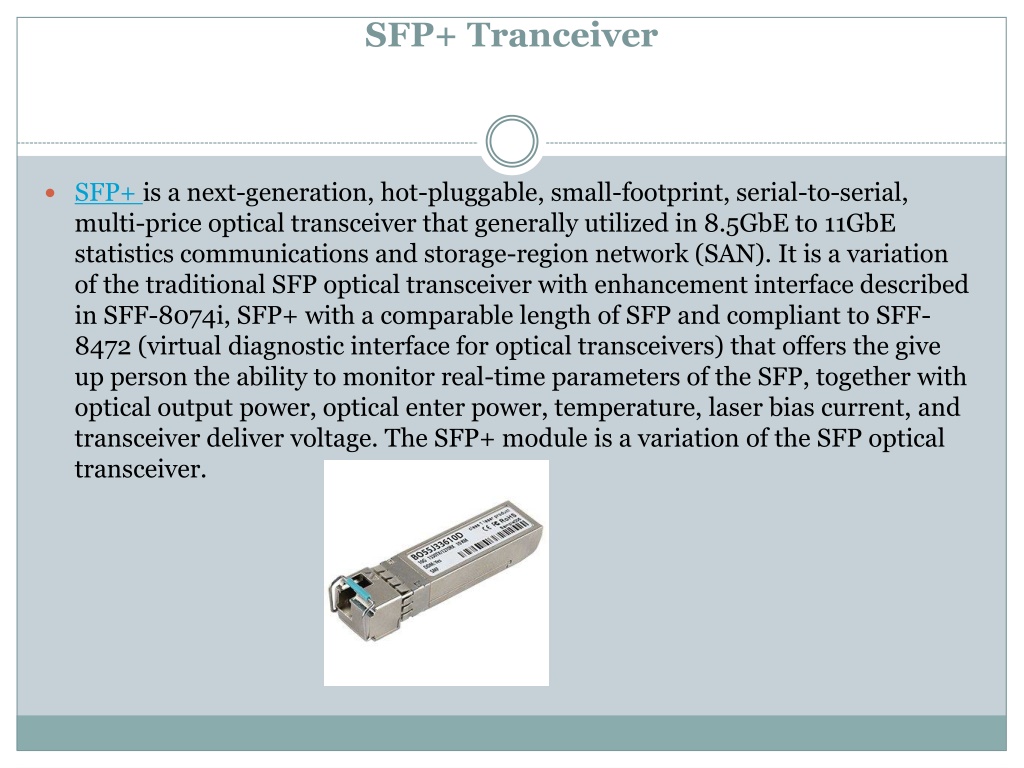

  8. SFP+ Tranceiver SFP+ is a next-generation, hot-pluggable, small-footprint, serial-to-serial, multi-price optical transceiver that generally utilized in 8.5GbE to 11GbE statistics communications and storage-region network (SAN). It is a variation of the traditional SFP optical transceiver with enhancement interface described in SFF-8074i, SFP+ with a comparable length of SFP and compliant to SFF-8472 (virtual diagnostic interface for optical transceivers) that offers the give up person the ability to monitor real-time parameters of the SFP, together with optical output power, optical enter power, temperature, laser bias current, and transceiver deliver voltage. The SFP+ module is a variation of the SFP optical transceiver.

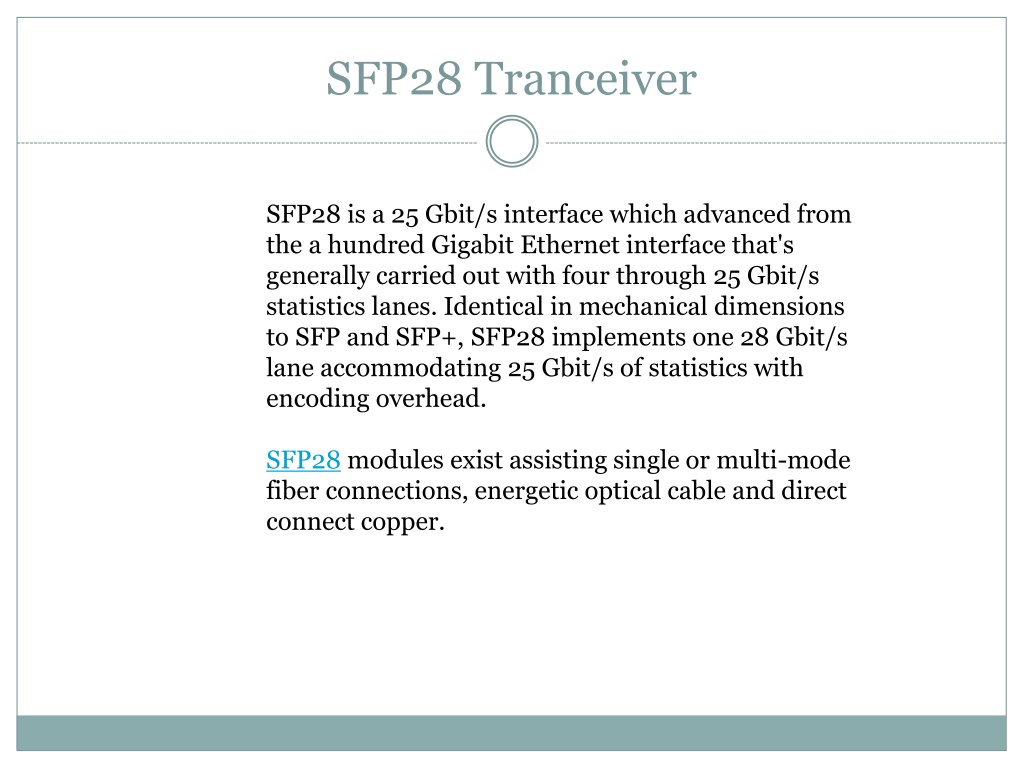

  9. SFP28 Tranceiver SFP28 is a 25 Gbit/s interface which advanced from the a hundred Gigabit Ethernet interface that's generally carried out with four through 25 Gbit/s statistics lanes. Identical in mechanical dimensions to SFP and SFP+, SFP28 implements one 28 Gbit/s lane accommodating 25 Gbit/s of statistics with encoding overhead. SFP28 modules exist assisting single or multi-mode fiber connections, energetic optical cable and direct connect copper.

  10. CONTACT CBO GmbHFriedhofstr. 2545478 Mülheim an der RuhrPhone:0208 - 777 247 - 0Email:info@gbic-shop.de https://www.gbic-shop.de/
