  1. 中尺度氣象學 (Mesoscale Meteorology) 授課老師: 游政谷 Mesoscale(3)

  2. Terminal velocities of ice crystals (from Fletcher 1962)

  3. 0.5 deg Elevation PPI 230 km 115 km

  4. RHI examples Radar Reflectivity (dBZ) Radial Velocity Vr

  5. 飛機都卜勒雷達掃描方式之示意圖 雷達資料在空間中之分佈

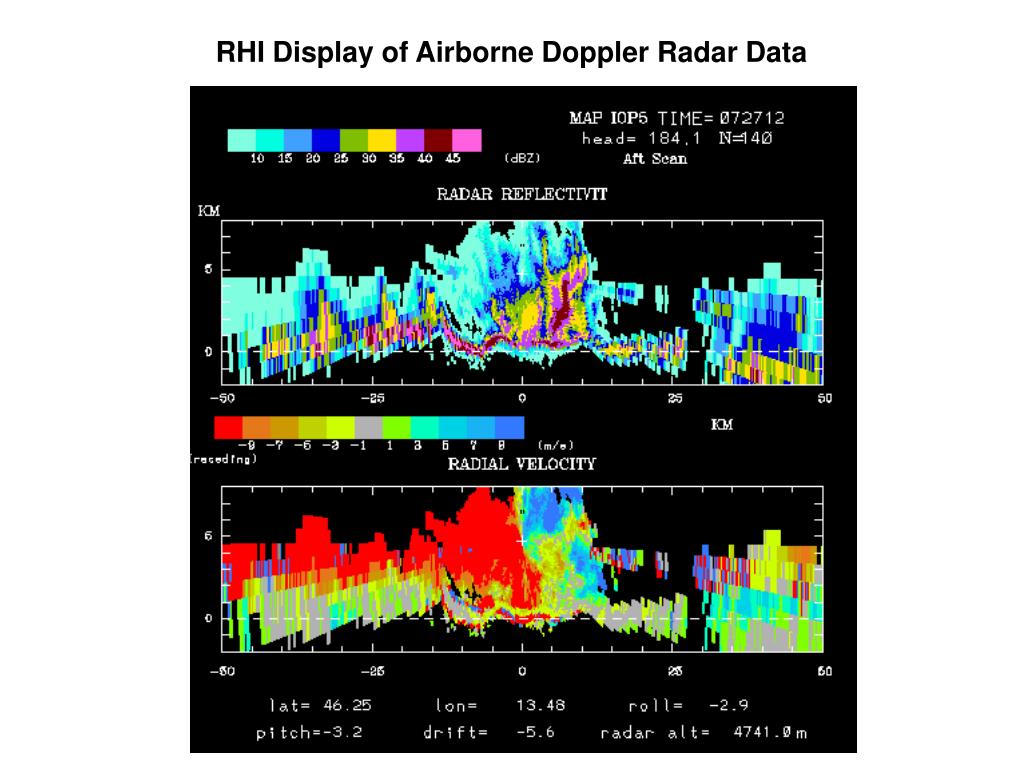

  6. RHI Display of Airborne Doppler Radar Data

  7. 台灣氣象雷達觀測網 中正機場 五分山 清泉崗 花蓮 七股 綠島 墾丁

  8. 地面雷達雙都卜勒合成風場 (五分山與中正機場雷達) RCWF (0.0,0.0) CKS (-57.0,-0.3)

  9. 垂直速度場與降水回波 dBZ

  10. Airborne Dual-Doppler Synthesis Horizontal Winds 4.25 km (MSL)

  11. Ground-based dual-Doppler and polarimetric radar observations in Mesoscale Alpine Programme
