  1. Interim Review #2 RAV Team Matthew Allgeier Kevin DiFalco Daniel Hunt Derrick Maestas Steve Nauman Jaclyn Poon Aaron Shileikis

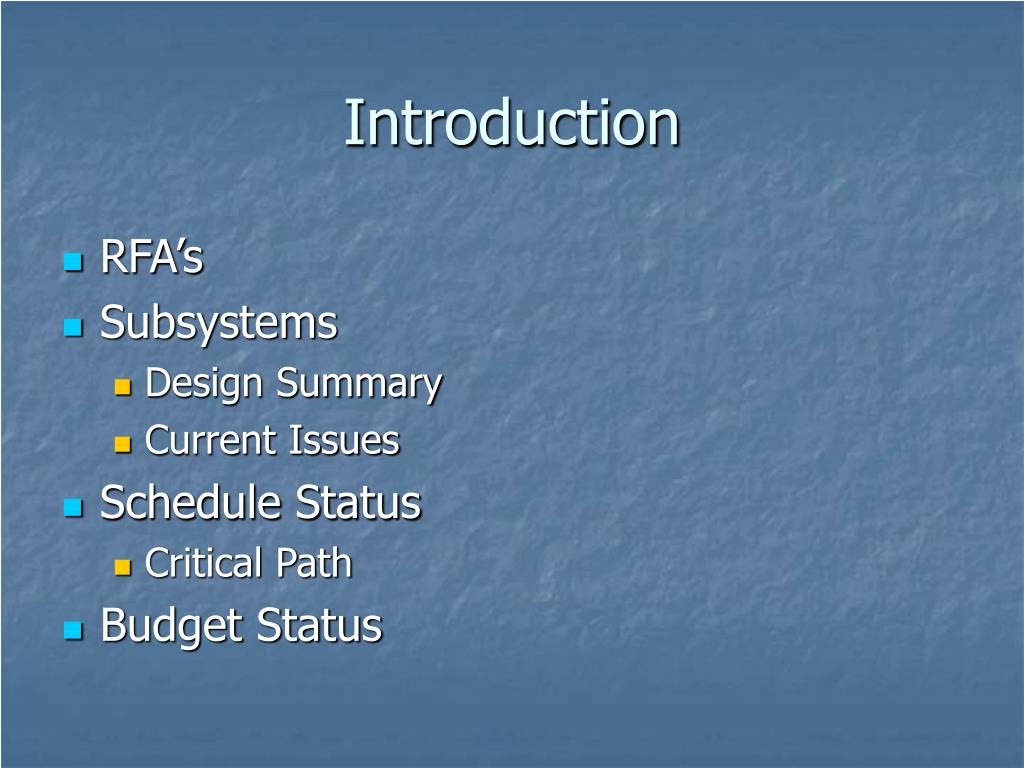

  2. Introduction • RFA’s • Subsystems • Design Summary • Current Issues • Schedule Status • Critical Path • Budget Status

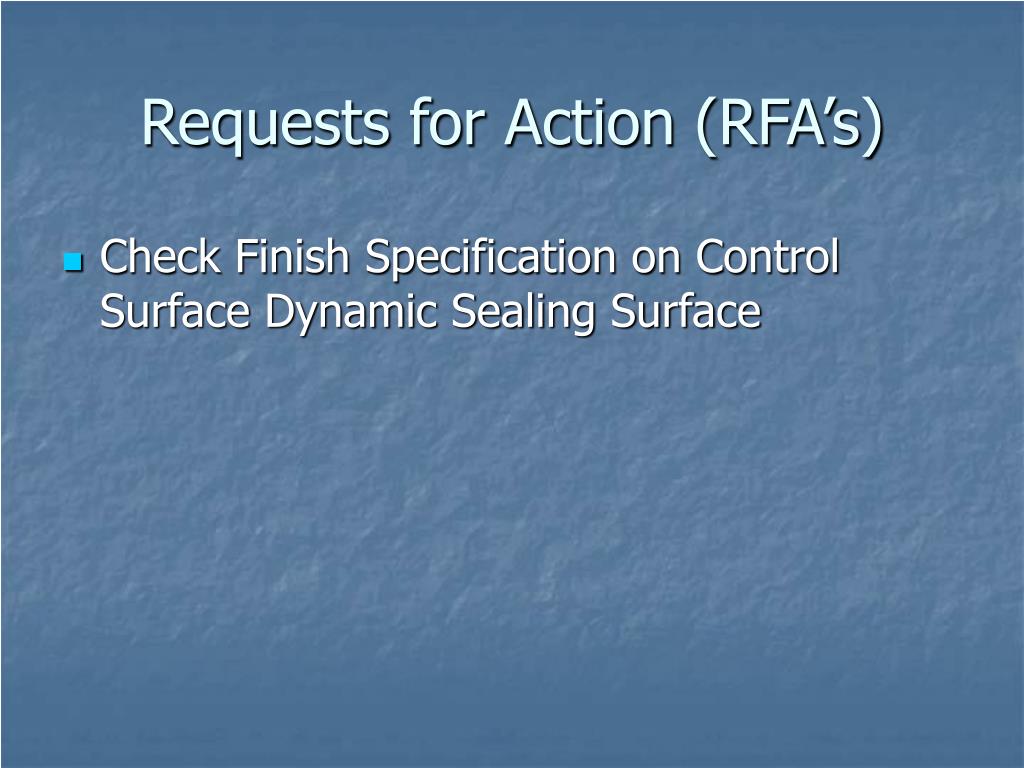

  3. Requests for Action (RFA’s) • Check Finish Specification on Control Surface Dynamic Sealing Surface

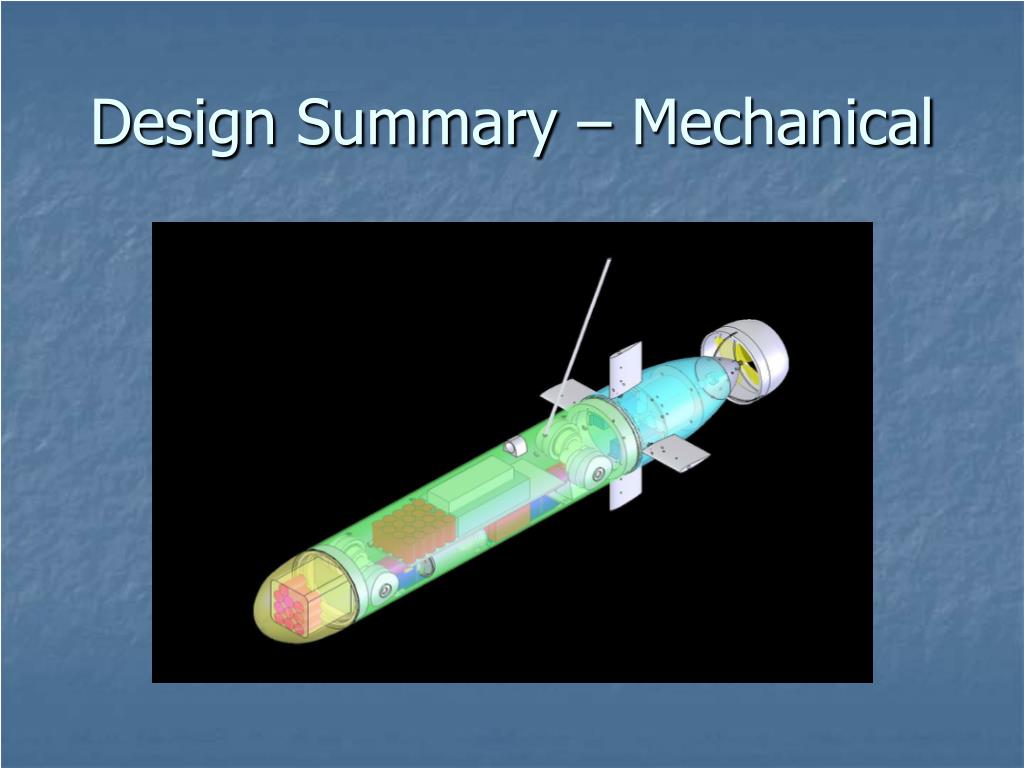

  4. Design Summary – Mechanical

  5. Hydrodynamic RFA • Check Finish Spec on Seal Surface for Control Surface Seals • Optimal rod surface finish < 8in (0.2 microns) • Type 303 Precision Stainless Steel shafts have a finish of 10 microns • Sales Engineers at Eclipse engineering confirmed that this finish would be adequate for low speed intermittent use

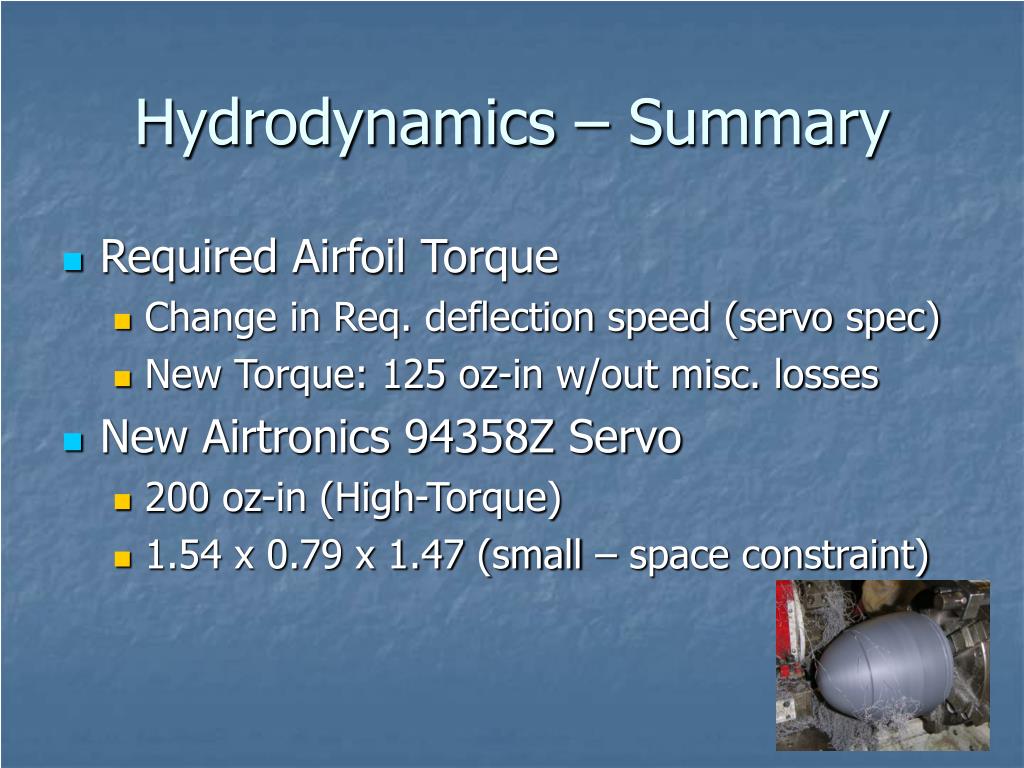

  6. Hydrodynamics – Summary • Required Airfoil Torque • Change in Req. deflection speed (servo spec) • New Torque: 125 oz-in w/out misc. losses • New Airtronics 94358Z Servo • 200 oz-in (High-Torque) • 1.54 x 0.79 x 1.47 (small – space constraint)

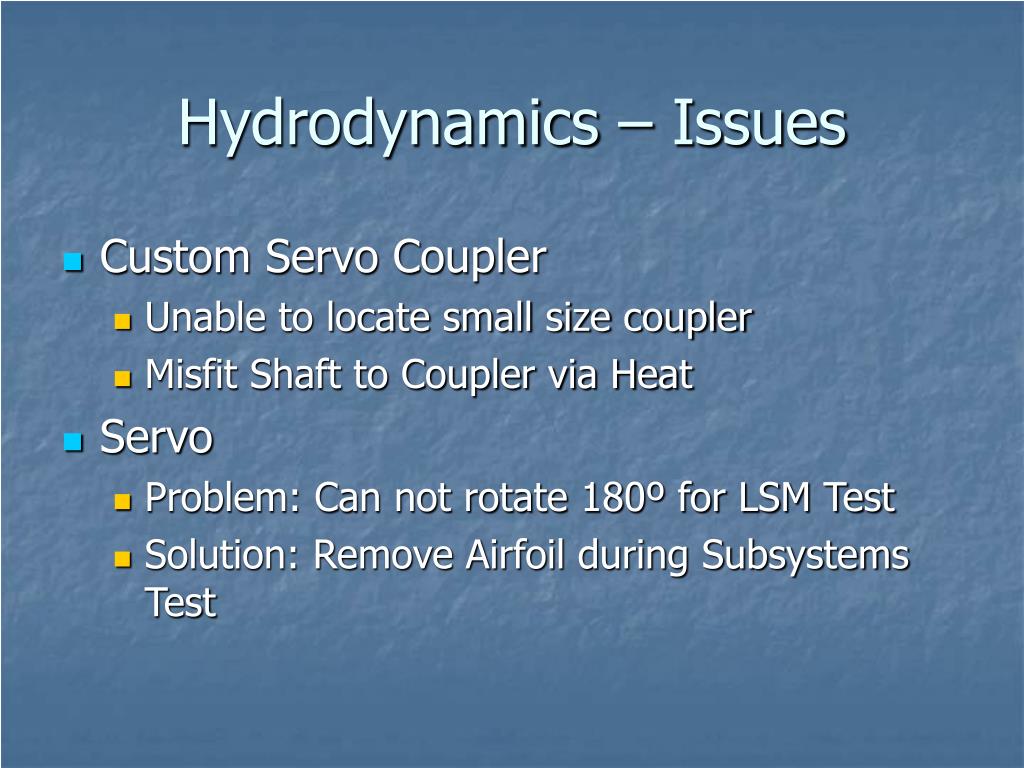

  7. Hydrodynamics – Issues • Custom Servo Coupler • Unable to locate small size coupler • Misfit Shaft to Coupler via Heat • Servo • Problem: Can not rotate 180º for LSM Test • Solution: Remove Airfoil during Subsystems Test

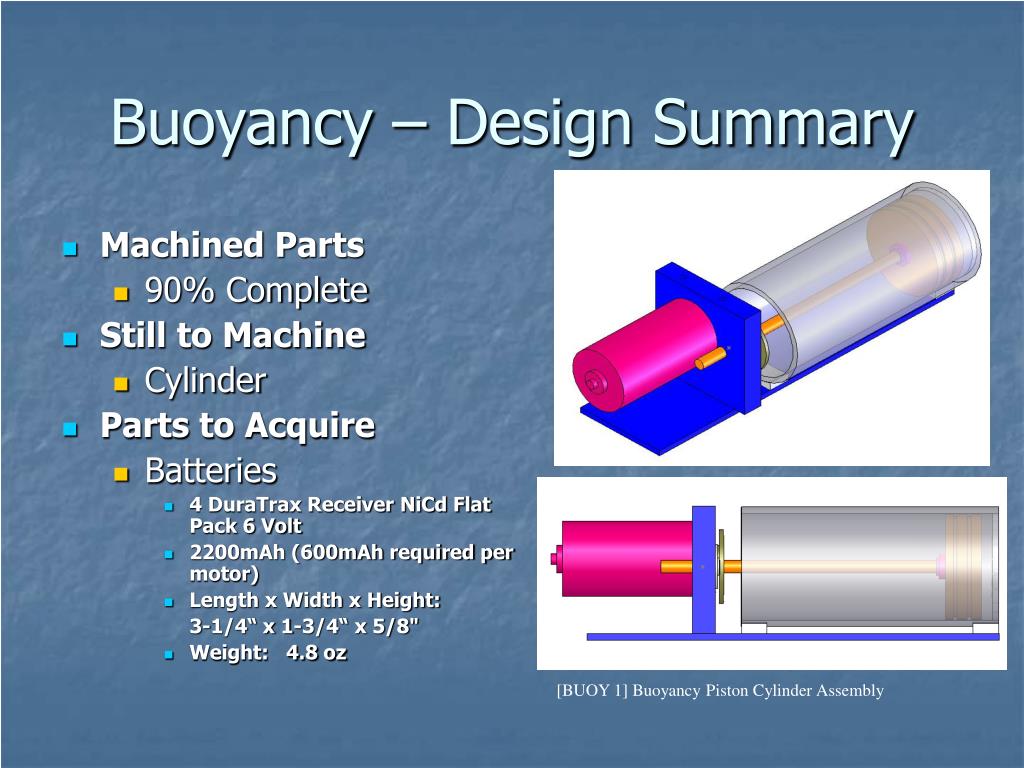

  8. Buoyancy – Design Summary • Machined Parts • 90% Complete • Still to Machine • Cylinder • Parts to Acquire • Batteries • 4 DuraTrax Receiver NiCd Flat Pack 6 Volt • 2200mAh (600mAh required per motor) • Length x Width x Height: 3-1/4“ x 1-3/4“ x 5/8" • Weight: 4.8 oz [BUOY 1] Buoyancy Piston Cylinder Assembly

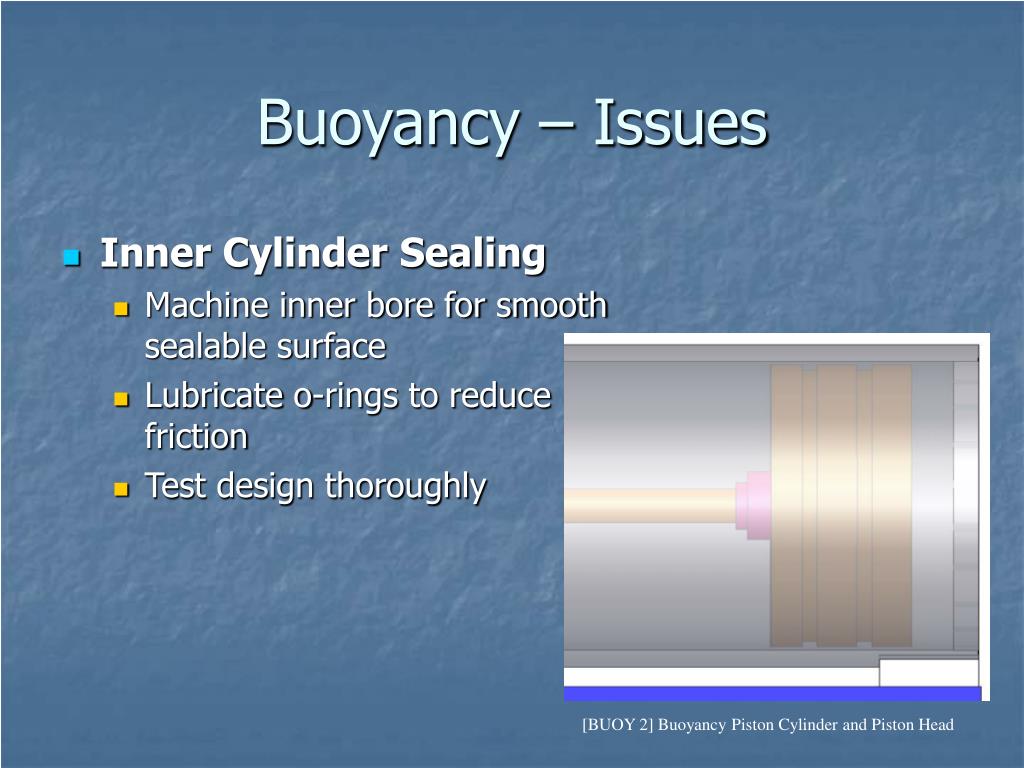

  9. Buoyancy – Issues • Inner Cylinder Sealing • Machine inner bore for smooth sealable surface • Lubricate o-rings to reduce friction • Test design thoroughly [BUOY 2] Buoyancy Piston Cylinder and Piston Head

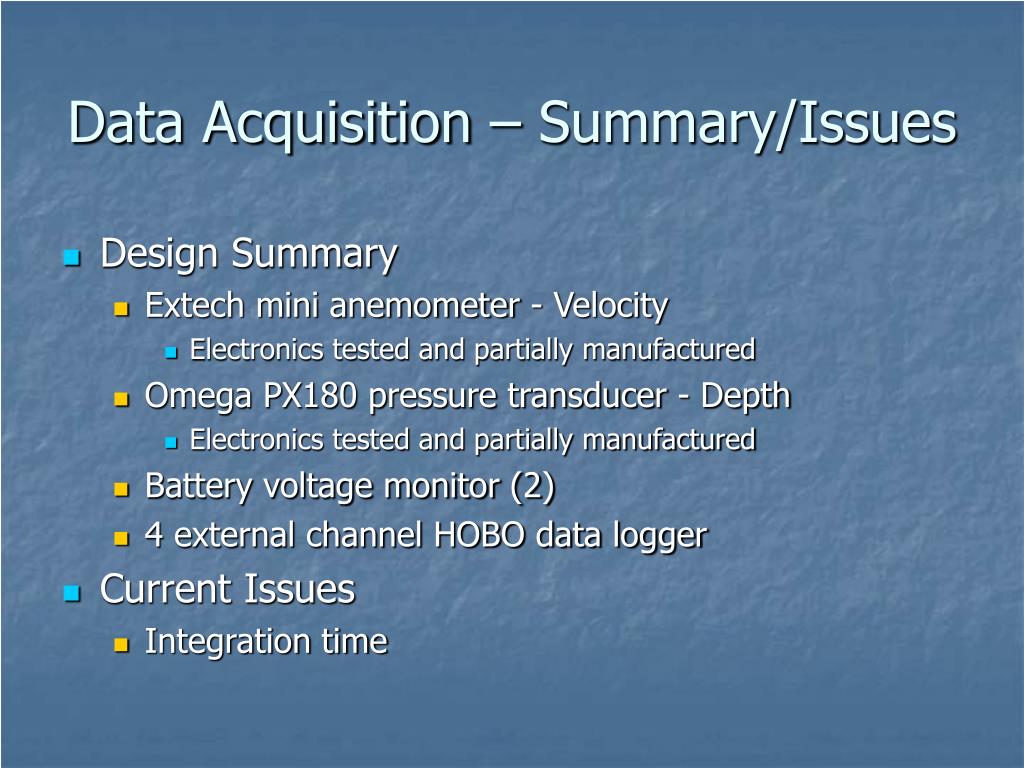

  10. Data Acquisition – Summary/Issues • Design Summary • Extech mini anemometer - Velocity • Electronics tested and partially manufactured • Omega PX180 pressure transducer - Depth • Electronics tested and partially manufactured • Battery voltage monitor (2) • 4 external channel HOBO data logger • Current Issues • Integration time

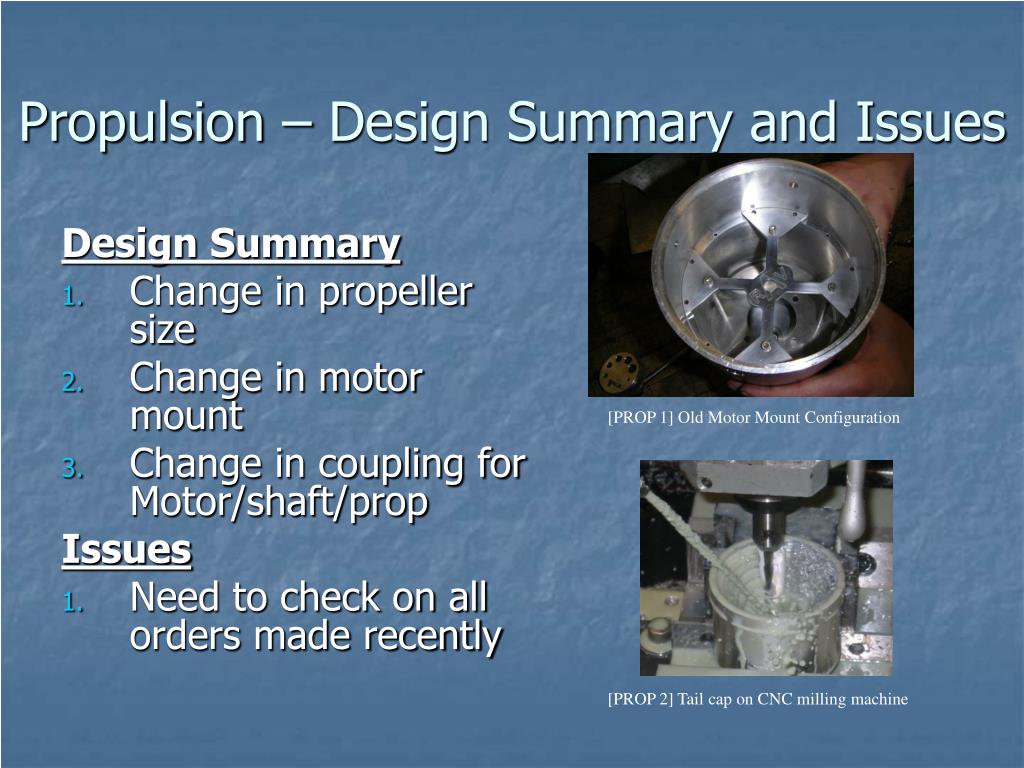

  11. Propulsion – Design Summary and Issues Design Summary • Change in propeller size • Change in motor mount • Change in coupling for Motor/shaft/prop Issues • Need to check on all orders made recently [PROP 1] Old Motor Mount Configuration [PROP 2] Tail cap on CNC milling machine

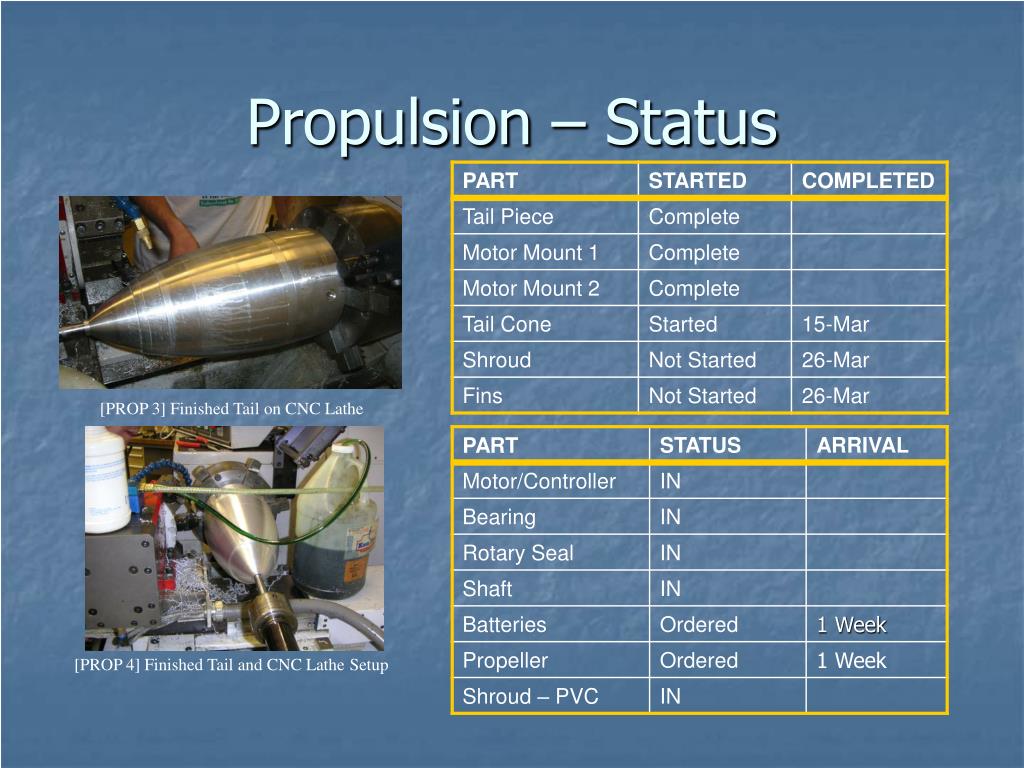

  12. Propulsion – Status [PROP 3] Finished Tail on CNC Lathe [PROP 4] Finished Tail and CNC Lathe Setup

  13. Communications – Summary • Components • Tx - Futaba 8UAPS • Rx - Futaba FP-R148DO, PCM 1024 • 8-Channel, 72.330 MHz, 3.12 ft whip antenna, 0.75 W • Using less channels than expected due to Switch Capabilities • Coaxial Cable (new) • Trainer Cable (new) • 1/8” diameter Fiberglass Antenna Mast • Testing Configurations • Nominal Configuration • Propulsion Subsystems Test • Buoyancy Subsystems Test (use Trainer Cable) • Range Testing Results • Signal Loss at > 100 m

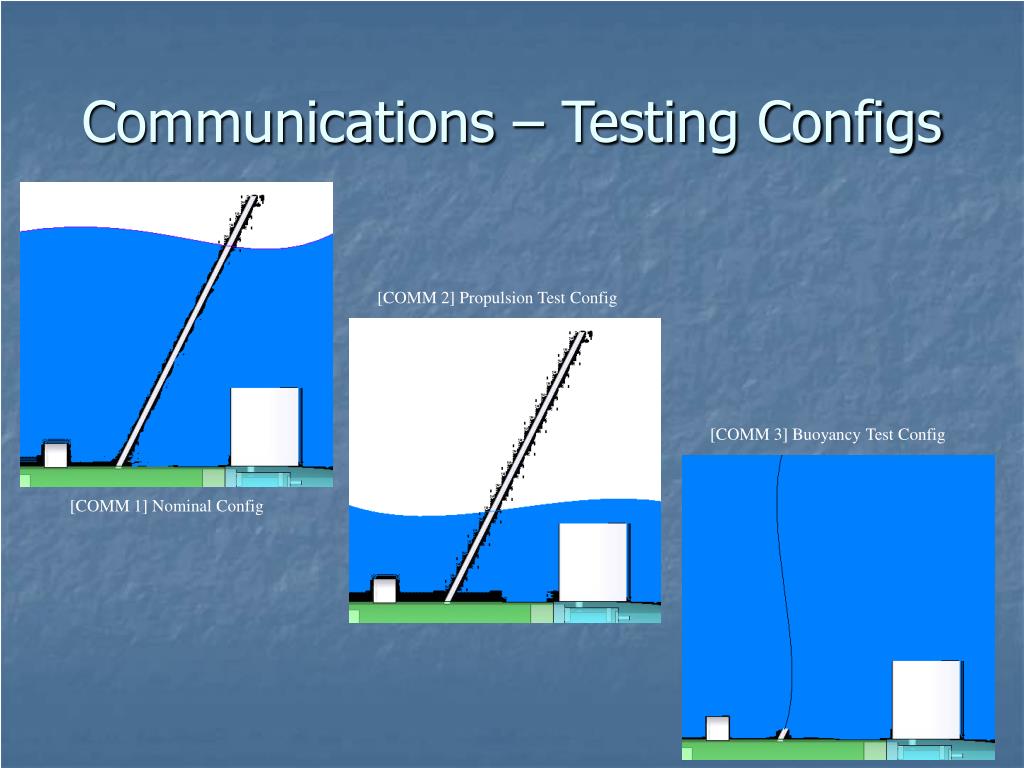

  14. Communications – Testing Configs [COMM 2] Propulsion Test Config [COMM 3] Buoyancy Test Config [COMM 1] Nominal Config

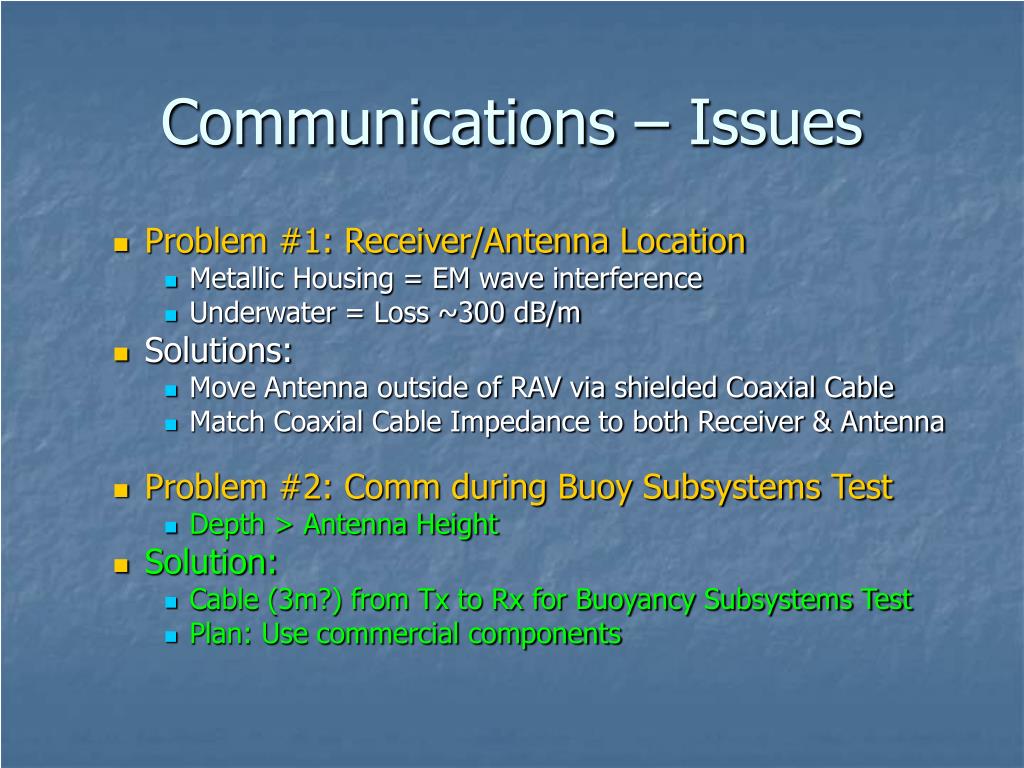

  15. Communications – Issues • Problem #1: Receiver/Antenna Location • Metallic Housing = EM wave interference • Underwater = Loss ~300 dB/m • Solutions: • Move Antenna outside of RAV via shielded Coaxial Cable • Match Coaxial Cable Impedance to both Receiver & Antenna • Problem #2: Comm during Buoy Subsystems Test • Depth > Antenna Height • Solution: • Cable (3m?) from Tx to Rx for Buoyancy Subsystems Test • Plan: Use commercial components

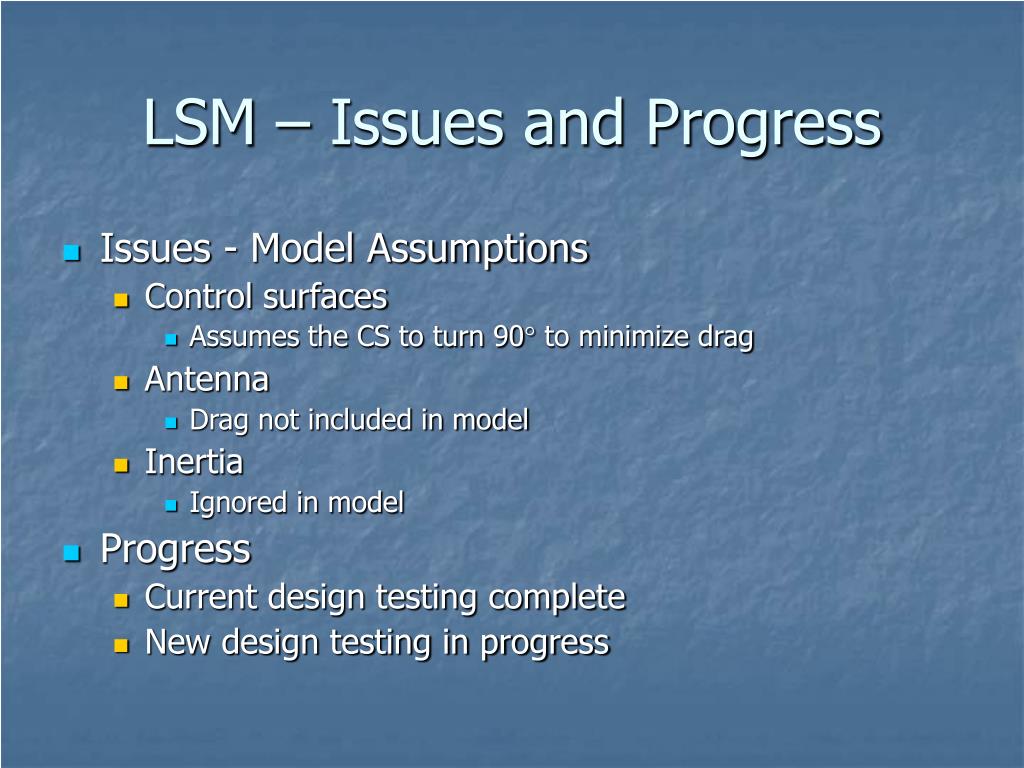

  16. LSM – Issues and Progress • Issues - Model Assumptions • Control surfaces • Assumes the CS to turn 90° to minimize drag • Antenna • Drag not included in model • Inertia • Ignored in model • Progress • Current design testing complete • New design testing in progress

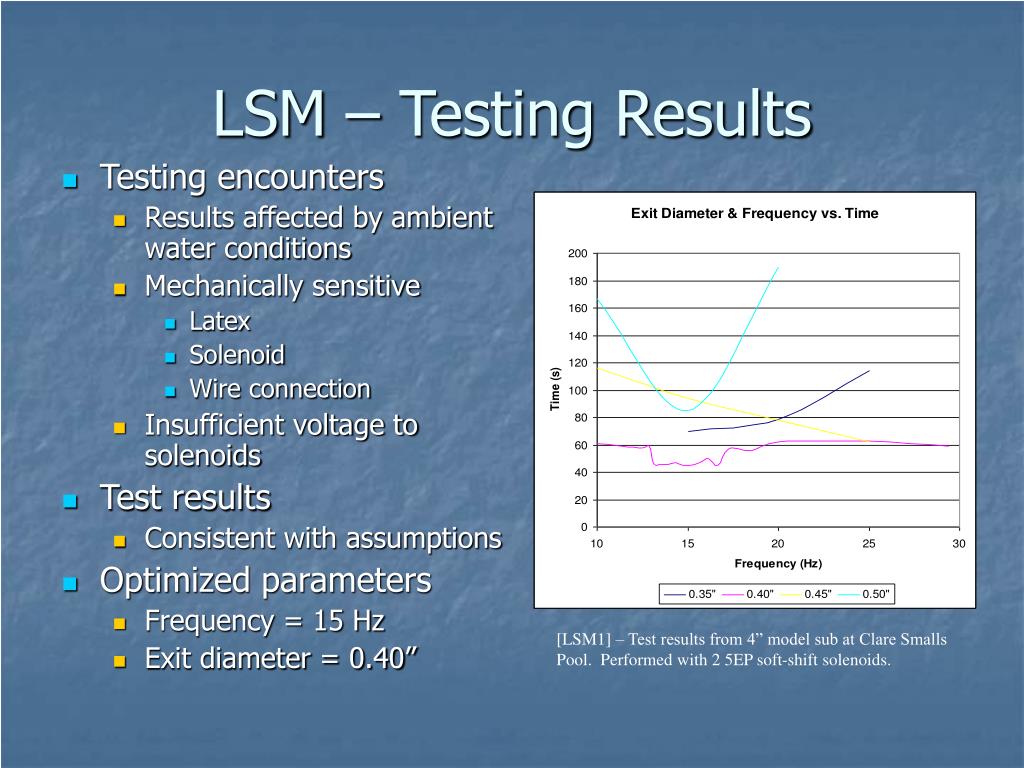

  17. LSM – Testing Results • Testing encounters • Results affected by ambient water conditions • Mechanically sensitive • Latex • Solenoid • Wire connection • Insufficient voltage to solenoids • Test results • Consistent with assumptions • Optimized parameters • Frequency = 15 Hz • Exit diameter = 0.40” [LSM1] – Test results from 4” model sub at Clare Smalls Pool. Performed with 2 5EP soft-shift solenoids.

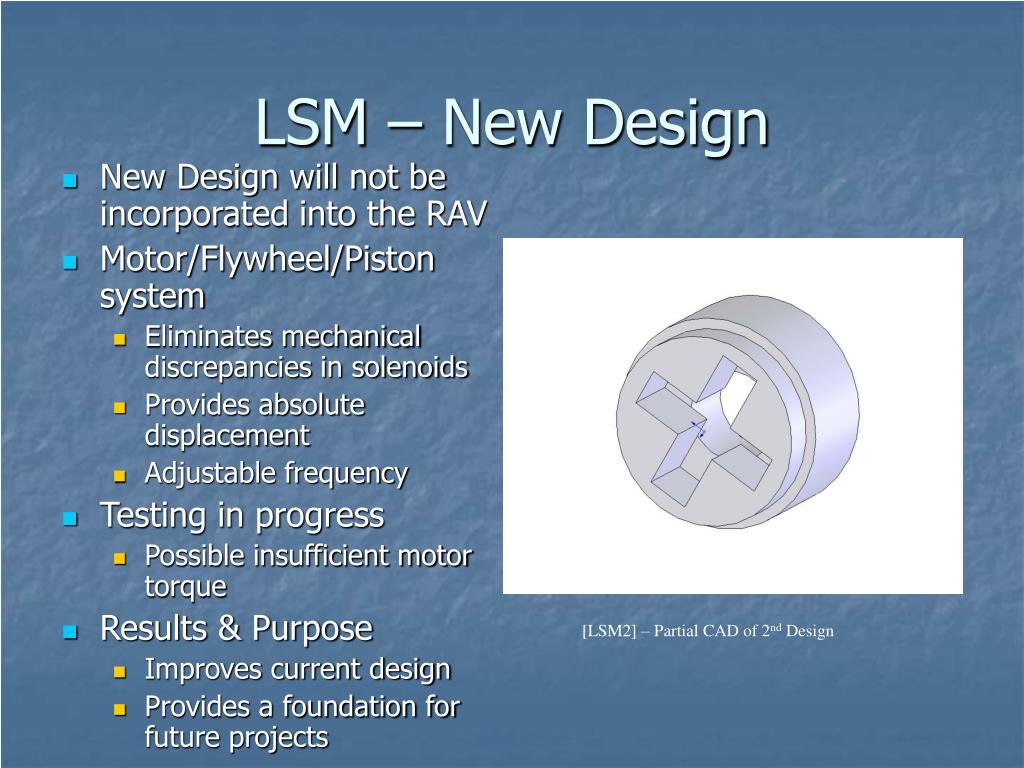

  18. LSM – New Design • New Design will not be incorporated into the RAV • Motor/Flywheel/Piston system • Eliminates mechanical discrepancies in solenoids • Provides absolute displacement • Adjustable frequency • Testing in progress • Possible insufficient motor torque • Results & Purpose • Improves current design • Provides a foundation for future projects [LSM2] – Partial CAD of 2nd Design

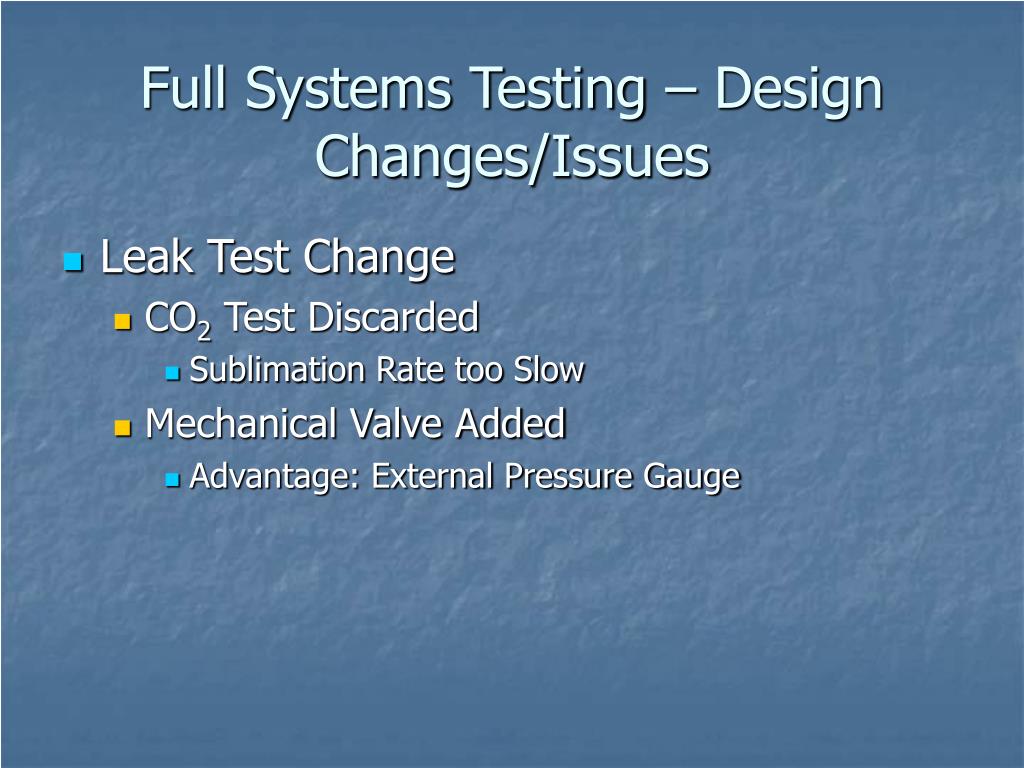

  19. Full Systems Testing – Design Changes/Issues • Leak Test Change • CO2 Test Discarded • Sublimation Rate too Slow • Mechanical Valve Added • Advantage: External Pressure Gauge

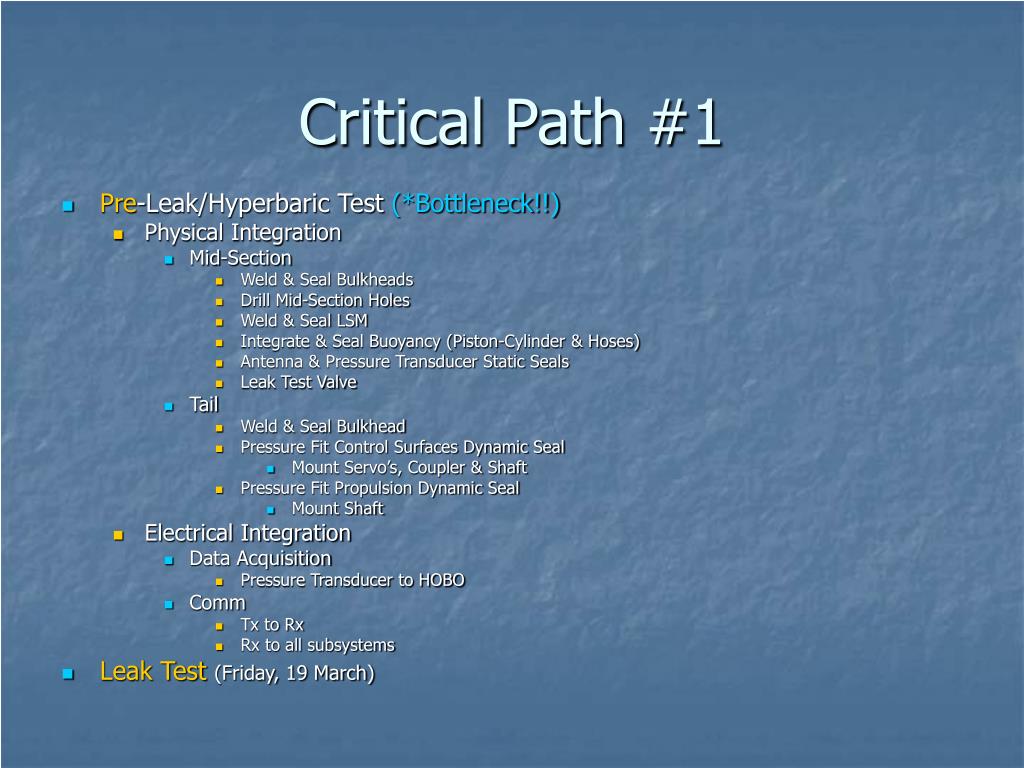

  20. Critical Path #1 • Pre-Leak/Hyperbaric Test (*Bottleneck!!) • Physical Integration • Mid-Section • Weld & Seal Bulkheads • Drill Mid-Section Holes • Weld & Seal LSM • Integrate & Seal Buoyancy (Piston-Cylinder & Hoses) • Antenna & Pressure Transducer Static Seals • Leak Test Valve • Tail • Weld & Seal Bulkhead • Pressure Fit Control Surfaces Dynamic Seal • Mount Servo’s, Coupler & Shaft • Pressure Fit Propulsion Dynamic Seal • Mount Shaft • Electrical Integration • Data Acquisition • Pressure Transducer to HOBO • Comm • Tx to Rx • Rx to all subsystems • Leak Test (Friday, 19 March)

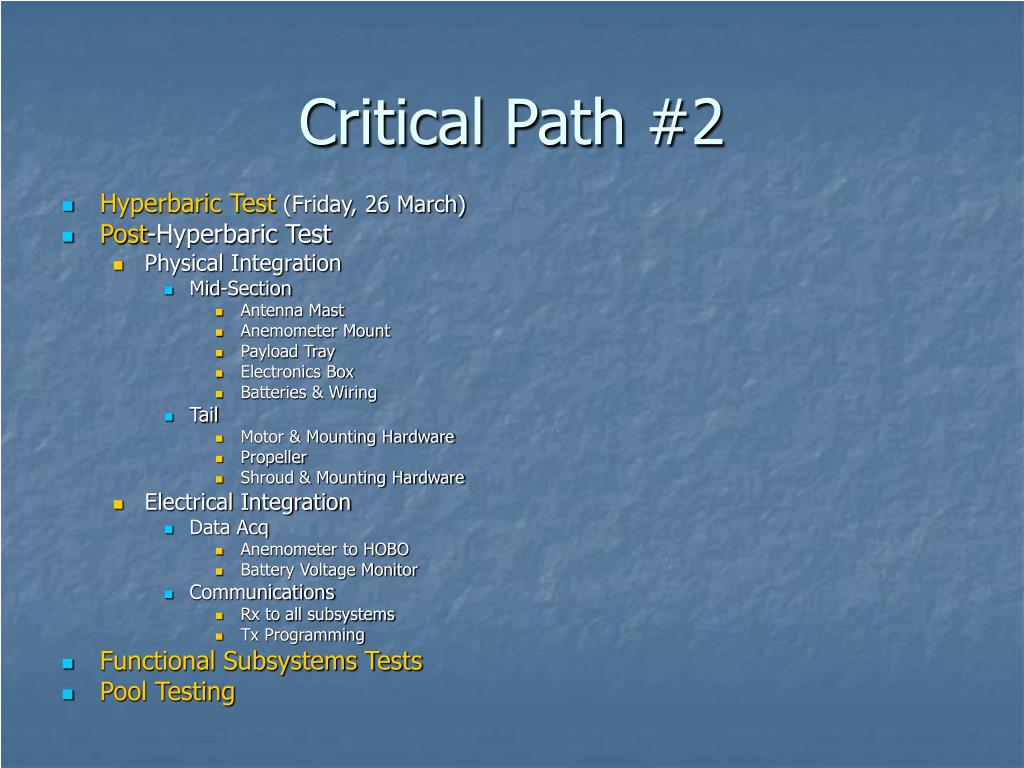

  21. Critical Path #2 • Hyperbaric Test (Friday, 26 March) • Post-Hyperbaric Test • Physical Integration • Mid-Section • Antenna Mast • Anemometer Mount • Payload Tray • Electronics Box • Batteries & Wiring • Tail • Motor & Mounting Hardware • Propeller • Shroud & Mounting Hardware • Electrical Integration • Data Acq • Anemometer to HOBO • Battery Voltage Monitor • Communications • Rx to all subsystems • Tx Programming • Functional Subsystems Tests • Pool Testing

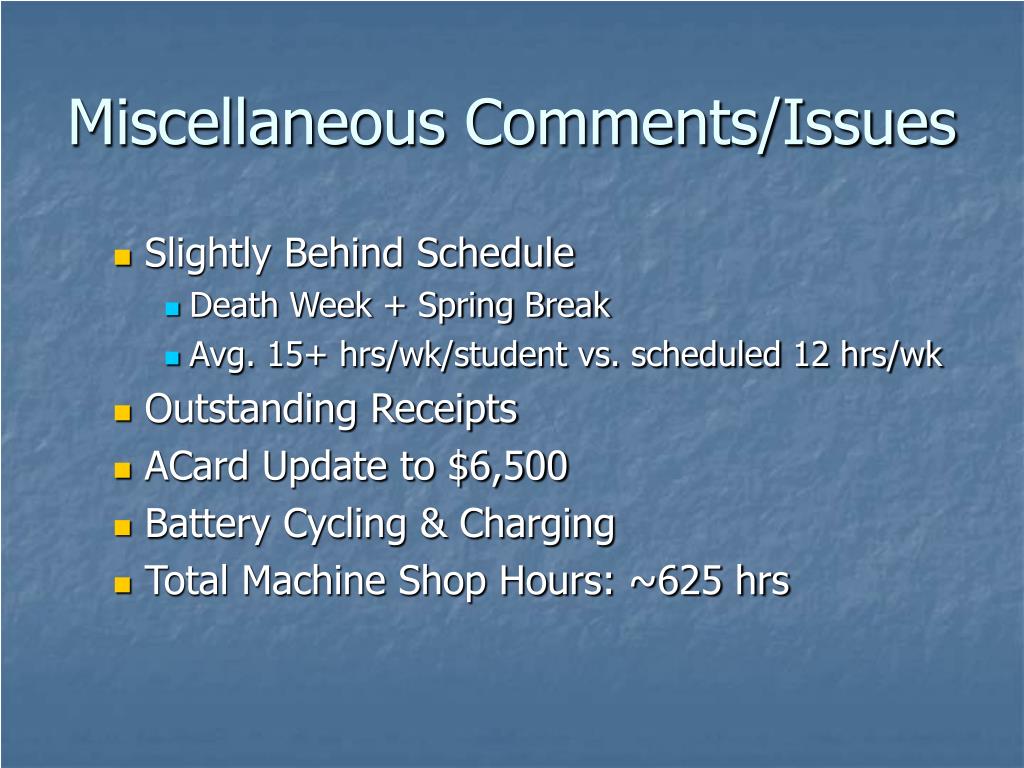

  22. Miscellaneous Comments/Issues • Slightly Behind Schedule • Death Week + Spring Break • Avg. 15+ hrs/wk/student vs. scheduled 12 hrs/wk • Outstanding Receipts • ACard Update to $6,500 • Battery Cycling & Charging • Total Machine Shop Hours: ~625 hrs

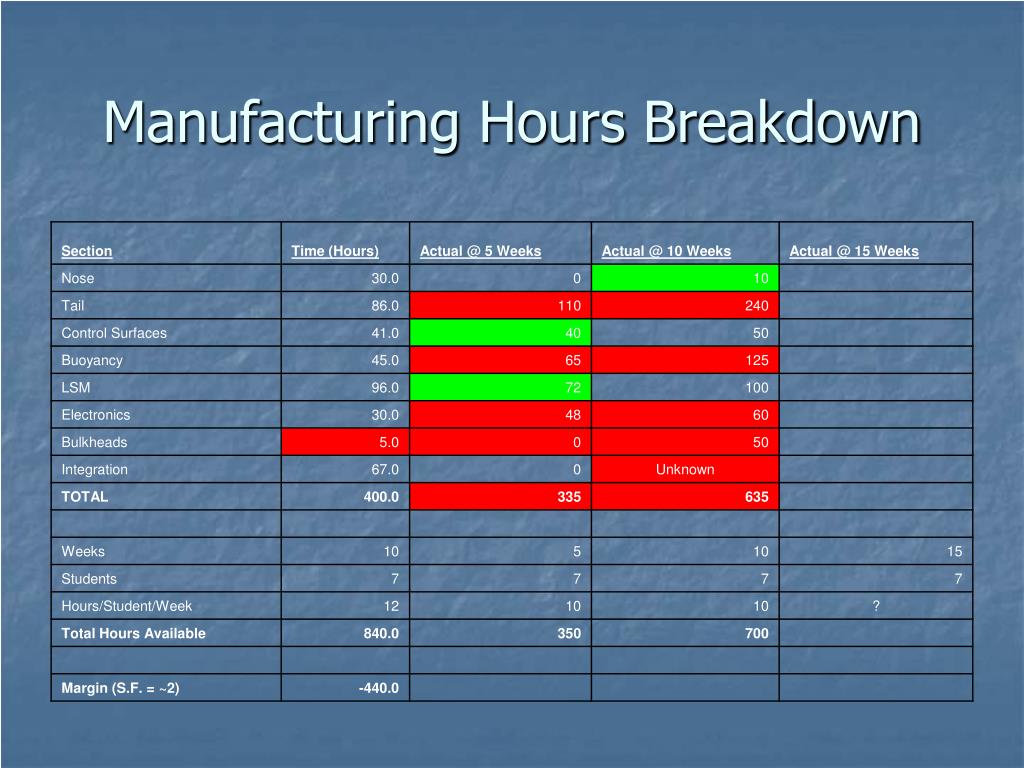

  23. Manufacturing Hours Breakdown

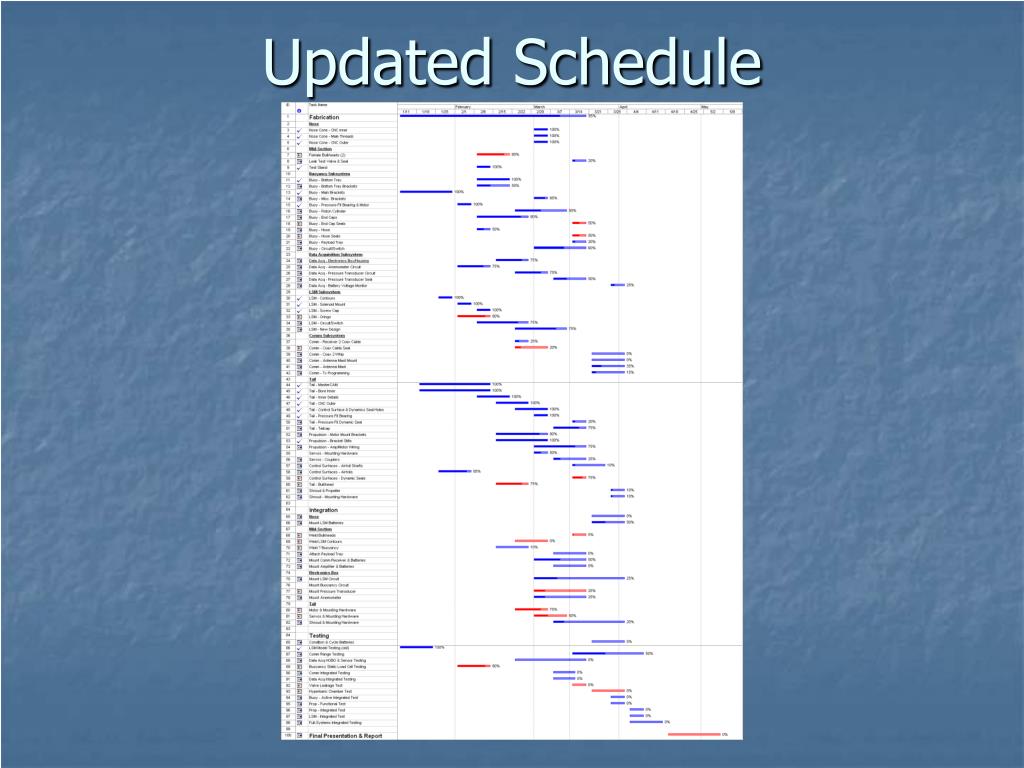

  24. Updated Schedule

  25. Before Spring Break

  26. After Spring Break
