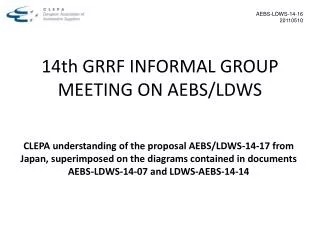

AEBS-LDWS-14-16 20110510. 14th GRRF INFORMAL GROUP MEETING ON AEBS/LDWS. CLEPA understanding of the proposal AEBS/LDWS-14-17 from Japan, superimposed on the diagrams contained in documents AEBS-LDWS-14-07 and LDWS-AEBS-14-14. N 3. 12.0. 11.0. Full air. 10.0. 9.0. Air-over-hydraulic. N 2.

gavin
Download Presentation

14th GRRF INFORMAL GROUP MEETING ON AEBS/LDWS

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. AEBS-LDWS-14-1620110510 14th GRRF INFORMAL GROUP MEETING ON AEBS/LDWS CLEPA understanding of the proposal AEBS/LDWS-14-17 from Japan, superimposed on the diagrams contained in documents AEBS-LDWS-14-07 and LDWS-AEBS-14-14

  2. N3 12.0 11.0 Full air 10.0 9.0 Air-over-hydraulic N2 Gross vehicle weight (tonne) 8.0 7.0 6.0 Vacuum hydraulic 5.0 4.0 Warning & braking Warning only Gross Vehicle Weight – Braking System Relationship (Europe) Note: The boundaries at 6.5, 7.5 and 10.0 tonne are typical and can vary between vehicle manufactures Source: Knorr-Bremse Systeme für Nutzfahrzeuge GmbH

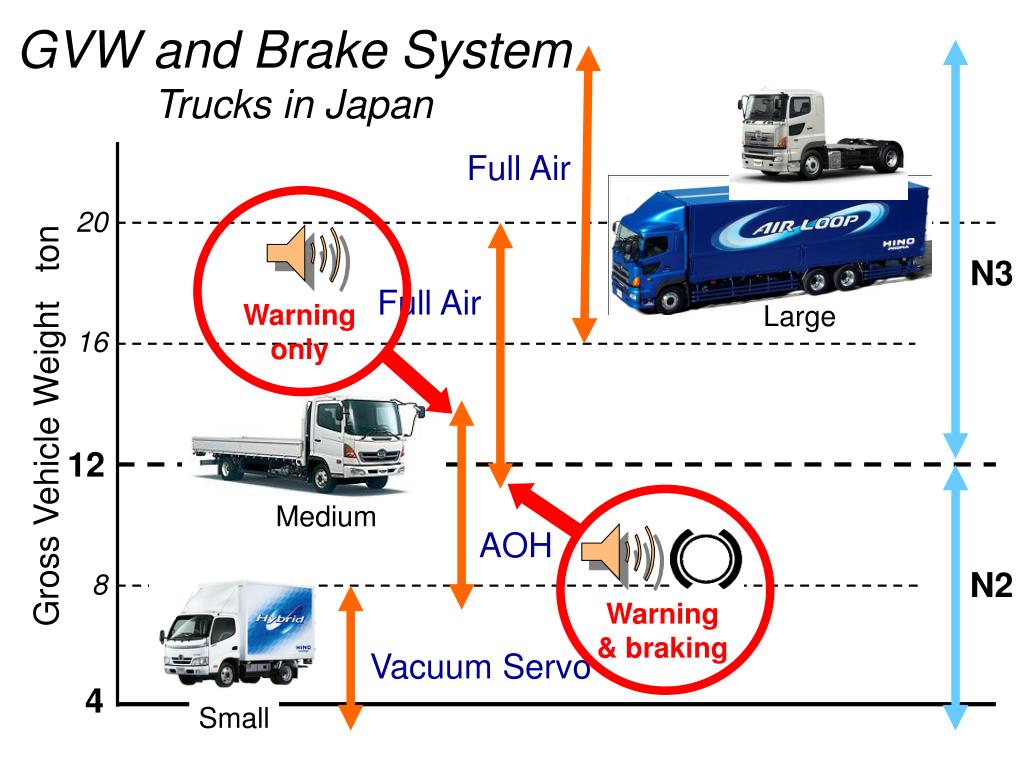

  3. Full Air 20 N3 Full Air 16 Large Gross Vehicle Weight ton 12 Medium AOH N2 8 Warning only Warning & braking Vacuum Servo 4 Small GVW and Brake System Trucks in Japan
