    Presentation Transcript
    1. Announcements • Assignment #3 is up. It is due on 27 Apr. • Midterm exam is back. • Assignment #2 is back. • Results of midterm exam are posted. • Solutions to prev. assignments are posted. • Lab 2 is posted. • Tutorial day/time.

    2. Results of Midterm Exam Max score: 15/15 Min score: 2/15 Ave. score: 8/15

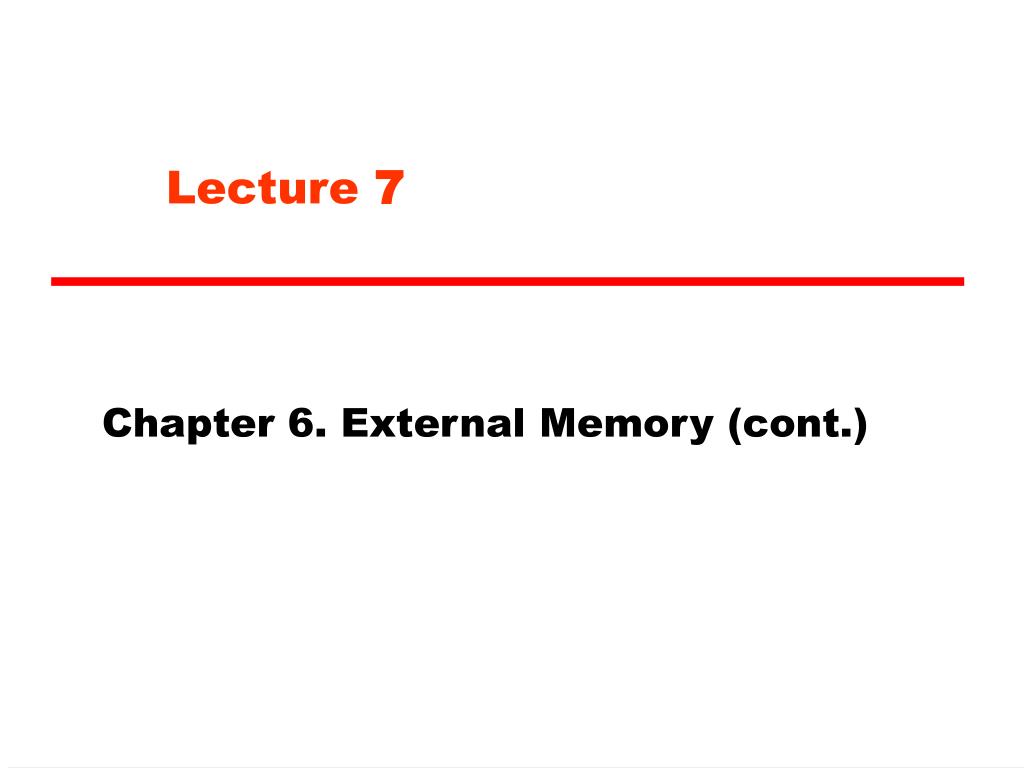

    3. Chapter 6. External Memory (cont.) Lecture7

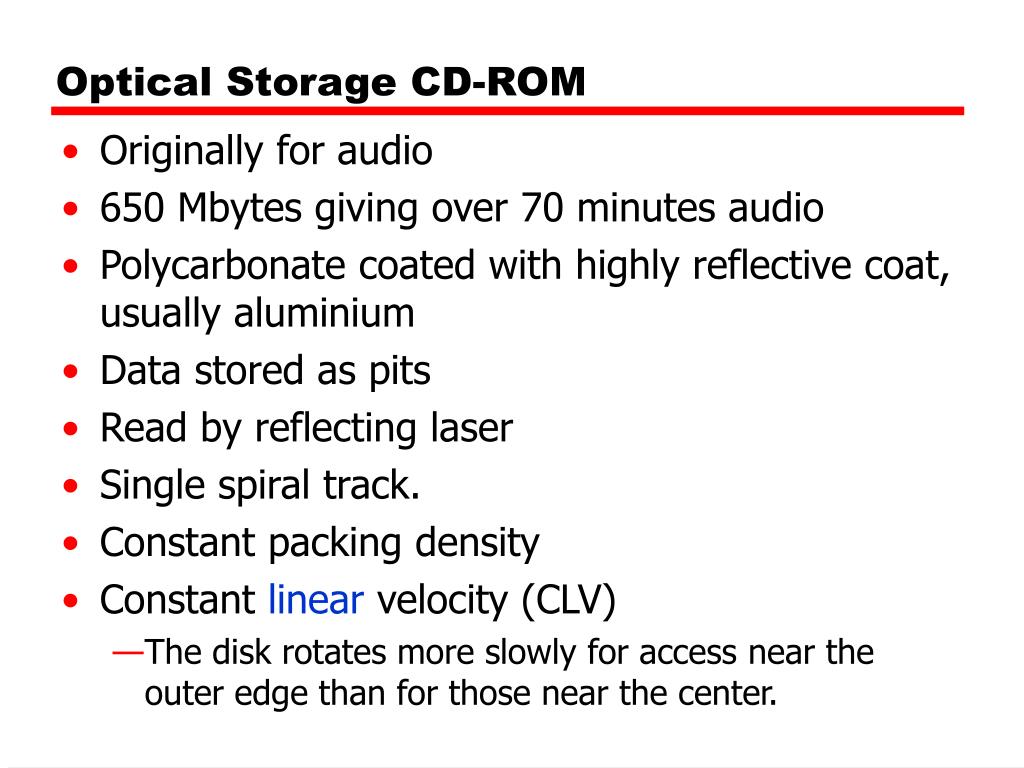

    4. Optical Storage CD-ROM • Originally for audio • 650 Mbytes giving over 70 minutes audio • Polycarbonate coated with highly reflective coat, usually aluminium • Data stored as pits • Read by reflecting laser • Single spiral track. • Constant packing density • Constant linear velocity (CLV) • The disk rotates more slowly for access near the outer edge than for those near the center.

    5. CD Operation 1 0 1 Pit: rough surface, reflected laser intensity is low. Land: smooth surface, reflected laser intensity is high.

    6. CD-ROM Drive Speeds • Audio is single speed • Constant linear velocity • 1.2 ms-1 • Track (spiral) is 5.27km long • Gives 4391 seconds = 73.2 minutes • Other speeds are quoted as multiples • e.g. 24x (24*150 kByte/sec) • Quoted figure is maximum drive can achieve

    7. CD-ROM Format – One Block • Mode 0=blank data field • Mode 1=2048 byte data+error correction • Mode 2=2336 byte data

    8. Random Access on CD-ROM • Difficult • Move head to rough position • Set correct speed • Read address • Adjust to required location

    9. CD-ROM for & against • Large capacity • Easy to mass produce • Removable • Robust • Expensive for small runs • Slow • Read only

    10. Other Optical Storage • CD-Recordable (CD-R) • Now affordable • Compatible with CD-ROM drives • CD-RW • Erasable • Getting cheaper • Mostly CD-ROM drive compatible • Phase change • Material has two different reflectivities in different phase states

    11. DVD - what’s in a name? • Digital Video Disk • Used to indicate a player for movies • Only plays video disks • Digital Versatile Disk • Used to indicate a computer drive • Will read computer disks and play video disks • Officially - nothing!!!

    12. DVD - technology • Multi-layer • Very high capacity (4.7G per layer) • Full length movie on single disk • Using MPEG compression • Finally standardized • Movies carry regional coding • Players only play correct region films • Can be “fixed”

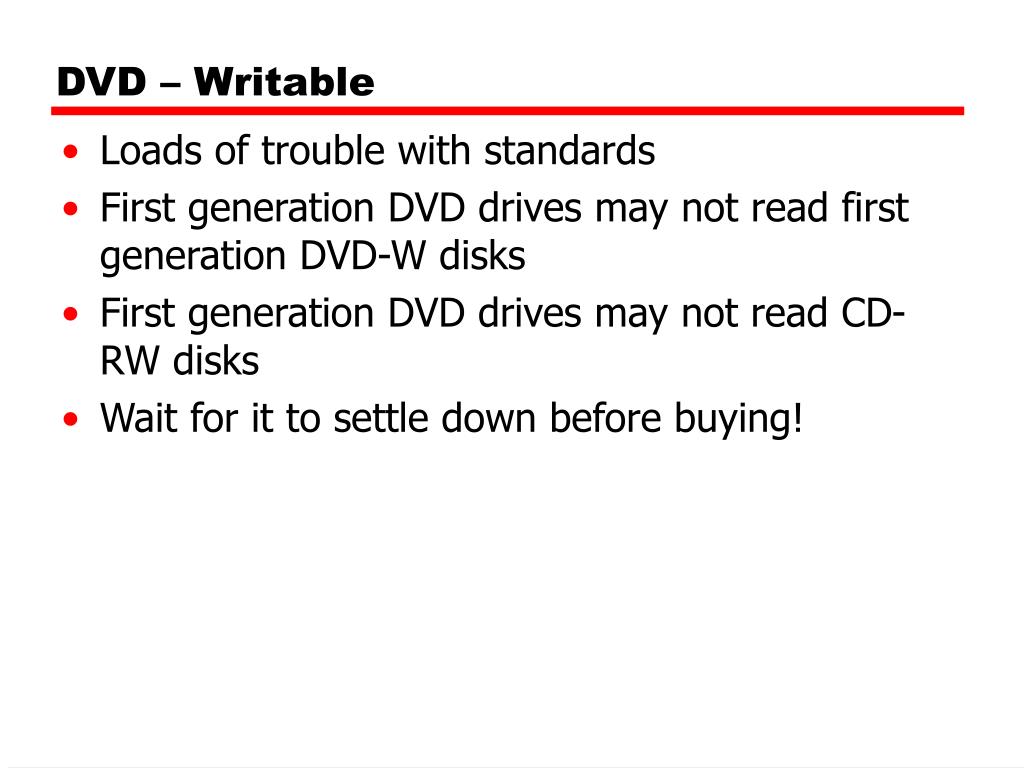

    13. DVD – Writable • Loads of trouble with standards • First generation DVD drives may not read first generation DVD-W disks • First generation DVD drives may not read CD-RW disks • Wait for it to settle down before buying!

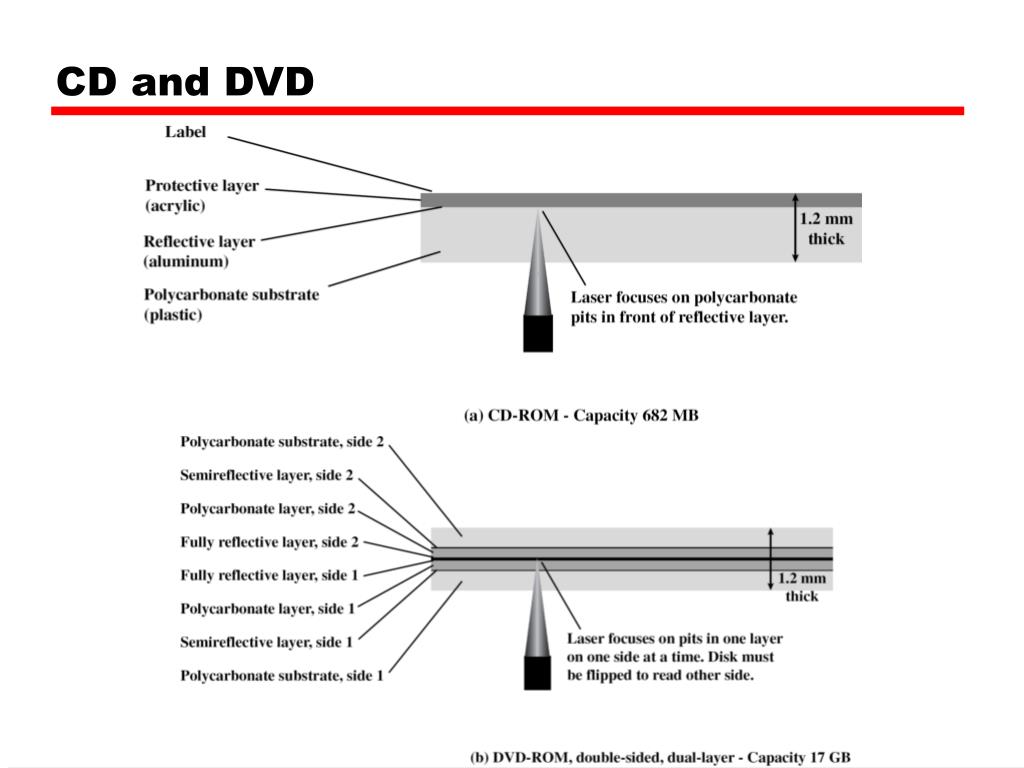

    14. CD and DVD

    15. Magnetic Tape • Serial access • Slow • Very cheap • Backup and archive • Serial recording vs. parallel recording. • Block: record. • Interrecord gap. • Sequential access device • Magnetic disk is a direct access device.

    16. Reading Material • Stallings, chapter 6, pages: 184 - 190
