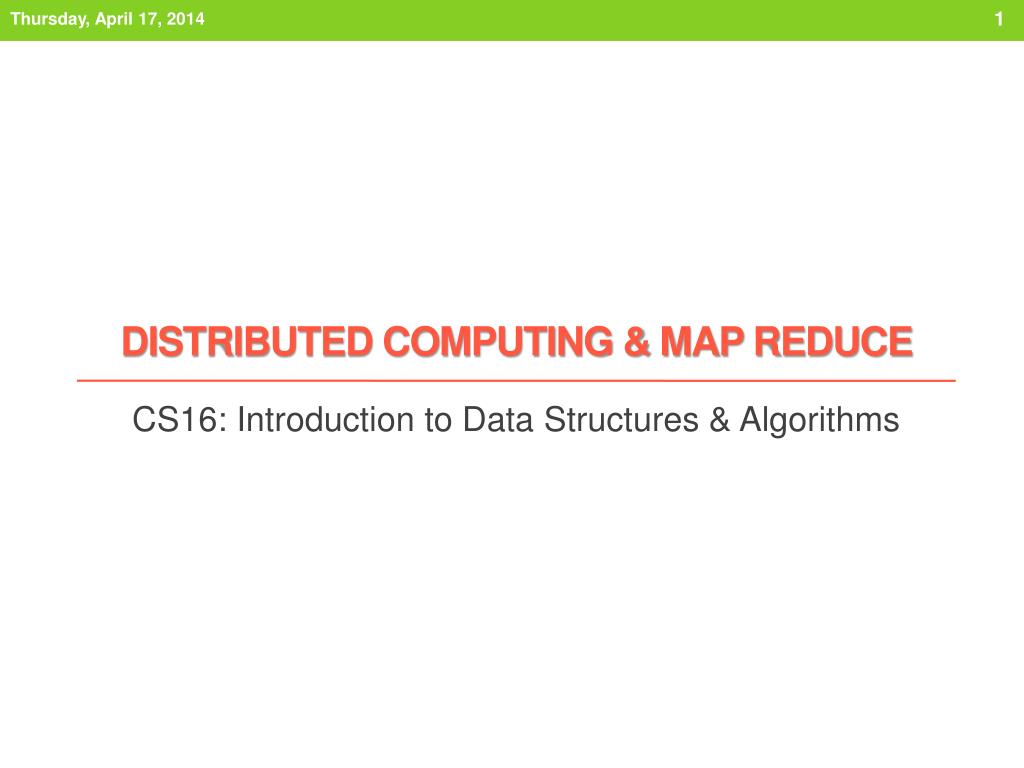

distributed computing map reduce

distributed computing & map reduce

CS16: Introduction to Data Structures & Algorithms

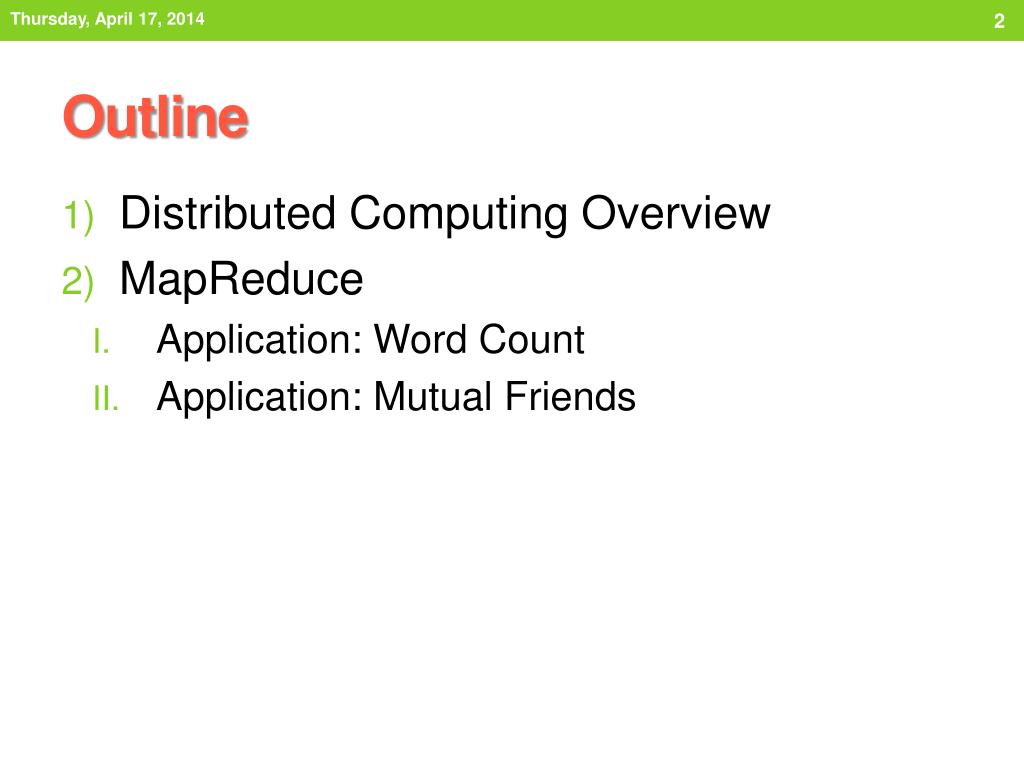

outline

Distributed Computing Overview

  • MapReduce
    • Application: Word Count
    • Application: Mutual Friends
Outline

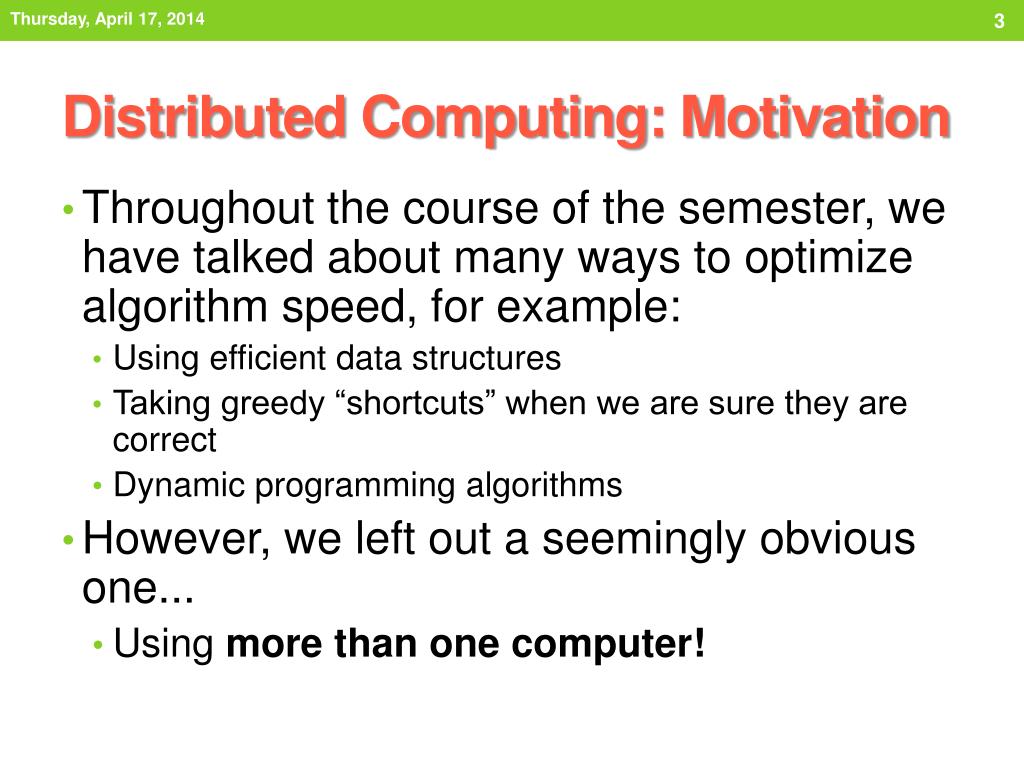

distributed computing motivation

Throughout the course of the semester, we have talked about many ways to optimize algorithm speed, for example:

    • Using efficient data structures
    • Taking greedy “shortcuts” when we are sure they are correct
      • Dynamic programming algorithms
  • However, we left out a seemingly obvious one...
    • Using more than one computer!
Distributed Computing: Motivation
distributed computing explanation

Distributed computing is the field of taking a computational problem and distributing it among many worker computers (nodes)

Usually there is a master computer, which coordinates the distribution to and feedback from the nodes

The distributed system can be represented as a graph where the vertices are nodes and the edges are the network connecting them

Distributed Computing: Explanation

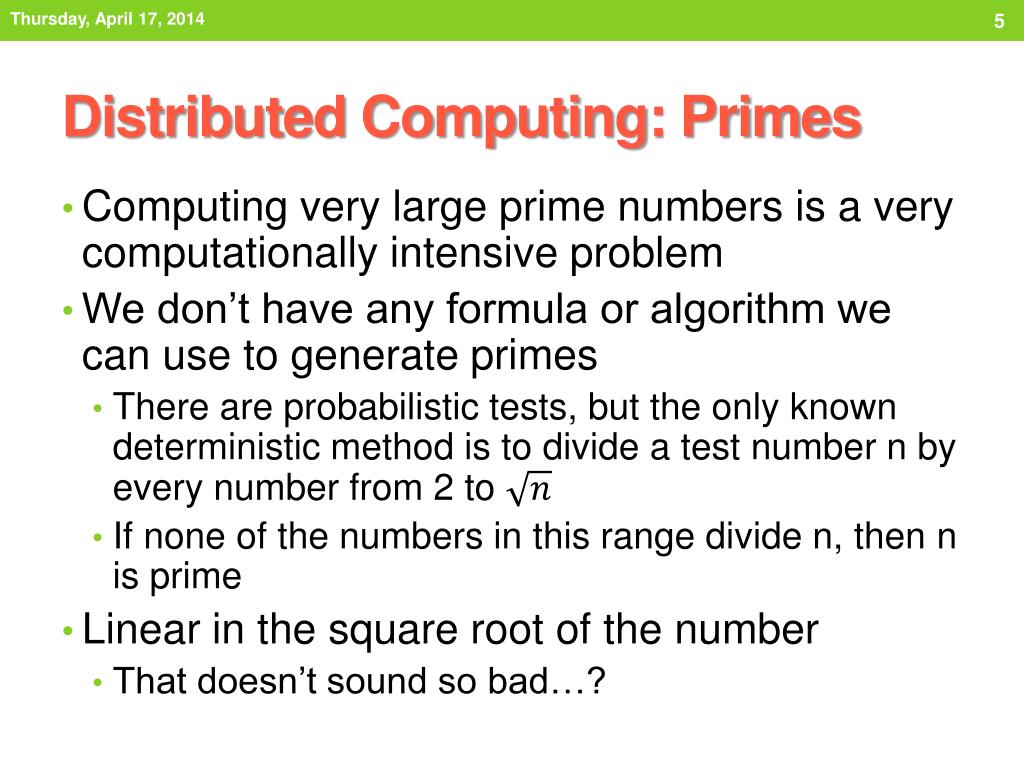

distributed computing primes

Computing very large prime numbers is a very computationally intensive problem

  • We don’t have any formula or algorithm we can use to generate primes
    • There are probabilistic tests, but the only known deterministic method is to divide a test number n by every number from 2 to
    • If none of the numbers in this range divide n, then n is prime
  • Linear in the square root of the number
    • That doesn’t sound so bad…?
Distributed Computing: Primes

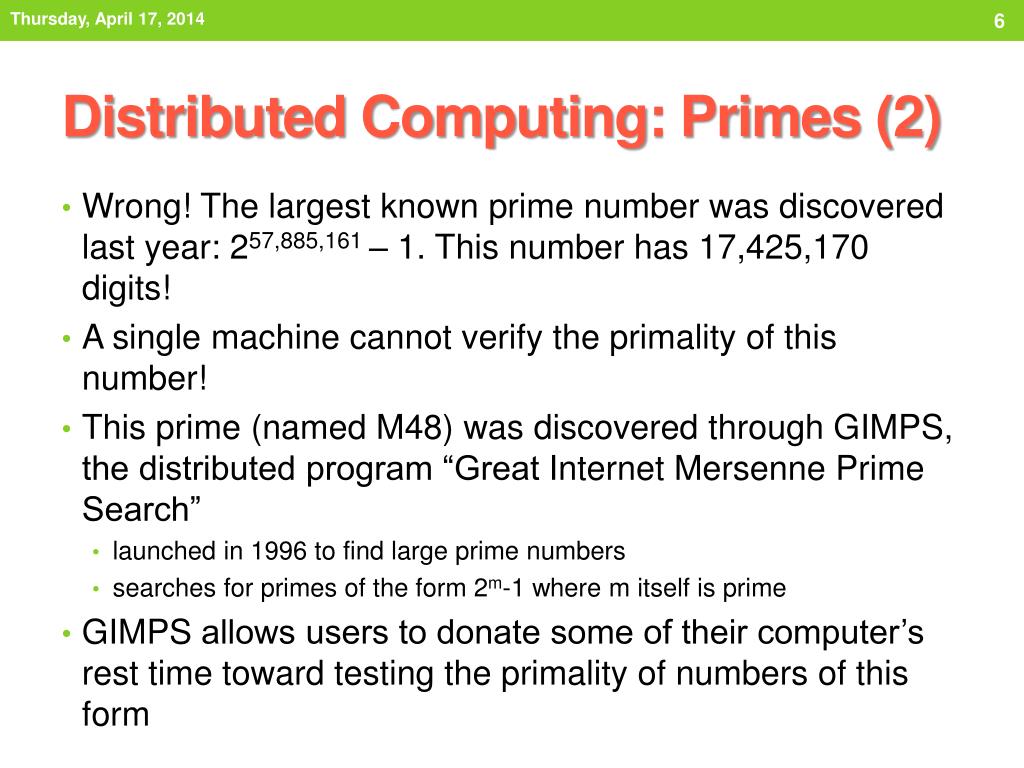

distributed computing primes 2

Wrong! The largest known prime number was discovered last year: 257,885,161 – 1. This number has 17,425,170 digits!

  • A single machine cannot verify the primality of this number!
  • This prime (named M48) was discovered through GIMPS, the distributed program “Great Internet MersennePrime Search”
    • launched in 1996 to find large prime numbers
    • searches for primes of the form 2m-1 where m itself is prime
  • GIMPS allows users to donate some of their computer’s rest time toward testing the primality of numbers of this form
Distributed Computing: Primes (2)

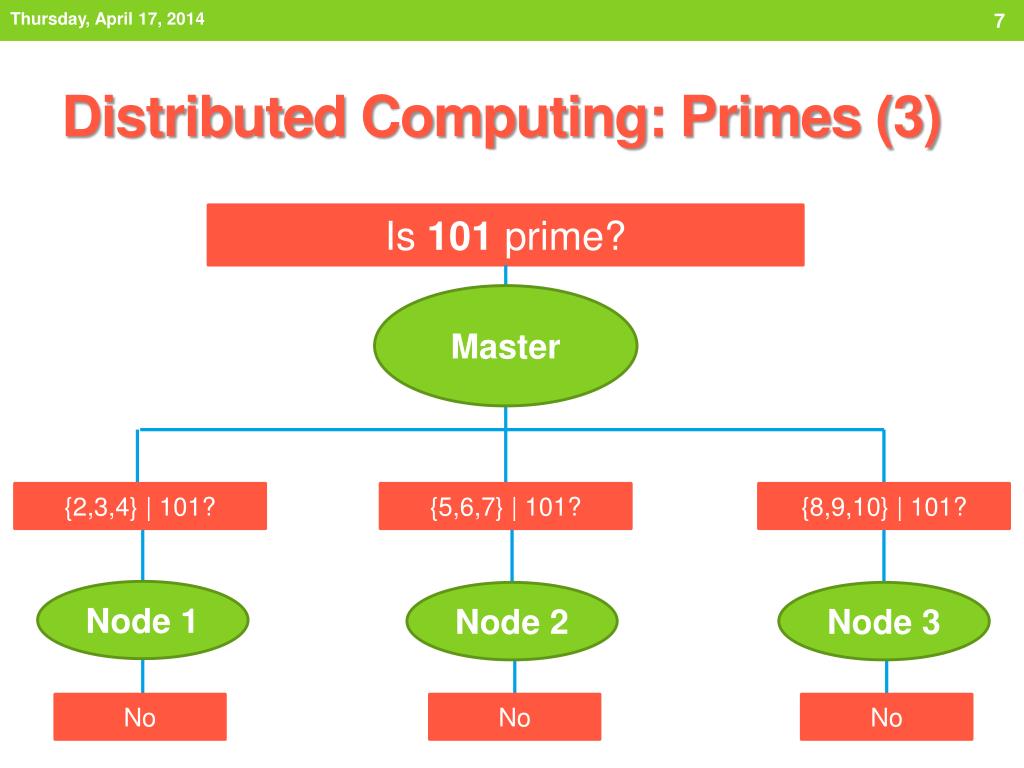

distributed computing primes 3
Distributed Computing: Primes (3)

Is 101 prime?

Master

{2,3,4} | 101?

{5,6,7} | 101?

{8,9,10} | 101?

Node 1

Node 2

Node 3

No

No

No

more applications

There are many problems being solved by massive distributed systems like GIMPS:

    • Stanford’s Folding@homeproject uses distributed computing to solve the problem of how proteins fold, helping scientists studying Alzheimer’s, Parkinson’s, and cancers
    • Berkeley’s Milkyway@home project uses distributed computing to generate a highly accurate 3D model of the Milky Way galaxy using data collected over the past decade
More Applications

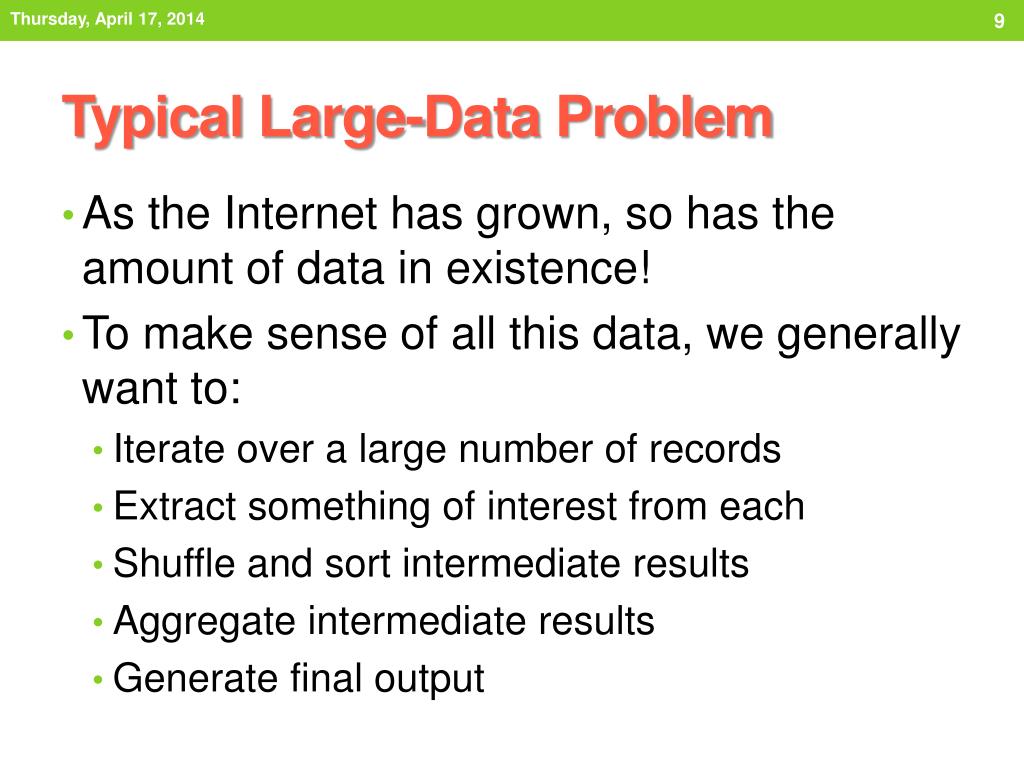

typical large data problem

As the Internet has grown, so has the amount of data in existence!

  • To make sense of all this data, we generally want to:
    • Iterate over a large number of records
    • Extract something of interest from each
    • Shuffle and sort intermediate results
    • Aggregate intermediate results
    • Generate final output
Typical Large-Data Problem

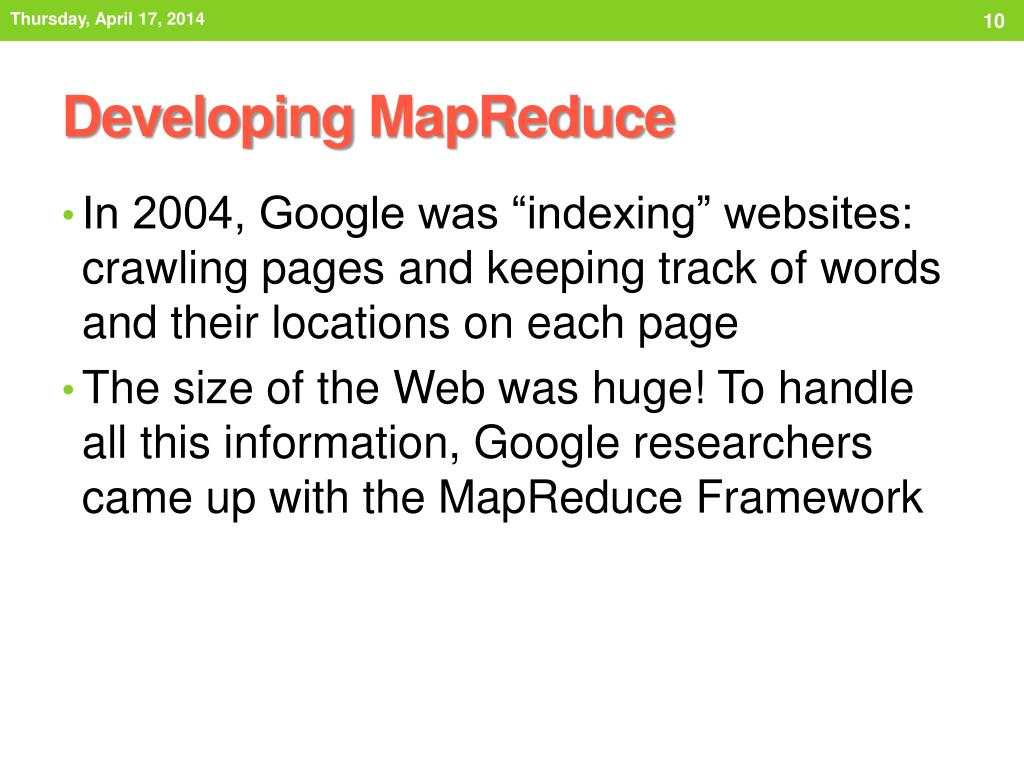

developing mapreduce

In 2004, Google was “indexing” websites: crawling pages and keeping track of words and their locations on each page

  • The size of the Web was huge! To handle all this information, Google researchers came up with the MapReduce Framework
Developing MapReduce

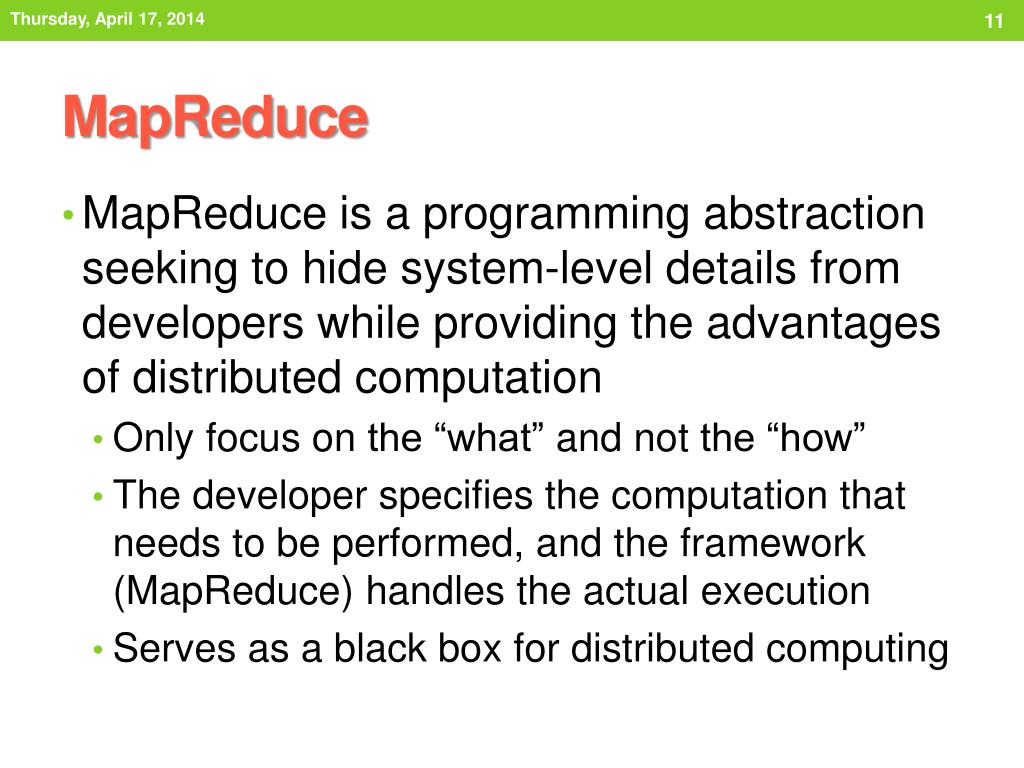

mapreduce

MapReduce is a programming abstraction seeking to hide system-level details from developers while providing the advantages of distributed computation

    • Only focus on the “what” and not the “how”
    • The developer specifies the computation that needs to be performed, and the framework (MapReduce) handles the actual execution
    • Serves as a black box for distributed computing
MapReduce

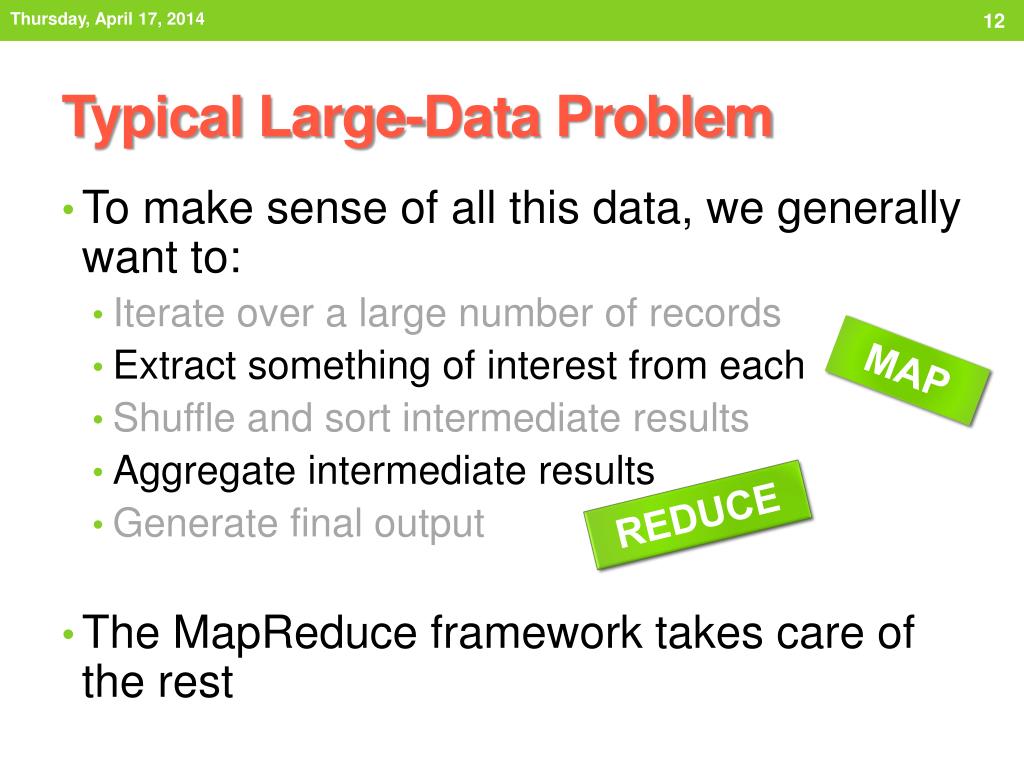

typical large data problem1

To make sense of all this data, we generally want to:

    • Iterate over a large number of records
    • Extract something of interest from each
    • Shuffle and sort intermediate results
    • Aggregate intermediate results
    • Generate final output
  • The MapReduce framework takes care of the rest
Typical Large-Data Problem

MAP

REDUCE

mapreduce1

Programmers specify two functions:

    • map(map_k, map_v) [set of (k, v) tuples]
    • reduce(k, [list of v with same k]) (k, output)
  • The MapReduce “runtime” distributes portions of the large data set to separate nodes, running your map routine on the computers in parallel
  • The runtime then takes care of sorting the intermediate results, which can then be aggregated in parallel by your reduce routine
MapReduce
counting words

Suppose you want to know the most popular word on the Internet

    • One method you could use would be to create a hashtable with words as keys and counts as values, but looping through every word on every page and hashing it to the table takes a long time…
  • MapReduce allows you to speed up the entire process. You need to determine the “mapping” and “reducing” portions, and the framework does the rest!
Counting Words

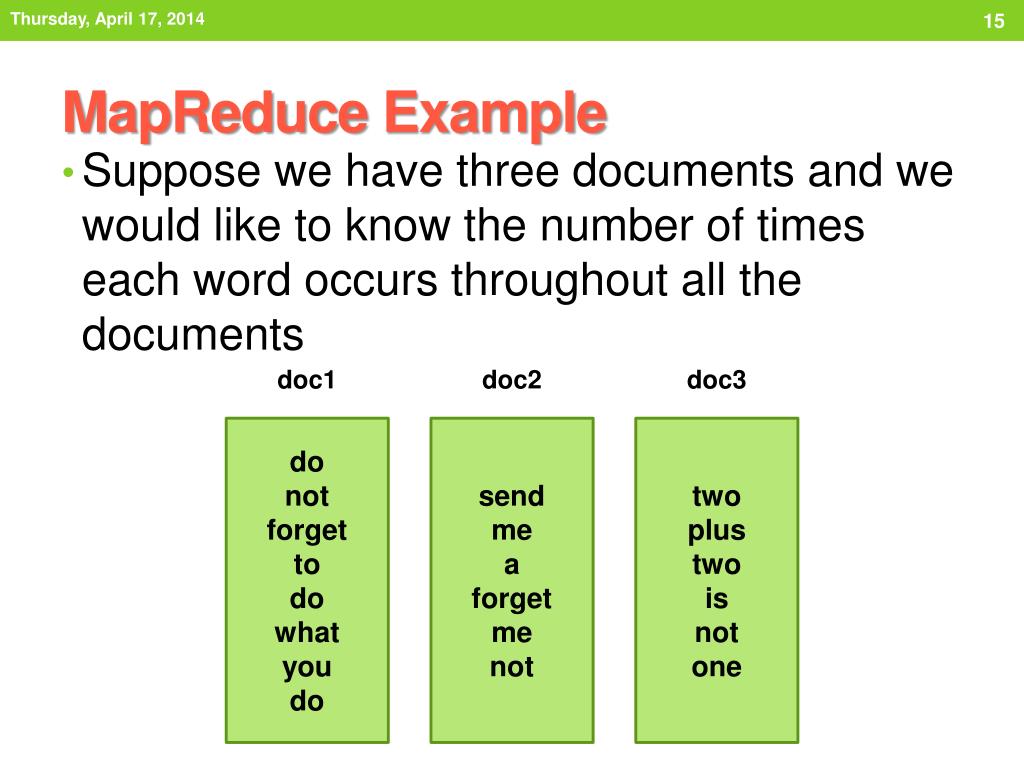

mapreduce example

Suppose we have three documents and we would like to know the number of times each word occurs throughout all the documents

MapReduce Example

doc1

doc2

doc3

do

not

forget

to

do

what

you

do

send

me

a

forget

me

not

two

plus

two

is

not

one

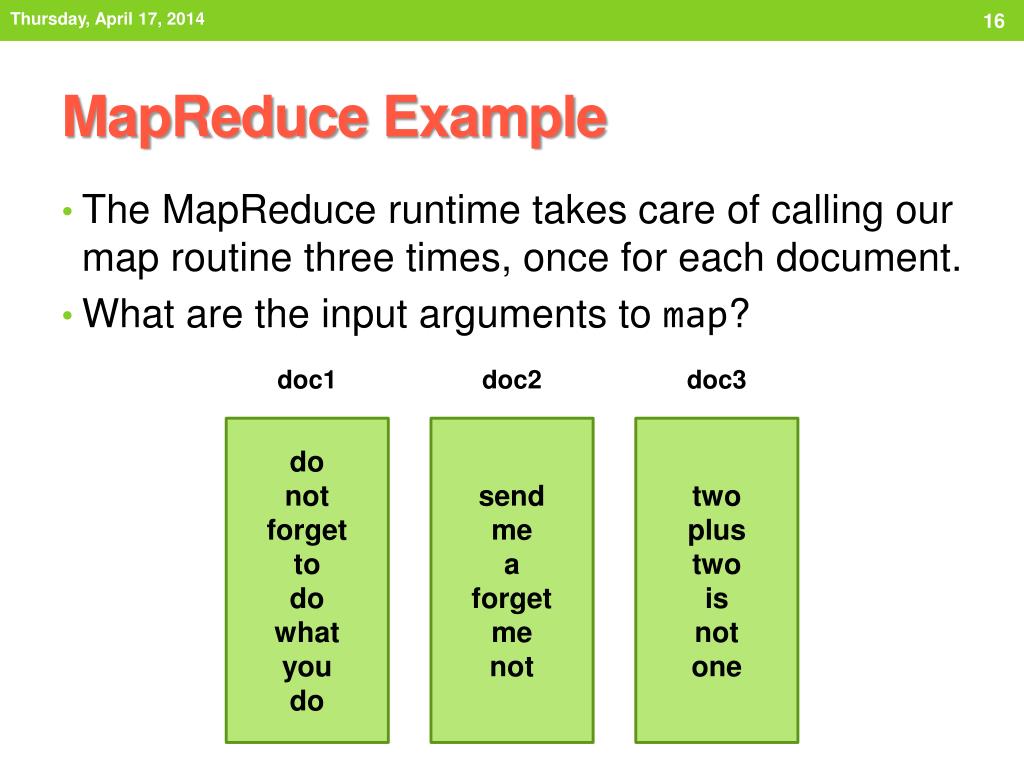

mapreduce example1

The MapReduce runtime takes care of calling our map routine three times, once for each document.

What are the input arguments to map?

MapReduce Example

doc1

doc2

doc3

do

not

forget

to

do

what

you

do

send

me

a

forget

me

not

two

plus

two

is

not

one

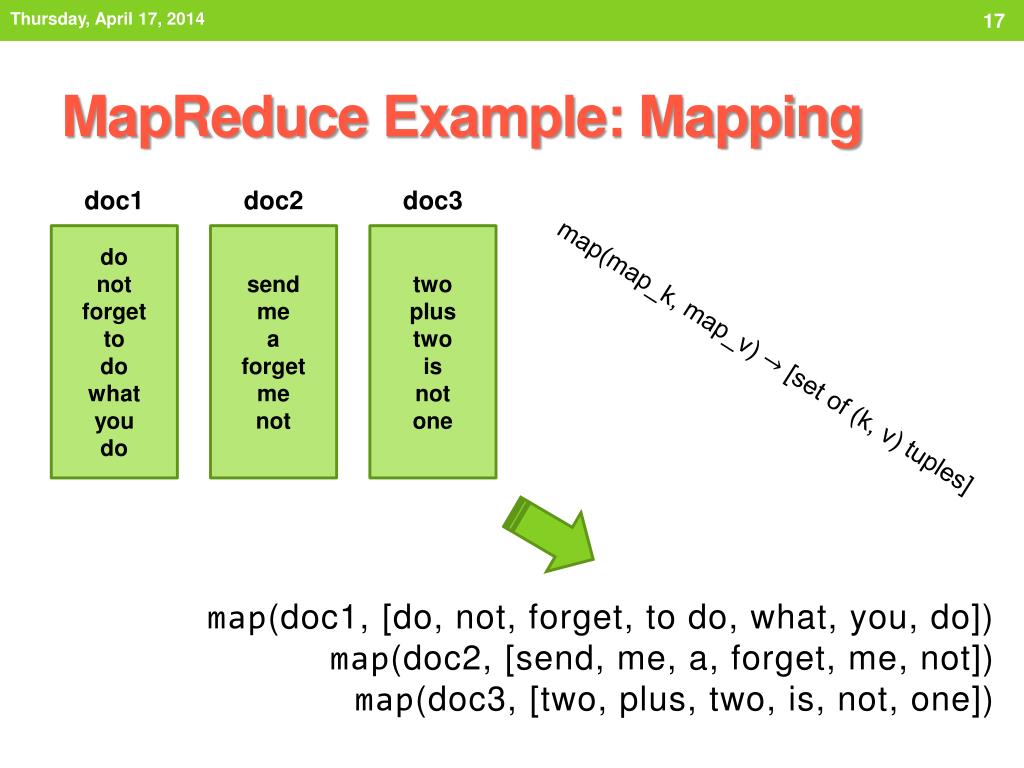

mapreduce example mapping
MapReduce Example: Mapping

map(map_k, map_v) [set of (k, v) tuples]

doc1

doc2

doc3

do

not

forget

to

do

what

you

do

send

me

a

forget

me

not

two

plus

two

is

not

one

map(doc1, [do, not, forget, to do, what, you, do])

map(doc2, [send, me, a, forget, me, not])

map(doc3, [two, plus, two, is, not, one])

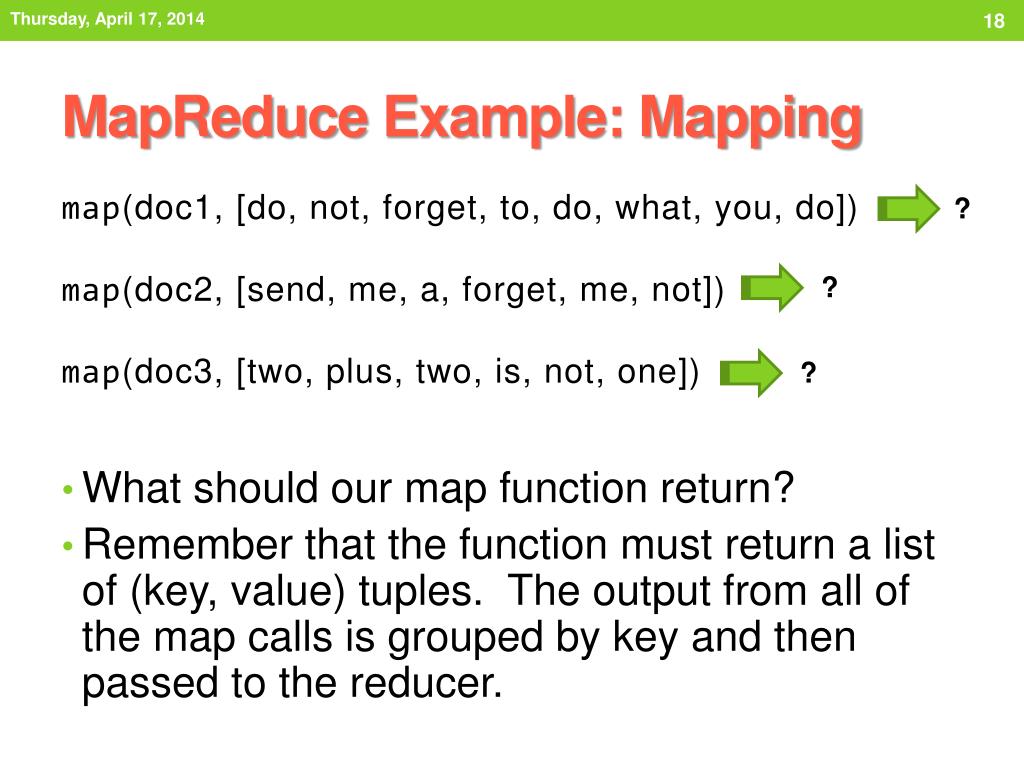

mapreduce example mapping1

What should our map function return?

Remember that the function must return a list of (key, value) tuples. The output from all of the map calls is grouped by key and then passed to the reducer.

MapReduce Example: Mapping

map(doc1, [do, not, forget, to, do, what, you, do])

map(doc2, [send, me, a, forget, me, not])

map(doc3, [two, plus, two, is, not, one])

?

?

?

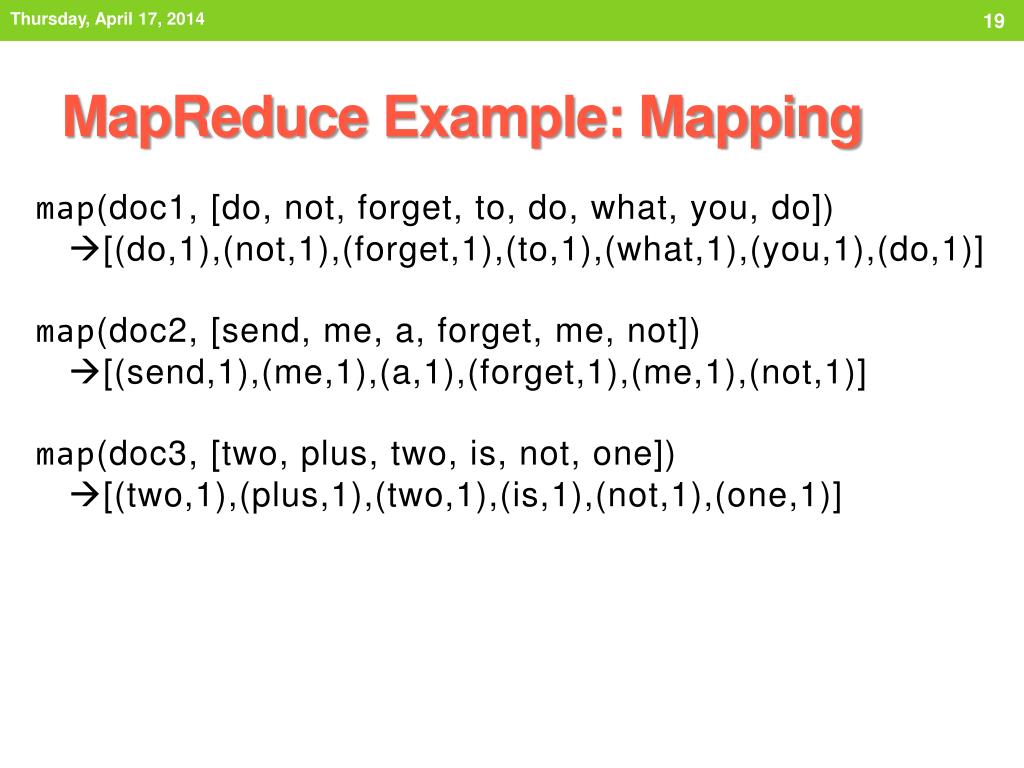

mapreduce example mapping2
MapReduce Example: Mapping

map(doc1, [do, not, forget, to, do, what, you, do])

[(do,1),(not,1),(forget,1),(to,1),(what,1),(you,1),(do,1)]

map(doc2, [send, me, a, forget, me, not])

[(send,1),(me,1),(a,1),(forget,1),(me,1),(not,1)]

map(doc3, [two, plus, two, is, not, one])

[(two,1),(plus,1),(two,1),(is,1),(not,1),(one,1)]

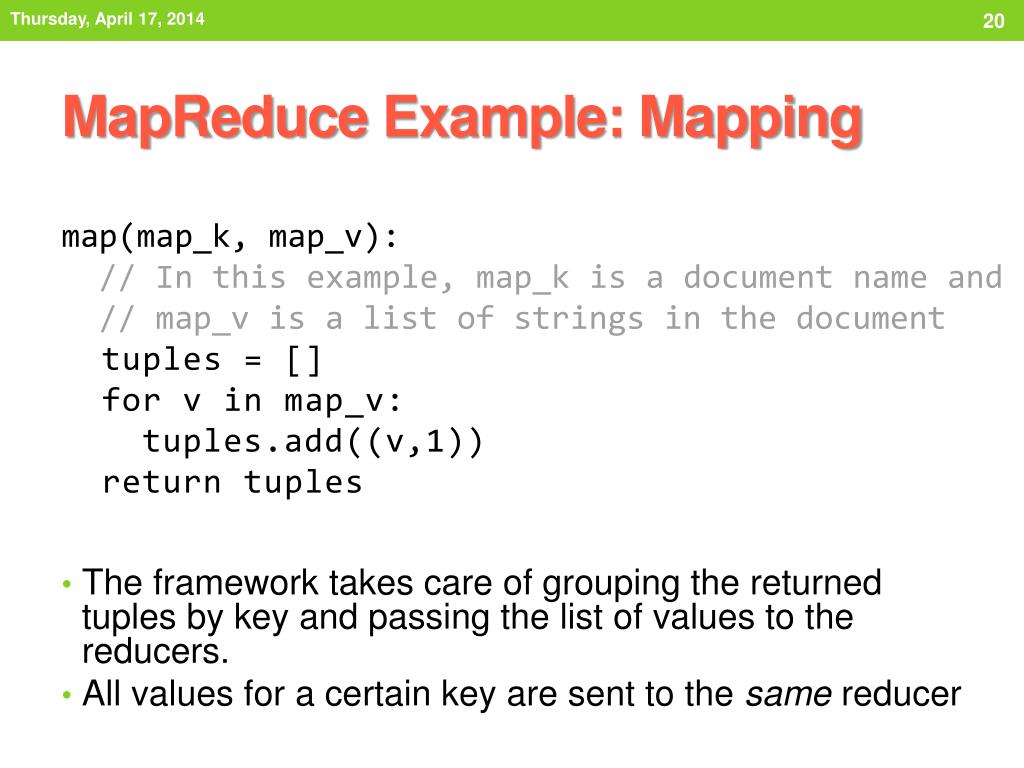

mapreduce example mapping3

The framework takes care of grouping the returned tuples by key and passing the list of values to the reducers.

All values for a certain key are sent to the same reducer

MapReduce Example: Mapping

map(map_k, map_v):

// In this example, map_k is a document name and

// map_v is a list of strings in the document

tuples = []

for v in map_v:

tuples.add((v,1))

return tuples

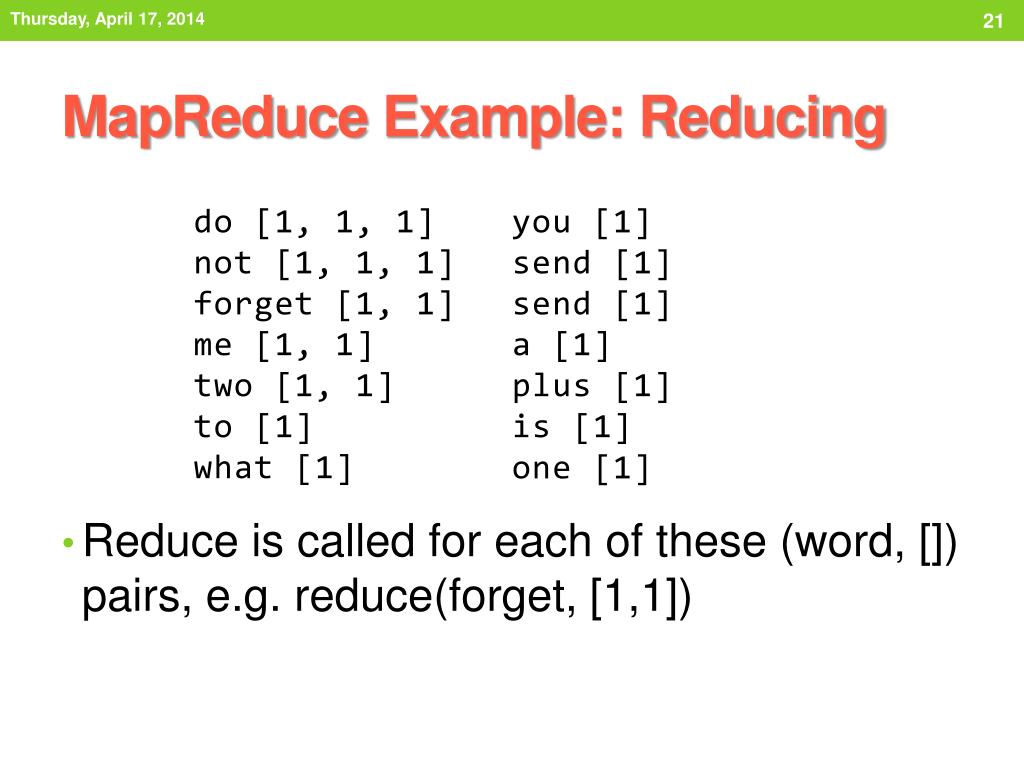

mapreduce example reducing

Reduce is called for each of these (word, []) pairs, e.g. reduce(forget, [1,1])

MapReduce Example: Reducing

do [1, 1, 1]

not [1, 1, 1]

forget [1, 1]

me [1, 1]

two [1, 1]

to [1]

what [1]

you [1]

send [1]

send [1]

a [1]

plus [1]

is [1]

one [1]

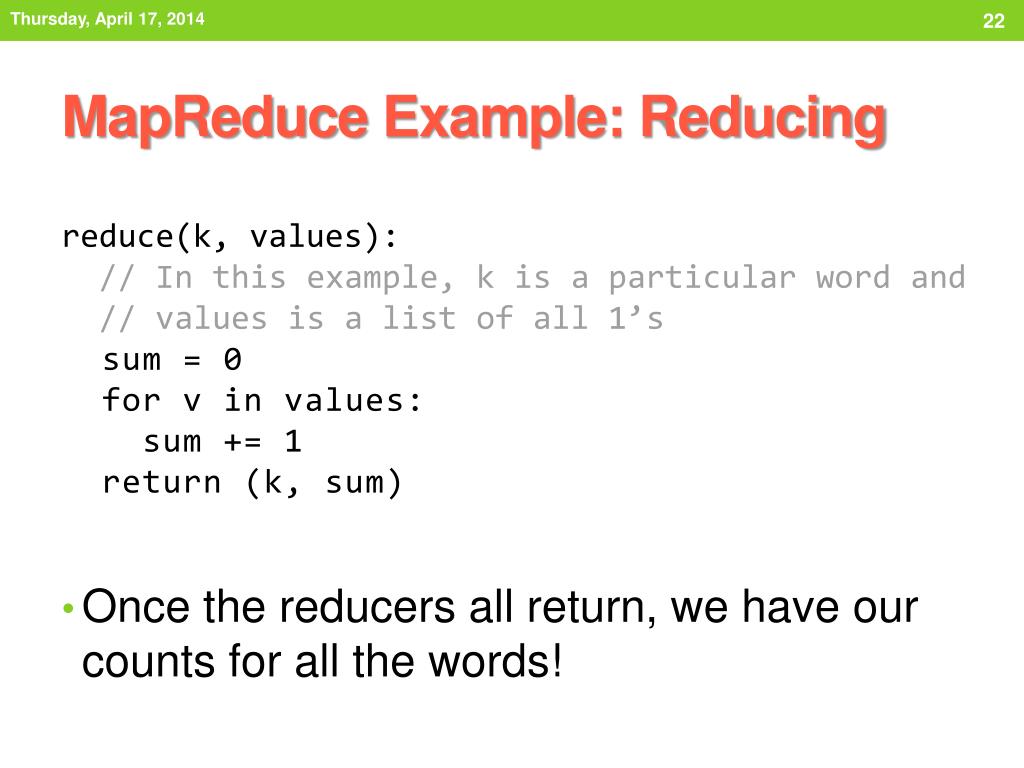

mapreduce example reducing1

Once the reducers all return, we have our counts for all the words!

MapReduce Example: Reducing

reduce(k, values):

// In this example, k is a particular word and

// values is a list of all 1’s

sum = 0

for v in values:

sum += 1

return (k, sum)

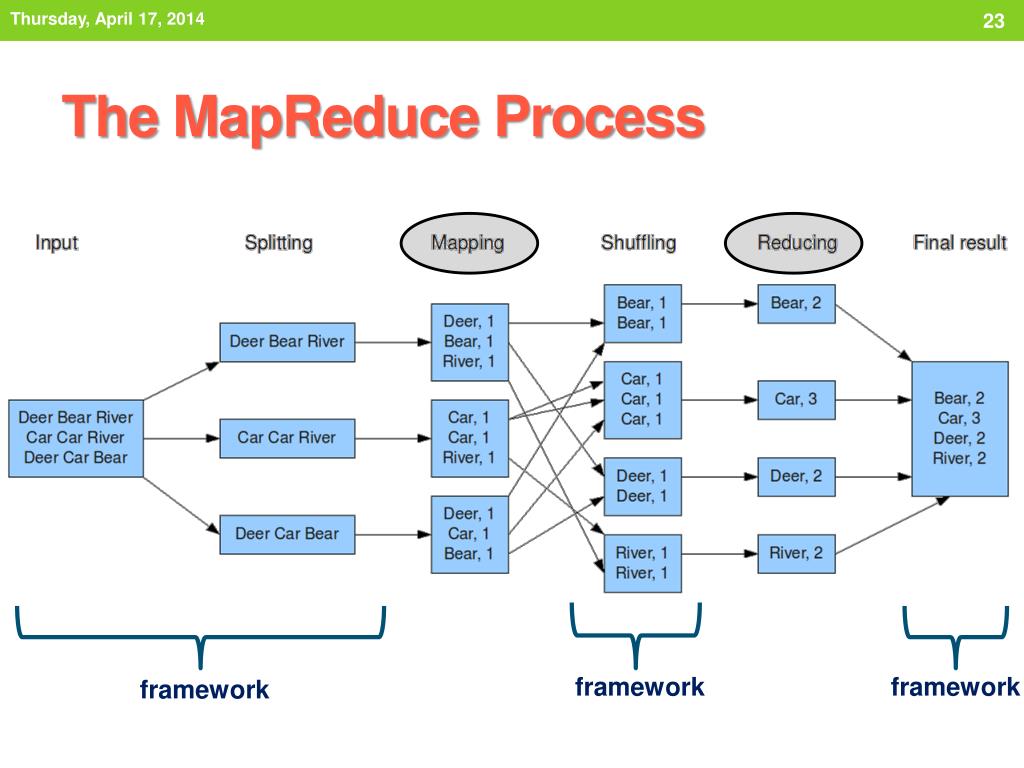

the mapreduce process
The MapReduce Process

framework

framework

framework

mapreduce benefits

Note that all of the map operations can run entirely in parallel, as can all of the reduce operations (once the map operations terminate)

    • With hundreds or thousands of computing nodes, this is a huge benefit!
  • This example seemed trivial, but suppose we were counting billions of entries!
MapReduce Benefits
one more example

For every person on Facebook, Facebook stores their friends in the format

Person  [List of friends]

How can we use MapReduceprecompute for any two people on Facebook all of the friends they have in common?

Hint: we’ll have to use the property that identical keys from the mapper all go to the same reducer!

One More Example

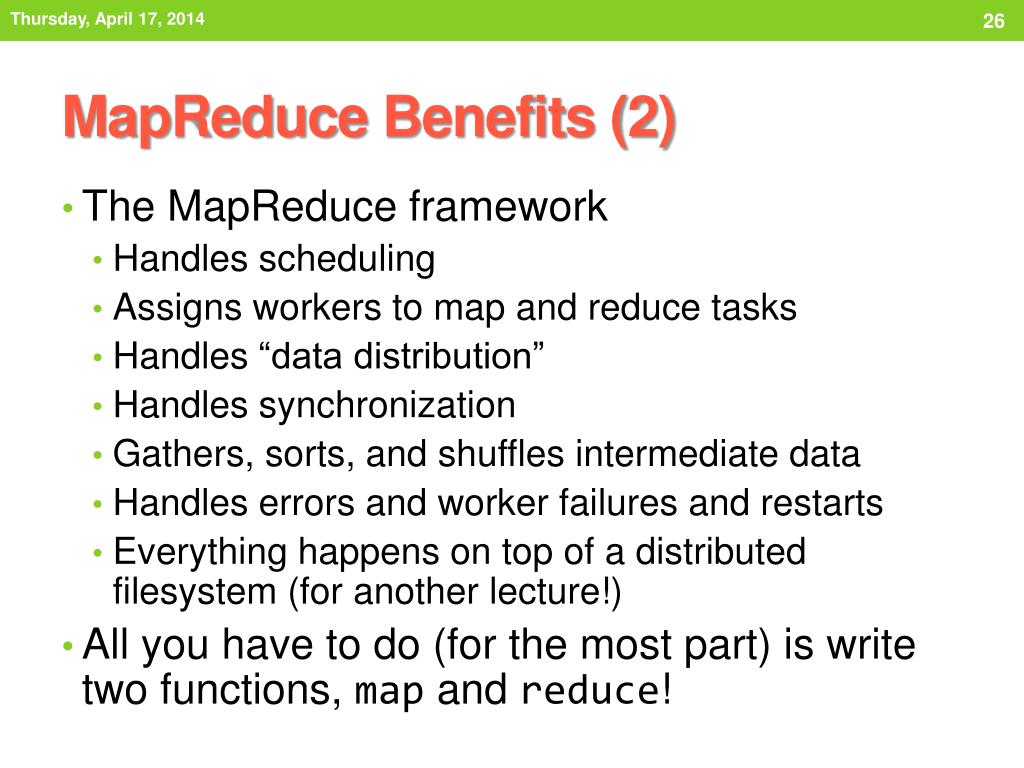

mapreduce benefits 2

The MapReduceframework

    • Handles scheduling
    • Assigns workers to map and reduce tasks
    • Handles “data distribution”
    • Handles synchronization
    • Gathers, sorts, and shuffles intermediate data
    • Handles errors and worker failures and restarts
    • Everything happens on top of a distributed filesystem (for another lecture!)
  • All you have to do (for the most part) is write two functions, map and reduce!
MapReduce Benefits (2)
acknowledgements

http://www.umiacs.umd.edu/~jimmylin/cloud-2010-Spring/session1-slides.pdfhttp://www.umiacs.umd.edu/~jimmylin/cloud-2010-Spring/session1-slides.pdf

http://stevekrenzel.com/finding-friends-with-mapreduce

Acknowledgements
