  1. Page-replacement policies On some standard algorithms for the management of resident virtual memory pages

  2. Use of backing storage • The Pentium’s virtual memory architecture supports the ‘swapping’ of memory pages between physical ram and disk storage • More processes can be in the ‘running’ state if some of their pages are ‘swapped’

  3. More processes can be running 6 processes 3 processes PHYSICAL RAM PHYSICAL RAM DISK STORAGE

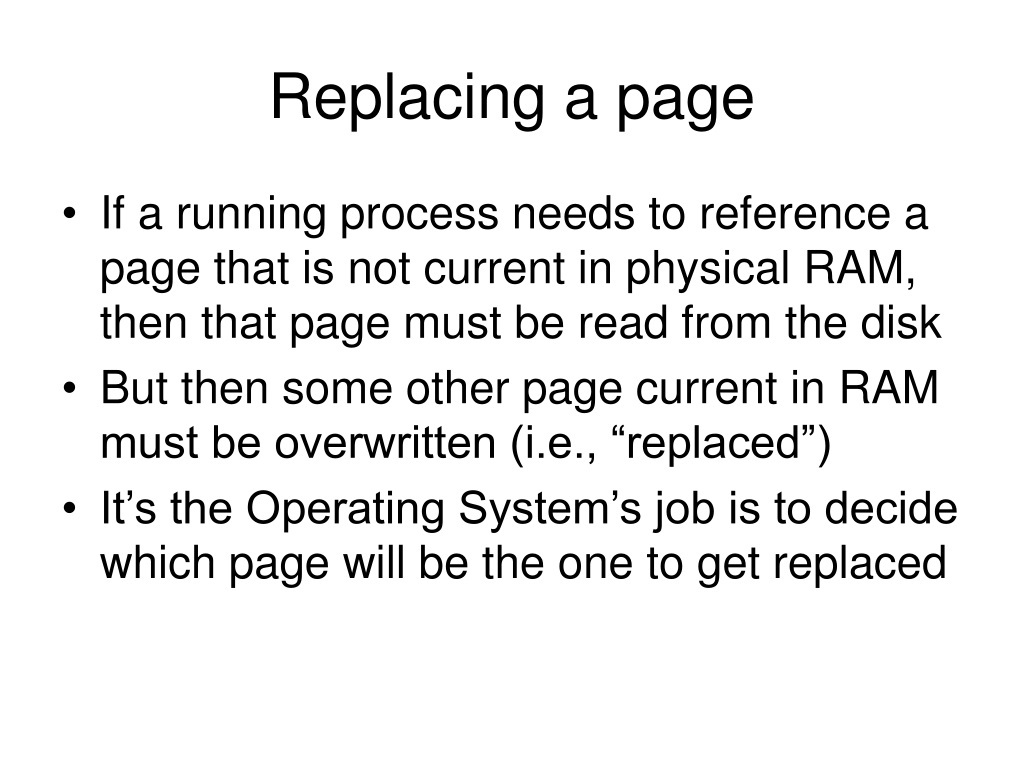

  4. Replacing a page • If a running process needs to reference a page that is not current in physical RAM, then that page must be read from the disk • But then some other page current in RAM must be overwritten (i.e., “replaced”) • It’s the Operating System’s job is to decide which page will be the one to get replaced

  5. What could go wrong? • If the OS replaces a page that will soon be referenced again, then that page will have to be re-read back into memory (and some other page will need to be replaced) • Disk-I/O is slow compared to RAM access • A task’s progress is delayed when it needs to wait for disk-I/O operations to complete • A worst-case senario is disk “thrashing”

  6. Intelligent replacement • The OS should try to avoid “replacing” any page that will very soon be needed again • Belady showed (in 1966) that an “optimal” page-replacement policy is to discard the page that won’t be needed again for the greatest amount of time • But of course the OS has no way to know which pages will be needed soonest

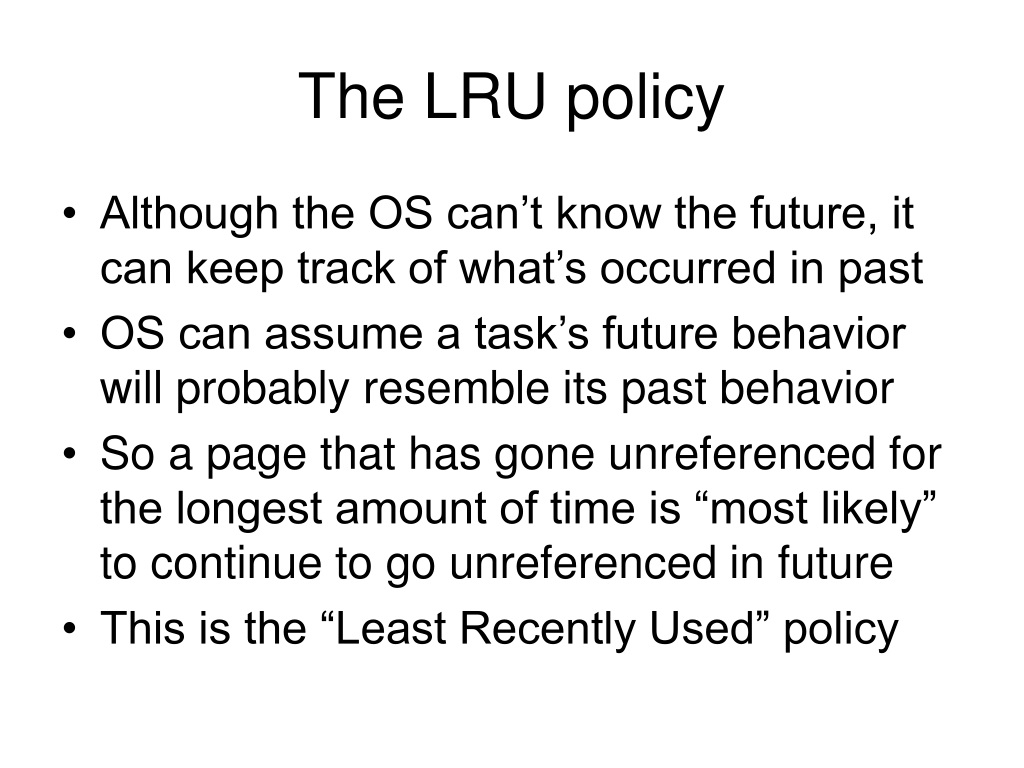

  7. The LRU policy • Although the OS can’t know the future, it can keep track of what’s occurred in past • OS can assume a task’s future behavior will probably resemble its past behavior • So a page that has gone unreferenced for the longest amount of time is “most likely” to continue to go unreferenced in future • This is the “Least Recently Used” policy

  8. LRU is too costly • Tracking the time when each page gets referenced is prohibitively expensive • For example, with a 4GB physical memory there would be one million physical pages • Hardware would need to support page-tracking in parallel with task execution • So more practical approaches are needed

  9. The FIFO policy • A fixed-size array of pages is organized as a ring-buffer (FIRST-IN, FIRST-OUT) • Whenever a new page must be brought in from the disk, it will replace the page that has been in RAM for the longest time • This is simple to implement (and can work well if all pages are accessed with roughly the same frequency – but that’s unusual!

  10. The CLOCK policy • An easy way to modify the FIFO policy, so as to avoid replacing frequently accessed pages that got loaded into RAM very early, is the so-called “clock” policy (also called known as the “second chance” algorithm) • It uses a single bit of data for each page, called the ‘accessed’ bit (which the CPU automatically sets upon a page-access), plus a revolving software ‘pointer’

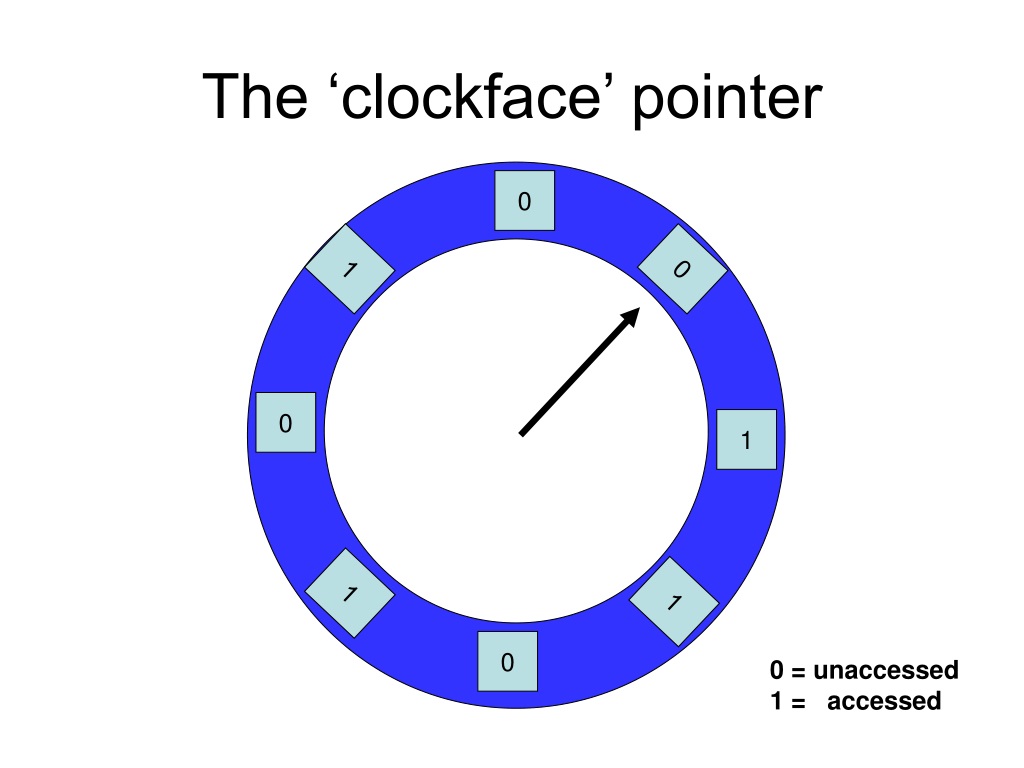

  11. The ‘clockface’ pointer 0 1 0 0 1 1 1 0 0 = unaccessed 1 = accessed

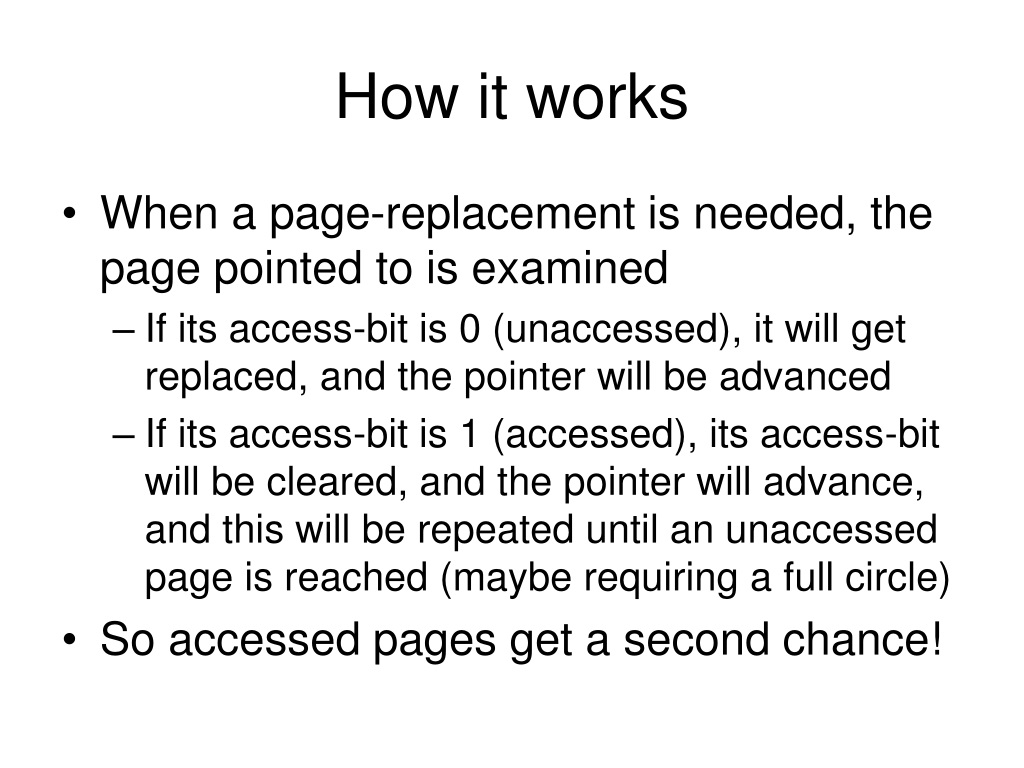

  12. How it works • When a page-replacement is needed, the page pointed to is examined • If its access-bit is 0 (unaccessed), it will get replaced, and the pointer will be advanced • If its access-bit is 1 (accessed), its access-bit will be cleared, and the pointer will advance, and this will be repeated until an unaccessed page is reached (maybe requiring a full circle) • So accessed pages get a second chance!

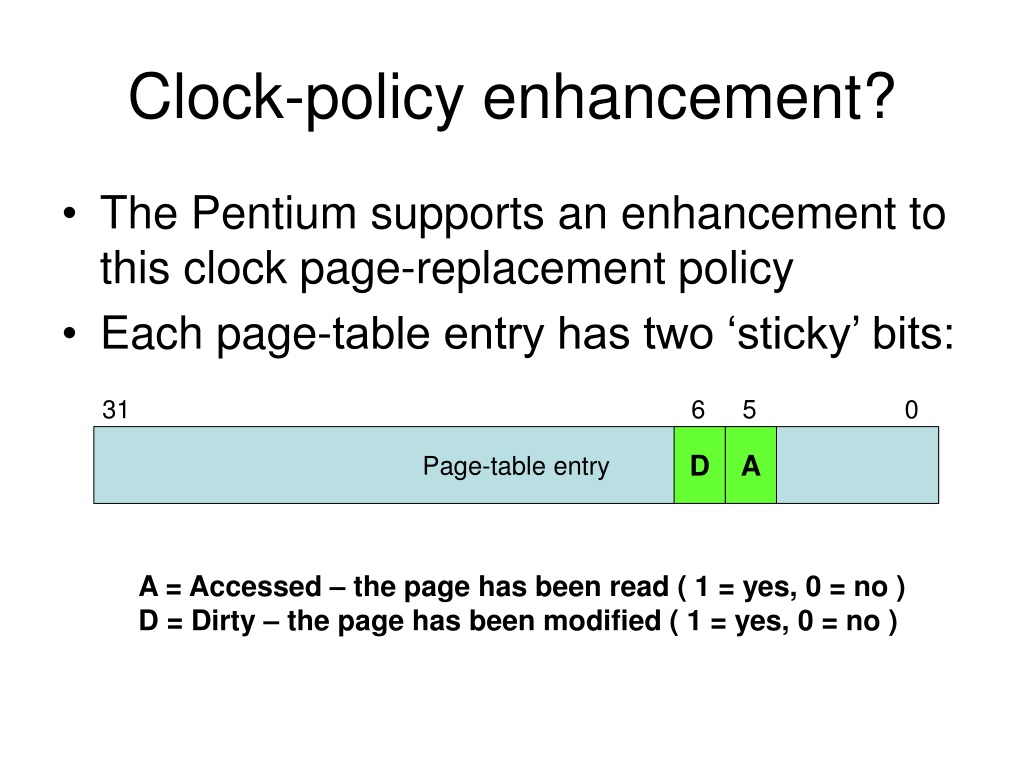

  13. Clock-policy enhancement? • The Pentium supports an enhancement to this clock page-replacement policy • Each page-table entry has two ‘sticky’ bits: 31 6 5 0 Page-table entry D A A = Accessed – the page has been read ( 1 = yes, 0 = no ) D = Dirty – the page has been modified ( 1 = yes, 0 = no )

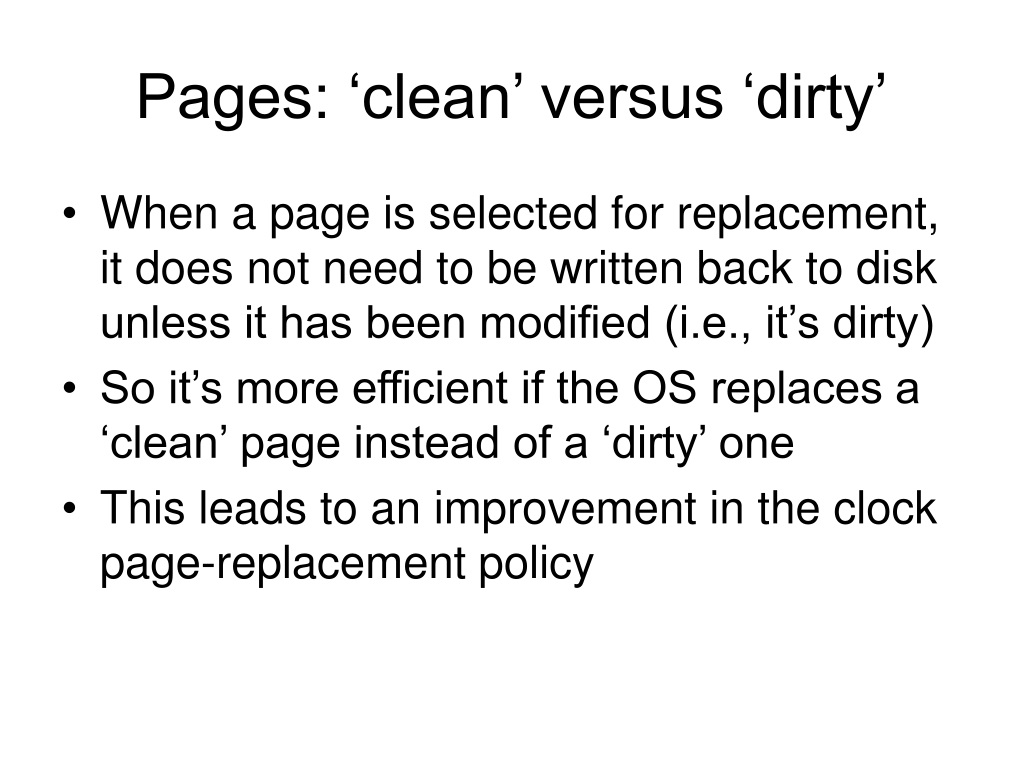

  14. Pages: ‘clean’ versus ‘dirty’ • When a page is selected for replacement, it does not need to be written back to disk unless it has been modified (i.e., it’s dirty) • So it’s more efficient if the OS replaces a ‘clean’ page instead of a ‘dirty’ one • This leads to an improvement in the clock page-replacement policy

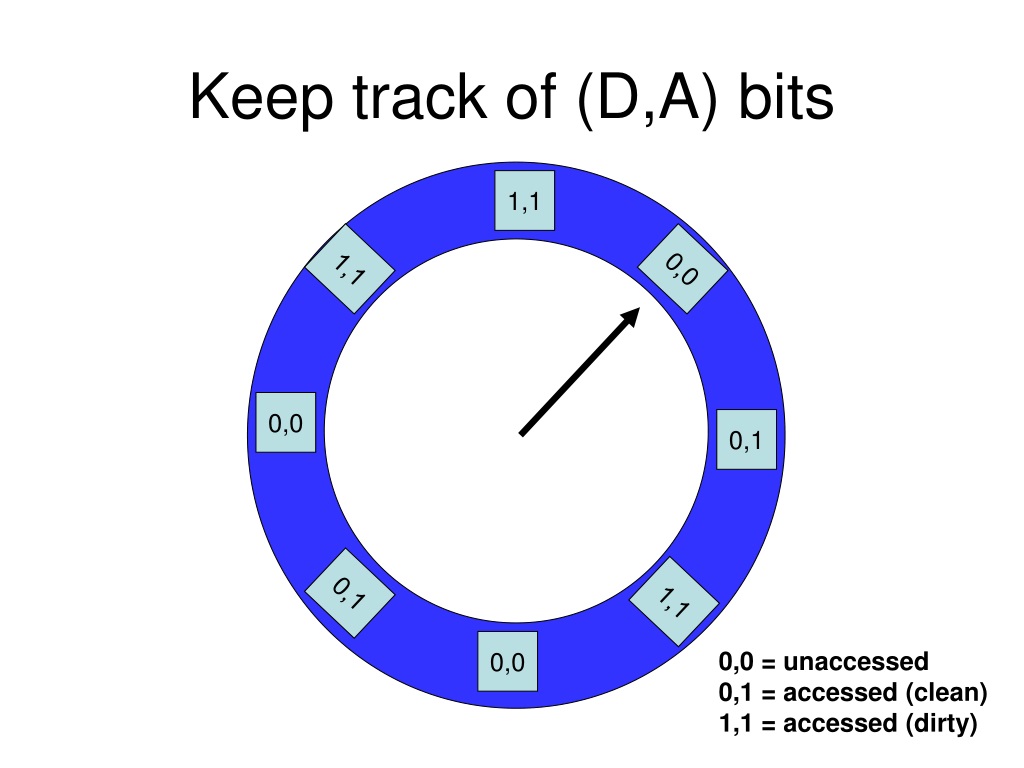

  15. Keep track of (D,A) bits 1,1 1,1 0,0 0,0 0,1 0,1 1,1 0,0 0,0 = unaccessed 0,1 = accessed (clean) 1,1 = accessed (dirty)

  16. How enhancement works • When a page-replacement is needed, the page pointed to is examined: (D,A)-bits checked • If sticky-bits are 0,0 (unaccessed), page is replaced and the pointer is advanced • If sticky-bits are 0,1 (accessed, but clean), bits are not changed, but the pointer will be advanced • After a full circle, a second scan begins; if a ‘clean’ page is encountered, it gets replaced; otherwise, after a second full scan (all page are dirty), the initial page gets replaced

  17. In-class exercise • Our ‘clockalg.cpp’ demo simulates three page-replacement algorithms: optimal, CLOCK, and FIFO • Try adding your own code to implement a simulation for the ‘enhanced’ clock policy • NOTE: you’ll need to associate a ‘read’ or ‘write’ attribute with every page-access
