SILICONAS

SILICONAS. R. Aceites: Polímero lineal Cauchos: Material reticulado Resina rígida: Altamente reticulado. - Si - O -. R’. Espectros IR: Tensión Si-O-Si: 1100-1000 cm -1 (banda intensa, dos máximos). SILICONAS. V.deform. CH 3. Aleteo CH 3 Tensión C-Si. Grupo. Si - CH 3. 1410 1265.

gary-oconnor
Download Presentation

SILICONAS

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

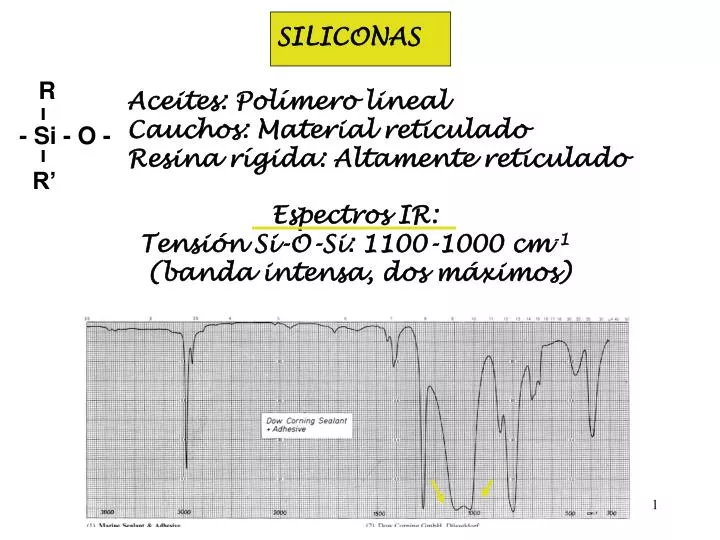

  1. SILICONAS R Aceites: Polímero lineal Cauchos: Material reticulado Resina rígida: Altamente reticulado - Si - O - R’ Espectros IR: Tensión Si-O-Si: 1100-1000 cm-1 (banda intensa, dos máximos)

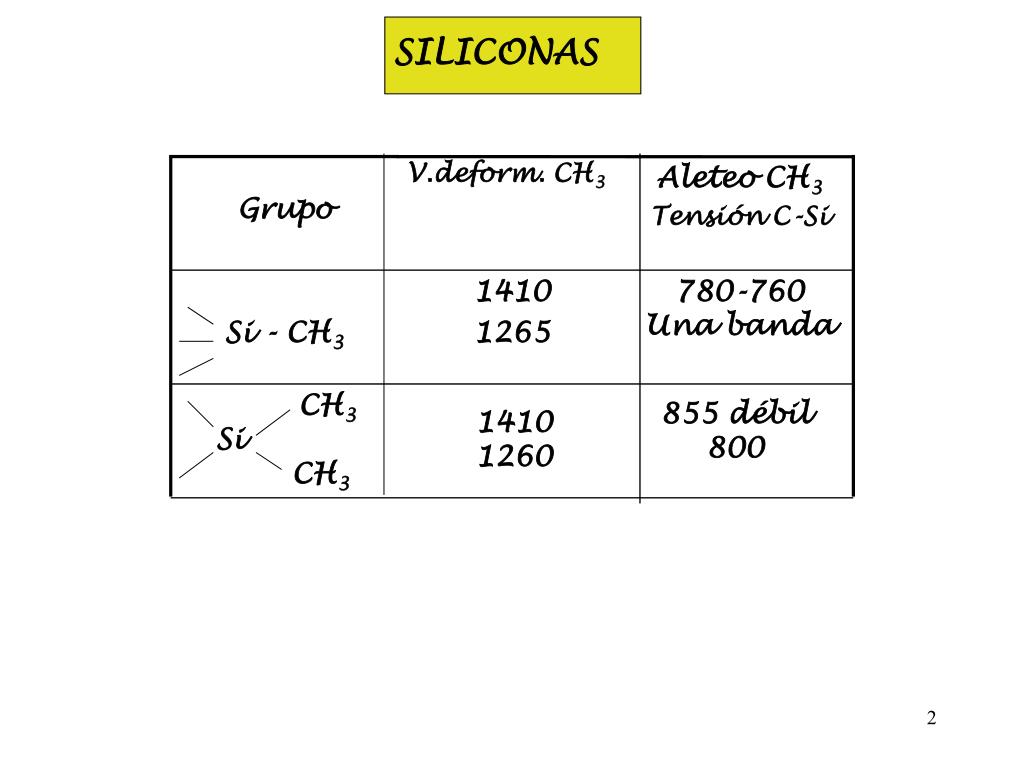

  2. SILICONAS V.deform. CH3 Aleteo CH3 Tensión C-Si Grupo Si - CH3 1410 1265 780-760 Una banda CH3 855 débil 800 1410 1260 Si CH3

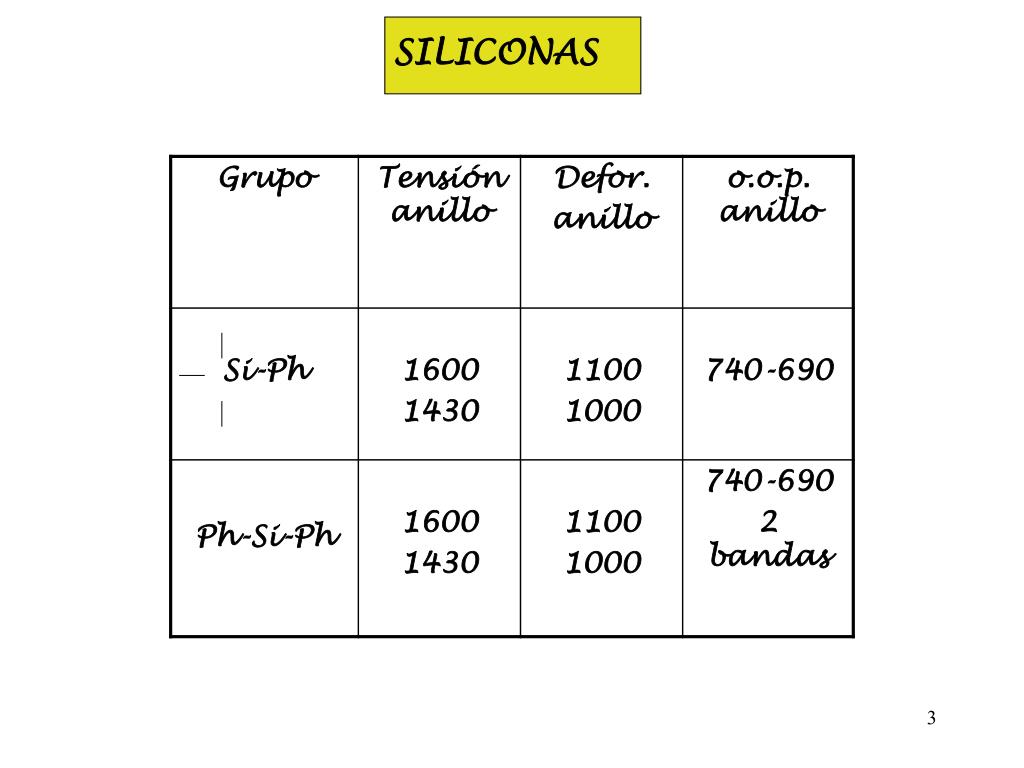

  3. SILICONAS

  4. IR SILICONAS

  5. IR SILICONAS
