Advanced Fuzzing with Peach 2

1. Advanced Fuzzing with Peach 2 Michael Eddington mike@leviathansecurity.com

2. Agenda • Introduction to Peach 2 • Data mutations • Peach State Machine • Peach Farm • Peach in The Middle

3. Introduction to Peach 2

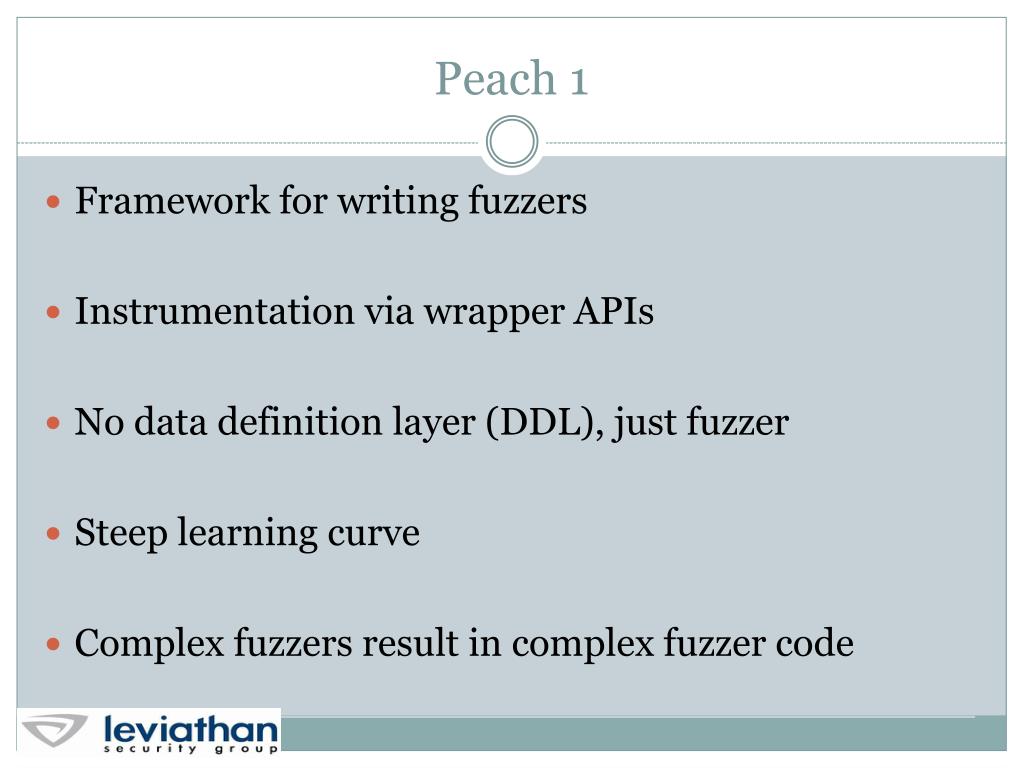

4. Peach 1 • Framework for writing fuzzers • Instrumentation via wrapper APIs • No data definition layer (DDL), just fuzzer • Steep learning curve • Complex fuzzers result in complex fuzzer code

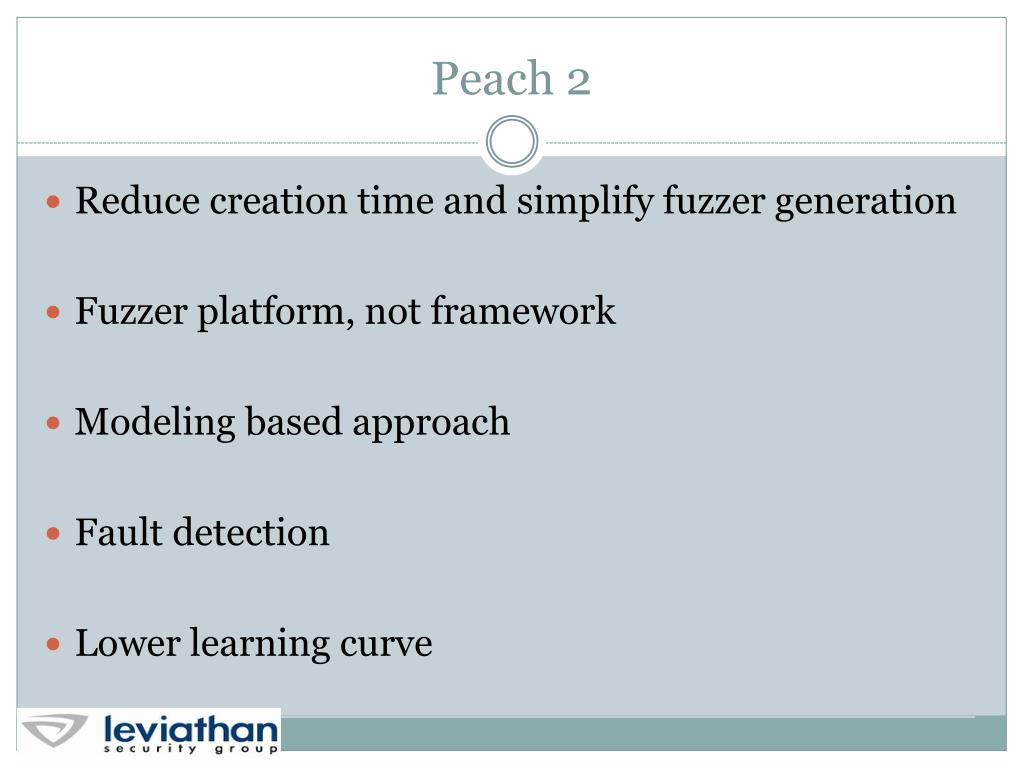

5. Peach 2 • Reduce creation time and simplify fuzzer generation • Fuzzer platform, not framework • Modeling based approach • Fault detection • Lower learning curve

6. Modeling Based Fuzzing • Model types and data • Model state machine • Support models with data sets • Mutate models with mutators

7. Model Data: Types INT INT INT Flags INT Len STRING INT Len DATA INT INT INT DATA

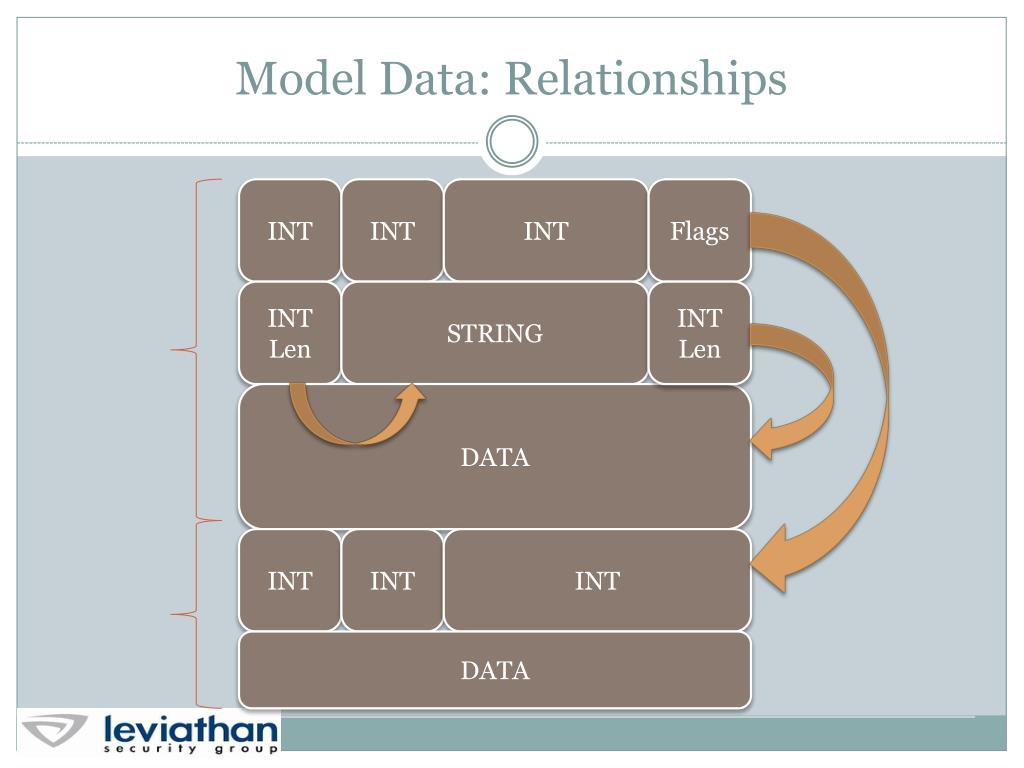

8. Model Data: Relationships INT INT INT Flags INT Len STRING INT Len DATA INT INT INT DATA

9. Model Data: State Model Packet B-2 Packet B-1 Packet D Packet A Packet C-1 Packet C-2

10. Benefits of Modeling • Easy reuse of definitions • Complex mutations can be applied to a model • Improvements to data generation or mutation independent of model • Data read into definition as well as generated

11. Data Modeling • Define structure of data • Define relations in data • Reuse definitions • Block • Sequence • Choice • String • Number • Flags/Flag • Blob • Relation • Transformer

12. State Modeling

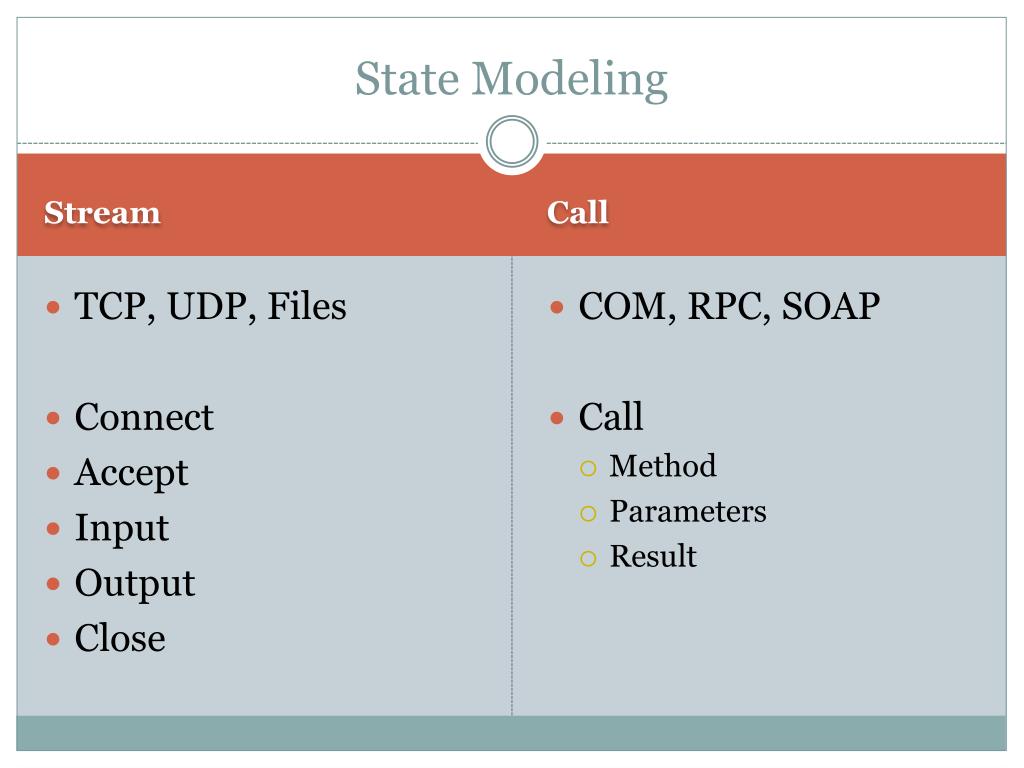

13. State Modeling Stream Call • TCP, UDP, Files • Connect • Accept • Input • Output • Close • COM, RPC, SOAP • Call • Method • Parameters • Result

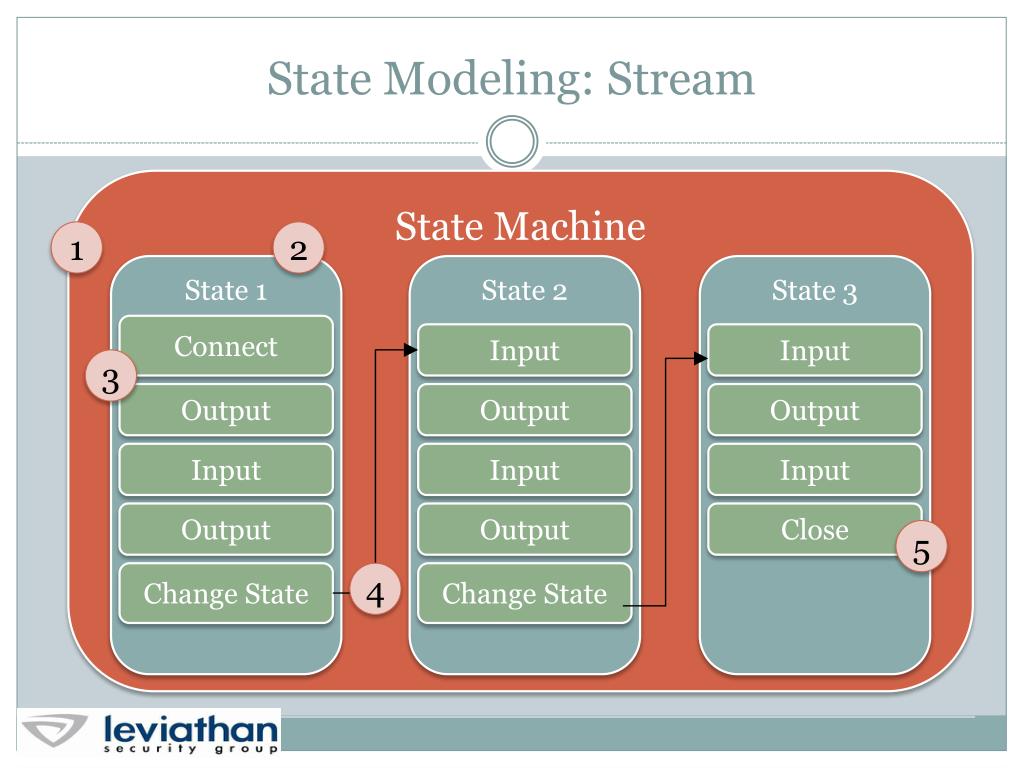

14. State Modeling: Stream State Machine 1 2 State 1 State 2 State 3 Connect Input Input 3 Output Output Output Input Input Input Output Output Close 5 Change State Change State 4

15. State Modeling: Stream State Machine State 1 State 2 State 3 Accept Input Input 1 Output Output Output Input Input Input Output Output Close 5 Change State Change State

16. State Modeling: Stream State Machine State 1 State 2 State 3 Connect 3 Connect 1 Input Output Output Output Input Input Input Close Output Close 2 4 Change State Change State

17. State Modeling: Call State Machine State 1 State 2 Start 1 Call Call Call 2 Call Call Stop Change State 3

18. Data Mutations

19. Mutation: String “?k1=v+1&k2=v2” 40,000+ variations

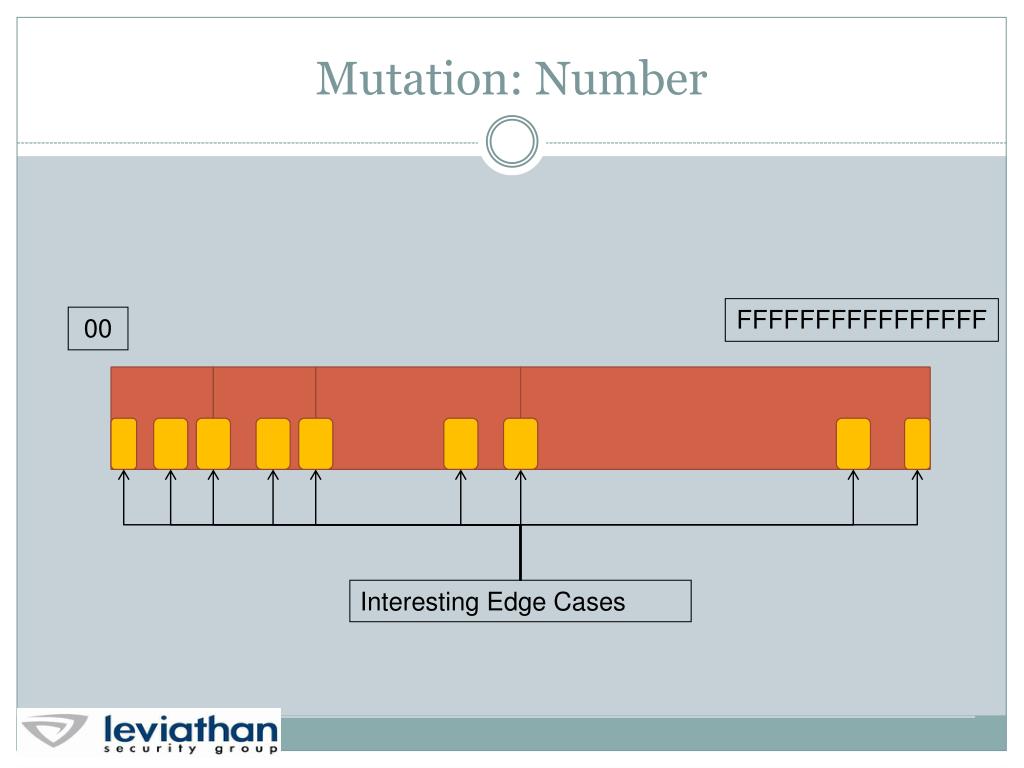

20. Mutation: Number FFFFFFFFFFFFFFFF 00 Interesting Edge Cases

21. Mutation: Size Relation #1 200 • Length: • Data: 200 Bytes

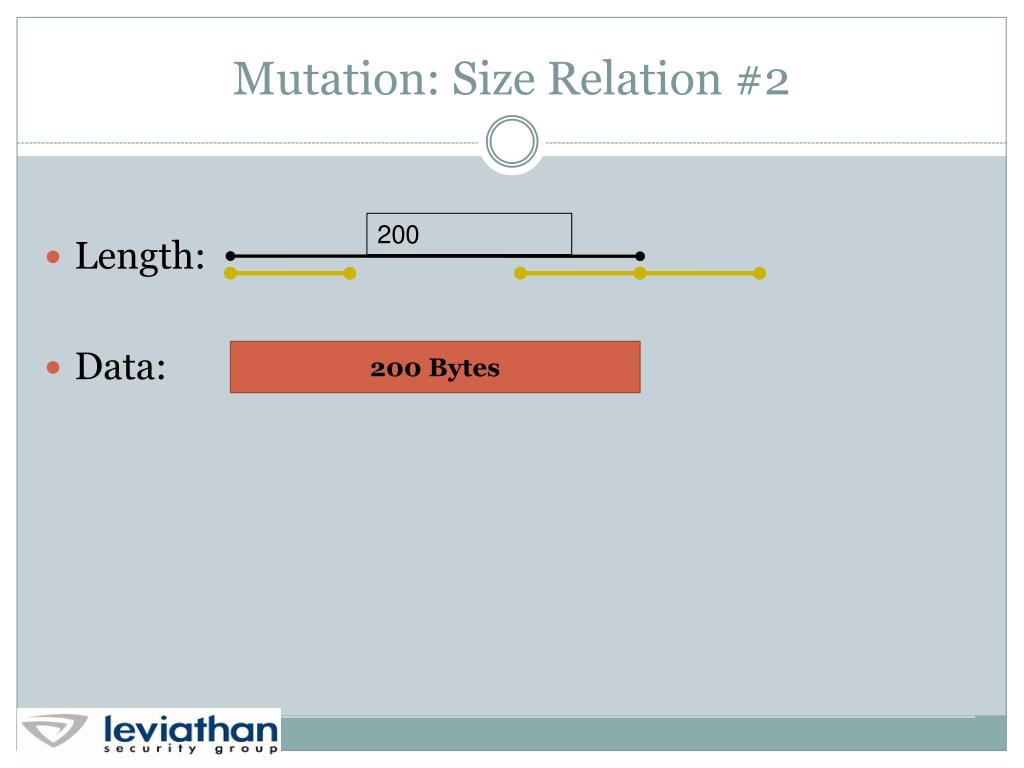

22. Mutation: Size Relation #2 • Length: • Data: 200 Bytes 200

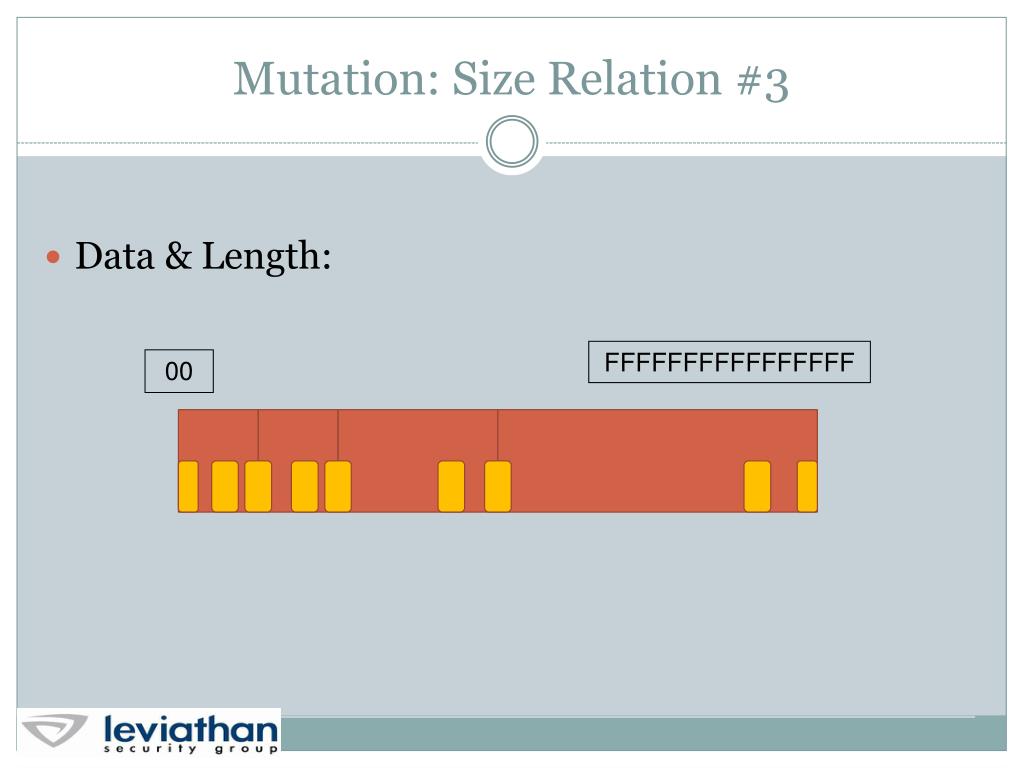

23. Mutation: Size Relation #3 • Data & Length: FFFFFFFFFFFFFFFF 00

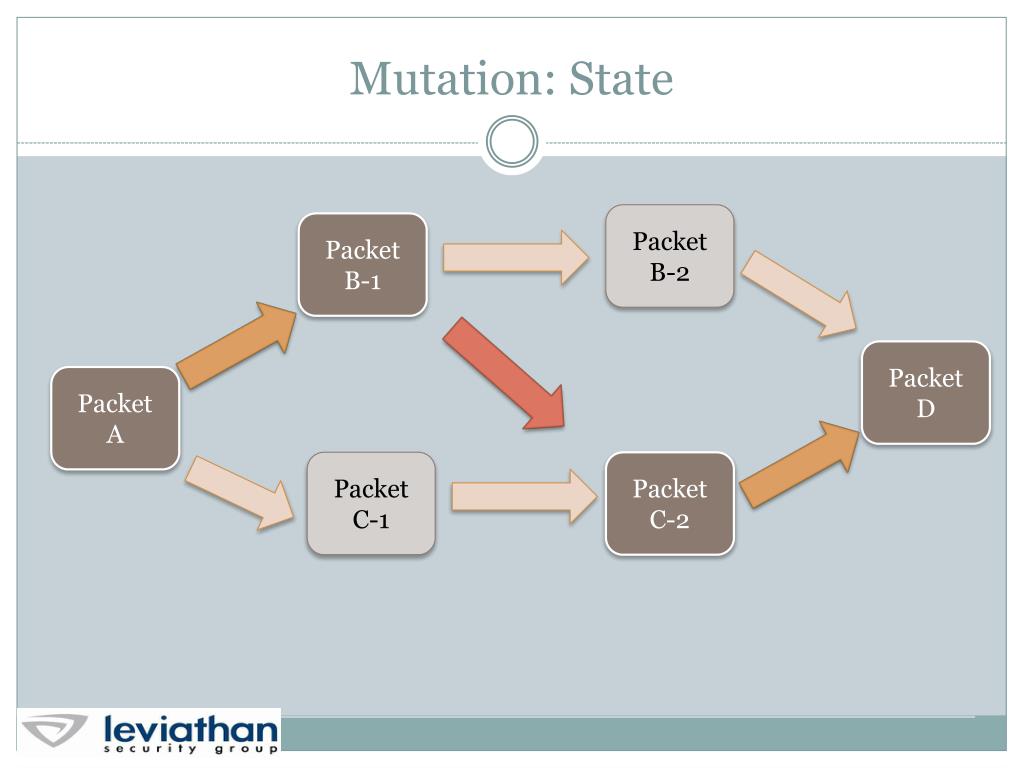

24. Mutation: State Packet B-2 Packet B-1 Packet D Packet A Packet C-1 Packet C-2

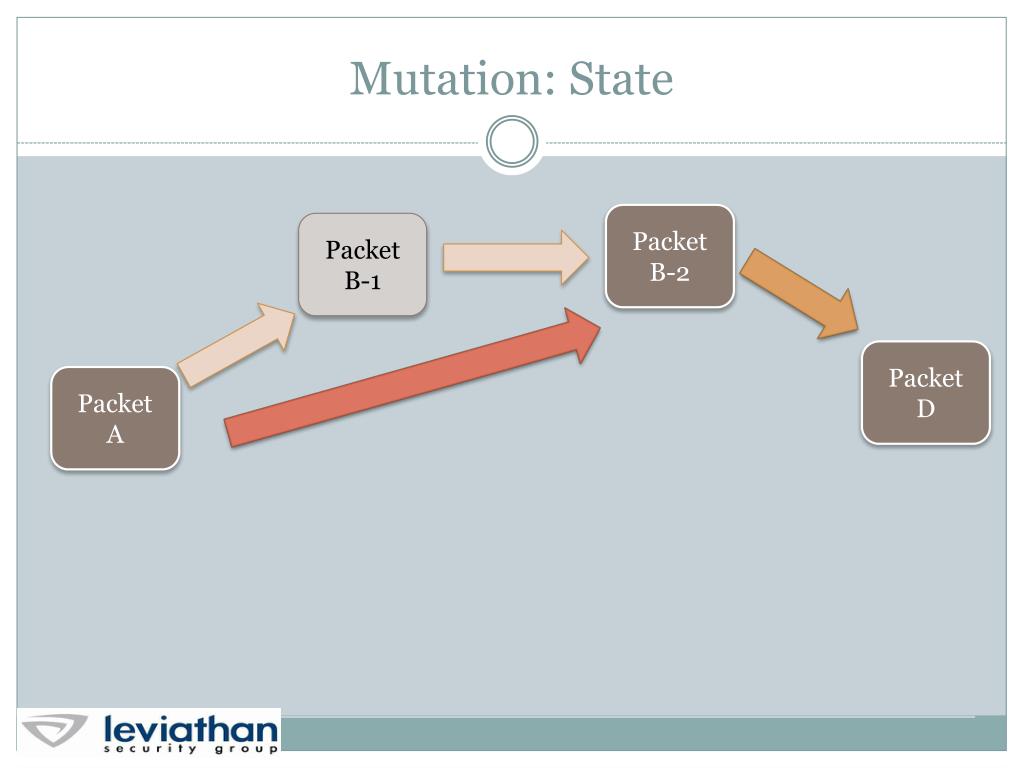

25. Mutation: State Packet B-2 Packet B-1 Packet D Packet A

26. Mutation: State Packet B-2 Packet B-1 Packet D Packet A

27. Add Custom Mutators • Sling some Python • Add additional mutations • Specific mutations • Etc.

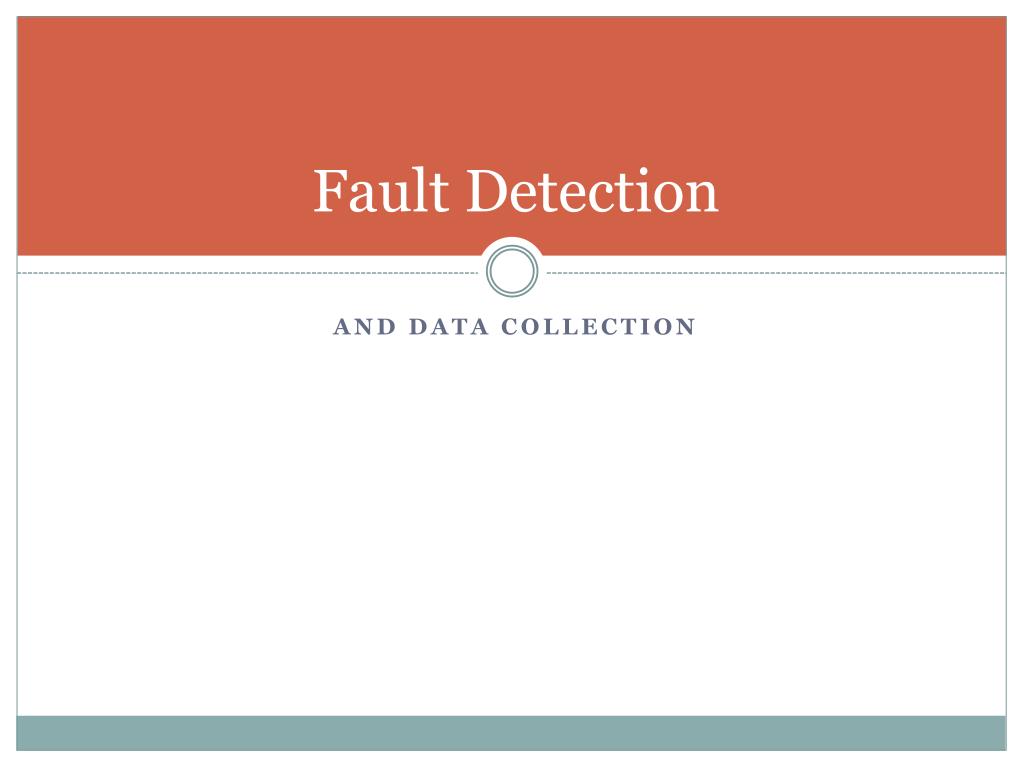

28. Fault Detection And data collection

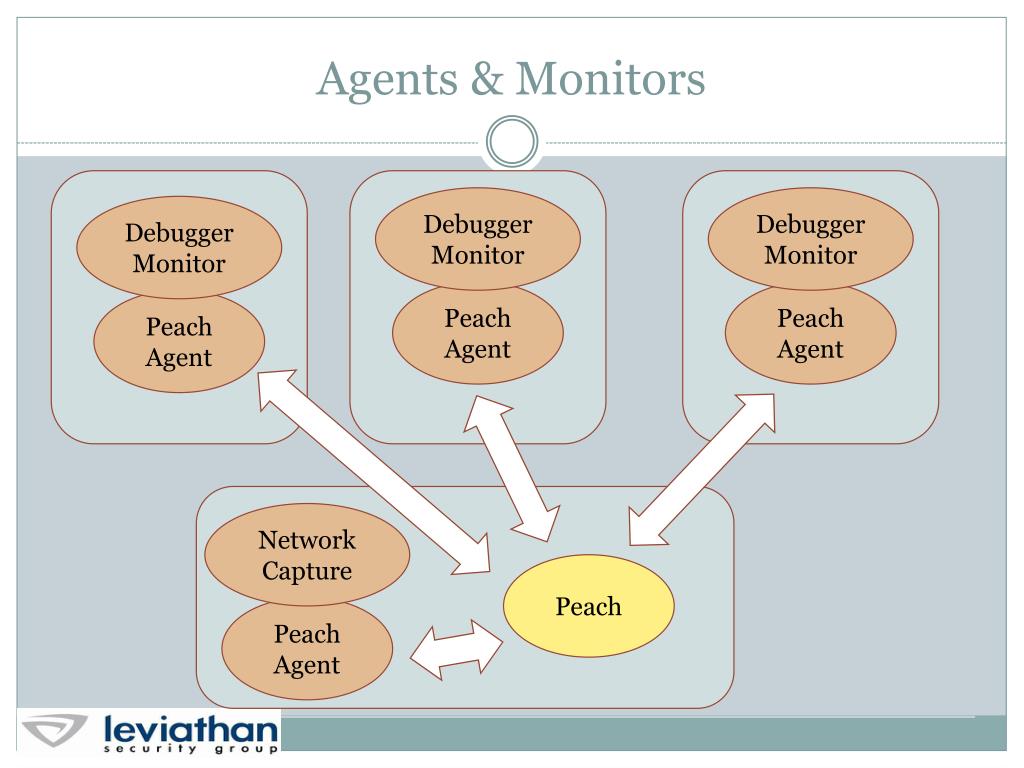

29. Agents & Monitors Debugger Monitor Debugger Monitor Debugger Monitor Network Capture Peach Agent Peach Agent Peach Agent Peach Agent Peach

30. 2 Tier Configuration 2 3 Agent 1 Agent 2 Peach 1 4 Network Capture Network Capture Agent Manager Debugger Debugger Engine Backend Target Logging 6 5

31. Monitors • Debuggers • Process Monitor • Memory Monitor • Network Capture • VM Control (snapshot, revert) • Networked Power Strips (cycle power) • Easy to implement custom monitors

32. Peach Development

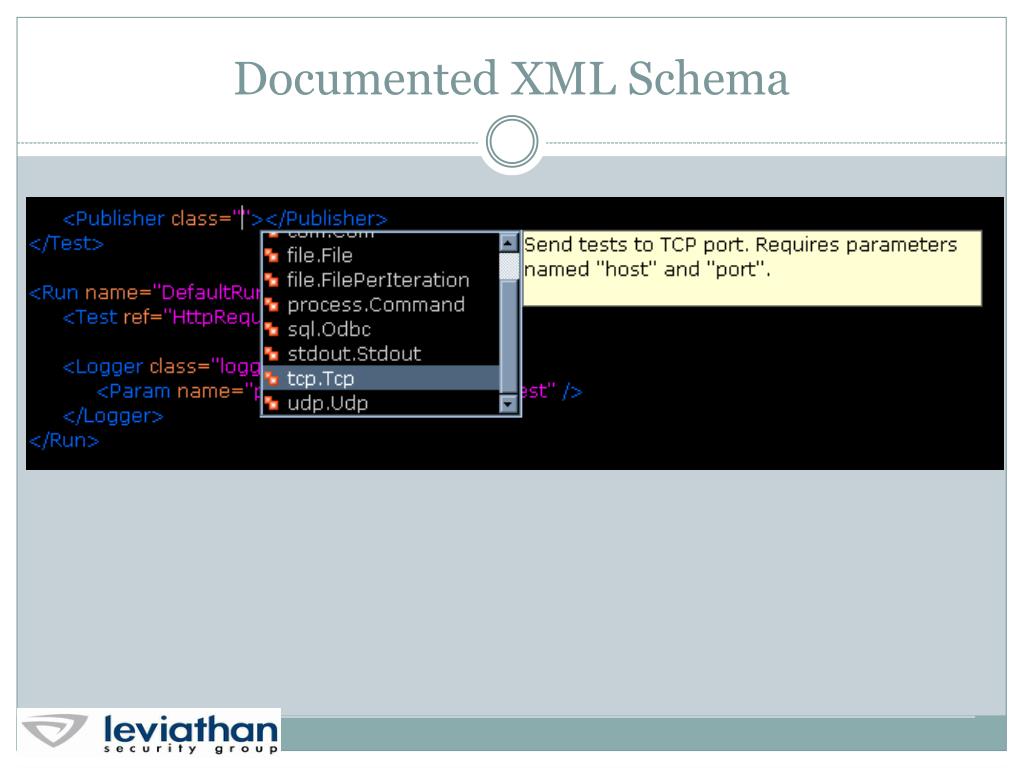

33. Documented XML Schema

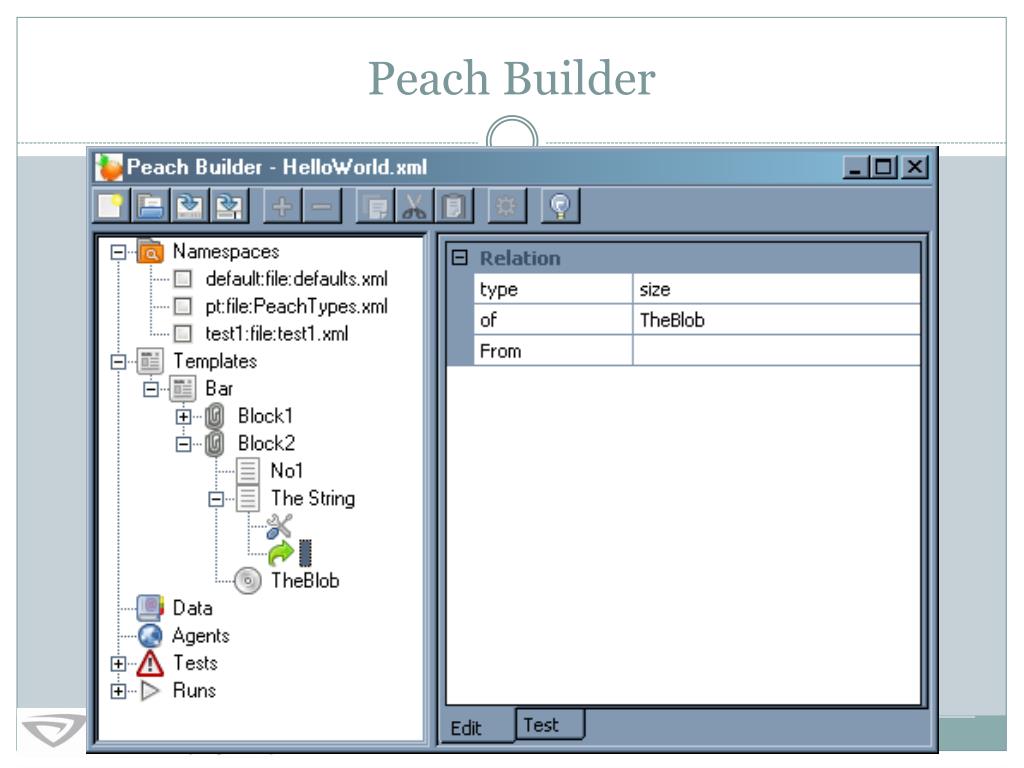

34. Peach Builder

35. Peach Shark

36. Peach Farm Massively Parallel Fuzzing

37. Peach Farm • Adam Cecchetti • Massively Parallel Fuzzing • Scales from 1 to 10,000 nodes • Choose your Virtual Platform/Hosting • EC2, Xen, VMWare, Etc • Utilizes Map/Reduce Algorithm • Map: Maps the fuzzing cases to indexes and results • Reduce: Reduces fuzzing results to interesting cases • Metric based : Time, size, diff, expected errors, OS faults, crashes

38. Peach in The Middle What’s Next?

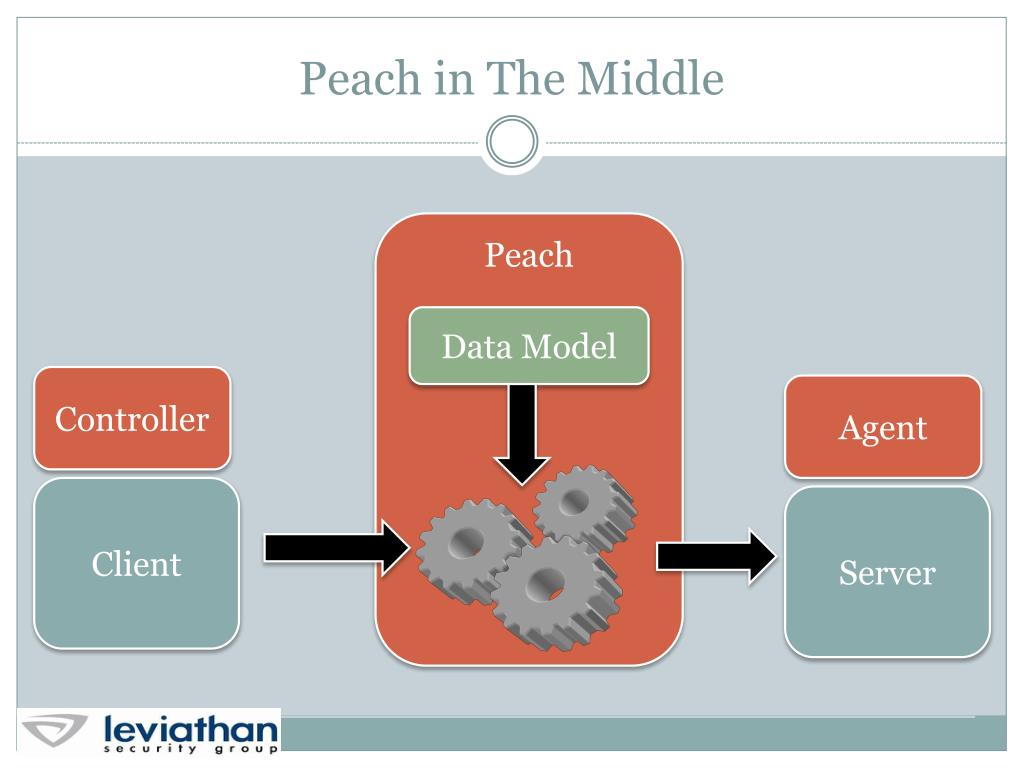

39. Peach in The Middle Peach Data Model Controller Agent Client Server

40. Q & A http://peachfuzz.sf.net http://phed.org mike@leviathansecurity.com
