cs 414 multimedia systems design lecture 35 media server part 4

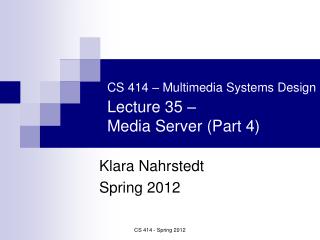

CS 414 – Multimedia Systems DesignLecture 35 – Media Server (Part 4)

Klara Nahrstedt

Spring 2012

CS 414 - Spring 2012

administrative
Administrative

MP3 going on

CS 414 - Spring 2012

covered aspects of multimedia
Covered Aspects of Multimedia

Audio/Video

Presentation

Playback

Image/Video

Capture

Audio/Video

Perception/ Playback

Image/Video Information

Representation

Transmission

Transmission

Compression

Processing

Audio

Capture

Media

Server

Storage

Audio Information

Representation

A/V

Playback

CS 414 - Spring 2012

media server architecture
Media Server Architecture

Delivered data

Incoming request

Network Attachment (RTP/RTCP, ….)

Content Distribution (Caching, Patching,

Batching)

Memory Management (MaxBuf, MinBuf Policy

Buffering)

File System

Storage management

Disk controller

Storage device

CS 414 - Spring 2012

outline
Outline
  • Example of Early Media Server – Medusa
  • Example of Multimedia File System – Symphony
  • Example of Industrial Multimedia File System – Tiger Shark System

CS 414 - Spring 2012

slide6

Example of Media Server Architecture

Source: Medusa (Parallel Video Servers), Hai Jin, 2004

CS 414 - Spring 2012

example multimedia file system symphony
Example Multimedia File System (Symphony)

CS 414 - Spring 2012

  • Source: P. Shenoy et al, “Symphony: An Integrated Multimedia File System”, SPIE/ACM MMCN 1998
  • System out of UT Austin
  • Symphony’s Goals:
    • Support real-time and non-real time request
    • Support multiple block sizes and control over their placement
    • Support variety of fault-tolerance techniques
    • Provide two level metadata structure that all type-specific information can be supported
design decisions
Design Decisions

CS 414 - Spring 2012

two level symphony architecture
Two Level Symphony Architecture
  • Resource Manager:
  • Disk Schedule System (called Cello) that uses modified SCAN-EDF for RT
  • Requests and C-SCAN for non-RT requests as long as deadlines are not violated
  • Admission Control and Resource Reservation for scheduling

CS 414 - Spring 2012

disk subsystem architecture
Disk Subsystem Architecture

Service Manager : supports mechanisms for efficient scheduling of best-effort,

aperiodic real-time and periodic real-time requests

Storage Manager: supports mechanisms for allocation and de-allocation of blocks

Of different sizes and controlling data placement on the disk

Fault Tolerance layer: enables multiple data type specific failure recovery techniques

Metadata Manager: enables data types specific structure to be assigned to files

CS 414 - Spring 2012

cello disk scheduling framework
Cello Disk Scheduling Framework

Source: Prashant Shenoy, 2001

CS 414 - Spring 2012

class independent scheduler
Class-Independent Scheduler

CS 414 - Spring 2012

Source: Prashant Shenoy, 2001

class specific schedulers
Class-Specific Schedulers

CS 414 - Spring 2012

validation symphony s scheduling system cello
Validation: Symphony’s scheduling system (Cello)

Source: Shenoy Prashant, 2001

CS 414 - Spring 2012

buffer subsystem
Buffer Subsystem
  • Enable multiple data types specific caching policies to coexist
  • Partition cache among various data types and allow each caching policy to independently manage its partition
  • Maintain two buffer pools:
    • a pool of de-allocated buffers
    • pool of cached buffers.
      • Cache pool is further partitioned among various caching policies
      • Examples of caching policies for each cache buffer: LRU, MRU.

CS 414 - Spring 2012

buffer subsystem protocol
Buffer Subsystem (Protocol)
  • Receive buffer allocation request
  • Check if the requested block is cached.
    • If yes, it retursn the requested block
    • If cache miss, allocate buffer from the pool of de-allocated buffers and insert this buffer into the appropriate cache partition
  • Determine (Caching policy that manages individual cache) position in the buffer cache
    • If pool of de-allocated buffers falls below low watermark, buffers are evicted from cache and returned to de-allocated pool
    • Use TTR (Time To Reaccess) values to determine victims
      • TTR – estimate of next time at which the buffer is likely to be accessed

CS 414 - Spring 2012

video module
Video Module
  • Implements policies for placement, retrieval, metadata management and caching of video data
  • Placement of video files on disk arrays is governed by two parameters: block size and striping policy.
    • supports both fixed size blocks (fixed number of bytes) and variable size blocks (fixed number of frames)
    • uses location hints so as to minimize seek and rotational latency overheads
  • Retrieval Policy:
    • supports periodic RT requests (server push mode) and aperiodic RT requests (client pull mode)

CS 414 - Spring 2012

video module metadata management
Video Module (Metadata Management)
  • To allow efficient random access at byte level and frame level, video module maintains two-level index structure
    • First level of index , referred to as frame map, maps frame offset to byte offset
    • Second level, referred to as byte map, maps byte offset to disk block locations

CS 414 - Spring 2012

symphony caching policy
Symphony Caching Policy

Interval-based caching for video module

LRU caching for text module

CS 414 - Spring 2012

ibm multimedia file system
IBM Multimedia File System
  • The Tiger Shark File System
    • Roger L. Haskin, Frank B. Schmuck
    • IBM Journal of Research and Development, 1998

CS 414 - Spring 2012

the newer mm filesystems classes of requests
The newer MM Filesystems:Classes of requests
  • Tiger Shark filesystem defines different types of classes to FS requests.
    • minimum needed is 2 classes.
      • Legacy Requests
        • Read/Write data for small files, not needed quickly at the NIC
      • High-Performance Requests
        • Read data for large likely-contiguous files that needs to be quickly dumped to the nic (network interface control)
    • This is similar to our newer networking paradigm
      • “not all traffic is equal”
    • Unaddressed question that I had: Can we take the concept of discardability and apply it to filesystems?

CS 414 - Spring 2012

classes of requests
Tiger Shark

Real-time Class

Real-time class is fine grained into subclasses, because Tiger Shark has

Resource Reservation

Admission Control

If the controllers and disks cannot handle the predicted load then the request is denied.

Legacy Class

Also has a legacy interface for old filesystem access interfaces.

Classes of Requests

CS 414 - Spring 2012

quantization and scheduling optimizations
Quantization, and Scheduling Optimizations
  • "Deadline Scheduling" instead of elevator algorithms.
  • Blocksize is 256KB (default), Normal AIX uses 4KB size.
  • Tiger Shark will "chunk" contiguous block reads better than the default filesystems to work with its large blocksize.

CS 414 - Spring 2012

streamlining of operations to get data from platter to nic
Streamlining of operations to get data from platter to NIC.
  • Running daemon that pre-allocates OS resources such as buffer space, disk bandwidth and controller time.
  • Not a hardware-dependent solution.
  • Even though it does not have shared memory hardware, Tiger Shark copies data from the disks into a shared memory area. Essentially this is a very large extension of the kernel's disk block cache.

CS 414 - Spring 2012

seeking optimizations
Byte Range Locking.

Allows multiple clients to access different areas of a file with real-time guarantees if they don't step on each other.

Seeking Optimizations

CS 414 - Spring 2012

current research and future directions
Current Research and Future Directions
  • Tiger Shark gives us Filesystem QoS.
  • But can we do better by integrating VBR/ABR into the system?
  • Replication and redundancy are always an issue, but not addressed in this scope.
  • If it is a software-based system such as Tiger Shark, where in the OS should we put these optimizations? (Kernel, Tack-On Daemon, Middleware)
  • Legacy disk accesseshave a huge cost in both of these systems, how can we minimize?

CS 414 - Spring 2012

tiger shark final thoughts
Tiger Shark Final Thoughts
  • AddsQoS guarantees to current disk interface architectures
  • Built to be extensible to more than just MM disk access.
    • But definitely optimized for multimedia.
  • Designed to serve more concurrent sessions out of a multimedia server
    • BUT there is still kernel bottleneck for the initial block load.
    • Better suited to multiple concurrent access than EXT3NS

CS 414 - Spring 2012

conclusion
Conclusion

The data placement, scheduling, block size decisions, caching, concurrent clients support, buffering, are very important for any media server design and implementation.

Next Lecture – we discuss P2P Streaming
