Specialization tools and techniques for systematic optimization of system software

Specialization Tools and Techniques for Systematic Optimization of System Software

Presented By:

Ashwini Kulkarni

Operating Systems

Winter 2006


Agenda
Agenda Optimization of System Software

  • Introduction

  • Specialization Overview

  • Steps in Specialization

  • Specialization Toolkit

  • Evaluation of the toolkit

  • Lessons learned

  • Conclusions


Introduction
Introduction Optimization of System Software

  • Key dilemma for OS designers:

    • Correctness vs.

    • Performance

  • Conventional Approach:

    • Write general-purpose code optimized for a few common cases

    • Incorporate customizability into system structure


Possible solutions
Possible Solutions Optimization of System Software

  • There are 2 types of customization:

    • Explicit customization:

      • OS customized for currently observed common conditions

      • Customization designed into the OS

      • Actual customized code manually written and injected into the system

        Drawbacks of explicit customization:

      • Significant burden placed on system tuners

      • Optimization opportunities are reduced

    • Inferred customization:

      • Automatically derive optimizations instead of writing by hand


Specialization
Specialization Optimization of System Software

  • Paper’s approach: inferred customization based on specialization

    • Create optimized code for the common cases

    • Restricting code for improved performance

  • Extension vs. Specialization

  • Benefits of this approach:

    • Reduced burden on system tuner

    • Specialized components can take advantage of any state in the system

  • Drawbacks of this approach:

    • Involves complex analysis of the system

    • Generating specialized code can be tedious and error-prone

    • Results in systems which are complex and harder to debug


Specialization contd
Specialization (Contd.) Optimization of System Software

  • To address drawbacks, paper introduces specialization toolkit

    • Reduce amount of manual work required to specialize OS

    • Tools: Tempo, TypeGuard, MemGuard, Replugger


Specialization overview
Specialization Overview Optimization of System Software

  • Related Concepts:

    • Specialization predicates: States of the system known in advance

    • Partial evaluation: Take a generic source program plus a set of specialization predicates that apply to it

    • Residualization: Combining lifted static output with remaining dynamic parts to form the specialized program


Specialization overview contd
Specialization Overview (Contd.) Optimization of System Software

  • Three kinds of specialization:

    • Static

      • Specialization predicates known at compile time

      • Partial evaluation applied before system execution

    • Dynamic

      • Run-time specialization

      • Predicates established at some point during execution

      • Once established, predicates hold for remainder of the execution

    • Optimistic

      • Predicates only hold for bounded time intervals

      • Detecting when specialization predicates hold and cease to hold (Guarding)

      • Enabling and disabling specialized components (Replugging)


Steps in specialization
Steps in Specialization Optimization of System Software

  • Steps to specialize a system:

    • Identify specialization predicates

      • No tool available

    • Generate specialized code

      • Tempo partial evaluator tool

    • Check when specialization predicates hold

      • TypeGuard and MemGuard tools

    • Replace specialized code

      • Replugger tool


Tempo specialized code generator
Tempo: Specialized Code Generator Optimization of System Software

  • A partial evaluator – Generates C code

  • Binding-time analysis: separate static from dynamic parts

  • Can perform both compile-time and run-time specialization

  • Challenges

    • Pointers and aliases

    • Structures and arrays

    • Functions with side-effects


Enabling and disabling specialized code
Enabling and Disabling Specialized Code Optimization of System Software

  • Specialized code is only correct when specialization predicates hold

  • Static specialization – Specialization predicates are invariant

  • Dynamic and optimistic specialization – Specialized code should not be enabled before specialization predicates are established

  • Tools: TypeGuard and MemGuard locate the code that establishes or destroys specialization predicates

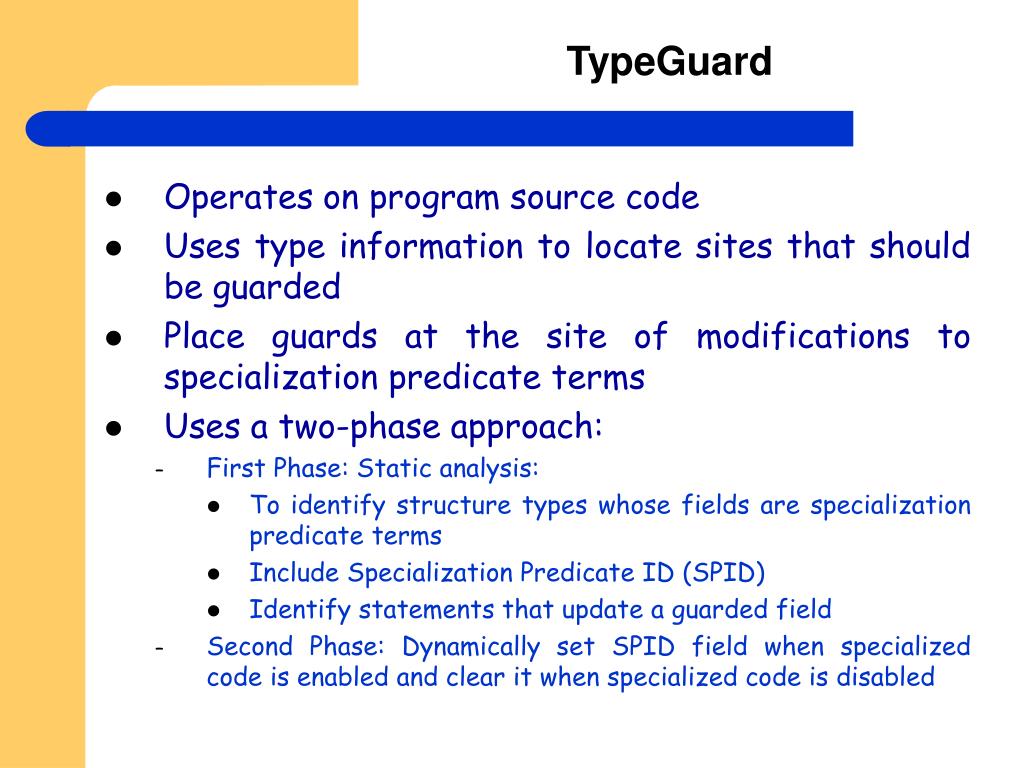

Typeguard
TypeGuard Optimization of System Software

  • Operates on program source code

  • Uses type information to locate sites that should be guarded

  • Place guards at the site of modifications to specialization predicate terms

  • Uses a two-phase approach:

    • First Phase: Static analysis:

      • To identify structure types whose fields are specialization predicate terms

      • Include Specialization Predicate ID (SPID)

      • Identify statements that update a guarded field

    • Second Phase: Dynamically set SPID field when specialized code is enabled and clear it when specialized code is disabled


Memguard
MemGuard Optimization of System Software

  • Absence of type-safe language, any type-based guarding tool cannot guarantee complete coverage

  • Solution: Use memory protection hardware

    • Write-protect pages containing specialization predicate terms

    • Protection fault handler checks for violation before writes complete

    • Guarantees to capture all writes to specialization predicate terms


Replugger
Replugger Optimization of System Software

  • Replace current code when:

    • Dynamic specialization predicate is established

    • Optimistic specialization predicate is violated

  • Use an asymmetric synchronization mechanism

  • Two factors affecting design of replugging mechanism:

    • Concurrent invocation:

      • Affected by scope of repluggable functions

      • Avoid concurrent invocation using threads

    • Concurrency between replugging and invocation


Evaluation
Evaluation Optimization of System Software

  • Specialization toolkit used to specialize three disparate system components:

    • Static specialization of Sun RPC

    • Dynamic specialization of Berkeley Packet Filter (BPF) programs

    • Optimistic specialization of Linux signal delivery mechanism


Specialization experiment bsd packet filters
Specialization Experiment: BSD Packet Filters Optimization of System Software

  • Provides programmable interface for selecting packets from network interface

  • Enables user applications to download packet filter programs into kernel or library-resident packet filter interpreter (Relation to extensibility)

  • Single BPF program executed many times to examine thousands of packets – Ideal candidate for specialization

  • Code being specialized – Packet filter interpreter

  • Specialization predicates – Derived from a particular packet filter program


Specialization experiment bsd packet filters contd
Specialization Experiment: BSD Packet Filters (Contd.) Optimization of System Software

  • Packet is read and filtered by calling bpf_filter function

  • Parameters of the function are:

    • Packet filter program (Entire program passed as a parameter)

    • Packet

    • Length of the original packet

    • Amount of packet’s data

  • Packet filter program always remains the same during a session – Derive specialization predicates from it in order to eliminate interpretation


Specialization experiment bsd packet filters contd1
Specialization Experiment: BSD Packet Filters (Contd.) Optimization of System Software

while(true) {

switch (pc->opcode) {

case LD:

// do load instruction

case JGT:

if (accumulator > index_register)

pc = pc->target_true

else

pc = pc->target_false

case RET:

// return instruction

result =...

break;

}

pc++

}

Basic loop for BPF interpreter


Specialization experiment bsd packet filters contd2
Specialization Experiment: BSD Packet Filters (Contd.) Optimization of System Software

  • Basic structure of BPF interpreter:

    • Interpreter consists of an infinite loop

    • Each iteration fetches instruction pointed to by pc

    • Uses a case statement to decode and execute instruction

    • Increments pc

  • Approach is problematic:

    • Value assigned to pc depends on dynamic interpreter state

    • Makes the interpreter unspecializable

  • Alternative approach amenable to specialization – Use recursion


Specialization experiment bsd packet filters contd3
Specialization Experiment: BSD Packet Filters (Contd.) Optimization of System Software

case JGT:

if (accumulator > index_register)

return(bpf_filter(pc->target_true, c, wirelen, buflen))

else

return(bpf_filter(pc->target_false, c, wirelen, buflen))

Using recursion to make pc static

  • while loop is replaced by a tail-recursive function which gets called for each new value of pc

  • BPF interpreter was manually restructured using recursion in order to perform experiments


Specialization experiment bsd packet filters contd4
Specialization Experiment: BSD Packet Filters (Contd.) Optimization of System Software

Specializing BPF:

  • Option 1 - Static specialization

  • Option 2 - Dynamic specialization

    – Statically specialize BPF interpreter for a constant packet filter program known in advance

    - Dynamically specialize when packet filter program value is known just before execution

  • fill template holes, evaluate static parts


Specialization experiment bsd packet filters contd5
Specialization Experiment: BSD Packet Filters (Contd.) Optimization of System Software

  • Specialized interpreter for a simple packet filter program which counts packets

  • Comparison between specialized program and the unspecialized interpreter on the same packet filter program

  • Construct a null packet filter to incur the unspecializable overheads of packet filter mechanism

Time taken to process 10MB data (~10,000 packets)


Lessons for system tuners and system designers
Lessons for System Tuners and System Designers Optimization of System Software

  • System Tuners:

    • Session-oriented operations such as file open/close, socket open/close, etc.

    • Domain-specific language interpreters or compilers used by a system

  • System Designers

    • Explicit relationships between components

    • Recognize interconnections from repeated patterns of actions


Conclusions
Conclusions Optimization of System Software

  • Specialization is a powerful technique for optimizing operating systems

  • Automatic specialization enables significant performance optimizations

  • Eases the burden on the system tuner: less error prone

  • Opens up new ways of designing operating systems which combine high performance and clean structure
