soaring heights communities family housing solar project at davis monthan afb

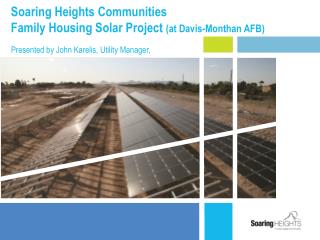

Soaring Heights CommunitiesFamily Housing Solar Project (at Davis-Monthan AFB)

Presented by John Karelis, Utility Manager,

ground array overview
Ground Array Overview
  • 3.3 mW photovoltaic (PV) system
  • 20 acres land.
  • 45,000 solar panels.
  • 9 million+ kWh production to date
  • 3 months to construct
ground array specifications
Ground Array Specifications
  • System Size (DC kW): 3,281
  • First Year Energy Production: 5 Million+ kWh's
  • 45,000 First Solar 75 and 72.5 Watt panels positioned at 25 degrees tilt with an approximate 180 degree due south azimuth.
  • Inverter: (6) Satcon PowerGate 500kW PV inverters
  • Structure: Northern States Solar Mounting System
rooftop systems
Rooftop Systems:
  • 379 PV rooftop systems operational
  • 2.766mW total rooftop system size
    • 4 million+ kWh production to date
  • Average rooftop system size is 7kW (90 panels)
  • 37,280 panels total installed on the roof systems
what is the value in having solar
What is the Value in Having Solar?
  • Stabilized utility rates for the coming 15 years (solar)
      • Sustainability
      • Lower utility cost to free up funding for future community development
      • Making use of the sun’s natural energy
      • Offset more than 570 million pounds of carbon dioxide over its lifetime
year to date totals
Year-to-Date Totals:
  • 63% total powerfrom solar
  • Solar Produced = 4,351,140 kWh(63%)
  • Power Purchased from Local Utility = 2,534,921 kWh (37%)
primary project partners
Primary Project Partners
  • Lend Lease, developer of Soaring Heights Communities
  • National Bank of Arizona, financier of the 3.3 MW ground-mounted system
  • Tucson Electric Power – utility partner, provided rebates, interconnection
  • SolarCity – designed, installed and maintains solar systems
  • U.S. Bancorp Community Development Corporation – financing partner forresidential rooftop solar systems
thank you
Thank You!

SHC: The Largest Solar-Powered Community in the Continental U.S.
