Presentation Transcript

  1. Traffic Control in Apache • Jed Reynolds • Blog.Bitratchet.com Where in your web site do you need traffic control?

  2. Handling Traffic Efficiently • Right and Wrong Traffic • Reduce redundant traffic • Eliminate unwanted traffic • Protect your dynamic content • Caching and tiered delivery

  3. Spectrum of Traffic Control • DNS • Content Delivery Network (CDN) • Proxies and load balancers • Application v static content servers • Application server • File system and disk

  4. Right Traffic: URI Stability • The URLs our site has might be precious • The location on disk might be moved • 20,000 sub directories • 10,000 files • Google and Sitemaps

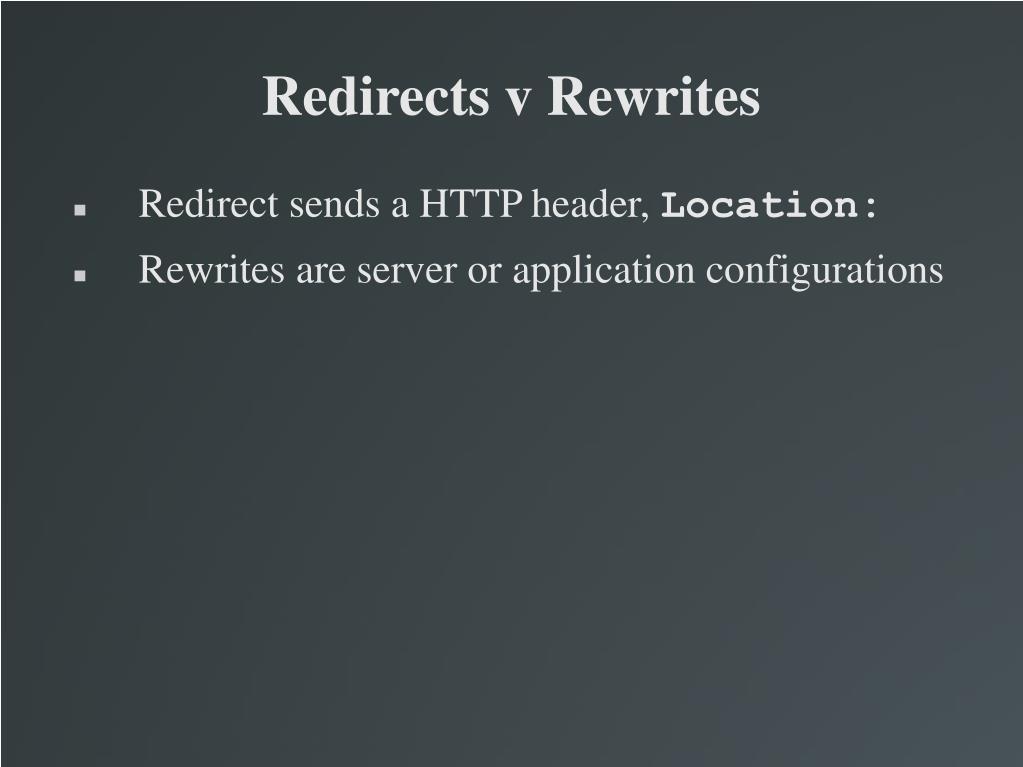

  5. Redirects v Rewrites • Redirect sends a HTTP header, Location: • Rewrites are server or application configurations

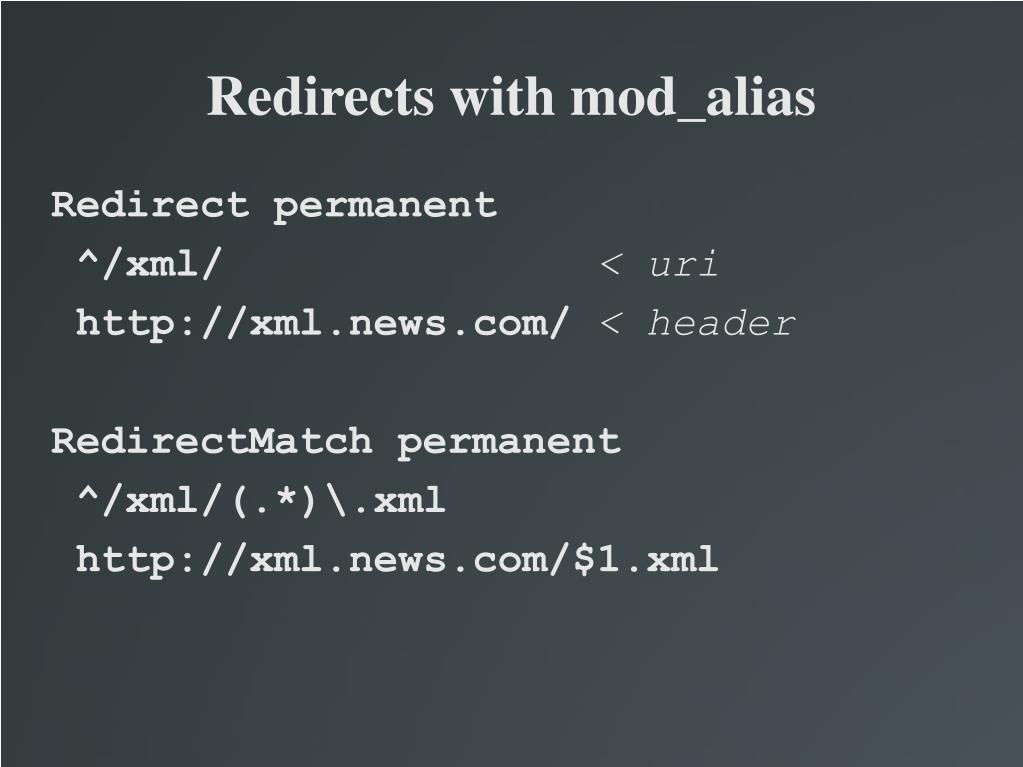

  6. Redirects with mod_alias • Redirect permanent • ^/xml/ < uri • http://xml.news.com/ < header • RedirectMatch permanent • ^/xml/(.*)\.xml • http://xml.news.com/$1.xml

  7. Rewrites with mod_alias • Alias • /newspaper < uri • /home/newspaper < disk • AliasMatch • /(newspaper)/(*\.htm) • /home/$1/today/$2

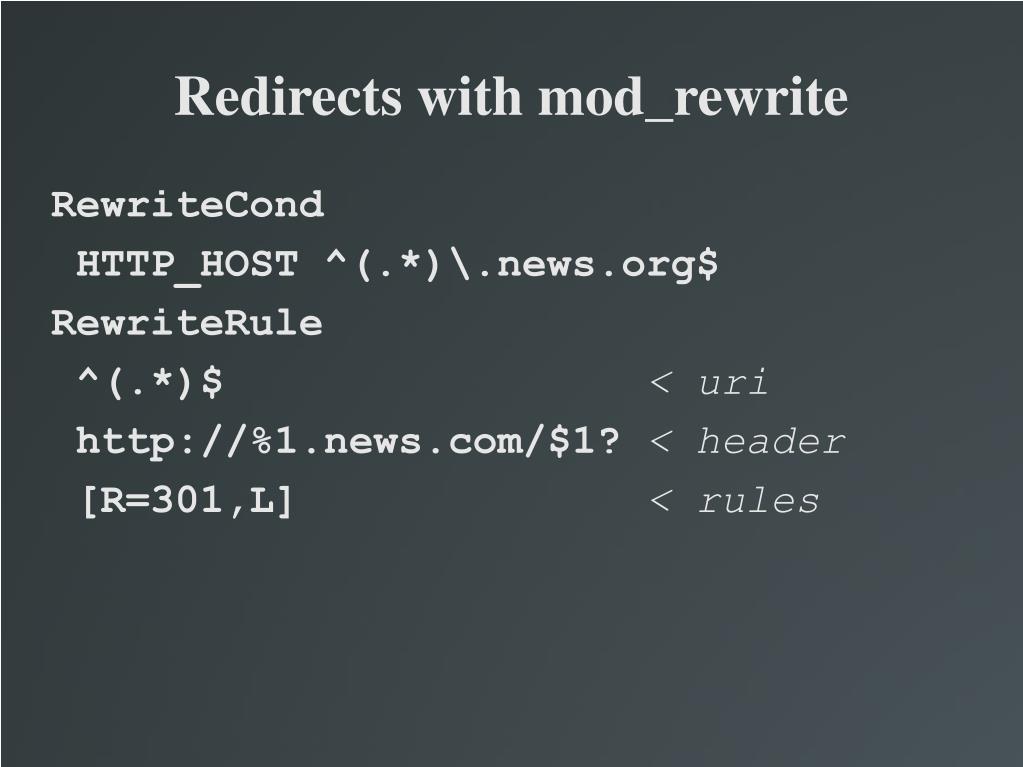

  8. Redirects with mod_rewrite • RewriteCond • HTTP_HOST ^(.*)\.news.org$ • RewriteRule • ^(.*)$ < uri • http://%1.news.com/$1? < header • [R=301,L] < rules

  9. Rewrites with mod_rewrite • RewriteRule • /date/(.*) < uri • /home/day/$1/index.htm < disk • [L] < rule

  10. Avoid Combinations • Order of operations: • <Directory> • <DirectoryMatch> • <Files>,<FilesMatch><< rewrites • <Location>,<LocationMatch><< aliases • <VirtualHost><< repeat the above order inside VH’s after global scope

  11. Rewrite Scripts • Might be easier to write • Possible performance or memory concerns • What can you best maintain?

  12. Reducing Redundant Traffic with your Headers • Cache-Control: max-age=3600, must-revalidate • Expires: Fri, 30 Oct 1998 14:19:41 GMT • Last-Modified: Mon, 29 Jun 1998 02:28:12 GMT • ETag: "3e86-410-3596fbbc" • Etags encourage freshest content • Encourage client caching

  13. Extend Expires with mod_expires <LocationMatch "/stuff/*"> ExpiresActive on ExpiresDefault "access plus 1 hour" </Location>

  14. Disable Etags • Mtime • Inode • File size Header unset Etag FileETag none

  15. Encourage 304 responses • Apache is good with file content • File content is fast • Scripts should detect If-Modified-Since • Scripts should send 304 Not Modified • PHP Cache_Lite

  16. Banning Traffic with <Directory> • <Directory /home/web> • Order Allow,Deny • Deny from 10.10.10.10 • </Directory>

  17. Banning Traffic with mod_rewrite • RewriteCond %{HTTP_USER_AGENT} • ^NameOfBadRobot.* • RewriteCond %{REMOTE_ADDR} • ^123\.45\.67\.[8-9]$ • RewriteRule • ^/news/.+ < uri • - < placeholder • [F] < rule

  18. Vastly More Traffic • Multiple servers, but where? • Load balancer • mod_proxy • HA Proxy • Reverse Proxy Caching • Squid • CDNs

  19. Thank you • Jed Reynolds has been a programmer analyst since 1996 and enjoys bicycling and his Pentax K10D • blog.bitratchet.com • @jed_reynolds • jed@bitratchet.com
