  1. Signature scheme based on the root extraction problem over braid groups B.C. Wang, Y.P. Hu IET Information security 2009, Vol 3, Iss 2, pp. 53-59

  2. Outline • Induction • Preliminaries • The proposed signature scheme • Performance and parameter specification • Security analysis • Conclusion

  3. Induction • Artin’s braid group • Infinite non-commutative group • Word problem is solvable • RP and CSP are intractable over braid group • CSP has an exponential computational complexity at least in the worst case • The braid-based cryptography has been a hot issue

  4. Induction • Anshel et al. 1999 - 2003 • The commutator key agreement protocol • Generalised and axiomatically • Ko et al. 2000 • The key exchange protocol • PKC based on the computational DHCP

  5. Induction • Cha et al. 2001 • The cryptosystem can be modified based on DP • Ko et al. 2002 • The signature scheme based on k-simultaneous CSP • Dehornoy • The authentication protocol based on shifted CP • Some other • The authentication protocol based on PR

  6. Induction • Hughes and Myasnikov et al. • The k-simultaneous CSP always provides the attackers sufficient information about the common comjugator braid • The Burau represenation • The sufficiently many equations derived from the k-simultaneous CSP allow the attacker to lift the Burau matrix rep. back to the Artin form

  7. Induction • Linear algebraic problem • Diffie-Hellman type problem • DP • Shifted CSP • Some authors even announced the death of the subject • It is hoped that cryptographic algorithm constructed based on the RP should be more secure

  8. Induction • Two reasons to illustrate the insecurities of previous braid PKC algorithm • The security of these schemes is not tightly related to the underlying intractable problem • The public keys of some schemes reveal too much information about the construction of the crpytographic algorithm • The attacker can obtain many equations with respect to the public and secret keys

  9. Outline • Induction • Preliminaries • The proposed signature scheme • Performance and parameter specification • Security analysis • Conclusion

  10. Preliminaries • Let • len(u) = p, len(v) = q • Compute the LCF of uv = O(pqnlogn) • Compute the inverse u-1 of u = O(pn) • 0 ≦ len(uv) ≦ p + q • len(u) ≒ len(u-1)

  11. Preliminaries • Conjugancy search problem, CSP • Given x ~ y, find a conjugator z s.t. y = zxz-1 • Root problem, RP • Given y ∈ Bn, integer e ≧ 2 s.t. y = xe for some unknow braid x

  12. Outline • Induction • Preliminaries • The proposed signature scheme • Performance and parameter specification • Security analysis • Conclusion

  13. The proposed signature scheme • n : braid index • e : integer, e ≧ 2 • H : a collision-free one-way hash function • H : {0, 1}* → {0, 1}k

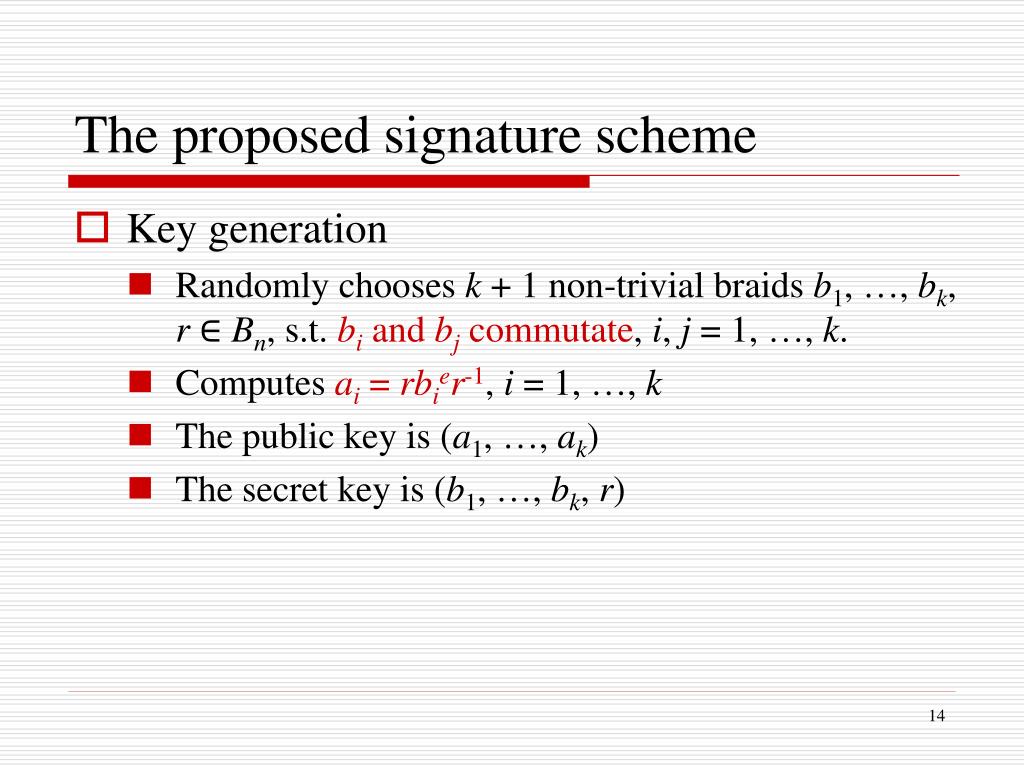

  14. The proposed signature scheme • Key generation • Randomly chooses k + 1 non-trivial braids b1, …, bk, r ∈ Bn, s.t. bi and bj commutate, i, j = 1, …, k. • Computes ai = rbier-1, i = 1, …, k • The public key is (a1, …, ak) • The secret key is (b1, …, bk, r)

  15. The proposed signature scheme • Signing a message • To sign a given message m, Alice randomly choose a braid s ∈ Bn. • She calculates • The signature for the message m is (u, t)

  16. The proposed signature scheme • Verification • Bob computes • Verifies the equation • If the equation holds, he accepts the signature (u, t) as a valid signature for m. Otherwise, he rejects it.

  17. The proposed signature scheme • Verification

  18. Outline • Induction • Preliminaries • The proposed signature scheme • Performance and parameter specification • Security analysis • Conclusion

  19. Performance and parameter specification • Parameter specifications • How to find the bi and bj commutative, i, j = 1, …, k. • Randomly choose commutative braids c1, …,cs, where s << k, e.g. s ≒ k / 10. • Randomly choose ks-dimensional vectors v1, …, vk, where vi = (vi1, …, vis), i = 1, …, k, and vij are small integers. • Computeswe have k commutative braids b1, …, bk.

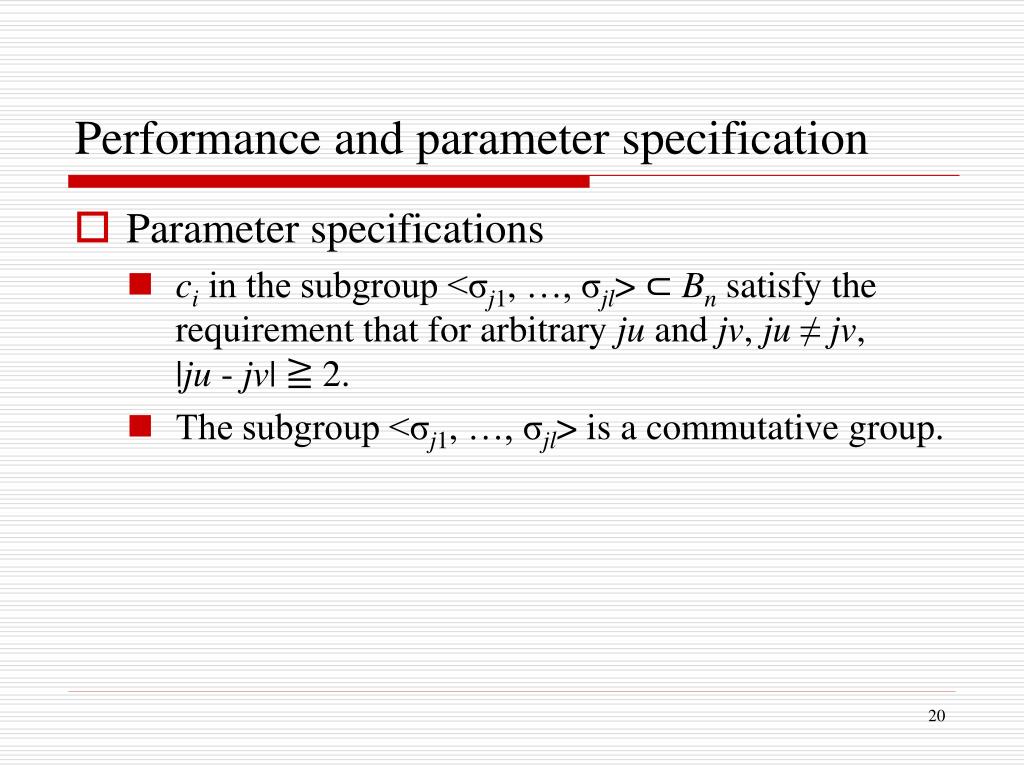

  20. Performance and parameter specification • Parameter specifications • ci in the subgroup <σj1, …, σjl> ⊂ Bn satisfy the requirement that for arbitrary ju and jv, ju ≠ jv, |ju - jv| ≧ 2. • The subgroup <σj1, …, σjl> is a commutative group.

  21. Performance and parameter specification • Suggested parameters • n = 90, e = 2, k = 80, s = k / 10 = 8, len(ci) = 2 • vi = <vi1, …, vis>∈{0, 1}8, and 1≦vi1 + … + vis≦3 • bi has 8 + 28 + 56 = 92 > 80 choices • len(bi) ≦3len(ci) = 6 • len(r) = 8, len(s) = 8 • len(ai) = len(r) + e × len(bi) + len(r-1) = 28 • The public key size = 80 × 28 = 2240 bits • The secret key size = k × len(bi) + len(r) = 488 bits

  22. Performance and parameter specification • Computational complexity and comparison • 1024-RSA modular multiplication = 2.1 × 106 bit operation • Total computational cost to sign a message = 6.2×106 ≒ 3 1024-RSA modular multiplication • The verifier need 3.7×107 ≒ 17 1024-RSA modular multiplication

  23. Outline • Induction • Preliminaries • The proposed signature scheme • Performance and parameter specification • Security analysis • Conclusion

  24. Security analysis • Key recovery attack • Attacker can not lift the Burau matrix rep. back to the Artin braids. • Attacker can not know the secret key by the public key.

  25. Security analysis • On forging a signature • For a given message m, an attacker can forge a valid signature (u, t) iff he can extract the eth root for the braid v ∈ Bn • On extracting the eth root • The attacker can not use the knowledge of the signature to solve the RP.

  26. Security analysis • Security comparison and remarks

  27. Outline • Induction • Preliminaries • The proposed signature scheme • Performance and parameter specification • Security analysis • Conclusion

  28. Conclusions • 詳細介紹braid group的興衰 • 提出前人的不足 • Loosely dependent on the hard problem • Public key leak too much information • 提出簡單的証明方式
