Network and System Security Risk Assessment

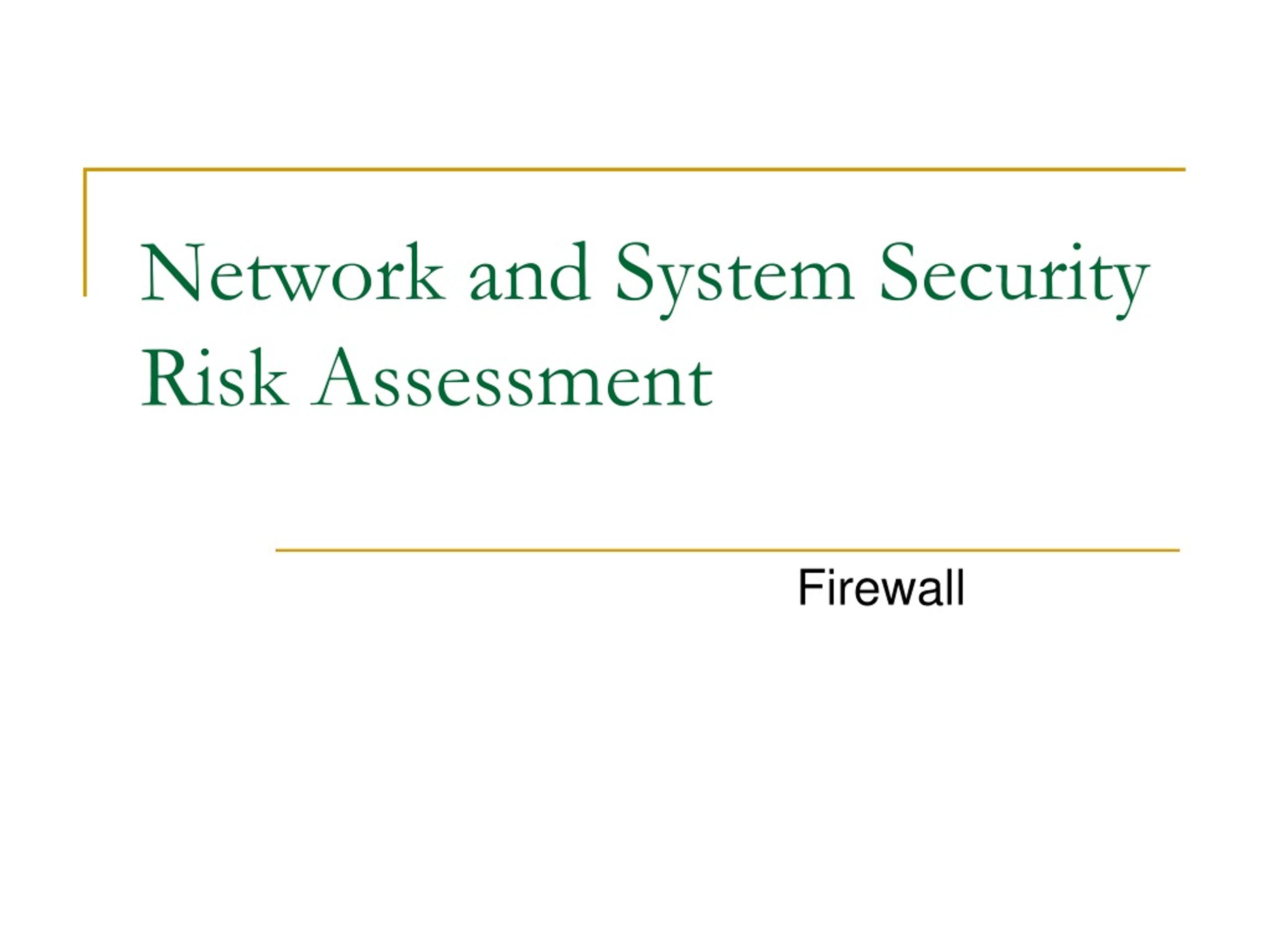

1. Network and System Security Risk Assessment Firewall

2. Review • Last week, we have talked about sniffer and firewall • Sometimes, sniffer can sniff users’ private information • http, telnet…. • Wireshark sniffing on the network • Firewall can control a computer/network communication • Iptables, ufw

3. Review • Stateful firewall • Traditional: to allow outgoing website visiting and to drop other communication • To allow input tcp with source port 80 and ack • Can’t visit websites on ports other than 80 • To use stateful firewall • State tracking

4. Review • Iptables examples • Disable to be pinged, enable to ping • To limit the number of pings • To change the source IP of a ping packet sent out from our machine

5. Review • Iptables Examples • Prevent a machine from telneting to other machines • Prevent a telnet server from being connected by other machines • Prevent inner network from connecting a social network

6. Review • Iptables example • To force redirect • 1. to change the output packet to a specific website • 2. to change the incoming packet to a specific server or port

7. Review • Iptables example • the secure version of telnet: ssh • Besides encryption, ssh has another function: port forwarding • Using ssh port forwarding, firewall rules can be bypassed

9. Review • Iptables example • ftp server: only allows localhost ftp service • Also demonstrate ftp data and control connections • On the server, ftp is blocked • On the client, we try to do ssh port forwarding

10. Review • Iptables example • Support squid to act as a web proxy • iptables -t nat -A PREROUTING  -p tcp --dport 80 -j REDIRECT --to-ports 3128

11. MAKEFILE

12. Makefiles • Provide a way for separate compilation. • Describe the dependencies among the project files. • The makeutility.

13. Using makefiles Naming: • makefile or Makefile are standard • other name can be also used Running make make make –f filename – if the name of your file is not “makefile” or “Makefile” make target_name – if you want to make a target that is not the first one

14. Sample makefile target : dependencies TAB commands #shell commands • Makefiles main element is called a rule: Example: my_prog : eval.o main.o g++ -o my_prog eval.o main.o eval.o : eval.c eval.h g++ -c eval.c main.o : main.c eval.h g++ -c main.c _________________________ # -o to specify executable file name # -c to compile only (no linking)

15. Variables C = g++ OBJS = eval.o main.o HDRS = eval.h my_prog : eval.o main.o $(C) -o my_prog $(OBJS) eval.o : eval.c $(C) –c –g eval.c main.o : main.c $(C) –c –g main.c $(OBJS) : $(HDRS) The old way (no variables) A new way (using variables) Defining variables on the command line: Take precedence over variables defined in the makefile. make C=cc my_prog : eval.o main.o g++ -o my_prog eval.o main.o eval.o : eval.c eval.h g++ -c –g eval.c main.o : main.c eval.h g++ -c –g main.c

16. Implicit rules • Implicit rules are standard ways for making one type of file from another type. • There are numerous rules for making an .o file – from a .c file, a .p file, etc. make applies the first rule it meets. • If you have not defined a rule for a given object file, make will apply an implicit rule for it. Example: Our makefile The way make understands it my_prog : eval.o main.o $(C) -o my_prog $(OBJS) $(OBJS) : $(HEADERS) my_prog : eval.o main.o $(C) -o my_prog $(OBJS) $(OBJS) : $(HEADERS) eval.o : eval.c $(C) -c eval.c main.o : main.c $(C) -c main.c

17. Defining implicit rules %.o : %.c $(C) -c –g $< C = g++ OBJS = eval.o main.o HDRS = eval.h my_prog : eval.o main.o $(C) -o my_prog $(OBJS) $(OBJS) : $(HDRS) Avoiding implicit rules - empty commands target: ; #Implicit rules will not apply for this target.

18. Automatic variables target : dependencies TAB commands #shell commands Automatic variables are used to refer to specific part of rule components. eval.o : eval.c eval.h g++ -c eval.c $@ - The name of the target of the rule (eval.o). $< - The name of the first dependency (eval.c). $^ - The names of all the dependencies (eval.c eval.h). $? - The names of all dependencies that are newer than the target

19. Makefile for a basic kernel module obj-m += hello-1.o all: make -C /lib/modules/$(shell uname -r)/build \ M=$(PWD) modules clean: make -C /lib/modules/$(shell uname -r)/build \ M=$(PWD) clean

20. Giving your Linux more pop since 1995 Kernel Modules

21. History • Introduced in Linux version 1.2 (1995) • At the time, drivers were already designed to be somewhat modular, so not a lot of work was needed to revamp one driver for use as a LKM. There are a lot of drivers, though... • By 2000, most drivers and “module-able” things are converted.

22. What are Modules • A Module is a object file that contains code to extend the functionality of the base kernel. • Modules are used to add support for new hardware and file systems. • Also used to add new system calls and executable interpreters.

23. Why are they Important? • If modules did not exist then adding new features to the kernel would be nearly impossible.

24. Pros and Cons • Pros: • Time savings • Portability • Memory savings • Security (PAM) • Cons • No safeguards • Security (rootkits)

25. Modules vs. Applications • Modules are really a part of the kernel and so run in kernel space. • Apps just do their tasks and end. Modules sit in the kernel space waiting to be run. • Apps can be linked to outside libraries; modules can only "see" in the kernel and other loaded modules.

26. Module Loading • Kernel Symbol Table: references kernel functions that modules can use. • When loaded, unresolved symbols in module are linked to system table • EXPORT_SYMBOL() allows specified symbol to be used by kernel and other modules. • Use cat /proc/kallsyms to get a list of all exported kernel symbols.

27. Image from: http://www.xml.com/ldd/chapter/book/ch02.html

28. Module HOW-TO • Some useful commands • insmod insert module into kernel • rmmod remove kernel module • lsmod show currently loaded modules • The above work, but are dumb. Instead, use modprobe [-r] which is aware of module dependencies and config settings. • Use depmod to find module dependencies. File location: /lib/modules/version/modules.dep

29. Writing a Kernel Module • Kernel modules have two basic functions: • a "start" (initialization) function called init_module(), is called when the module is insmoded into the kernel • an "end" (cleanup) function called cleanup_module(), is called just before it is rmmoded. • Since kernel 2.3.13, you can use whatever name you like for the start and end functions of a module • Module license

30. NETFILTER

31. Netfilter • A framework for packet mangling in kernel • Built in Linux 2.4 kernel or higher version • Independent of network protocol stack • Provide an easy way to do firewall setting or packet filtering, network address translation and packet mangling

32. Netfilter II—how it works • Defines a set of hooks • Hooks are well defined point in the path of packets when these packets pass through network stack • The protocol code will jump into netfilter framework when it hits the hookpoint. • Registers Kernel functions to these hooks: • Called when a packet reaches at hook point • Can decide the fate of the packets • After the functions, the packet could continue its journey

33. Netfilter Hooks • Each protocol family can have different hooks • IPv4 defines 5 hooks Upper layer IP_output IP_input NF_IP_LOCAL_OUT NF_IP_LOCAL_IN Route Route NF_IP_FORWARD NF_PRE_ROUTING NF_IP_POSTROUTING Network driver device

34. Netfilter hook points • NF_IP_PRE_ROUTING: • After sanity checks, before routing decision • NF_IP_LOCAL_IN: • After routing decisions, if the packet destines for this host • NF_IP_FORWARD: • Packets are not destined for this host but need to be forwarded to another interface • NF_IP_LOCAL_OUT: • All packets created from local host would come here before it is been sent out • NF_IP_POST_ROUTING: • All packets have been routed and ready to hit the wire

35. Netfilter hook functions • Multiple functions could register to the same hook point • Need to set priority • The corresponding packet will path the hook points • Each function registered for that hook point is called in the order of priority and is free to manipulate the packet • What to do in hook functions • The function could do anything it wants • But need to tell netfilter to return one of the five values: • NF_ACCEPT • NF_DROP • NF_STOLEN • NF_QUEUE • NF_REPEAT

37. Netfilter Hook implementation • Steps • Fill out the nf_hook_ops structure • Write a hook function: • It has specific format • Register to system • Compile and load the modules • Example: • Iptables –t filter –A INPUT –p tcp –j DROP Drop all the incoming tcp packet

38. Netfilter Hook implementation (I) • Fill in a netfilter hook operation structure • Data type: (in include/linux/netfilter.h)

39. Example static struct nf_hook_ops localin_ops; localin_ops.hook = localin_handler; localin_ops.pf = PF_INET; localin_ops.hooknum =NF_IP_LOCAL_IN; localin_ops.priority=NF_IP_PRI_FIRST;

40. Netfilter Hook implementation II • Format: must be of function type nf_hookfn Unsigned int nf_hookfn(hooknum,struct sk_buff**skb,in_dev,out_dev,int(*okfn)(struct sk_buff*))) • Hooknum: the hook point where the function registered • skb: a reference to the packet • In_dev,outdev: net device this packet is from/to • Hook function returns one of the following: NF_ACCEPT,NF_DROP,NF_STOLEN NF_QUEUE,NF_REPEAT

41. Example unsigned int localin_handler (unsigned int hook, struct sk_buff **skb, const struct net_device *indev, const struct net_device *outdev, int (*okfn) (struct sk_buff *)) { struct iphdr *iphead = skb->nh.iph; if ((iphead->protocol)== IPPROTO_TCP) //Drop all TCP packet return NF_DROP; }

42. Netfilter Hook implementation III • Call this function to register at the hook • int nf_register_hook(struct nf_hook_ops *reg) • void nf_unregister_hook(struct nf_hook_ops *reg) #include … static int __init init (void){ return nf_register_hook (&localin_ops); } static void __exit fini (void){ return nf_unregister_hook (&localin_ops); } module_init (init); module_exit (fini); • Compile it and insmod

43. Conclusion • Netfilter is a glue code between the protocol hooks and the kernel function modules • Iptables is useful to set our firewall • Provide a simple way to hack packet

44. References • The Linux Kernel Module Programming Guide http://www.faqs.org/docs/kernel/ • Wikipedia: Linux Kernel http://en.wikipedia.org/wiki/Linux_kernel • Wikipedia: Linux Modules http://en.wikipedia.org/wiki/Module_(Linux) • Linux Device Drivers: Building and Running Modules http://www.xml.com/ldd/chapter/book/ch02.html • Linux Loadable Kernel Module HOWTO http://www.tldp.org/HOWTO/Module-HOWTO/ • Linux PAM page http://www.kernel.org/pub/linux/libs/pam/whatispam.html • Linux Kernel Development. Ch. 16: Modules. pp.279-289 • Linux Kernel Cross-Reference http://lxr.linux.no/ https://www.redhat.com/mirrors/LDP/LDP/lkmpg/2.6/html/lkmpg.html
