5-3: Function Rules, Tables, and Graphs

5-3: Function Rules, Tables, and Graphs. Prof. Annie Tran Dr. Larry Le Sir. Tommy Le. Welcome to Lesson 5-3!!. Objectives. To draw graphs and write function rules. To analyze tables. To model function rules. Vocabulary!.

Download Presentation

5-3: Function Rules, Tables, and Graphs

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. 5-3: Function Rules, Tables, and Graphs Prof. Annie Tran Dr. Larry Le Sir. Tommy Le

  2. Welcome to Lesson 5-3!!

  3. Objectives • To draw graphs and write function rules. • To analyze tables. • To model function rules.

  4. Vocabulary! • Continuous data - data in which numbers between any two values make senses. • (Includes measurement of temperature, length, or weight) • Discrete data - data that involves in count of items • (Includes number of people or number of cars)

  5. Eff Exx ?!?! • We write function rule as f(x) = x • f(x) = y value (range, output) • x = x value (domain, input) • x value can be any numbers.

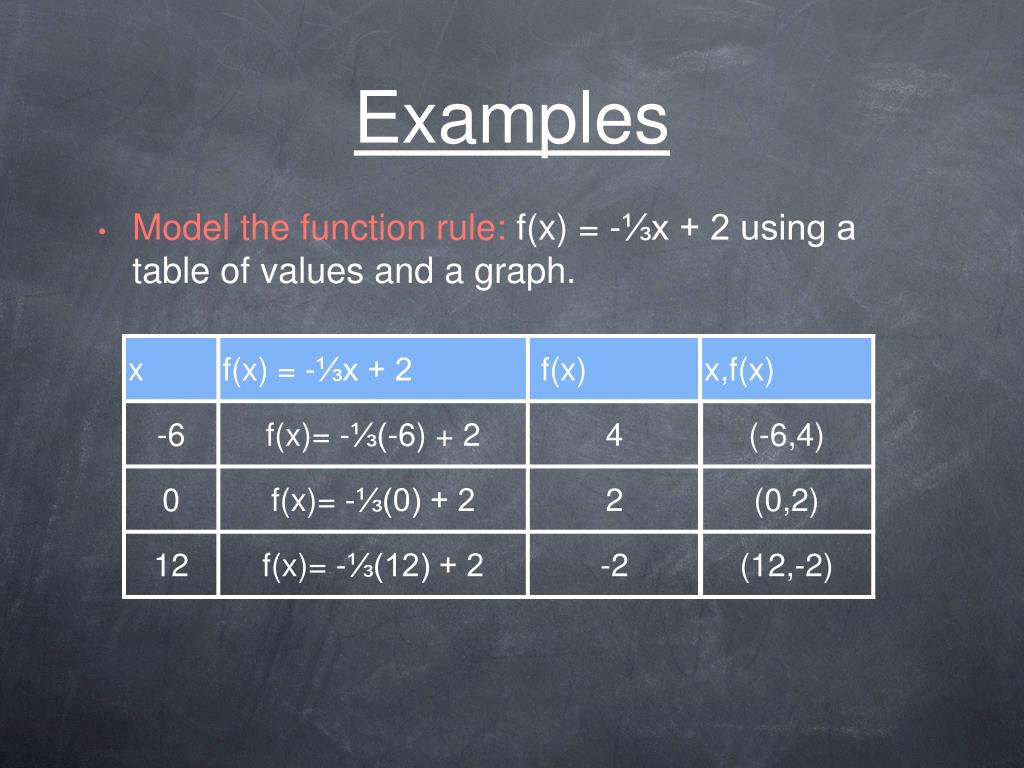

  6. Examples • Model the function rule: f(x) = -⅓x + 2 using a table of values and a graph.

  7. Plot points

  8. Quick Check • Model the rule f(x) = 10x + 5 with the input value = 1 to 5 • Write the answer in ordered pair.

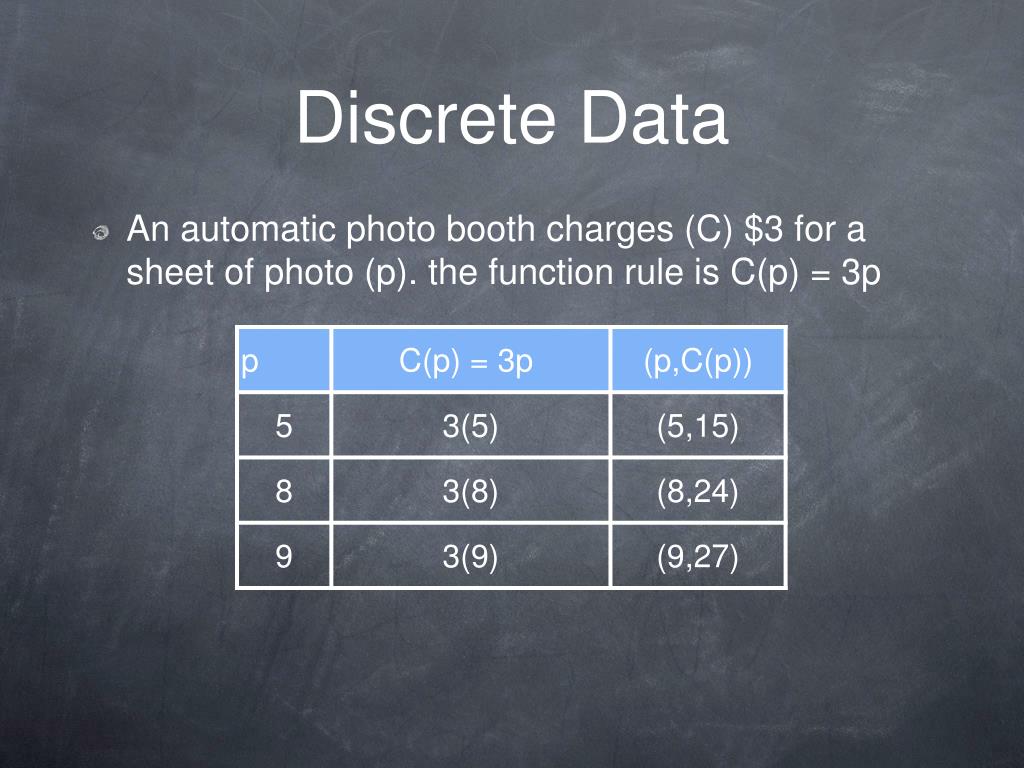

  9. Discrete Data • An automatic photo booth charges (C) $3 for a sheet of photo (p). the function rule is C(p) = 3p

  10. Continuous Data • You get 27$ for your salary (s) each hour (h) you worked. The function rule is S(h) = 27h

  11. Quick Check • 1. Your weight on the moon is one sixth your weight on Earth. Say you are 50kg, what is your weight on the moon. M(w) = 1/6w • 2. The function c = 4.20t represents the cost of tickets to a NBA basketball game.

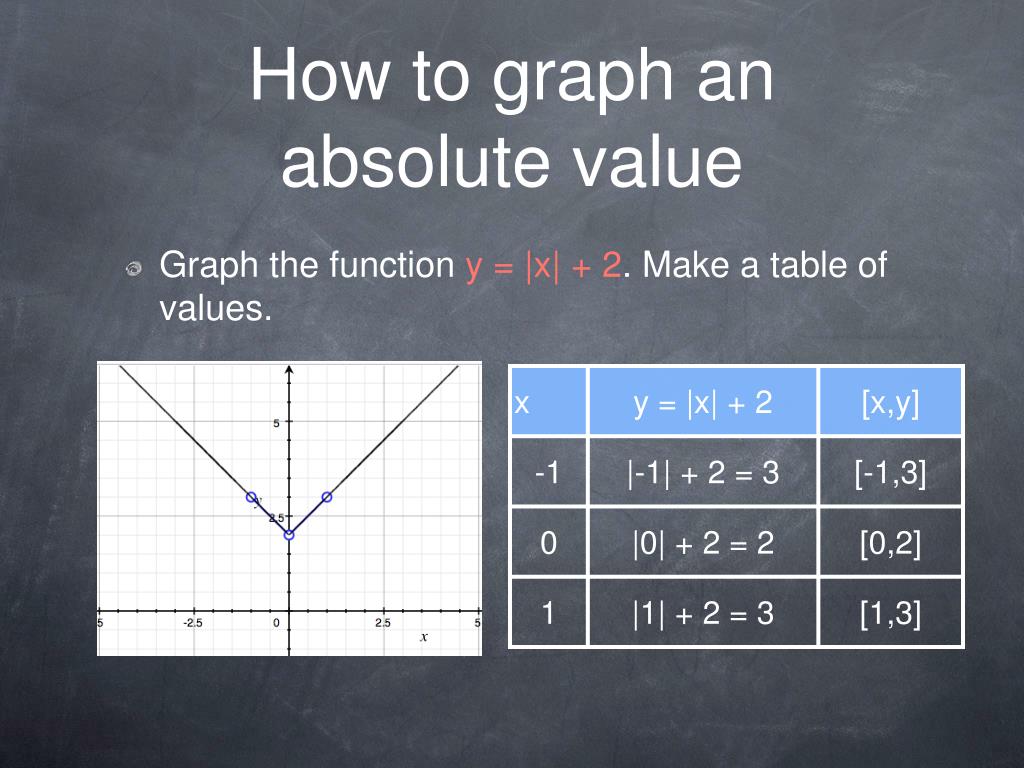

  12. How to graph an absolute value • Graph the function y = |x| + 2. Make a table of values.

  13. How to graph an exponent • Graph the function f(x) = x2 + 3. Make a table of values.

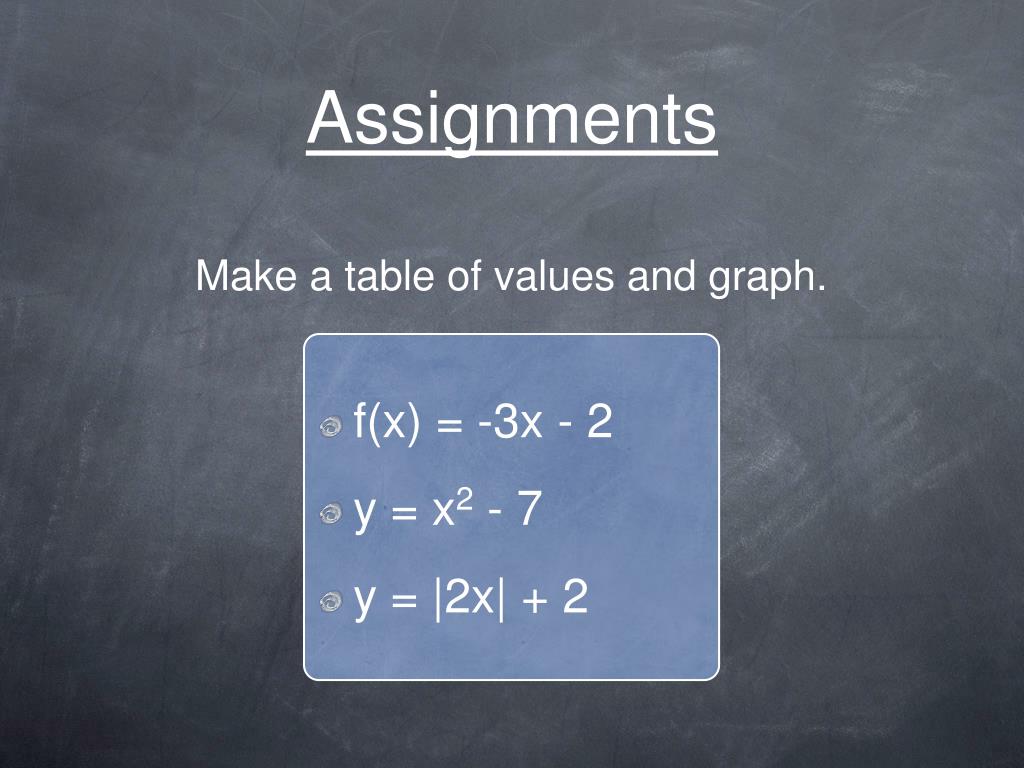

  14. Assignments Make a table of values and graph. • f(x) = -3x - 2 • y = x2 - 7 • y = |2x| + 2

  15. GAMETIME!

  16. f(x)=3x+4

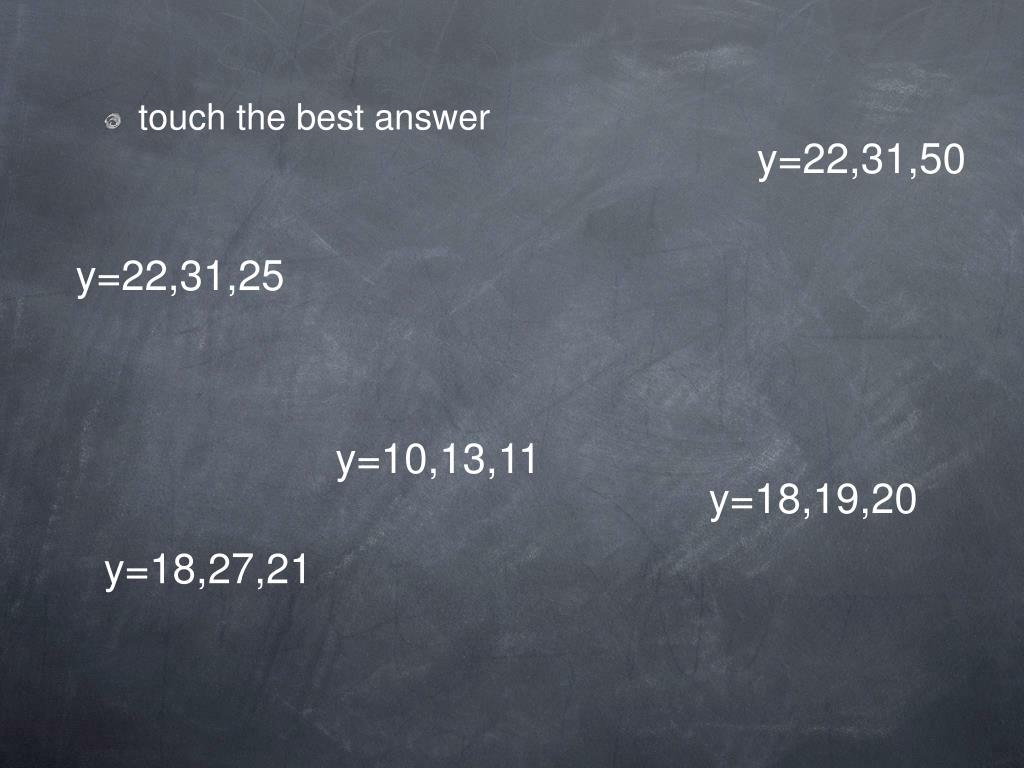

  17. y=22,31,50 • touch the best answer y=22,31,25 y=10,13,11 y=18,19,20 y=18,27,21

  18. f(x)=2x+6 fill in the blank of the table. 27 36 24 38 25 34 32

  19. f(x)=3x-9 F.46 B.69 • choose the best answer for y x=19 E.51 D.49 A.66 C.48

  20. Real-Life Connections • Calculate bank account saving. • Outcome of something • Example: For every credit you have, you receive 2 points plus a 2 points bonus. f(x) = 2x + 2

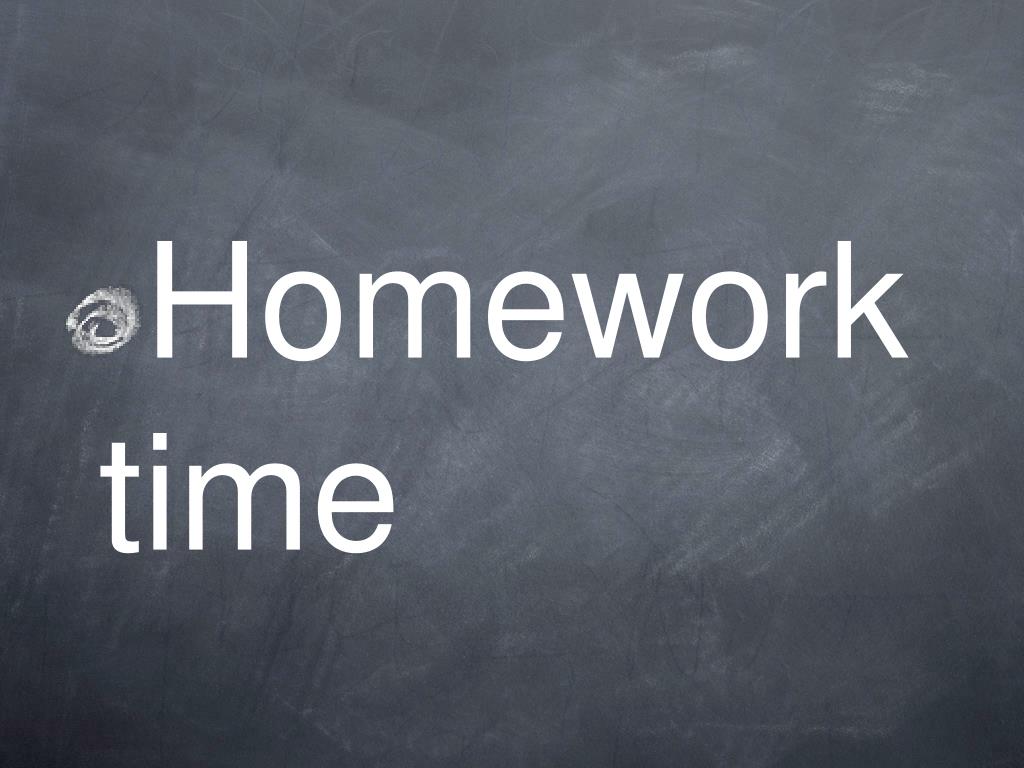

  21. Homework time

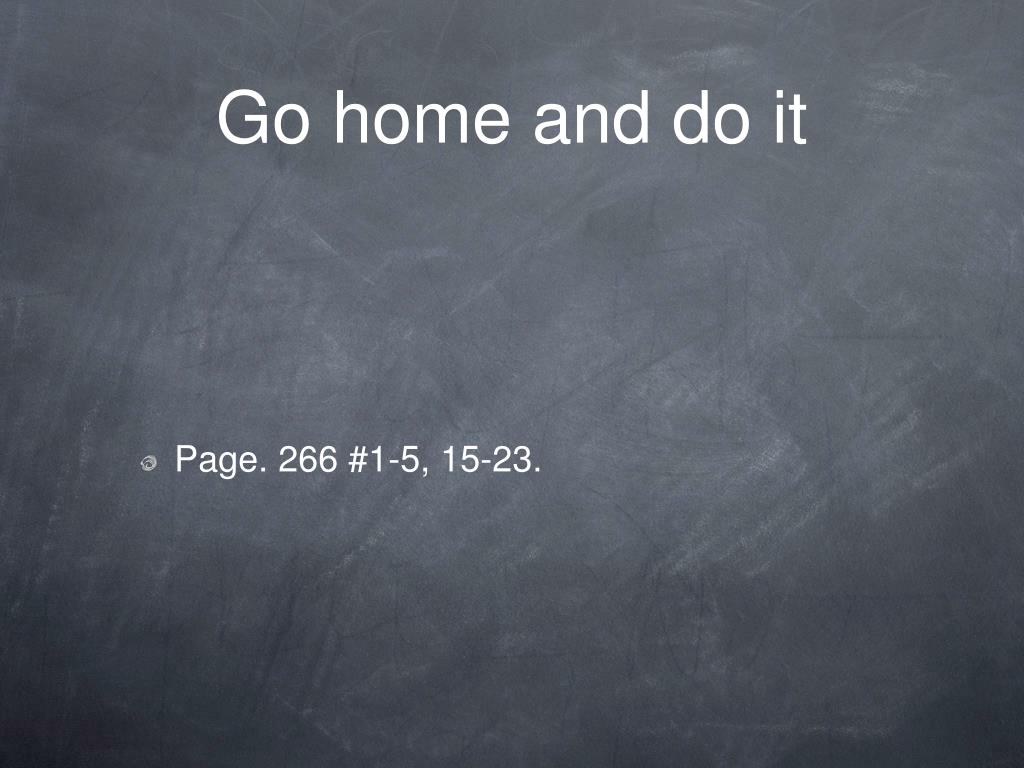

  22. Go home and do it • Page. 266 #1-5, 15-23.
