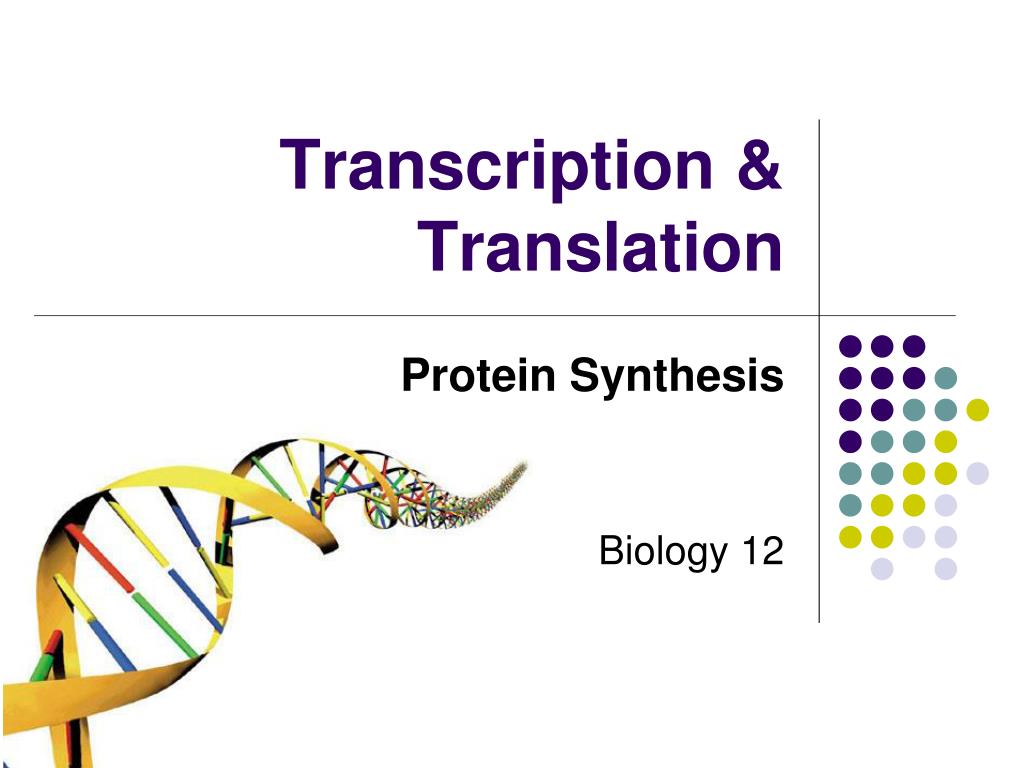

  1. Transcription & Translation Protein Synthesis Biology 12

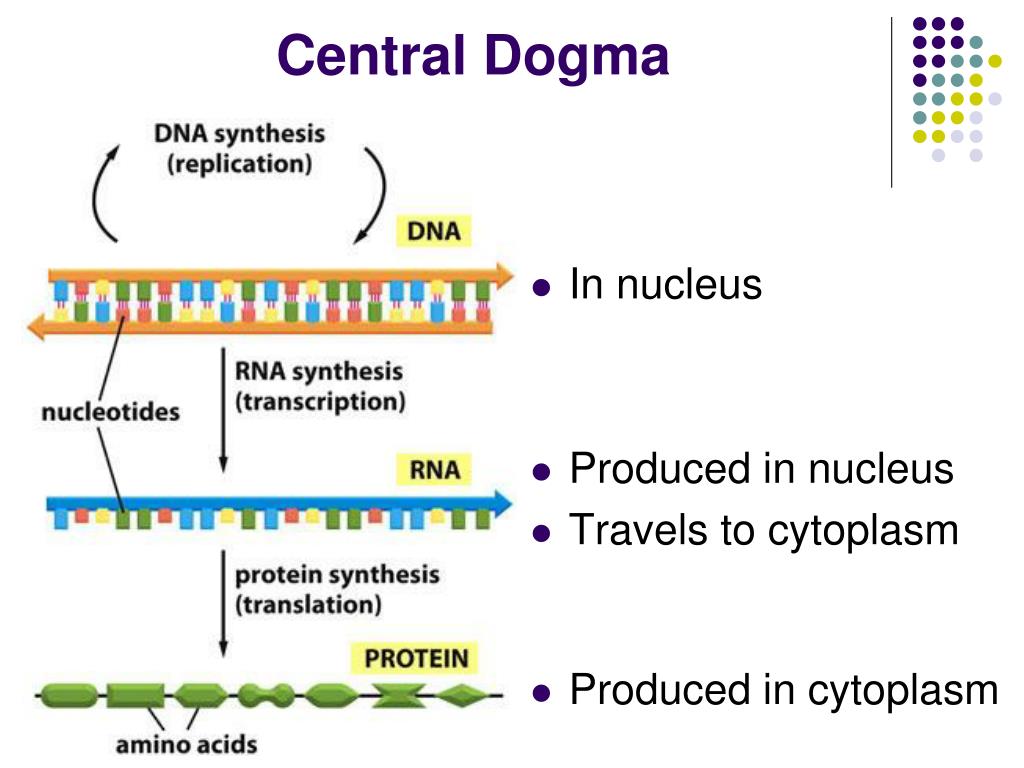

  2. In nucleus Produced in nucleus Travels to cytoplasm Produced in cytoplasm Central Dogma

  3. Task • Complete the following table:

  4. Definition: Transcription

  5. Definition: Translation

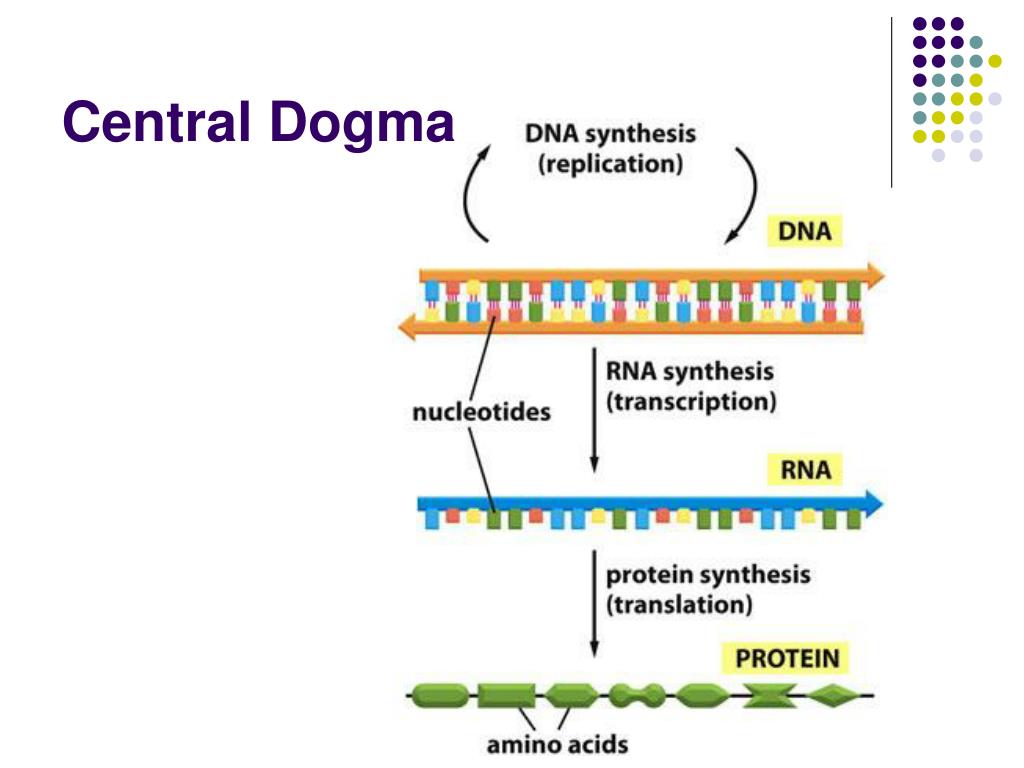

  6. Central Dogma

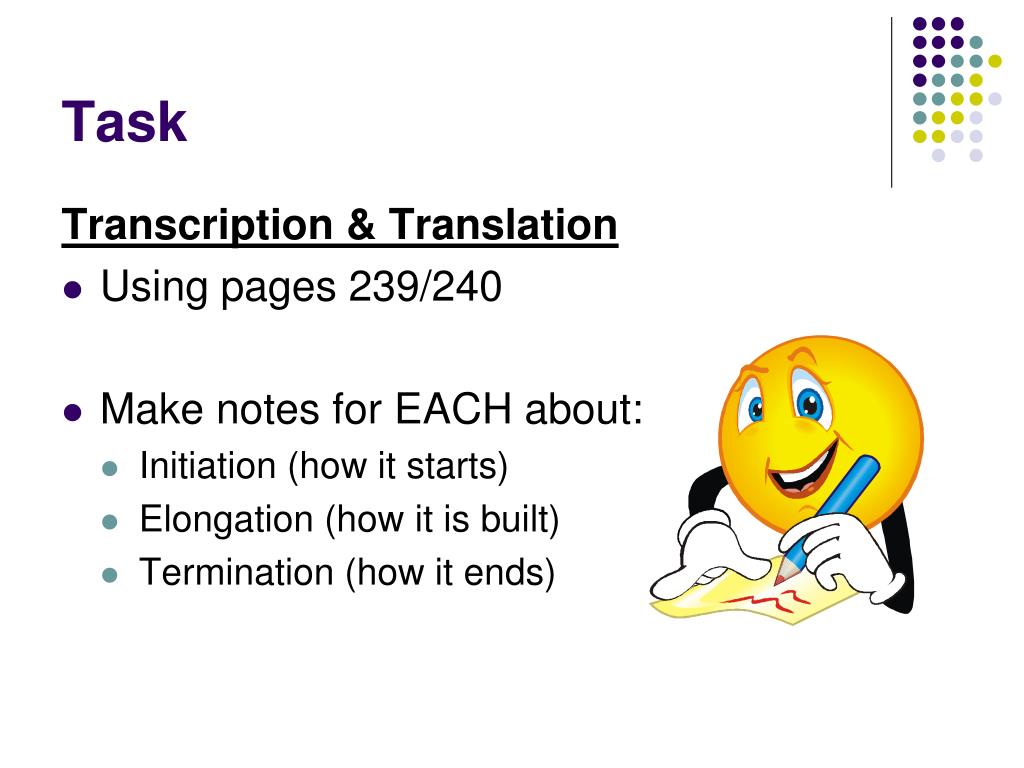

  7. Task Transcription & Translation • Using pages 239/240 • Make notes for EACH about: • Initiation (how it starts) • Elongation (how it is built) • Termination (how it ends)

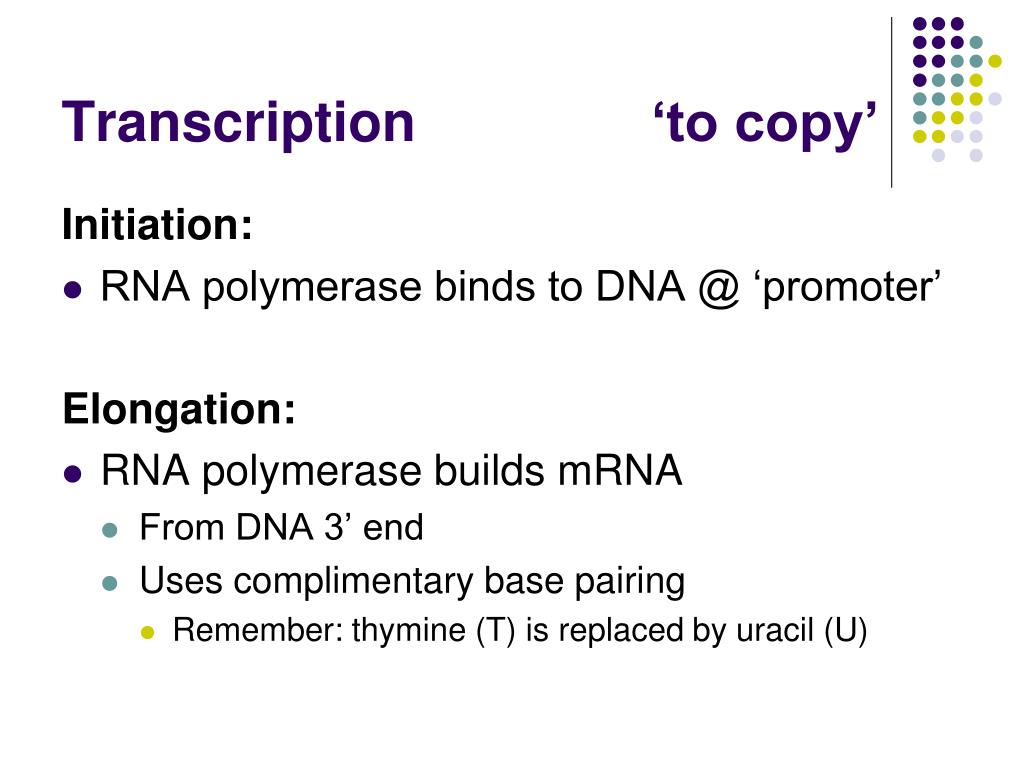

  8. Transcription ‘to copy’ Initiation: • RNA polymerase binds to DNA @ ‘promoter’ Elongation: • RNA polymerase builds mRNA • From DNA 3’ end • Uses complimentary base pairing • Remember: thymine (T) is replaced by uracil (U)

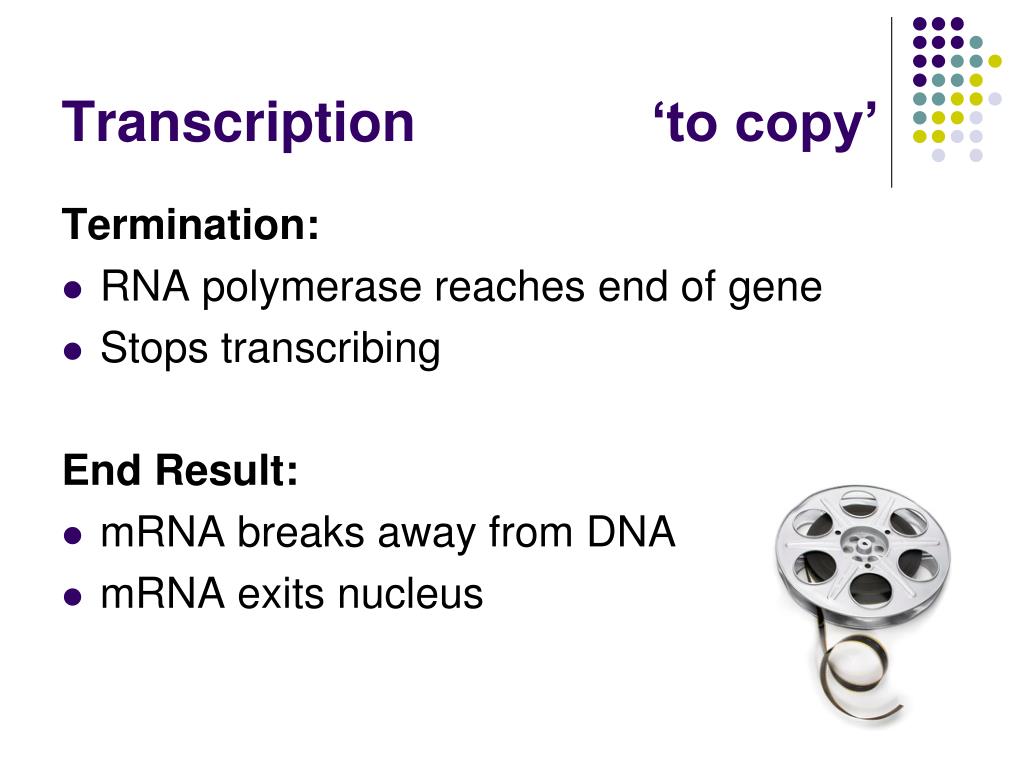

  9. Transcription ‘to copy’ Termination: • RNA polymerase reaches end of gene • Stops transcribing End Result: • mRNA breaks away from DNA • mRNA exits nucleus

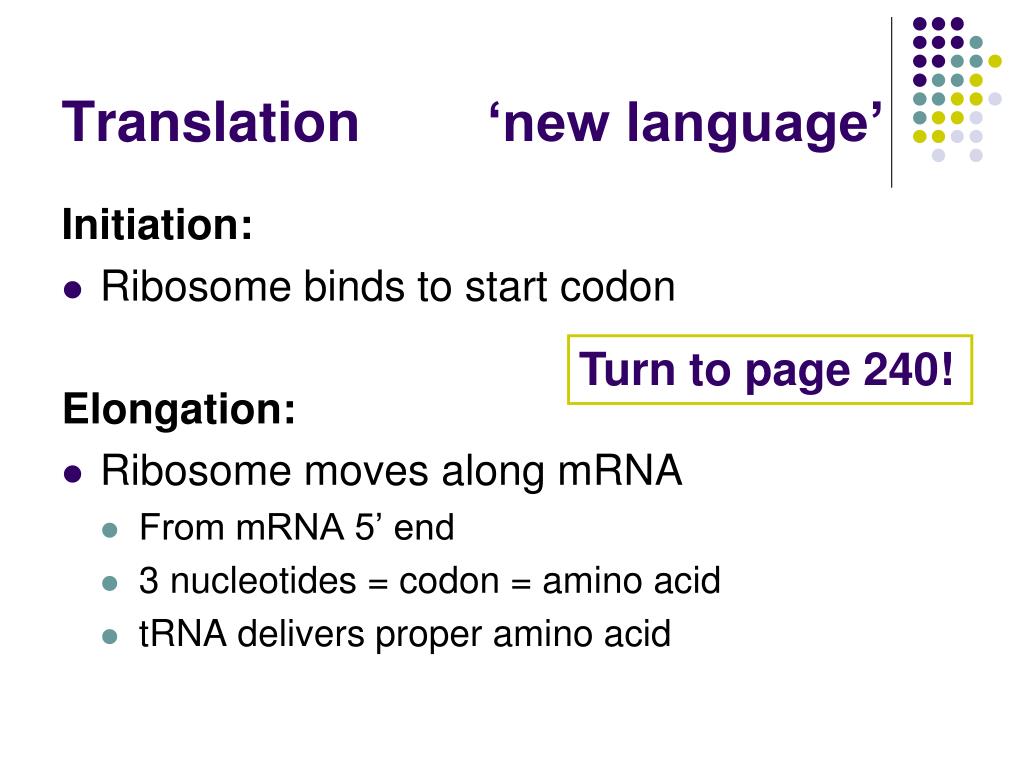

  10. Translation ‘new language’ Initiation: • Ribosome binds to start codon Elongation: • Ribosome moves along mRNA • From mRNA 5’ end • 3 nucleotides = codon = amino acid • tRNA delivers proper amino acid Turn to page 240!

  11. Translation ‘new language’ Termination: • Ribosome reaches stop codon • Stops translating End Result: • Ribosome falls off mRNA • Protein (polypeptide chain) is released

  12. Start and Stop Codons Start Codon: • Begins translation • AUG (universal start codon) • ALSO Codes for methionine (Met) • Sometimes GUG or UUG Stop Codon: • Ends translation • UGA, UAA, UAG Page 240!

  13. Transfer RNA (tRNA) • Delivers amino acid to ribosome • Reads mRNA codon • Has a matching ‘anticodon’ • One tRNA for each amino acid

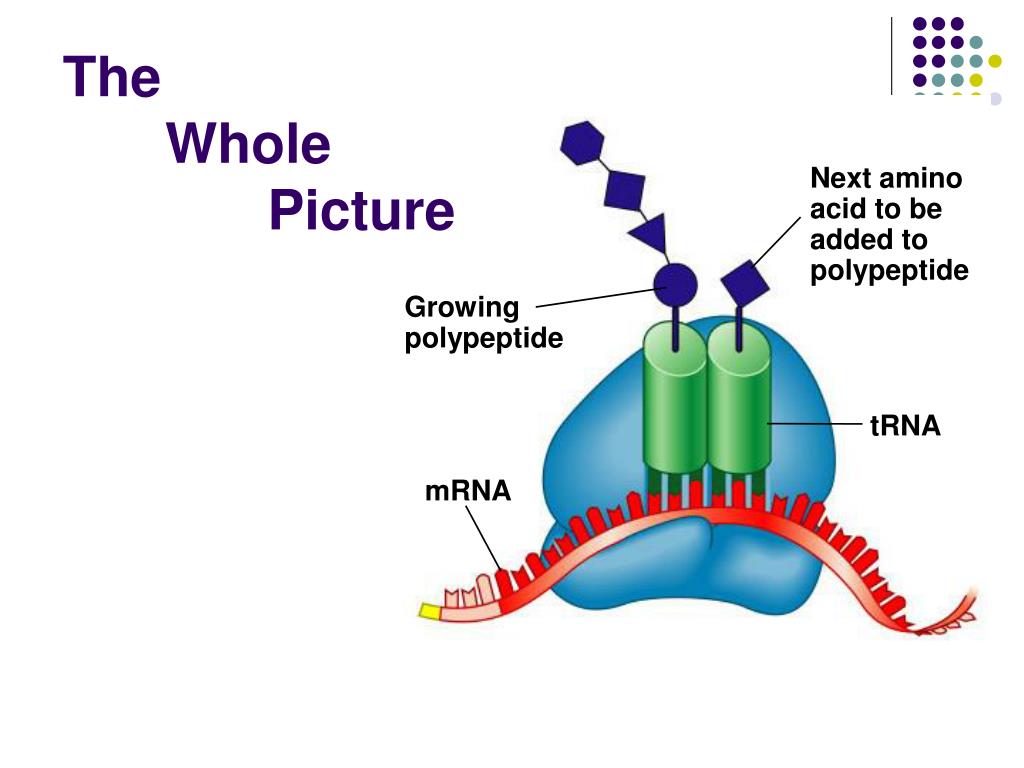

  14. The Whole Picture Next amino acid to be added to polypeptide Growing polypeptide tRNA mRNA

  15. Figure 6 (pg 239)

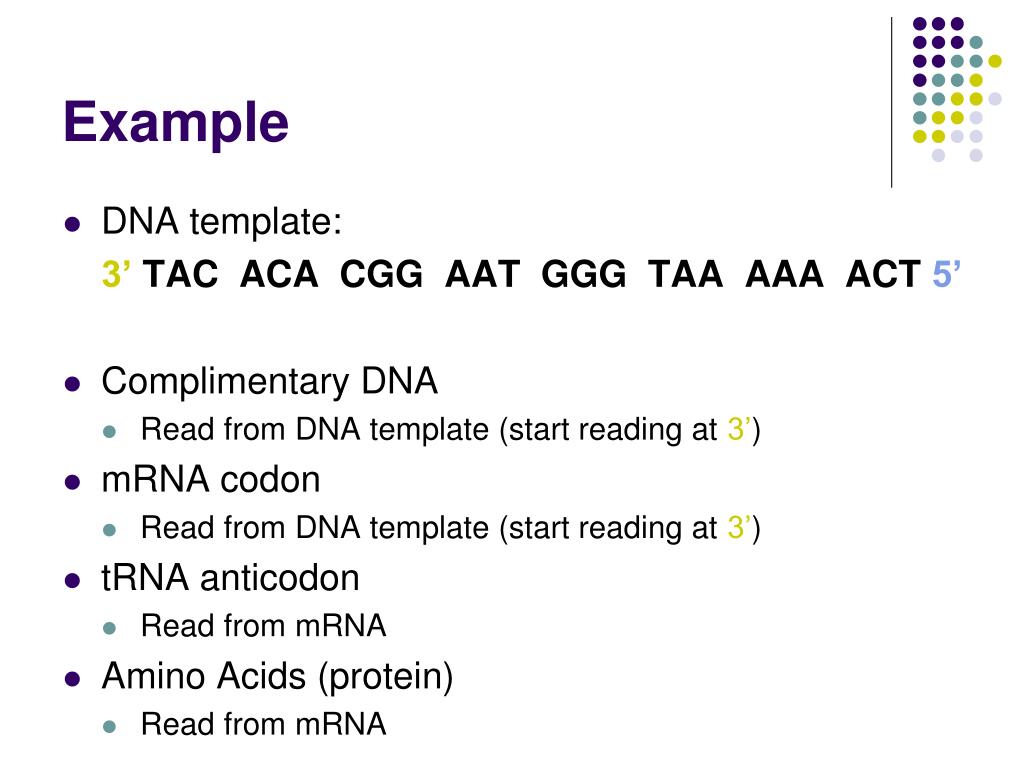

  16. Example • DNA template: 3’ TAC ACA CGG AAT GGG TAA AAA ACT 5’ • Complimentary DNA • Read from DNA template (start reading at 3’) • mRNA codon • Read from DNA template (start reading at 3’) • tRNA anticodon • Read from mRNA • Amino Acids (protein) • Read from mRNA

  17. Who’s who? Mr. Na mRNA Meri Boso ribosome Flash cards tRNA Translation protein United Nations Conference

  18. Task • # 2, 4 – 6, 9 – 11 (page 241) Omit “ribosomes” for #4 • # 2 (page 249) • # 3, 4 & 6 (page 254) DNA rules!

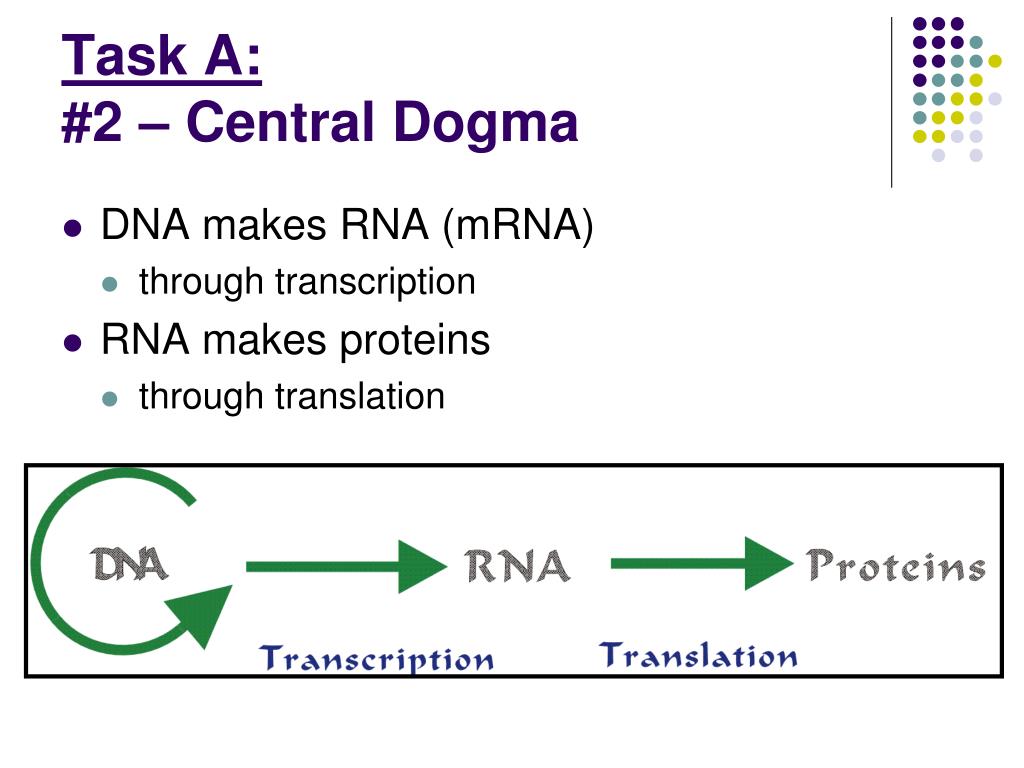

  19. Task A:#2 – Central Dogma • DNA makes RNA (mRNA) • through transcription • RNA makes proteins • through translation

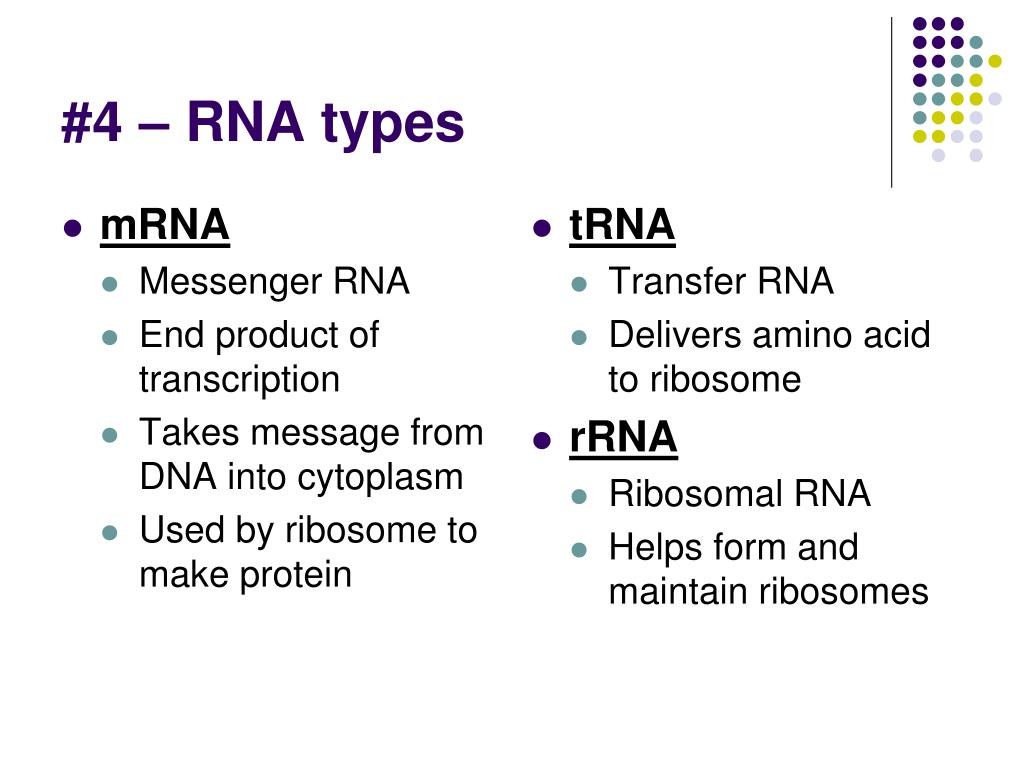

  20. mRNA Messenger RNA End product of transcription Takes message from DNA into cytoplasm Used by ribosome to make protein tRNA Transfer RNA Delivers amino acid to ribosome rRNA Ribosomal RNA Helps form and maintain ribosomes #4 – RNA types

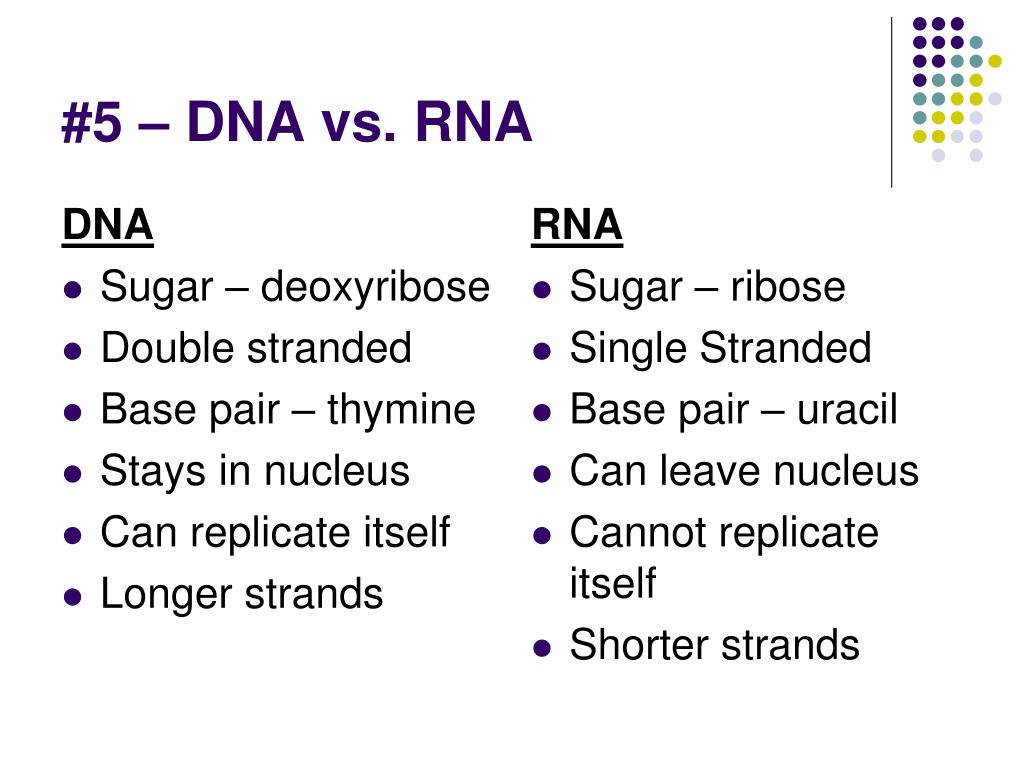

  21. DNA Sugar – deoxyribose Double stranded Base pair – thymine Stays in nucleus Can replicate itself Longer strands RNA Sugar – ribose Single Stranded Base pair – uracil Can leave nucleus Cannot replicate itself Shorter strands #5 – DNA vs. RNA

  22. Transcription Purpose: To make mRNA from DNA Location: Nucleus Translation Purpose: To make a specific protein from mRNA Location: Cytoplasm (ribosome) #6 – Transcription/Translation

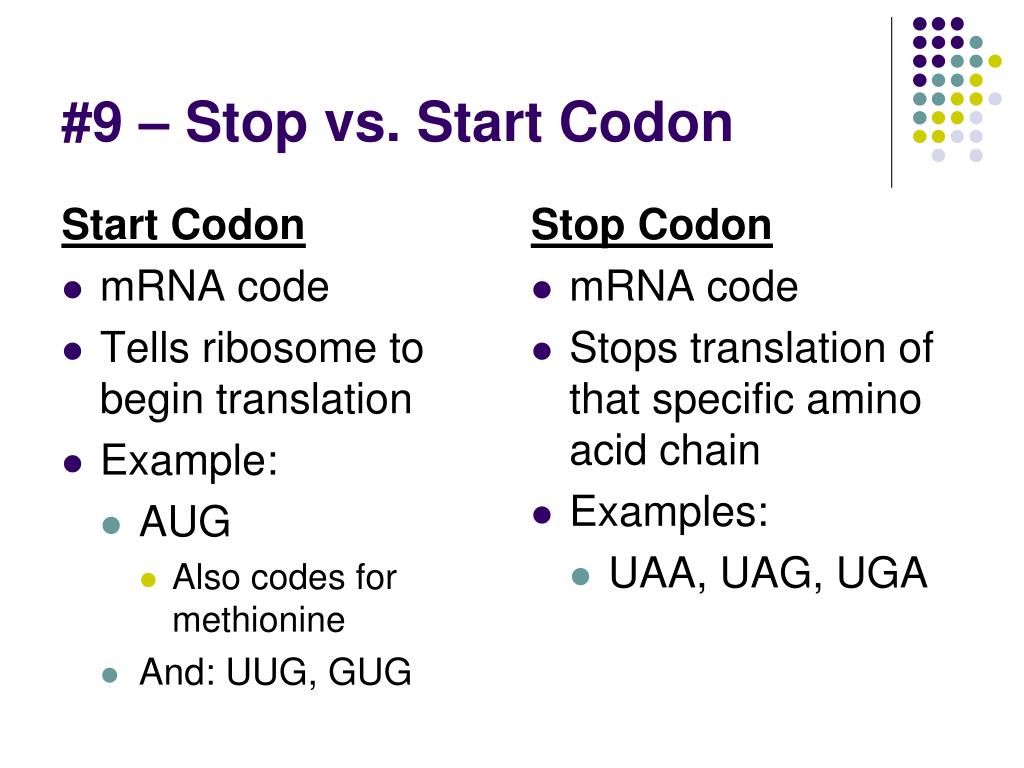

  23. Start Codon mRNA code Tells ribosome to begin translation Example: AUG Also codes for methionine And: UUG, GUG Stop Codon mRNA code Stops translation of that specific amino acid chain Examples: UAA, UAG, UGA #9 – Stop vs. Start Codon

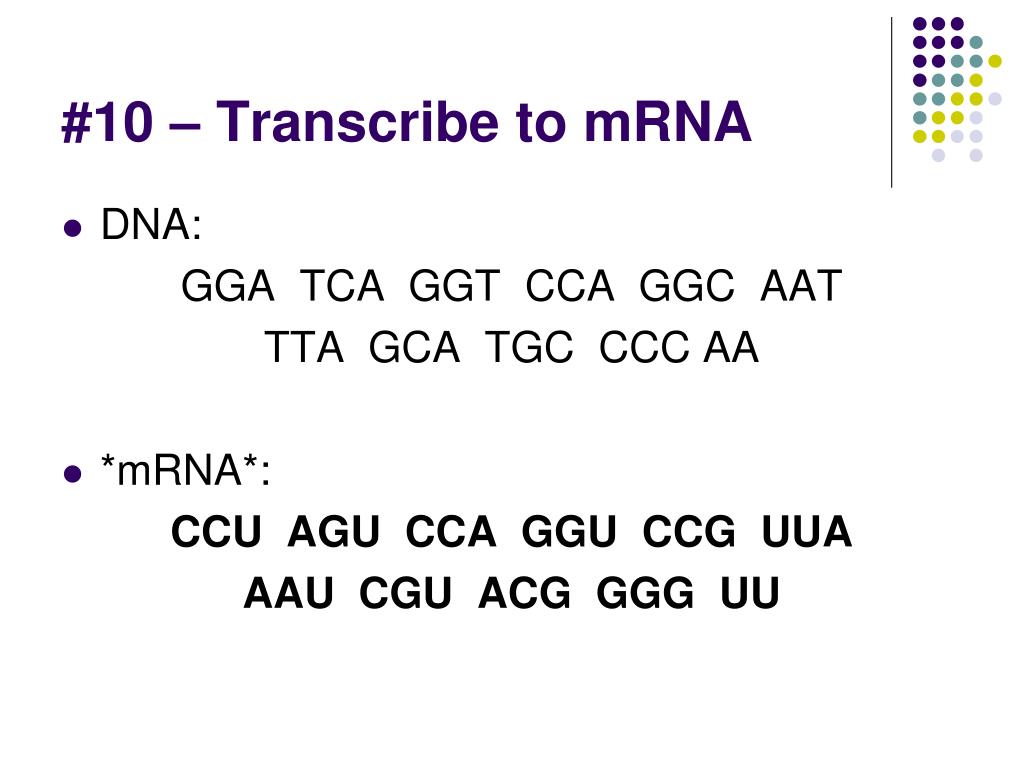

  24. #10 – Transcribe to mRNA • DNA: GGA TCA GGT CCA GGC AAT TTA GCA TGC CCC AA • *mRNA*: CCU AGU CCA GGU CCG UUA AAU CGU ACG GGG UU

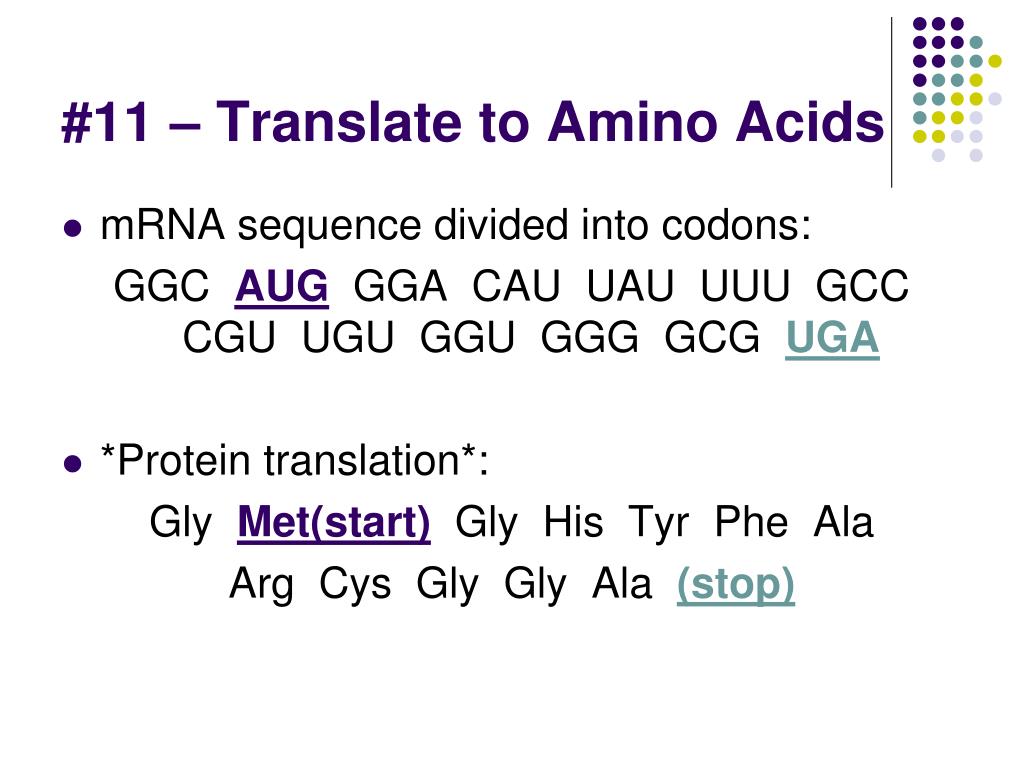

  25. #11 – Translate to Amino Acids • mRNA sequence divided into codons: GGC AUG GGA CAU UAU UUU GCC CGU UGU GGU GGG GCG UGA • *Protein translation*: Gly Met(start) Gly His Tyr Phe Ala Arg Cys Gly Gly Ala (stop)

  26. Task B:#2 – Transcribe to mRNA • DNA: TAC TAC GGT AGG TAT A • *mRNA*: AUG AUG CCA UCC AUA U

  27. Task C:#3 – Anticodons

  28. #4 – Change in 3rd Base May Not Result in Error • Why not? • Amino acids have more than one codon • Example: proline • Codons CCU, CCC, CCA, and CCG • CC - always codes for proline • Third base/nucleotide does not matter

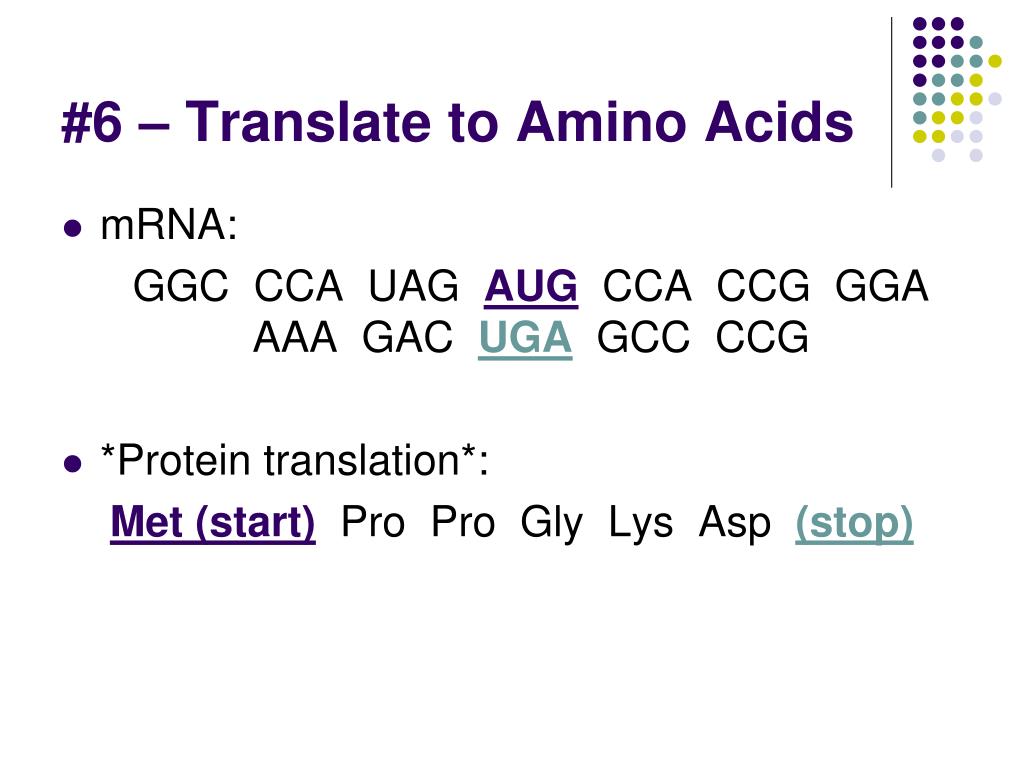

  29. #6 – Translate to Amino Acids • mRNA: GGC CCA UAG AUG CCA CCG GGA AAA GAC UGA GCC CCG • *Protein translation*: Met (start) Pro Pro Gly Lys Asp (stop)
