Presentation Transcript
statistical analysis of single case design

Statistical Analysis of Single Case Design

Serial Dependence Is More than Needing Cheerios for Breakfast

goal of presentation
Goal of Presentation
  • Review concept of effect size
  • Describe issues in using effect size concept for single case design
  • Describe different traditional approaches to calculating effect size for single case design
  • Illustrate one recent approach
how we have gotten to this meeting
How We Have Gotten To This Meeting
  • Long history of statistical analysis of SCD
  • Criticism of quality of educational research (Shalvelson & Towne, 2002)
  • Establishment of IES
    • Initial resistance to SCD
  • Influence of professional groups
  • IES willingness to fund research on statistical analysis
concept of effect size of study
Concept of Effect Size of Study
  • Effect size is a statistic quantifying the extent to which sample statistics diverge from the null hypotheses

(Thompson, 2006)

types of ess for group design
Types of ESs for Group Design
  • Glass Δ = (Me – Mc) / SDc
  • Cohen’s d = (Me – Mc)/ Sdpooled
  • Interpretation
    • Small = .20
    • Medium = .50
    • Large = .80
  • R2
  • Eta2 = SSeffect/SStotal
statistical analysis antithetical to single case design scd
Statistical Analysis Antithetical To Single Case Design (SCD)?
  • Original developers believed that socially important treatment effects have to be large enough to be reliably detected by visual inspection of the data.
kazdin 2011 proposes
Kazdin (2011) proposes
  • Visual inspection less trustworthy when effects at not crystal clear
    • Serial dependence may obscure visual analysis
  • Detection of small effects may lead to understanding that could in turn lead to large effects
  • Statistical analysis may generate ESs that allow one to answer more precise questions
    • Effects for different types of individuals
    • Experimenter effects
example prt and meta analysis shadish 2012
Example: PRT and Meta-Analysis(Shadish, 2012)
  • Pivotal Response Training (PRT) for Childhood Autism
  • 18 studies containing 91 SCD’s.
  • For this example, to meet the assumptions of the method, the preliminary analysis:
    • Used only the 14 studies with at least 3 cases (66 SCDs).
    • Kept only the first baseline and PRT treatment phases, eliminating studies with no baseline
  • After computing 14 effect sizes (one for each study), he used standard random effects meta-analytic methods to summarize results:

------- Distribution Description ---------------------------------

N Min ES Max ES Wghtd SD

14.000 .181 2.087 .374

------- Fixed & Random Effects Model -----------------------------

Mean ES -95%CI +95%CI SE Z P

Fixed .4878 .3719 .6037 .0591 8.2485 .0000

Random .6630 .4257 .9002 .1210 5.4774 .0000

------- Random Effects Variance Component ------------------------

v = .112554

------- Homogeneity Analysis -------------------------------------

Q df p

39.9398 13.0000 .0001

Random effects v estimated via noniterative method of moments.

I2 = 67.5%

The results are of the order of magnitude that we commonly see in meta-analyses of between groups studies

studies done at ucsb 0 or elsewhere 1
Studies done at UCSB (=0) or elsewhere (=1)

------- Analog ANOVA table (Homogeneity Q) -------

Q df p

Between 3.8550 1.0000 .0496

Within 16.8138 12.0000 .1567

Total 20.6688 13.0000 .0797

------- Q by Group -------

Group Qwdf p

.0000 1.9192 3.0000 .5894

1.0000 14.8947 9.0000 .0939

------- Effect Size Results Total -------

Mean ES SE -95%CI +95%CI Z P k

Total .6197 .0980 .4277 .8118 6.3253 .0000 14.0000

------- Effect Size Results by Group -------

Group Mean ES SE -95%CI +95%CI Z P k

.0000 1.0228 .2275 .5769 1.4686 4.4965 .0000 4.0000

1.0000 .5279 .1086 .3151 .7407 4.8627 .0000 10.0000

------- Maximum Likelihood Random Effects Variance Component -------

v = .05453

se(v) = .04455

  • Of course, we have no idea why studies done at UCSB produce larger effects:
  • different kinds of patients?
  • different kinds of outcomes?
  • But the analysis does illustrate one way to explore heterogeneity
search for the holy grail of effect size estimators
Search for the Holy Grail of Effect Size Estimators
  • No single approach agreed upon: (40+ have been identified, Swaminathan et al., 2008)
  • Classes of approaches
    • Computational approaches
    • Randomization test
    • Regression approaches
    • Tau-U (Parker et al., 2011) as combined approach
computational approaches
Computational Approaches
  • Percentage of NonoverlappingDatapoints (PND) (Scruggs, Mastropieri, & Casto, 1987)
  • Percentage of Zero Data (Campbell, 2004)
  • Improvement Rate Difference (Parker, Vannest, & Brown, 2009)
abab 7

Evaluate for LEVEL

Evaluate for TREND


Level of Experimental Control

No Exp Control Publishable Strong Exp Control

1 2 3 4 5 6 7

randomization test

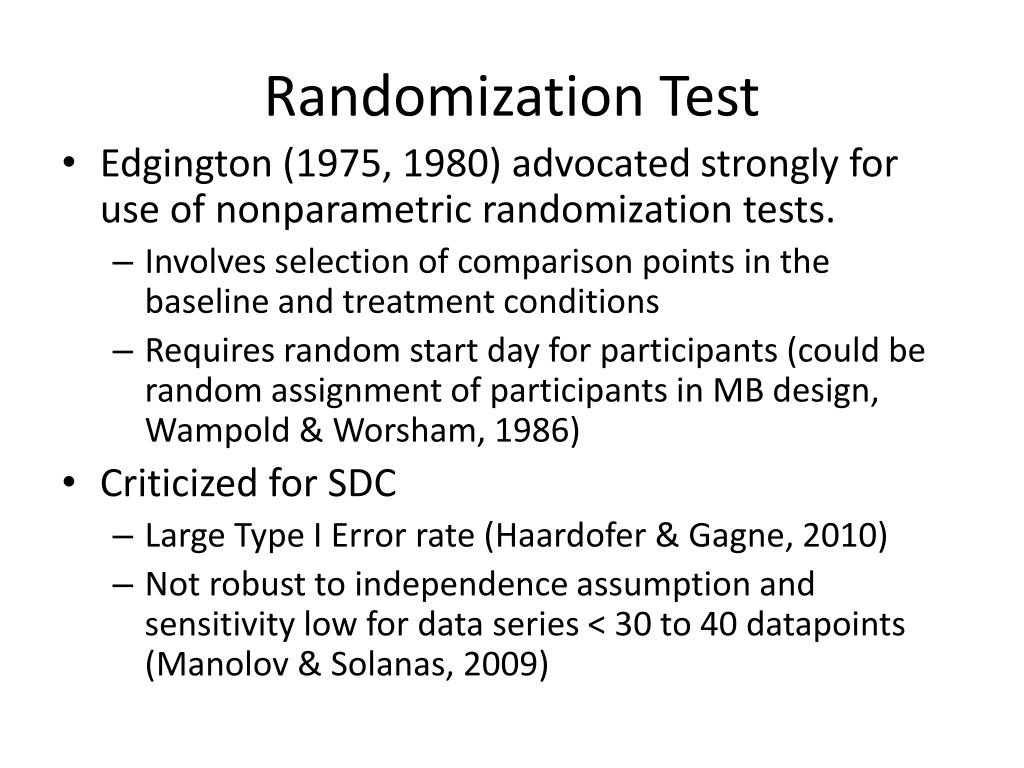

Randomization Test
  • Edgington (1975, 1980) advocated strongly for use of nonparametric randomization tests.
    • Involves selection of comparison points in the baseline and treatment conditions
    • Requires random start day for participants (could be random assignment of participants in MB design, Wampold & Worsham, 1986)
  • Criticized for SDC
    • Large Type I Error rate (Haardofer & Gagne, 2010)
    • Not robust to independence assumption and sensitivity low for data series < 30 to 40 datapoints (Manolov & Solanas, 2009)
abab 71

Evaluate for LEVEL

Evaluate for TREND


Level of Experimental Control

No Exp Control Publishable Strong Exp Control

1 2 3 4 5 6 7

regression least squares approaches
Regression (Least Squares Approaches)
  • ITSACORR (Crosbie, 1993)
    • Interrupted time series analysis
    • Criticized for not being correlated with other methods
  • White, Rusch, Kazdin, & Hartmann (1989) Last day of Treatment Comparison (LDT)
    • Compares two LDT for baseline and treatment
    • Power weak because of lengthy predictions
regression analyses
Regression Analyses
  • Mean shift and mean-plus-trend model (Center, Skiba, & Casey; 1985-86)
  • Ordinary least squares regression analysis (Allison & Gorman, 1993)
    • Both approaches attempt to control for trends in baseline when examining the performances in treatment
  • d-Estimator (Shadish, Hedges, Rinscoff, 2012)
  • GLS with removal of autocorrelaiton (Swaminathan, Horner, Rogers, & Sugai, 2012)
tau u parker vannest javis sauber 2011
Tau-U(Parker, Vannest, Javis, & Sauber, 2011)
  • Mann-Whitney U a nonparametric that compares individual data point in groups (AB comparisons)
  • Kendal’s Tau does these same thing for trend within groups
  • Tau-U
    • Tests and control for trend in A phase
    • Test for differences in A and B phases
    • Test and adjust for tend in B phase
abab 72

Evaluate for LEVEL

Evaluate for TREND


Level of Experimental Control

No Exp Control Publishable Strong Exp Control

1 2 3 4 5 6 7


Tau-U Calculator, K.J., Parker, R.I., & Gonen, O. (2011). Single Case Research: web based calculators for SCR analysis. (Version 1.0) [Web-based application]. College Station, TX: Texas A&M University. Retrieved Sunday 15th July 2012.

  • Combines nonoverlap between phases with trend from within intervention phases
    • Will detect and allow researcher to control for undesirable trend in baseline phase
  • Data are easily entered on free website
  • Generates a d for effects with trend withdrawn when necessary
themes an accessible and feasible effect size estimator

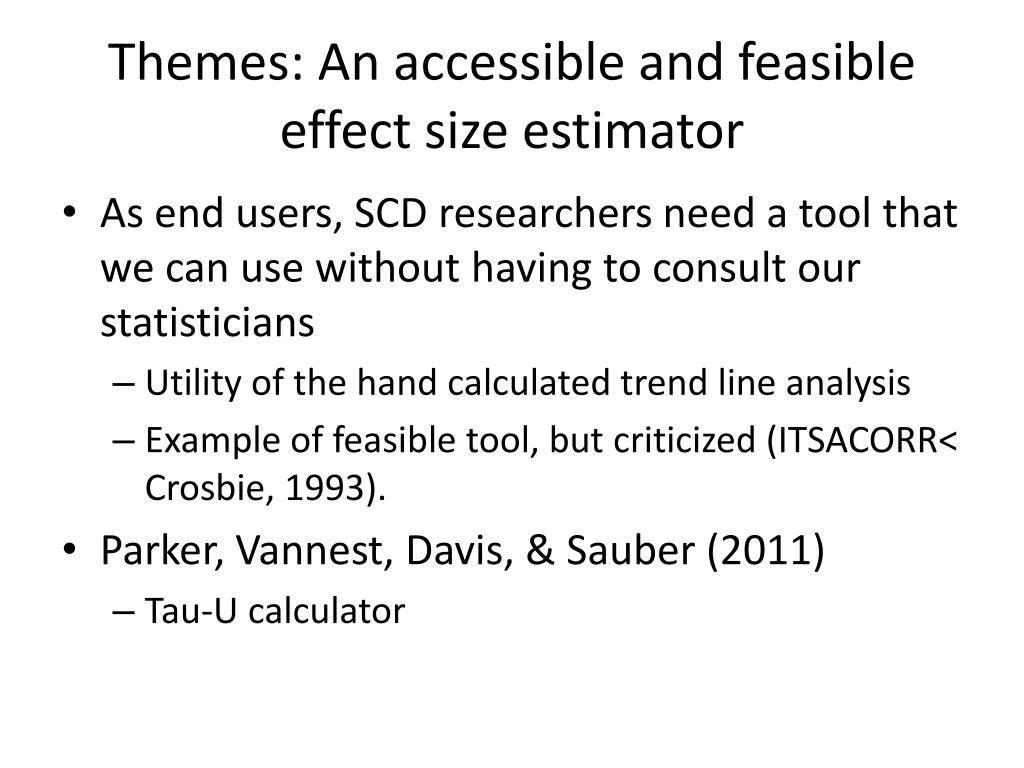

Themes: An accessible and feasible effect size estimator
  • As end users, SCD researchers need a tool that we can use without having to consult our statisticians
    • Utility of the hand calculated trend line analysis
    • Example of feasible tool, but criticized (ITSACORR< Crosbie, 1993).
  • Parker, Vannest, Davis, & Sauber (2011)
    • Tau-U calculator
theme what is an effect a d that detect treatment or and level effect

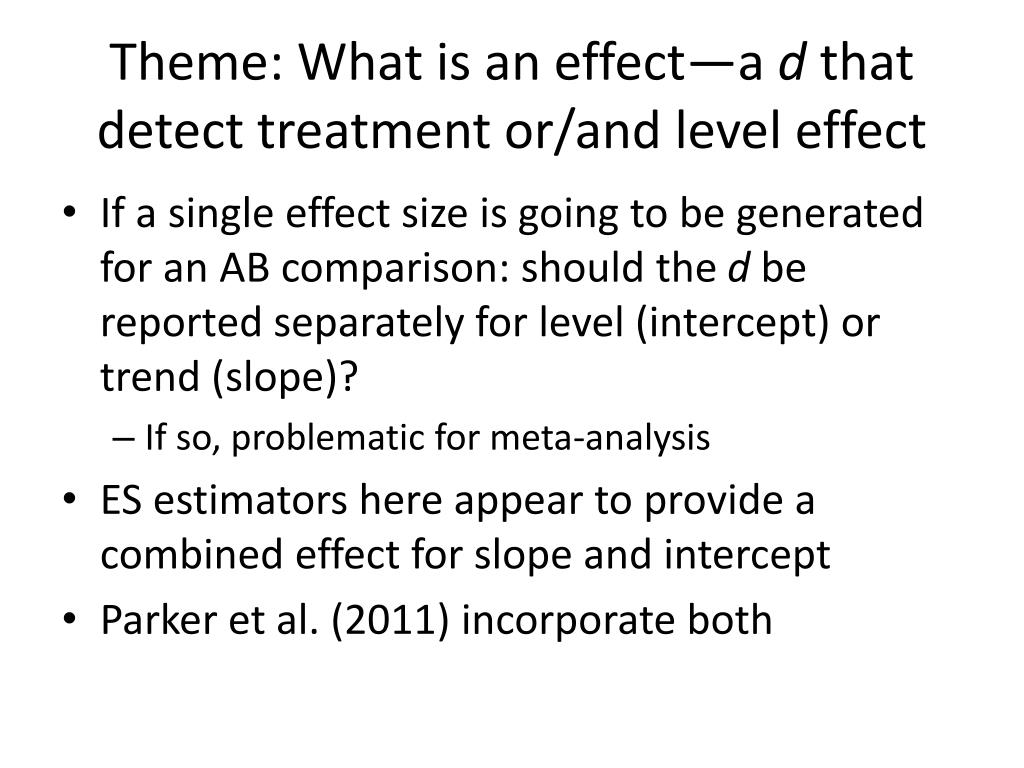

Theme: What is an effect—a d that detect treatment or/and level effect
  • If a single effect size is going to be generated for an AB comparison: should the d be reported separately for level (intercept) or trend (slope)?
    • If so, problematic for meta-analysis
  • ES estimators here appear to provide a combined effect for slope and intercept
  • Parker et al. (2011) incorporate both
theme what comparisons get included in the meta analysis
Theme: What comparisons get included in the meta-analysis
  • Should we only use the initial AB comparison in ABAB Designs?
theme what comparisons get included in the meta analysis1

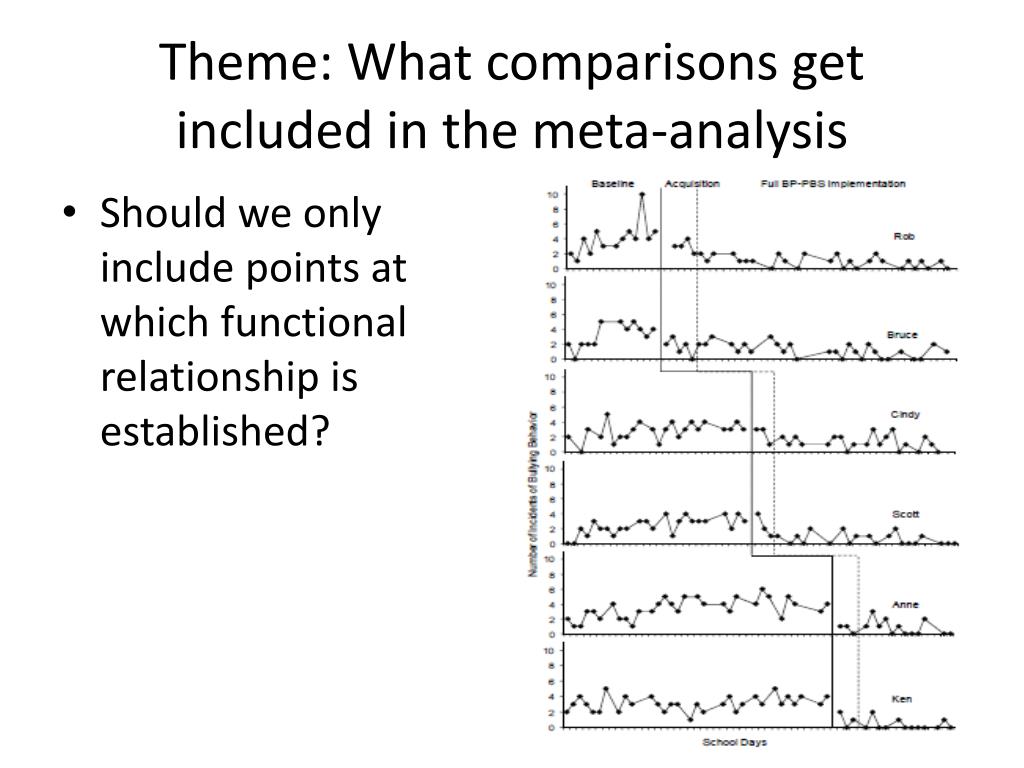

Theme: What comparisons get included in the meta-analysis
  • Should we only include points at which functional relationship is established?
theme how many effects sizes per study
Theme: How many effects sizes per study?

Study Study 1Study 2 … Study K

Subject Subj1 Subj2 Subj1Subj1 Subj2 Subj3 Subj4

Moments m mm m mmmmm mm mm m

heterogeneity in scd a reality
Heterogeneity In SCD: A reality
  • SCD Researchers used a range of different designs and design combinations
  • A look at current designs
    • Fall, 2011 Issue of Journal of Applied Behavior Analysis
comparison of sdc and group design ess the apples and oranges issues
Comparison of SDC and Group Design ESs:The Apples and Oranges Issues
  • Logic of casual inferences different
    • Groups: Means differences between groups
    • SCD: Replication of effects either within or across all “participants”
    • Generally d represents different comparison
  • Data collected to document an effect different
    • Group designs collect data before treatment and after treatment
    • SCDs collect data throughout treatment phase, so for treatments that build performance across time, they may appear less efficacious because they are including “acquisition” phase effects in analysis
  • I learned a lot
  • Sophistication of analyses is increasing
  • Feasibility of using statistical analysis is improving
  • Can use statistical analysis as supplement to visual inspection (Kazdin, 2011)
  • Statistical analysis may not be for everybody, but it is going to foster acceptability in the larger education research community, and for that reason SCD researchers should consider it.
