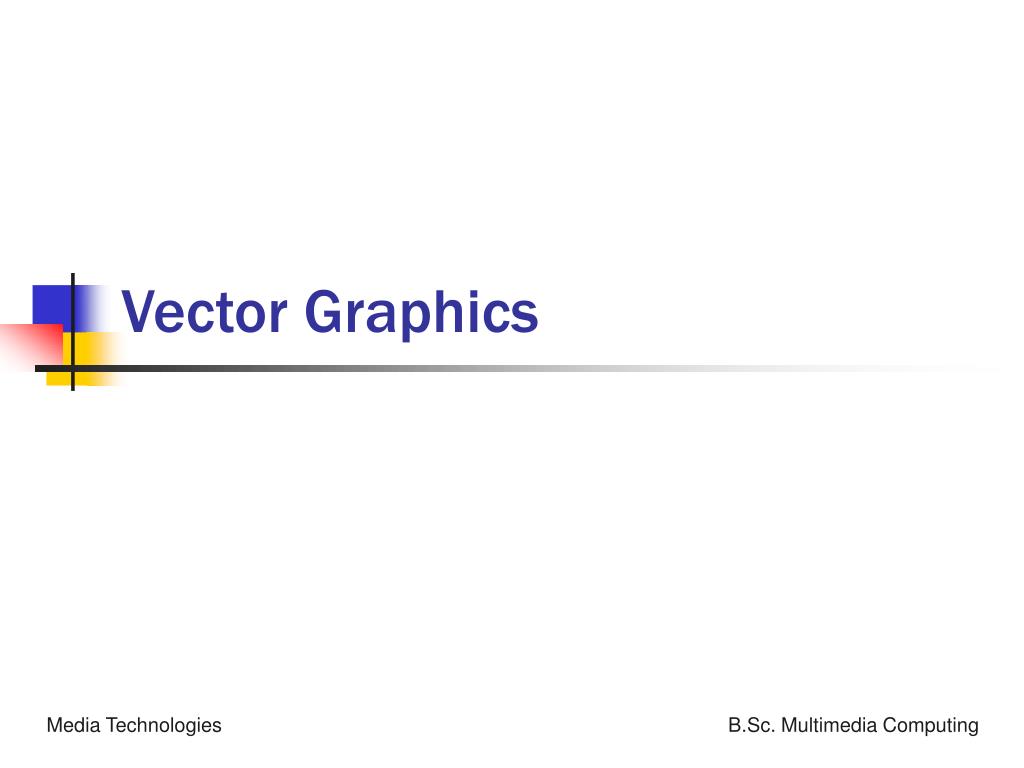

  1. Vector Graphics

  2. Agenda • Characteristics of Vector Graphics • Vector Graphic Formats • Pros & Cons • Scalable Vector Graphics (SVG)

  3. Vector Graphics • Vector graphic files contain mathematical descriptions of one or more image elements, which are used by the rendering application to construct a final image. • Vector files are thus said to be made up of descriptions of image elements or objects, rather than pixel values.

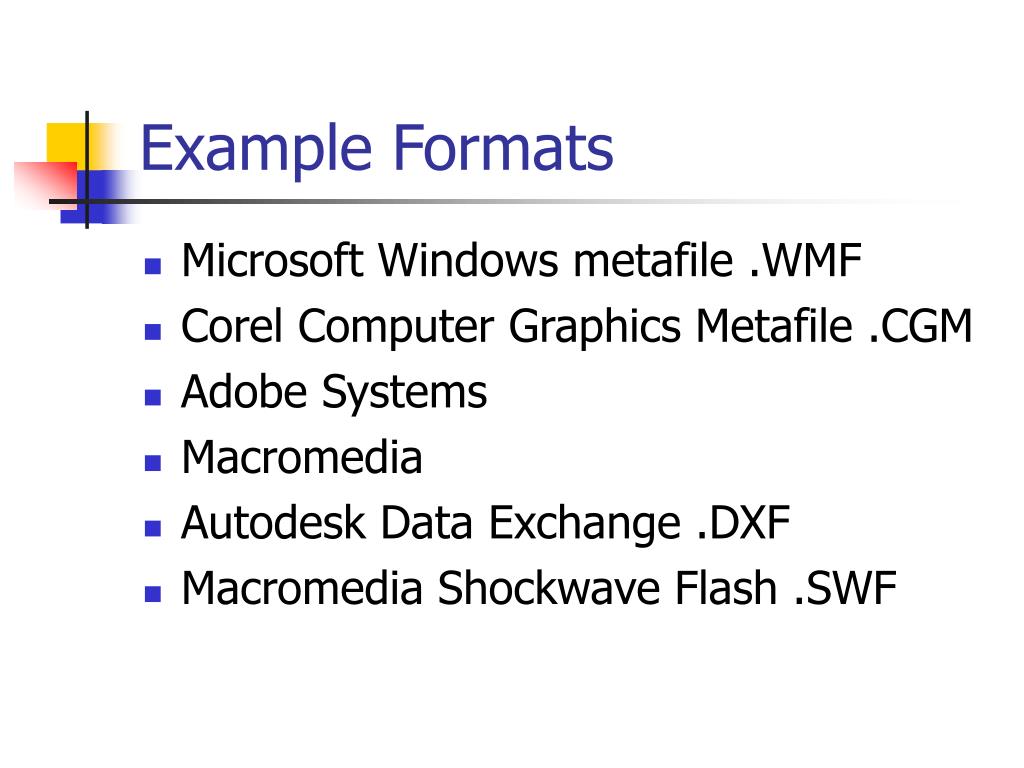

  4. Example Formats • Microsoft Windows metafile .WMF • Corel Computer Graphics Metafile .CGM • Adobe Systems • Macromedia • Autodesk Data Exchange .DXF • Macromedia Shockwave Flash .SWF

  5. Vector Graphics - Pros • Vector files are useful for storing images composed of line-based elements such as lines and polygons, or those that can be decomposed into simple geometrical objects, such as text. • More sophisticated formats can also store 3D objects such as polyhedrons and wire-frame models. • Vector data can be easily scaled and otherwise manipulated to accommodate the resolution of a spectrum of output devices.

  6. Vector Graphics - Pros • Many vector files containing only ASCII-format data can be modified with simple text editing tools. Individual elements may be added, removed, or changed without affecting other objects in the image. • It is usually easy to render vector data and save it to a bitmap format file, or, alternately, to convert the data to another vector format, with good results.

  7. Vector Graphics - Cons • Vector files cannot easily be used to store extremely complex images, such as some photographs, where color information is paramount and may vary on a pixel-by-pixel basis. • The appearance of vector images can vary considerably depending upon the application interpreting the image. Factors include the rendering application's compatibility with the creator application and the sophistication of its toolkit of geometric primitives and drawing operations

  8. Vector Graphics - Cons • Vector data also displays best on vectored output devices such as plotters and random scan displays. High-resolution raster displays are needed to display vector graphics as effectively. • Reconstruction of vector data may take considerably longer than that contained in a bitmap file of equivalent complexity, because each image element must be drawn individually and in sequence.

  9. Random v Raster

  10. Scaleable Vector Graphics • SVG is a language for describing two-dimensional graphics and graphical applications in XML • Scaleable means extendable • Interaction - mouse events • Animation - animated components

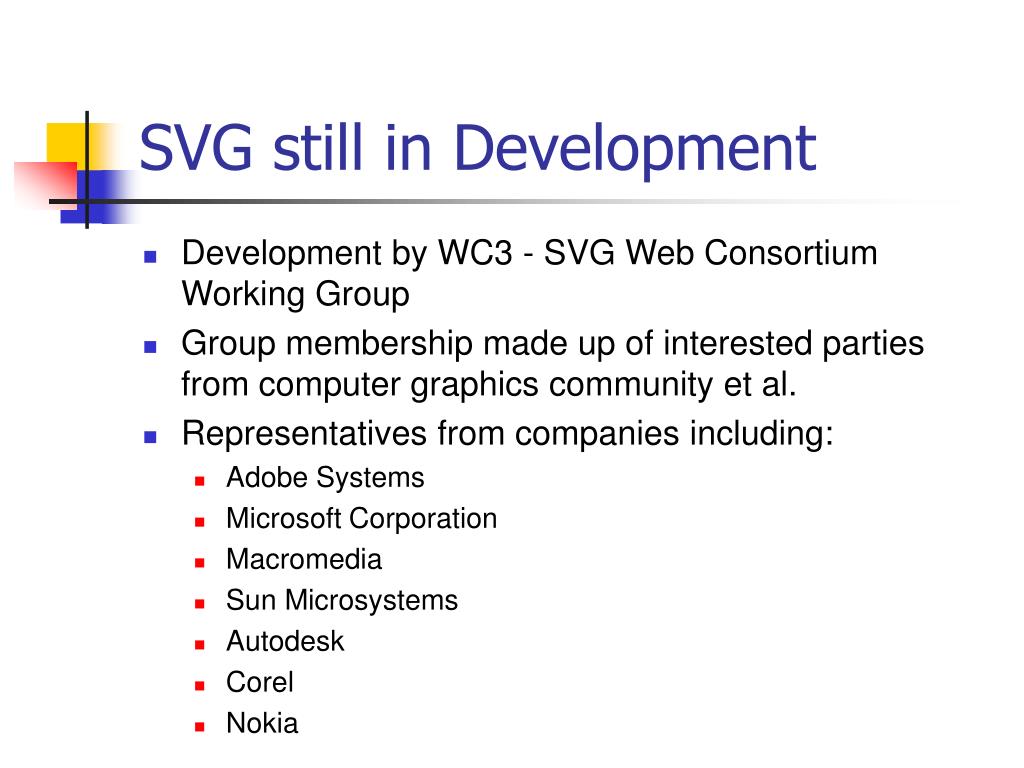

  11. SVG still in Development • Development by WC3 - SVG Web Consortium Working Group • Group membership made up of interested parties from computer graphics community et al. • Representatives from companies including: • Adobe Systems • Microsoft Corporation • Macromedia • Sun Microsystems • Autodesk • Corel • Nokia

  12. SVG Group at • http://www.w3.org/Graphics/SVG/Overview.htm8

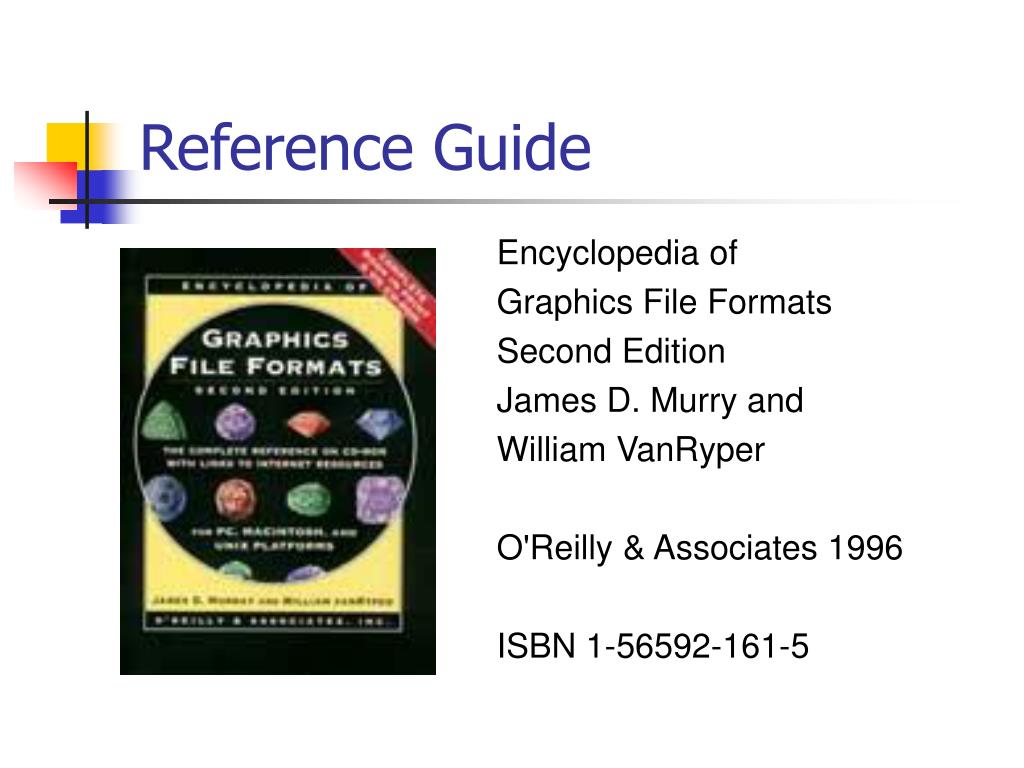

  13. Reference Guide Encyclopedia of Graphics File Formats Second Edition James D. Murry and William VanRyper O'Reilly & Associates 1996 ISBN 1-56592-161-5

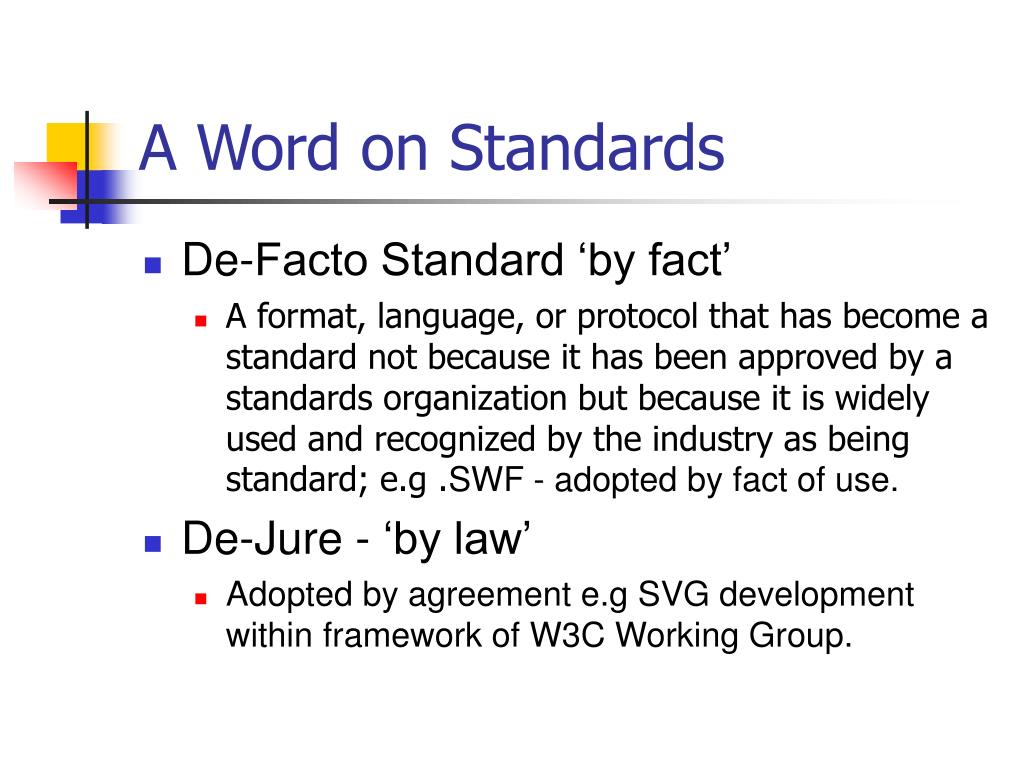

  14. A Word on Standards • De-Facto Standard ‘by fact’ • A format, language, or protocol that has become a standard not because it has been approved by a standards organization but because it is widely used and recognized by the industry as being standard; e.g .SWF - adopted by fact of use. • De-Jure - ‘by law’ • Adopted by agreement e.g SVG development within framework of W3C Working Group.
