a self repairing peer to peer systems resilient to dynamic adversarial churn

A Self-repairing Peer-to-Peer Systems Resilient to Dynamic Adversarial Churn

Fabian Kuhn, Microsoft Research, Silicon Valley

Stefan Schmid, ETH Zurich

Roger Wattenhofer, ETH Zurich

Some slides taken from Stefan Schmid’s presentation of his

Masters thesis

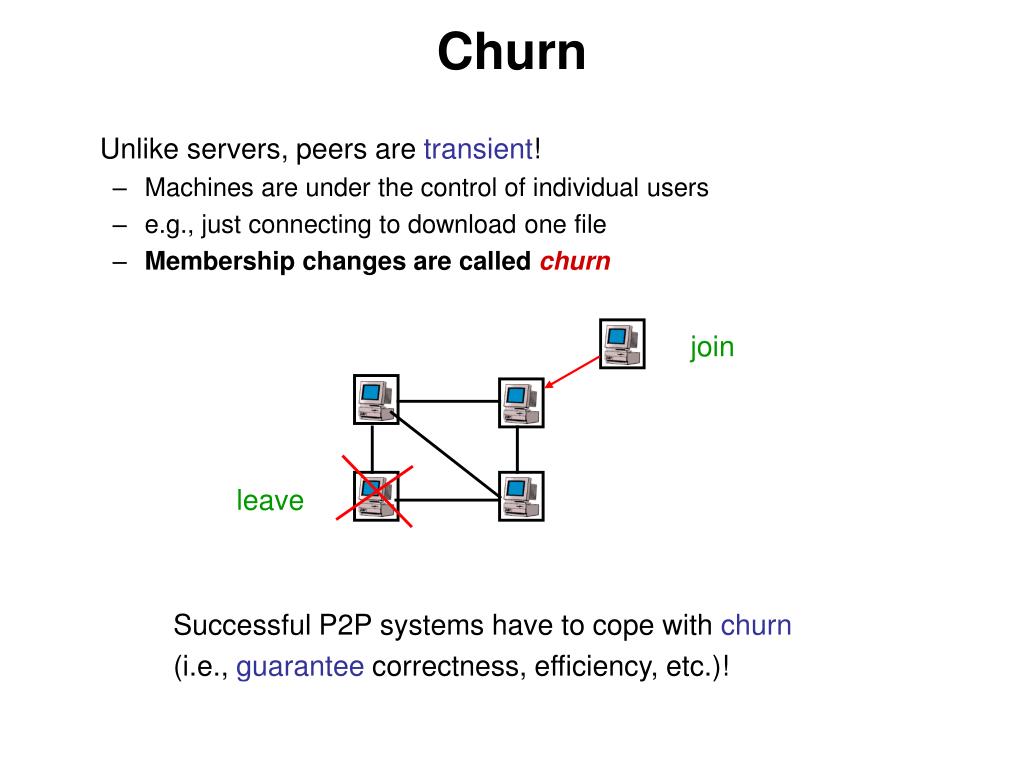

churn
Churn

Unlike servers, peers are transient!

  • Machines are under the control of individual users
  • e.g., just connecting to download one file
  • Membership changes are called churn

join

leave

Successful P2P systems have to cope with churn

(i.e., guarantee correctness, efficiency, etc.)!

churn characteristics
Churn characteristics
  • Depends on application (Skype vs. eMule vs. …)
  • But: there may be dozens of membership changes per second!
  • Peers may crash without notice!

How can peers collaborate in spite of churn?

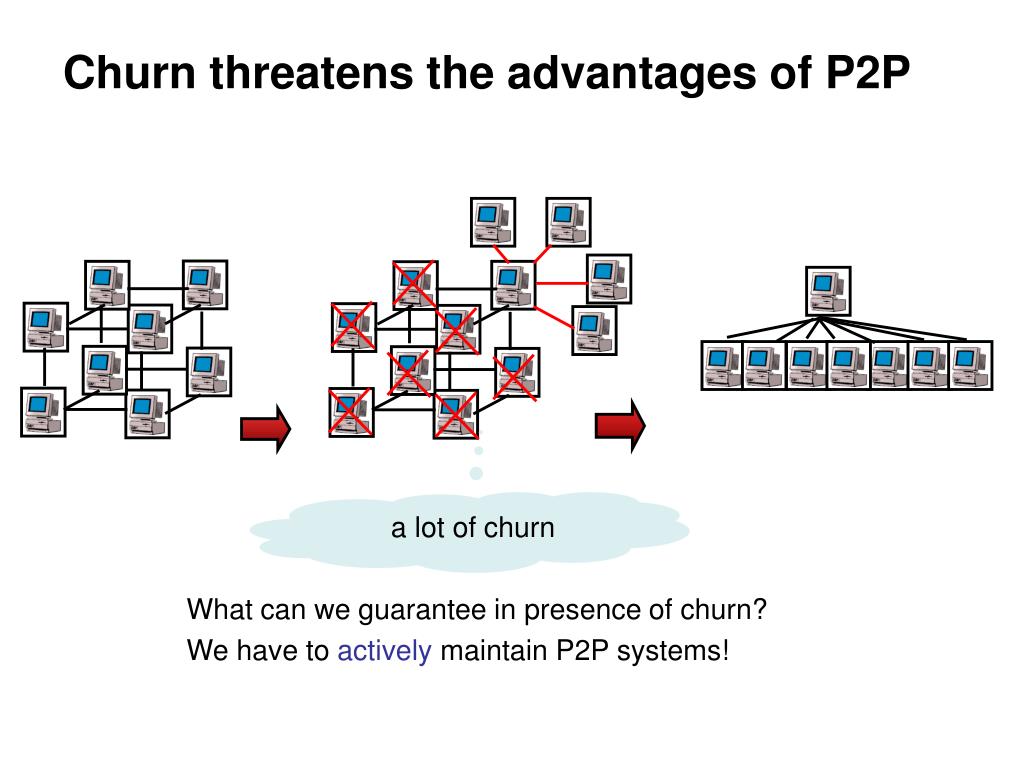

churn threatens the advantages of p2p
Churn threatens the advantages of P2P

a lot of churn

What can we guarantee in presence of churn?

We have to activelymaintain P2P systems!

goal of the paper
Goal of the paper

Only a small number of P2P systems have been analyzed under churn!

This paper presents techniques to:

- Provably maintain P2P systems with desirable properties…

- in spite of ongoing worst-case membership changes.

Peer degree, network diameter, …

Adversary continuously attacks the weakest part

(The system is never fully repaired, but always fully functional)

how does churn affect p2p systems

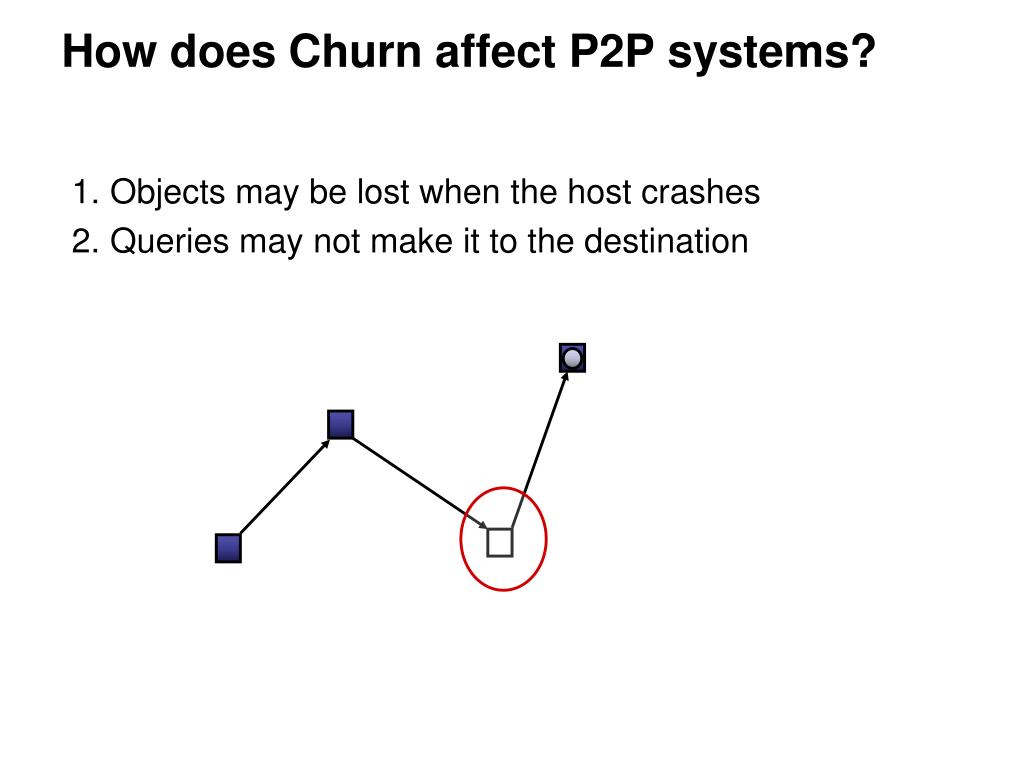

How does Churn affect P2P systems?

Objects may be lost when the host crashes

Queries may not make it to the destination

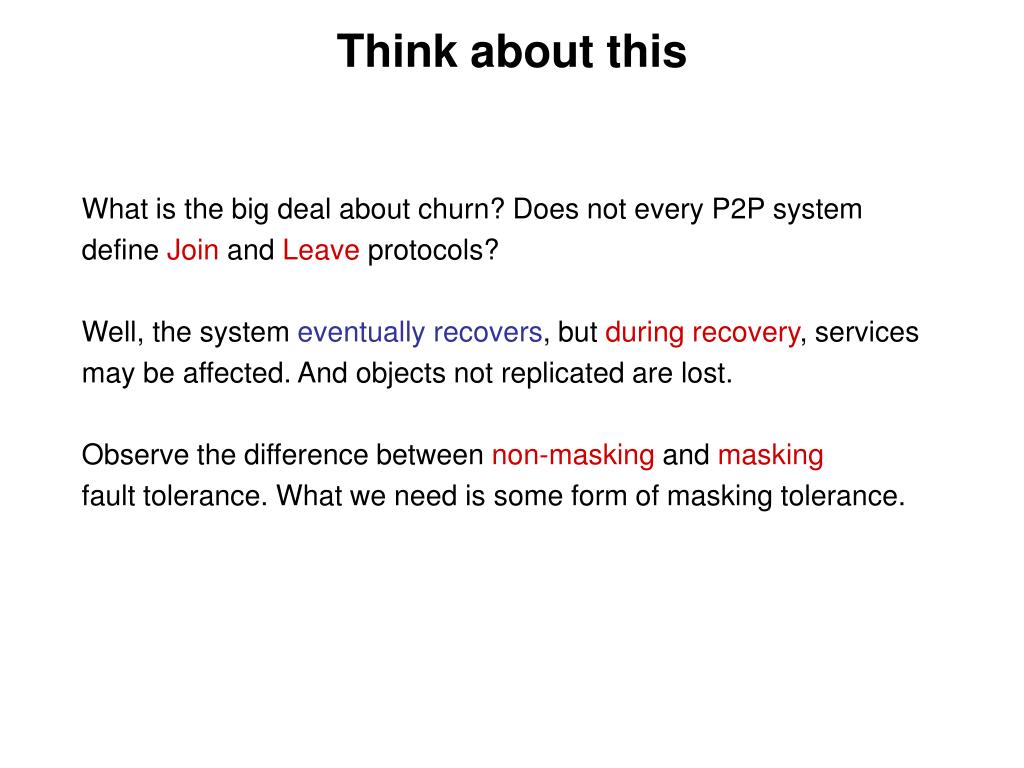

think about this
Think about this

What is the big deal about churn? Does not every P2P system

define Join and Leave protocols?

Well, the system eventually recovers, but during recovery, services

may be affected. And objects not replicated are lost.

Observe the difference between non-masking and masking

fault tolerance. What we need is some form of masking tolerance.

model for dynamics
Model for Dynamics

We assume worst-case perspective: Adversary A(J,L)

induces J joins and L leaves every round anywhere in

the system. We assume a synchronous model: time divided

into rounds.

Further refinement:Adversary A(J, L, r)implies

J joins, L leaves every r rounds

The topology is assumed to be a hypercube that has O(log n) degree and O(log n) diameter.

topology maintenance
Topology Maintenance

π1

π2

  • Challenges in maintaining the hypercube!
    • How does peer 1 know that it should replace peer 2?
    • How does it get there when there are concurrent joins and leaves?
general recipe for robust topologies

Resulting structure has similar properties as original graph

(e.g., connectivity, degree, …), but is also maintainable under churn!

There is always at least one peer per node (but not too many either).

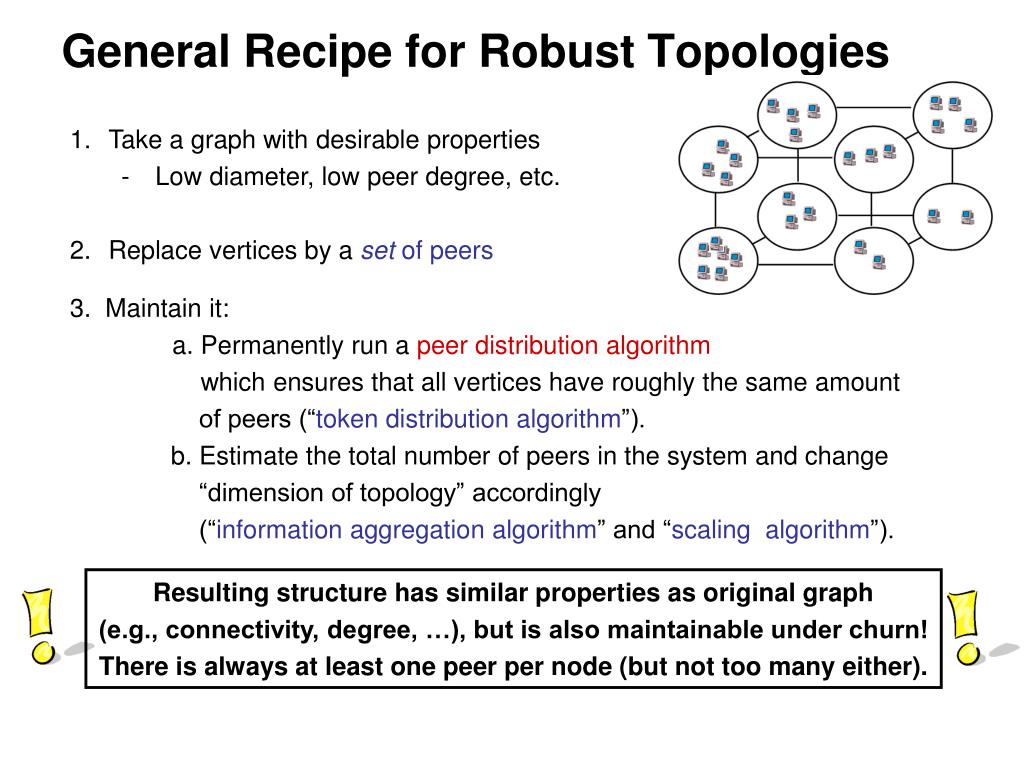

General Recipe for Robust Topologies
  • Take a graph with desirable properties
    • Low diameter, low peer degree, etc.
  • Replace vertices by a set of peers

3. Maintain it:

a. Permanently run a peer distribution algorithm

which ensures that all vertices have roughly the same amount

of peers (“token distribution algorithm”).

b. Estimate the total number of peers in the system and change

“dimension of topology” accordingly

(“information aggregation algorithm” and “scaling algorithm”).

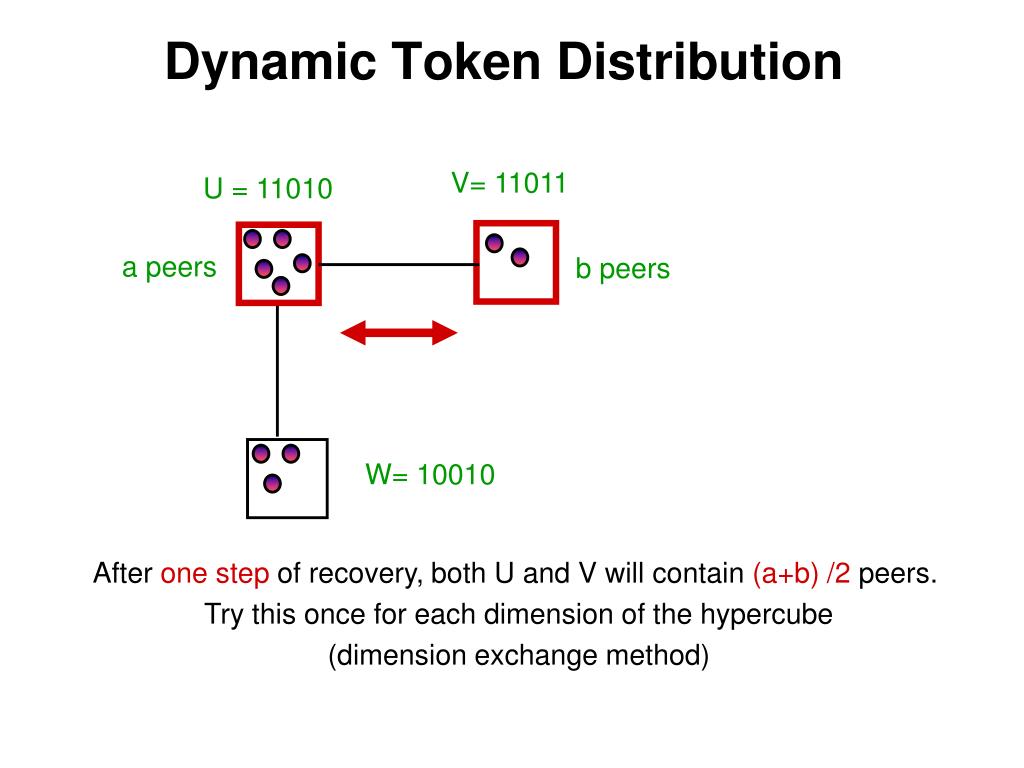

dynamic token distribution
Dynamic Token Distribution

V= 11011

U = 11010

a peers

b peers

W= 10010

After one step of recovery, both U and V will contain (a+b) /2 peers.

Try this once for each dimension of the hypercube

(dimension exchange method)

theorem

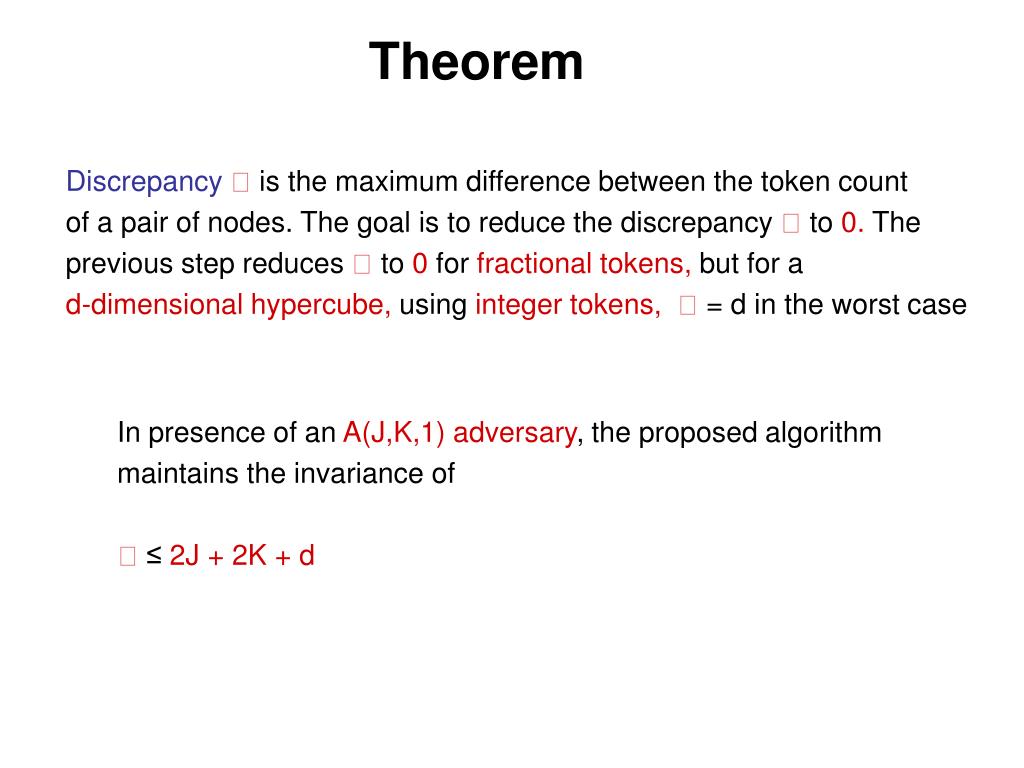

Theorem

Discrepancy is the maximum difference between the token count

of a pair of nodes. The goal is to reduce the discrepancy  to 0. The

previous step reduces  to 0 for fractional tokens, but for a

d-dimensional hypercube, using integer tokens,  = d in the worst case

In presence of an A(J,K,1) adversary, the proposed algorithm

maintains the invariance of

 ≤ 2J + 2K + d

information aggregation
Information aggregation

When the total number of peers N exceeds an upper bound, each node

splits into two, and the dimension of the hypercube has to increase by 1.

Similarly, when the total number of peers N falls below a lower bound,

pairs of nodes in dimension (d-1) merge into one, and the dimension of

the hypercube has to decrease by 1.

Thus, the system needs a mechanism to keep track of N.

simulated hypercube

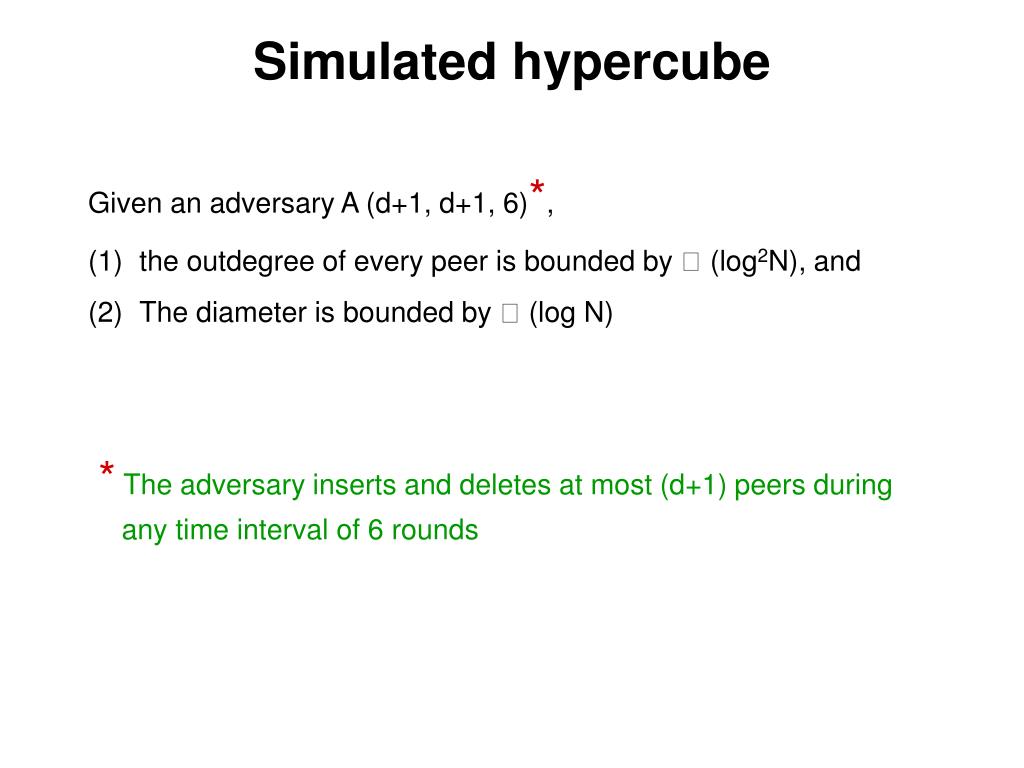

Simulated hypercube

Given an adversary A (d+1, d+1, 6)*,

  • the outdegree of every peer is bounded by  (log2N), and
  • The diameter is bounded by  (log N)

* The adversary inserts and deletes at most (d+1) peers during

any time interval of 6 rounds

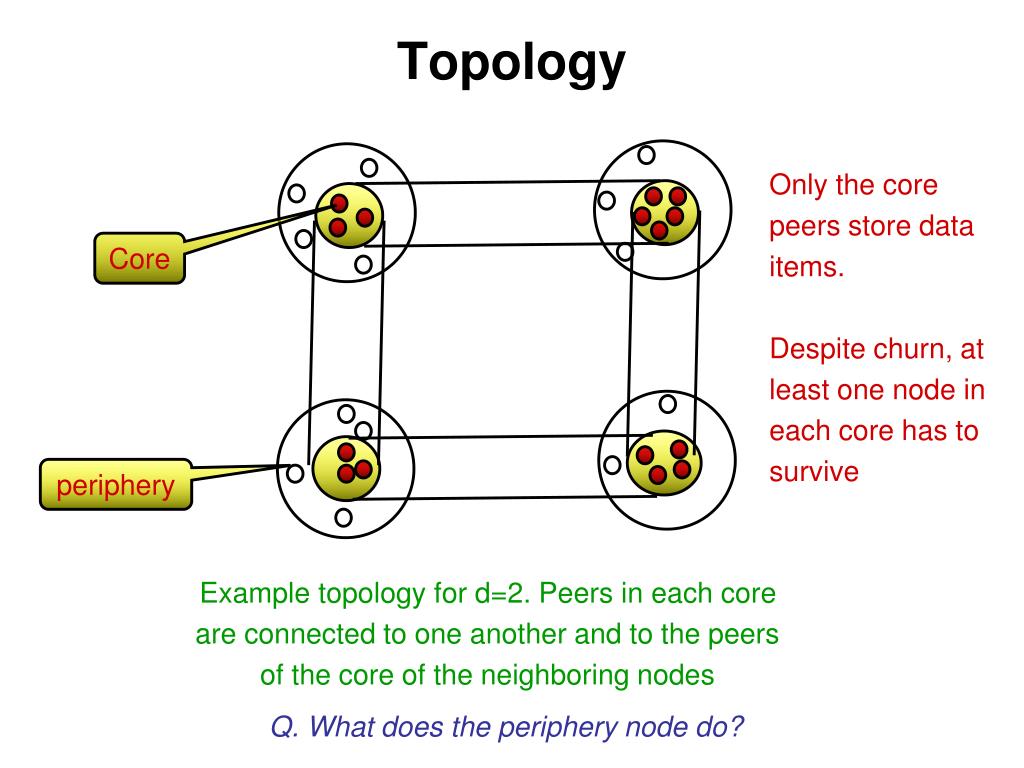

topology
Topology

Only the core

peers store data

items.

Despite churn, at

least one node in

each core has to

survive

Core

periphery

Example topology for d=2. Peers in each core

are connected to one another and to the peers

of the core of the neighboring nodes

Q. What does the periphery node do?

6 round maintenance algorithm
6-round maintenance algorithm

The authors implied six rounds for one dimension in each phase

Round 1. Each node takes snapshot of active peers within itself.

Round 2. Exchange snapshot

Round 3. Preparation for peer migration

Round 4. Core send ids of new peers to periphery.

Reduce dimension if necessary.

Round 5. Dimension growth & building new core (2d+3)

Round 6. Exchange information about the new core.

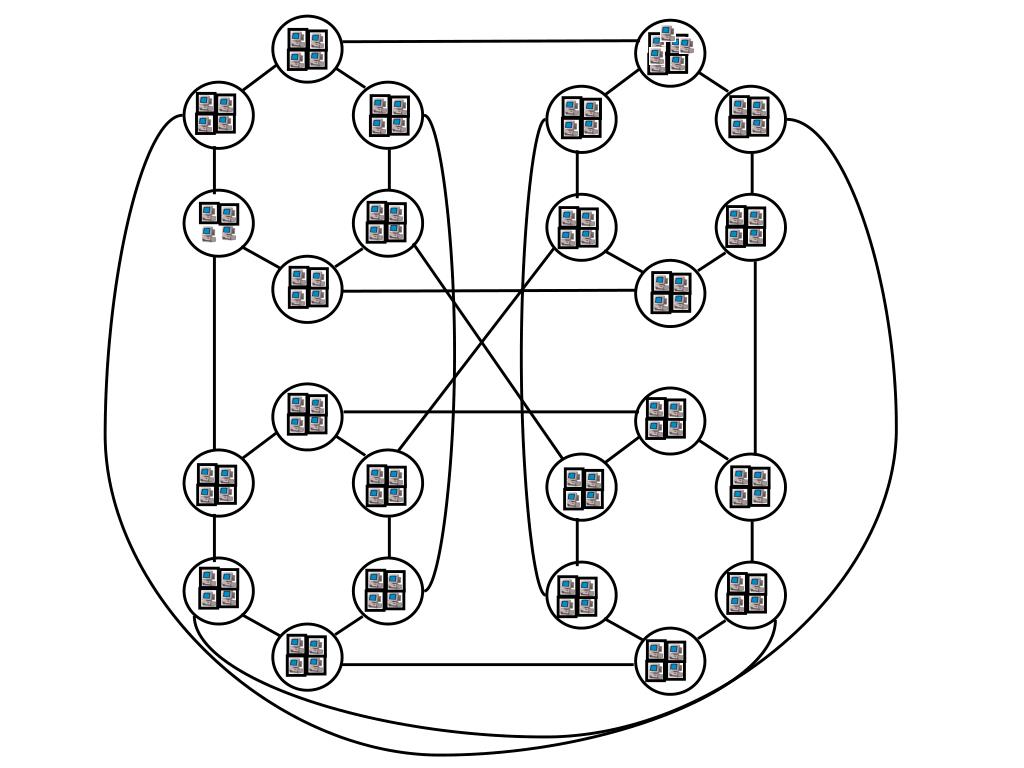

further improvement pancake graph 1
Further improvement: Pancake Graph (1)
  • A robust system with degree and diameter O(log n / loglog n): the pancake graph (most papers refer to Papadimitriou & Gates’ contribution here)!
  • Pancake of dimension d:
    • d! nodes represented by unique permutation {l1, …, ld} where l1 {1,…,d}
    • Two nodes u and v are adjacent iff u is a prefix-inversion of v

1234

4321

4-dimensional pancake:

3214

2134

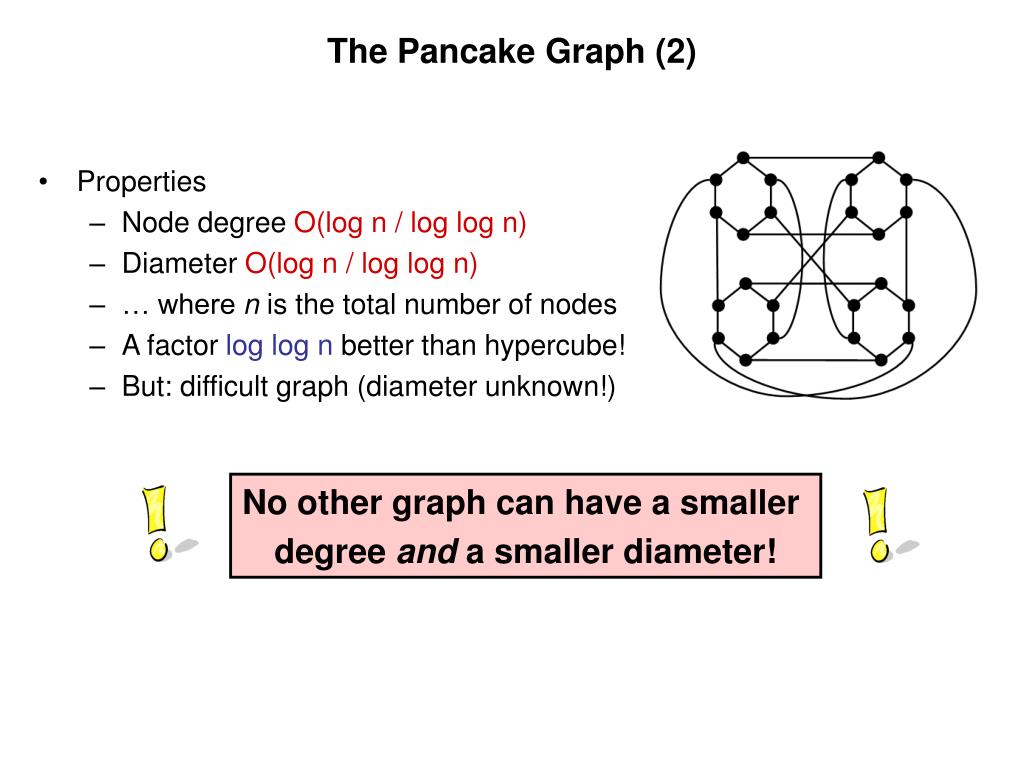

the pancake graph 2

No other graph can have a smaller

degree and a smaller diameter!

The Pancake Graph (2)
  • Properties
    • Node degree O(log n / log log n)
    • Diameter O(log n / log log n)
    • … where n is the total number of nodes
    • A factor log log n better than hypercube!
    • But: difficult graph (diameter unknown!)
contributions
Contributions

Using peer distribution and information aggregation algorithms

on the simulated pancake topology, he proposed:

  • a DHT-based peer-to-peer system with
    • Peer degree and lookup / network diameter in O (log n / loglog n)
    • Robustness to ADV(O (log n / log log n), O (log n / log log n))
    • No data is ever lost!

Asymptotically optimal!

conclusion
Conclusion

A nice model for understanding the effect of churn and dealing with it. But it is too simplistic
