group communications

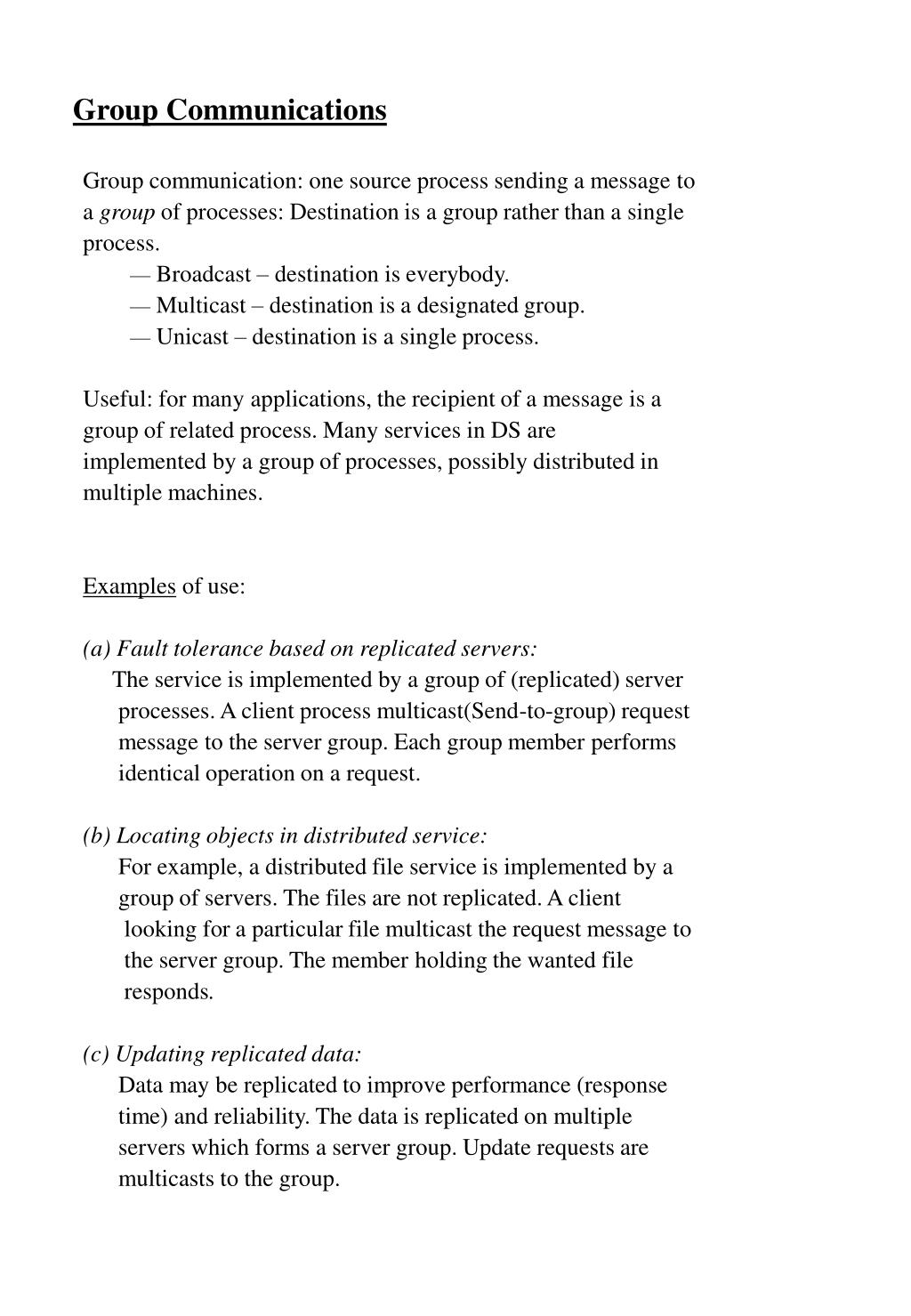

Group Communications

Group communication: one source process sending a message to

a group of processes: Destination is a group rather than a single

process.

— Broadcast – destination is everybody.

— Multicast – destination is a designated group.

— Unicast – destination is a single process.

Useful: for many applications, the recipient of a message is a

group of related process. Many services in DS are

implemented by a group of processes, possibly distributed in

multiple machines.

Examples of use:

(a) Fault tolerance based on replicated servers:

The service is implemented by a group of (replicated) server

processes. A client process multicast(Send-to-group) request

message to the server group. Each group member performs

identical operation on a request.

(b) Locating objects in distributed service:

For example, a distributed file service is implemented by a

group of servers. The files are not replicated. A client

looking for a particular file multicast the request message to

the server group. The member holding the wanted file

responds.

(c) Updating replicated data:

Data may be replicated to improve performance (response

time) and reliability. The data is replicated on multiple

servers which forms a server group. Update requests are

multicasts to the group.

slide2
(d) Multiple notification:

For example, a group of processes need be notified of certain

event. When the event occurs, a message can be multicasted

to the group. A specific example is in the multicasting of

flight information to a group of display processes in an

airport terminal system.

A Group is a collection of processes: G = {P1, P2, …, Pn}

Group management functions:

Forming a group: Create-group (out gid: group-id)

returns a group identifier

Joining a Group: Join-group (in gid: group-id)

makes the caller process a member of the

group gid.

Leaving a group: Leave-group (in gid: group-id)

remove the caller process from the group.

Delete a group: Delete-group (in gid: group-id)

Only authorized process (such as the

creator) can delete a group.

- Dynamic group vs static group

Closed Group: Processes outside the group cannot multicast to

the group, although an outsider process can send to individual

member of the group.

slide3

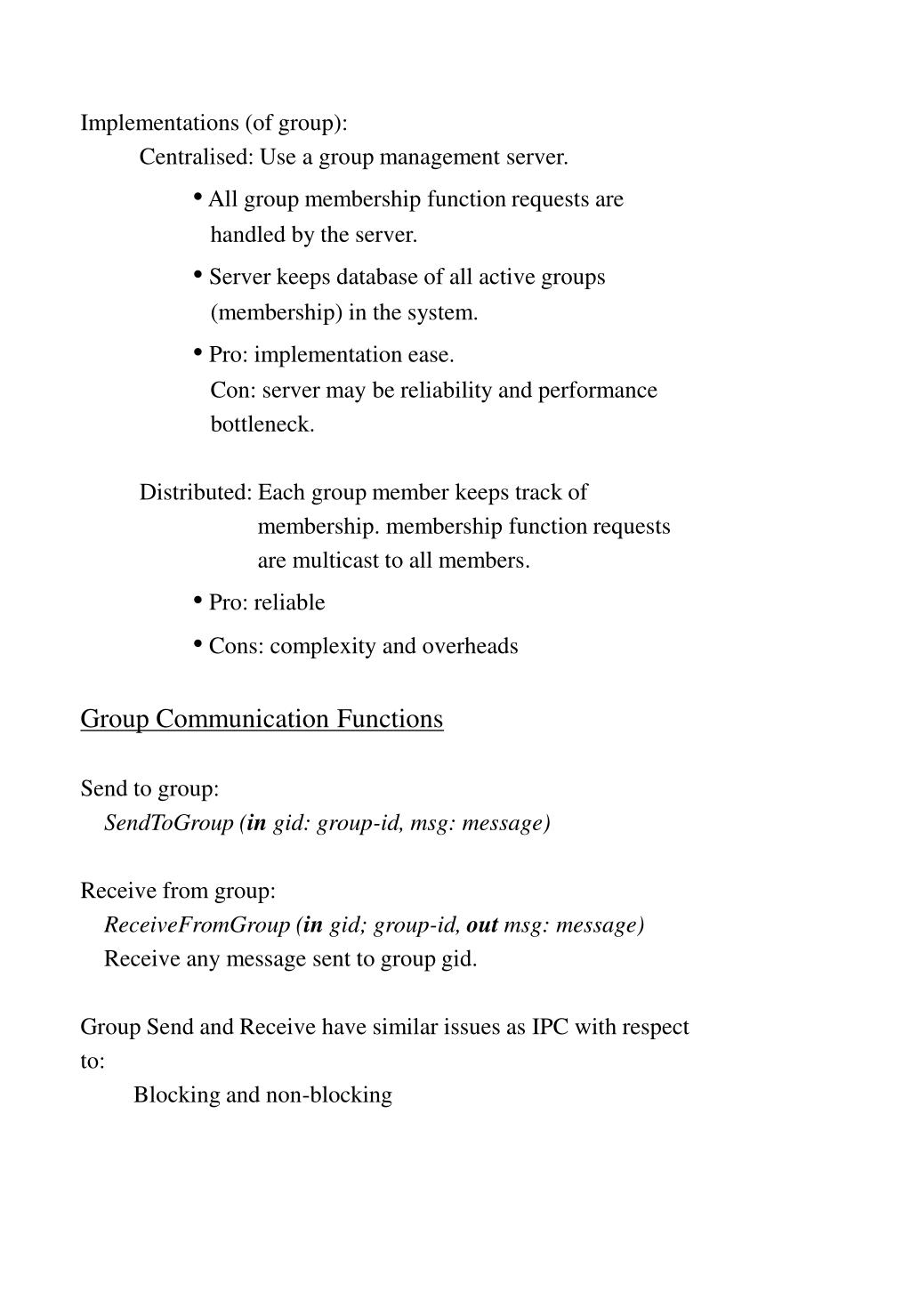

Implementations (of group):

Centralised: Use a group management server.

•All group membership function requests are

handled by the server.

• Server keeps database of all active groups

(membership) in the system.

• Pro: implementation ease.

Con: server may be reliability and performance

bottleneck.

Distributed: Each group member keeps track of

membership. membership function requests

are multicast to all members.

• Pro: reliable

• Cons: complexity and overheads

Group Communication Functions

Send to group:

SendToGroup (in gid: group-id, msg: message)

Receive from group:

ReceiveFromGroup (in gid; group-id, out msg: message)

Receive any message sent to group gid.

Group Send and Receive have similar issues as IPC with respect

to:

Blocking and non-blocking

slide4
Implementations (of communication functions):

Unicast: A message is sent to each of the members of the

group.

- Number of message = group size

- Inefficient

If underlying communication system supports broadcast to

machines (e.g. Ethernet). A broadcast message is sent to all

machines. The group communication facility within the

kernel on respective machine takes in the message if there

are members (of the group) on that machine.

If underlying communication system supports multicast to

machines. Then the message can be multicasted to only those

machines on which there are members.

Group Atomicity

Group atomicity is concerned with whether the group is always

a whole or can be partitioned (with respect to group operations).

Atomic multicast:

When a message is sent to the group, all members of the group

receive the message. Otherwise, no member receives the

message. i.e., there is never the case that some members receive

the message while others do not. It is all (member) or none.

Example in which atomicity is needed:

- Replicated data update. If not, the replicated data may get out

of steps with each other.

Example in which atomicity is not needed:

- Locating objects in distributed service. It is sufficient that the

server holding the object receives the message. If the message

to this server is lost, the client can try again (say on time-out).

- Multiple notification in a flight information display system.

Implementation (of group atomicity)

slide5

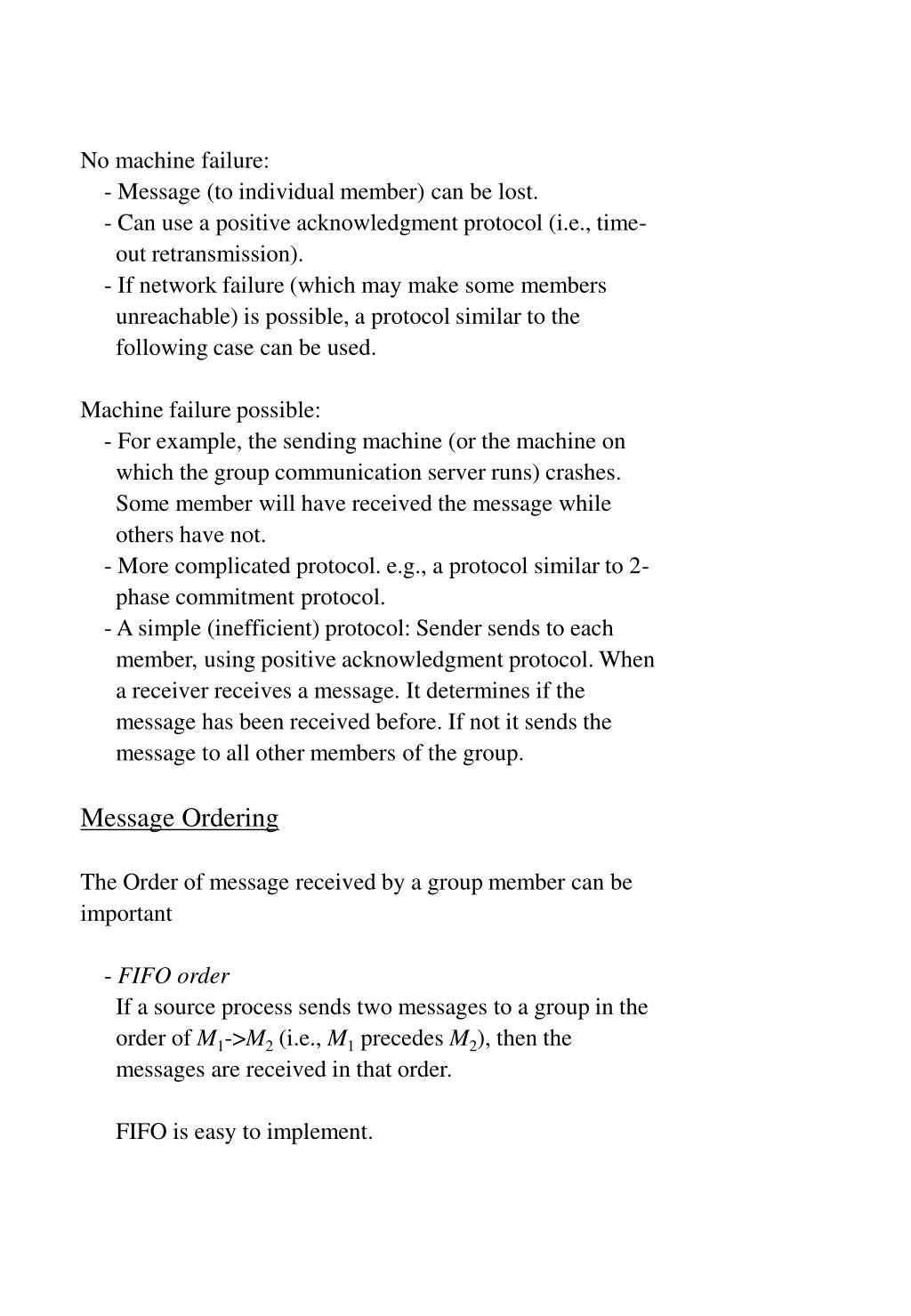

No machine failure:

- Message (to individual member) can be lost.

- Can use a positive acknowledgment protocol (i.e., time-

out retransmission).

- If network failure (which may make some members

unreachable) is possible, a protocol similar to the

following case can be used.

Machine failure possible:

- For example, the sending machine (or the machine on

which the group communication server runs) crashes.

Some member will have received the message while

others have not.

- More complicated protocol. e.g., a protocol similar to 2-

phase commitment protocol.

- A simple (inefficient) protocol: Sender sends to each

member, using positive acknowledgment protocol. When

a receiver receives a message. It determines if the

message has been received before. If not it sends the

message to all other members of the group.

Message Ordering

The Order of message received by a group member can be

important

- FIFO order

If a source process sends two messages to a group in the

order of M1->M2 (i.e., M1 precedes M2), then the

messages are received in that order.

FIFO is easy to implement.

slide6
Not adequate for some application. e.g., two client processes

P1 and P2 are multicasting update requests to a server group

whose member are holding replicated data. Suppose P1

sends M1, then M2 ; and at about the same time P2 sends N1

then N2. Further suppose the group consists of 2 server

processes S1 and S2. The message can arrive at the

following order and still satisfy FIFO order:

at S1: M1->N1->M2->N2

at S2: N1->M1->M2->N2

The above order may lead to inconsistent result.

- Consistent order

The relative order of messages received at each member

process is the same. That is, the order is consistent across

the group.

- Causal order

Assume S1 first multicasts m, upon reception of m, S3

multicasts m’, then m->m’. m and m’ are said to be

causally ordered.

Causal order could be violated. e.g., due to network delay.

A group communication mechanism is said t observe

casual order if it preserves the order.

slide7

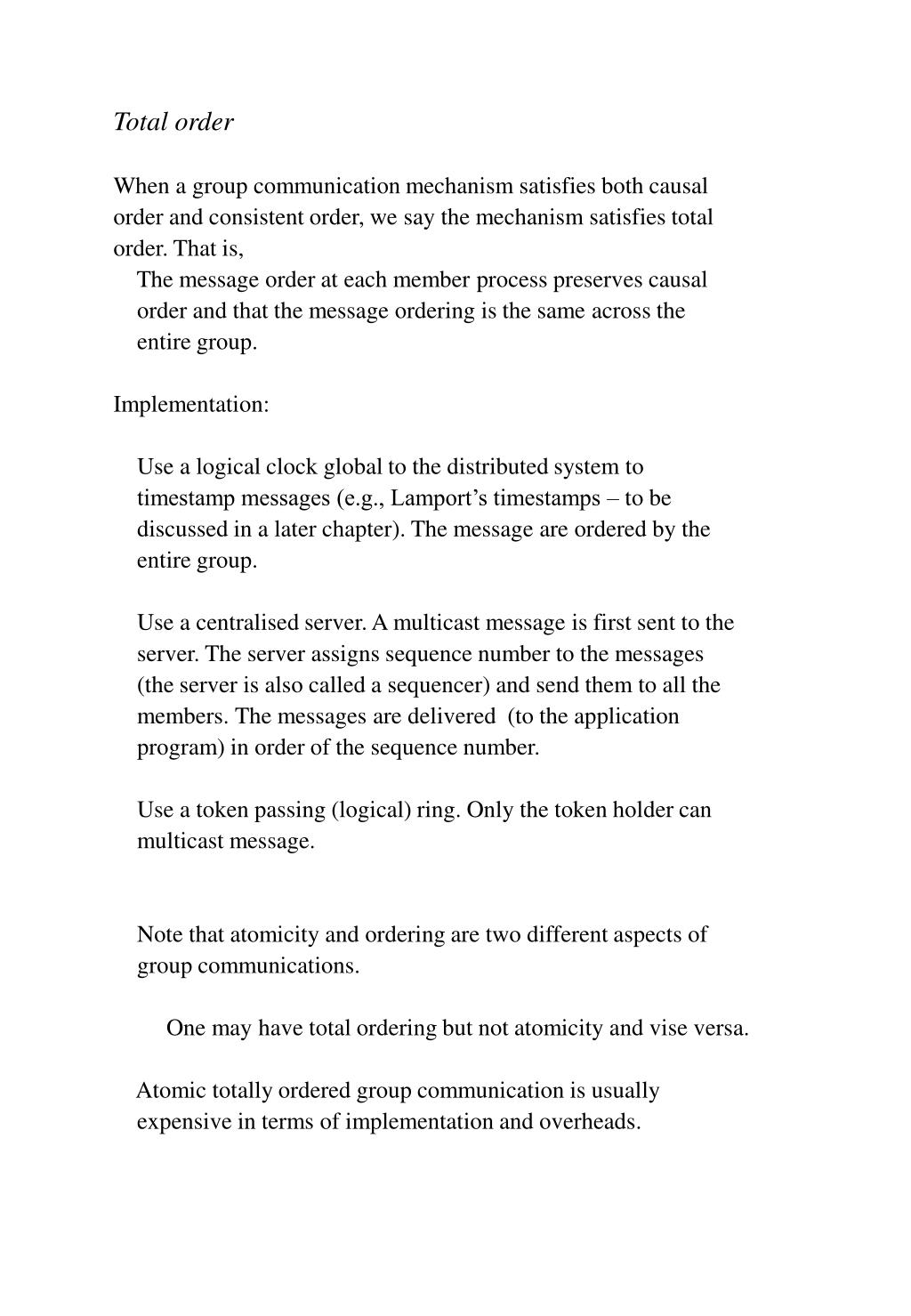

Total order

When a group communication mechanism satisfies both causal

order and consistent order, we say the mechanism satisfies total

order. That is,

The message order at each member process preserves causal

order and that the message ordering is the same across the

entire group.

Implementation:

Use a logical clock global to the distributed system to

timestamp messages (e.g., Lamport’s timestamps – to be

discussed in a later chapter). The message are ordered by the

entire group.

Use a centralised server. A multicast message is first sent to the

server. The server assigns sequence number to the messages

(the server is also called a sequencer) and send them to all the

members. The messages are delivered (to the application

program) in order of the sequence number.

Use a token passing (logical) ring. Only the token holder can

multicast message.

Note that atomicity and ordering are two different aspects of

group communications.

One may have total ordering but not atomicity and vise versa.

Atomic totally ordered group communication is usually

expensive in terms of implementation and overheads.

slide8
- System preserving causal order is also said to be a virtually

synchronous system.

An Implementation (of causal order)

— Each process keeps a vector clock (V1, V2, …, Vn).

— Each message carries a vector (logical) timestamp:

(V1, V2, …, Vn). Where Vk increments each time process

Pk multicast a message.

— When message with timestamp (V1, V2, …, Vn) from Pj is

received. The message is accepted if

Vj = Lj + 1, and Vi <= Li

Where (L1, L2, …, Ln) is the local vector clock. And the

local clock is set to (V1, V2, …, Vn).

Otherwise, the message is held back until the condition is

satisfied.

design issues to be considered

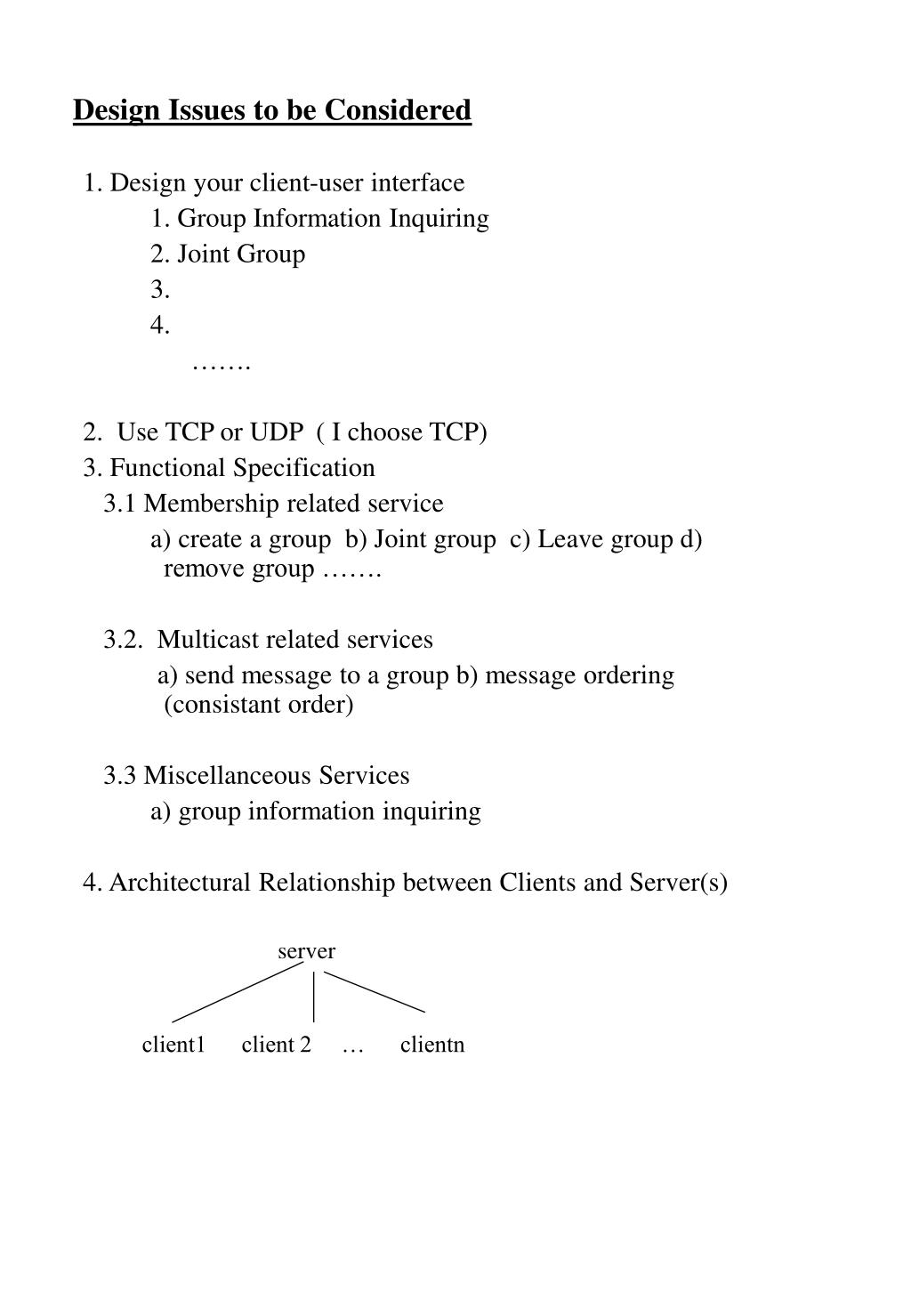

Design Issues to be Considered

1. Design your client-user interface

1. Group Information Inquiring

2. Joint Group

3.

4.

…….

2. Use TCP or UDP ( I choose TCP)

3. Functional Specification

3.1 Membership related service

a) create a group b) Joint group c) Leave group d) remove group …….

3.2. Multicast related services

a) send message to a group b) message ordering (consistant order)

3.3 Miscellanceous Services

a) group information inquiring

4. Architectural Relationship between Clients and Server(s)

server

client1 client 2 … clientn

design issues to be considered1

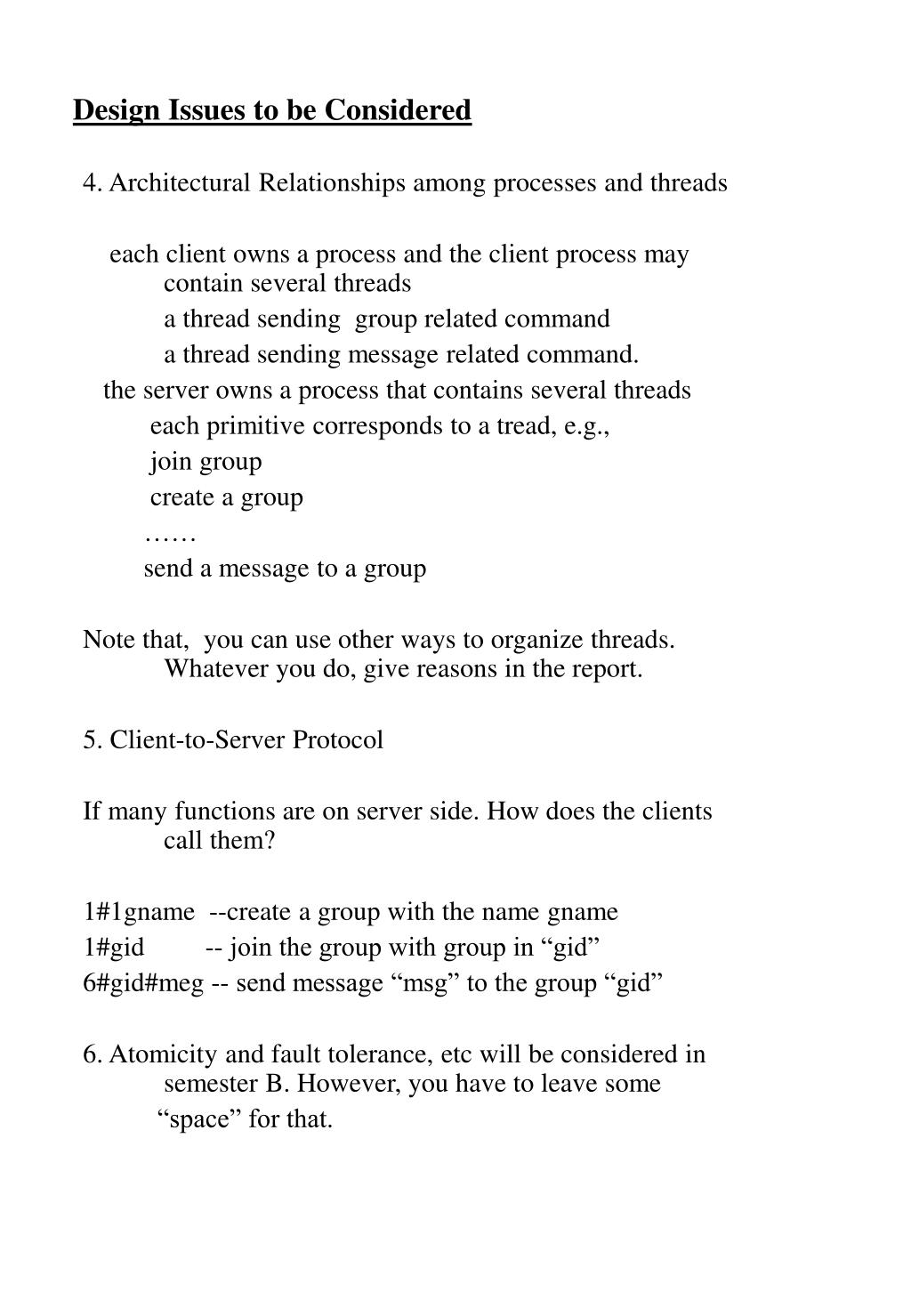

Design Issues to be Considered

4. Architectural Relationships among processes and threads

each client owns a process and the client process may contain several threads

a thread sending group related command

a thread sending message related command.

the server owns a process that contains several threads

each primitive corresponds to a tread, e.g.,

join group

create a group

……

send a message to a group

Note that, you can use other ways to organize threads. Whatever you do, give reasons in the report.

5. Client-to-Server Protocol

If many functions are on server side. How does the clients call them?

1#1gname --create a group with the name gname

1#gid -- join the group with group in “gid”

6#gid#meg -- send message “msg” to the group “gid”

6. Atomicity and fault tolerance, etc will be considered in semester B. However, you have to leave some

“space” for that.
