  1. Applications for UAVs, HAPs and CubeSats Presentation by B.Kerridge, RAL CEOI Challenge Workshop 10th July 2012, University of Nottingham

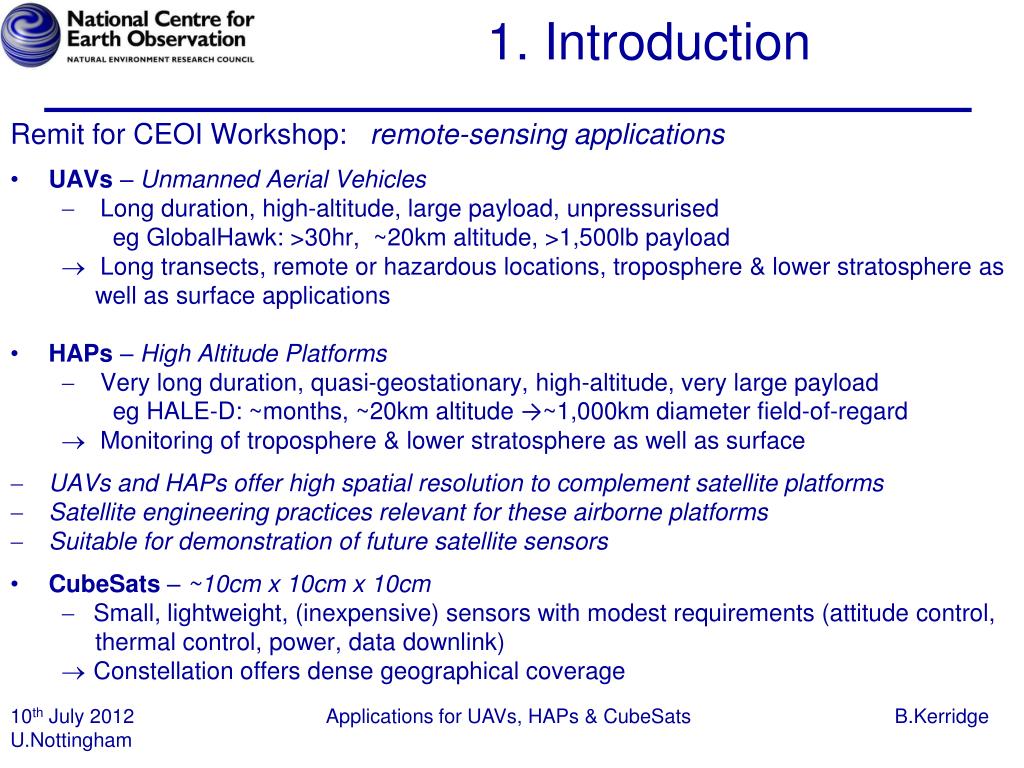

  2. 1. Introduction Remit for CEOI Workshop: remote-sensing applications • UAVs – Unmanned Aerial Vehicles • Long duration, high-altitude, large payload, unpressurised eg GlobalHawk: >30hr, ~20km altitude, >1,500lb payload • Long transects, remote or hazardous locations, troposphere & lower stratosphere as well as surface applications • HAPs – High Altitude Platforms • Very long duration, quasi-geostationary, high-altitude, very large payload eg HALE-D: ~months, ~20km altitude →~1,000km diameter field-of-regard • Monitoring of troposphere & lower stratosphere as well as surface • UAVs and HAPs offer high spatial resolution to complement satellite platforms • Satellite engineering practices relevant for these airborne platforms • Suitable for demonstration of future satellite sensors • CubeSats – ~10cm x 10cm x 10cm • Small, lightweight, (inexpensive) sensors with modest requirements (attitude control, thermal control, power, data downlink) • Constellation offers dense geographical coverage

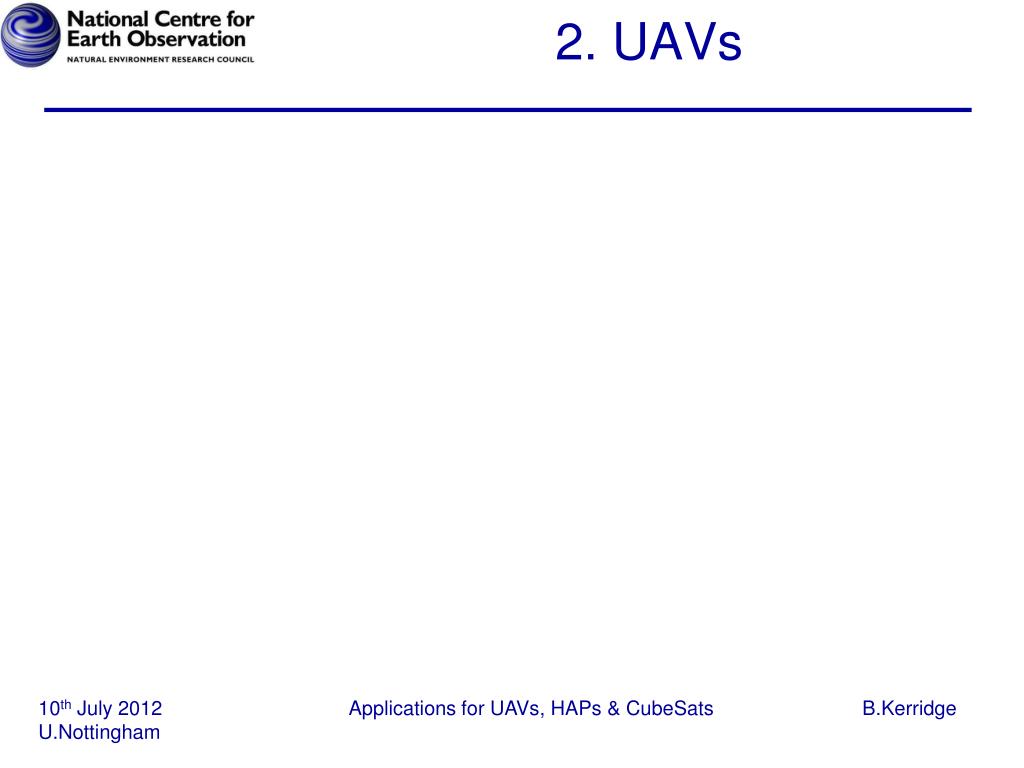

  3. 2. UAVs

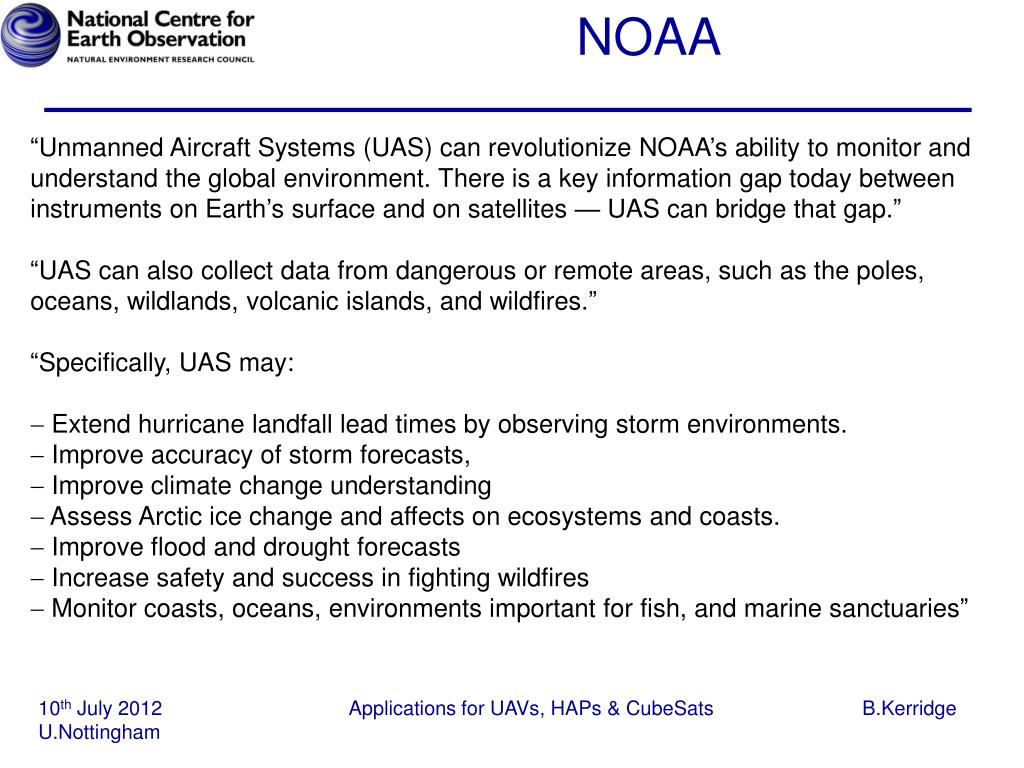

  4. NOAA • “Unmanned Aircraft Systems (UAS) can revolutionize NOAA’s ability to monitor and understand the global environment. There is a key information gap today between instruments on Earth’s surface and on satellites — UAS can bridge that gap.” • “UAS can also collect data from dangerous or remote areas, such as the poles, oceans, wildlands, volcanic islands, and wildfires.” • “Specifically, UAS may: • Extend hurricane landfall lead times by observing storm environments. • Improve accuracy of storm forecasts, • Improve climate change understanding • Assess Arctic ice change and affects on ecosystems and coasts. • Improve flood and drought forecasts • Increase safety and success in fighting wildfires • Monitor coasts, oceans, environments important for fish, and marine sanctuaries”

  5. NASA airborne activities • UAVs feature prominently G-III UAVSAR SMAPVEX12 - 2012 Soil Moisture Active Passive (SMAP) Validation Experiment ECO-3D to provide critical measurements on forest biomass structure and carbon CARVE – Alaskan Arctic 2012 http://airbornescience.nasa.gov/program/current_activities

  6. GreenHouse Observations of the Stratosphere and Troposphere (GHOST) instrument for Global Hawk Compact short-wave IR spectrometer to observe tropospheric column average CO2, CH4, H2O and CO and HDO/H2O over ocean GHOST will use technology similar to NASA’s OCO-II and supported by CEOI (IFU spectrometer) • Science objectives: • test atmospheric transport models (e.g., tropics – subtropics transition zone • validate satellite GHG column observations over oceans, to fill gap in TCCON • complement in situ TTL tracer observations from Global Hawk link upper troposphere with lower troposphere measurements Courtesy, H.Boesch (U.Leicester)

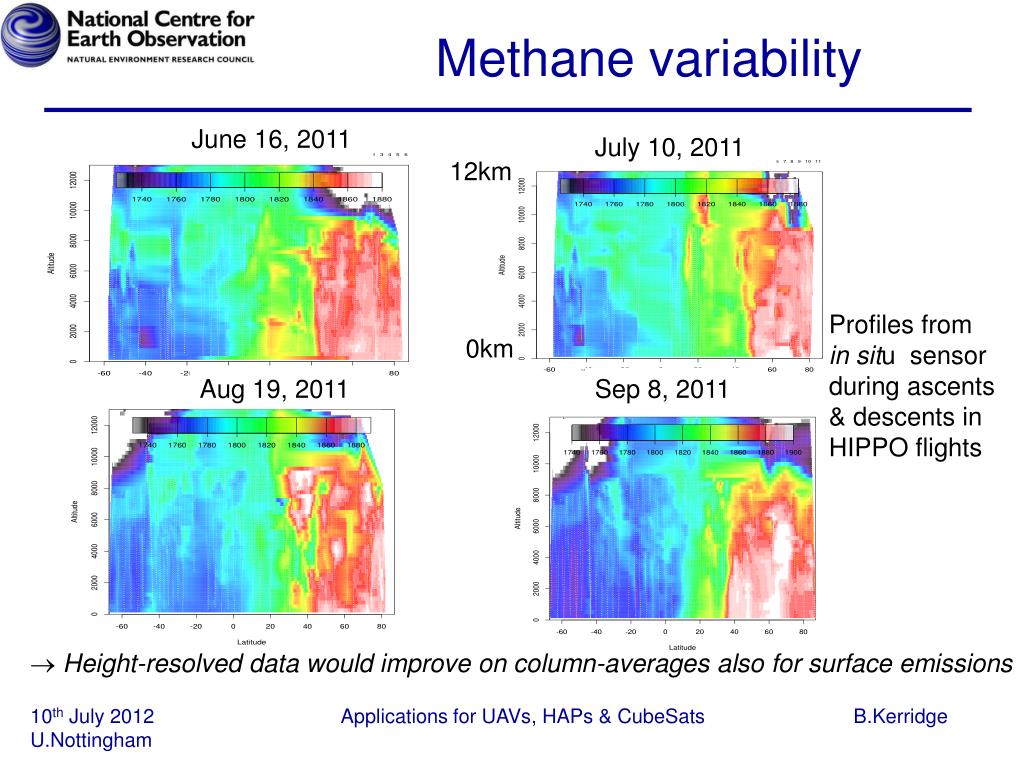

  7. Methane variability June 16, 2011 July 10, 2011 12km Profiles from in situ sensor during ascents & descents in HIPPO flights 0km Aug 19, 2011 Sep 8, 2011 Height-resolved data would improve on column-averages also for surface emissions

  8. Height-resolution from IR spectrometry Global CH4 in the upper and mid troposphere from IASI FTIR ppmv ppmv 178 hPa 422 hPa IASI column average Courtesy A.Waterfall, RAL • Laser Heterodyne Radiometer (CEOI) • Compact IR spectrometer • Heterodyne: very high spectral & spatial resolution • Height-resolved CH4 & see between clouds • Limb-sounder for high-res vertical profiling • in combination with mm-wave (CEOI) Courtesy D.Weidmann, RAL

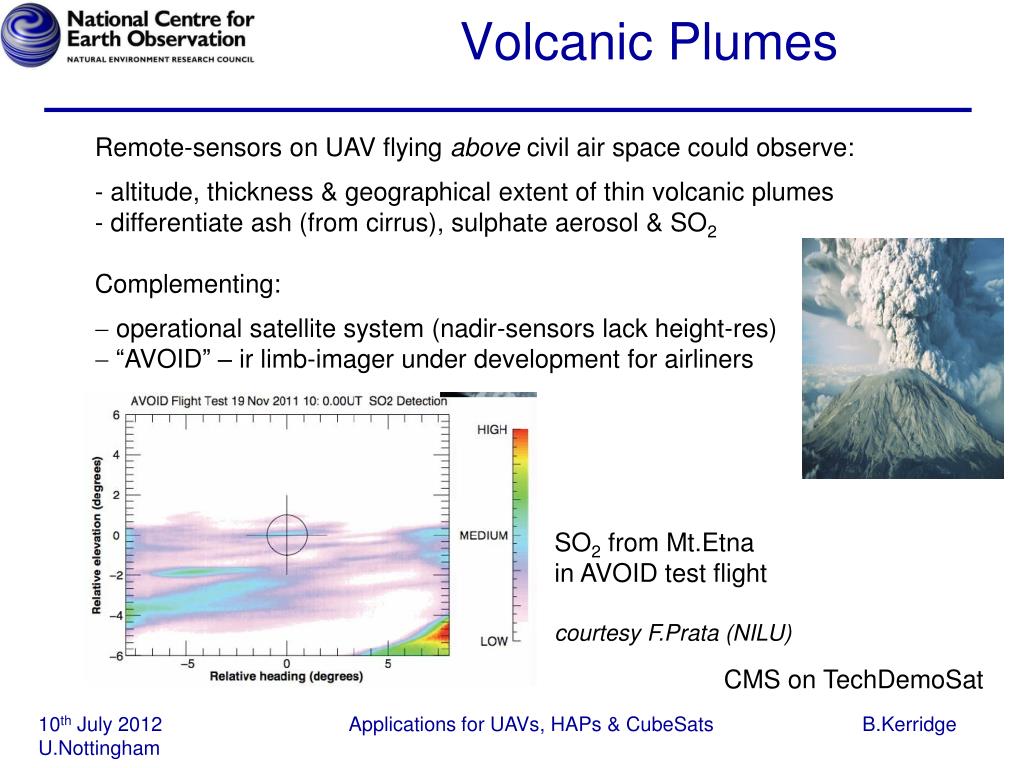

  9. Volcanic Plumes • Remote-sensors on UAV flying above civil air space could observe: • altitude, thickness & geographical extent of thin volcanic plumes • differentiate ash (from cirrus), sulphate aerosol & SO2 • Complementing: • operational satellite system (nadir-sensors lack height-res) • “AVOID” – ir limb-imager under development for airliners SO2 from Mt.Etna in AVOID test flight courtesy F.Prata (NILU) CMS on TechDemoSat

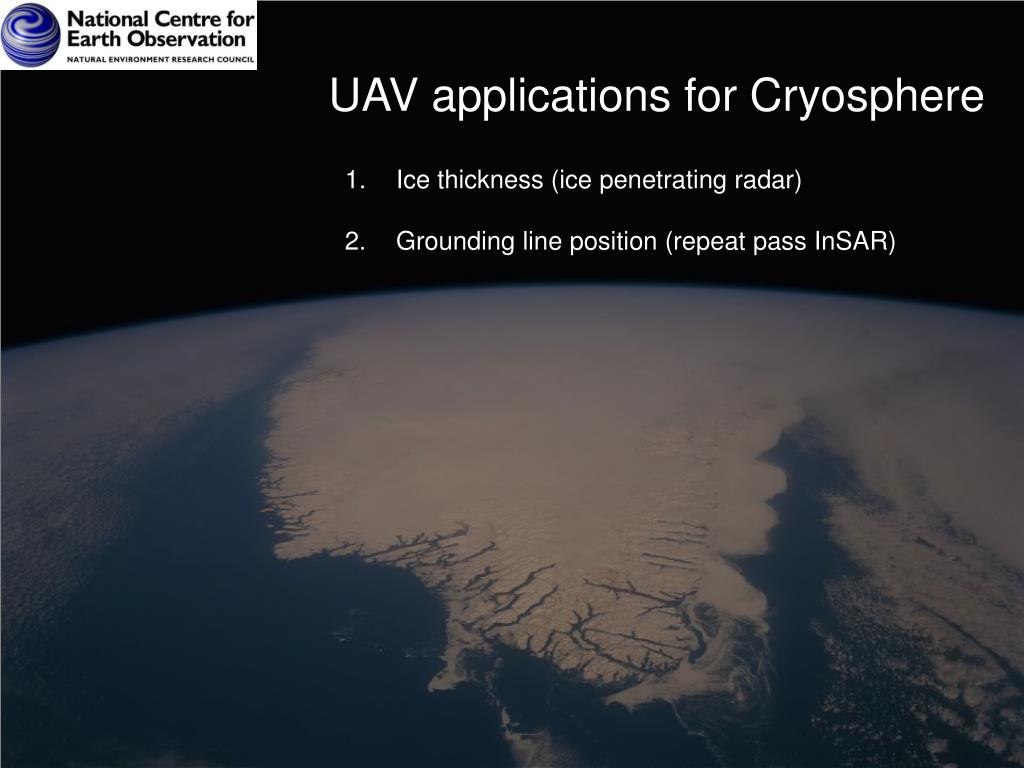

  10. UAV applications for Cryosphere • Ice thickness (ice penetrating radar) • Grounding line position (repeat pass InSAR)

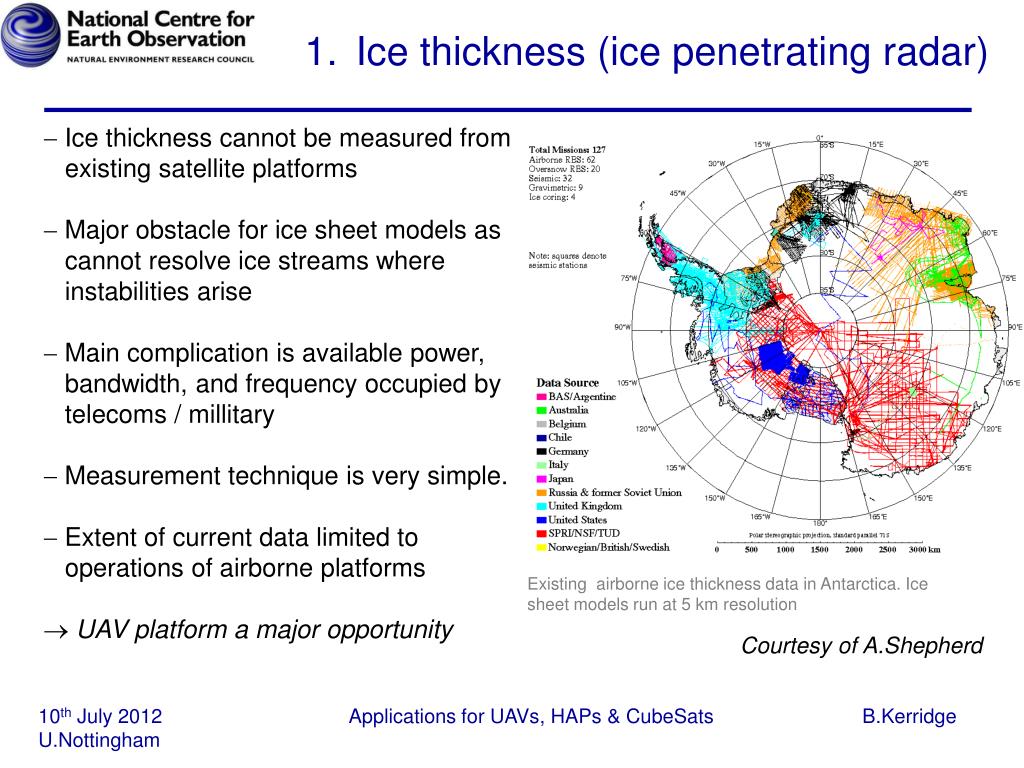

  11. Ice thickness (ice penetrating radar) • Ice thickness cannot be measured from • existing satellite platforms • Major obstacle for ice sheet models as • cannot resolve ice streams where • instabilities arise • Main complication is available power, • bandwidth, and frequency occupied by • telecoms / millitary • Measurement technique is very simple. • Extent of current data limited to • operations of airborne platforms • UAV platform a major opportunity Existing airborne ice thickness data in Antarctica. Ice sheet models run at 5 km resolution Courtesy of A.Shepherd

  12. 2. Grounding line position (repeat pass InSAR) • Grounding line is junction • between ice, bedrock, and ocean • GL migration rate is a key • indicator of ice sheet stability • GL can be located using repeat • pass InSAR due to tidal flexure of • floating ice • No current or future satellite • sensors can deliver • UAV repeat pass InSAR system • could provide early warning of ice • sheet collapse Grounding Line mapped by InSAR (Rignot, 1998) Courtesy of A.Shepherd

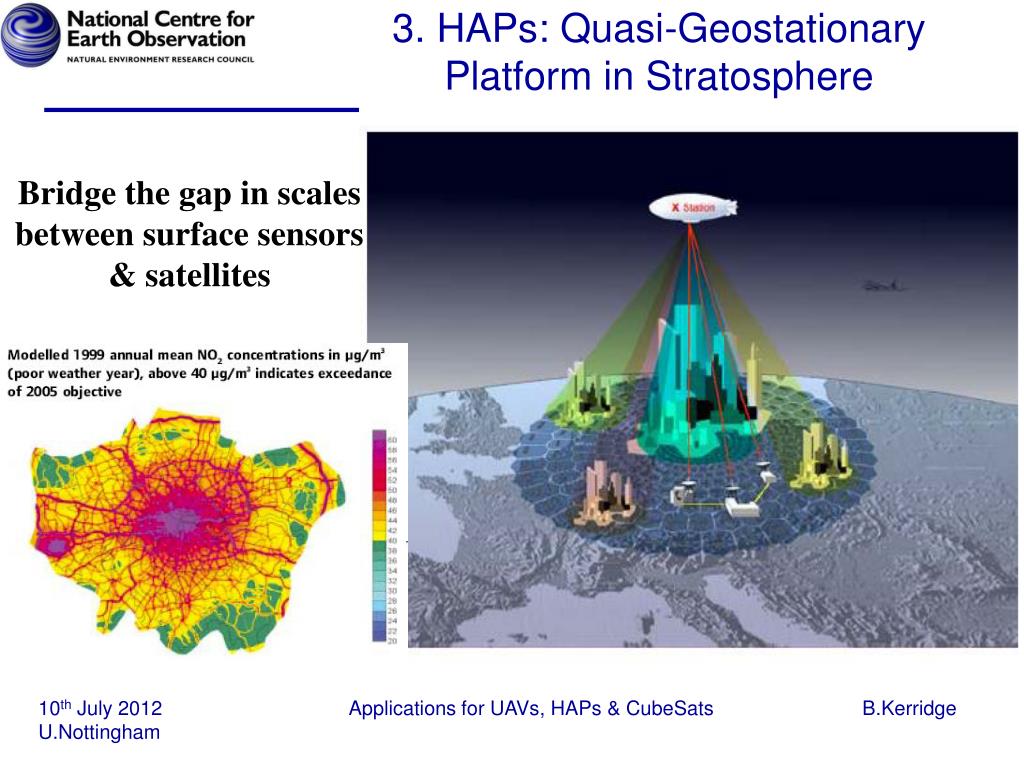

  13. 3. HAPs: Quasi-Geostationary Platform in Stratosphere Bridge the gap in scales between surface sensors & satellites

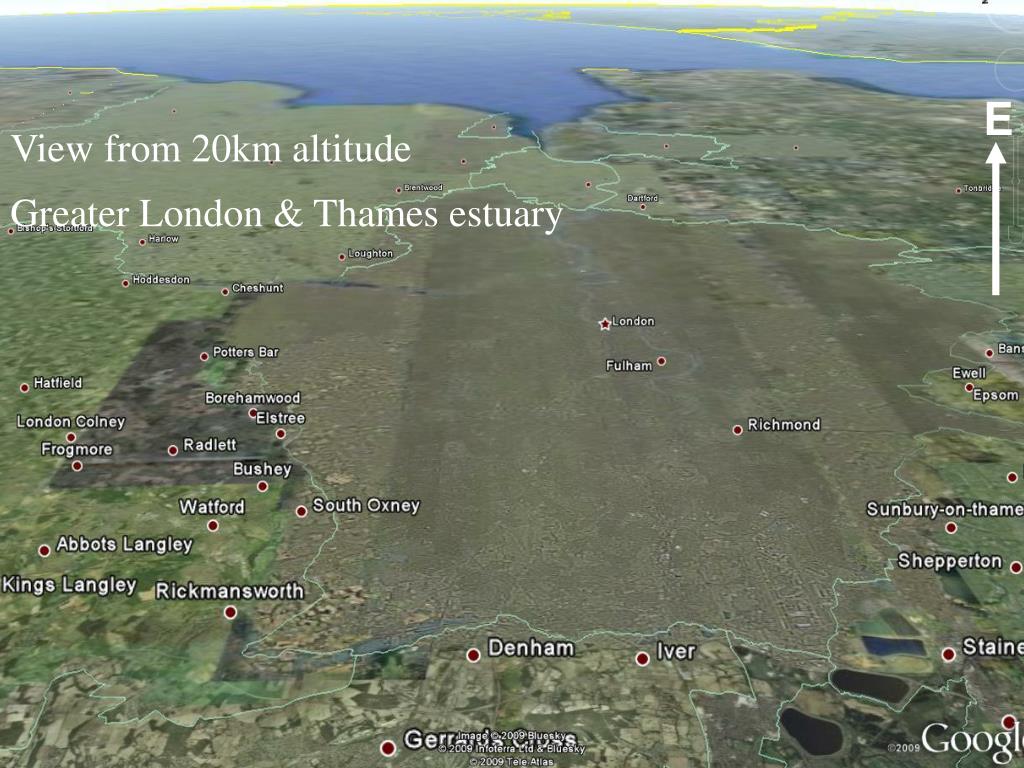

  14. Geostationary orbit ~36,000km E Polar orbit ~900km View from 20km altitude Greater London & Thames estuary Atmospheric Composition

  15. Pollution Monitoring: Tropospheric NO2 over Europe from OMI (Dec’04-Nov’05) Courtesy, P.Levelt (KNMI) • Information above and between surface networks • Relevance for annual emissions inventories

  16. Remote-sensing of NO2 • Imaging DOAS now used to map NO2 • CompAQS developed within CEOI • Used from ground in CityScan system • (eg over London during Olympics) • Could be mounted on UAV or HAP City Centre Airport

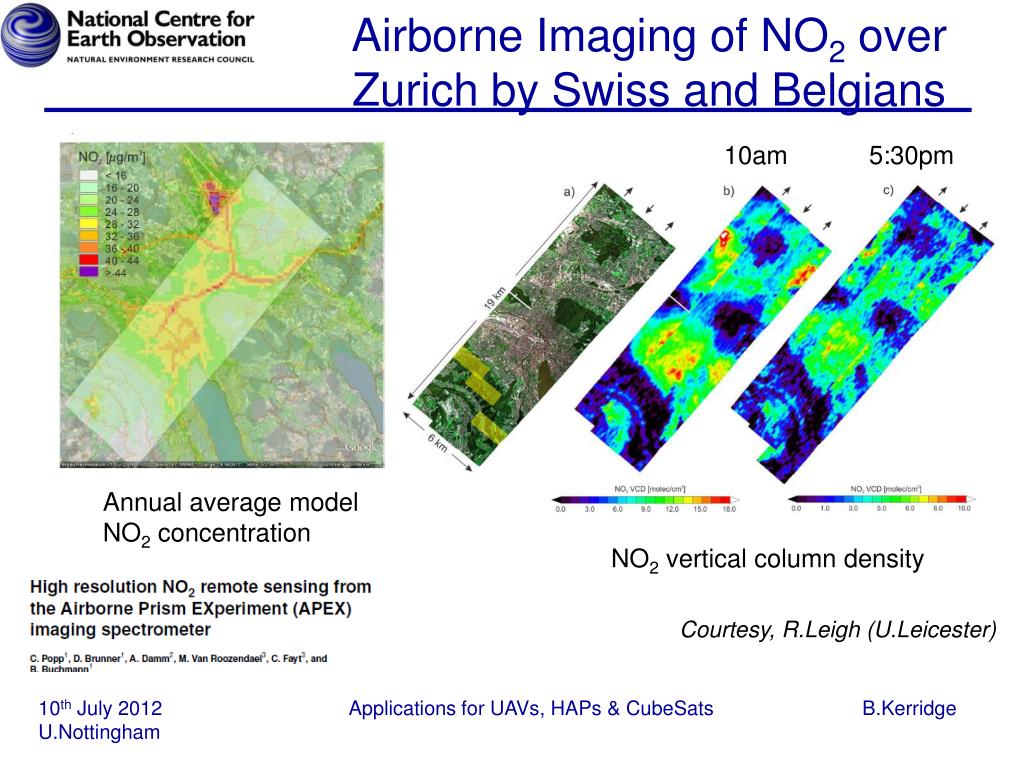

  17. Airborne Imaging of NO2 over Zurich by Swiss and Belgians 10am 5:30pm Annual average model NO2 concentration NO2 vertical column density Courtesy, R.Leigh (U.Leicester)

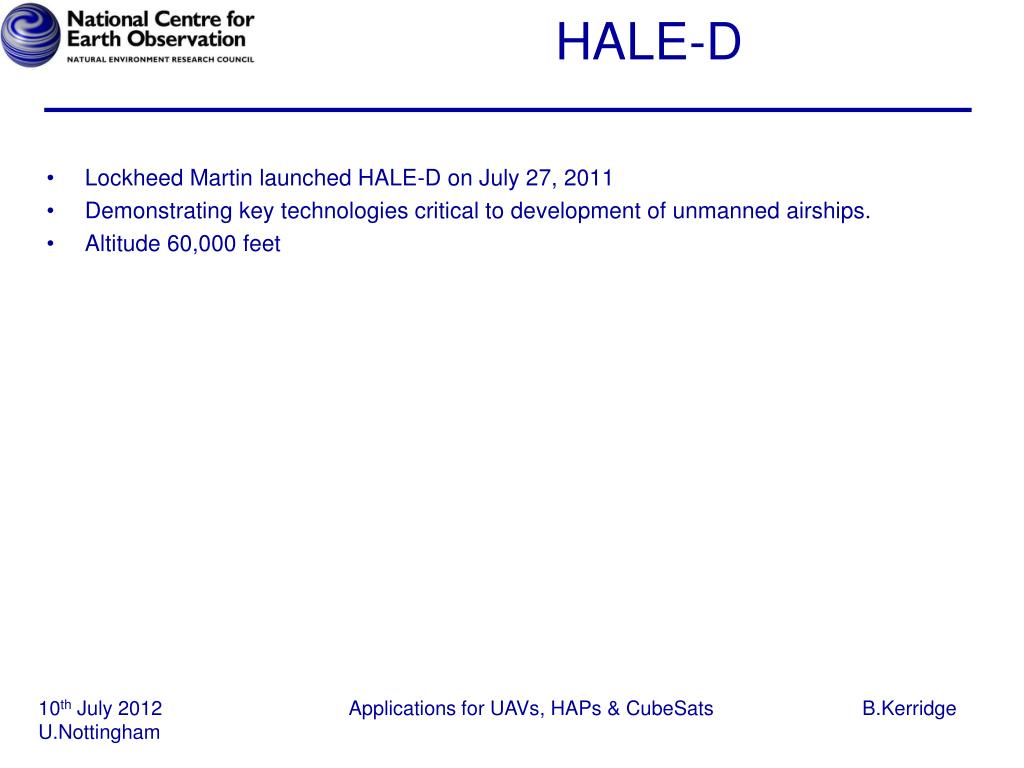

  18. HALE-D • Lockheed Martin launched HALE-D on July 27, 2011 • Demonstrating key technologies critical to development of unmanned airships. • Altitude 60,000 feet

  19. Applications for UAVs, HAPs & CubeSats

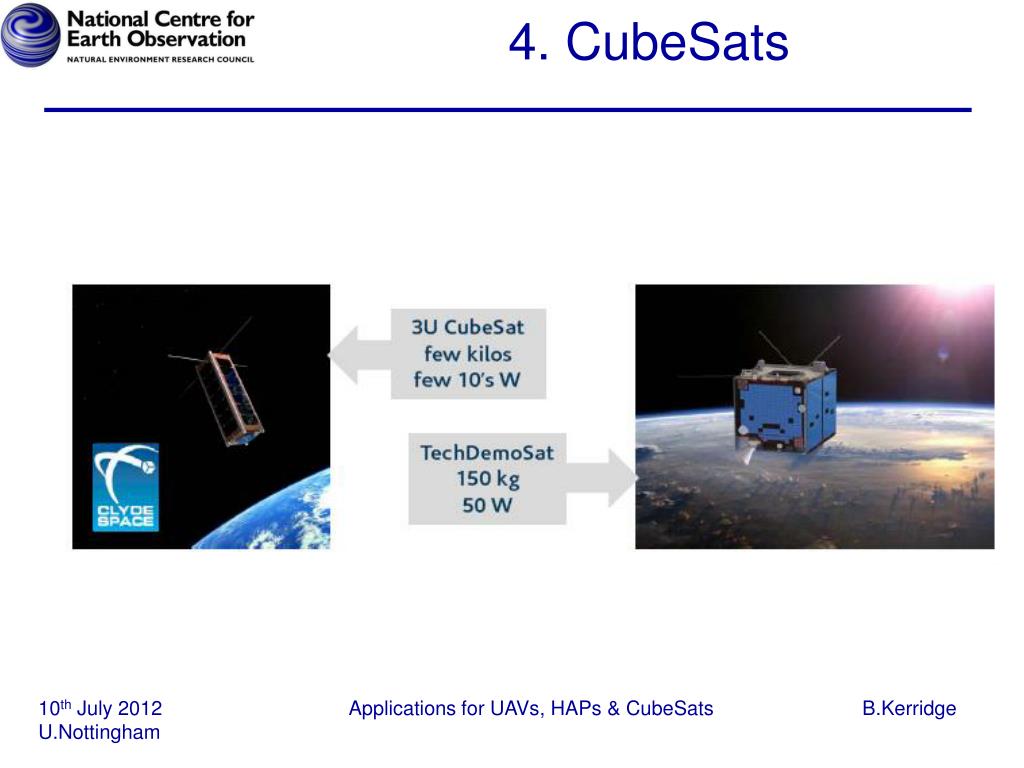

  20. 4. CubeSats

  21. Radio Occultation Temperature & humidity profiling from radio occultation bending angle FORMOSAT-3/COSMIC joint Taiwan/US mission launched 14th April 2006 • 6 identical micro satellites carrying advanced GPS radio occultation (RO) receiver, a Tiny Ionospheric Photometer (TIP), and a Tri-Band Beacon (TBB). FORMOSAT-7/COSMIC-2 • 6 satellites into low-inclination orbits in early 2016 • 6 satellites into high-inclination orbits in early 2018. • Global Navigation Satellite System (GNSS) RO payload, TriG (Tri-GNSS), will be capable of tracking 12,000 profiles per day once both constellations deployed. GNSS constellations: GPS and Galileo [R] and [G], GLONASS and BeiDou [G] MetOp-SG: improved performance cf GRAS on MetOp • L1(1575.42MHz) and L5(1176.45MHz) frequency selection compatible with GPS and Galileo and will be compatible with future GLONASS and BeiDou in 2020 timeframe • 8-fold increase in acquisitions

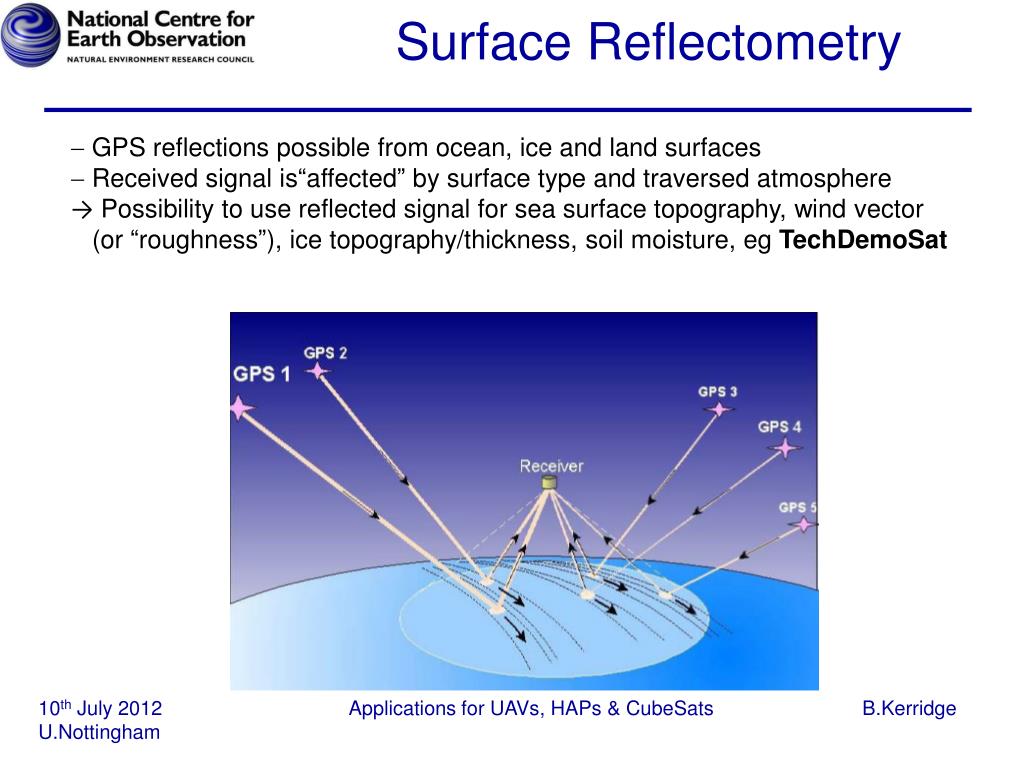

  22. Surface Reflectometry • GPS reflections possible from ocean, ice and land surfaces • Received signal is“affected” by surface type and traversed atmosphere • Possibility to use reflected signal for sea surface topography, wind vector • (or “roughness”), ice topography/thickness, soil moisture, eg TechDemoSat

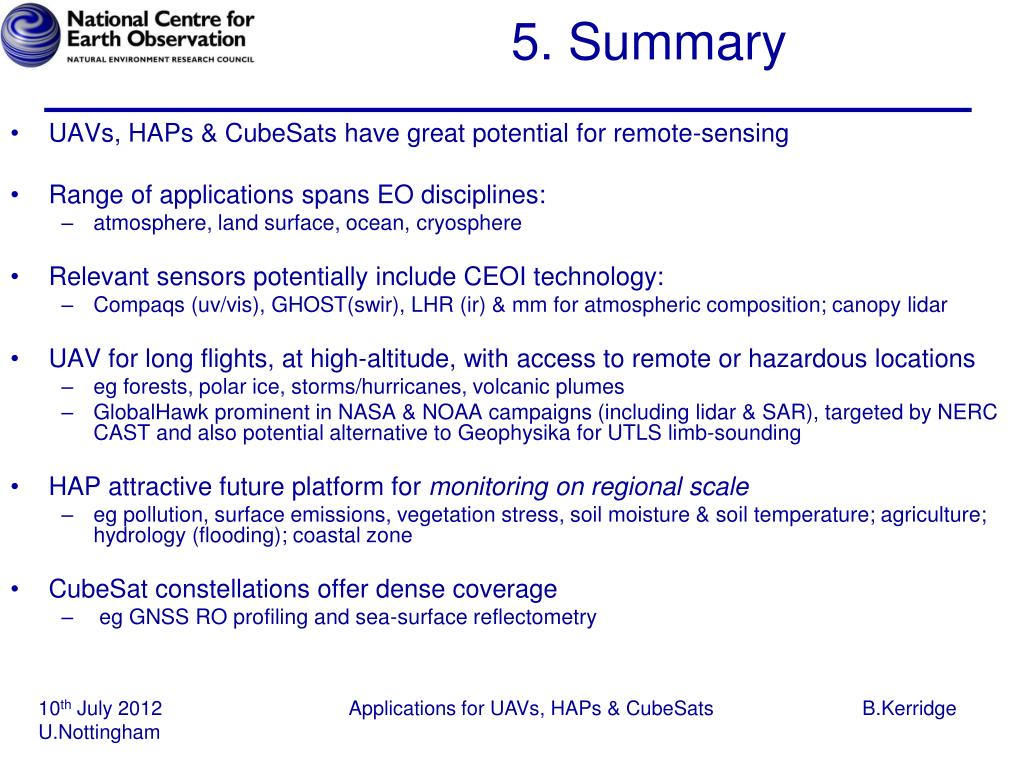

  23. 5. Summary • UAVs, HAPs & CubeSats have great potential for remote-sensing • Range of applications spans EO disciplines: • atmosphere, land surface, ocean, cryosphere • Relevant sensors potentially include CEOI technology: • Compaqs (uv/vis), GHOST(swir), LHR (ir) & mm for atmospheric composition; canopy lidar • UAV for long flights, at high-altitude, with access to remote or hazardous locations • eg forests, polar ice, storms/hurricanes, volcanic plumes • GlobalHawk prominent in NASA & NOAA campaigns (including lidar & SAR), targeted by NERC CAST and also potential alternative to Geophysika for UTLS limb-sounding • HAP attractive future platform for monitoring on regional scale • eg pollution, surface emissions, vegetation stress, soil moisture & soil temperature; agriculture; hydrology (flooding); coastal zone • CubeSat constellations offer dense coverage • eg GNSS RO profiling and sea-surface reflectometry
