  1. Tim Hollebeek, Ph.D. tim@cigital.com Interception and Analysis Framework for Win32 Scripts www.cigital.com (not for public release)

  2. Overview • Background • Preliminary characterization of attacks/threats • What we’ve built • Coverage of threats • Tech Transfer successes • Integration

  3. Background: ActiveScripting • Microsoft architecture for integrating scripts with applications in a language-neutral way. • Scripting is often used as “Turing glue” to connect and drive disparate software components. Active Scripting Languages • Perl • Jscript • VBscript/VBA (macros) • Rexx • Python Active Scripting Applications/Hosts • Web browsers • Mail readers • Embedded HTML viewers • MS Office 2000 applications • Windows Scripting Host

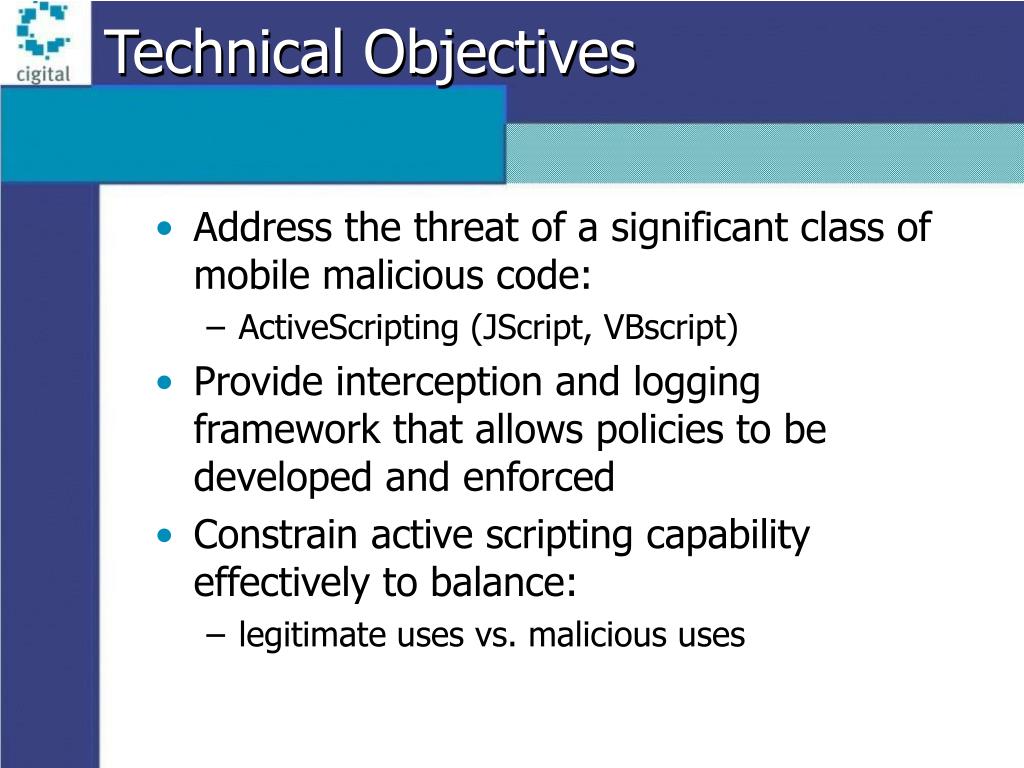

  4. Technical Objectives • Address the threat of a significant class of mobile malicious code: • ActiveScripting (JScript, VBscript) • Provide interception and logging framework that allows policies to be developed and enforced • Constrain active scripting capability effectively to balance: • legitimate uses vs. malicious uses

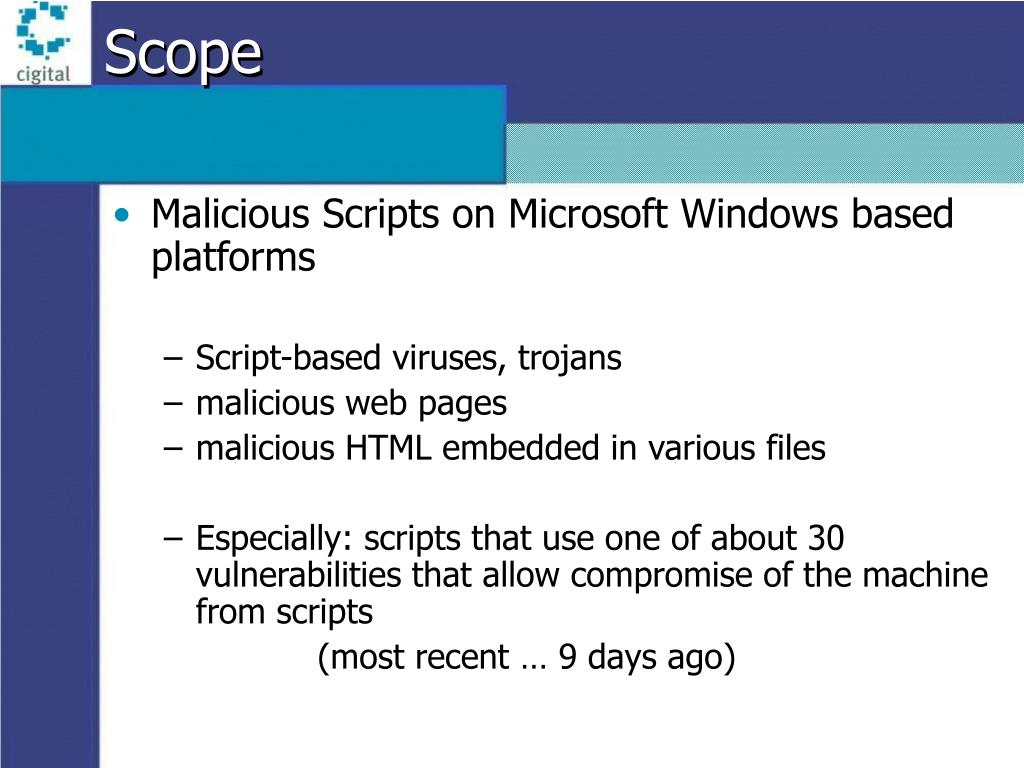

  5. Scope • Malicious Scripts on Microsoft Windows based platforms • Script-based viruses, trojans • malicious web pages • malicious HTML embedded in various files • Especially: scripts that use one of about 30 vulnerabilities that allow compromise of the machine from scripts (most recent … 9 days ago)

  6. Attacker Objectives • Traditional “malware” activities • Viruses, trojan horses • Fully compromising host computers • Accessing sensitive data/manipulating sensitive functionality • Compromising script-aware applications • Compromising script-dependent applications

  7. Why is this easy? • MS Windows contains lots of bad code and very few boundaries • Microsoft architecture is script-friendly • “big bag of components” • Much of this infrastructure built to support distributed applications

  8. Defenses • Must be at the correct level (or multi-level) • Most existing defenses aren’t: • Secure sessions • Filtering • Signature schemes • Kernel/filesystem level defenses • Commercial world focused on today’s attacks

  9. Categories of Malicious Scripts Easy • Malicious scripts distributed as attachments • Embedded scripts that exploit flaws in components or host applications • Malicious scripts that manipulate legitimate functionality Hard • Malicious scripts injected into dynamic web pages • Scripts that exploit the distributed nature of web applications Very Hard!

  10. Malicious Script Capability Matrix Web based Attach Flaw Legitimate Inject ILOVEYOU Kak Malicious web site E*TRADE hack E-bayla Web bugs E-mail wiretapping Future threats

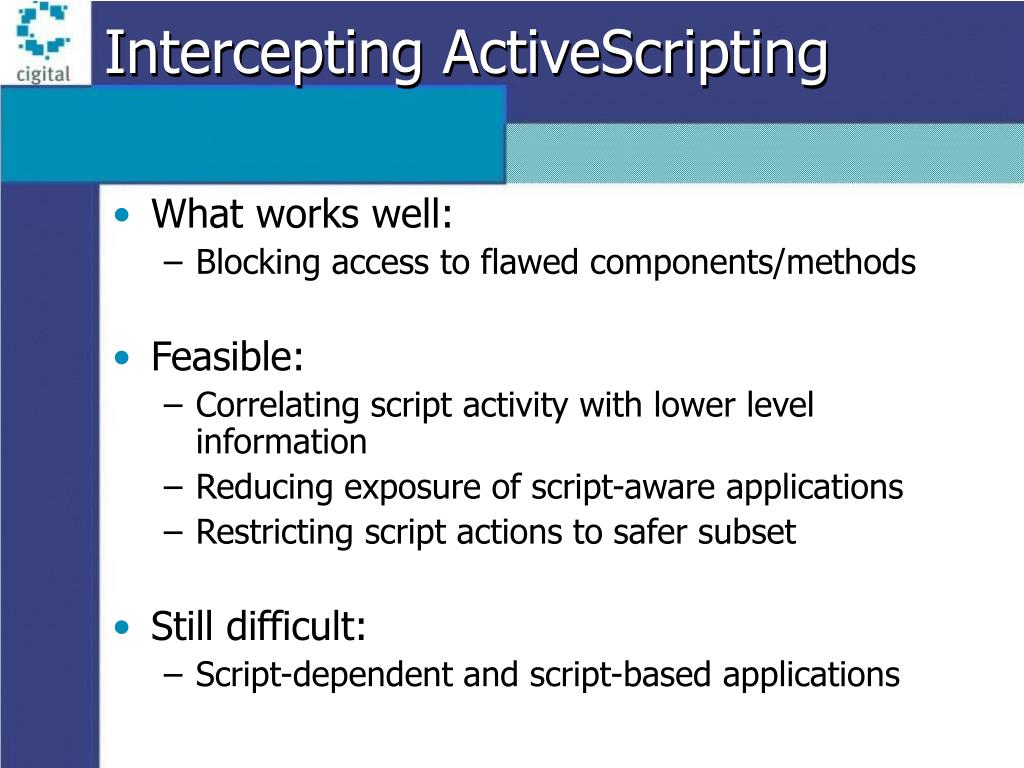

  11. Intercepting ActiveScripting • What works well: • Blocking access to flawed components/methods • Feasible: • Correlating script activity with lower level information • Reducing exposure of script-aware applications • Restricting script actions to safer subset • Still difficult: • Script-dependent and script-based applications

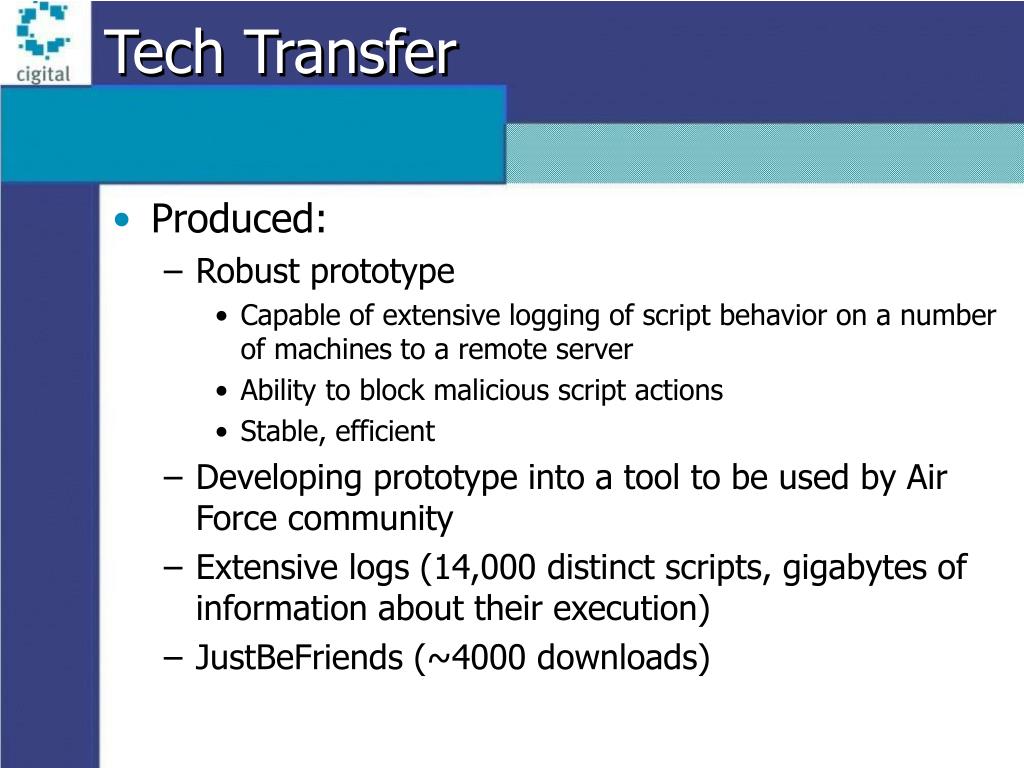

  12. Tech Transfer • Produced: • Robust prototype • Capable of extensive logging of script behavior on a number of machines to a remote server • Ability to block malicious script actions • Stable, efficient • Developing prototype into a tool to be used by Air Force community • Extensive logs (14,000 distinct scripts, gigabytes of information about their execution) • JustBeFriends (~4000 downloads)

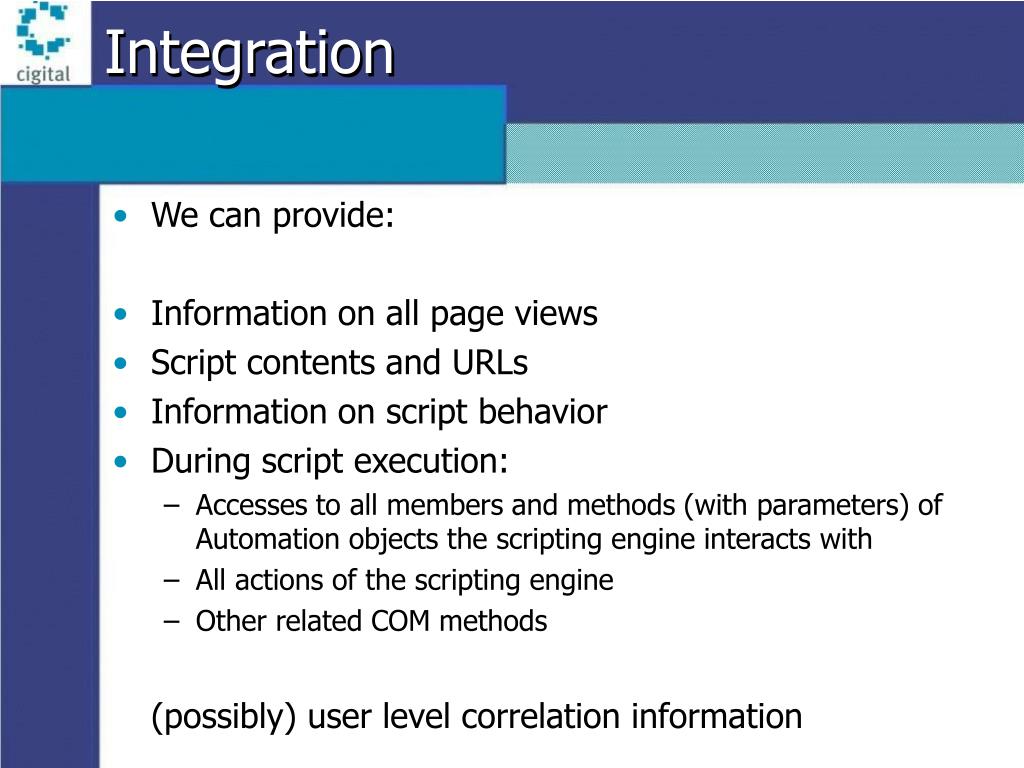

  13. Integration • We can provide: • Information on all page views • Script contents and URLs • Information on script behavior • During script execution: • Accesses to all members and methods (with parameters) of Automation objects the scripting engine interacts with • All actions of the scripting engine • Other related COM methods (possibly) user level correlation information

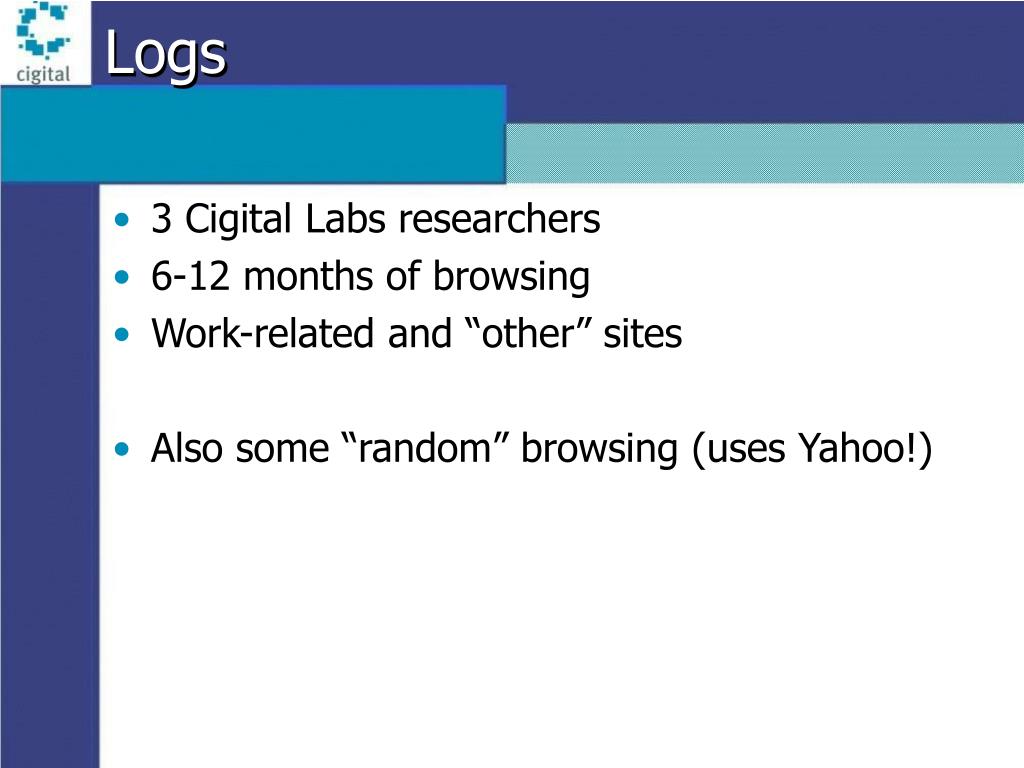

  14. Logs • 3 Cigital Labs researchers • 6-12 months of browsing • Work-related and “other” sites • Also some “random” browsing (uses Yahoo!)

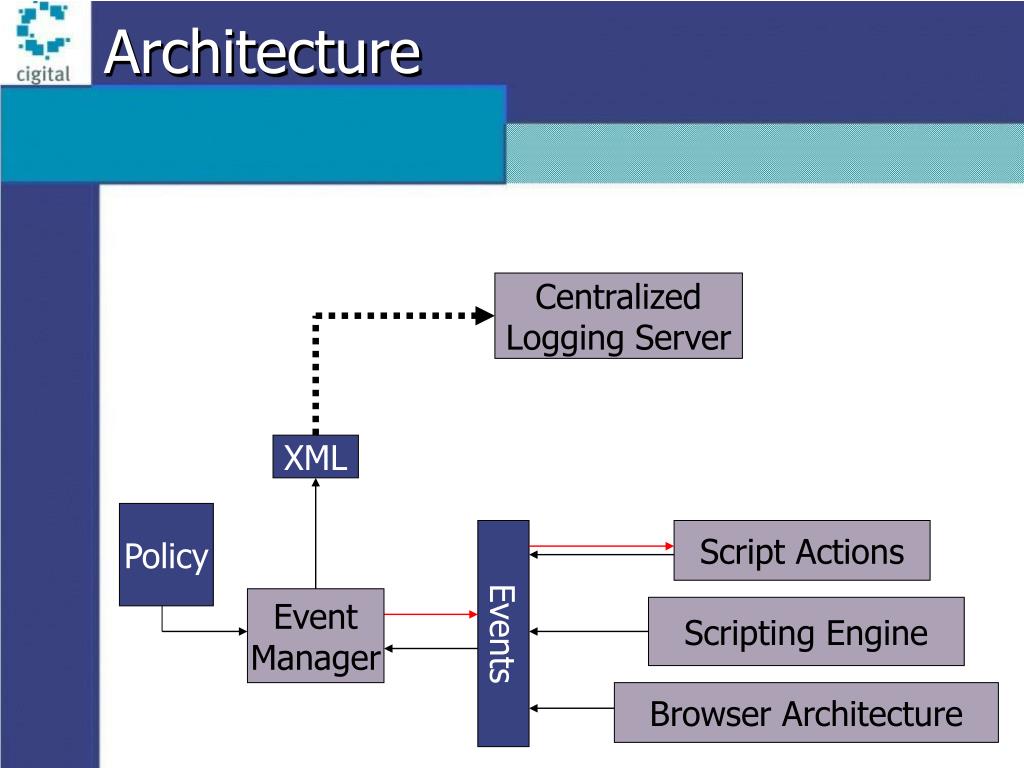

  15. Architecture Centralized Logging Server XML Policy Script Actions Event Manager Scripting Engine Events Browser Architecture

  16. Conclusions • Architecture provides a very successful and flexible way to monitor and control scripts on Windows systems • Can address commonly exploited risks from malicious scripts, which are unaddressed by current generation of commercial tools • Work still needed to get a handle on more complex attacks

  17. END • The End
