  1. GE Security Legend IP Product Photo or Graphic Here g

  2. Key Trends • Transmission of video signals is evolving from analog video signals to digitally encoded video signals. Legend IP provides a platform to help bridge the transition from analog to digital system by providing both transmission capabilities simultaneously. Graphic here

  3. Business Challenges • Today’s customers are looking to do more with less. IP Video Management Systems allow a customer to monitor remote locations requiring fewer people to monitor the video systems. • Legend IP provides the capability to monitor, record, program and control the most advanced PTZ dome on the market today through stand-alone or networked IP Video Management Software. Graphic here

  4. Understanding the problem • Traditional analog security systems provide limited capabilities for remote site control and management as well as compatibility between control systems. Graphic here

  5. Understanding the problem • IP Video Management Systems provide full functionality across multiple sites and cross the barrier between manufacturers. Graphic here

  6. The solution • Using the latest technology, Legend IP incorporates an advanced hardware encoder that allows high resolution full frame rate video to be encoded and transmitted over a LAN/WAN.

  7. Business Value • Legend IP bridges the gap between analog and digital (IP Encoded) video allowing it to work with a traditional system while simultaneously supporting an IP Video Management System. • Industry leading technology along with a clear upgrade path to future system capabilities make Legend IP the solution for today and tomorrow. Graphic here

  8. Legend IP – Next Generation IP Based PTZ Dome Camera Feature List IP Video using MPEG-4 Compression (CIF, 2CIF & D1 Resolutions) SilkTrak™ direct drive for smooth and precise pan/tilt movement 26x day/night camera with removable IR cut filter Single hand insertion and removal Built-in IP, coax and UTP videoconnections Spherical privacy masking 184-degree tilt travel forabove-horizon viewing Electronic image flip Flash Upgrades using Internet Explorer (5.5 or higher)

  9. Legend IP – Next Generation IP Based PTZ Dome Camera Feature List cont. Comprehensive programming choices via graphical menus or Internet Explorer (6.0 or higher) provide flexibility for all applications 16 shadow tours can store a total of 20 minutes of PTZ operation 127 preset positions available 8 alarm inputs 2 relay outputs Program up to 32 macros with16 steps each. 120 programmable areas View the IP Video using, I.E., SymNav or SymSecure

  10. Legend IP – Next Generation IP Based PTZ Dome Camera Typical Simple Digital System Layouts

  11. Typical Simple Analog System Layout

  12. IP and Analog Working Together

  13. IP and Analog Working Together

  14. Flush Mount Specifications The indoor flush-mount housing is designed for in-ceiling applications. A T-bar support kit is included. A flush-mount housing for plenum-rated applications is also available. Electrical Operating voltage: 24 VAC +/- 4 VAC Power: 30W startup; 24W running Mechanical Environmental enclosure: Rated IP50 Construction: ABS plastic Color: Gray

  15. Pendant Mount Specifications The weatherproof pendant mount housing can be used for indoor or outdoor applications. Both the pendant mount and pendant mount with heater and fan are rated IP66. Electrical Operating voltage: 24 VAC +/- 4 VAC Power: 30W startup; 24W running Power /w heater: 60W startup; 44W running Mechanical Environmental enclosure: Rated IP66 Construction: ABS plastic Color: Gray

  16. Wall Mount Specifications The weatherproof wall-mount housing canbe used for indoor or outdoor applications. The wall arm is constructed of cast aluminum. Electrical Operating voltage: 24 VAC +/- 4 VAC Power: 30W startup; 24W running Power /w heater: 60W startup; 44W running Mechanical Environmental enclosure: Rated IP66 Construction: ABS plastic Color: Gray

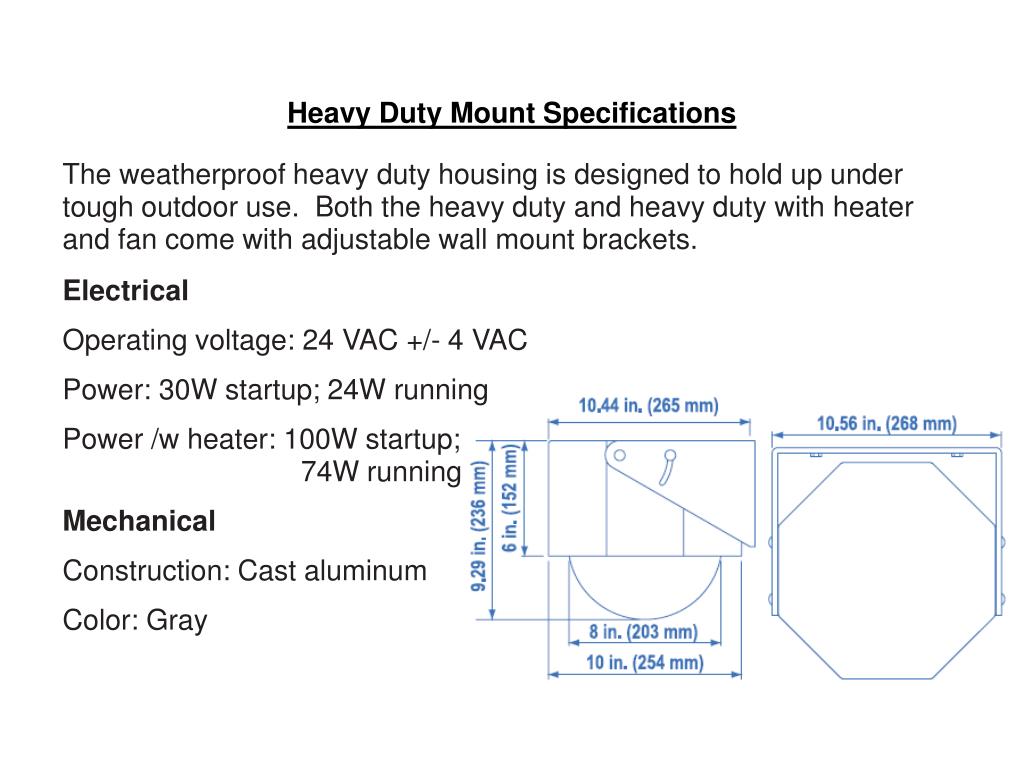

  17. Heavy Duty Mount Specifications The weatherproof heavy duty housing is designed to hold up under tough outdoor use. Both the heavy duty and heavy duty with heater and fan come with adjustable wall mount brackets. Electrical Operating voltage: 24 VAC +/- 4 VAC Power: 30W startup; 24W running Power /w heater: 100W startup; 74W running Mechanical Construction: Cast aluminum Color: Gray

  18. Rugged Pendant Mount Specifications The weatherproof rugged pendant housing is for outdoor applications that require tamper resistance. Both the rugged pendant and rugged pendant with heater and fan are rated IP66. Electrical Operating voltage: 24 VAC +/- 4 VAC Power: 30W startup; 24W running Power /w heater: 100W startup; 74W running Mechanical Environmental enclosure: Rated IP66 Construction: Cast aluminum Color: Gray

  19. Camera Specifications Camera: 26x Day/Night Image sensor: 1/4 in. CCD Zoom: Optical 26x, digital 12x Resolution: 470 TVL NTSC; 460 TVL PAL Synchronization: Internal/line lock Lens: F=3.5 mm (wide) to 91 mm (tele); F1.6 to F3.8 Angle of view (H): 54.2° (wide) to 2.2° (tele) Sensitivity: 1.0 lux at 1/60 sec NTSC or 1/50 sec PAL; 0.07 lux at 1/4 sec NTSC or 1/3 sec PAL Sensitivity, ICR-on: 0.15 lux at 1/60 sec NTSC or 1/50 sec PAL; 0.01 lux at 1/4 sec NTSC or 1/3 sec PAL Electronic shutter speed: 1/1 to 1/10,000 sec,14 steps, NTSC or PAL Video output: 1.0 V p-p

  20. Camera Specifications Camera: 26x Day/Night with Image Stabilization Image sensor: 1/4 in. CCD Zoom: Optical 26x, digital 12x Resolution: 470 TVL NTSC; 460 TVL PAL Synchronization: Internal/line lock Lens: F=3.5 mm (wide) to 91 mm (tele); F1.6 to F3.8 Angle of view (H): 42.0° (wide) to 1.6° (tele) Sensitivity: 2.0 lux at 1/60 sec NTSC or 1/50 sec PAL; 0.14 lux at 1/4 sec NTSC or 1/3 sec PAL Sensitivity, ICR-on: 0.7 lux at 1/60 sec NTSC or 1/50 sec PAL; 0.05 lux at 1/4 sec NTSC or 1/3 sec PAL Electronic shutter speed: 1/1 to 1/10,000 sec,14 steps, NTSC or PAL Video output: 1.0 V p-p

  21. Ordering Guide

  22. Mounting Options GEA-102Wall-mount arm GEA-108Parapet cap, corner, narrow 6 to 12 inches GEA-109Parapet cap, corner, wide 12 to 17 inches GEA-104Parapet swing-arm mount GEA-110Parapet cap, straight, narrow 6 to 12 inches GEA-105Corner-mount adapter GEA-111Parapet cap, straight, wide 12 to 17 inches GEA-106Pole-mount adapter GEA-113T-bar ceiling panel GEA-114T-bar panel support kit GEA-107Roof-mount adapter
