energy efficiency ee renewable energy re in sips epa s roadmap and a tour of several states

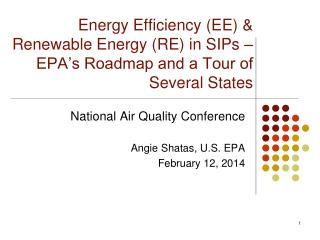

Energy Efficiency (EE) & Renewable Energy (RE) in SIPs – EPA’s Roadmap and a Tour of Several States

National Air Quality Conference

Angie Shatas, U.S. EPA

February 12, 2014

goals
Goals
  • EE/RE – the lay of the land
  • EPA’s Roadmap
  • Touring a few states
what is ee re
What is EE/RE?
  • Energy Efficiency & Renewable Energy policies and programs
      • Require parties to use or fund EE/RE through regulation, statute or Public Utility Commission (PUC) order
      • Increase adoption of energy efficient practices
        • End-user education and incentives (e.g., consumer awareness and rebate programs)
      • Increase production and use of RE sources (e.g., solar, wind, biomass)
  • Renewable Portfolio Standards (RPS) and Energy Efficiency Resource Standards (EERS) can be state requirements that include any of the above
a current map of state ee re policies
A current map of state EE/RE policies

Mandatory - 29

Mandatory - 24

Voluntary - 9

Voluntary - 6

elements for success when incorporating ee re in sips
Elements for Success when incorporating EE/RE in SIPs
  • State-wide policies produce greater potential emission benefits
  • Dialogue between air and energy agencies

Energy agencies provide

prospective view of energy

savings (for SIP submittal) and

retrospective view (verification)

  • Quantification tools to determine if and to what extent an EE/RE initiative is affecting a particular nonattainment area
past experiences with ee re in sips
Past Experiences with EE/RE in SIPs
  • 2004 EE/RE guidance
  • Feedback from states
    • The expected SIP credit was not worth the analysis effort.
    • Documentation requirements were burdensome.
    • Achievable emissions reductions were not clear.
    • More detailed EPA guidance needed.
epa s roadmap
EPA’s Roadmap
  • Help states include EE/RE in SIPs
  • Roadmap
    • Clarifies existing guidance
    • Lays out four pathways for SIP credit
    • Identifies quantification approaches
  • Resources/Tools
    • Baseline analysis - Projected energy impacts of “on-the-books” state EE/RE policies
    • AVoided Emissions and geneRation Tool (AVERT) - emissions quantification (translates EE/RE to emissions)
    • Frequently Asked Questions
4 pathways
4 Pathways

* May be the load serving entity required to implement EE/RE.

** If a municipality has initiated a measure, then the state may delegate responsibility to the municipality.

baseline analysis ee re policies in aeo 2013
Baseline Analysis – EE/RE Policies in AEO 2013

EPA and most states use the AEO 2013 energy policy assumptions in their SIP baseline emission projections.

Policy Assessment Criteria

Adopted in state legislation or Public Utility Commission (PUC) order (i.e. “on-the-books”)

Goal:

quantification from basic to sophisticated
Quantification –from Basic to Sophisticated

Basic

eGRID region non-baseload emission rates

Sophisticated

Energy Modeling

Intermediate

Historical Hourly Emissions Rates

Economic parameters

End use demand

User-defined constraints

Environmental regulations

Energy Model

Technology data

Emission factors

Fuel data

avert
AVERT
  • EPA-developed quantification tool
  • Addresses a key reason states have not implemented previous EE/RE SIP guidance
  • Simulates dispatch to predict hourly changes in generation and emissions (NOx, SO2 and CO2) at electric generating units (EGUs) due to EE/RE
    • Uses actual data reported to EPA’s Clean Air Markets Division (CAMD) through Acid Rain Program
current engagement with states
Current Engagement with States

WA

NH

ME

VT

MT

ND

MN

OR

WI

MA

ID

SD

NY

WY

MI

RI

IA

PA

CT

NE

NV

OH

IL

IN

NJ

UT

CO

WV

DE

KS

MO

VA

CA

KY

MD

NC

TN

AZ

OK

NM

AR

SC

MS

AL

GA

TX

LA

State with active interest

FL

State with interest

State with Ozone Advance area(s)

states on the way maryland
States on the way - Maryland
  • Pathway: Weight of Evidence
  • Ozone attainment SIP for moderate area (due July 2015)
  • Participant in NESCAUM pilot project
  • EE/RE policies and programs in place
    • Maryland Renewable Portfolio Standard
    • EmPower Maryland energy conservation program
    • Regional Greenhouse Gas Initiative (RGGI)
    • Transit and smart growth initiatives
    • Green building initiatives
    • Electric vehicle initiatives
states on the way new york
States on the way – New York
  • Pathway: Control
  • SIP and timing: TBD
  • Participant in NESCAUM pilot project
  • EE/RE policies and programs in place
    • Combined Heat and Power – also for boiler MACT compliance
    • NY-Sun Initiative – public/private partnership to increase solar capacity
    • Build Smart NY – reduce average energy usage in NY public buildings by 20%
    • Renewable Portfolio Standard
    • Energy Efficiency Resource Standard
states on the way massachusetts
States on the way - Massachusetts
  • Pathway: Baseline emissions projection
  • SIP and timing: TBD
  • Participant in NESCAUM pilot project
  • EE/RE policies and programs in place
    • Renewable Portfolio Standard
    • Energy Efficiency Resource Standard
other states on the way north carolina kentucky utah louisiana
Other states on the way – North Carolina, Kentucky, Utah, Louisiana
  • North Carolina
    • Looking at ozone reductions
    • In place: Renewable Portfolio Standard
  • Kentucky
    • In place: Voluntary energy efficiency targets through PUC orders
  • Utah
    • Case study underway
    • Looking at PM2.5 emission reductions
    • In place: Renewable Portfolio Standard
  • Louisiana
    • Ozone Advance areas
    • In place: local energy efficiency projects
for more information
For More Information:

Angie Shatas, EPA OAQPS

919-541-5454 | shatas.angie@epa.gov

Robyn DeYoung, EPA OAP

202-343-9080 | deyoung.robyn@epa.gov

http://www.epa.gov/airquality/eere/

- EE/RE Roadmap manual

- Frequently Asked Questions

- AVERT
