Area of a Sector and Length of an arc

Area of a Sector and Length of an arc. Ms N. Kearney. Major Arc. O. . A. B. Minor Arc. ARCS and SECTORS of CIRCLES. The angle  between two radii of a circle divides the circle into a minor and a major sector . The arc lengths of each sector are the minor and major arcs respectively.

gage
Download Presentation

Area of a Sector and Length of an arc

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Area of a Sector and Length of an arc Ms N. Kearney

  2. Major Arc O  A B Minor Arc ARCS and SECTORS of CIRCLES The angle  between two radii of a circle divides the circle into a minor and a major sector. The arc lengths of each sector are the minor and major arcs respectively. Major Sector Minor Sector

  3. Calculating arc lengths of Circles Example 1: Calculate the lengths of the minor and major arcs AB for the circle shown. O 5 cm 115o A B

  4. Calculate the lengths of the minor and major arcs in each case (to 1 dp) 2 1 3 O O O 2.3 cm 3 cm 9 cm 88o 155o 75o 4 5 6 2.4 m O O 1.3 m 130o 312o 215o 7 cm Minor arc = 11.8 cm Minor arc = 8.1 cm Minor arc = 3.5 cm Major arc = 44.8 cm Major arc = 10.7 cm Major arc = 10.9 cm Minor arc = 15.9 cm Minor arc = 3.3 m Minor arc = 2.0 m Major arc = 28.1 cm Major arc = 4.9 m Major arc = 13.1 m

  5. Homework 16/05/11 Powerpoint Questions Q’s 1 – 4 Find the area of each sector and the length of each Arc.

  6. Find the area of this sector? 72° 5 cm

  7. Area of the sector = × π × 52 72° × π × 52 360° 1 5 Find the area of this sector? 72° 5 cm = 15.7 cm2

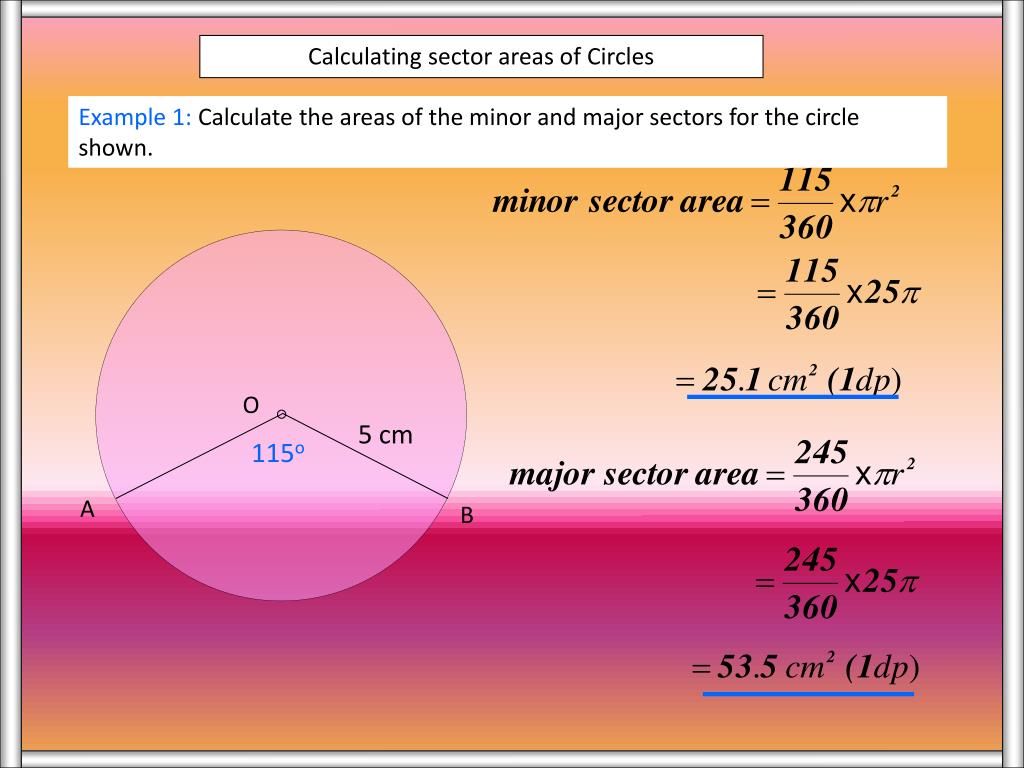

  8. Calculating sector areas of Circles Example 1: Calculate the areas of the minor and major sectors for the circle shown. O 5 cm 115o A B

  9. Calculate the minor and major sector areas in each case (to 1 dp) 2 1 3 O O O 2.3 cm 3 cm 9 cm 88o 155o 75o 4 5 6 2.4 m O O 1.3 m 130o 312o 215o 7 cm Minor sector = 4.1 cm2 Minor sector = 12.2 cm2 Minor sector = 53.0 cm2 Major sector = 12.6 cm2 Major sector = 16.1 cm2 Major sector = 201.5 cm2 Minor sector = 55.6 cm2 Minor sector = 2.1 m2 Minor sector = 2.4 m2 Major sector = 98.3 cm2 Major sector = 3.2 m2 Major sector = 15.7 m2

  10. Example Question: The shape below is a sector of a circle of radius 8.4 cm. Find (a) the arc length and (b) sector area. Now try this one. 100o 8.4 cm 3 .1 m 160o

  11. Homework 17/05/11  Trigonometry hand out Pg. 379 – 380 Q’s 1 and 2
