P14251 Underwater Acoustic Communication. CE Overview Software Architecture Control unit flowchart and pseudo-code Error Detection/Correction Framing Information Data Rate Analysis. 11/26/13. Rochester Institute of Technology. 1. P14251 Underwater Acoustic Communication.

gage-macias
Download Presentation

11/26/13

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

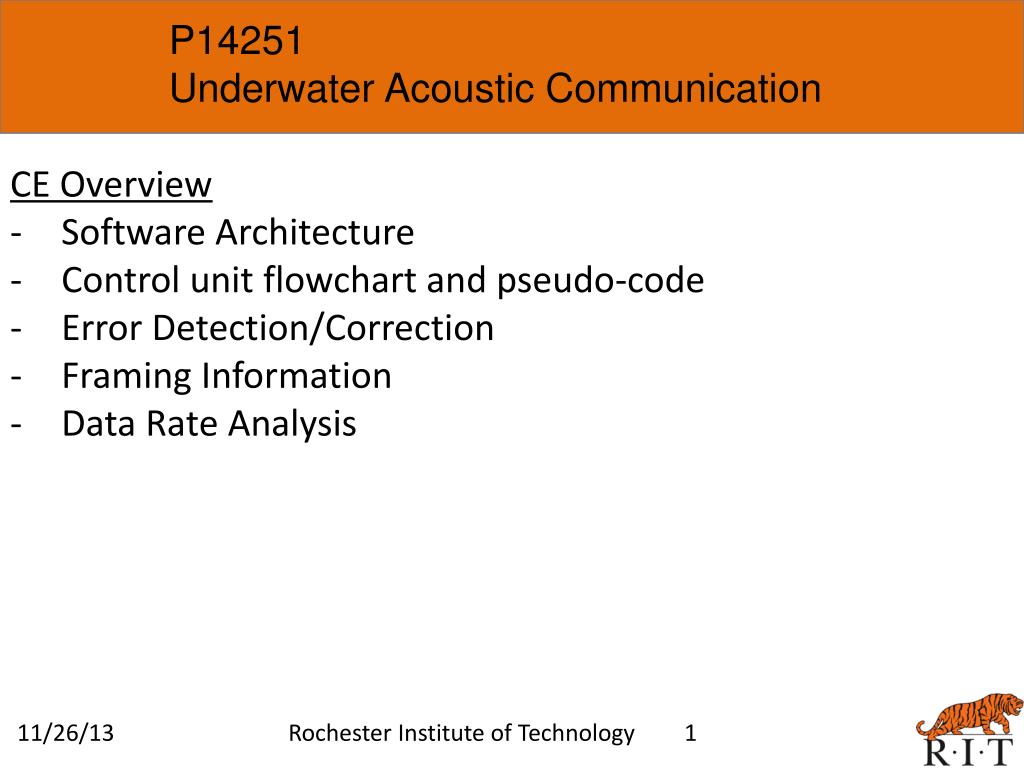

  1. P14251 Underwater Acoustic Communication • CE Overview • Software Architecture • Control unit flowchart and pseudo-code • Error Detection/Correction • Framing Information • Data Rate Analysis 11/26/13 Rochester Institute of Technology 1

  2. P14251 Underwater Acoustic Communication Software Architecture 11/26/13 Rochester Institute of Technology 2

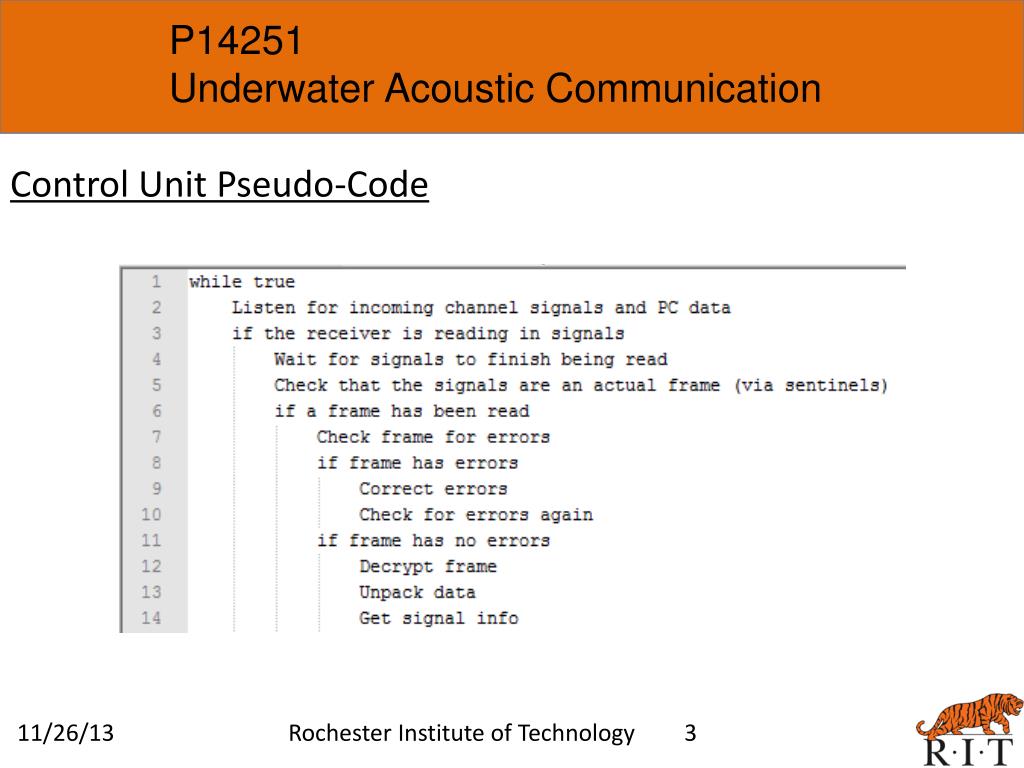

  3. P14251 Underwater Acoustic Communication Control Unit Pseudo-Code 11/26/13 Rochester Institute of Technology 3

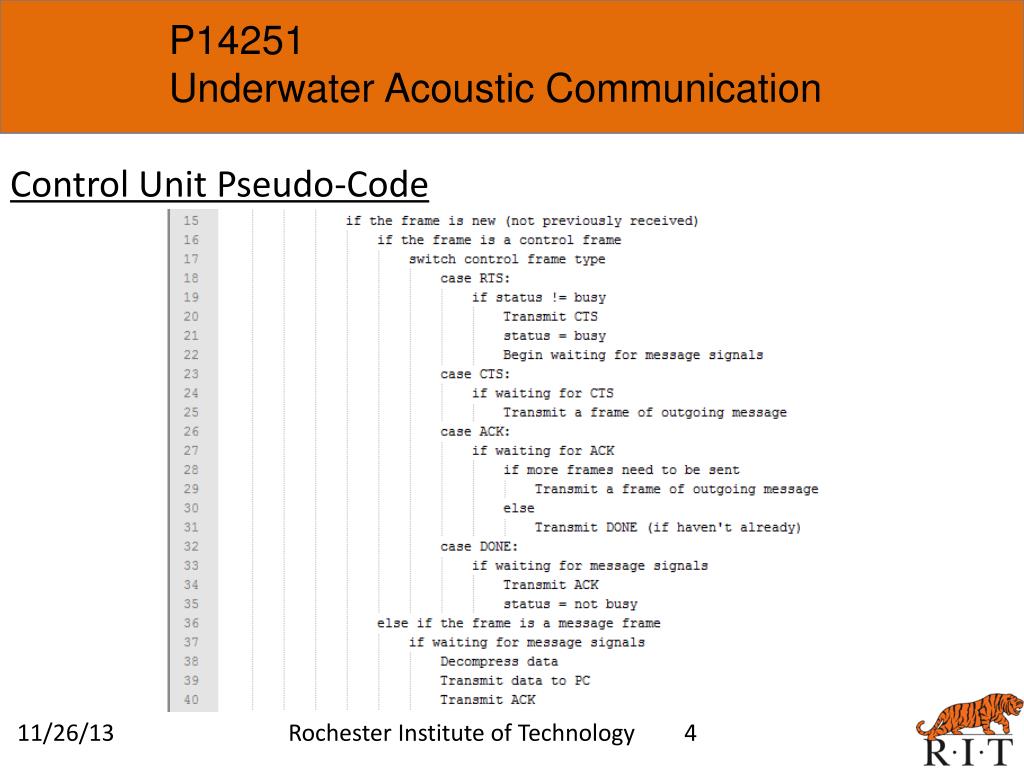

  4. P14251 Underwater Acoustic Communication Control Unit Pseudo-Code 11/26/13 Rochester Institute of Technology 4

  5. P14251 Underwater Acoustic Communication Control Unit Pseudo-Code 11/26/13 Rochester Institute of Technology 5

  6. P14251 Underwater Acoustic Communication Error Detection and Correction • Hybrid Scheme: ECC and ARQ • EEC Implementation: BCH vs. Reed Solomon • BCH is easier to implement, but requires a large amount of redundancy • Reed-Solomon is more complex, but overall much better and requires only 20% redundancy (to correct 10% of errors) 11/26/13 Rochester Institute of Technology 6

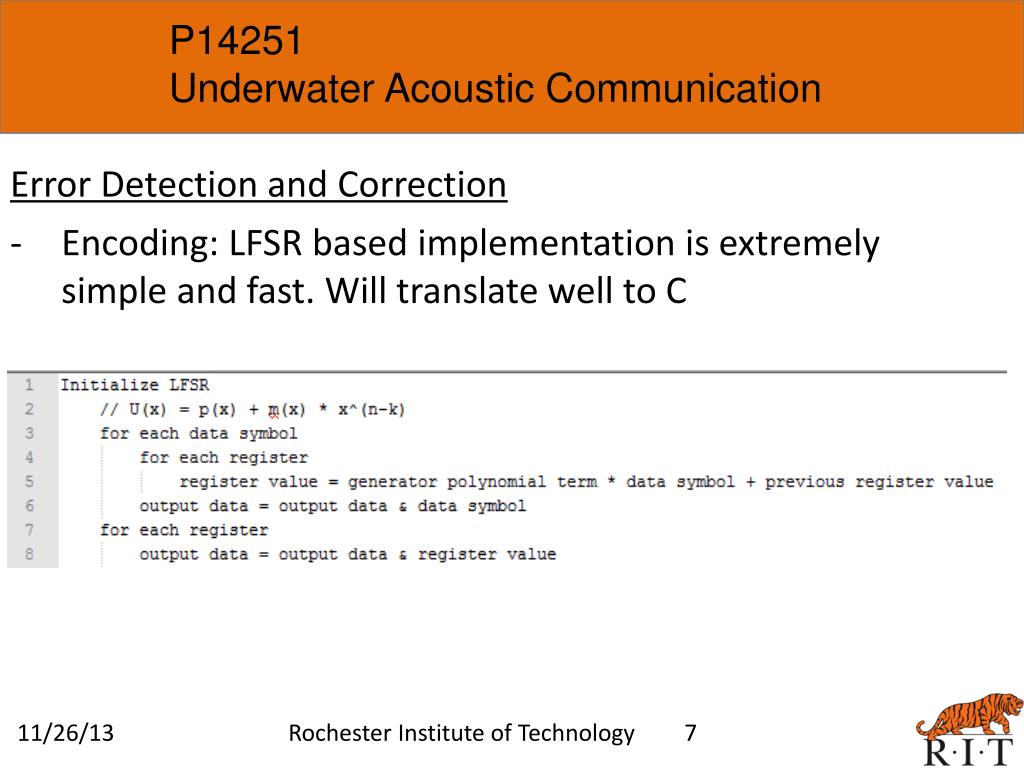

  7. P14251 Underwater Acoustic Communication Error Detection and Correction • Encoding: LFSR based implementation is extremely simple and fast. Will translate well to C 11/26/13 Rochester Institute of Technology 7

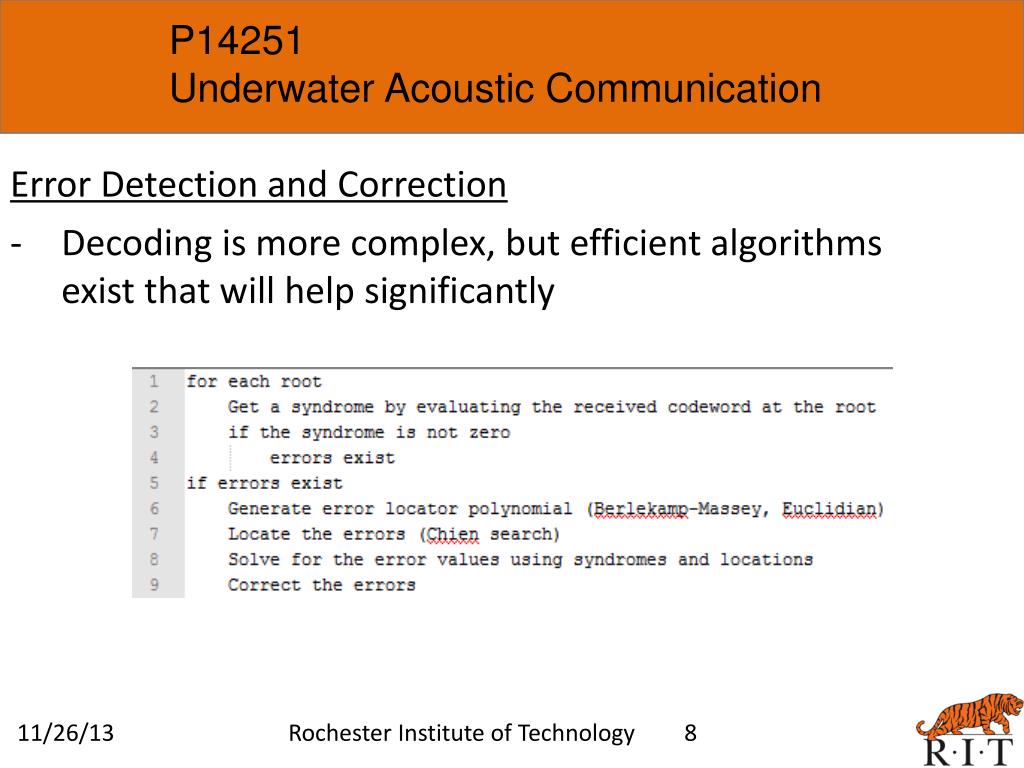

  8. P14251 Underwater Acoustic Communication Error Detection and Correction • Decoding is more complex, but efficient algorithms exist that will help significantly 11/26/13 Rochester Institute of Technology 8

  9. P14251 Underwater Acoustic Communication • Frame Sentinels • Sentinels are a unique pattern of bits that signify the start and end of the framei.e. 01110 –data– 01110 • When preparing the frame for transmission, if the pattern appears anywhere in the data, bit stuffing is used to eliminate it (i.e. 01110 -> 011010) • Commonly used sentinel which we’ll use is 01111110 • Frame Header • 1 bit to signify the type of frame: control or message • 1 bit that gets flipped each time a new frame is sent 11/26/13 Rochester Institute of Technology 9

  10. P14251 Underwater Acoustic Communication • Control frame formats • Since it’s especially important to interpret control frames correctly, 4 bits are used to display the unique patterns • 0000 – Request to Send (RTS) • 0110 – Clear to Send (CTS) • 1001 – Acknowledgement (ACK) • 1111 – Done (Signifies that all frames have been sent) 11/26/13 Rochester Institute of Technology 10

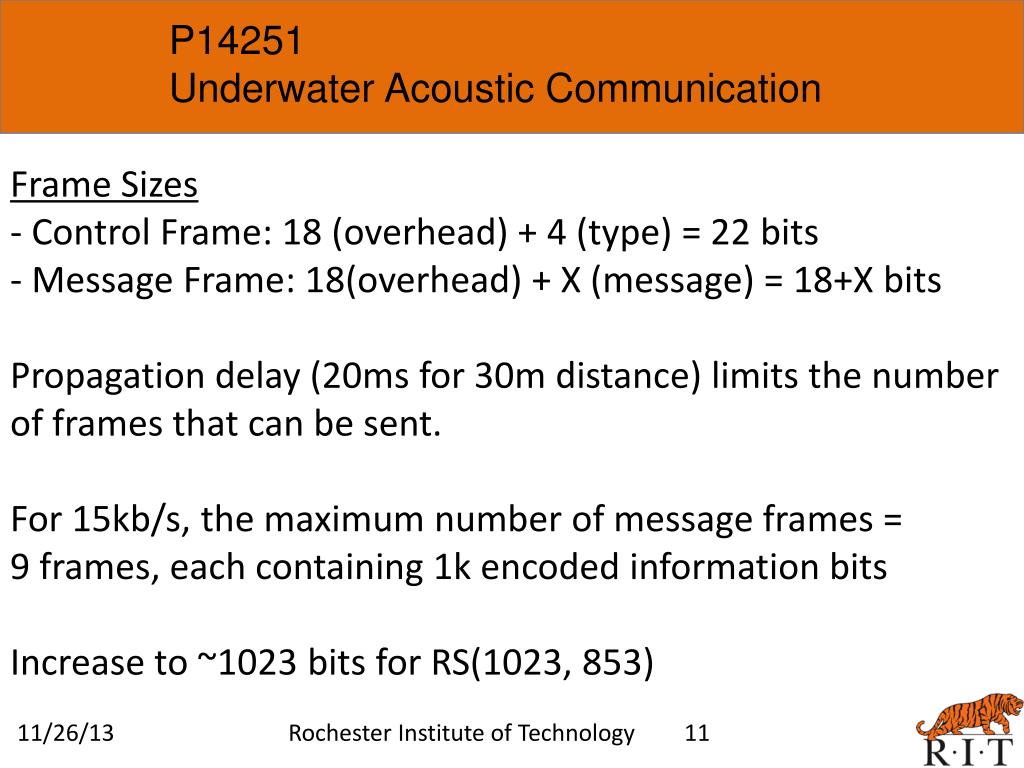

  11. P14251 Underwater Acoustic Communication • Frame Sizes • - Control Frame: 18 (overhead) + 4 (type) = 22 bits- Message Frame: 18(overhead) + X (message) = 18+X bits • Propagation delay (20ms for 30m distance) limits the number of frames that can be sent. • For 15kb/s, the maximum number of message frames =9 frames, each containing 1k encoded information bits • Increase to ~1023 bits for RS(1023, 853) 11/26/13 Rochester Institute of Technology 11

  12. P14251 Underwater Acoustic Communication • Data Rate Analysis • (3 periods per 2 bits) • Frames that get transmitted for a message: • Send RTS – 22 bits • Receive CTS – 22 bits • Send all message frames – 1042 bits/frame • Receive all acknowledgements – 22 bits/frame • Send Done – 22 bits • Receive Acknowledgement – 22 bits • Total transferred bits = 9664 bits • Total transfer time = 0.831s (about 170ms left for code) 11/26/13 Rochester Institute of Technology 12
