Architrac™ offers versatile drapery hardware systems suitable for both residential and commercial applications like meeting rooms, guestrooms, healthcare facilities, and more. Choose from popular heading systems like Pinch Pleats, Ripplefold, and Accordia-Fold for a tailored look. With options for various mount locations and control types, Architrac™ ensures a perfect fit for your space. Industry-leading Baton Draw and Cord Draw systems provide durability and ease of use. Explore the range of track systems including the heavy-duty 94001 and low-profile 93001 for seamless installation. Simplify your ordering process with assembled sets and track build options tailored to your requirements.
E N D

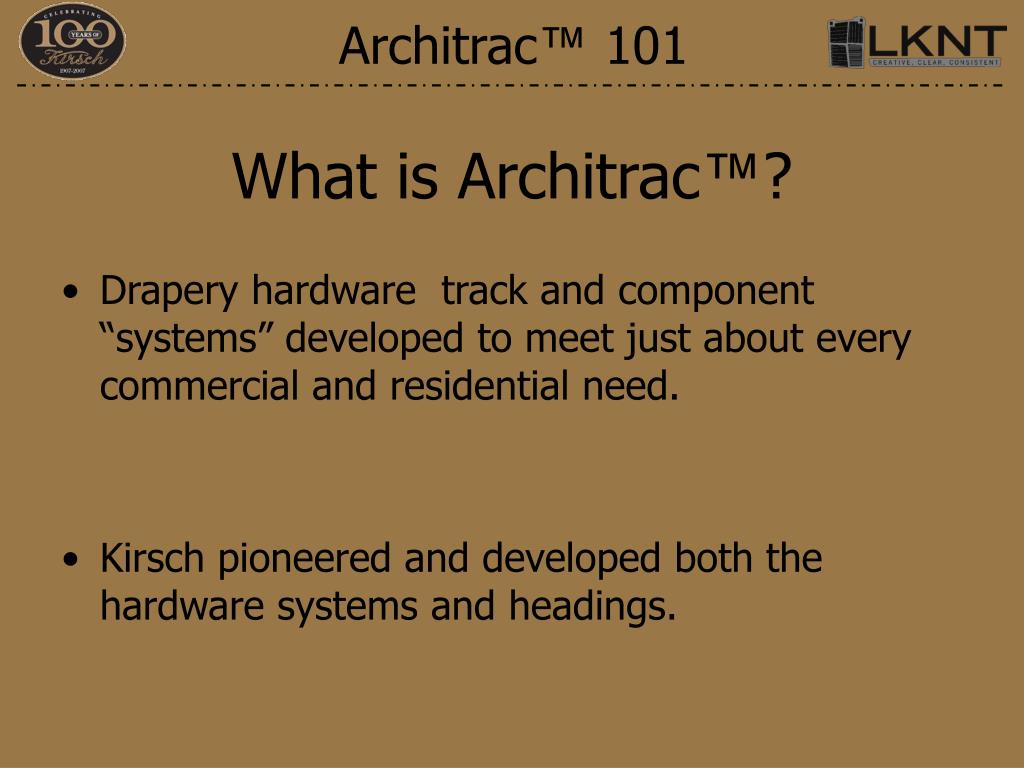

What is Architrac™? • Drapery hardware track and component “systems” developed to meet just about every commercial and residential need. • Kirsch pioneered and developed both the hardware systems and headings.

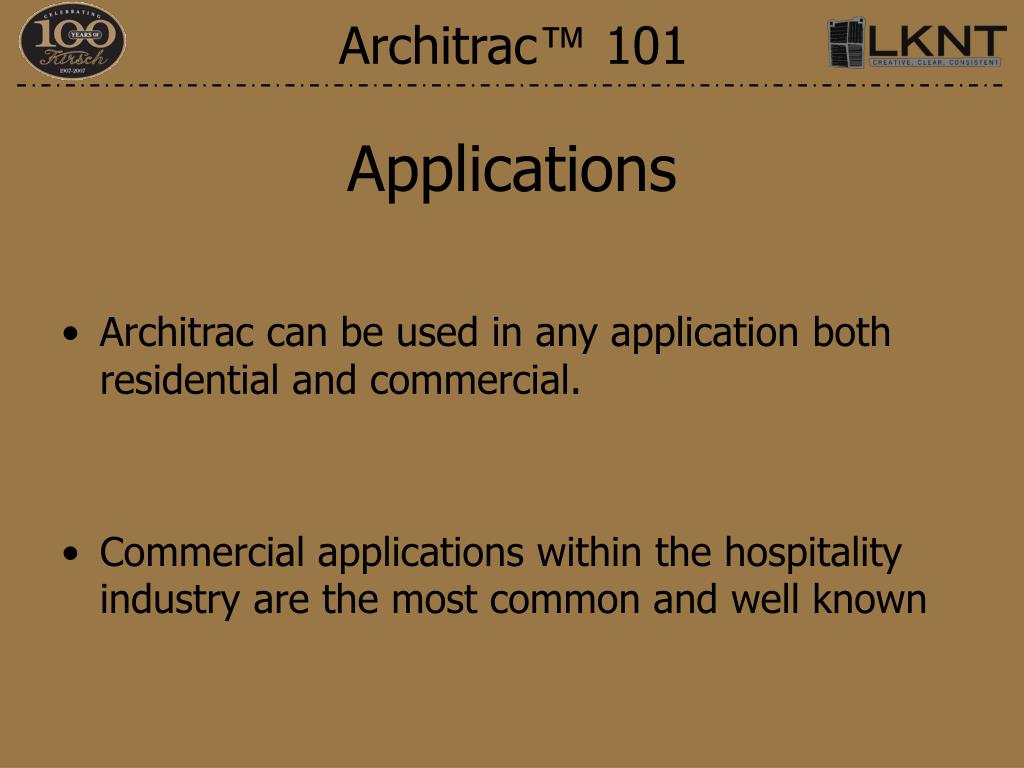

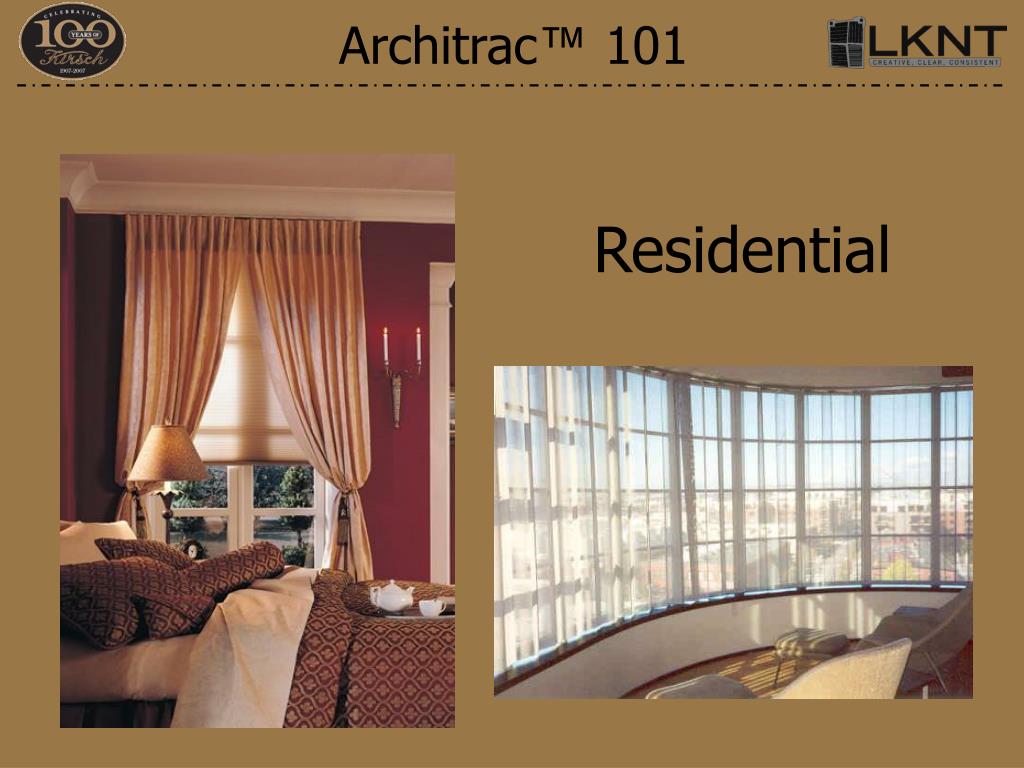

Applications • Architrac can be used in any application both residential and commercial. • Commercial applications within the hospitality industry are the most common and well known

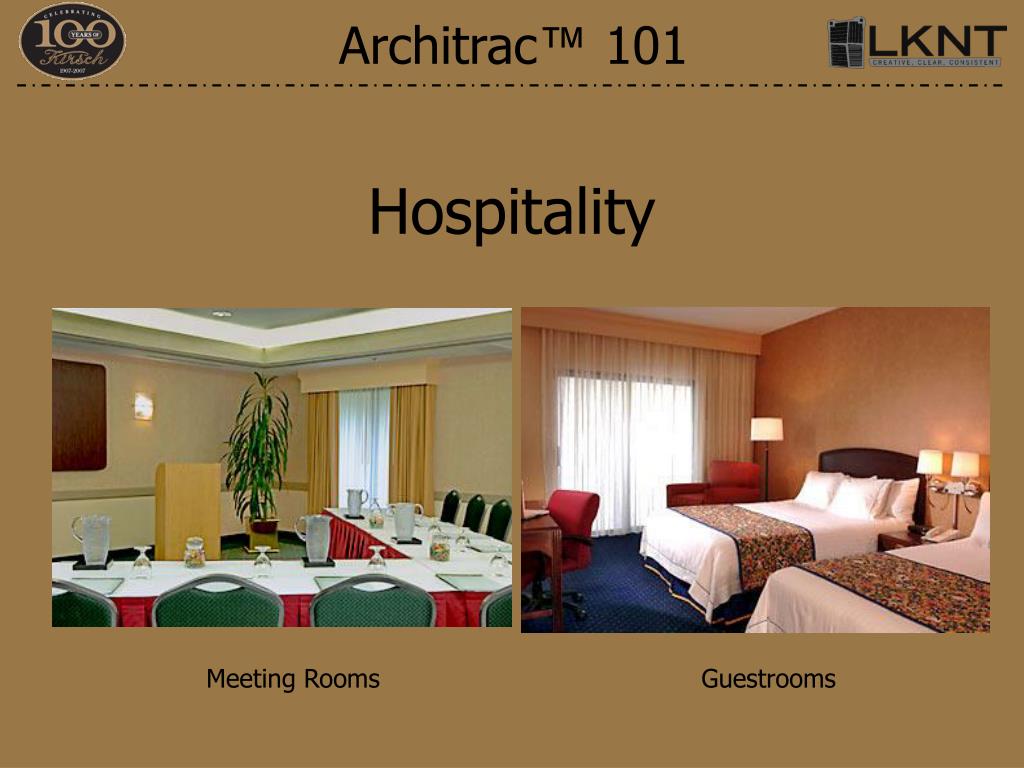

Hospitality Meeting Rooms Guestrooms

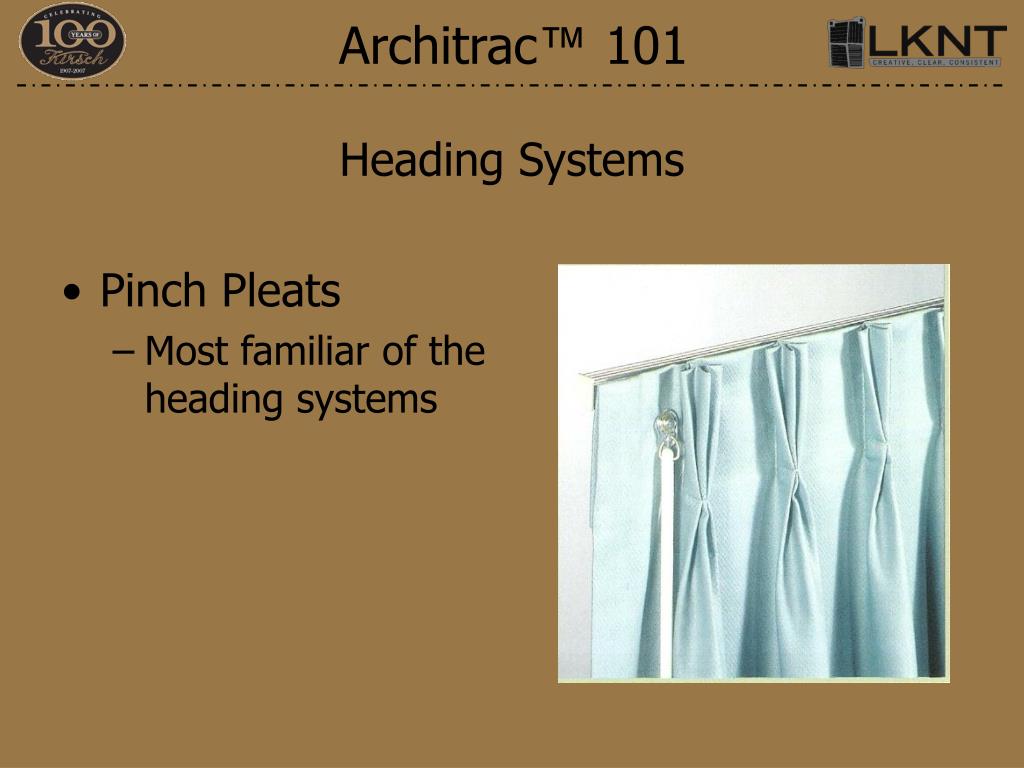

Heading Systems • Pinch Pleats • Most familiar of the heading systems

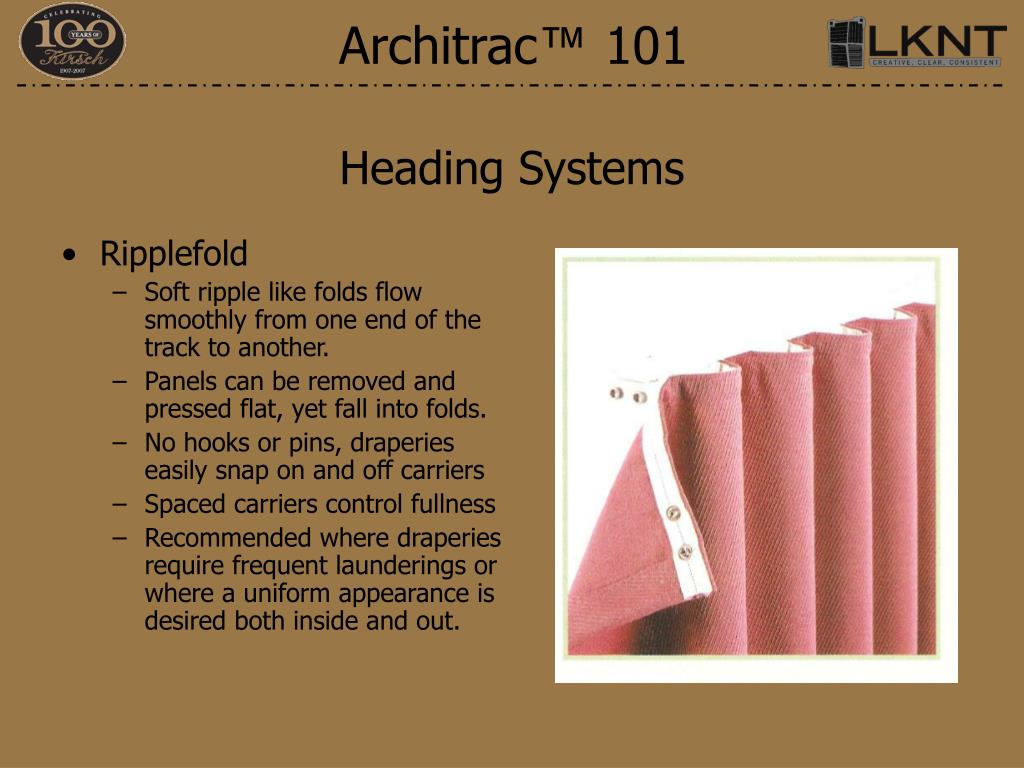

Heading Systems • Ripplefold • Soft ripple like folds flow smoothly from one end of the track to another. • Panels can be removed and pressed flat, yet fall into folds. • No hooks or pins, draperies easily snap on and off carriers • Spaced carriers control fullness • Recommended where draperies require frequent launderings or where a uniform appearance is desired both inside and out.

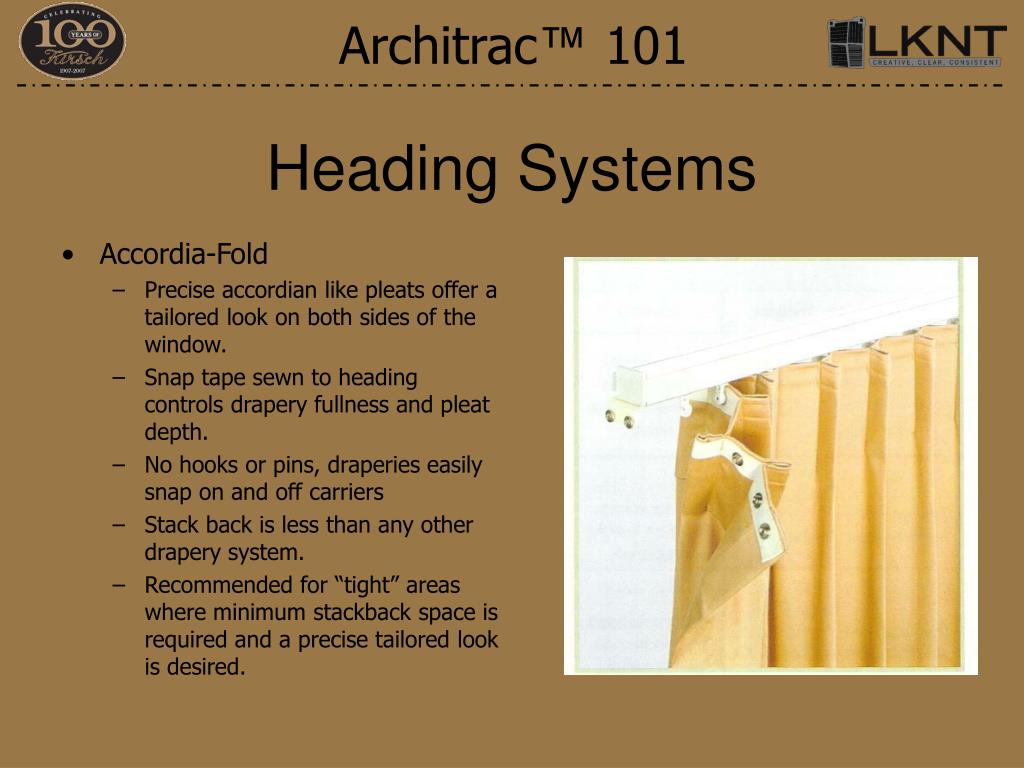

Heading Systems • Accordia-Fold • Precise accordian like pleats offer a tailored look on both sides of the window. • Snap tape sewn to heading controls drapery fullness and pleat depth. • No hooks or pins, draperies easily snap on and off carriers • Stack back is less than any other drapery system. • Recommended for “tight” areas where minimum stackback space is required and a precise tailored look is desired.

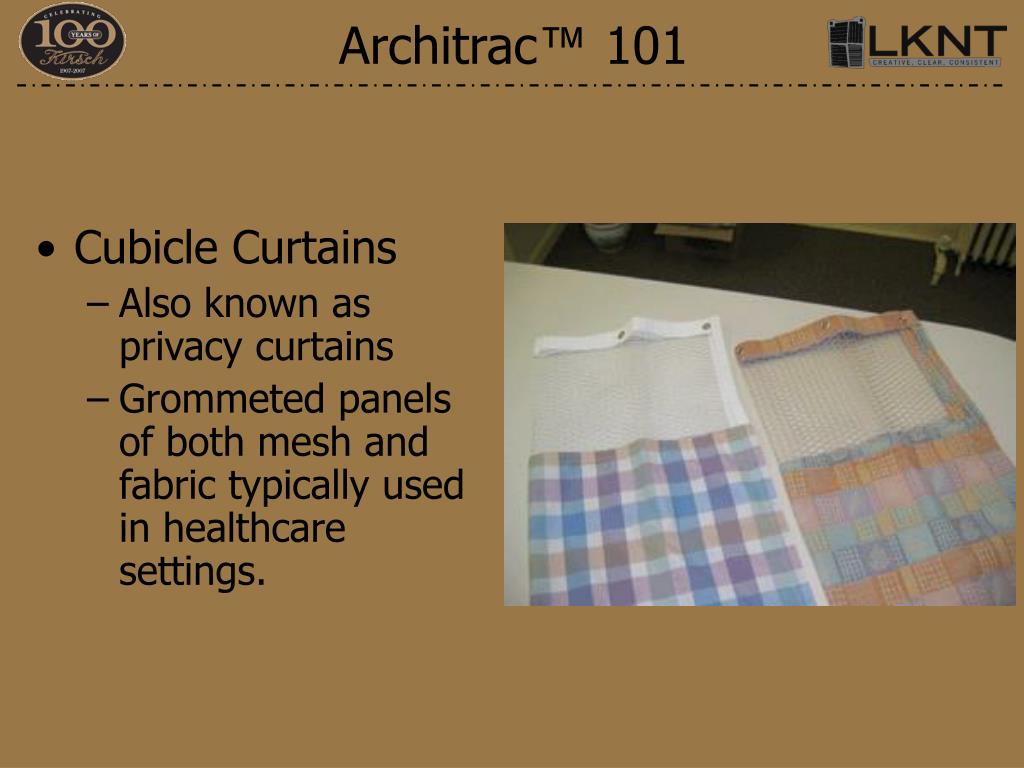

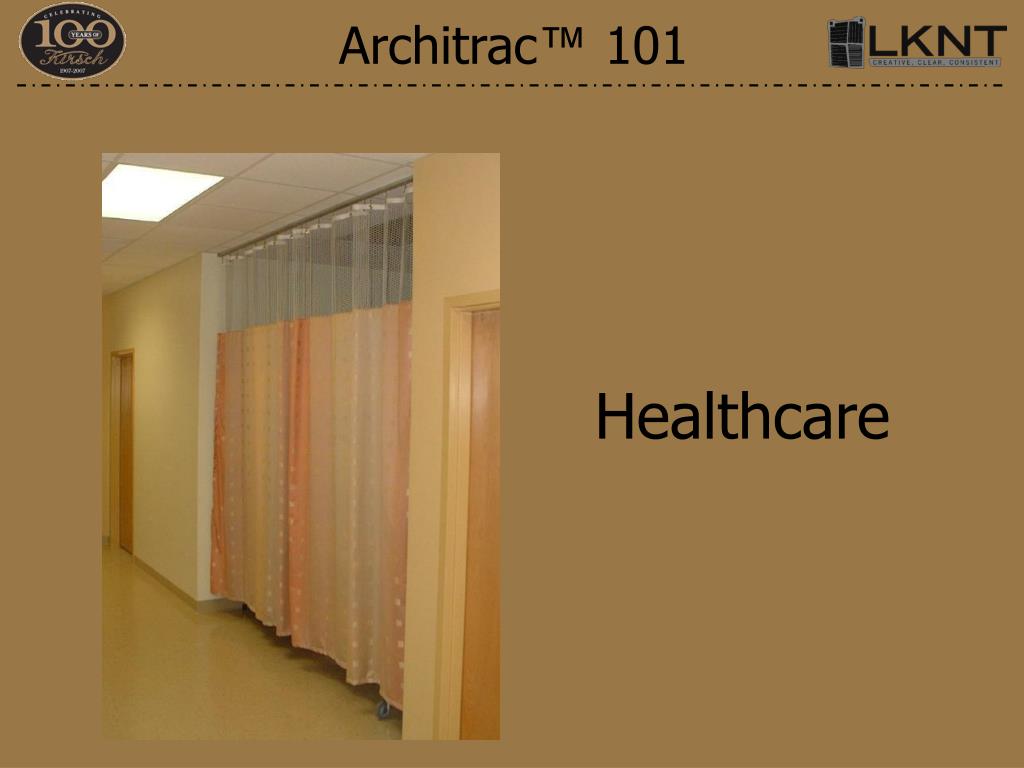

Cubicle Curtains • Also known as privacy curtains • Grommeted panels of both mesh and fabric typically used in healthcare settings.

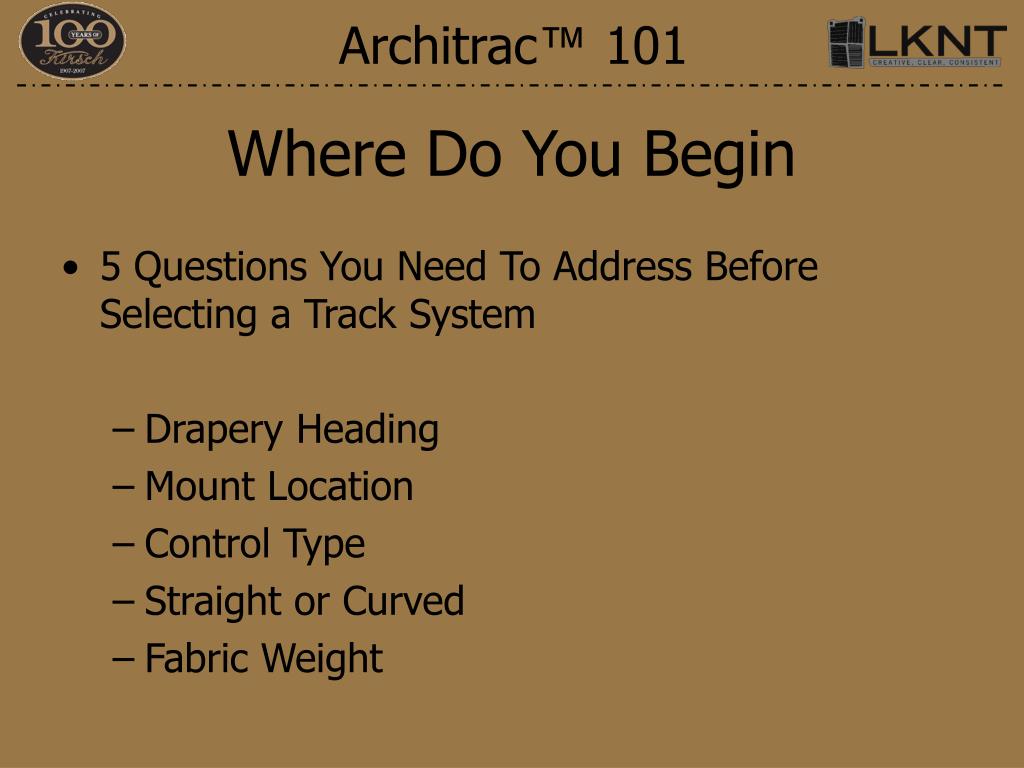

Where Do You Begin • 5 Questions You Need To Address Before Selecting a Track System • Drapery Heading • Mount Location • Control Type • Straight or Curved • Fabric Weight

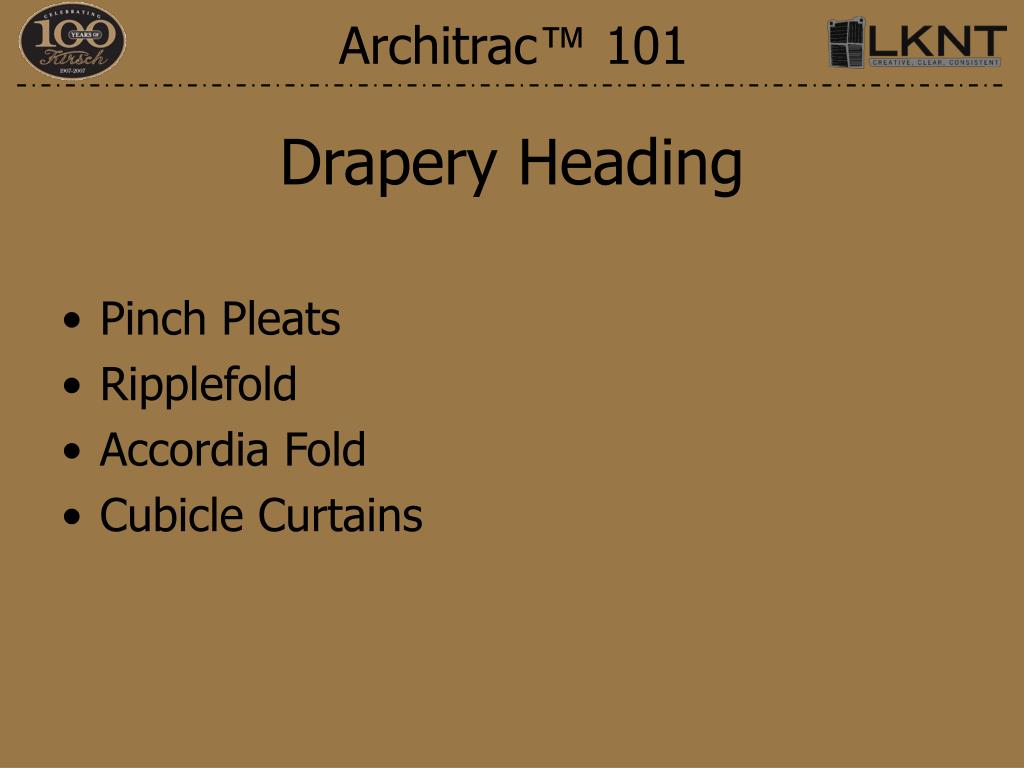

Drapery Heading • Pinch Pleats • Ripplefold • Accordia Fold • Cubicle Curtains

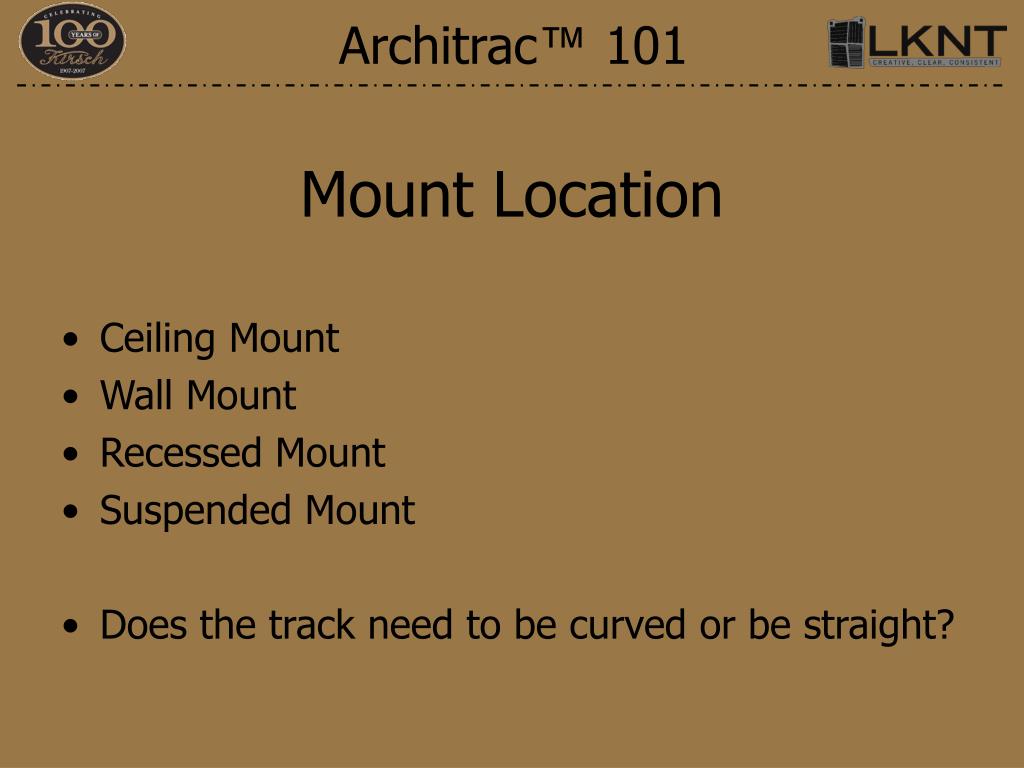

Mount Location • Ceiling Mount • Wall Mount • Recessed Mount • Suspended Mount • Does the track need to be curved or be straight?

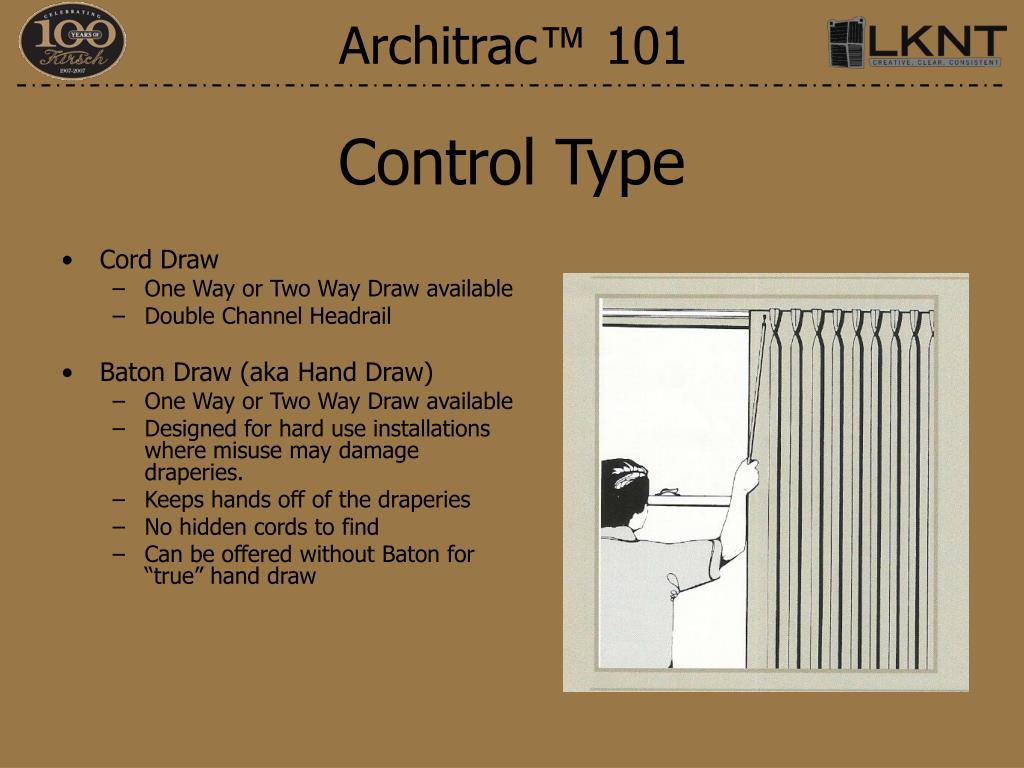

Control Type • Cord Draw • One Way or Two Way Draw available • Double Channel Headrail • Baton Draw (aka Hand Draw) • One Way or Two Way Draw available • Designed for hard use installations where misuse may damage draperies. • Keeps hands off of the draperies • No hidden cords to find • Can be offered without Baton for “true” hand draw
Cord Draw Systems • 94001 • Heaviest duty track in our collection • Closest to stage or auditorium track system. • Smaller % of usage • 93001 • Low profile track system designed for headings that mount under track, i.e., Ripplefold, Accordiafold • Front loading carrier system for easy installation

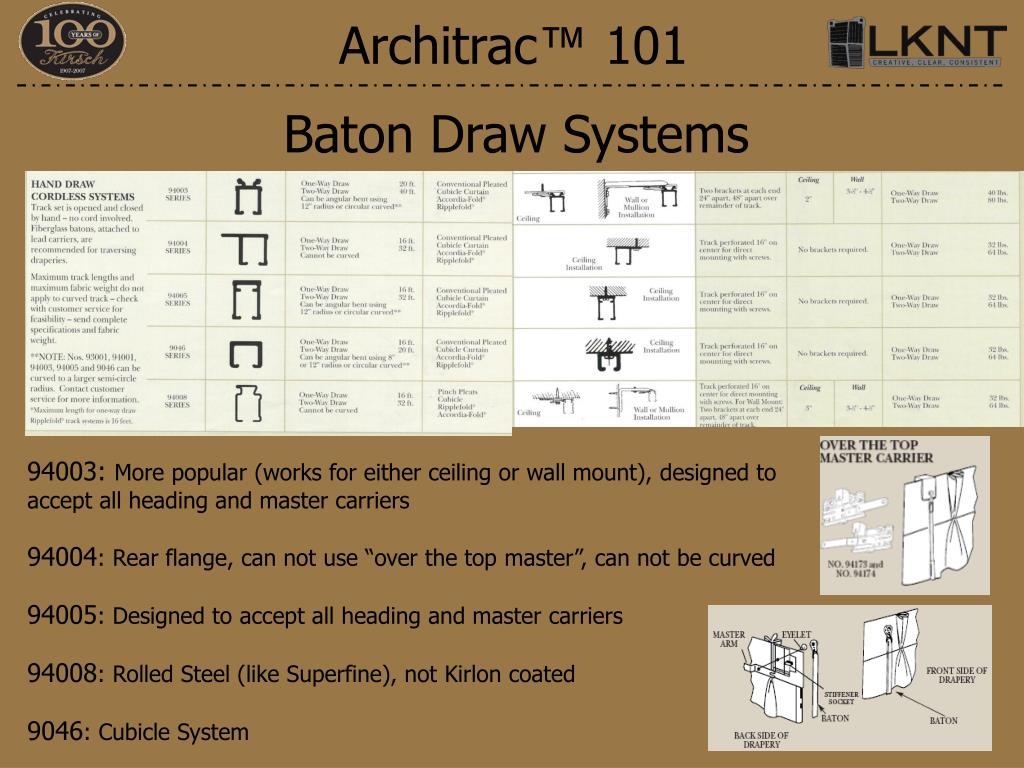

Baton Draw Systems 94003: More popular (works for either ceiling or wall mount), designed to accept all heading and master carriers 94004: Rear flange, can not use “over the top master”, can not be curved 94005: Designed to accept all heading and master carriers 94008: Rolled Steel (like Superfine), not Kirlon coated 9046: Cubicle System

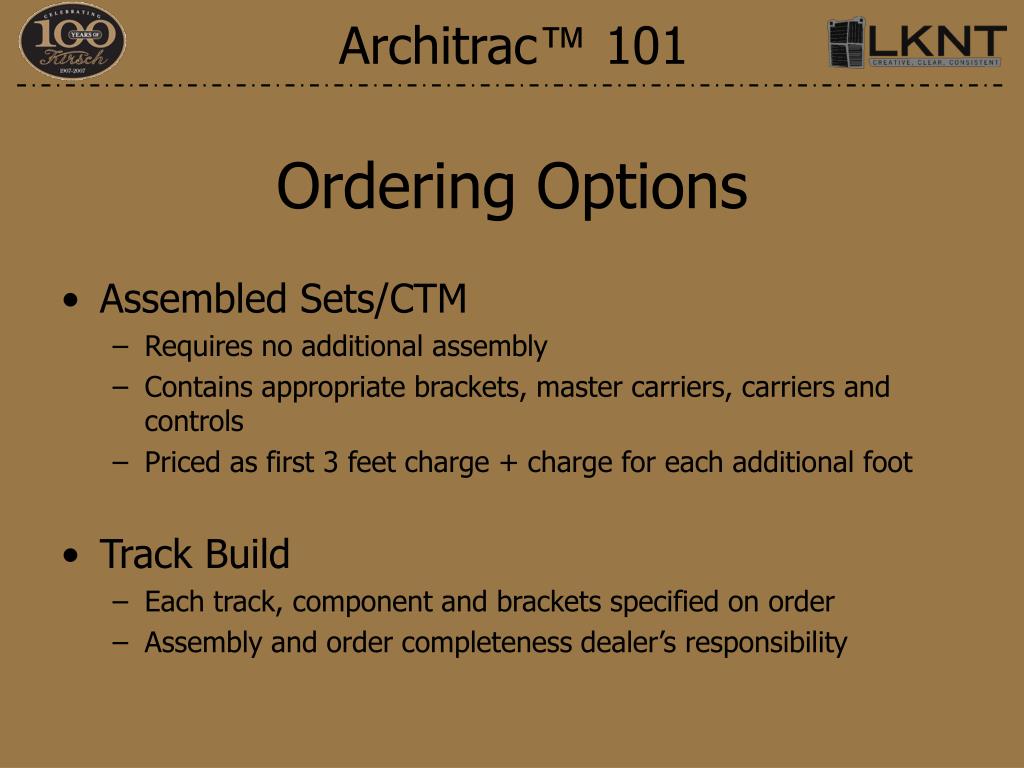

Ordering Options • Assembled Sets/CTM • Requires no additional assembly • Contains appropriate brackets, master carriers, carriers and controls • Priced as first 3 feet charge + charge for each additional foot • Track Build • Each track, component and brackets specified on order • Assembly and order completeness dealer’s responsibility
