1. KIPA Game Engine Seminars Day 11 Jonathan Blow Seoul, Korea December 7, 2002

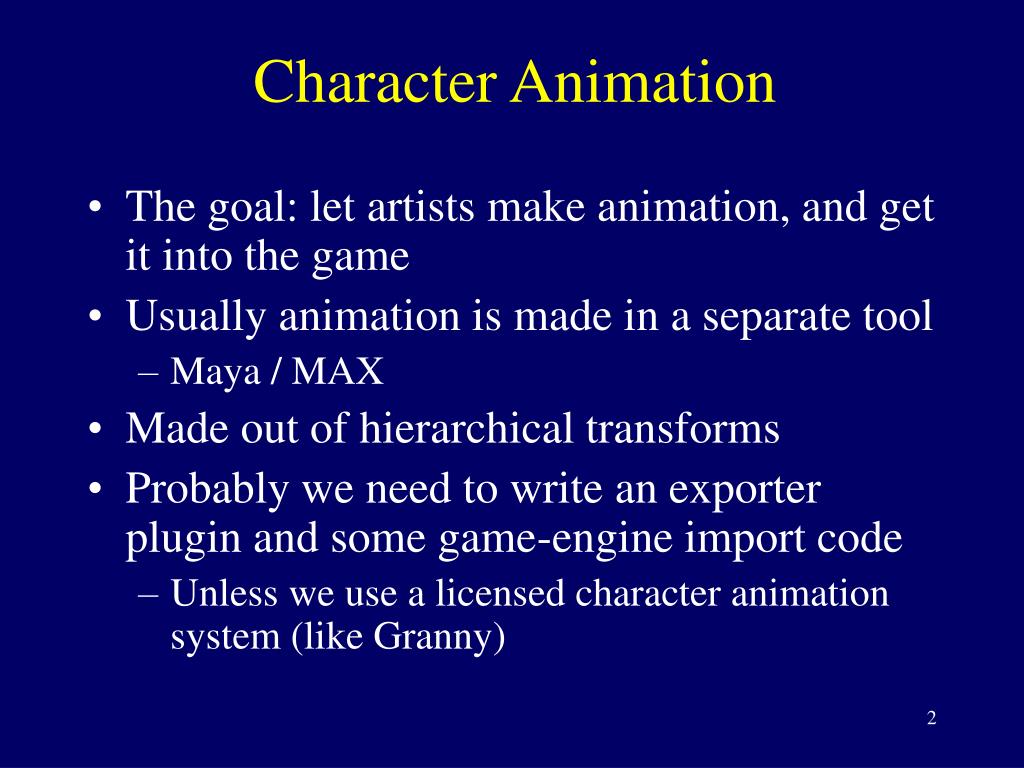

2. Character Animation • The goal: let artists make animation, and get it into the game • Usually animation is made in a separate tool • Maya / MAX • Made out of hierarchical transforms • Probably we need to write an exporter plugin and some game-engine import code • Unless we use a licensed character animation system (like Granny)

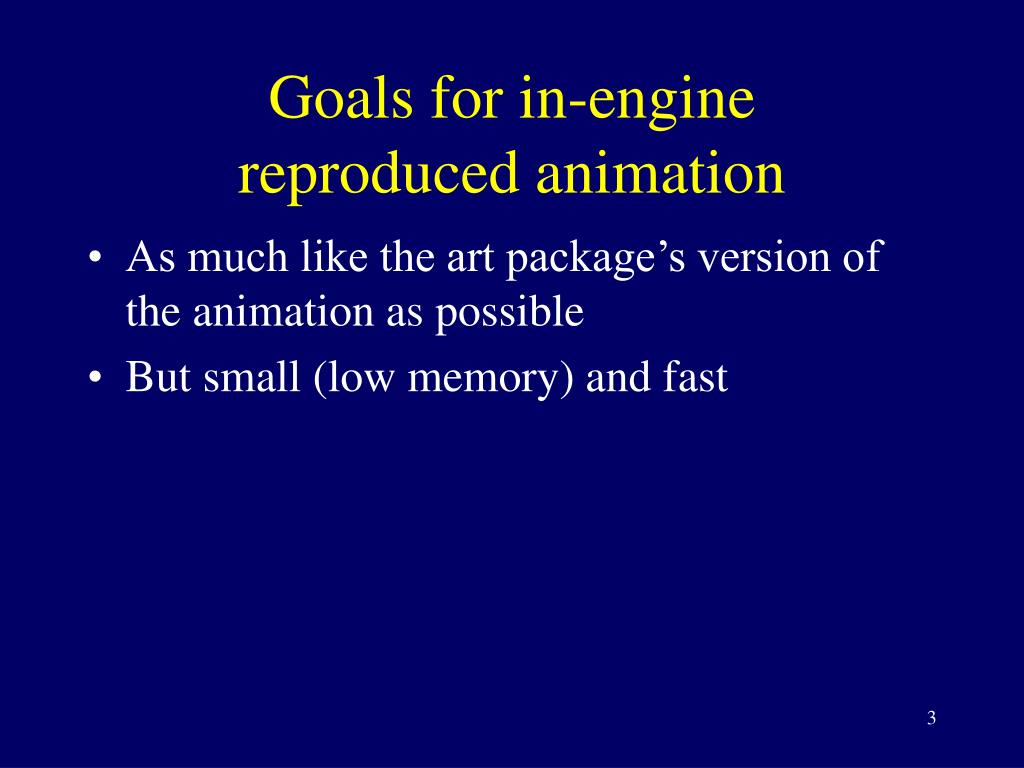

3. Goals for in-enginereproduced animation • As much like the art package’s version of the animation as possible • But small (low memory) and fast

4. How animations are authored • The artist sets up a bunch of keyframes for transform data • Usually separated into translation, rotation, scale • The art tool interpolates between these keyframes at runtime • Maybe we should export the keyframes and interpolate them in the engine

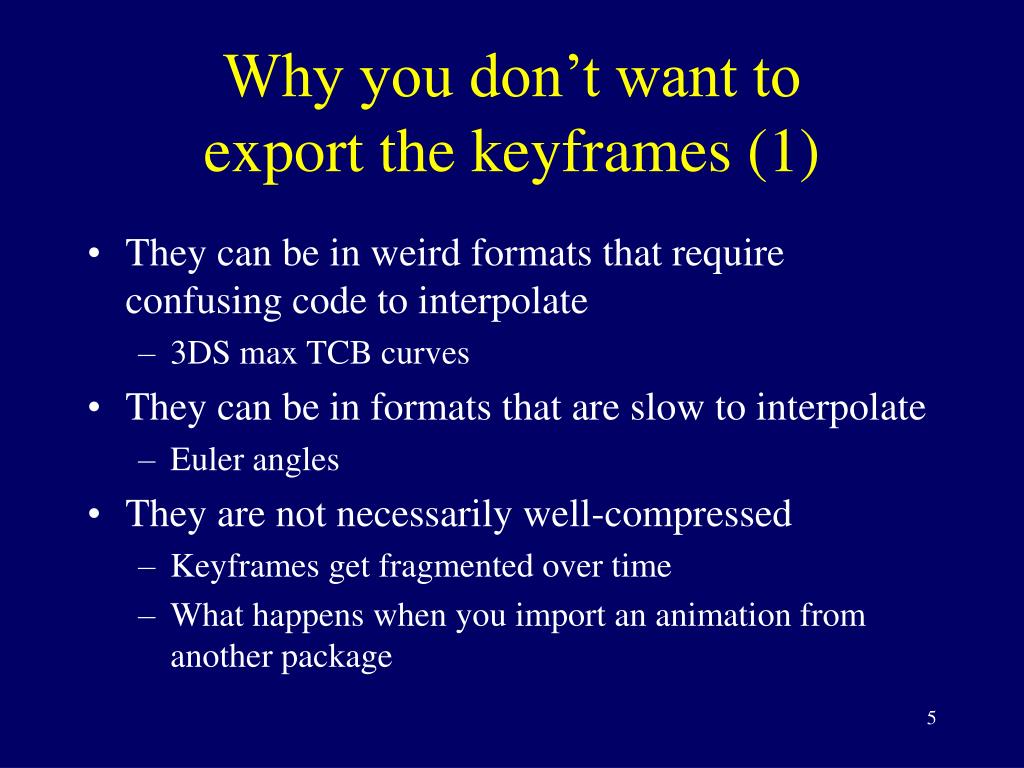

5. Why you don’t want toexport the keyframes (1) • They can be in weird formats that require confusing code to interpolate • 3DS max TCB curves • They can be in formats that are slow to interpolate • Euler angles • They are not necessarily well-compressed • Keyframes get fragmented over time • What happens when you import an animation from another package

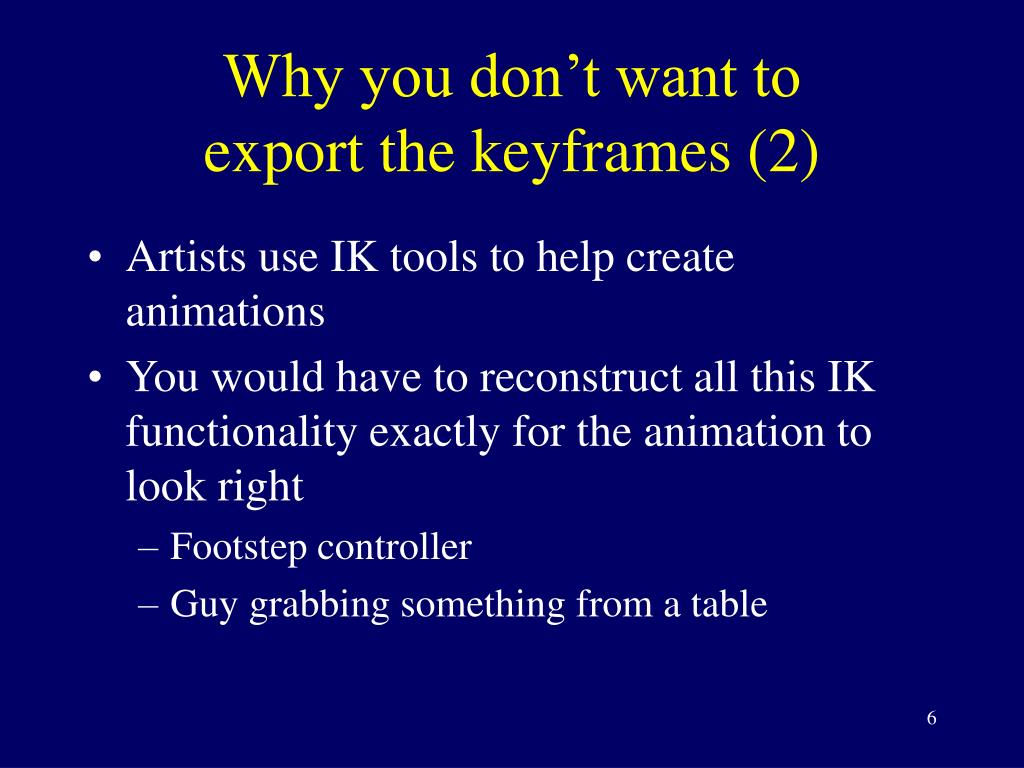

6. Why you don’t want toexport the keyframes (2) • Artists use IK tools to help create animations • You would have to reconstruct all this IK functionality exactly for the animation to look right • Footstep controller • Guy grabbing something from a table

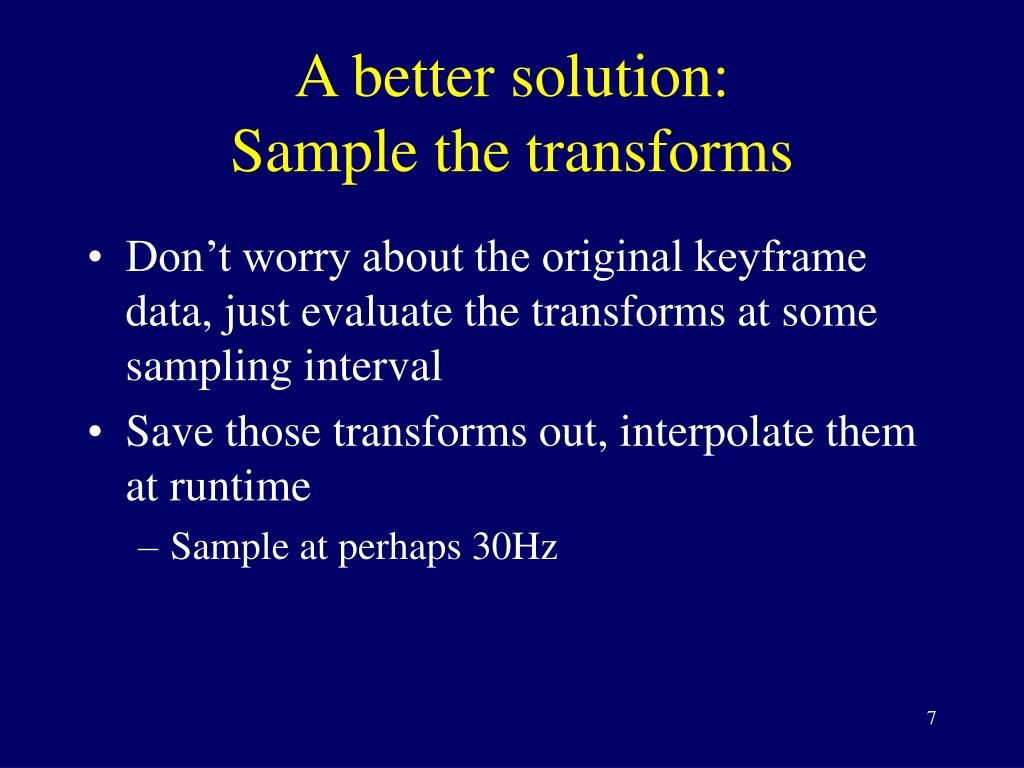

7. A better solution:Sample the transforms • Don’t worry about the original keyframe data, just evaluate the transforms at some sampling interval • Save those transforms out, interpolate them at runtime • Sample at perhaps 30Hz

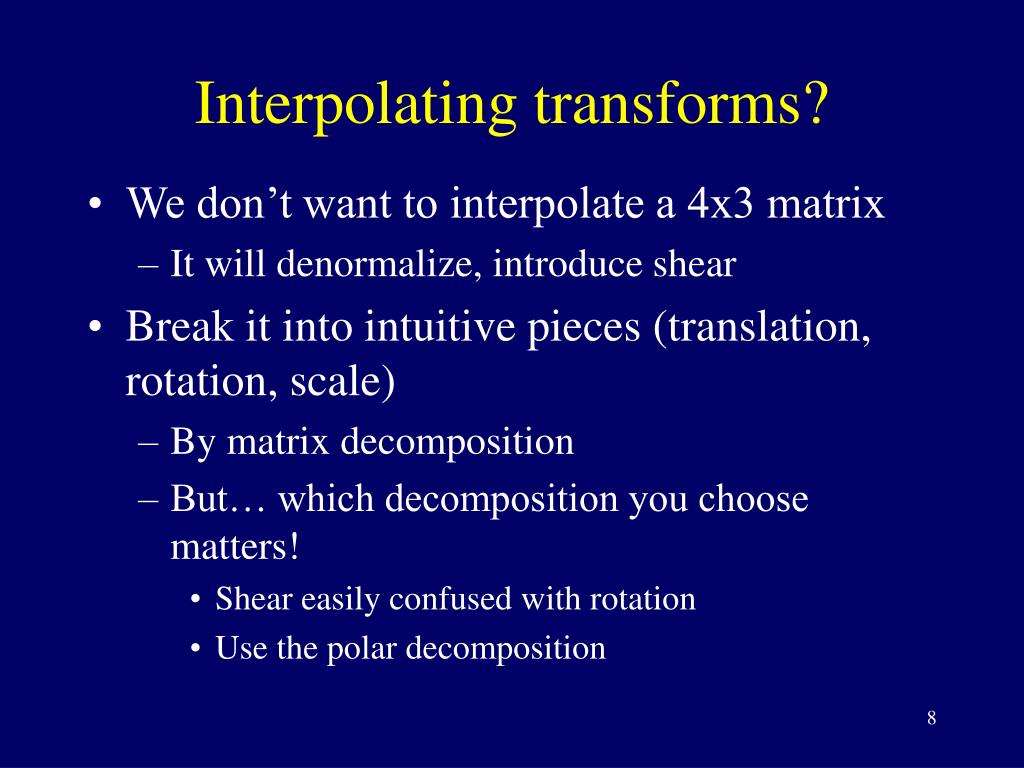

8. Interpolating transforms? • We don’t want to interpolate a 4x3 matrix • It will denormalize, introduce shear • Break it into intuitive pieces (translation, rotation, scale) • By matrix decomposition • But… which decomposition you choose matters! • Shear easily confused with rotation • Use the polar decomposition

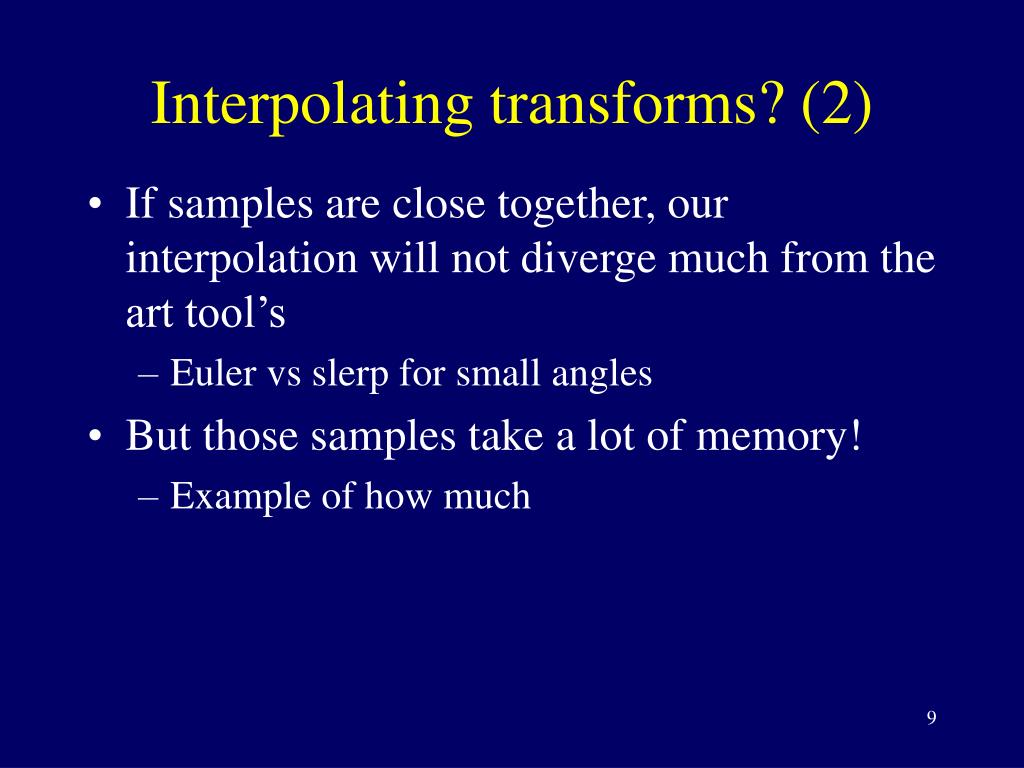

9. Interpolating transforms? (2) • If samples are close together, our interpolation will not diverge much from the art tool’s • Euler vs slerp for small angles • But those samples take a lot of memory! • Example of how much

10. Want to compress those samples • Hopefully at export time (small file size) • How to compress? • Fourier / Wavelet compression • Curve fitting • Performance ramifications of each method

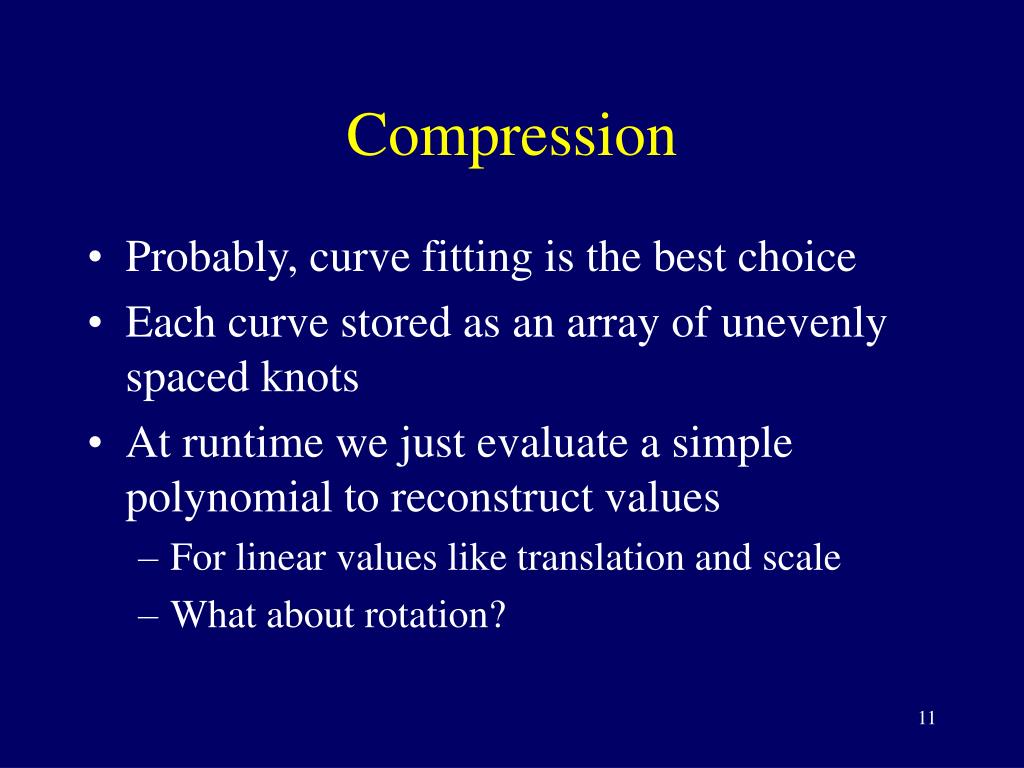

11. Compression • Probably, curve fitting is the best choice • Each curve stored as an array of unevenly spaced knots • At runtime we just evaluate a simple polynomial to reconstruct values • For linear values like translation and scale • What about rotation?

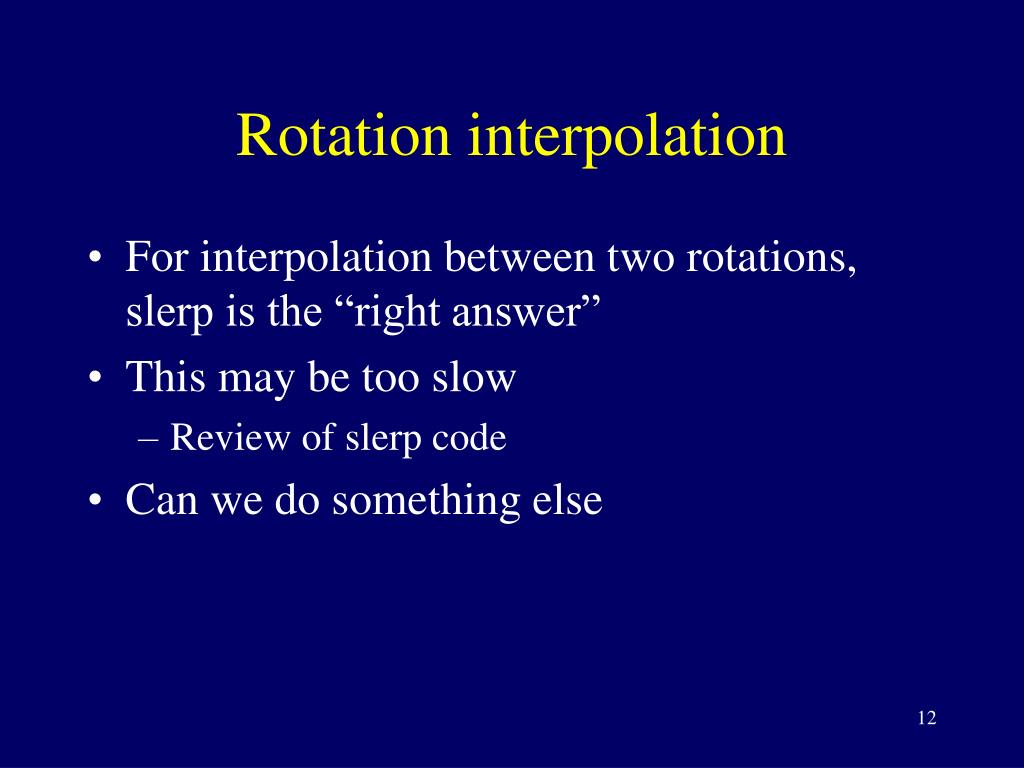

12. Rotation interpolation • For interpolation between two rotations, slerp is the “right answer” • This may be too slow • Review of slerp code • Can we do something else

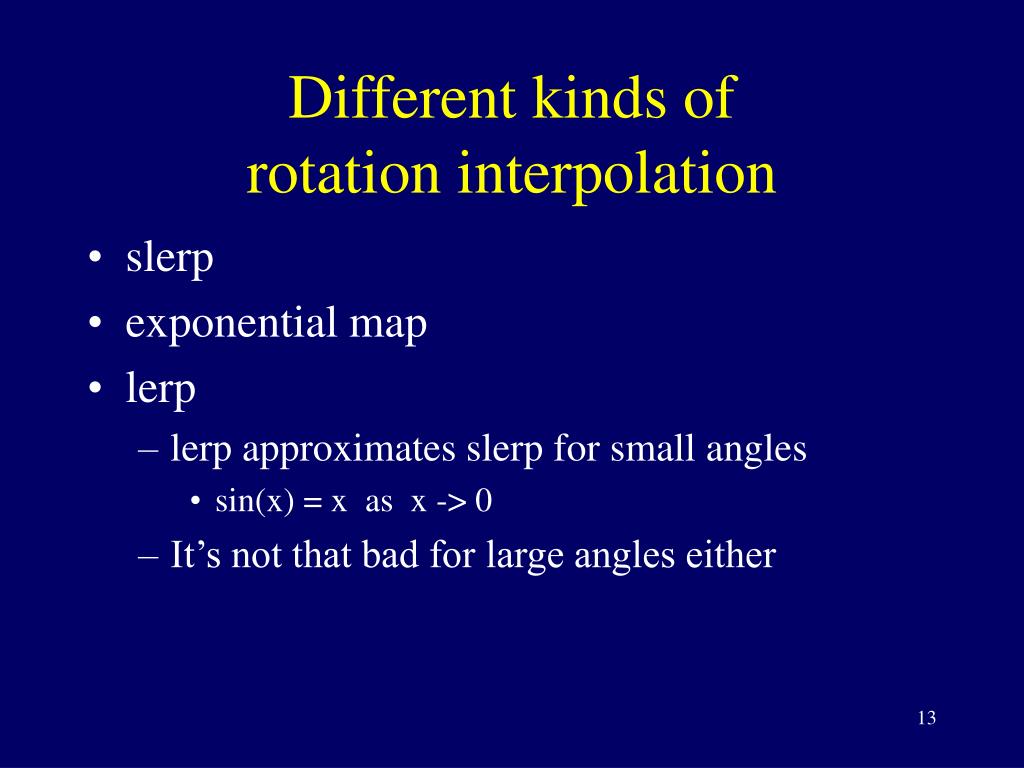

13. Different kinds of rotation interpolation • slerp • exponential map • lerp • lerp approximates slerp for small angles • sin(x) = x as x -> 0 • It’s not that bad for large angles either

14. Re-derivation of slerpin 2D • Did this once before, but will do it again quickly, as an introduction to the lerp derivation

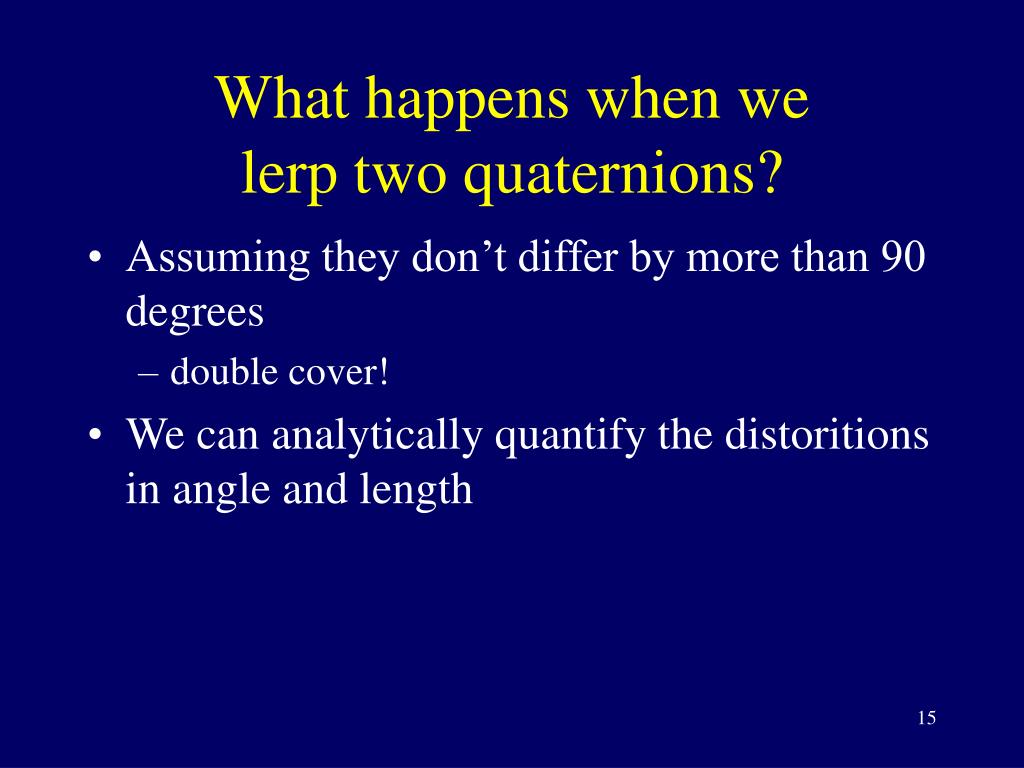

15. What happens when welerp two quaternions? • Assuming they don’t differ by more than 90 degrees • double cover! • We can analytically quantify the distoritions in angle and length

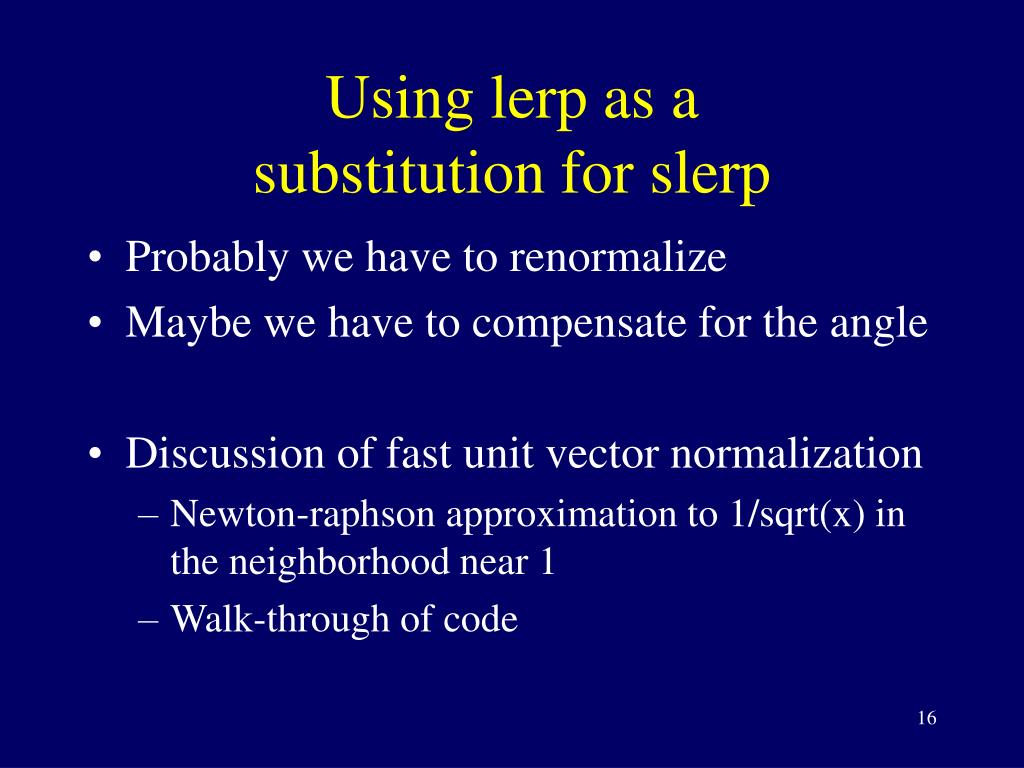

16. Using lerp as asubstitution for slerp • Probably we have to renormalize • Maybe we have to compensate for the angle • Discussion of fast unit vector normalization • Newton-raphson approximation to 1/sqrt(x) in the neighborhood near 1 • Walk-through of code

17. How to compensate forthe angle • Discussion of approximating the inverse of the angular distortion

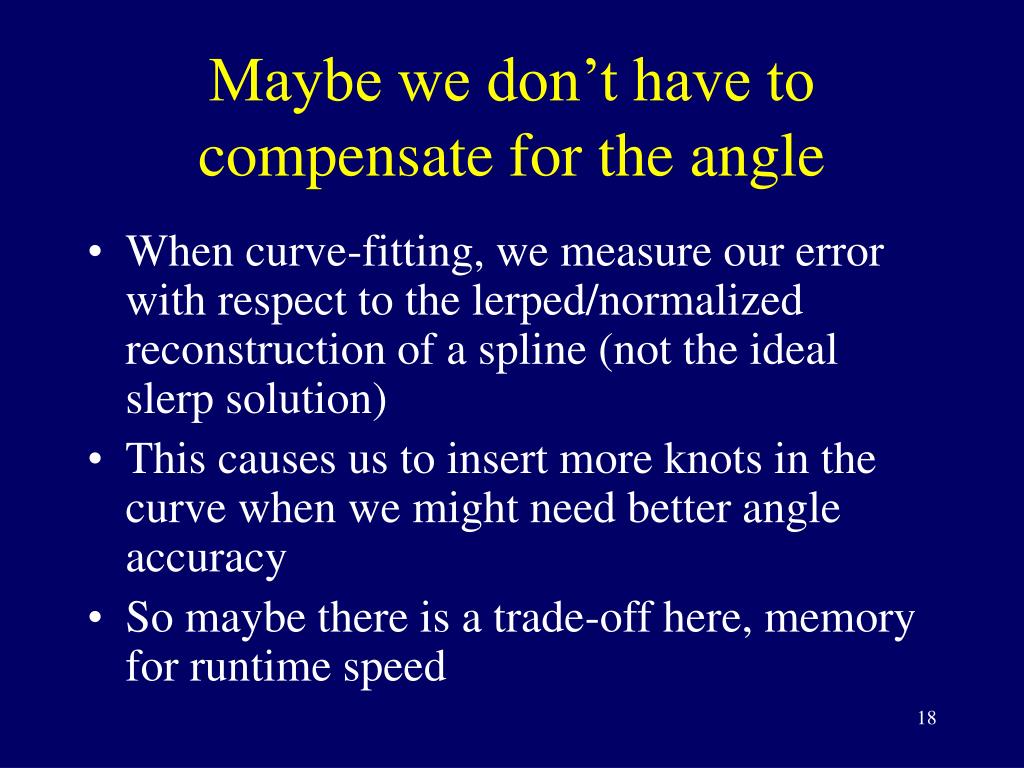

18. Maybe we don’t have to compensate for the angle • When curve-fitting, we measure our error with respect to the lerped/normalized reconstruction of a spline (not the ideal slerp solution) • This causes us to insert more knots in the curve when we might need better angle accuracy • So maybe there is a trade-off here, memory for runtime speed

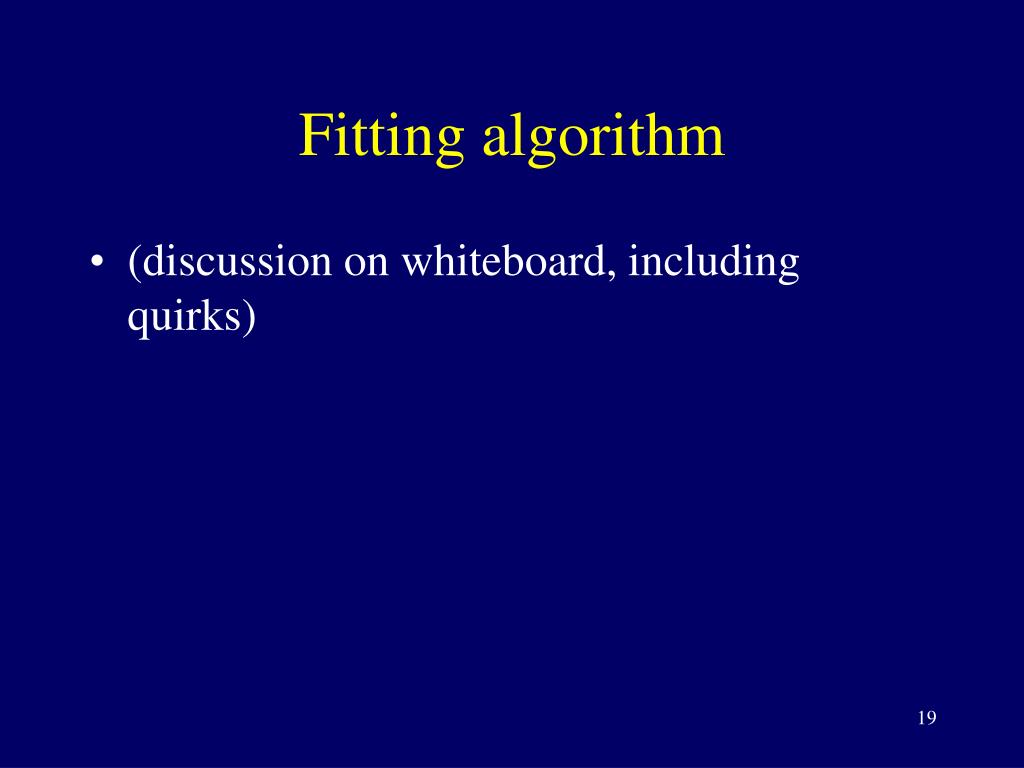

19. Fitting algorithm • (discussion on whiteboard, including quirks)

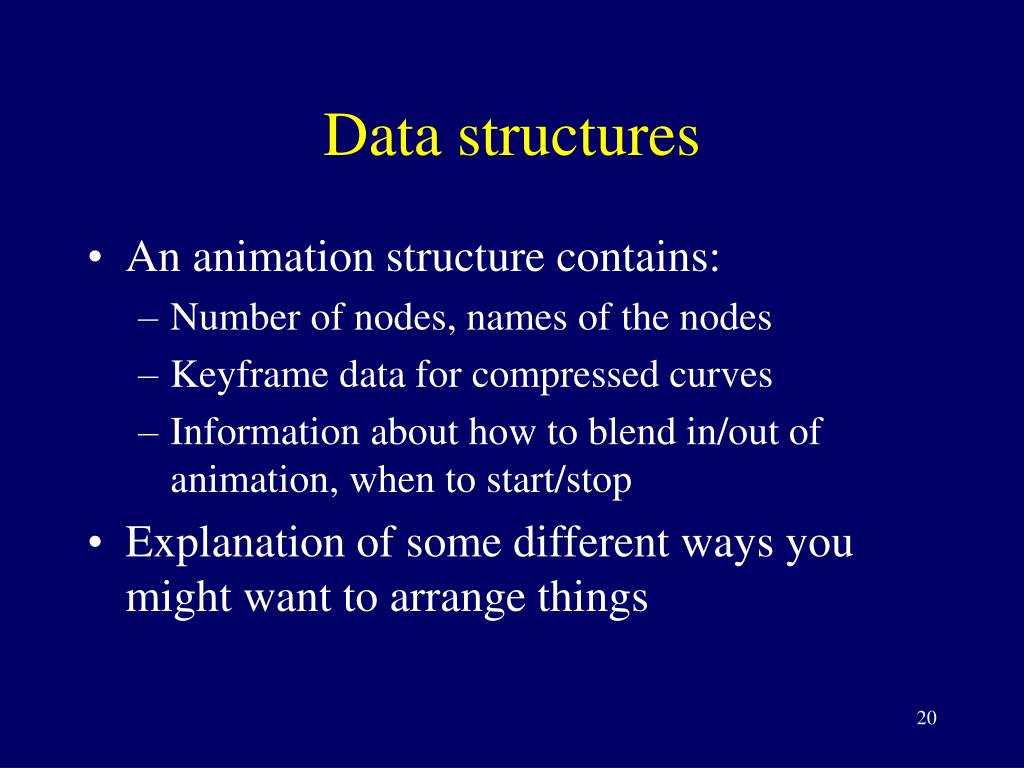

20. Data structures • An animation structure contains: • Number of nodes, names of the nodes • Keyframe data for compressed curves • Information about how to blend in/out of animation, when to start/stop • Explanation of some different ways you might want to arrange things

21. Data structures • A mesh contains: • Number of nodes, names of the nodes • Vertex data • Vertex weight information

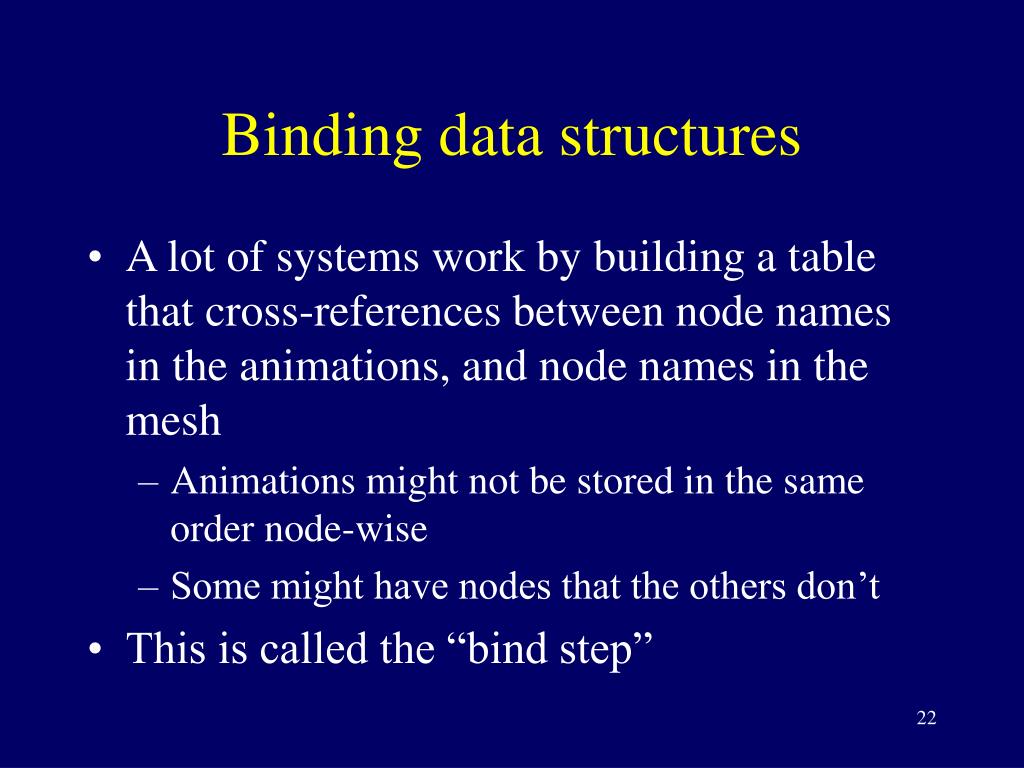

22. Binding data structures • A lot of systems work by building a table that cross-references between node names in the animations, and node names in the mesh • Animations might not be stored in the same order node-wise • Some might have nodes that the others don’t • This is called the “bind step”

23. I don’t like the bind step • It means that you can’t have animation playback without a mesh attached • I want animations to be meaningful without meshes yet, i.e. I want to be able to play them back and mix them • Though there are bone length assumptions built into the animations • Lately I rewrote my animation system to not use a bind step

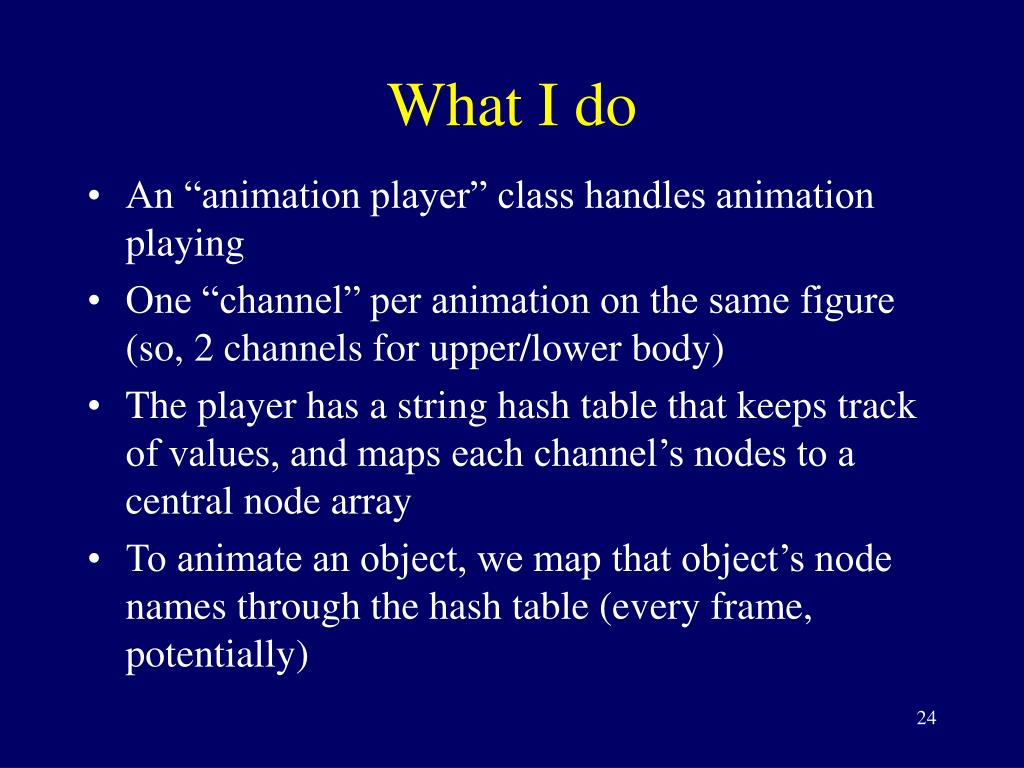

24. What I do • An “animation player” class handles animation playing • One “channel” per animation on the same figure (so, 2 channels for upper/lower body) • The player has a string hash table that keeps track of values, and maps each channel’s nodes to a central node array • To animate an object, we map that object’s node names through the hash table (every frame, potentially)

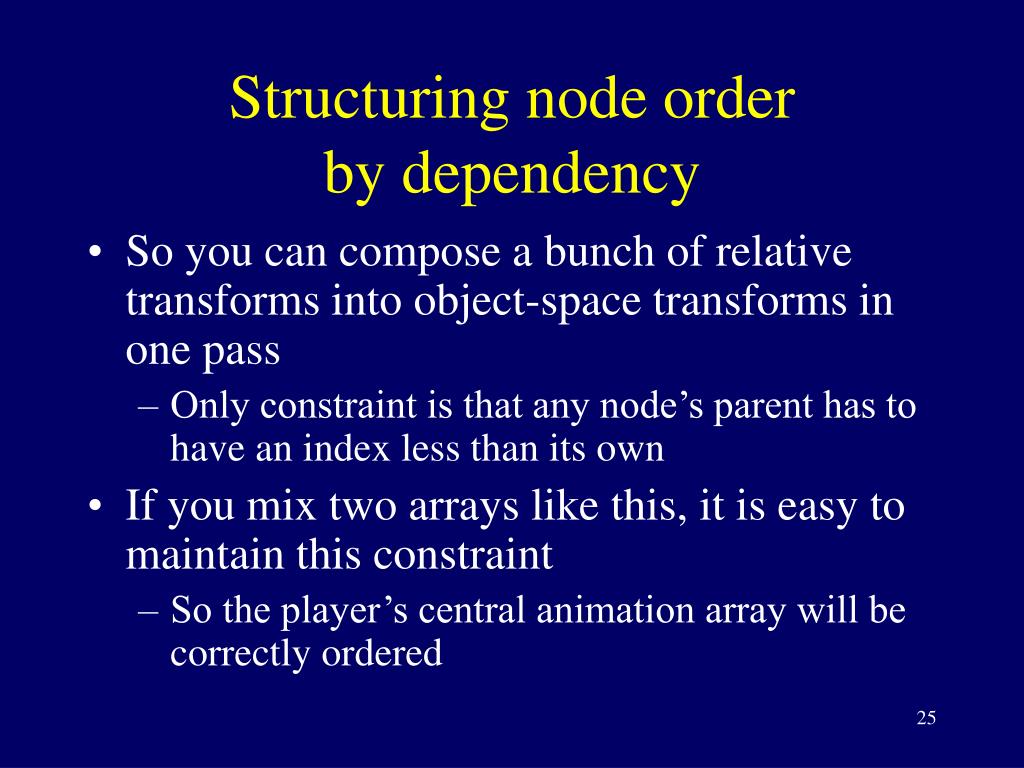

25. Structuring node orderby dependency • So you can compose a bunch of relative transforms into object-space transforms in one pass • Only constraint is that any node’s parent has to have an index less than its own • If you mix two arrays like this, it is easy to maintain this constraint • So the player’s central animation array will be correctly ordered

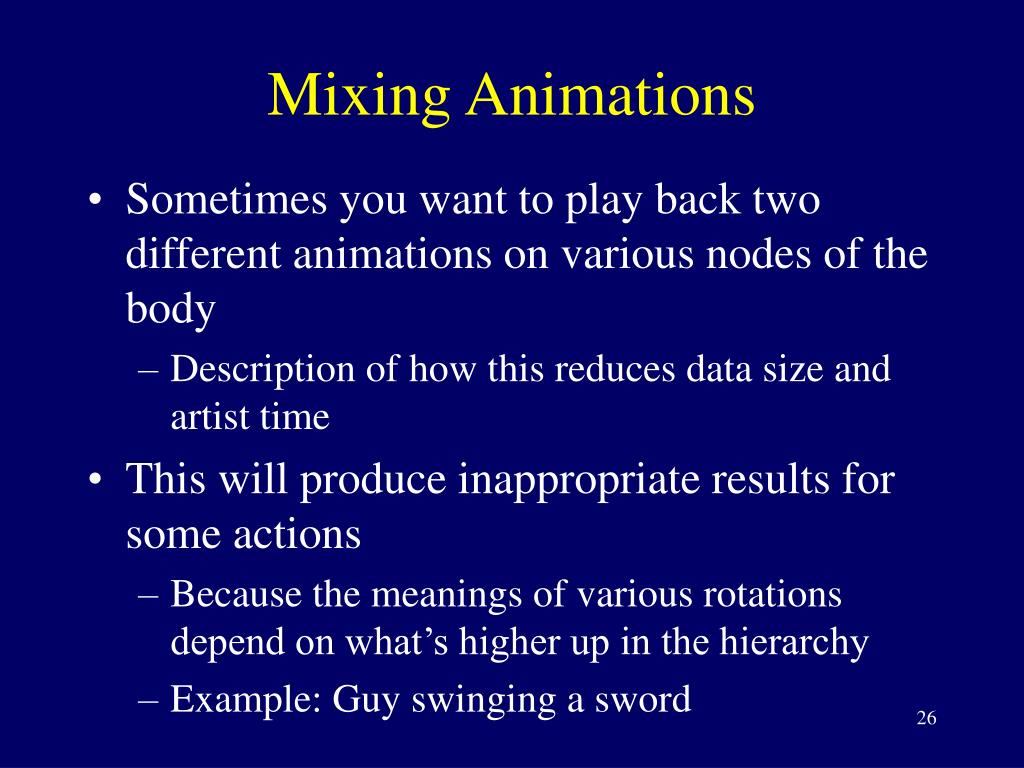

26. Mixing Animations • Sometimes you want to play back two different animations on various nodes of the body • Description of how this reduces data size and artist time • This will produce inappropriate results for some actions • Because the meanings of various rotations depend on what’s higher up in the hierarchy • Example: Guy swinging a sword

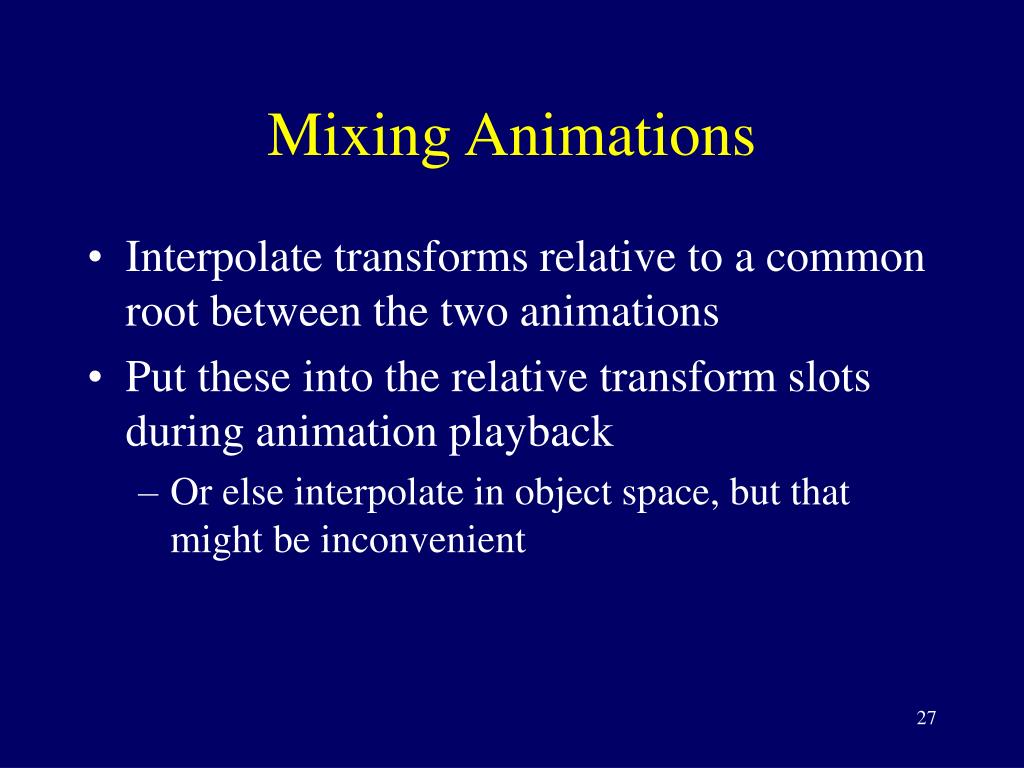

27. Mixing Animations • Interpolate transforms relative to a common root between the two animations • Put these into the relative transform slots during animation playback • Or else interpolate in object space, but that might be inconvenient

28. Brief discussion: quaternion splines • Very hard to precompute, not cheap to evaluate either • Though Casey says you can do a de Casteljau-like formulation, using slerp instead of lerp • I am not sure if this is the “right answer” but it seems to work in many cases • So if lerp is not good enough, think about using this layered slerp technique

29. Mixing IK withplaying animations • Evaluate the animations first • Solve IK given those object-space coordinates • Mix the IK back in as though it were an animation channel

30. Putting sound effectsin animation data • Only robust way to generate sound cues at appropriate times! • Put tag names in the animation; these tags are later converted to sound effect names • based on material contacted, etc… • (example of footsteps)

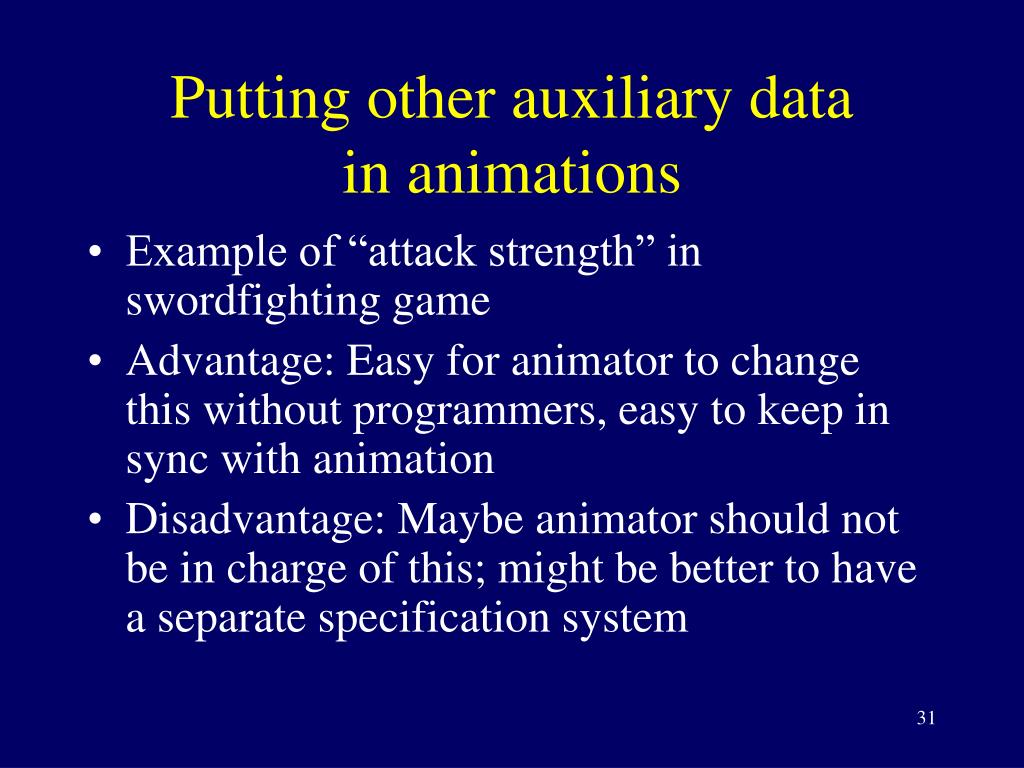

31. Putting other auxiliary datain animations • Example of “attack strength” in swordfighting game • Advantage: Easy for animator to change this without programmers, easy to keep in sync with animation • Disadvantage: Maybe animator should not be in charge of this; might be better to have a separate specification system

32. Instead of IKfor aiming things… • Blending between pre-generated animations • (Example of aiming a gun) • Can do an iterated search through the animation space until you find something “close enough”

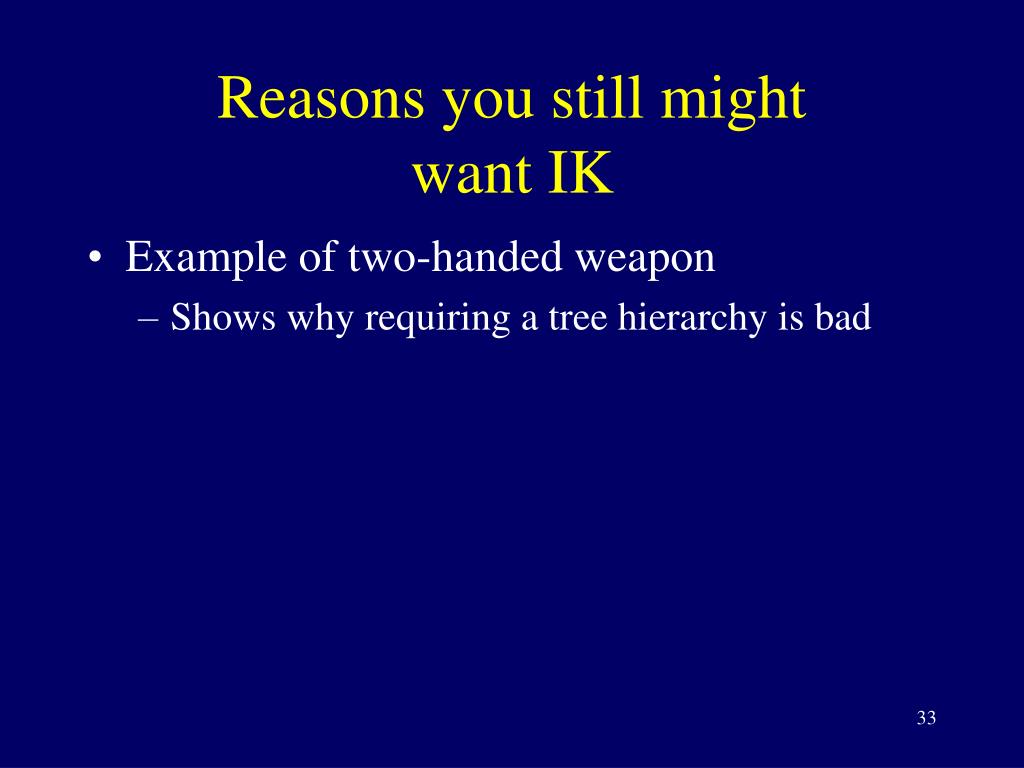

33. Reasons you still mightwant IK • Example of two-handed weapon • Shows why requiring a tree hierarchy is bad

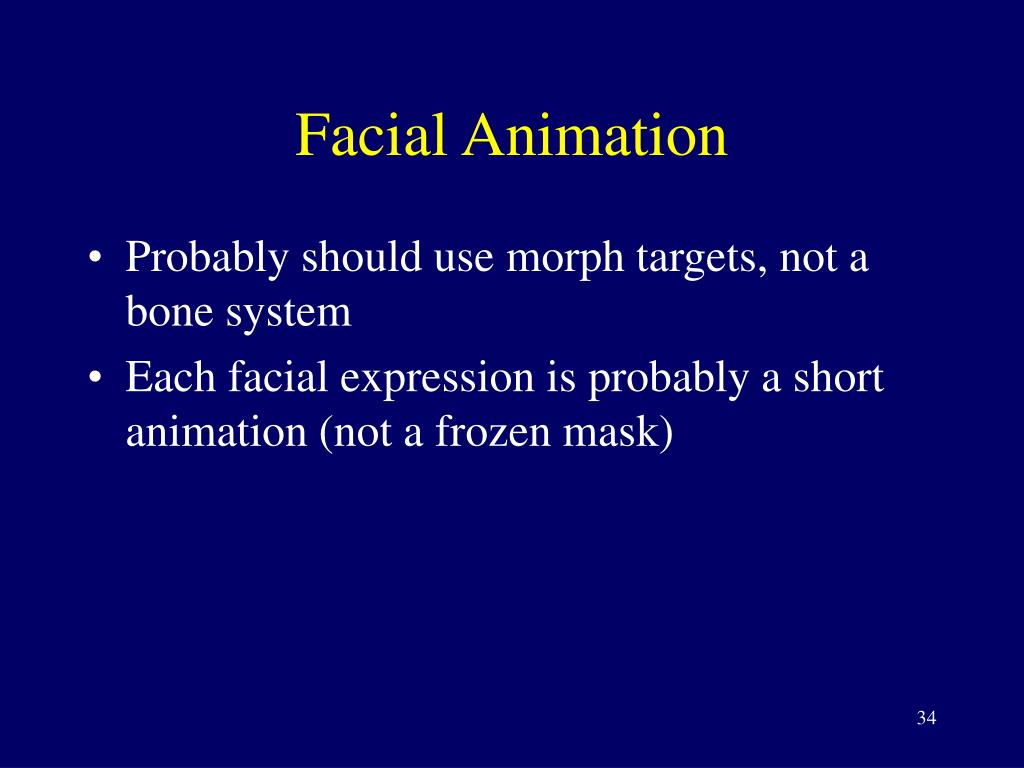

34. Facial Animation • Probably should use morph targets, not a bone system • Each facial expression is probably a short animation (not a frozen mask)

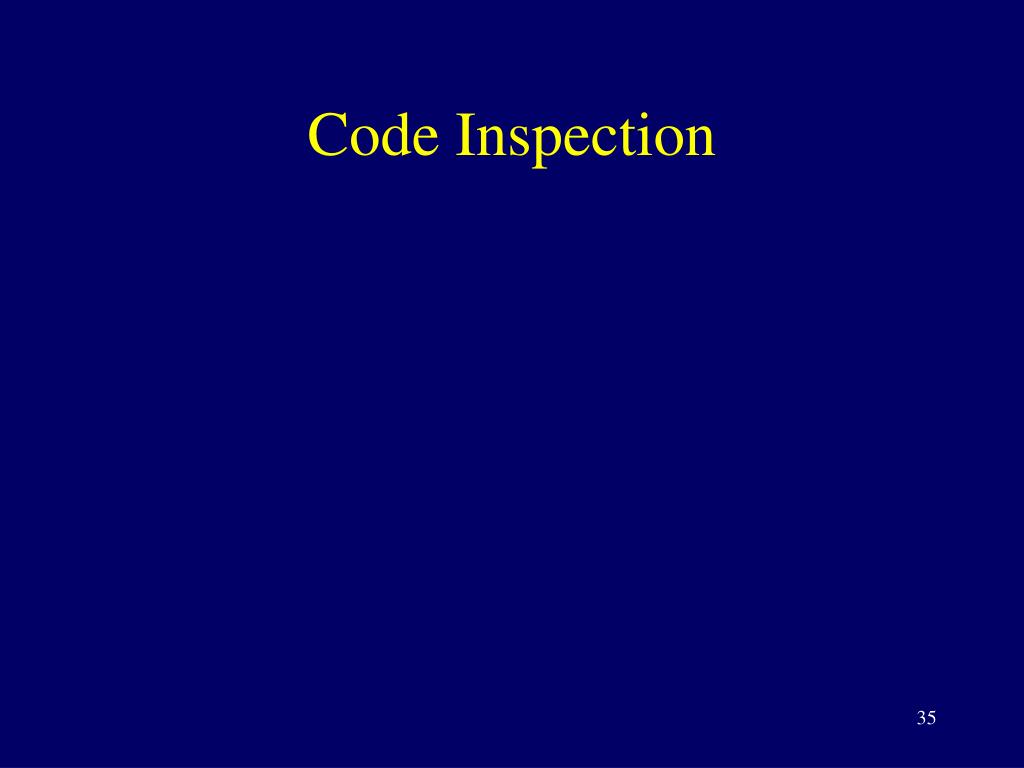

35. Code Inspection
