Structural Analysis of Forces on Timber Beams

Learn about equilibrium conditions, force analysis, and moment calculations on timber beams. Clear explanations and examples provided for better understanding.

fulton-howard
Download Presentation

Structural Analysis of Forces on Timber Beams

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

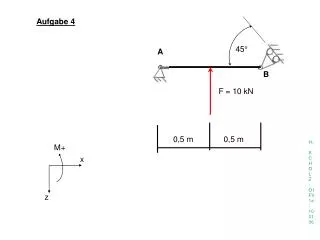

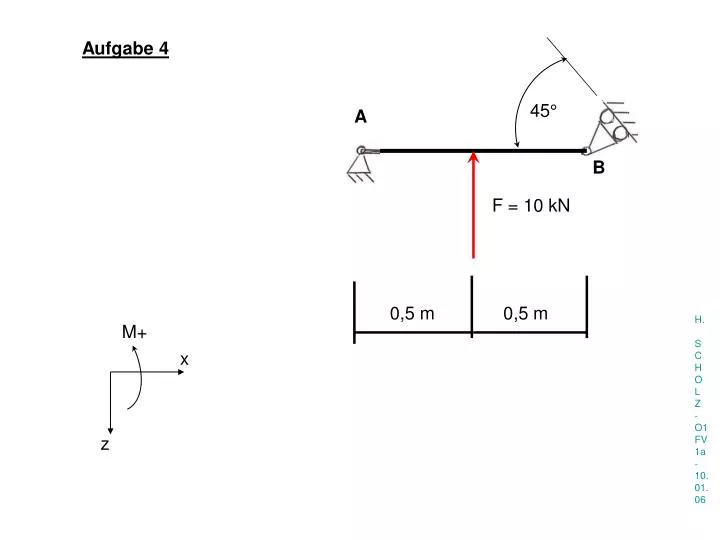

  1. Aufgabe 4 45° A B F = 10 kN 0,5 m 0,5 m H. S C H O L Z - O1 FV 1a - 10. 01. 06 M+ x z

  2. Freischneiden: FB FBZ A 45° FAX FAZ FBX B F = 10 kN H. S C H O L Z - O1 FV 1a - 10. 01. 06 0,5 m 0,5 m M+ x z

  3. FB FBZ FAX 45° FAZ FBX F = 10 kN 0,5 m 0,5 m M+ x A B z Gleichgewichtsbedingungen I. Σ FX = 0 = FAX - FBX II. Σ FZ = 0 = FAZ – F + FBZ H. S C H O L Z - O1 FV 1a - 10. 01. 06 III. Σ M(A) = 0 = 10kN * 0,5m – FBZ * 1m [FBX kann kein Moment erzeugen]

  4. FB FBZ FAX 45° FAZ FBX F = 10 kN 0,5 m 0,5 m A I. Σ FX = 0 = FAX - FBX II. Σ FZ = 0 = FAZ – F +FBZ III.Σ M(A) = 0 = 10kN * 0,5m – FBZ * 1m B NR für FB sin α = a / c ; cos α = b / c ; sin 45° = cos 45° = √2 / 2 = 0,7071 a = b = √2 / 2 * c H. S C H O L Z - O1 FV 1a - 10. 01. 06 →FBX = FBZ = √2 / 2 *FB

  5. FB FBZ FAX 45° FAZ FBX F = 10 kN 0,5 m 0,5 m A I. Σ FX = 0 = FAX - FBX II. Σ FZ = 0 = FAZ – F +FBZ III.Σ M(A) = 0 = 10kN * 0,5m – FBZ * 1m B I. FAX = FBX FAX = √2 / 2 * FB II. FAZ = 10 kN - √2 / 2 * FB III. 10kN * 0,5m = √2 / 2 * FB * 1m H. S C H O L Z - O1 FV 1a - 10. 01. 06 5kNm = √2 / 2 * m * FB 5kN = √2 / 2 * FB FB = 5 * 2 / √2 kN = 10 / √2 kN = 7,071 kN

  6. FB FBZ FAX 45° FAZ FBX F = 10 kN 0,5 m 0,5 m A I. Σ FX = 0 = FAX - FBX II. Σ FZ = 0 = FAZ – F +FBZ III.Σ M(A) = 0 = 10kN * 0,5m – FBZ * 1m B III. → II. FAZ = 10 kN - √2 / 2 * FB FAZ = 10 kN - 5 kN FAZ = 5 kN H. S C H O L Z - O1 FV 1a - 10. 01. 06 III. → I. FAX = (√2 / 2) * (10 / √2) kN FAX = 5 kN

  7. FB = 7,071 kN FBZ FAX = 5 kN A 45° FAZ = 5 kN FBX B F = 10 kN H. S C H O L Z - O1 FV 1a - 10. 01. 06 0,5 m 0,5 m M+ x z

  8. Zusammenstellung: FB = 7,071 kN FBZ FAX = 5 kN 45° FAZ = 5 kN FBX A B F = 10 kN 0,5 m 0,5 m I. Σ FX = 0 = FAX - FBX II. Σ FZ = 0 = FAZ – F +FBZ III.Σ M(A) = 0 = 10kN * 0,5m – FBZ * 1m NR für FB sin α = a / c cos α = b / c sin 45° = cos 45° = √2 / 2 = 0,7071 a = b = √2 / 2 * c I. FAX = FBX FAX = √2 / 2 * FB II. FAZ = 10 kN - √2 / 2 * FB →FBX = FBZ = √2 / 2 * FB III. 10kN * 0,5m = √2 / 2 FB * 1m 5kNm = √2 / 2 * m * FB H. S C H O L Z - O1 FV 1a - 10. 01. 06 5kN = √2 / 2 * FB FB = 5 * 2 / √2 kN = 10 / √2 kN = 7,071 kN M+ III. → II. FAZ = 10 kN – 5 kN x FAZ = 5 kN III. → I. FAX = (√2 / 2) * (10 / √2) kN z FAX = 5 kN
