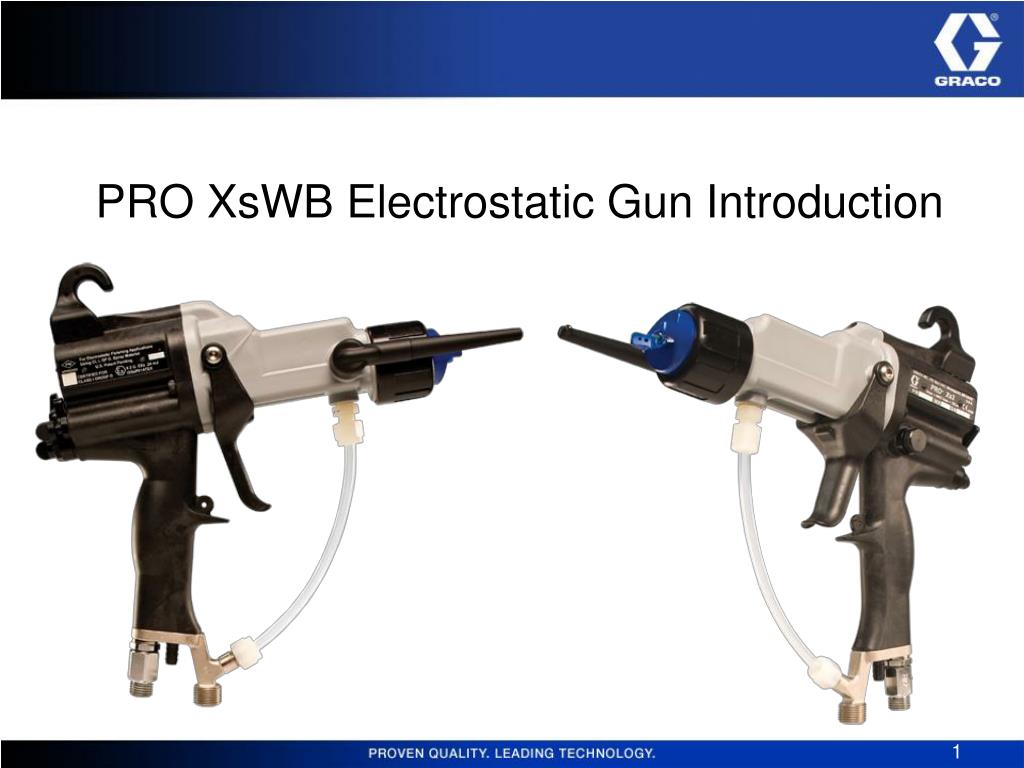

PRO XsWB Electrostatic Gun Introduction

Loading in 2 Seconds...

play fullscreen
1 / 16

PRO XsWB Electrostatic Gun Introduction - PowerPoint PPT Presentation


  • 148 Views
  • Uploaded on

PRO XsWB Electrostatic Gun Introduction. Project Scope. Develop a new external charge waterborne electrostatic gun for air spray applications in a circulation system Upgrade components on the Pro Xs electrostatic gun line Air caps Round spray nozzles Air hoses Upgrade components.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'PRO XsWB Electrostatic Gun Introduction' - fuller


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
project scope
Project Scope
  • Develop a new external charge waterborne electrostatic gun for air spray applications in a circulation system
  • Upgrade components on the Pro Xs electrostatic gun line
    • Air caps
    • Round spray nozzles
    • Air hoses
    • Upgrade components
waterborne electrostatic gun

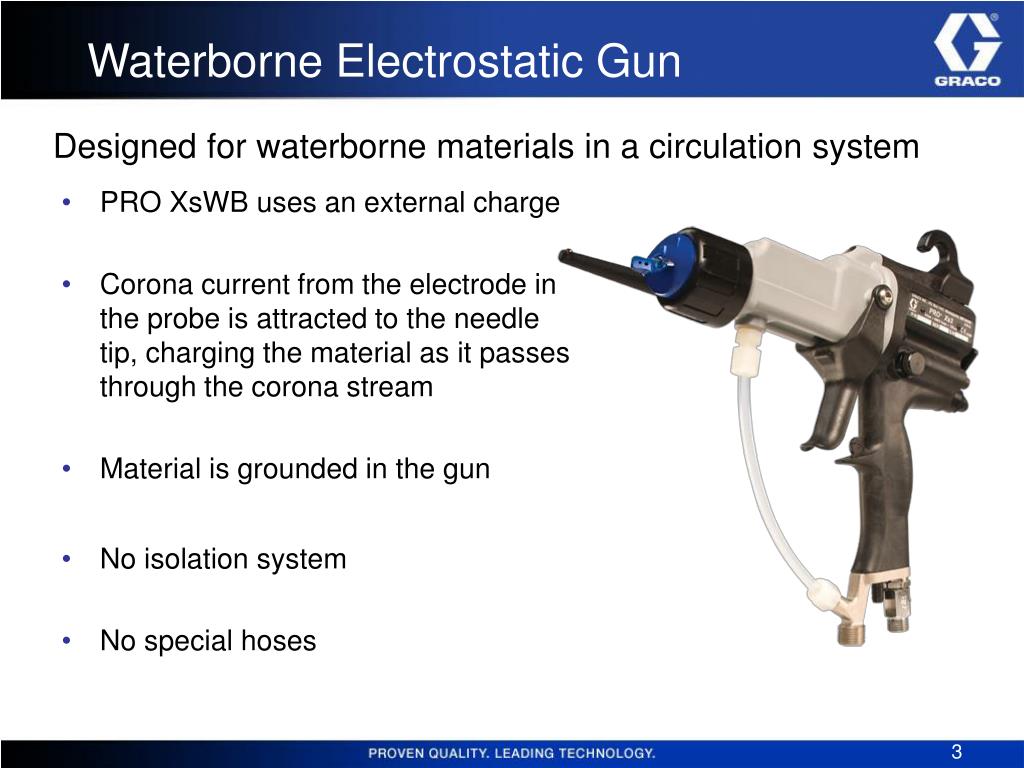

Waterborne Electrostatic Gun

Designed for waterborne materials in a circulation system

  • PRO XsWB uses an external charge
  • Corona current from the electrode in the probe is attracted to the needle tip, charging the material as it passes through the corona stream
  • Material is grounded in the gun
  • No isolation system
  • No special hoses
features and benefits
Features and Benefits
  • Reduces operating costs with waterborne materials in a circulation system
    • Better transfer efficiency then a conventional air spray gun
    • No maintenance or cost of an isolation system
  • An air powered 60 kV gun for easy installation and service
  • Available with Smart Display for monitoring voltage
  • External charging probe is quick release for easy changeout
  • Recommended for use with select high conductivity materials

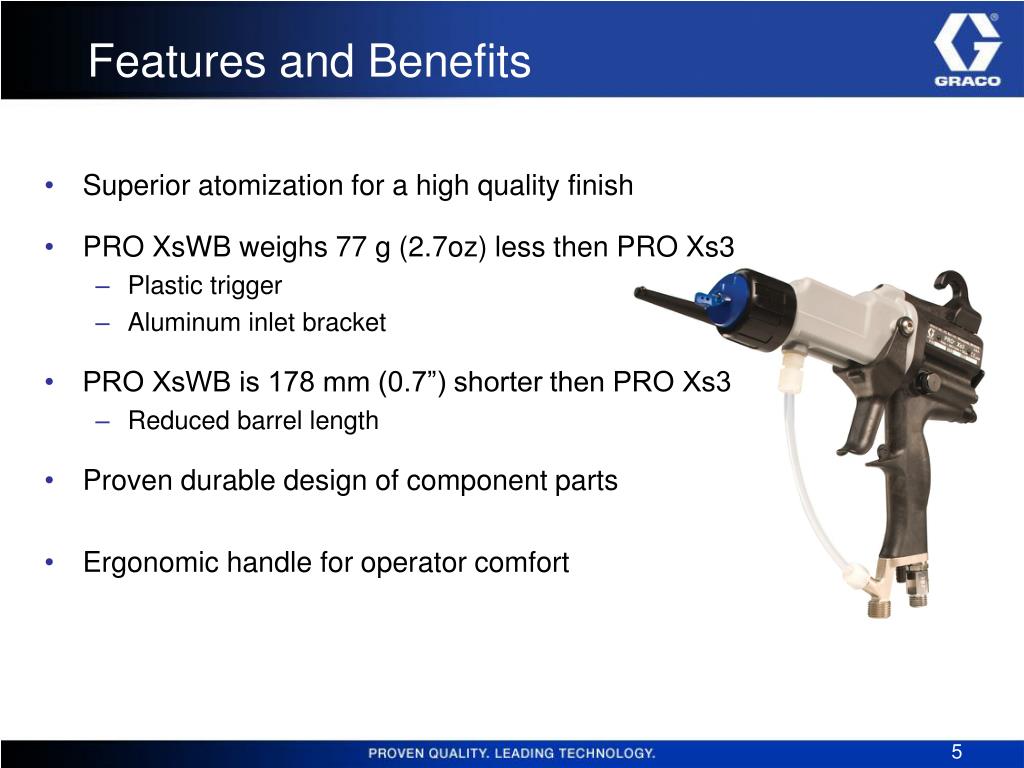

features and benefits5
Features and Benefits
  • Superior atomization for a high quality finish
  • PRO XsWB weighs 77 g (2.7oz) less then PRO Xs3
    • Plastic trigger
    • Aluminum inlet bracket
  • PRO XsWB is 178 mm (0.7”) shorter then PRO Xs3
    • Reduced barrel length
  • Proven durable design of component parts
  • Ergonomic handle for operator comfort
features
Features

External Charging Probe

Quick release and easy clean

Internal Power Supply

Air powered for simple gun installation

Indexing Aircap

Designed for optimal spraying

Smart Display

Readout at the gun for quick indication of voltage and current

Ergonomic Trigger

Comfortable for operator grip

Air Inlet Swivel

Integrated for maximum flexibility

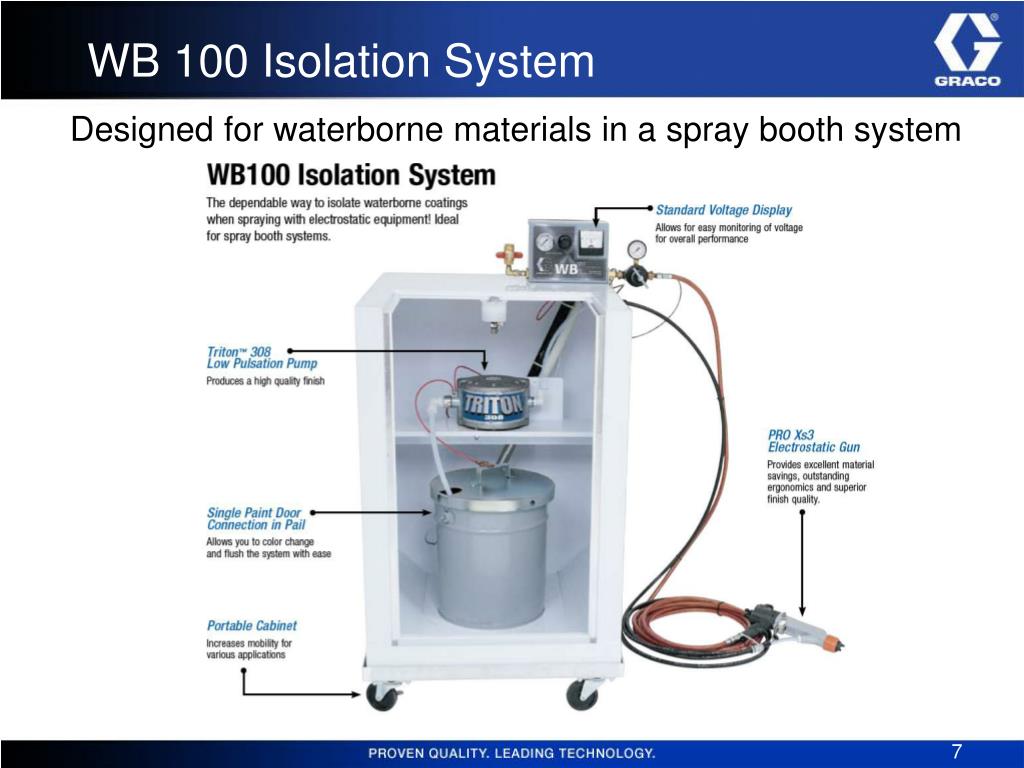

wb 100 isolation system
WB 100 Isolation System

Designed for waterborne materials in a spray booth system

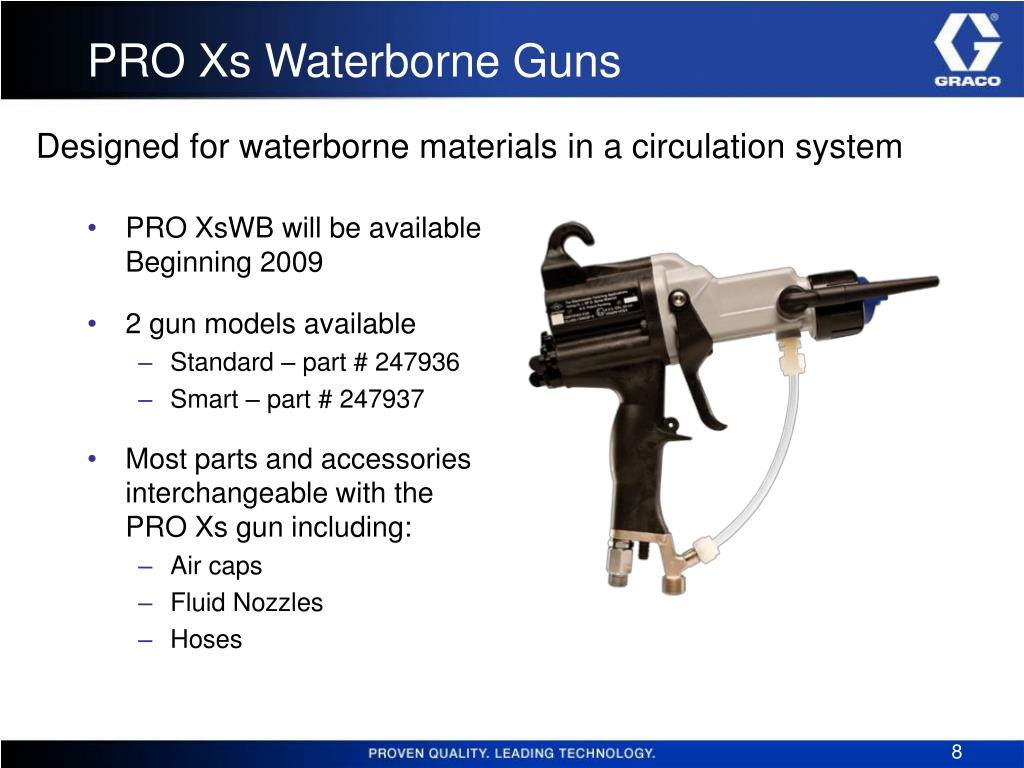

pro xs waterborne guns
PRO Xs Waterborne Guns

Designed for waterborne materials in a circulation system

  • PRO XsWB will be available Beginning 2009
  • 2 gun models available
    • Standard – part # 247936
    • Smart – part # 247937
  • Most parts and accessories interchangeable with the PRO Xs gun including:
    • Air caps
    • Fluid Nozzles
    • Hoses
upgrade components
Upgrade Components

Standard

  • Air caps
  • Electrostatic on/off control
  • Air inlet insert

Options

  • Round spray nozzle
  • Air Hose
  • Trigger
  • Inlet bracket

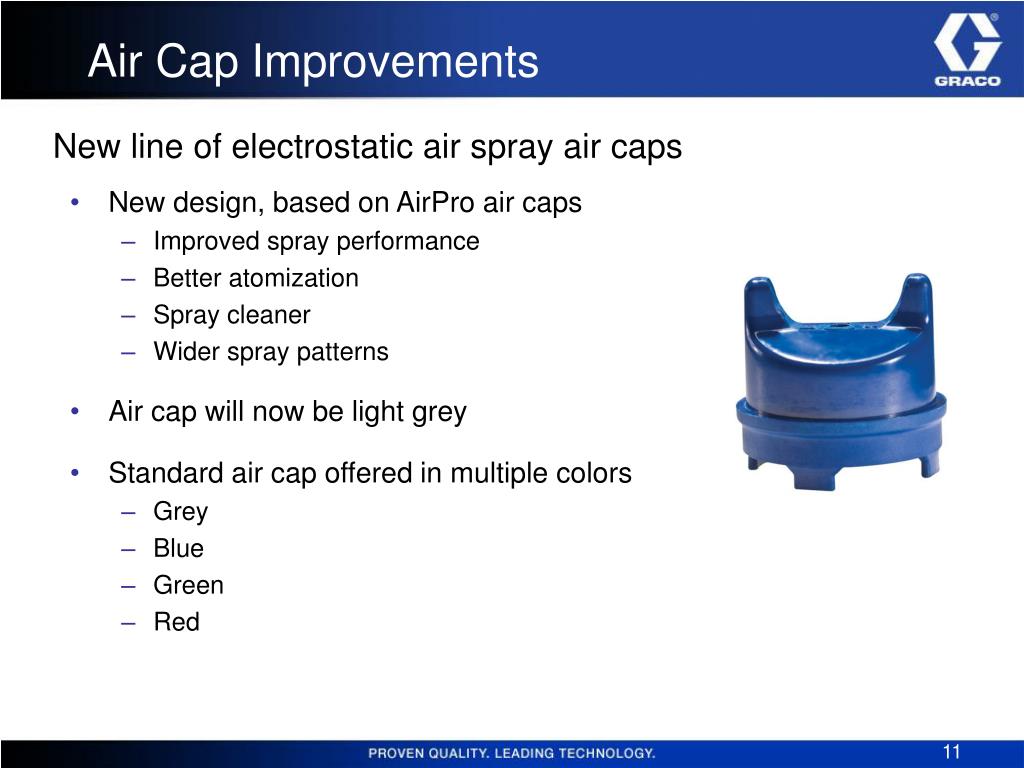

air cap improvements
Air Cap Improvements

New line of electrostatic air spray air caps

  • New design, based on AirPro air caps
    • Improved spray performance
    • Better atomization
    • Spray cleaner
    • Wider spray patterns
  • Air cap will now be light grey
  • Standard air cap offered in multiple colors
    • Grey
    • Blue
    • Green
    • Red

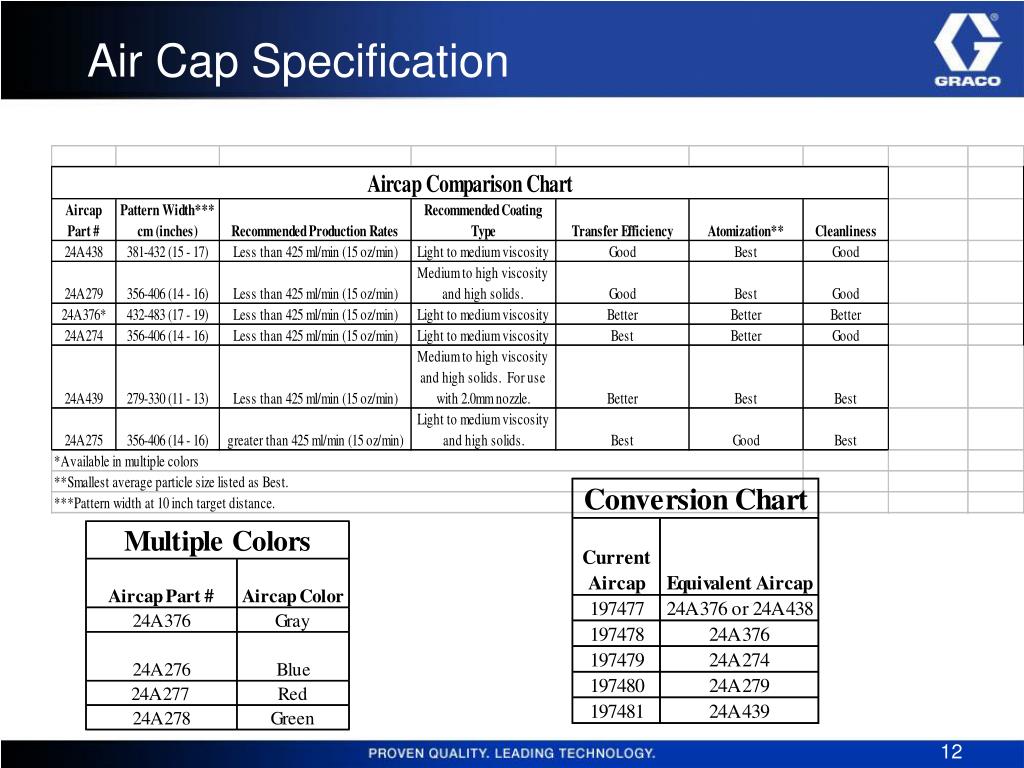

round spray nozzle
Round Spray Nozzle
  • Improved spray quality
    • Atomization
    • Pattern consistency
  • Spray pattern is “bell” shaped
  • Slower velocity spray
  • Pattern size is 15 up to 30 cm
  • Nozzle designed to adjust pattern size

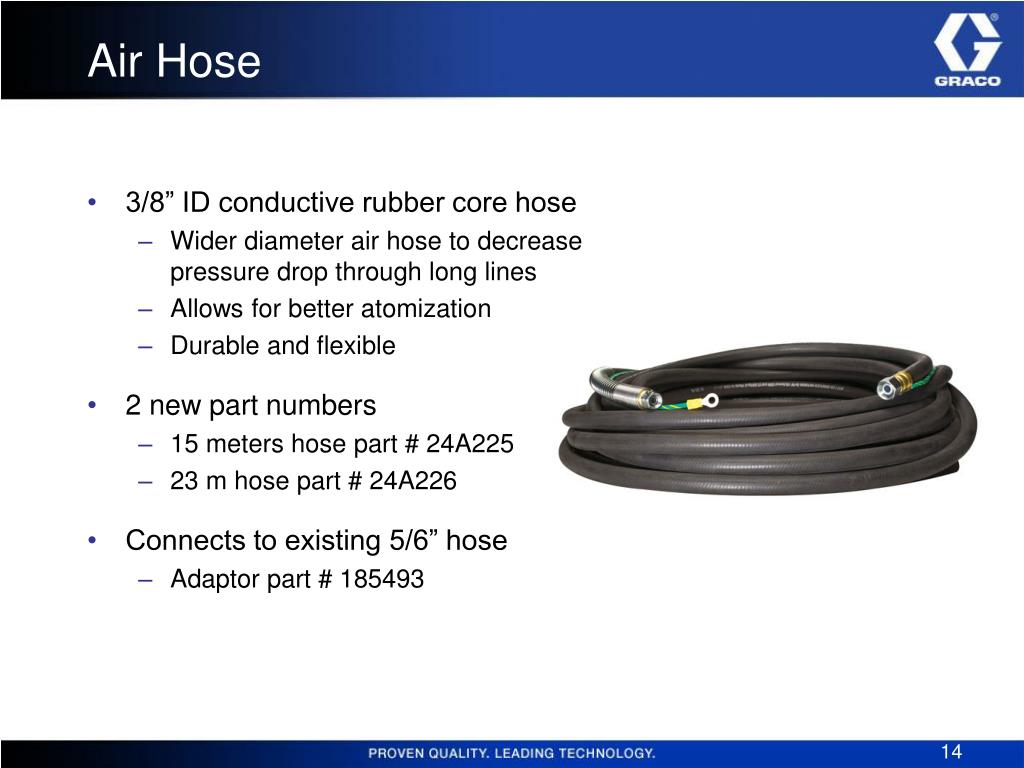

air hose
Air Hose
  • 3/8” ID conductive rubber core hose
    • Wider diameter air hose to decrease pressure drop through long lines
    • Allows for better atomization
    • Durable and flexible
  • 2 new part numbers
    • 15 meters hose part # 24A225
    • 23 m hose part # 24A226
  • Connects to existing 5/6” hose
    • Adaptor part # 185493

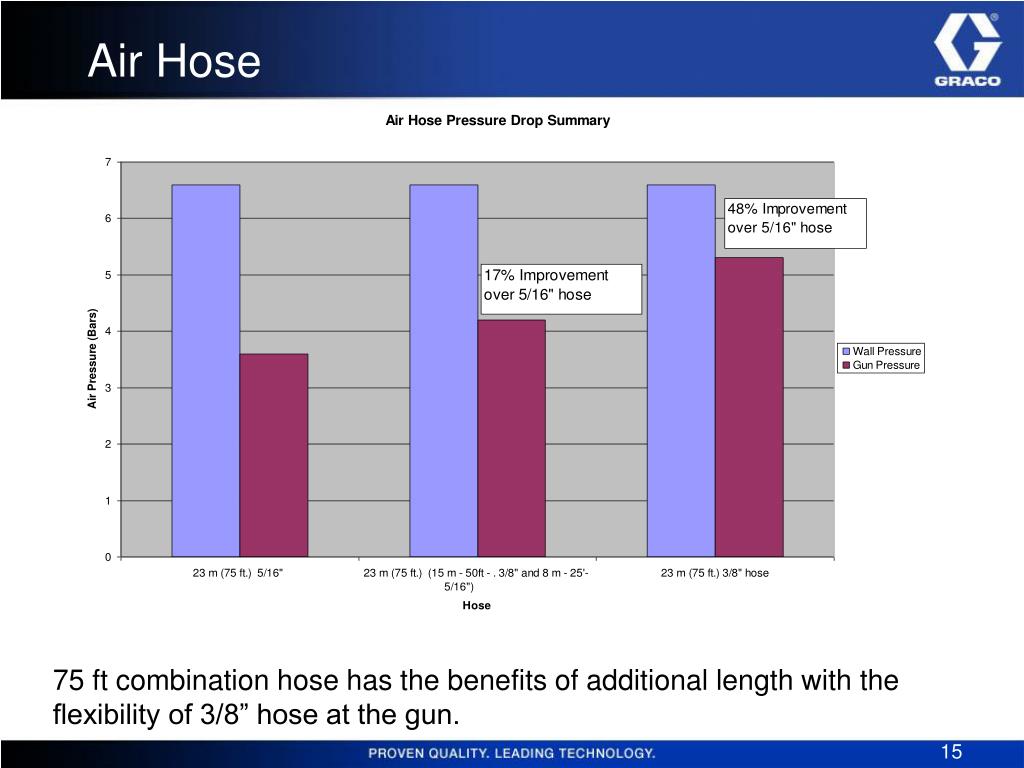

air hose15
Air Hose

75 ft combination hose has the benefits of additional length with the flexibility of 3/8” hose at the gun.

new components
New Components
  • Optional components to reduce PRO Xs gun weight
    • Plastic trigger 30g (1 oz)
    • Aluminum Inlet Bracket 37g (1.3 oz)
  • Upgraded components
    • Electrostatic on/off switch is larger and easier to move
    • Air inlet insert makes the handle base stronger
