Presentation Transcript
greedy approach
Greedy Approach
  • To solve problems you have to make decisions.
  • At each decision point, you pick the greedy (or best) option.
    • i.e., make an optimal move given what you know
  • For some problems a greed strategy
    • produces an optimal solution
    • produces a very bad solution
continuous knapsack problem
Continuous Knapsack Problem
  • Continuous Knapsack Variation
    • Input: N chapters
    • Goal: Maximize importance
    • Constraint: Report must be 600 pages
continuous knapsack problem4

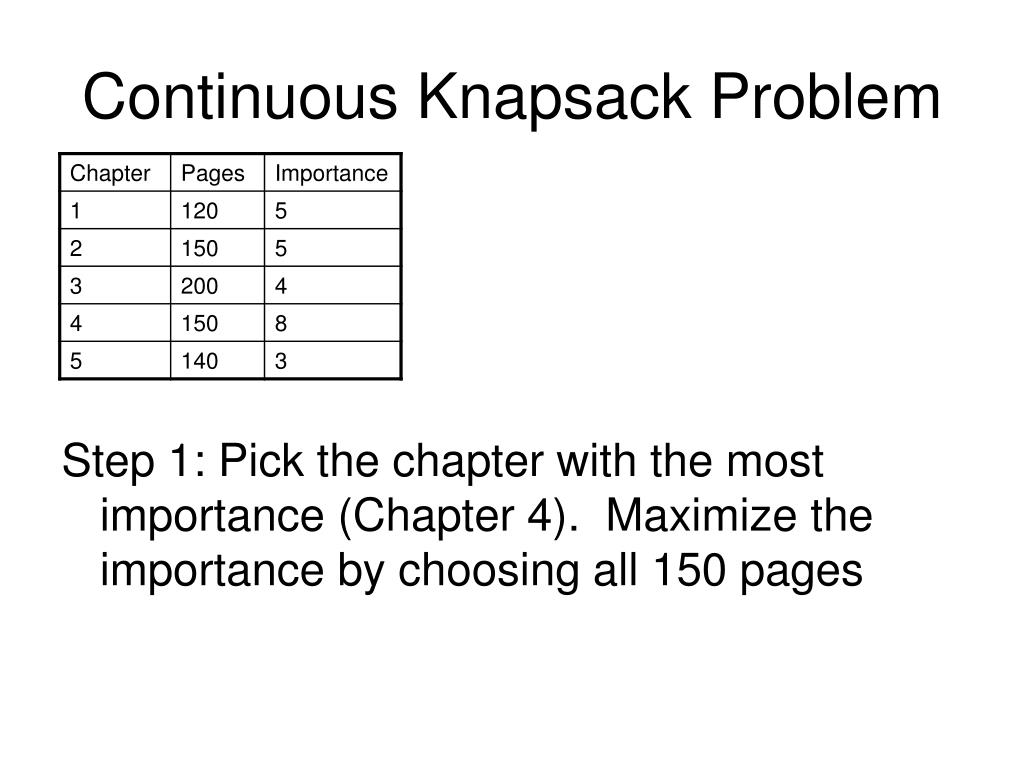

Continuous Knapsack Problem

Step 1: Pick the chapter with the most importance (Chapter 4). Maximize the importance by choosing all 150 pages

continuous knapsack problem5
Continuous Knapsack Problem

Step 2: Greedy choice… pick the most important remaining chapter:Chapter 1 and 2 are tied, pick both, i.e., 270 pages

Report (600 pages max):All of Chapter 4 (importance 8)450 pages leftTotal Importance = 8

continuous knapsack problem6
Continuous Knapsack Problem

Step 3: Greedy choice… pick Chapter 3.However, we can only pick 90% of it, i.e., 180 out of 200 pages.

Report (600 pages max):All of Chapter 4 (importance 8)All of Chapter 1 (importance 5)All of Chapter 2 (importance 5)180 pages leftTotal Importance = 8 + 5 + 5

continuous knapsack problem7
Continuous Knapsack Problem

Is the final answer optimal?

Can you pick page differently and beat 21.6?

Report (600 pages max):All of Chapter 4 (importance 8)All of Chapter 1 (importance 5)All of Chapter 2 (importance 5)90% of Chapter 3 (importance 4)0 pages leftTotal Importance = 8 + 5 + 5 + 4*0.9 = 21.6

constrained optimization problems
Constrained Optimization Problems
  • Many different real-world problem can be reduced to constrained optimization problems.
    • Some factor needs to be maximized or minimized (Goal)
    • Real-world constraints limit the choices you can make (Constraints)
constrained optimization problems9
Constrained Optimization Problems
  • Examples:
    • Package routing
      • Input: N packages and N delivery points
      • Goal: Minimize the package delivery time
      • Constrains: X number of trucks
    • CPU allocation
      • Input: N processing jobs each with a priority
      • Goal: Maximize total priority throughput
      • Constaints: X processor, Y memory, Z time
non continuous knapsack problem
Non-Continuous Knapsack Problem
  • Greedy approach does NOT work.
  • Just call it the Knapsack Problem
    • Constraint: Sack holds 100 lbs.
    • Goal: Maximize sack value
    • Input: Packages
greedy lowest weight first with one backtracking step

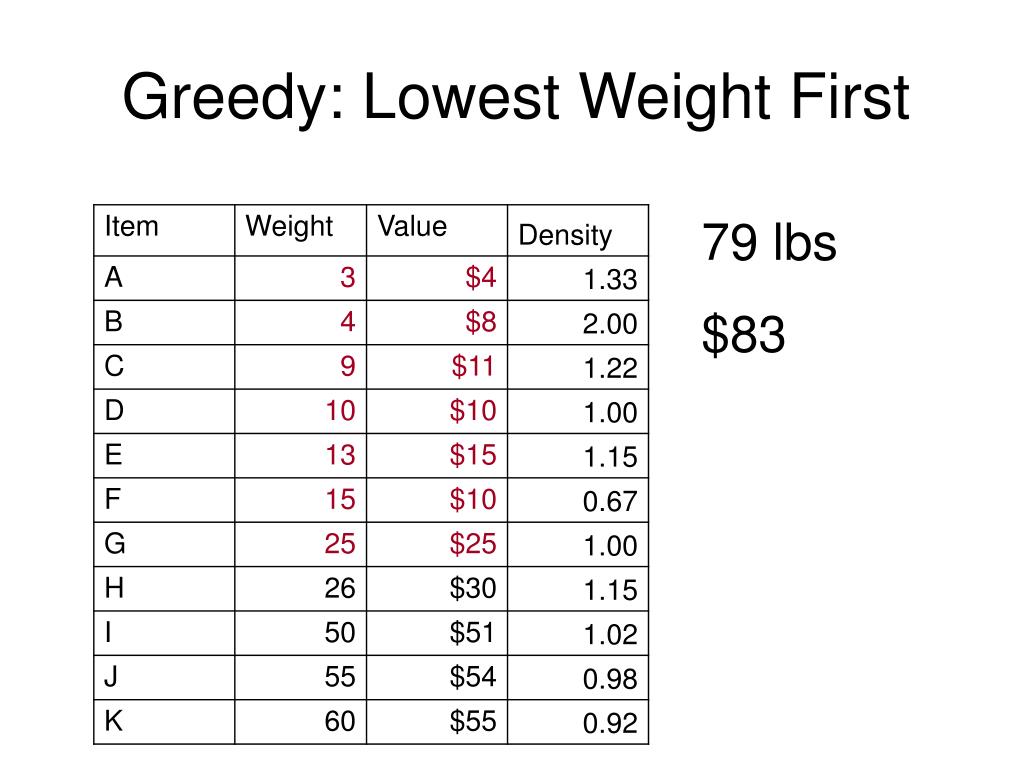

Greedy: Lowest Weight Firstwith one Backtracking step

79 lbs $83--------------------------

21 lbs remaining26 lbs $30 item avail. removing the lowest valued item 5 lbs. or more.---------------------------95 lbs $103

greedy highest value first with one restart step

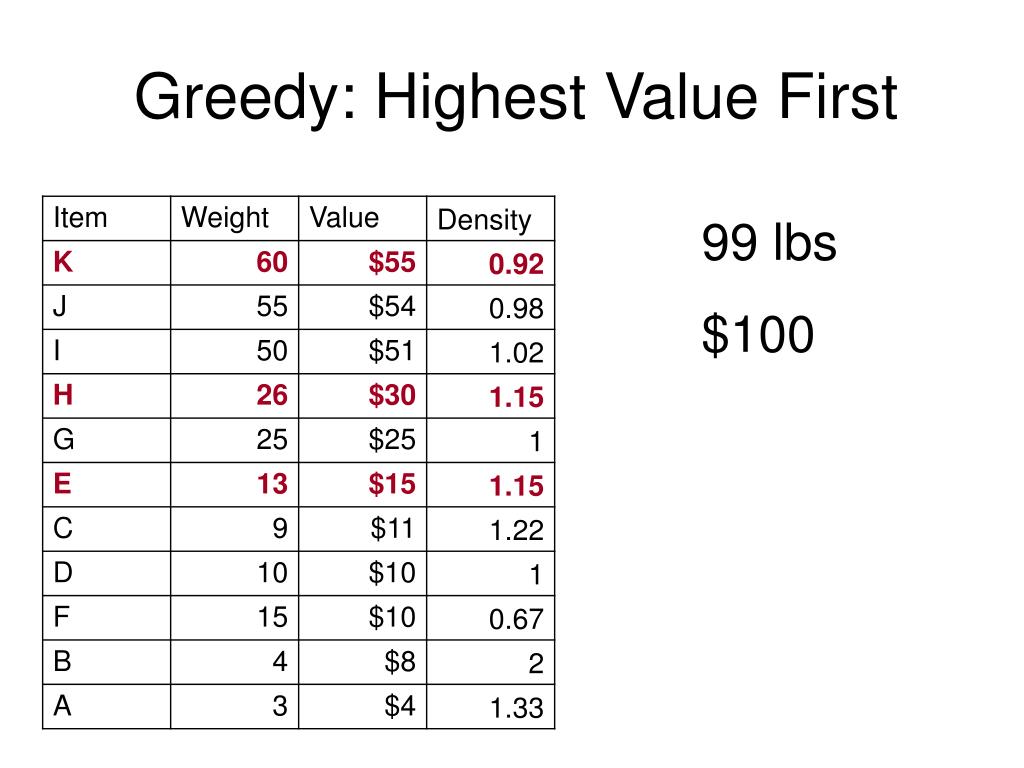

Greedy: Highest Value Firstwith one Restart step

99 lbs $100---------------------Skip the most valuable item and start again---------------------98 lbs $107

greedy highest density with one backtracking step

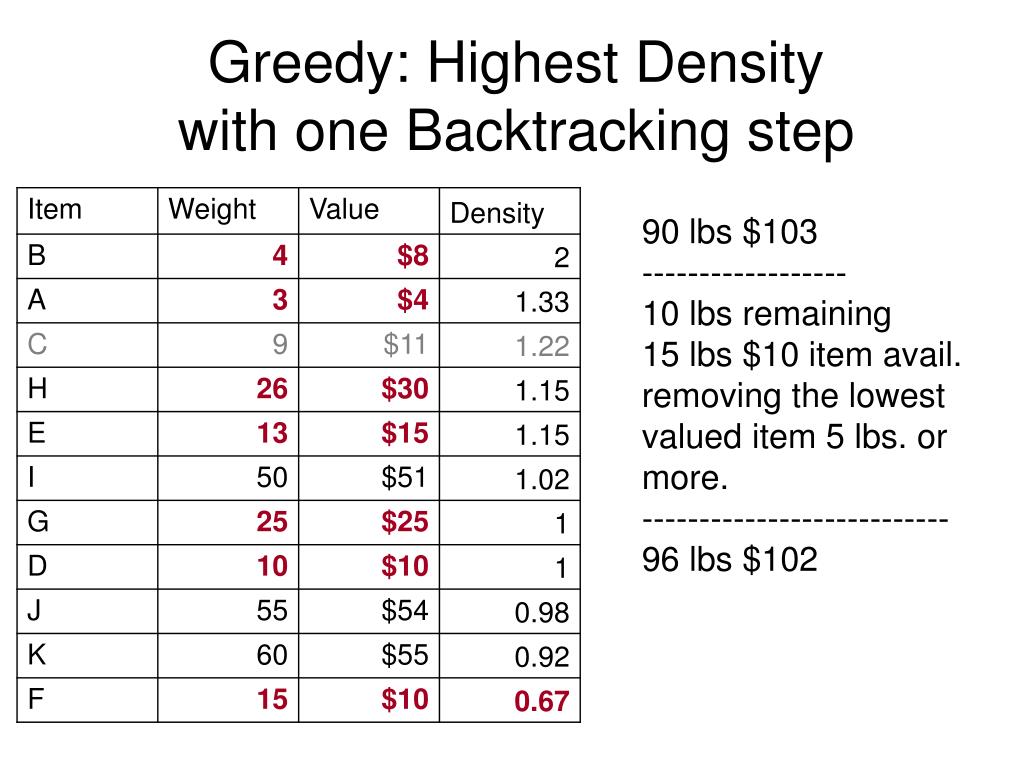

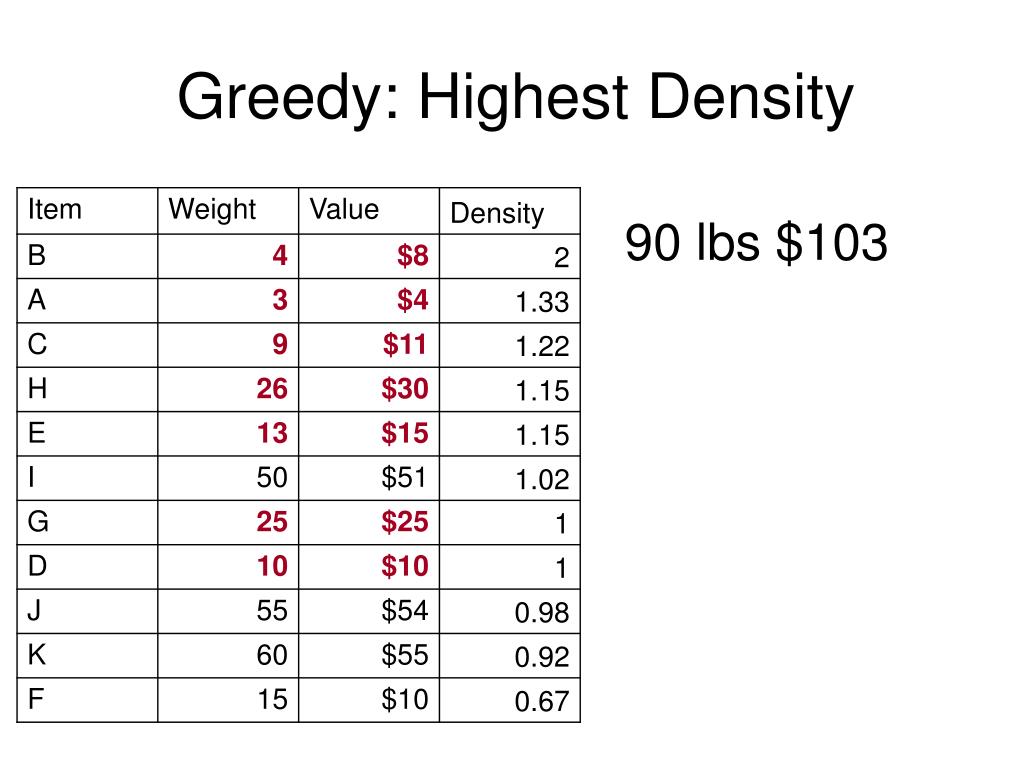

Greedy: Highest Densitywith one Backtracking step

90 lbs $103------------------10 lbs remaining15 lbs $10 item avail. removing the lowest valued item 5 lbs. or more.---------------------------96 lbs $102
