  1. Personal and SOHO VoIP Solution Fonemosa

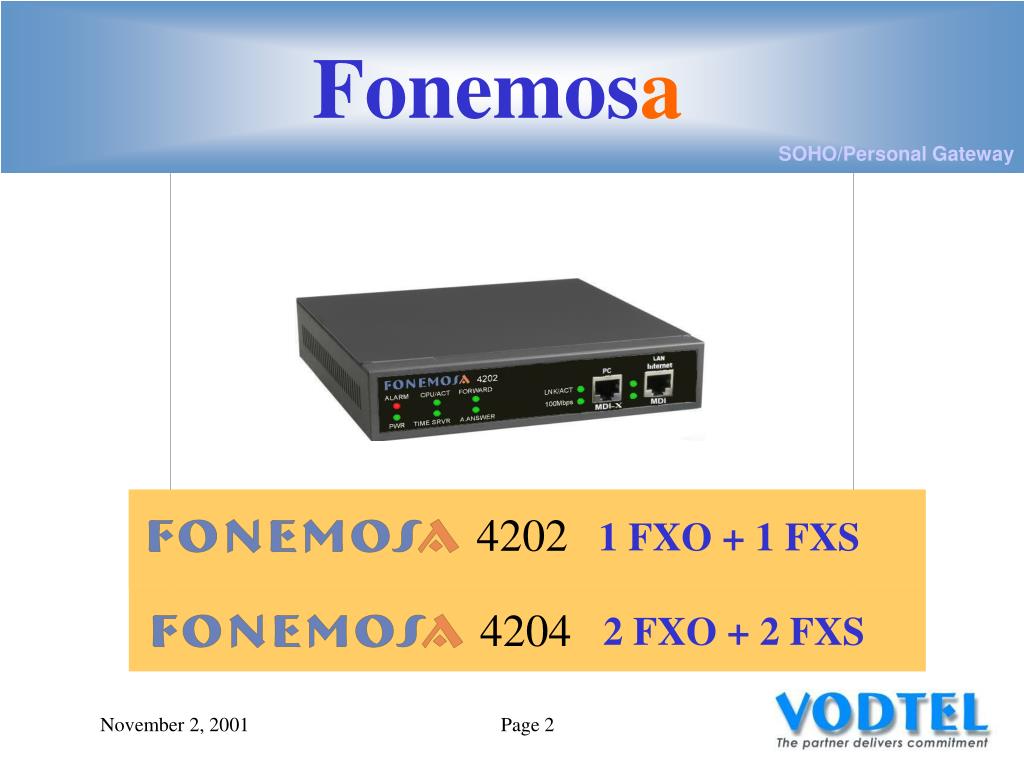

  2. 4202 1 FXO + 1 FXS 4204 2 FXO + 2 FXS Fonemosa Page 2

  3. 4216 4208 Modules: Fonemosa 4 CO (FXO) + 4 Telephone (FXS) 8 CO (FXO) 4 CO (FXO) 8 Telephone (FXS) Page 3

  4. Office 2 Local PSTN Local PSTN Local PSTN Local PSTN Local PSTN Office 1 IP Network Home 1 Hotel PBX PBX PBX Home 2 Basic Architecture Page 4

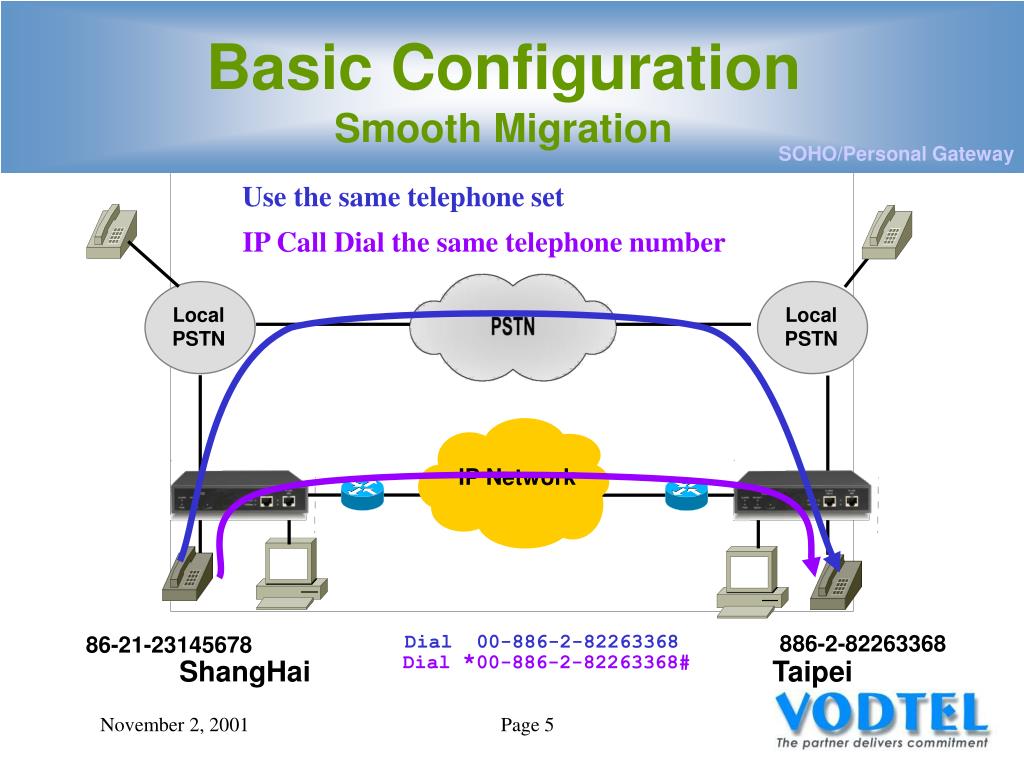

  5. Local PSTN IP Network Dial 00-886-2-82263368 Dial *00-886-2-82263368# Basic ConfigurationSmooth Migration Use the same telephone set IP Call Dial the same telephone number Local PSTN 886-2-82263368 86-21-23145678 ShangHai Taipei Page 5

  6. PBX In front of PBX C.O. IP Network Page 6

  7. TargetUsers • ISP: provide free telephone services to its subscribers • SOHO: communicate with its partners • Enterprise users: communicate with its suppliers or resellers • Telecommuters: working at home • Road Warriors: communicate with colleagues and customers while travelling • Home users: communicate with their family members living in overseas Page 7

  8. ? Auto-learning Make IP Call connection Address Learning PSTN A NAT Domain Dial *82263368# B 82263368 IP Network NAT Domain Telephone/ Fax Ethernet to the Home Page 8

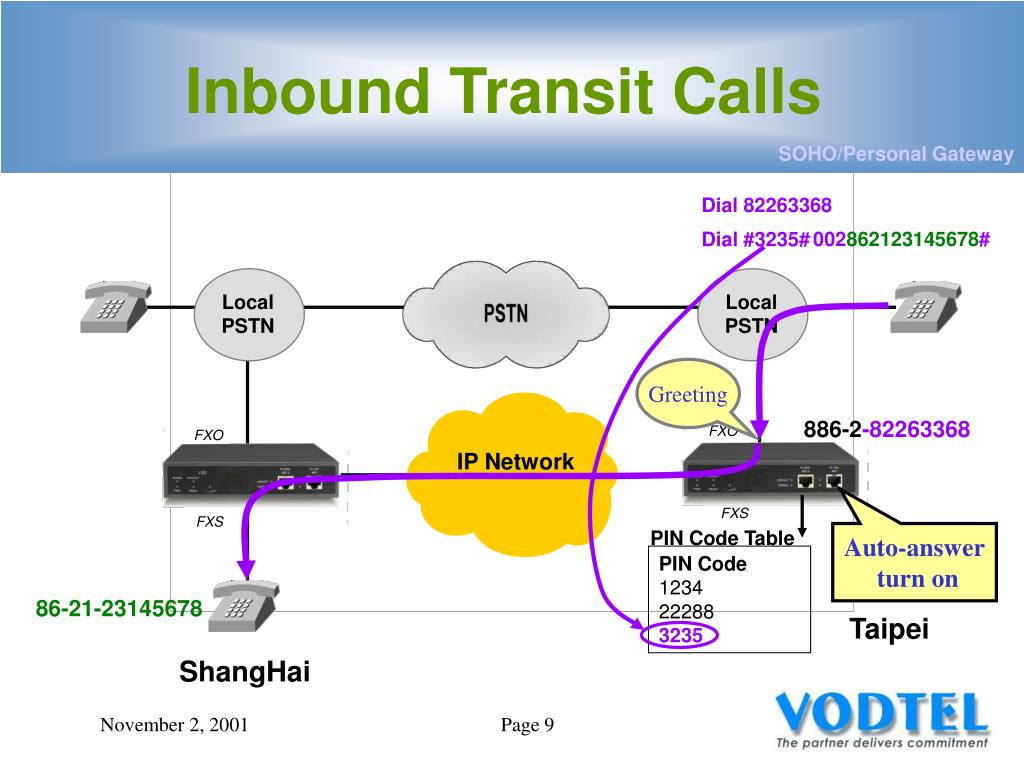

  9. Local PSTN Local PSTN PIN Code Table PIN Code 1234 22288 3235 Inbound Transit Calls Dial 82263368 002862123145678# Dial #3235# Greeting 886-2-82263368 FXO FXO IP Network FXS FXS Auto-answer turn on 86-21-23145678 Taipei ShangHai Page 9

  10. Local PSTN Local PSTN Partner’s Table MAC Phone 00-03-21-11-22-33886282263368 00-03-21-11-22-5B 652213487 Outbound Transit Calls Local call only 86-21-23145678 MAC: 00-03-21-11-22-33 86-21-12345678 FXO FXO IP Network FXS FXS Dial #002 86 21 23145678# 886-2-82263368 Taipei ShangHai Page 10

  11. IP Network PBX Telecommuters 86-21-23141111 Local PSTN Local PSTN 86-21-23145678 Get PSTN dial tone PBX trunk access code: “9” Permit Fonemosa A 886-2-82263368 Fonemosa B Fonemosa A x300 x101 Taipei ShangHai FonemosaBnumber: 86-21-23145678 101 Dial:#002- 86-21- 300# Dial:#002- 86-21- 23141111# Dial:#002- 86-21- 9# Dial:*002- 86-21-23145678101# Page 11

  12. Local PSTN IP Network Call Forward to other Fonemosa Local PSTN Fonemosa C 1-408-23145678 86-21-23145678 Fonemosa A Auto forward 886-2-82263368 Fonemosa B Dial: *00-886-2-82263368# San Jose Forward calls to Fonemosa A ShangHai Taipei Page 12

  13. Local PSTN IP Network Call Forward to other Fonemosa Dial:23145678 Local PSTN Auto Forward 886-2-82263368 86-21-23145678 Forward calls to 886-2-82263368 ShangHai Taipei Page 13

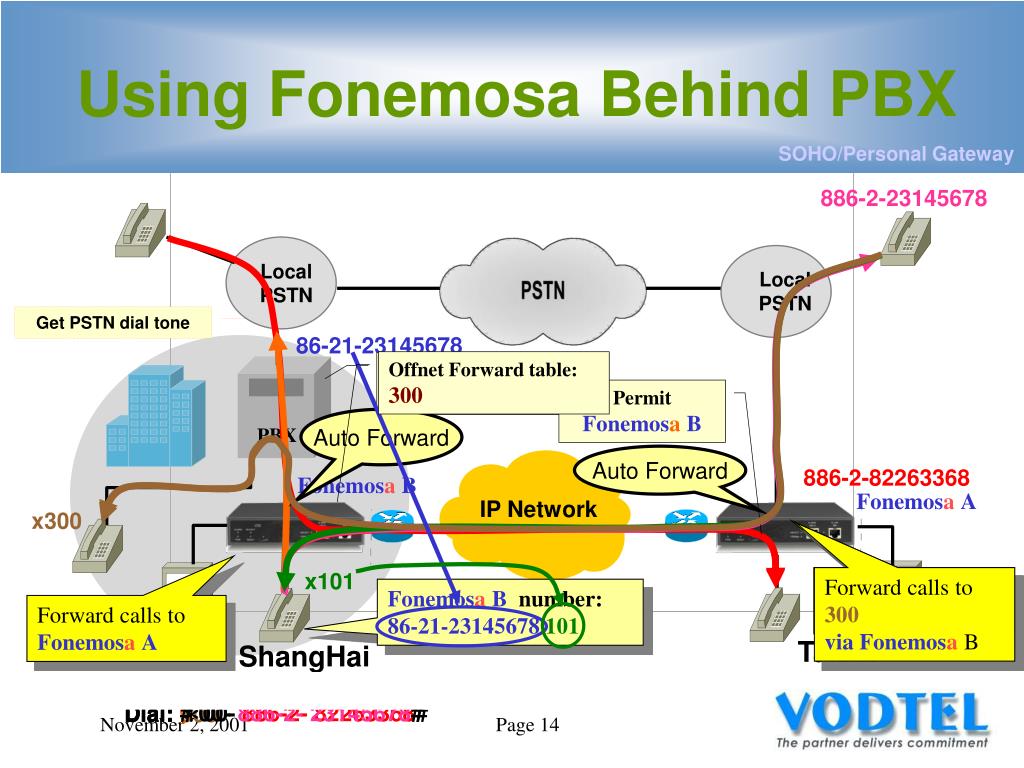

  14. IP Network PBX Using Fonemosa Behind PBX 886-2-23145678 Local PSTN Local PSTN Get PSTN dial tone 86-21-23145678 Offnet Forward table: 300 PBX trunk access code: “9” Permit Fonemosa B Auto Forward Auto Forward 886-2-82263368 FonemosaB FonemosaA x300 x101 Forward calls to Fonemosa B Forward calls to 300 via Fonemosa B FonemosaBnumber:86-21-23145678 101 Forward calls to FonemosaA Taipei ShangHai Dial:*00- 886-2- 82263368# Dial:#00- 886-2- 23145678# Dial:300 Dial:9 Page 14

  15. Office Layout WAN Central Office Page 15

  16. Forward calls to 021-23145678 IP Network Forward calls to 886-2-82263368 Call Forwards (Mobile Phone)Forward your mobile to remote phone Local PSTN Local PSTN 886-921-856868 Auto Forward 886-2-82263368 86-21-23145678 Taipei ShangHai Page 16

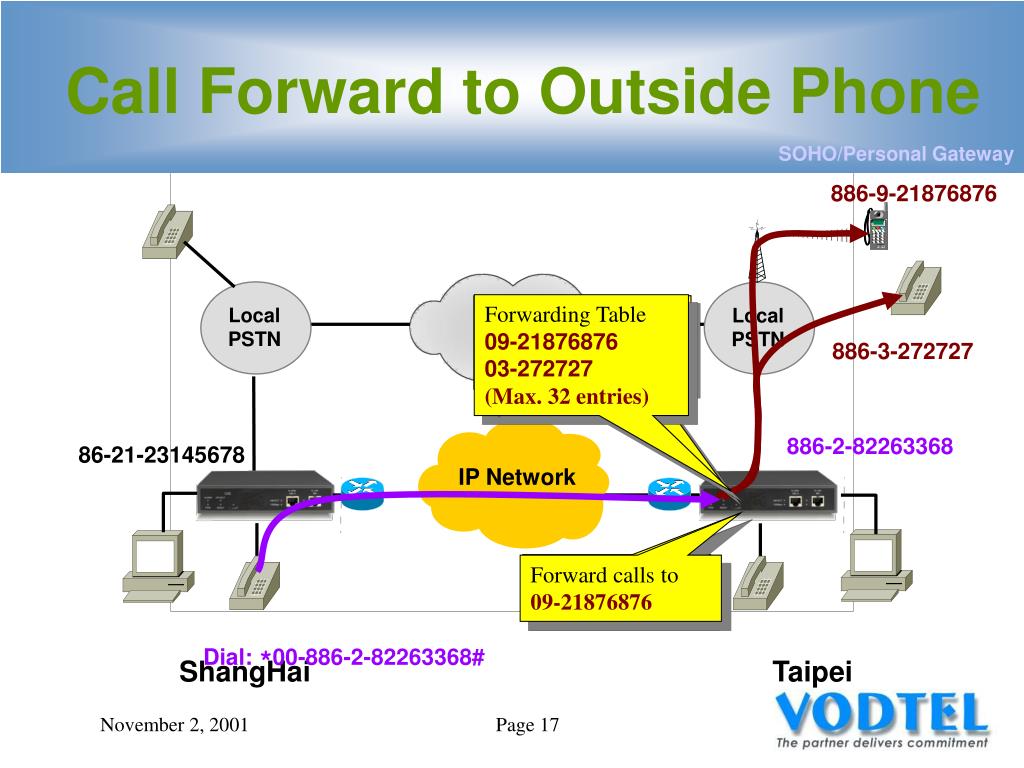

  17. Local PSTN IP Network Call Forward to Outside Phone 886-9-21876876 Forwarding Table 09-21876876 03-272727 (Max. 32 entries) Forwarding Table 03-272727 (Max. 32 entries) Local PSTN 886-3-272727 886-2-82263368 86-21-23145678 Forward calls to 03-272727 Forward calls to 09-21876876 Dial: *00-886-2-82263368# ShangHai Taipei Page 17

  18. 1-626-12341234 Local PSTN IP Network Call Forward to Remote Phone Forwarding Table 1-626-12345678 (Max. 32 entries) Local PSTN 1-626-12345678 Fonemosa C 1-408-23145678 86-21-23145678 Fonemosa A Auto Forward 886-2-82263368 Fonemosa B Dial: *00-886-2-82263368# Forward calls to 1-626-12345678 via Fonemosa A Forward calls to 1-626-12341234 via Fonemosa A San Jose ShangHai Taipei Page 18

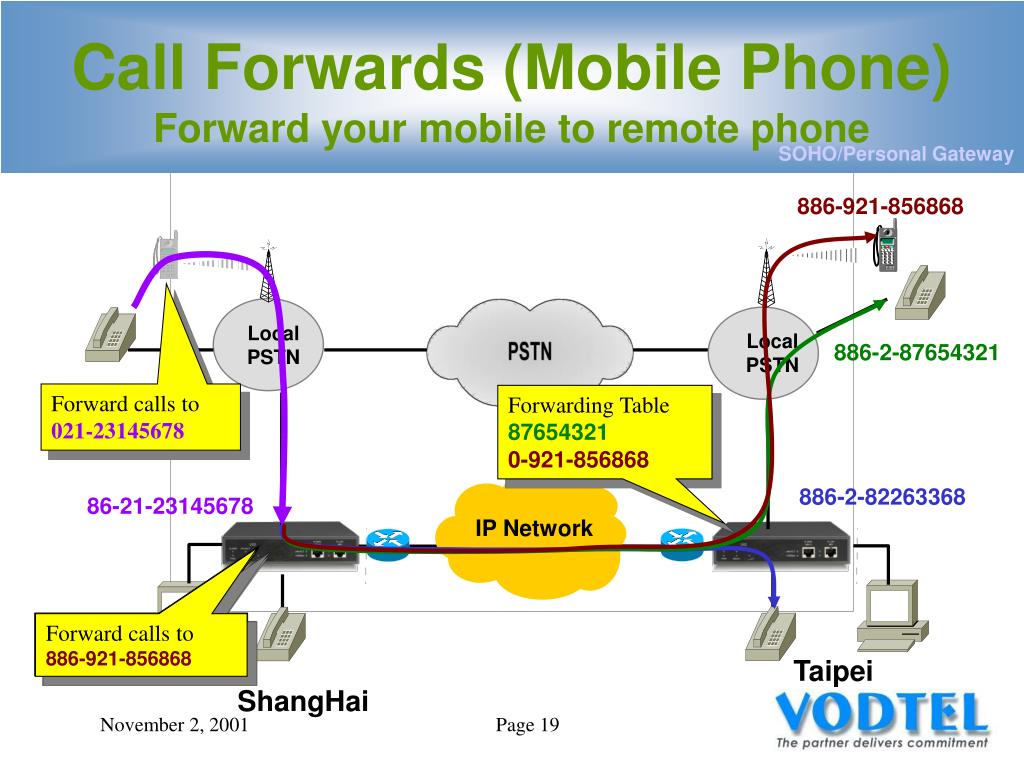

  19. IP Network Call Forwards (Mobile Phone)Forward your mobile to remote phone 886-921-856868 Local PSTN Local PSTN 886-2-87654321 Forward calls to 021-23145678 Forwarding Table 87654321 0-921-856868 886-2-82263368 86-21-23145678 Forward calls to 886-2-82263368 Forward calls to 886-2-87654321 Forward calls to 886-921-856868 Taipei ShangHai Page 19

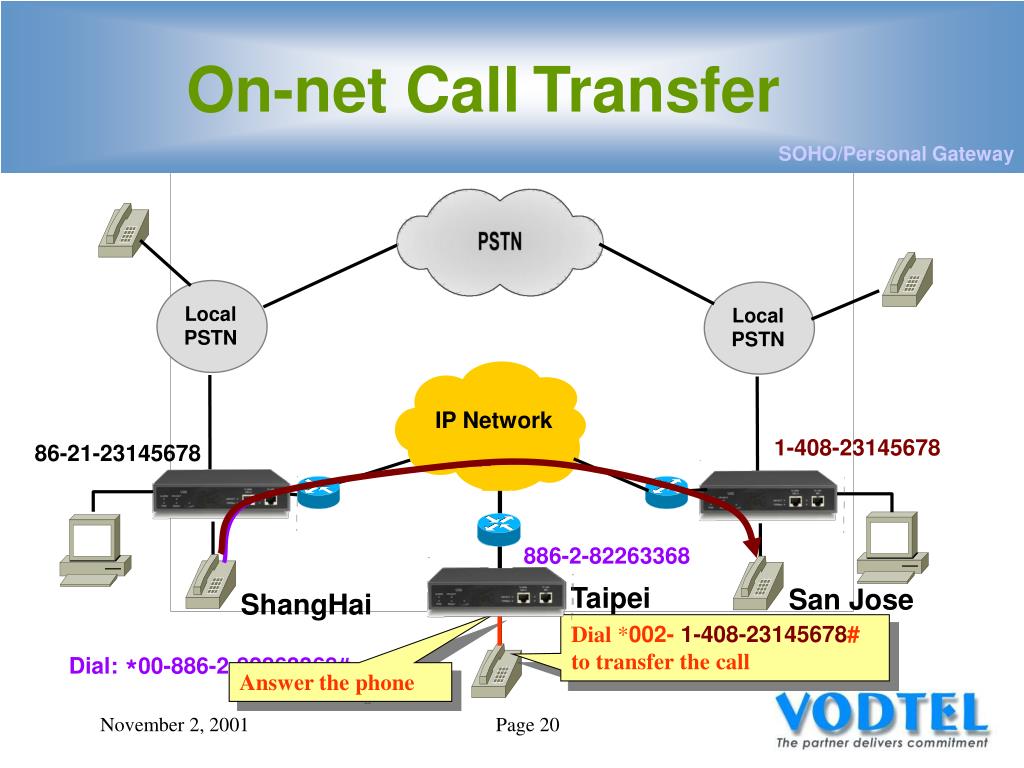

  20. Local PSTN IP Network Answer the phone On-net CallTransfer Local PSTN 1-408-23145678 86-21-23145678 886-2-82263368 Taipei San Jose ShangHai Dial *002- 1-408-23145678#to transfer the call Dial: *00-886-2-82263368# Page 20

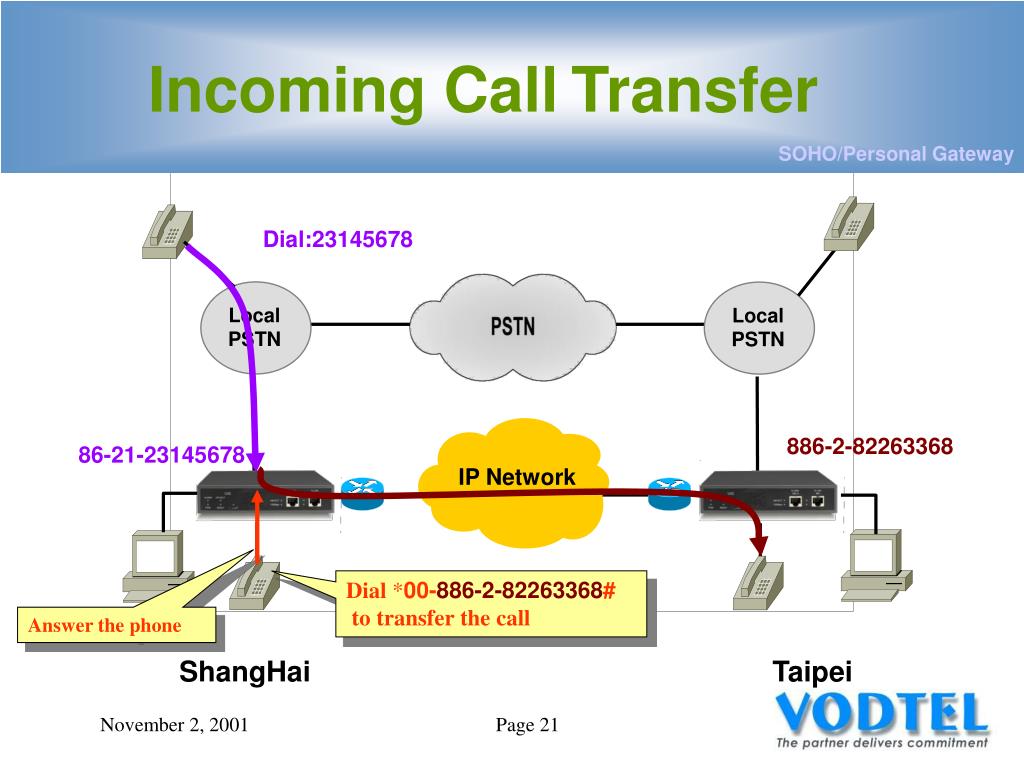

  21. Local PSTN IP Network Answer the phone Incoming CallTransfer Dial:23145678 Local PSTN 886-2-82263368 86-21-23145678 Dial *00-886-2-82263368# to transfer the call ShangHai Taipei Page 21

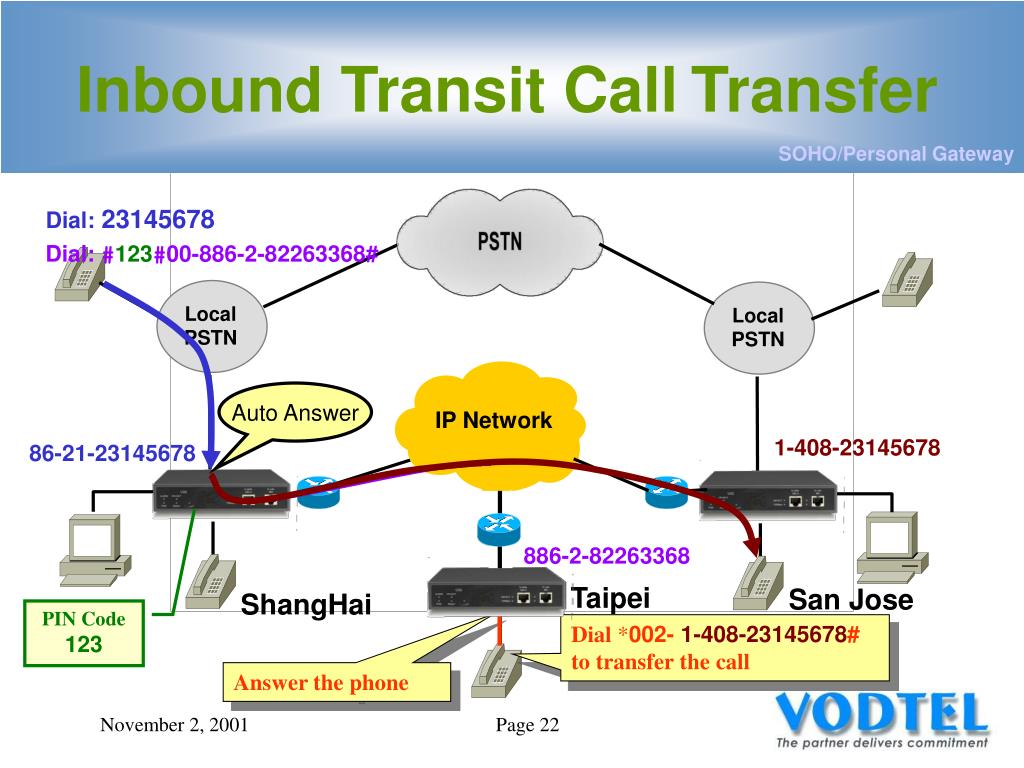

  22. Dial: #123#00-886-2-82263368# Local PSTN IP Network PIN Code 123 Answer the phone Inbound Transit CallTransfer Dial: 23145678 Local PSTN Auto Answer 1-408-23145678 86-21-23145678 886-2-82263368 Taipei San Jose ShangHai Dial *002- 1-408-23145678#to transfer the call Page 22

  23. Local PSTN IP Network Answer the phone Call Transfer + Call Forward Dial: 23145678 1-408-12345678 Local PSTN 1-408-23145678 Fonemosa C 86-21-23145678 Fonemosa A Auto Forward 886-2-82263368 Fonemosa B Forward calls via Fonemosa A to 12345678 Dial 00-886282263368 to transfer the call San Jose Taipei ShangHai Page 23

  24. Dial Out 18xxx 0921856868 IP Network Dial 0921856868 Build-in Dialer For ISRSave money for Off-net calls ISR 18xxx 886-921-856868 Local PSTN Local PSTN 886-2-82263368 86-21-23145678 Taipei ShangHai Dial #00-886-921856868# Page 24

  25. IP Network PBX Bypass Mode Dialling Local PSTN Local PSTN Get PSTN dial tone Get PBX dial tone Dial ** Dial ** Page 25

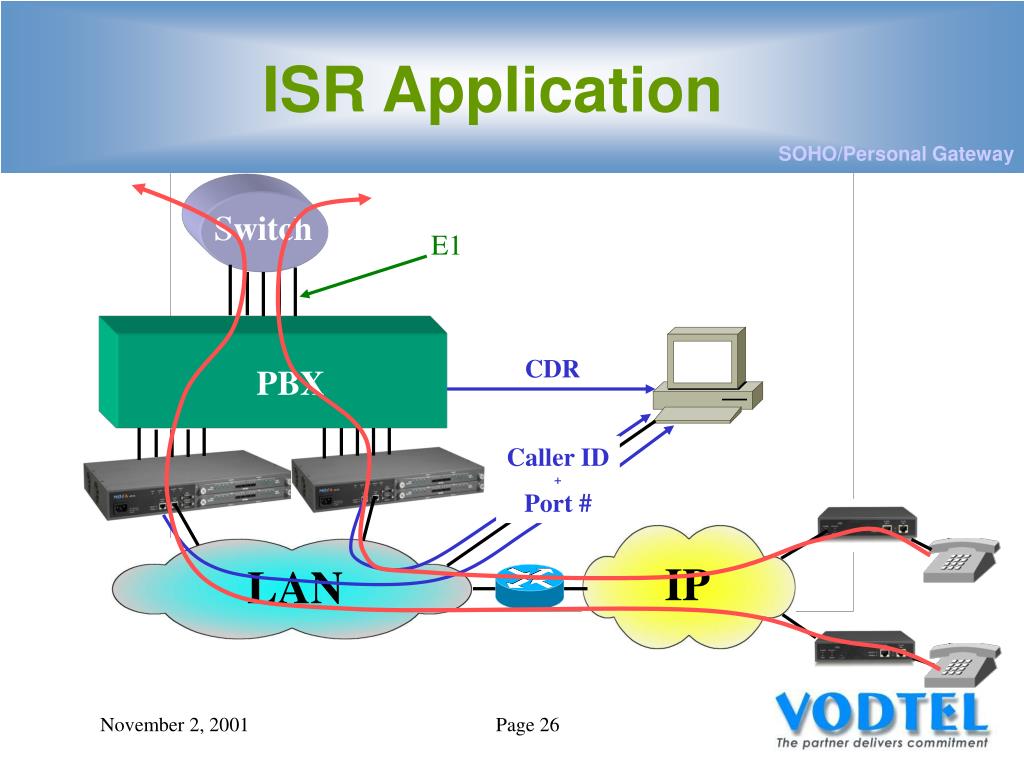

  26. E1 CDR PBX IP ISR Application Switch Caller ID + Port # LAN Page 26

  27. Fonemosa 4208/4216 Phone # 86 21 12345678 Authority Barring Class MAC 00-03-62-11-22-5B 1. Local, (0 ~ 6) 2. Toll, 3. Specified Area Exception Dialing Attribute: Barring Exception Table: 1 408 41 San Jose Exception Table: 1 408 San Jose 81 3 Tokyo Barring Table: 1 408 San Jose 81 3 Tokyo 886 10 Beijingz Service Areas : 886 2 Taipei 1 USA 81 Japan 886 10 Beijing 886 21 ShangHai Page 27

  28. FAX Applications FXO FXO FXS FXS Page 28

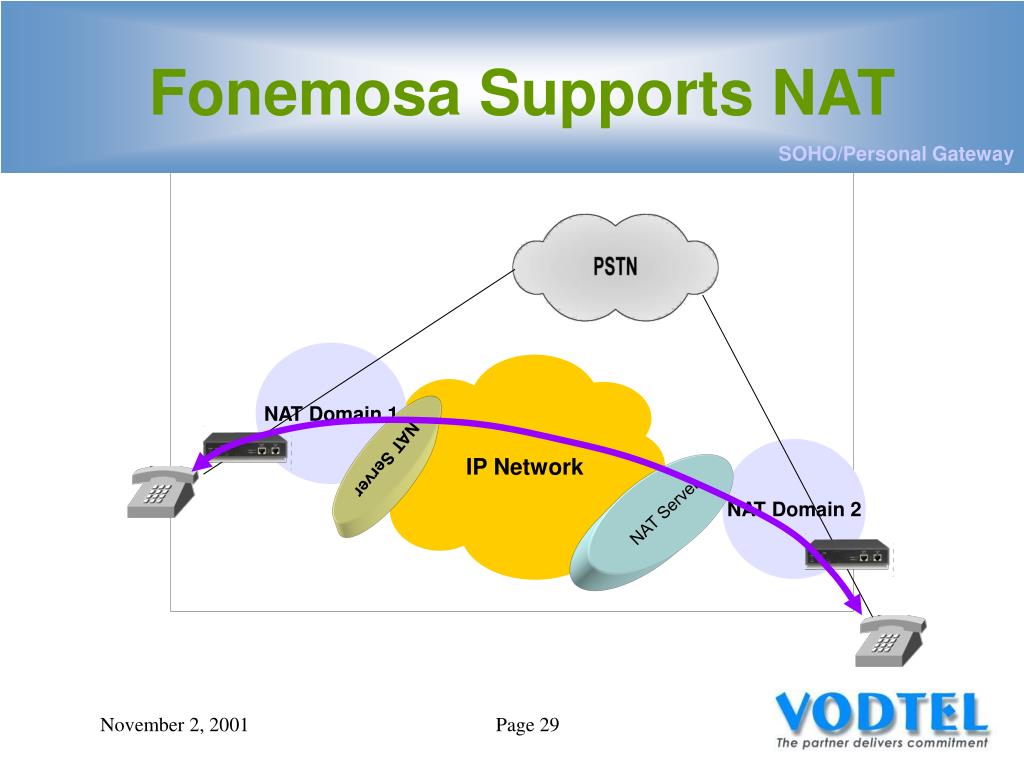

  29. Fonemosa Supports NAT NAT Domain 1 NAT Server NAT Domain 2 IP Network NAT Server Page 29

  30. Easy Installation Only the IP and Phone Number need to be configured by using analog phone Page 30

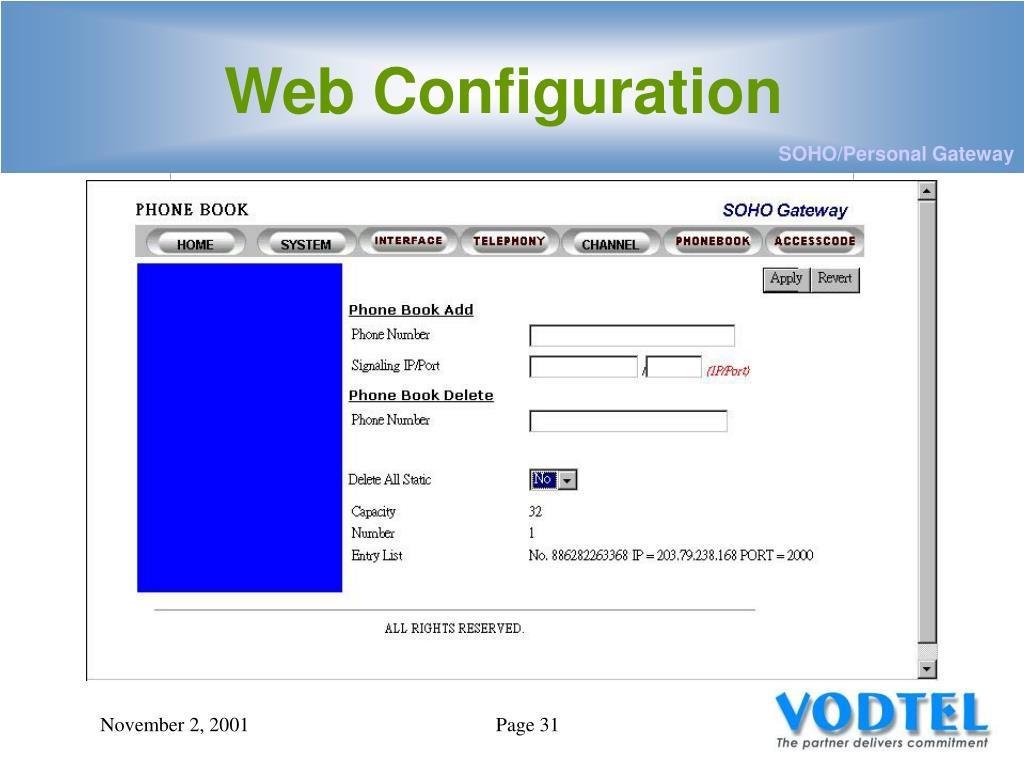

  31. Web Configuration Page 31

  32. 4204 VODTEL 4204 4202 VODTEL Fonemosa Thank You Page 32
