overview of talk
Overview of Talk
  • Standard profiling using prof, gprof and gmon (DataStar, Blue Gene)
  • IBM High Performance Computing Toolkit (IHPCT) on DataStar and Blue Gene
    • Hardware Performance Monitoring – HPM
    • MPI Tracer/Profiler
    • Xprofiler - CPU profiling tool
    • PeekPerf – Visualization of performance trace information
  • Integrated Performance Monitoring (IPM) on DataStar and Blue Gene
  • Suggested standard tuning procedure

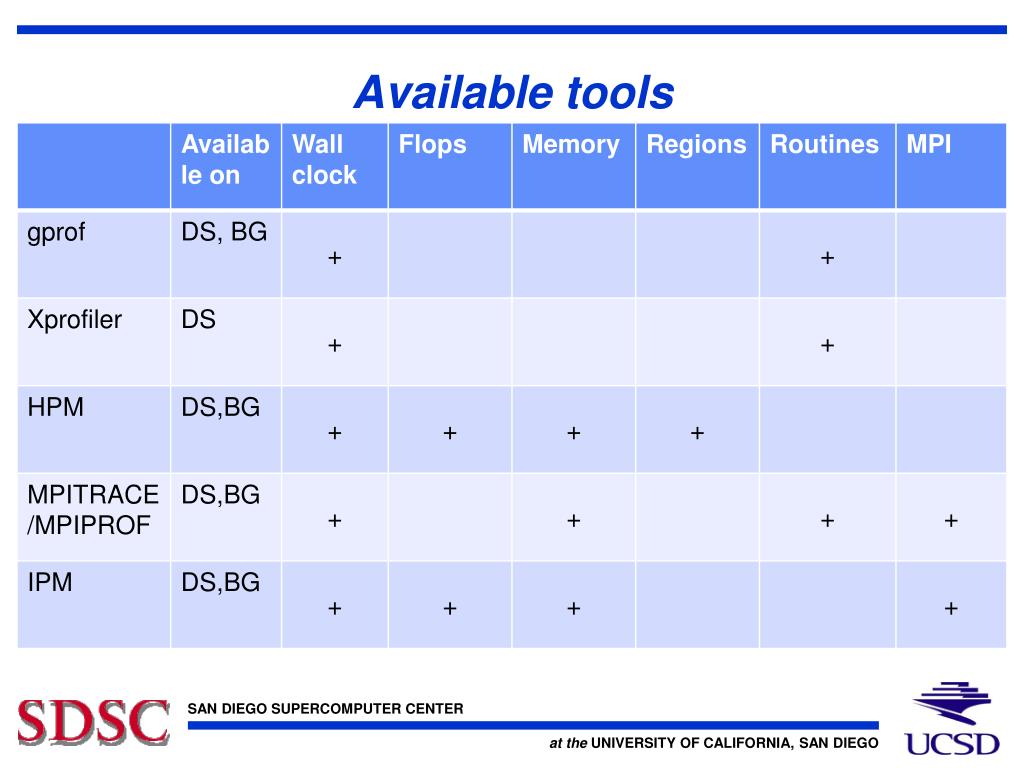

standard profiling using prof gprof
Standard Profiling using prof, gprof
  • Standard profiling (prof, gprof) is available on both DataStar and Blue Gene.
  • Three levels of profiling are available with gmon, depending on the –pg and –g options on the compile and link commands
    • Timer tick profiling information: Add –pg to the link options
    • Procedure level profiling with timer tick info: Add –pg to compile and link options
    • Full profiling – call graph info, statement level profiling, basic block profiling, and machine instruction profiling: Add –pg –g to the compile and link options
  • Each task generates a gmon.out.x file where x corresponds to the rank of the task.
  • Output can be read using the gprof command (and Xprofiler as detailed later in the talk)
example of profiling using gmon

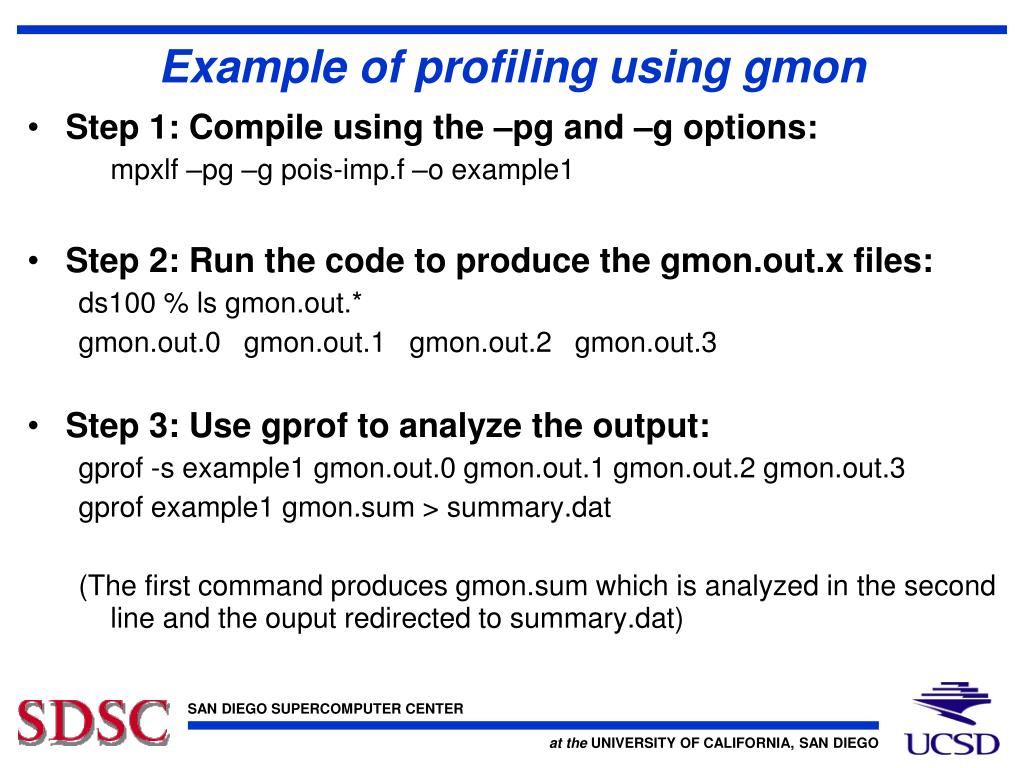

Example of profiling using gmon
  • Step 1: Compile using the –pg and –g options:

mpxlf –pg –g pois-imp.f –o example1

  • Step 2: Run the code to produce the gmon.out.x files:

ds100 % ls gmon.out.*

gmon.out.0 gmon.out.1 gmon.out.2 gmon.out.3

  • Step 3: Use gprof to analyze the output:

gprof -s example1 gmon.out.0 gmon.out.1 gmon.out.2 gmon.out.3

gprof example1 gmon.sum > summary.dat

(The first command produces gmon.sum which is analyzed in the second line and the ouput redirected to summary.dat)

example of profiling using gmon1

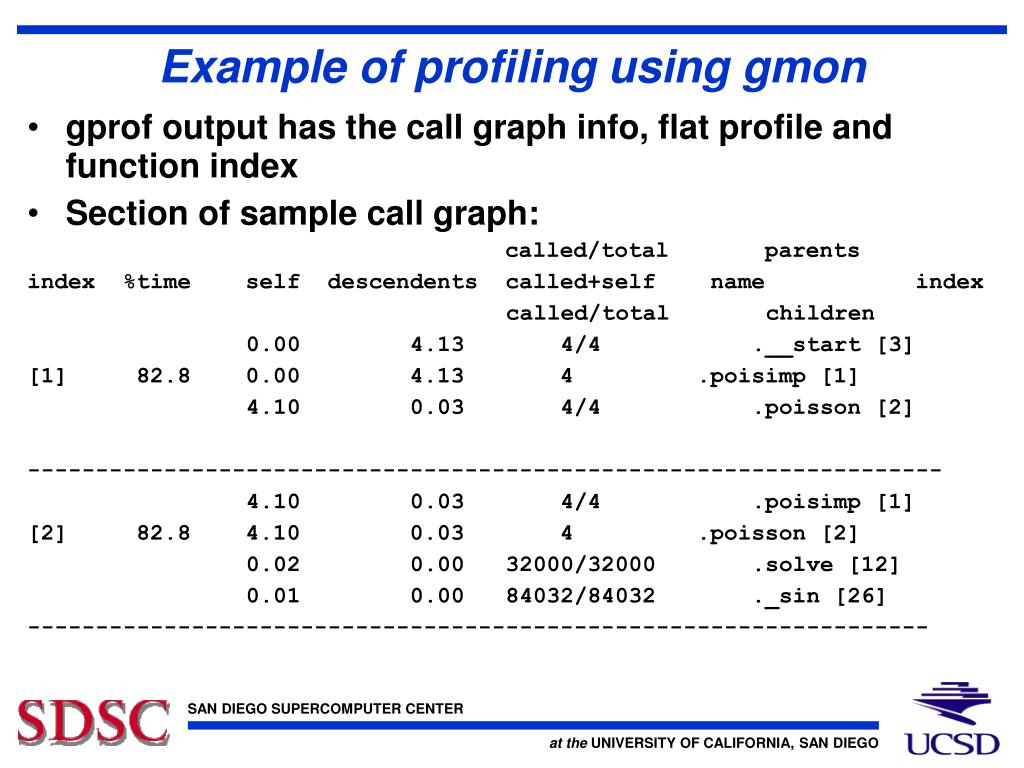

Example of profiling using gmon
  • gprof output has the call graph info, flat profile and function index
  • Section of sample call graph:

called/total parents

index %time self descendents called+self name index

called/total children

0.00 4.13 4/4 .__start [3]

[1] 82.8 0.00 4.13 4 .poisimp [1]

4.10 0.03 4/4 .poisson [2]

-------------------------------------------------------------------

4.10 0.03 4/4 .poisimp [1]

[2] 82.8 4.10 0.03 4 .poisson [2]

0.02 0.00 32000/32000 .solve [12]

0.01 0.00 84032/84032 ._sin [26]

------------------------------------------------------------------

example of profiling using gmon2
Example of profiling using gmon
  • Section of sample flat profile & function index

% cumulative self self total

time seconds seconds calls ms/call ms/call name

82.2 4.10 4.10 4 1025.00 1032.50 .poisson [2]

1.2 4.16 0.06 uitrunc_const [4]

1.0 4.21 0.05 .lapi_recv_vec [5]

1.0 4.26 0.05 .shm_submit_slot [6]

0.8 4.30 0.04 ._Vector_dgsp_xfer [7]

0.8 4.34 0.04 .mpci_send [8]

0.6 4.37 0.03 ._lapi_shm_get [9]

0.6 4.40 0.03 ._mpi_allgather [10]

0.6 4.43 0.03 .allgather_tree_b [11]

0.4 4.45 0.02 32000 0.00 0.00 .solve [12]

...

...

Index by function name

[27] .LAPI_Util.GL [9] ._lapi_shm_get [47] .atoi

[28] .MPI(int) [40] ._lapi_shm_setup [48] .fast_free

[29] .MPID_Welcome_EA [41] ._mem_alloc [49] .fclose_unlocked

[13] .MPID_msg_arrived [10] ._mpi_allgather [50] .fflush_unlocked

[30] .MPI__Allgather [17] ._null_hndlr [51] .free.GL

xprofiler

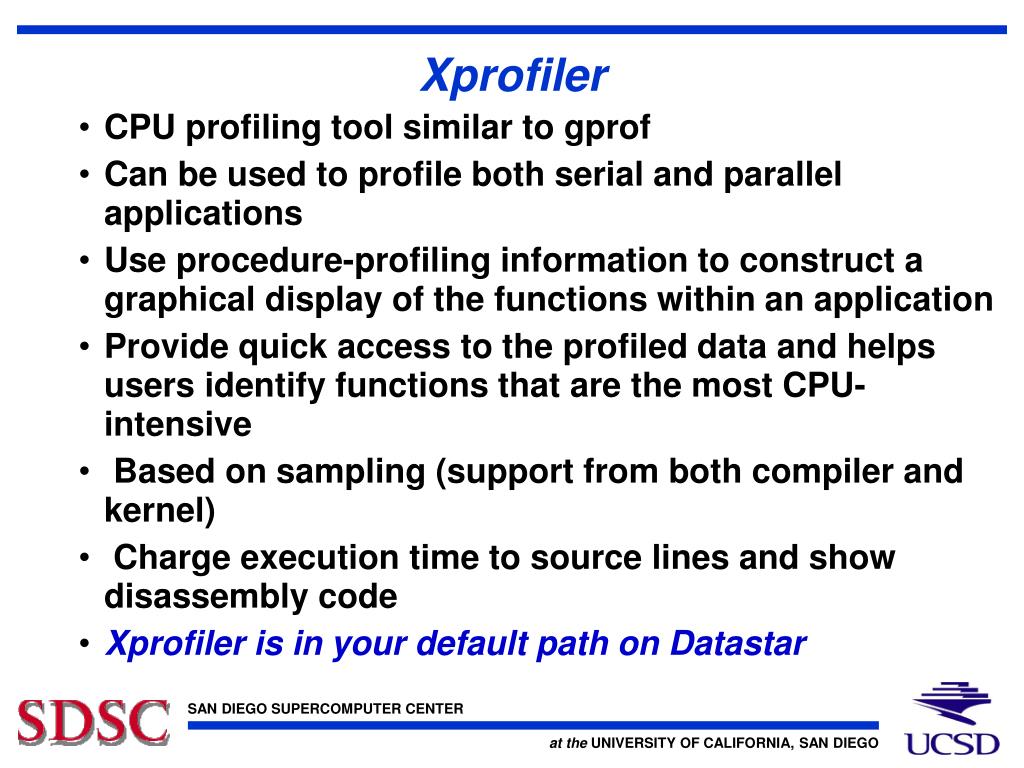

Xprofiler
  • CPU profiling tool similar to gprof
  • Can be used to profile both serial and parallel applications
  • Use procedure-profiling information to construct a graphical display of the functions within an application
  • Provide quick access to the profiled data and helps users identify functions that are the most CPU-intensive
  • Based on sampling (support from both compiler and kernel)
  • Charge execution time to source lines and show disassembly code
  • Xprofiler is in your default path on Datastar
running xprofiler

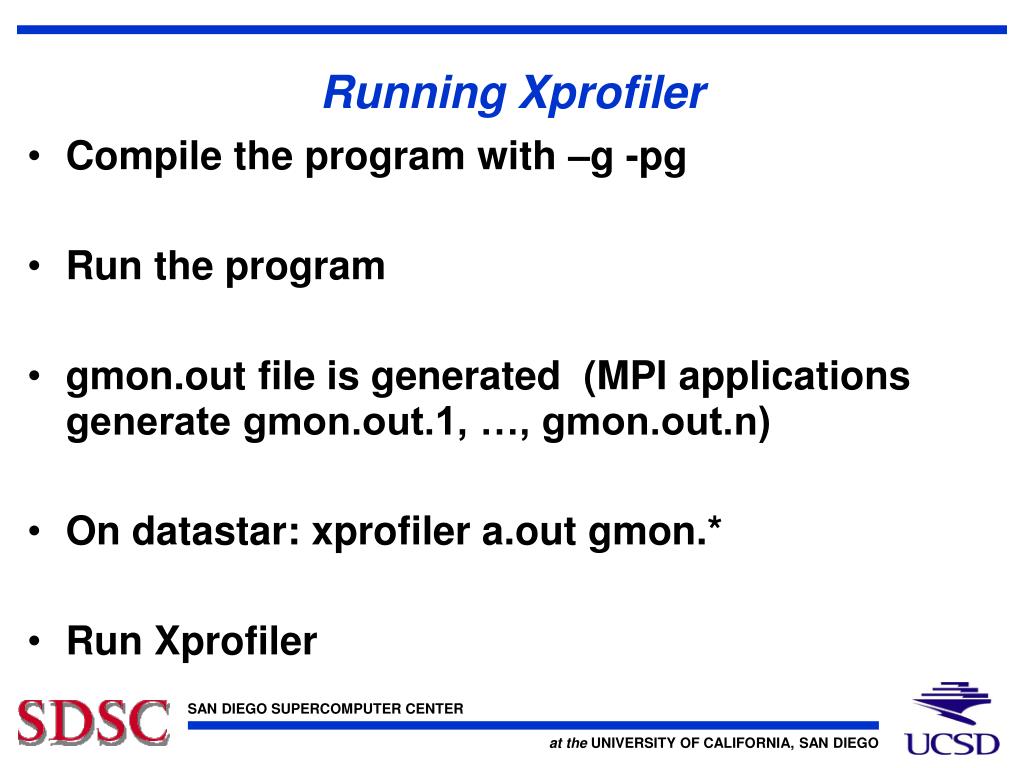

Running Xprofiler
  • Compile the program with –g -pg
  • Run the program
  • gmon.out file is generated (MPI applications generate gmon.out.1, …, gmon.out.n)
  • On datastar: xprofiler a.out gmon.*
  • Run Xprofiler
xprofiler main display
Xprofiler: Main Display
  • Width of a bar:time includingcalled routines
  • Height of a bar:time excludingcalled routines
  • Call arrowslabeled withnumber of calls
  • Overview windowfor easy navigation(View  Overview)
hpmcount
HPMCOUNT
  • hpmcount runs an application and then reports execution wall clock time, hardware performance counter information, derived hardware metrics, and resource utilization statistics (such as memory usage!) .
  • Usage
    • Serial Job: hpmcount executable_name
    • Parallel jobs: poe hpmcount executable_name <poe options>
  • For parallel jobs you can use the above poe line in a batch script.
  • Note that there is hpm output for each task when you run this in parallel. Set MP_LABELIO=yes to identify the task ID of the output
hpmcount cont
HPMCOUNT (cont.)
  • Hardware counters can measure number of cycles used, instructions completed, floating point instructions, cache misses etc.
  • The choice of which measurements are performed is determined by the hpm event group selected
  • No need to recompile code
  • Minimal effect on code performance
  • Profiles entire code
hpm event groups

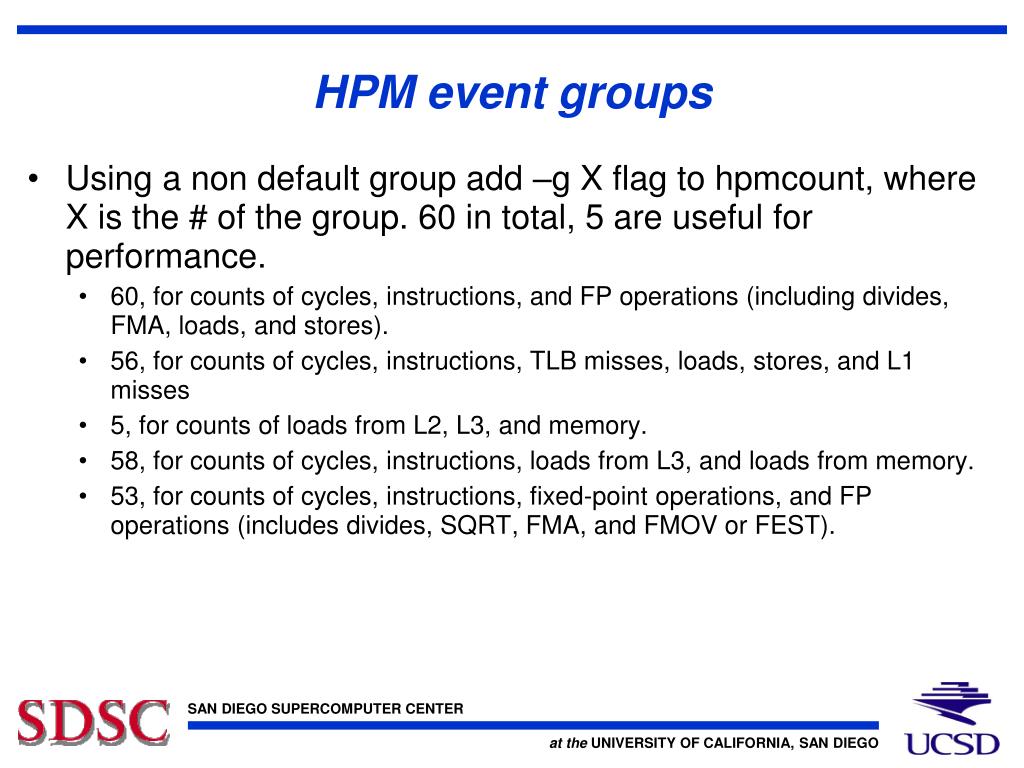

HPM event groups
  • Using a non default group add –g X flag to hpmcount, where X is the # of the group. 60 in total, 5 are useful for performance.
    • 60, for counts of cycles, instructions, and FP operations (including divides, FMA, loads, and stores).
    • 56, for counts of cycles, instructions, TLB misses, loads, stores, and L1 misses
    • 5, for counts of loads from L2, L3, and memory.
    • 58, for counts of cycles, instructions, loads from L3, and loads from memory.
    • 53, for counts of cycles, instructions, fixed-point operations, and FP operations (includes divides, SQRT, FMA, and FMOV or FEST).
libhpm

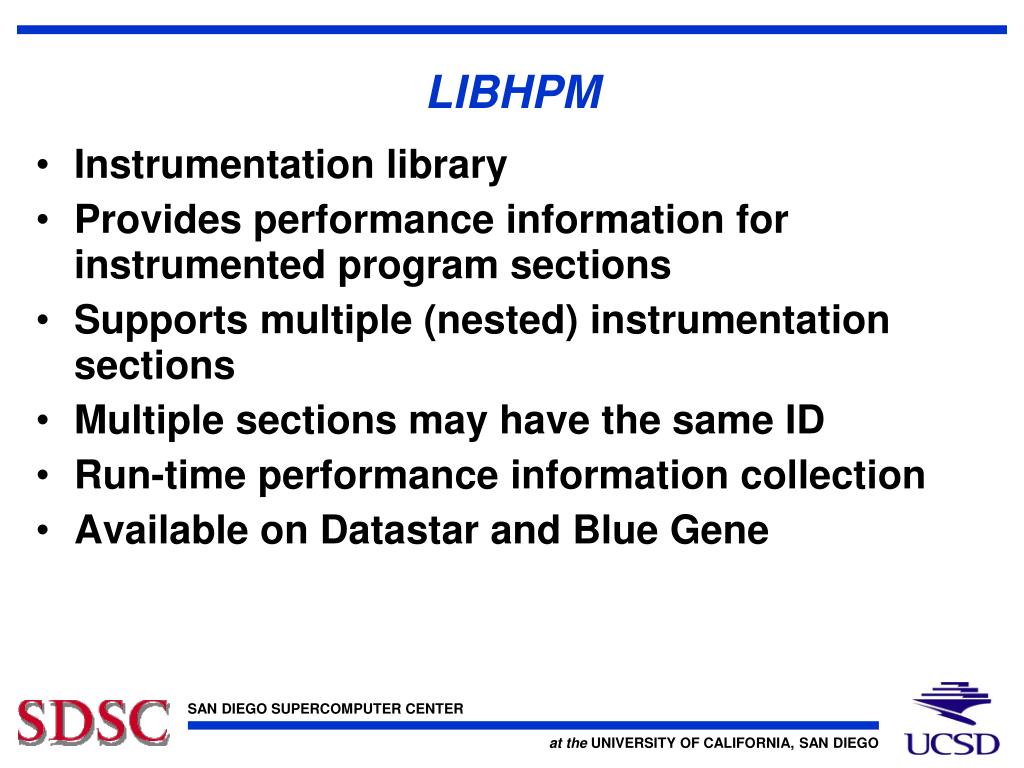

LIBHPM
  • Instrumentation library
  • Provides performance information for instrumented program sections
  • Supports multiple (nested) instrumentation sections
  • Multiple sections may have the same ID
  • Run-time performance information collection
  • Available on Datastar and Blue Gene
functions
Functions
  • hpmInit( taskID, progName ) / f_hpminit( taskID, progName )
    • taskID is an integer value indicating the node ID.
    • progName is a string with the program name.
  • hpmStart( instID, label ) / f_hpmstart( instID, label )
    • instID is the instrumented section ID. It should be > 0 and <= 100 ( can be overridden)
    • Label is a string containing a label, which is displayed by PeekPerf.
  • hpmStop( instID ) / f_hpmstop( instID )
    • For each call to hpmStart, there should be a corresponding call to hpmStop with matching instID
  • hpmTerminate( taskID ) / f_hpmterminate( taskID )
    • This function will generate the output. If the program exits without calling hpmTerminate, no performance information will be generated.
message passing performance
Message-Passing Performance:

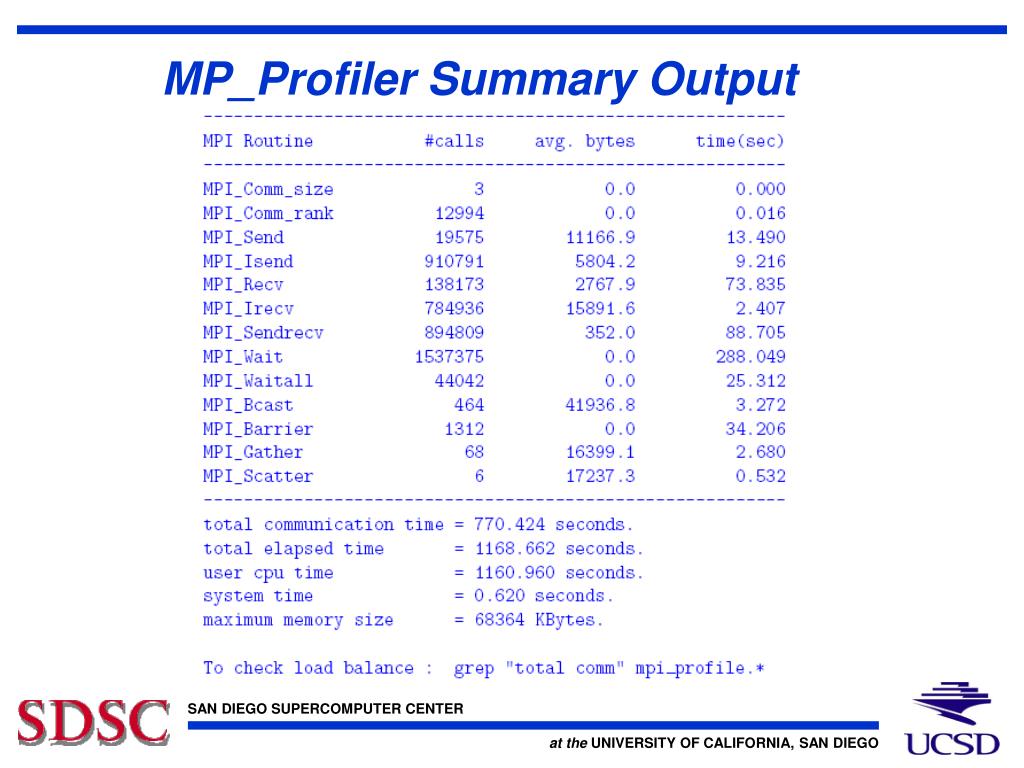

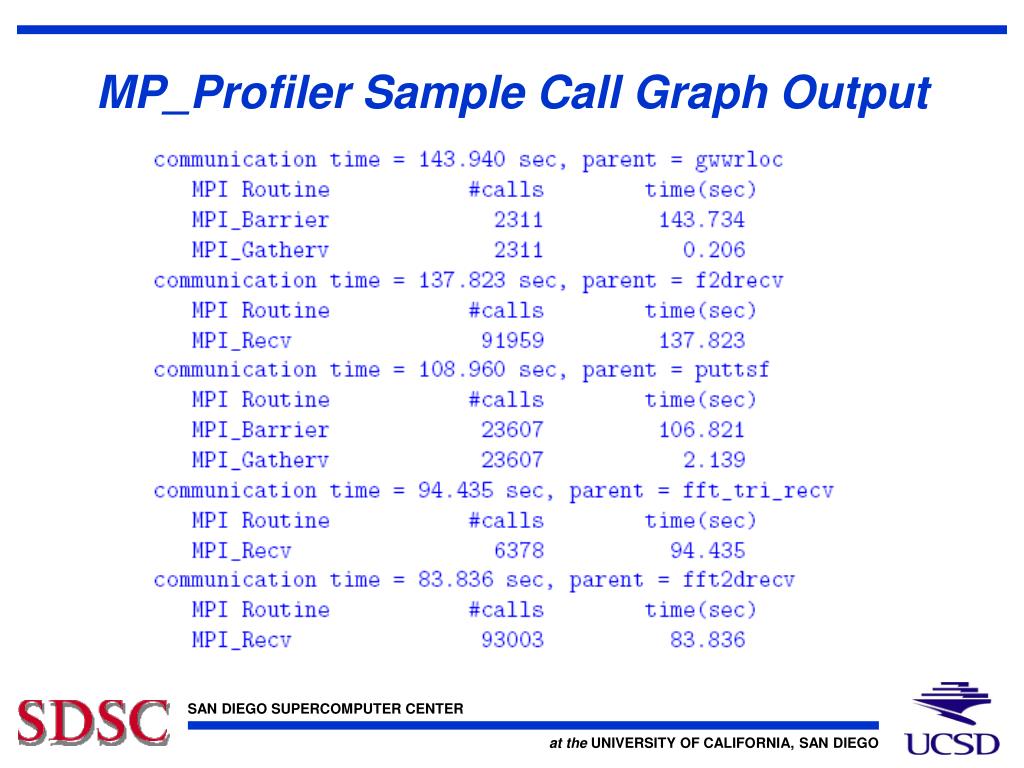

  • MP_Profiler Library
    • Captures “summary” data for MPI calls
    • Source code traceback
    • User MUST call MPI_Finalize() in order to get output files.
    • No changes to source code
      • MUST compile with –g to obtain source line number information
  • MP_Tracer Library
    • Captures “timestamped” data for MPI calls
    • Source traceback
  • Available on Datastar and Blue Gene
trace flags
Trace flags
  • Datastar:

IHPCT_BASE=/usr/local/apps/ihpct

TRACELIB=$(IHPCT_BASE)/lib

MPITRACE = -L$(TRACELIB) -lmpitrace

MPIPROF = -L$(TRACELIB) –lmpiprof

HPMINC=$(IHPCT_BASE)/include

HPMLIB = -L$(IHPCT_BASE)/lib/pwr4 -lhpm_r -lpmapi -lm

  • Blue Gene (new - untested)

IHPCT_BASE = /usr/local/apps/hpc_toolkit

TRACELIB=$(IHPCT_BASE)/lib

MPITRACE = -L$(TRACELIB) –lmpitrace_f ( OR -lmpitrace_c)

HPMINC=$(IHPCT_BASE)/include

HPMLIB = -L$(IHPCT_BASE)/lib –lhpm.rts -lpmapi -lm

environment flags
Environment Flags
  • TRACELEVEL
    • Level of trace back the caller in the stack
    • Used to skipped wrappers
    • Default: 0
  • TRACE_TEXTONLY
    • If set to “1”, plain text output is generated
    • Otherwise, a viz file is generated
  • TRACE_PERFILE
    • If set to “1”, the output is shown for each source file
    • Otherwise, output is a summary of all source files
  • TRACE_PERSIZE
      • If set to “1”, the statistics for a function is shown for every message size
      • Otherwise, summary for all message sizes is given
peekperf
PeekPerf
  • PeekPerf is a viewer for data generated by HPM, Tracer and Profiling libraries, and DPOMP.
integrated performance monitoring ipm
Integrated Performance Monitoring (IPM)
  • Allows users to obtain a concise summary of the performance and communication characteristics of their codes.
  • Information on use available at http://www.sdsc.edu/us/tools/top/ipm
  • On Blue Gene you need to recompile your code, linking to the IPM library by adding

-L/usr/local/apps/ipm/lib/ -lipm

to the link stage. For example:

    • C: mpcc main.c -L/usr/local/apps/ipm/lib/ -lipm
    • Fortran: mpxlf90 main.f -L/usr/local/apps/ipm/lib/ -lipm
  • Run your job using poe-ipm on DataStar and mpirun-ipm on Blue Gene.
  • DO NOT use together with HPMCOUNT !
ipm output

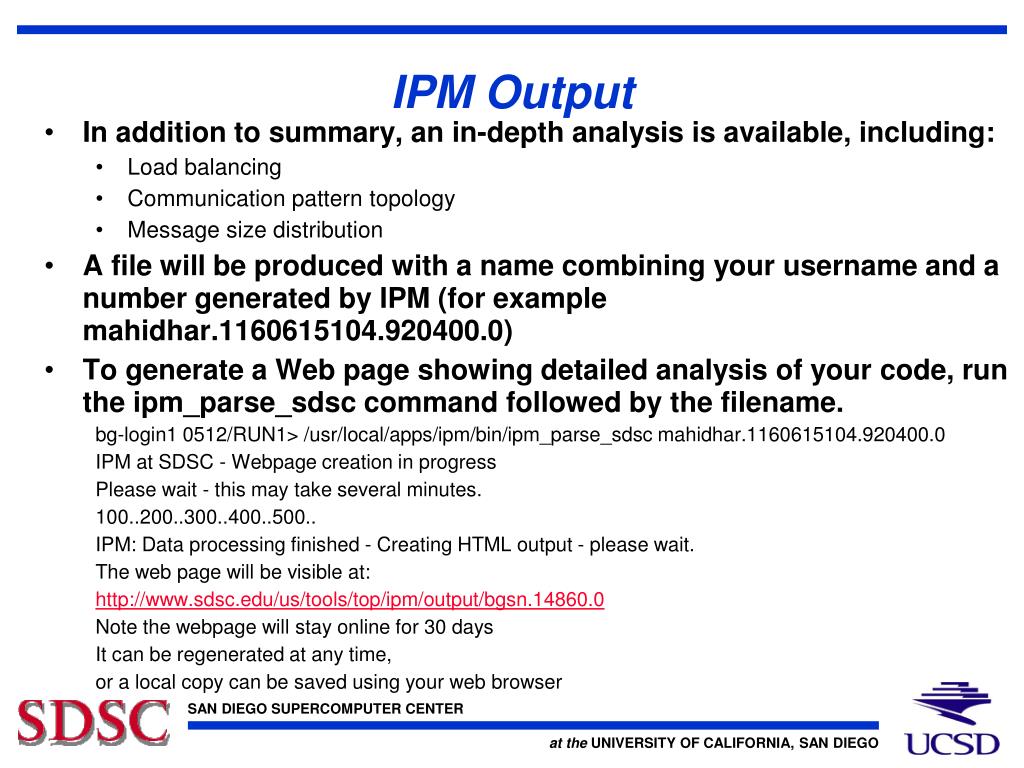

IPM Output
  • In addition to summary, an in-depth analysis is available, including:
    • Load balancing
    • Communication pattern topology
    • Message size distribution
  • A file will be produced with a name combining your username and a number generated by IPM (for example mahidhar.1160615104.920400.0)

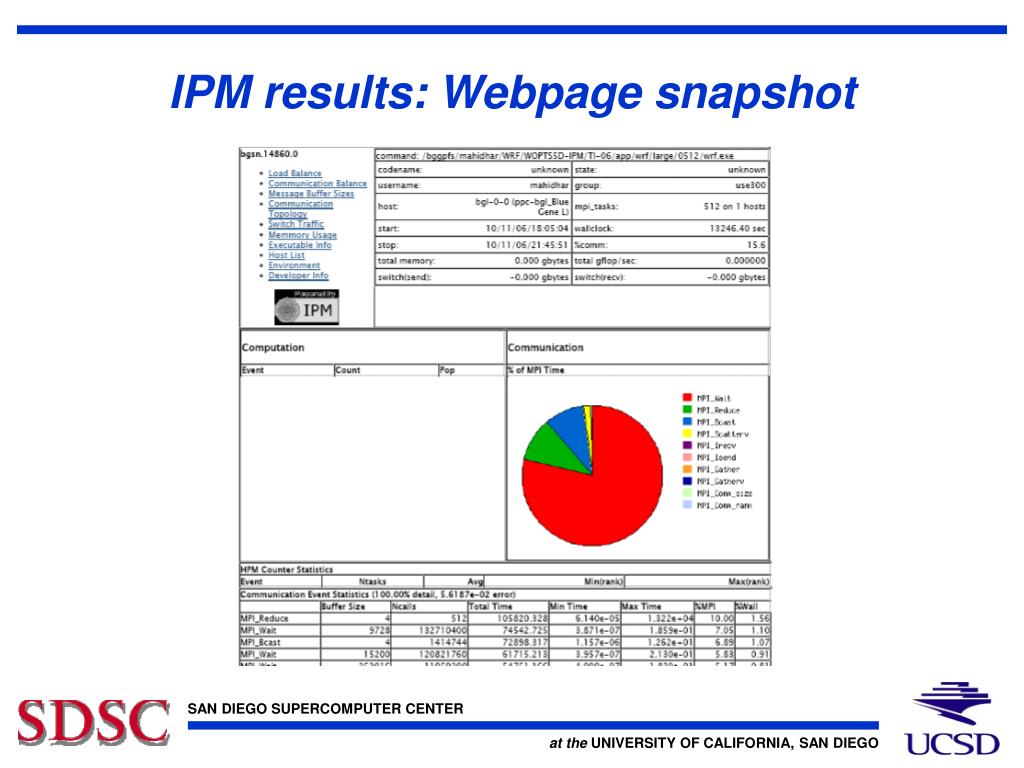

  • To generate a Web page showing detailed analysis of your code, run the ipm_parse_sdsc command followed by the filename.

bg-login1 0512/RUN1> /usr/local/apps/ipm/bin/ipm_parse_sdsc mahidhar.1160615104.920400.0

IPM at SDSC - Webpage creation in progress

Please wait - this may take several minutes.

100..200..300..400..500..

IPM: Data processing finished - Creating HTML output - please wait.

The web page will be visible at:

http://www.sdsc.edu/us/tools/top/ipm/output/bgsn.14860.0

Note the webpage will stay online for 30 days

It can be regenerated at any time,

or a local copy can be saved using your web browser

standard tuning procedure

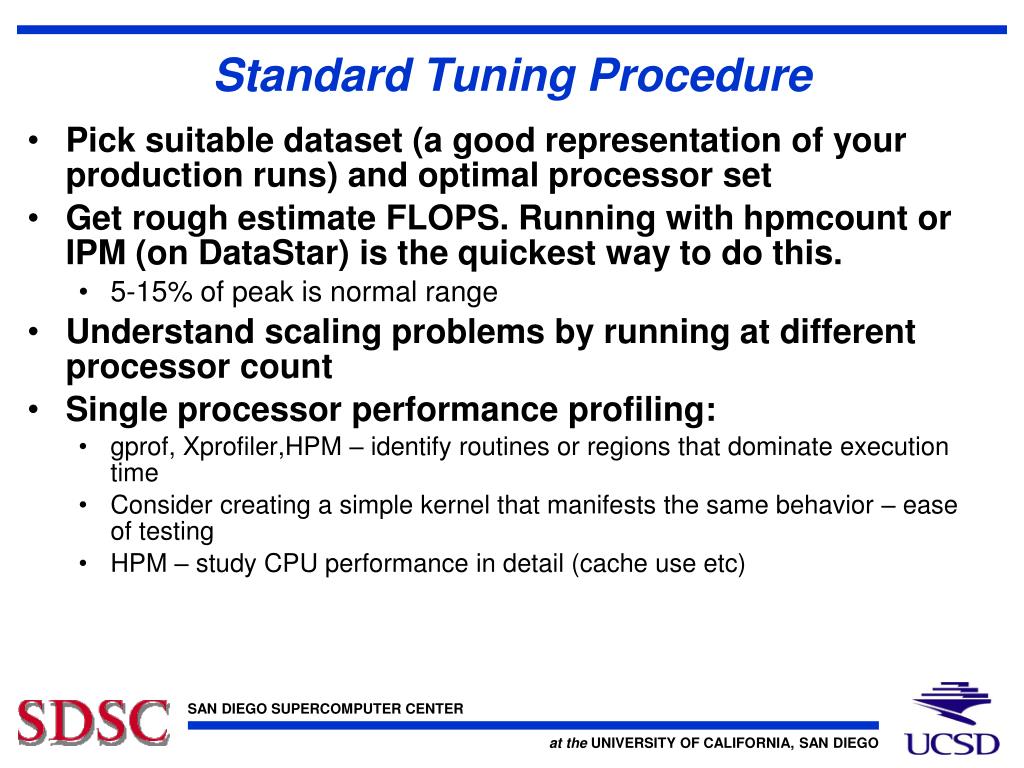

Standard Tuning Procedure
  • Pick suitable dataset (a good representation of your production runs) and optimal processor set
  • Get rough estimate FLOPS. Running with hpmcount or IPM (on DataStar) is the quickest way to do this.
    • 5-15% of peak is normal range
  • Understand scaling problems by running at different processor count
  • Single processor performance profiling:
    • gprof, Xprofiler,HPM – identify routines or regions that dominate execution time
    • Consider creating a simple kernel that manifests the same behavior – ease of testing
    • HPM – study CPU performance in detail (cache use etc)
mpi profiling
MPI profiling
  • Run using IPM and/or MP_profiler to check
    • Communication/Computation ratio
    • Any anomalies, too many messages, too many collectives
    • Large differences between profiles of different tasks etc.
    • Many small messages – combine into larger messages
    • Communication pattern not suited for given network topology
  • Understand load imbalances if any
    • Ex: task 0 is spending too much time in I/O
    • Task n has very small communication time compared to others etc.
references

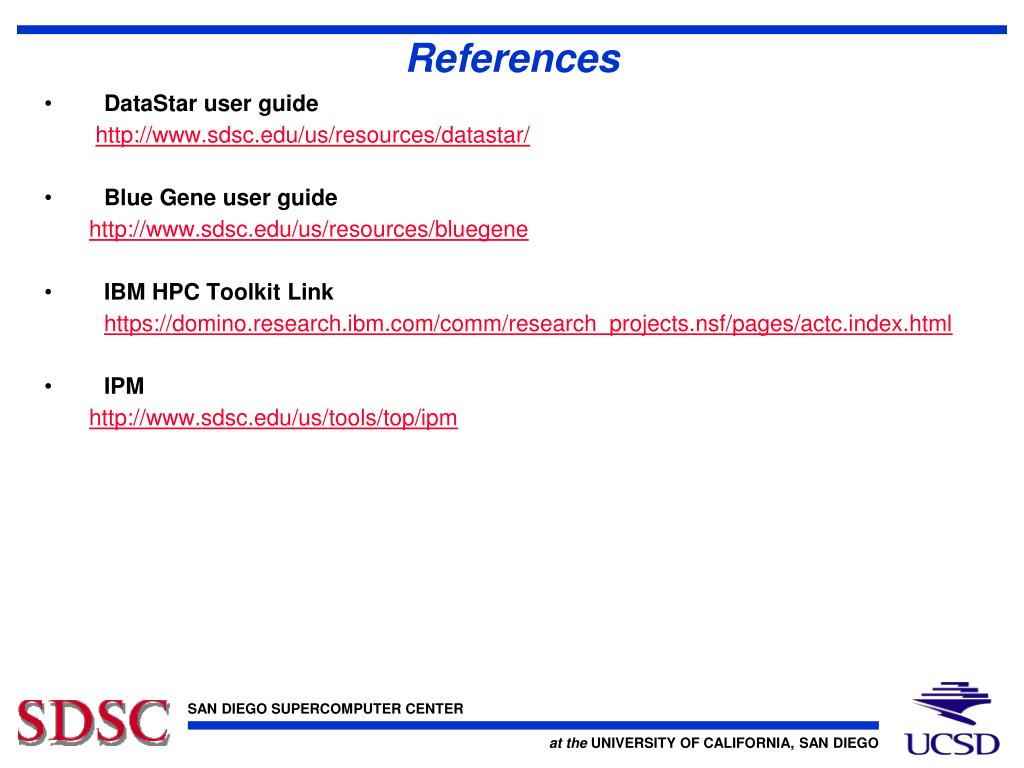

References
  • DataStar user guide

http://www.sdsc.edu/us/resources/datastar/

  • Blue Gene user guide

http://www.sdsc.edu/us/resources/bluegene

  • IBM HPC Toolkit Link

https://domino.research.ibm.com/comm/research_projects.nsf/pages/actc.index.html

  • IPM

http://www.sdsc.edu/us/tools/top/ipm
