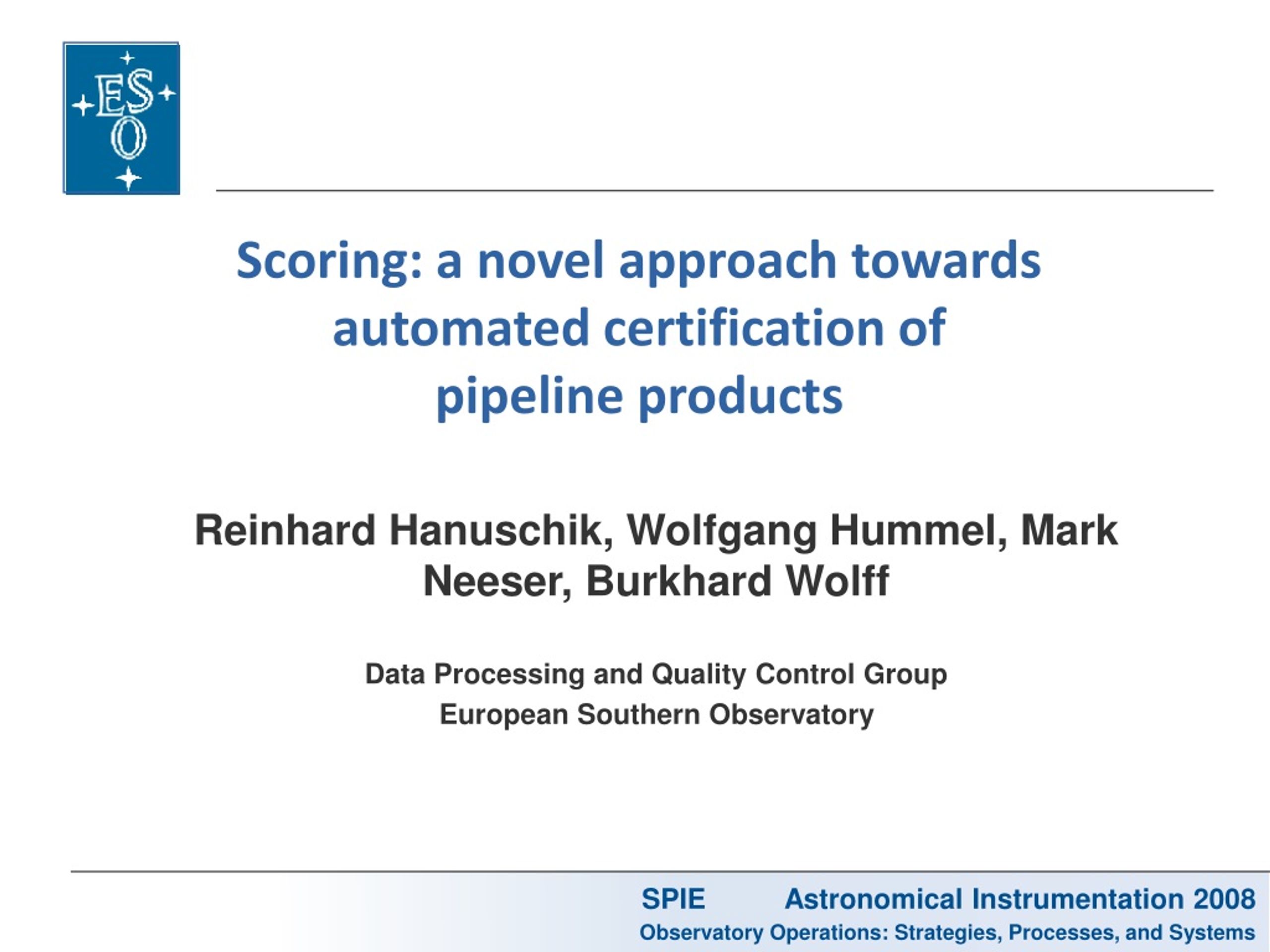

  1. Scoring: a novel approach towards automated certification of pipeline products Reinhard Hanuschik, Wolfgang Hummel, Mark Neeser, Burkhard WolffData Processing and Quality Control Group European Southern Observatory

  2. Complexity and mass production • VLT: 11 instruments • VLTI: 2 instruments • 2009/10: 2 survey telescopes • roughly 50 modes • about 150 data types • most of them pipeline-supported

  3. Complexity and mass production • each data type or instrument component controlled by QC1 parameters • metrics for instrument performance extracted by data pipelines • stored in database • data frequency varies on timescales between a day and a semester

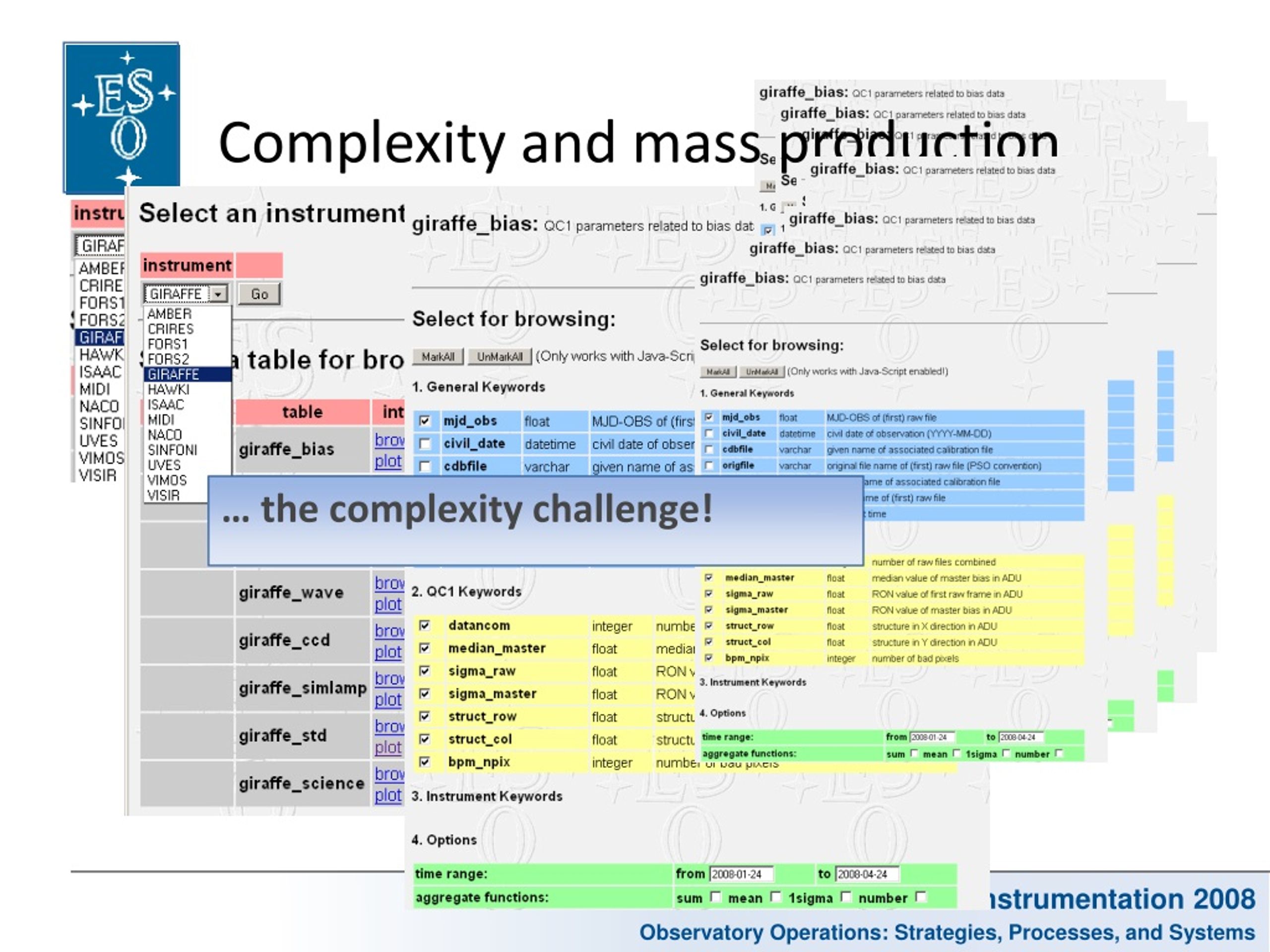

  4. Complexity and mass production two challenges … • … the complexity challenge!

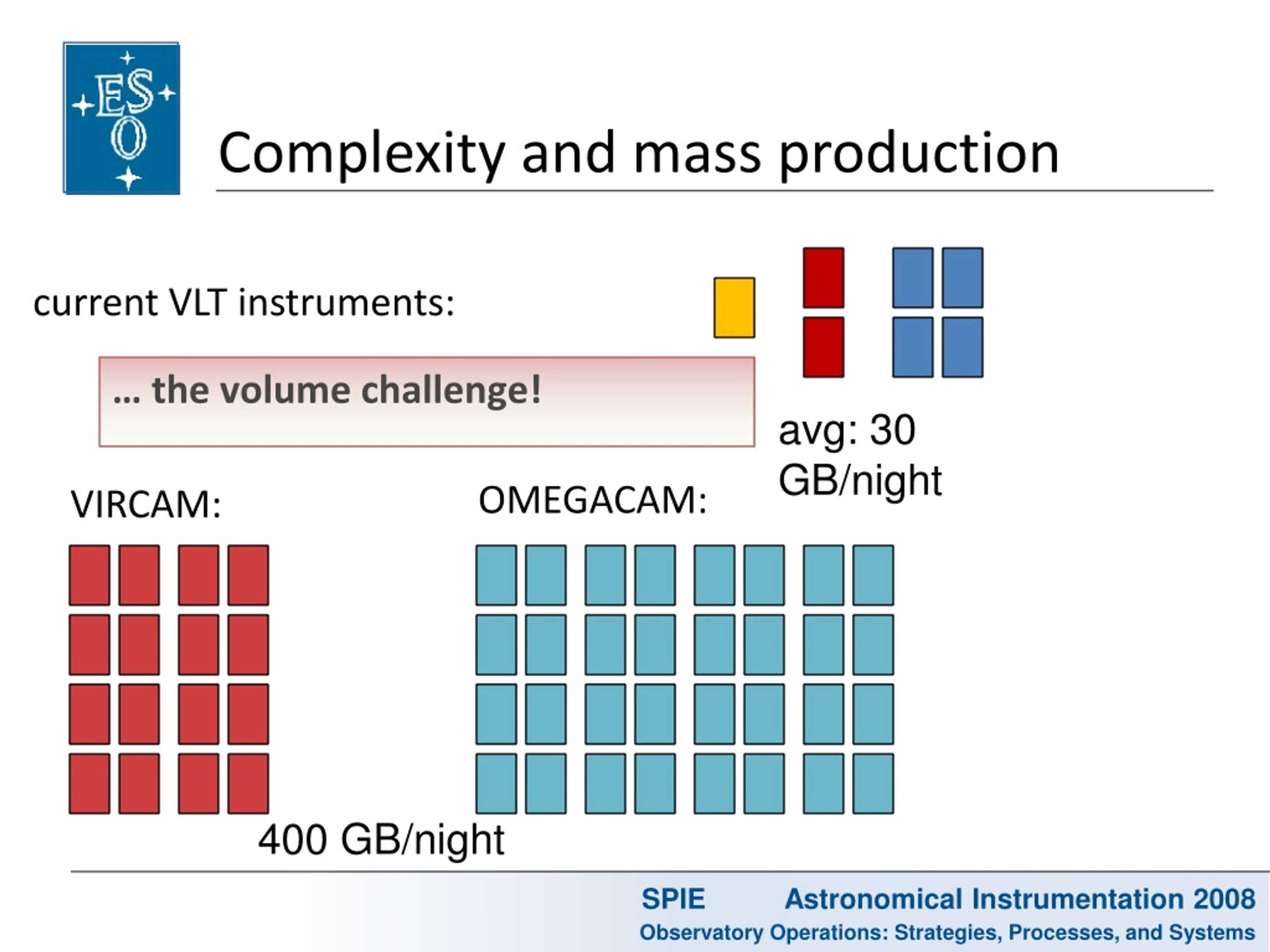

  5. avg: 30 GB/night OMEGACAM: VIRCAM: 400 GB/night Complexity and mass production • … the volume challenge! current VLT instruments:

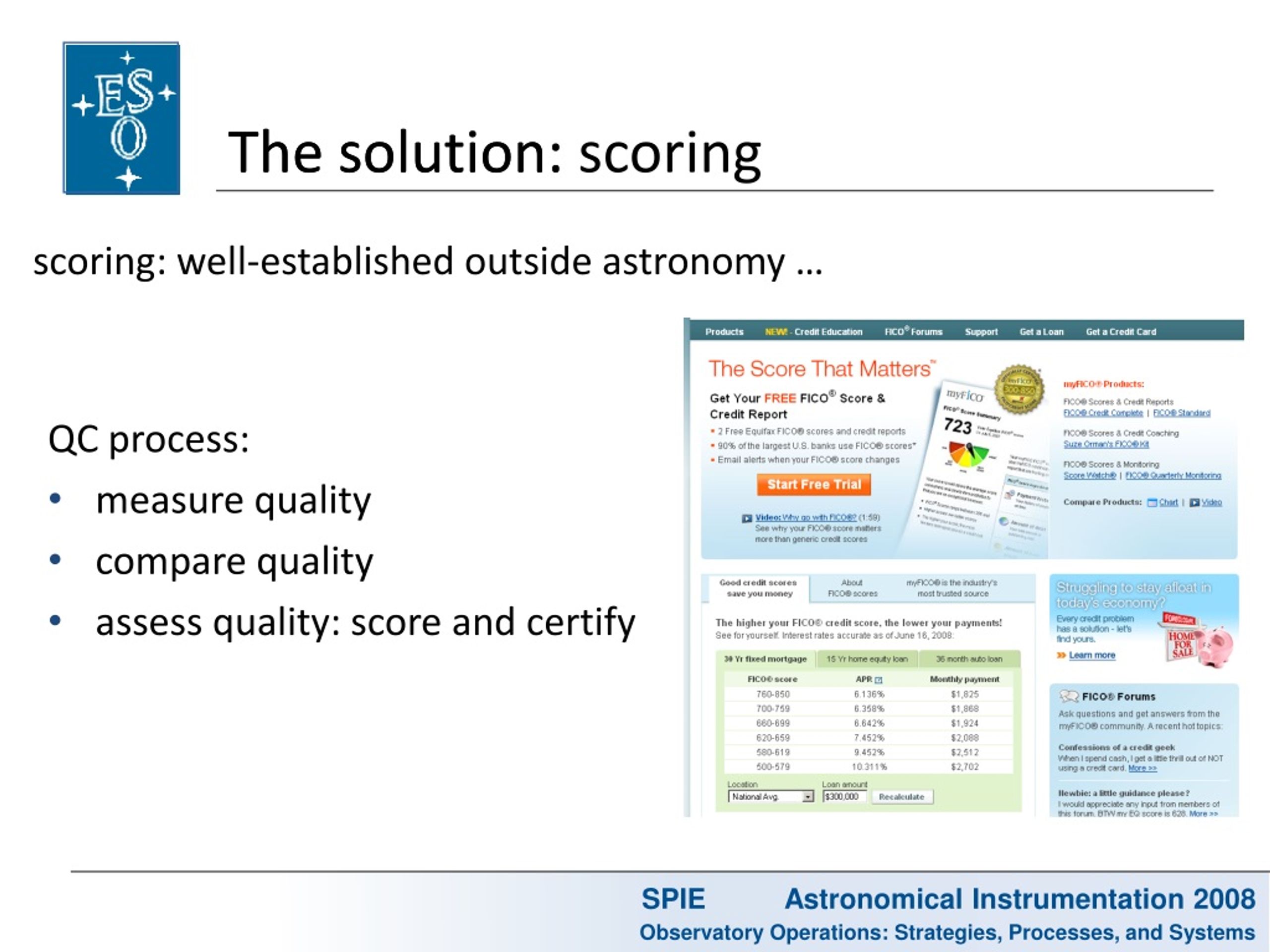

  6. The solution: The solution: scoring QC process: • measure quality • compare quality • assess quality: score and certify scoring: well-established outside astronomy …

  7. Scoring: the solution • measure quality: done by automatic procedures • pipelines • other QC procedures • implemented for CALIB data • progress on SCIENCE data

  8. Scoring: the solution • compare quality: trending • first step towards assessment: • same/different behaviour as others?

  9. Scoring: the solution • assess quality: scoring • compare new result to trending • pick out outliers and flag them

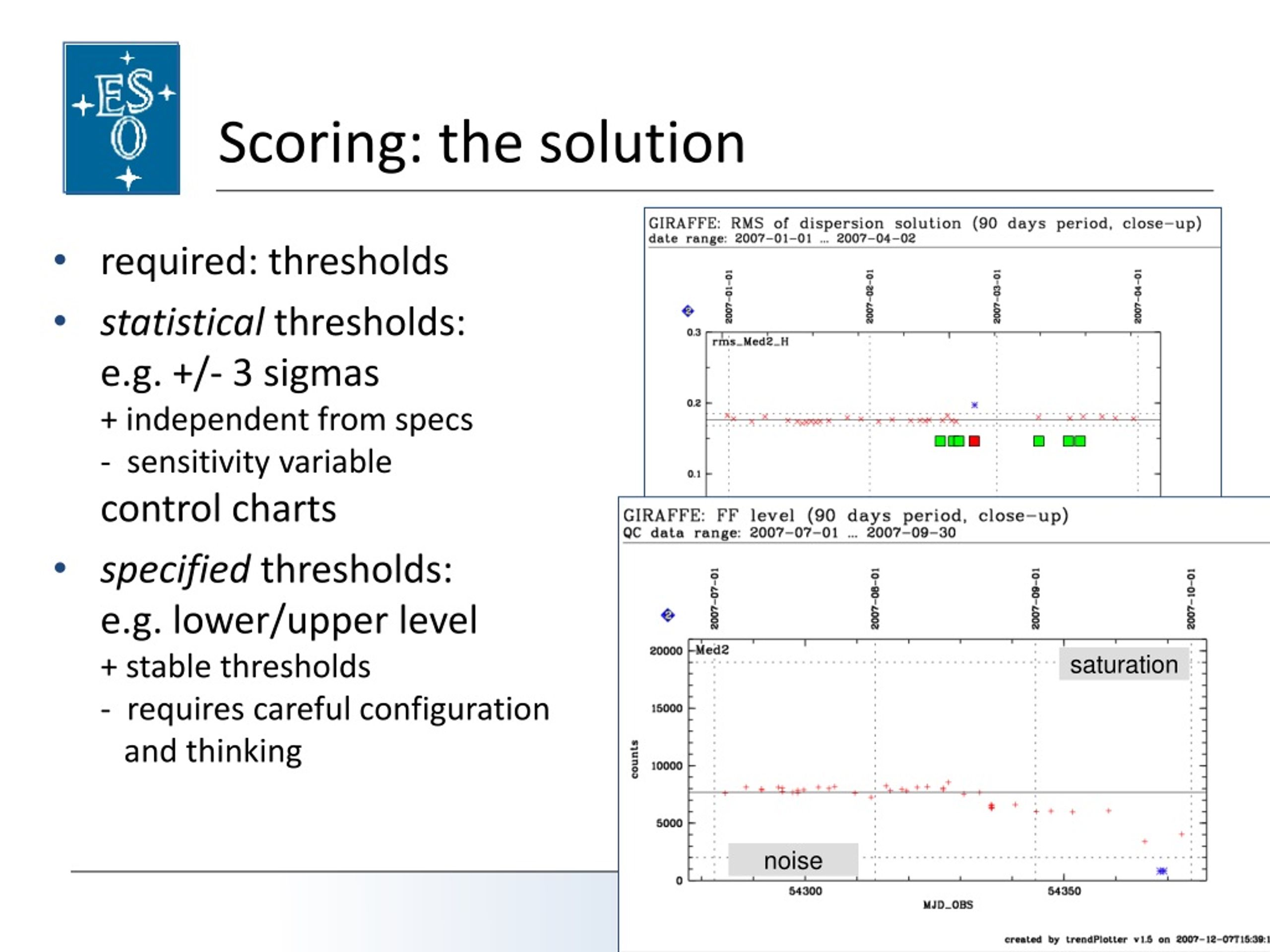

  10. Scoring: the solution saturation noise • required: thresholds • statistical thresholds: e.g. +/- 3 sigmas+ independent from specs- sensitivity variablecontrol charts • specified thresholds: e.g. lower/upper level+ stable thresholds- requires careful configuration and thinking

  11. Scoring of pipeline products • each new pipeline product is scored • most relevant QC1 parameters:compare to trending, score as • OK: 0 • NOK: 1 (outlier) • count scores, assign total score, e.g.

  12. Scoring of pipeline products score report:

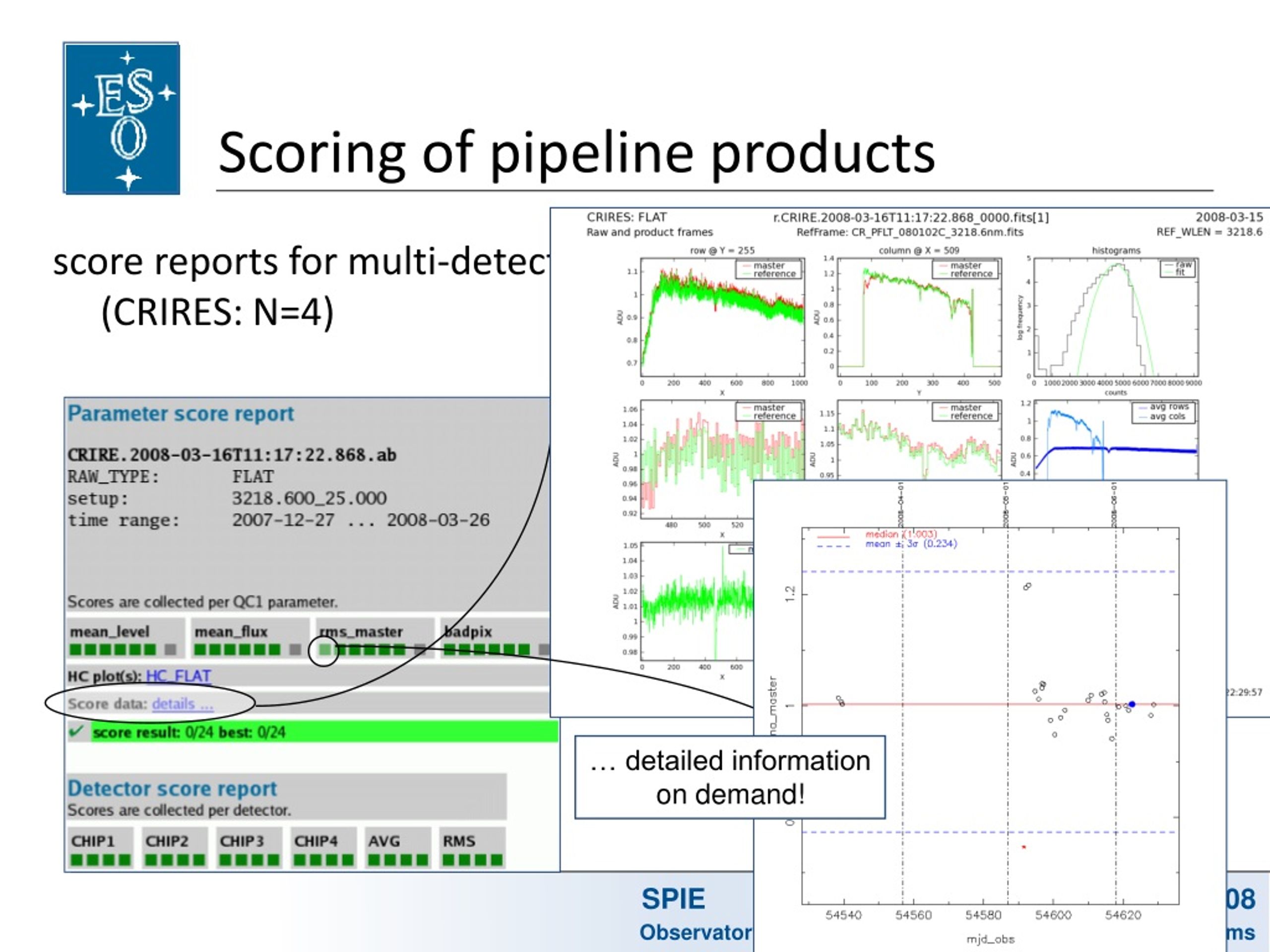

  13. Scoring of pipeline products score reports for multi-detector instruments (CRIRES: N=4) … detailed information on demand!

  14. cal file1 scores cal file2 scores FLAT instrument scores cal LAMPs ARC Scoring of instrument health • all scores go into database • re-arrange them by instrument properties • detector health • calibration lamp performance • system efficiency score-based instrument QC

  15. Scoring of instrument health • example: detector properties for GIRAFFE instead of …

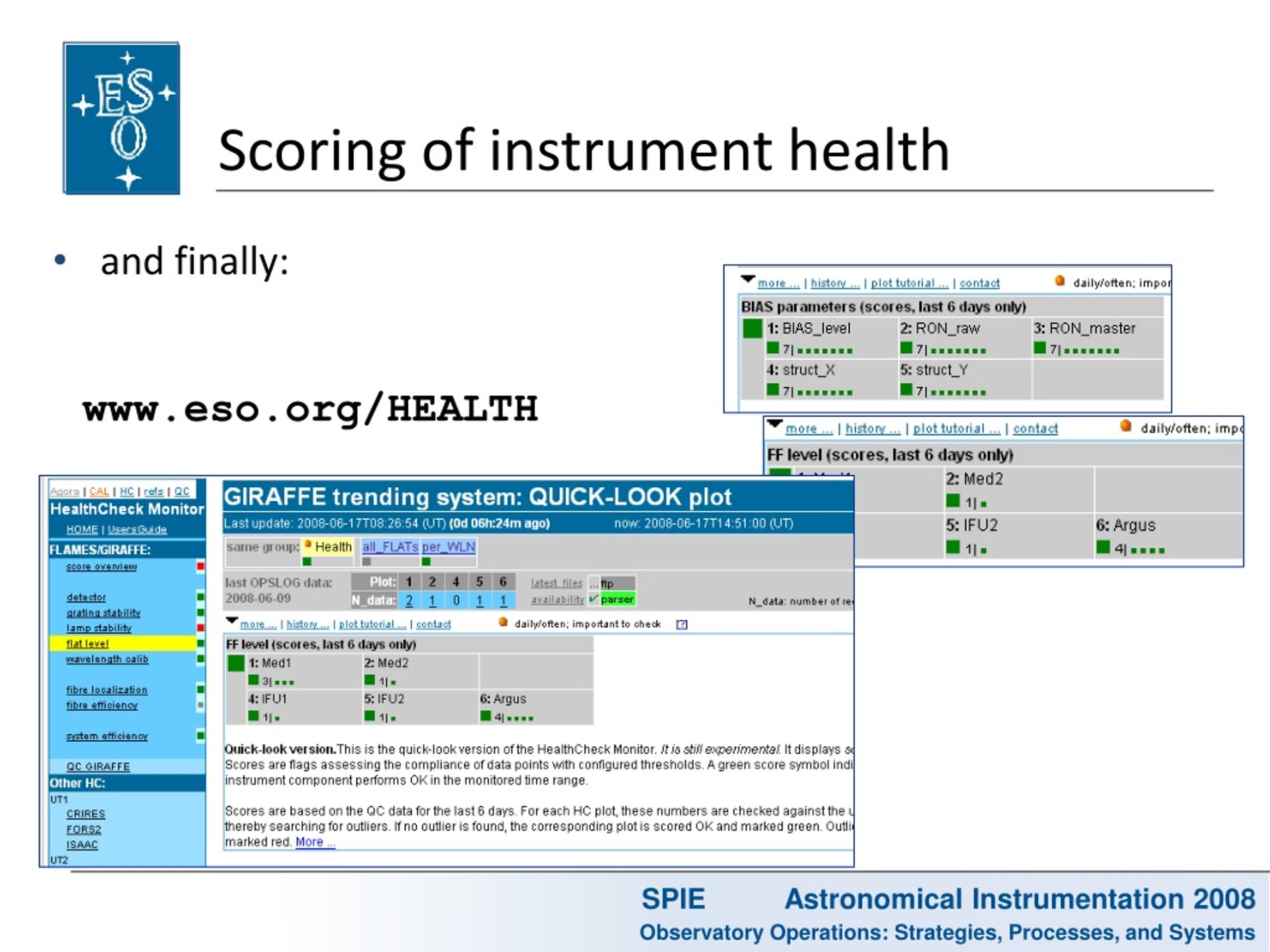

  16. Scoring of instrument health • and finally: www.eso.org/HEALTH

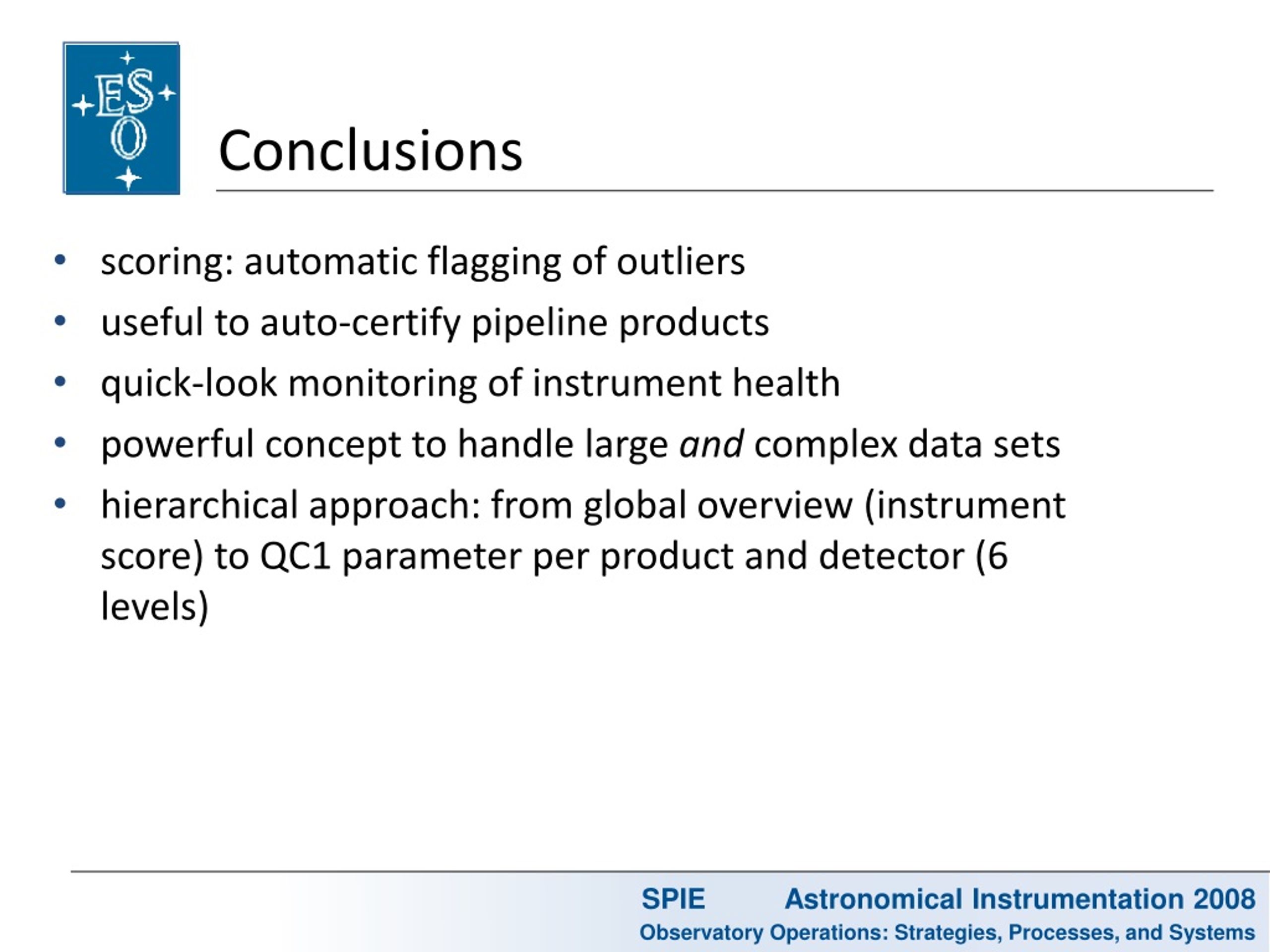

  17. Conclusions • scoring: automatic flagging of outliers • useful to auto-certify pipeline products • quick-look monitoring of instrument health • powerful concept to handle large and complex data sets • hierarchical approach: from global overview (instrument score) to QC1 parameter per product and detector (6 levels)
