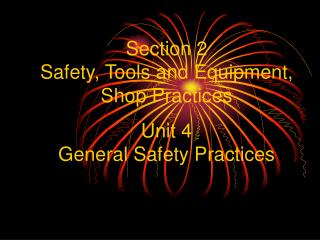

Section 2 Safety, Tools and Equipment, Shop Practices Unit 4 General Safety Practices PowerPoint Presentation
Download Presentation
Section 2 Safety, Tools and Equipment, Shop Practices Unit 4 General Safety Practices

Loading in 2 Seconds...

play fullscreen
1 / 21

Section 2 Safety, Tools and Equipment, Shop Practices Unit 4 General Safety Practices - PowerPoint PPT Presentation


  • 117 Views
  • Uploaded on

Section 2 Safety, Tools and Equipment, Shop Practices Unit 4 General Safety Practices. Unit Objectives. Describe proper procedures for working with pressurized systems and vessels, electric energy, heat, cold, rotating machinery, and chemicals. Properly move heavy objects.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Section 2 Safety, Tools and Equipment, Shop Practices Unit 4 General Safety Practices' - frayne


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
unit objectives
Unit Objectives
  • Describe proper procedures for working with pressurized systems and vessels, electric energy, heat, cold, rotating machinery, and chemicals.
  • Properly move heavy objects.
  • Work safely by avoiding safety hazards.
pressure vessels and piping 1 of 2
Pressure Vessels and Piping (1 of 2)
  • The pressure in a vessel increases as the temperature of the vessel increases.
    • This pressure is a potential danger.
  • Refrigerant cylinders should be stored in the upright position.
  • Larger cylinders should be moved only when the protective cap is in place.
  • Larger cylinders should be secured to carts designed for moving cylinders.
  • Always wear gloves and eye protection.
slide4

R-22

R-22

R-22

R-22

R-22

R-22

R-22

R-22

R-22

R-22

R-22

Pressure Vessels and Piping (2 of 2)

  • Take all precautions to prevent tanks from falling over…

- the valve stem may break off, causing the tank to become a projectile

electrical hazards
Electrical Hazards
  • Exercise caution when working on or around electrical circuits.
  • Uncontrolled electric current flow can result in electrical shocks or burns.
  • Follow lock-out and tag procedures.
  • Exercise caution when working on live circuits.
  • Do not come in contact with energized conductors.
electric shock
Electric Shock
  • Shock occurs when you become a part of a circuit.
  • Severity of a shock is determined by voltage, current, and the path the current takes as it flows through the body.
  • Current flow through the heart can be fatal.
  • To help prevent shock, wear insulated boots and do not stand in water while working on equipment.
ground protection 1 of 3
Ground Protection (1 of 3)
  • Grounding wires provide protection from electric shock.
  • The ground wire provides an alternative path for current to take.
  • All tools should be properly grounded.
  • Do not use tools that have damaged or missing ground prongs.
slide8

Line

Bob's.ppt

Neutral

KIPKE

BOB

GRAPHICS

KIPKE

BOB

GRAPHICS

2000

2001

Ground Protection (2 of 3)

  • Ungrounded tools have two prongs: One supplies line voltage to the tool and the other is neutral.
  • If the tool becomes grounded, current can flow through the tool and through the user to ground causing shock.
slide9

Neutral

Line

Bob's.ppt

Ground

KIPKE

BOB

GRAPHICS

KIPKE

BOB

GRAPHICS

2000

2001

Ground Protection (3 of 3)

  • Grounded tools have three prongs.
  • If the tool becomes grounded, the current will flow to ground through the ground prong, protecting the user.
other grounding tidbits
Other Grounding Tidbits…
  • If wall outlets have only two connections and the tool has three prongs, use an adapter.
  • Plastic-cased tools are double-insulated and often have only two prongs.
  • Battery-operated tools are convenient and safer.
  • Ground fault circuit interrupters (GFCI) sense small electrical leaks to ground.
electrical burns 1 of 2
Electrical Burns (1 of 2)
  • Avoid wearing metallic jewelry while working on electric circuits.
    • Metallic jewelry conducts electricity.
  • Never use a screwdriver in an electrical panel when the power is on.
  • Burns can result from electric sparks.
slide12

Electrical Burns (2 of 2)

L1

L2

TERMINAL BLOCK

  • If the screwdriver slips and makes contact between a hot terminal and ground…

- Electrical sparks can result, causing electrical shock or burn.

GROUND

ladder safety
Ladder Safety
  • Nonconducting ladders should be used.
  • Fiberglass or wooden ladders are preferred.
  • Ladders should be placed on level surfaces.
  • Damaged ladders should not be used.
  • Ladders should be free of oil, grease, and other slipping hazards.
  • Ladders should have slip-resistant feet.
  • Secure the ladder in place whenever possible.
heat related safety issues

TORCH

O

MATIC

Bob's.ppt

http://www.geocities.com/bkip20002/index.html

Graphics by Bob

http://home.att.net/~kip20002/

Bob's.ppt

http://www.geocities.com/bkip20002/index.html

Copyright 2002

-All Rights Reserved-

Heat-related Safety Issues
  • Torches concentrate large amounts of heat.
  • Keep torches away from combustible materials.
  • Always keep a fire extinguisher nearby.
  • Use a fire shield when soldering near combustibles.
  • Never solder tubing on a sealed system.
  • Hot pipes and motors can cause burns.
  • Working outdoors or in hot attics can cause injury.
cold related safety issues
Cold-related Safety Issues
  • Cold can be as dangerous as heat.
  • Liquid refrigerant can cause frostbite.
  • R-22 boils at -41°F at atmospheric pressure.
  • Wear warm clothing and waterproof boots when working in cold, wet environments.
  • Cold-weather gear should be worn when working in low-temperature freezers.
mechanical equipment safety 1 of 2
Mechanical Equipment Safety (1 of 2)
  • Rotating machinery can cause injury.
  • Loose fitting clothing can get caught in rotating machinery including, fans, belts, and pulleys.
  • Never try to stop rotating machinery by hand.
  • Jewelry can get caught on machinery.
  • Always use eye protection when working on or around rotating machinery.
slide17

Mechanical Equipment Safety (2 of 2)

  • Never try to stop rotating machinery by hand!
moving heavy objects

Moving Heavy Objects

  • Use hand trucks whenever possible.
  • Pry bars and dollies can be used.
  • Use a back brace

Use the safest method to move heavy objects.

Get help from others when the object is heavy.

Lift with your legs, not your back.

  • Pry bars can also be used
refrigerants in the breathing space
Refrigerants in the Breathing Space
  • Refrigerant gases are heavier than air.
  • These gases displace oxygen.
  • Avoid breathing refrigerant vapors.
  • Use proper ventilation.
  • Special leak detectors and alarms are required in certain applications.
  • ASHRAE Standard 34-1992 addresses refrigerant toxicity and flammability.
chemical safety
Chemical Safety
  • Used to clean condensers, evaporators, and other pieces of equipment
  • Used for water treatment
  • Should be handled according to manufacturer’s directions
    • Follow manufacturer’s first aid procedures.
  • Can cause irritation to the eyes, throat, and skin.
    • Be very careful!
unit summary
Unit Summary
  • Use every precaution when working with pressure, electricity, heat, cold, machinery, chemicals, and when moving heavy objects.
  • Lockout and tag electrical circuits.
  • Electric circuits must be properly grounded.
  • Excessive heat or cold can cause injury.
  • Exercise caution when working on rotating machinery.
  • Observe all safety rules to prevent personal injury.
