Electromagnetic Radiation

1. Electromagnetic Radiation

2. Electromagnetic Spectrum

3. Light 1600’s – sunlight considered purest form of light • 1665 – Isaac Newton • passed a beam of sunlight through a prism • beam spread out • band of colors (Roy G. Biv) • rejoined the colors with 2nd prism & got white light again

4. Notice: red light bent the least, violet the most

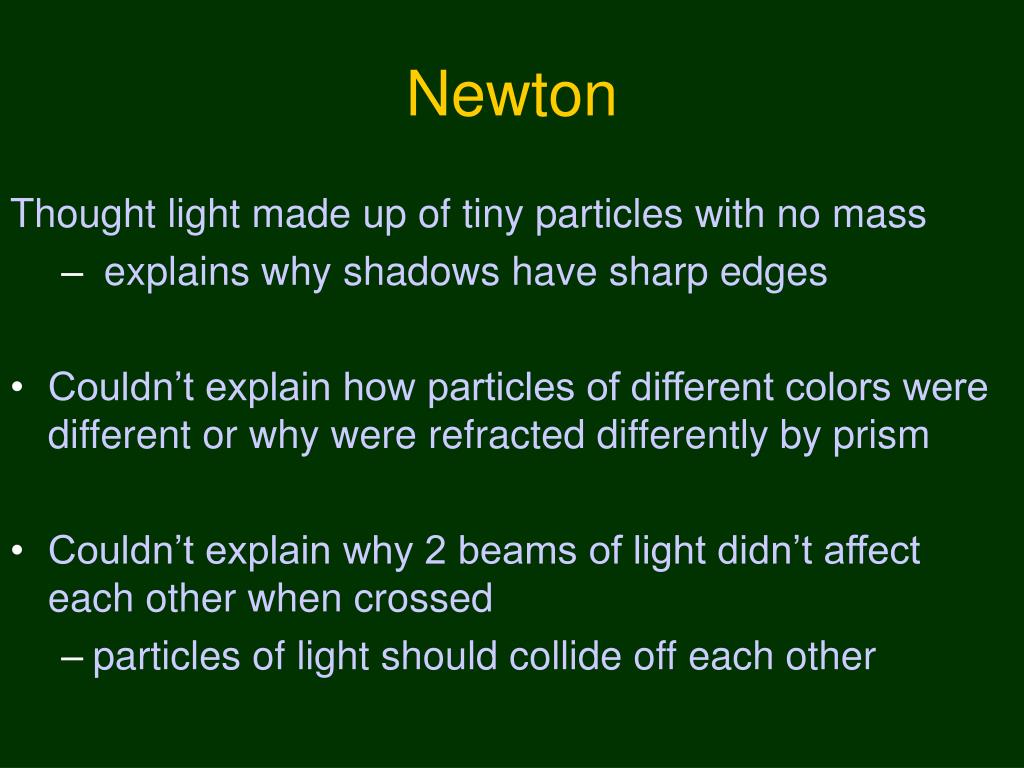

6. Newton Thought light made up of tiny particles with no mass • explains why shadows have sharp edges • Couldn’t explain how particles of different colors were different or why were refracted differently by prism • Couldn’t explain why 2 beams of light didn’t affect each other when crossed • particles of light should collide off each other

7. Christian Huygens 1678: suggested light composed of waves • explained why 2 beams of light could cross each other without being disturbed • explained refraction in prism: - different colors have different wavelengths • people were used to waves in water • water waves move around an obstruction • waves couldn’t explain shadows with sharp edges

8. Wave Vocabulary • Transverse and Longitudinal • Wavelength • Frequency • Amplitude • Velocity

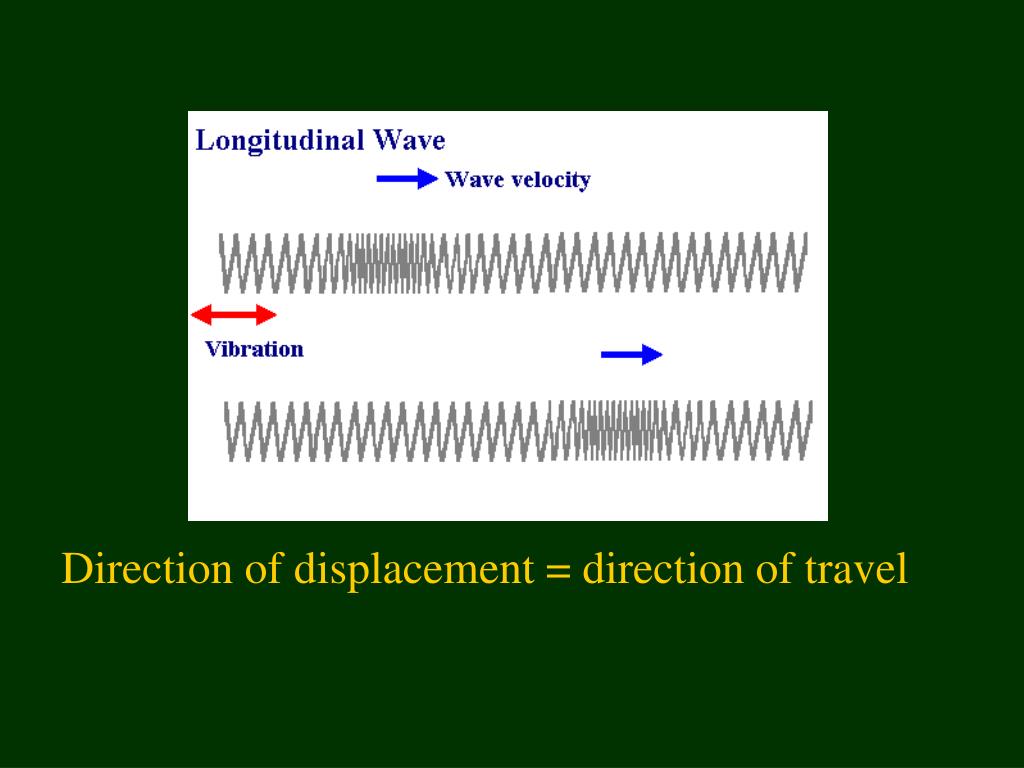

9. Direction of displacement = direction of travel

10. Transverse Wave Direction of displacement is at right angle to direction of travel

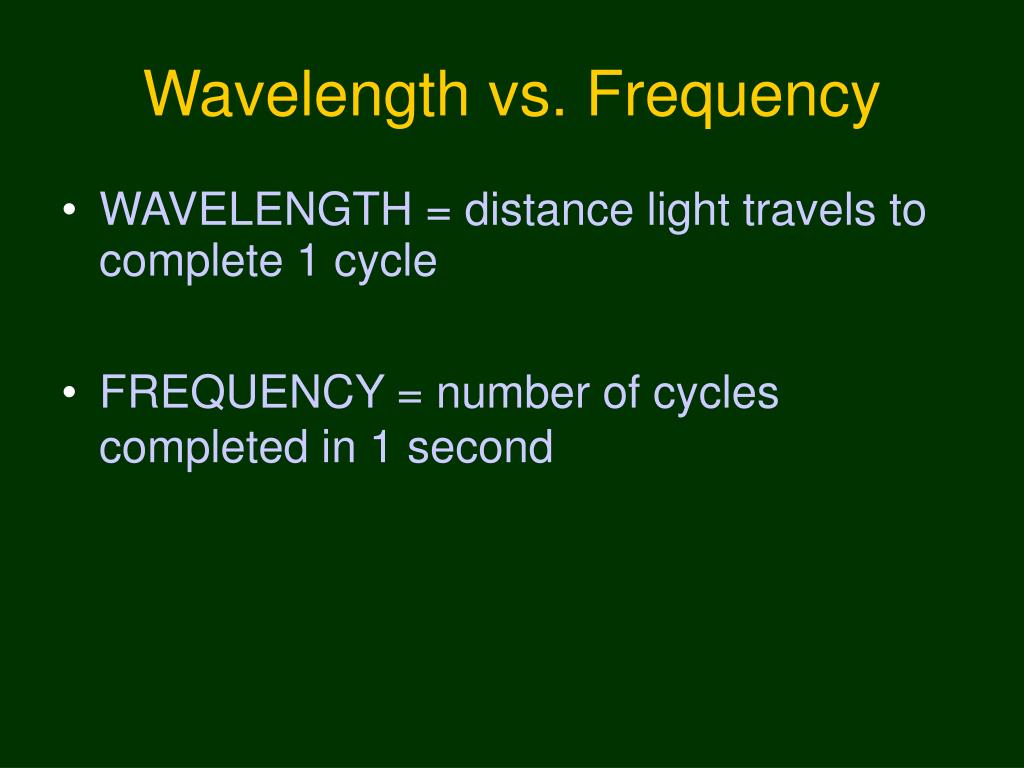

11. Wavelength vs. Frequency • WAVELENGTH = distance light travels to complete 1 cycle • FREQUENCY = number of cycles completed in 1 second

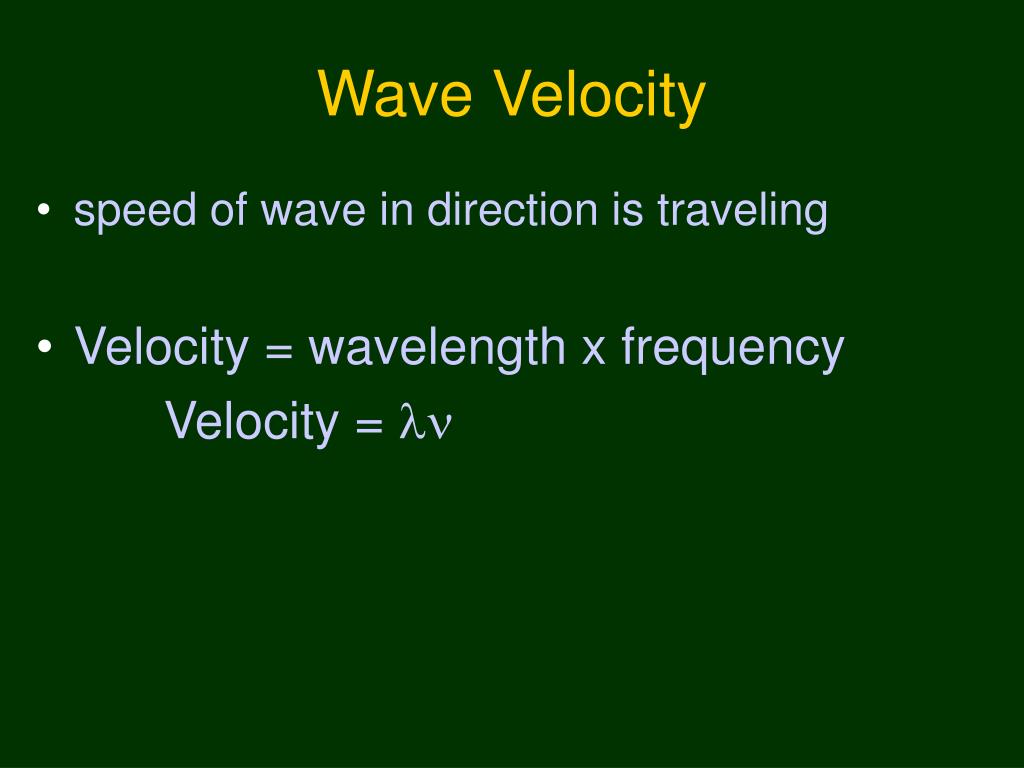

13. Wave Velocity • speed of wave in direction is traveling • Velocity = wavelength x frequency Velocity = 

14. Light: Particles vs. Waves Huygens had better argument, but Newton was more famous • people went with Newton's theory: Light was particles! • Speed of light 1st determined about 1676 by Danish astronomer • speed of light = 3.0 X 108 m/sec

15. Calculating Wavelengths of Light • visible light waves have lengths ~ 1/20,000 cm • Red a little longer, violet a little shorter • short wavelength explains why light cast sharp shadows despite being waves • waves can only bend around obstacles that are about same length • cannot bend around anything substantially longer than itself

16. The Ether • Water waves move in water • Sound waves move in air • Light waves move through vacuum • Gravity, Electricity, & Magnetism also felt across vacuum • people couldn't accept this: • postulated subtle form of matter called ether • not easily detectable • “Ether” idea held until 1900

17. Maxwell • 1864-1873 worked out equations describing electricity & magnetism • electric & magnetic fields cannot exist independently • electromagnetic radiation in Maxwell’s equation moved at same speed as light! • could not be coincidence!

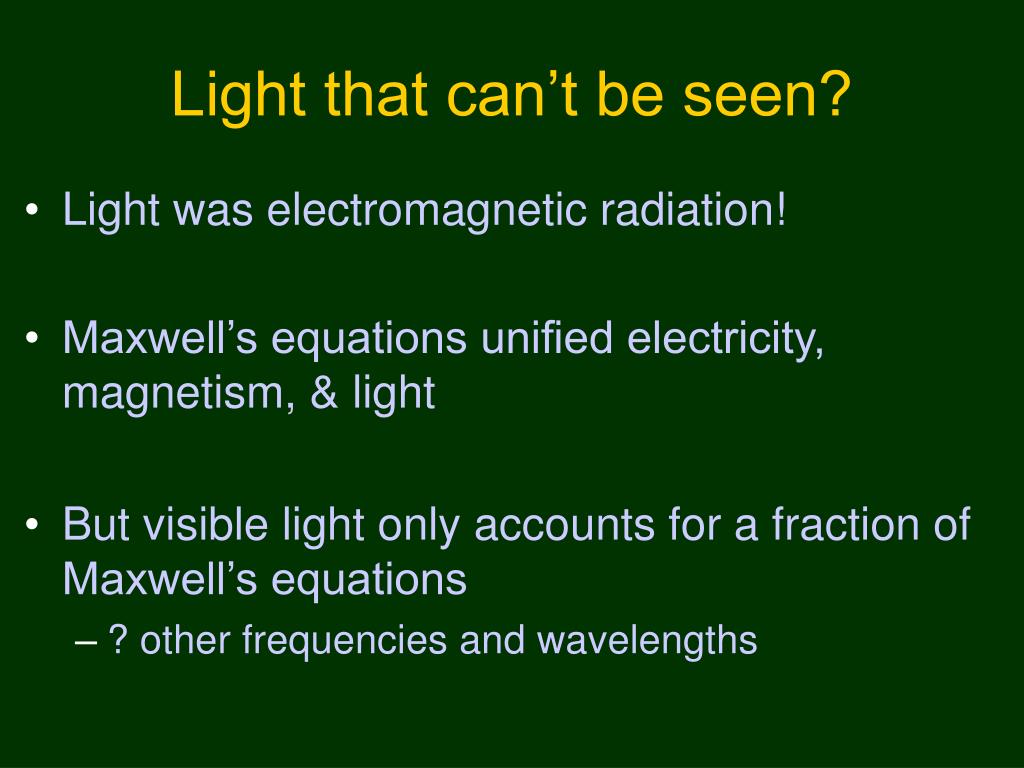

18. Light that can’t be seen? • Light was electromagnetic radiation! • Maxwell’s equations unified electricity, magnetism, & light • But visible light only accounts for a fraction of Maxwell’s equations • ? other frequencies and wavelengths

19. Heat & Light: Separate or same? Herschel – 1800 studied spectrum with thermometer - found highest temperature at red end & coolest at violet end • placed thermometer beyond red & temp was higher there than anywhere in visible spectrum • discovered Infared rays, which we cannot see

21. Infrared Radiation • By 1850: infrared rays were demonstrated to have all the properties of light • except they could not be seen by eye

22. Silver Nitrate as detector • 1614: knew that silver nitrate (white cmpd: AgNO3) darkens on exposure to sunlight • 1770: Scheele soaked strips of white paper in AgNO3 solutions and placed them in different parts of spectrum • darkened least quickly in red and fastest in violet • ? the first photographs

23. Discovery of ultraviolet! • After Herschel discovered infrared using thermometers: • 1801: Ritter repeated Scheele’s experiment with paper soaked in AgNO3 & put strips beyond violet • strips darkened even quicker than in violet light • discovered ultraviolet light!

24. Radio Waves • 1888: Hertz used oscillating electric current to emit electromagnetic radiation • had detector that could move around to map the electromagnetic wave & determine its length • found radio waves far beyond infrared radiation • have wavelengths from cm to km

25. X-Rays • 1895: Roentgen discovered that his cathode ray tube was emitting radiation = X-rays

27. Electromagnetic Spectrum

28. Short wavelength Rapid frequency High energy Comparing • Long wavelength • Slow frequency • Low energy All electromagnetic radiation has same velocity: 3.00 x 108 m/sec 3.00 X 108 m/sec = 

29. Heat Flow • Objects hotter than surroundings lose heat as electromagnetic radiation • higher the temp, the more intense the radiation • Hot objects glow! • glow different colors at different temperatures!

30. Ultraviolet Catastrophe • Classical physics - Assume that every wavelength has equal chance of being radiated • Classical wave model could not explain why different colors were emitted at different temperatures

31. Planck • shorter the wavelength, the less chance it has to be emitted! • Matter can gain or release energy only in very small increments = quanta

32. What physical explanation goes with Planck’s assumption? • Pre-Planck: • Energy was considered to be continuous • could be broken into smaller & smaller bits indefinitely • Planck: • Energy consists of tiny particles that can’t be divided into anything smaller
