  1. SmartOptAn Industrial Strength Framework for Logic Synthesis Stephen Jang, Xilinx Inc. Dennis Wu, Xilinx Inc. Mark Jarvin, Xilinx Inc. Billy Chan, Xilinx Inc. Kevin Chung, Xilinx Inc. Alan Mishchenko, UC Berkeley Robert Brayton, UC Berkeley

  2. Example Industrial Circuit Xilinx Confidential

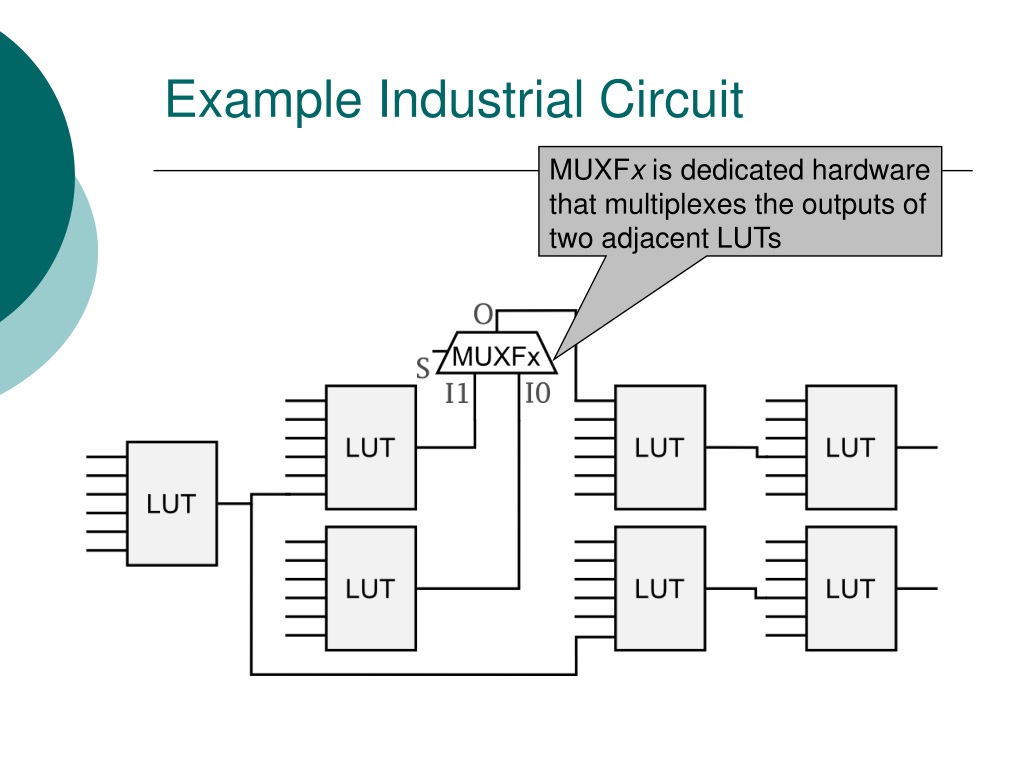

  3. Example Industrial Circuit MUXFx is dedicated hardware that multiplexes the outputs of two adjacent LUTs Xilinx Confidential

  4. Example Industrial Circuit MUXFx is dedicated hardware that multiplexes the outputs of two adjacent LUTs Xilinx Confidential

  5. Modeling the Example Xilinx Confidential

  6. Modeling the Example Xilinx Confidential

  7. Modeling the Example .model MUXFx .inputs I0 I1 S .outputs O .attrib comb black box .end Xilinx Confidential

  8. Modeling the Example No information flow between inputs and outputs of MUXFx .model MUXFx .inputs I0 I1 S .outputs O .attrib comb black box .end Xilinx Confidential

  9. Modeling the Example .model MUXFx .inputs I0 I1 S .outputs O .attrib comb black box .end • No information flow between inputs and outputs of MUXFx • Box I/Os equivalent to PIs/POs Xilinx Confidential

  10. Modeling the Example Xilinx Confidential

  11. Modeling the Example Pin delays added to model .model MUXFx .inputs I0 I1 S .outputs O .attrib comb black box .delay I0 O 0.5 .delay I1 O 0.5 .delay S O 0.1 .end Xilinx Confidential

  12. Modeling the Example Pin delays added to model Better timing analysis Still can’t exploit constant .model MUXFx .inputs I0 I1 S .outputs O .attrib comb black box .delay I0 O 0.5 .delay I1 O 0.5 .delay S O 0.1 .end Xilinx Confidential

  13. Modeling the Example Xilinx Confidential

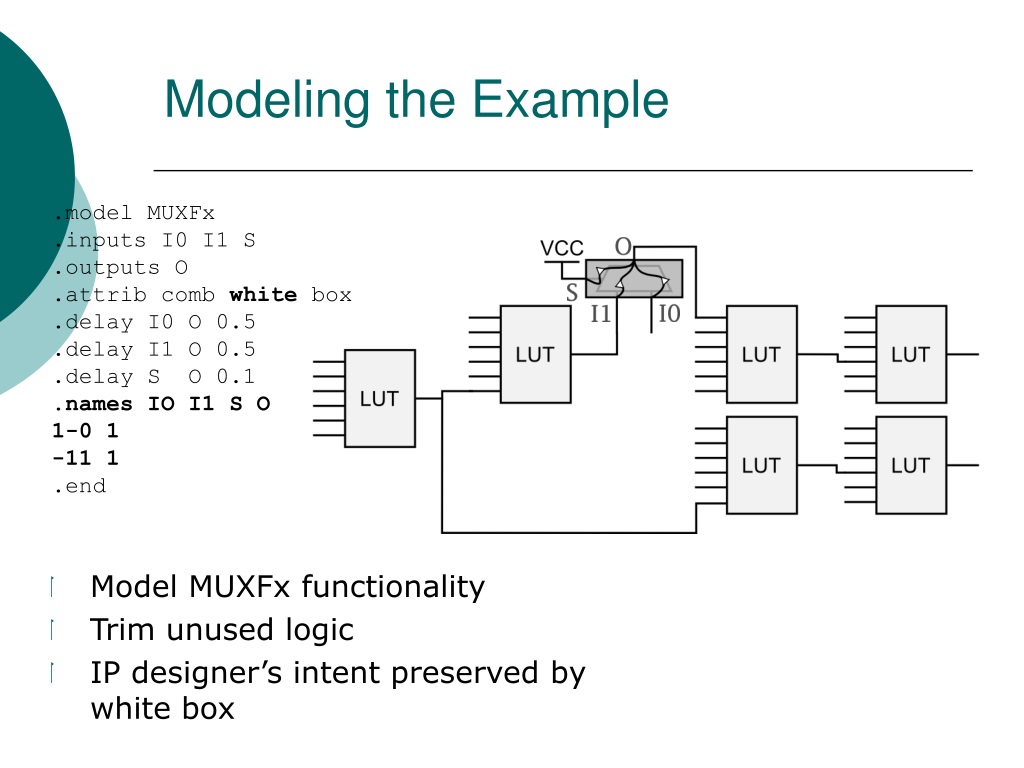

  14. Modeling the Example Model MUXFx functionality .model MUXFx .inputs I0 I1 S .outputs O .attrib comb white box .delay I0 O 0.5 .delay I1 O 0.5 .delay S O 0.1 .names IO I1 S O 1-0 1 -11 1 .end Xilinx Confidential

  15. Modeling the Example Model MUXFx functionality Trim unused logic IP designer’s intent preserved by white box .model MUXFx .inputs I0 I1 S .outputs O .attrib comb white box .delay I0 O 0.5 .delay I1 O 0.5 .delay S O 0.1 .names IO I1 S O 1-0 1 -11 1 .end Xilinx Confidential

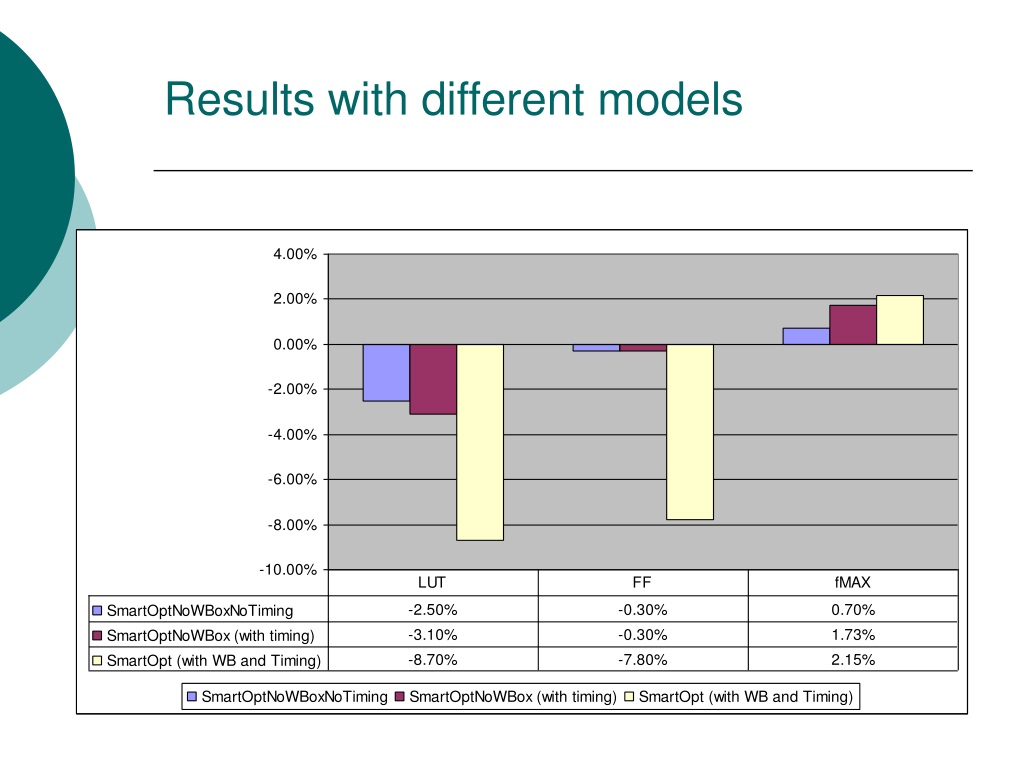

  16. Results with different models Xilinx Confidential

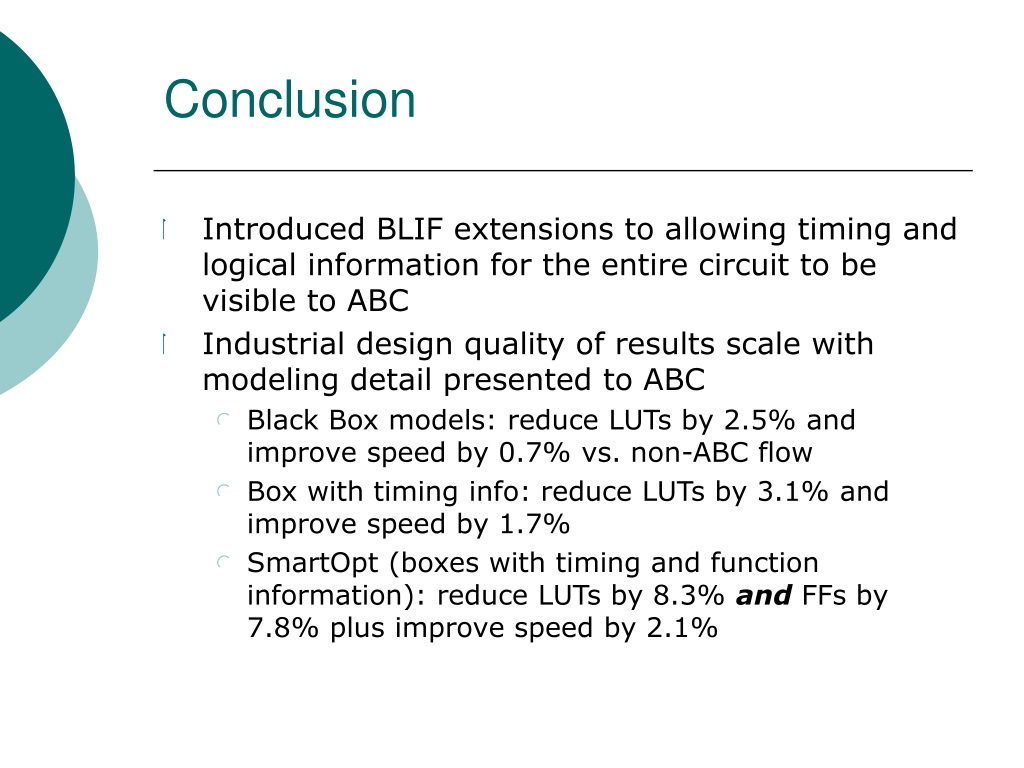

  17. Conclusion Introduced BLIF extensions to allowing timing and logical information for the entire circuit to be visible to ABC Industrial design quality of results scale with modeling detail presented to ABC Black Box models: reduce LUTs by 2.5% and improve speed by 0.7% vs. non-ABC flow Box with timing info: reduce LUTs by 3.1% and improve speed by 1.7% SmartOpt (boxes with timing and function information): reduce LUTs by 8.3% and FFs by 7.8% plus improve speed by 2.1% Xilinx Confidential
