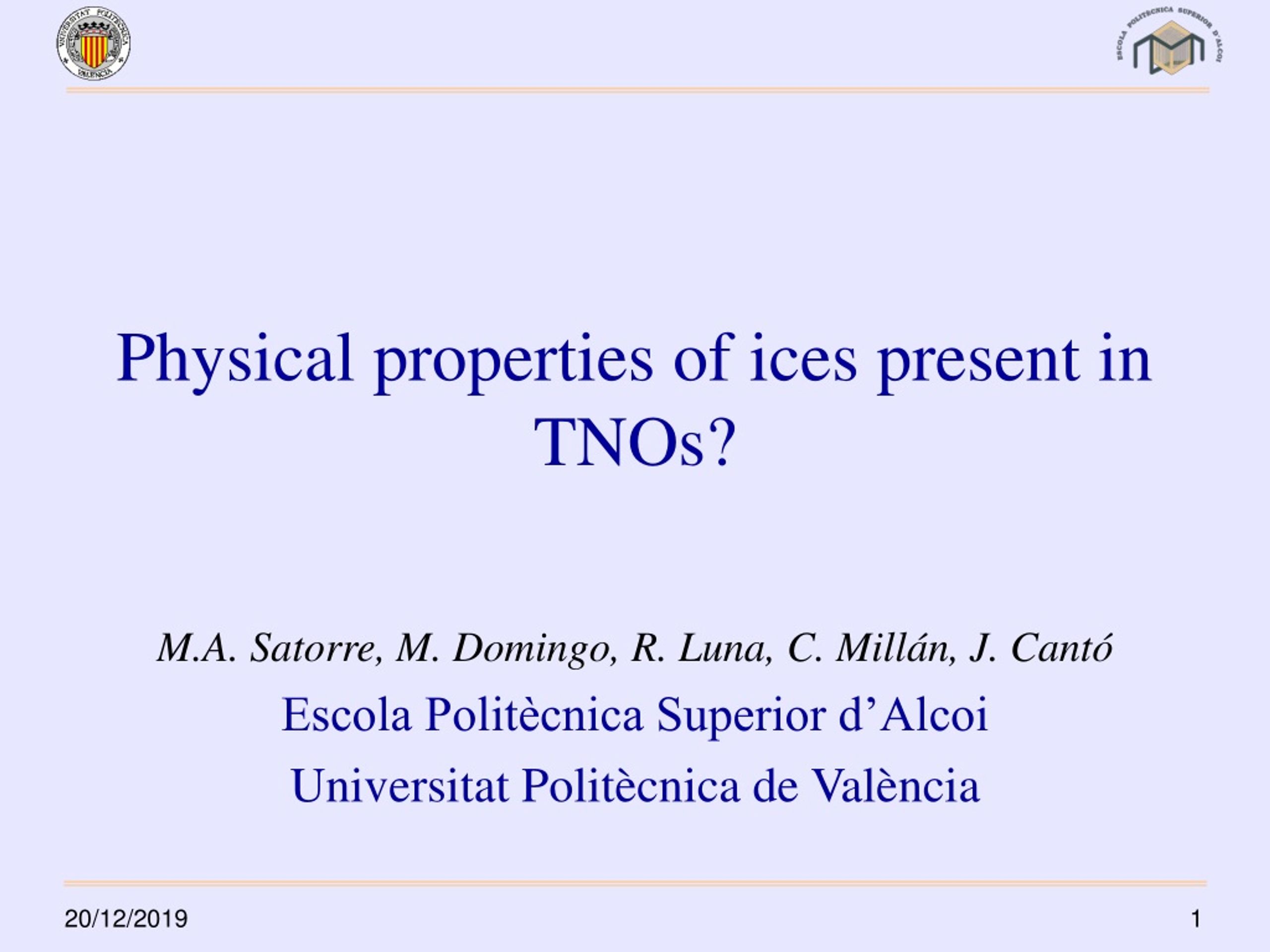

  1. Physical properties of ices present in TNOs? M.A. Satorre, M. Domingo, R. Luna, C. Millán, J. Cantó Escola Politècnica Superior d’Alcoi Universitat Politècnica de València

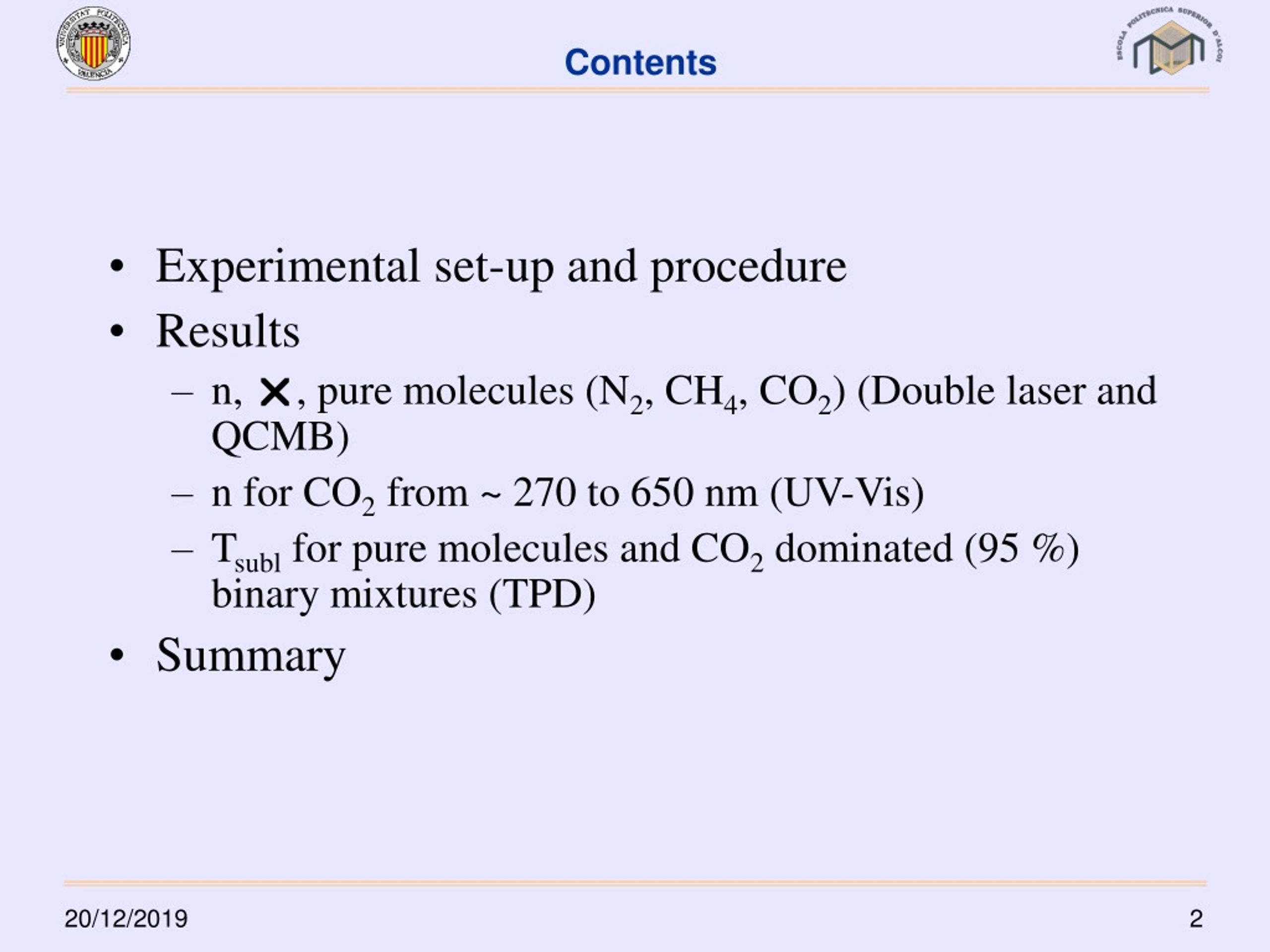

  2. Contents • Experimental set-up and procedure • Results • n, , pure molecules (N2, CH4, CO2) (Double laser and QCMB) • n for CO2 from ~ 270 to 650 nm (UV-Vis) • Tsubl for pure molecules and CO2 dominated (95 %) binary mixtures (TPD) • Summary

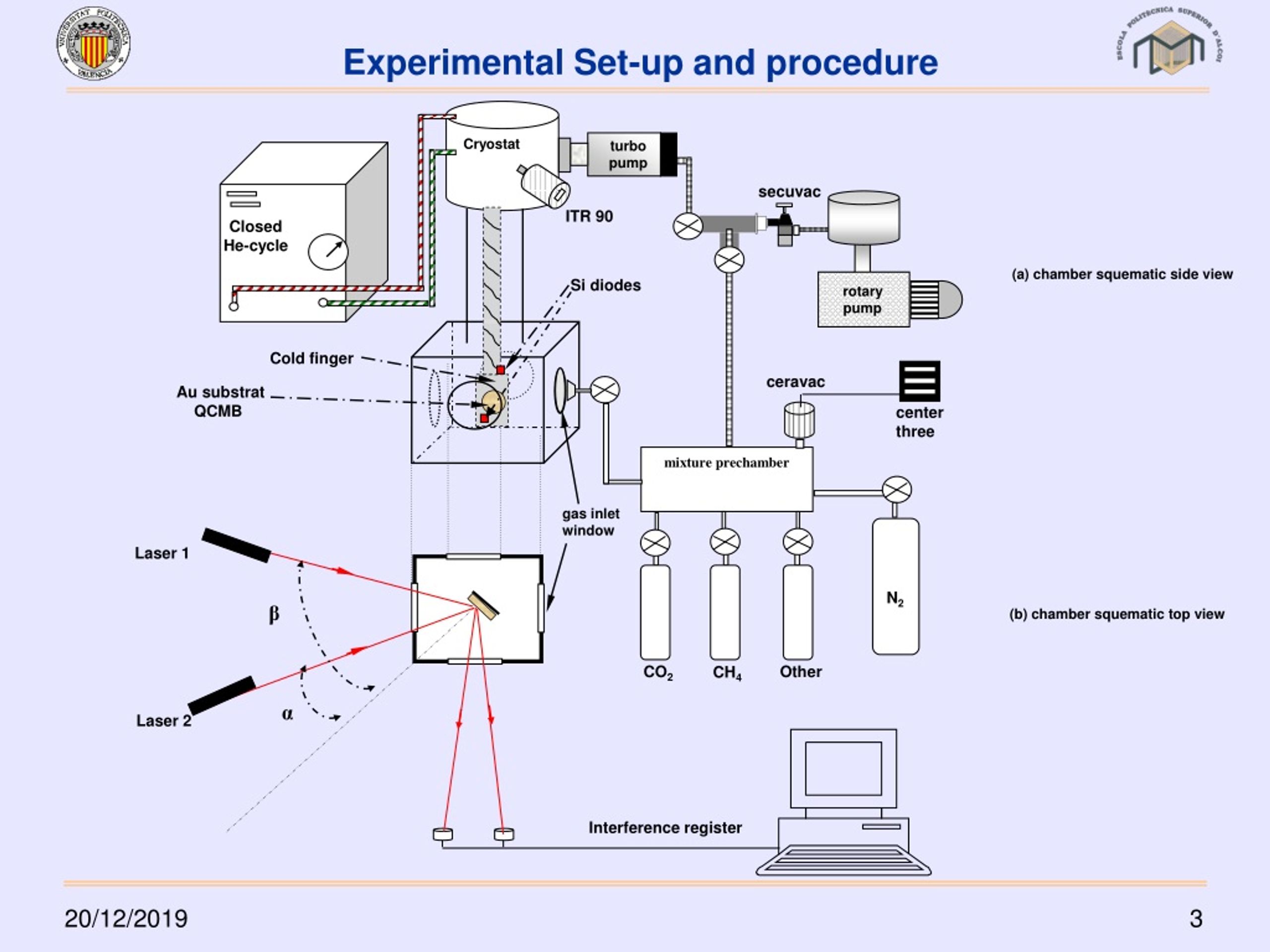

  3. Cryostat turbo pump secuvac ITR 90 Closed He-cycle (a) chamber squematic side view Si diodes rotary pump Cold finger ceravac Au substrat QCMB center three mixture prechamber gas inlet window Laser 1 N2 β (b) chamber squematic top view CO2 Other CH4 α Laser 2 Experimental Set-up and procedure Interference register

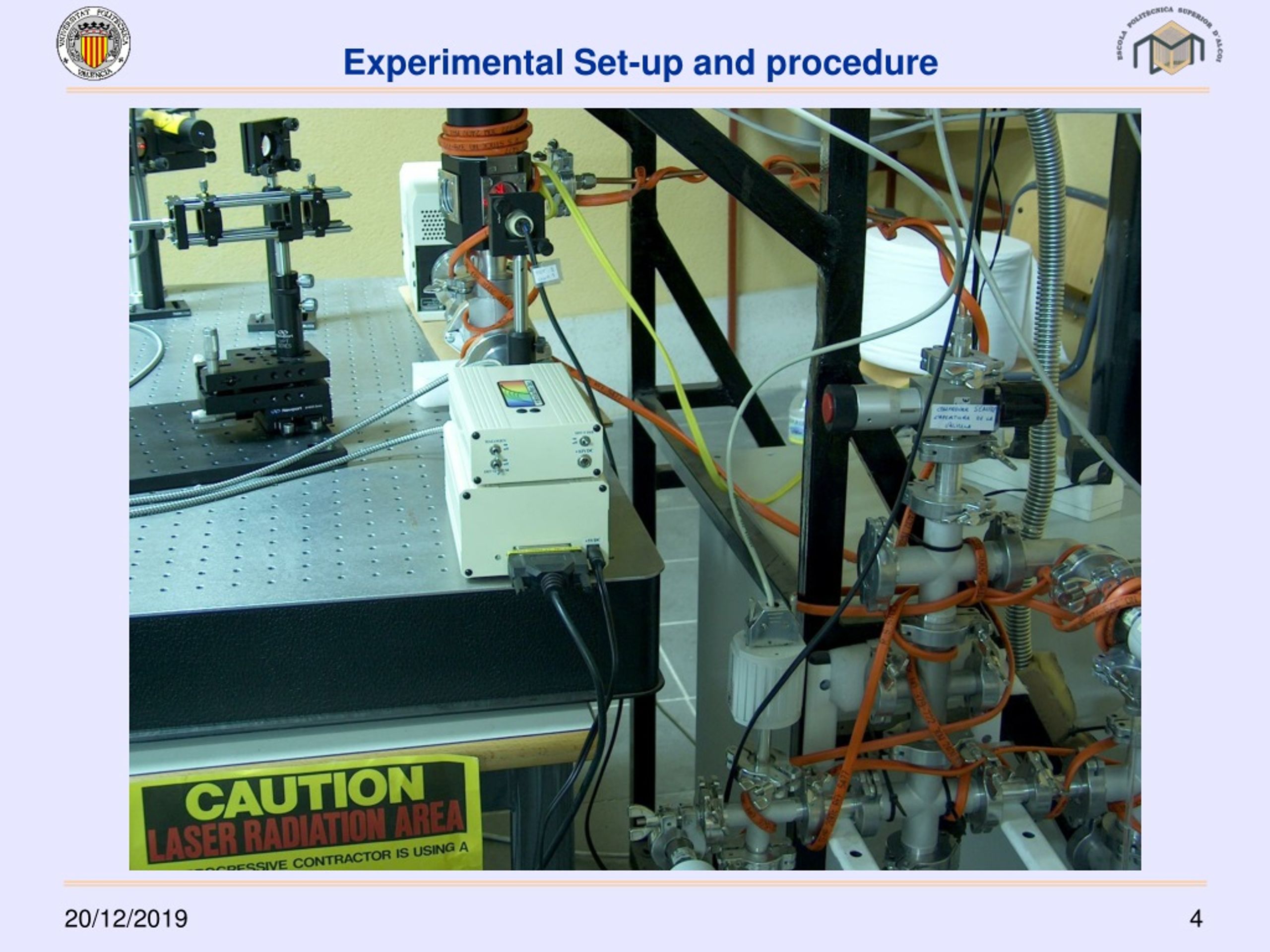

  4. Experimental Set-up and procedure

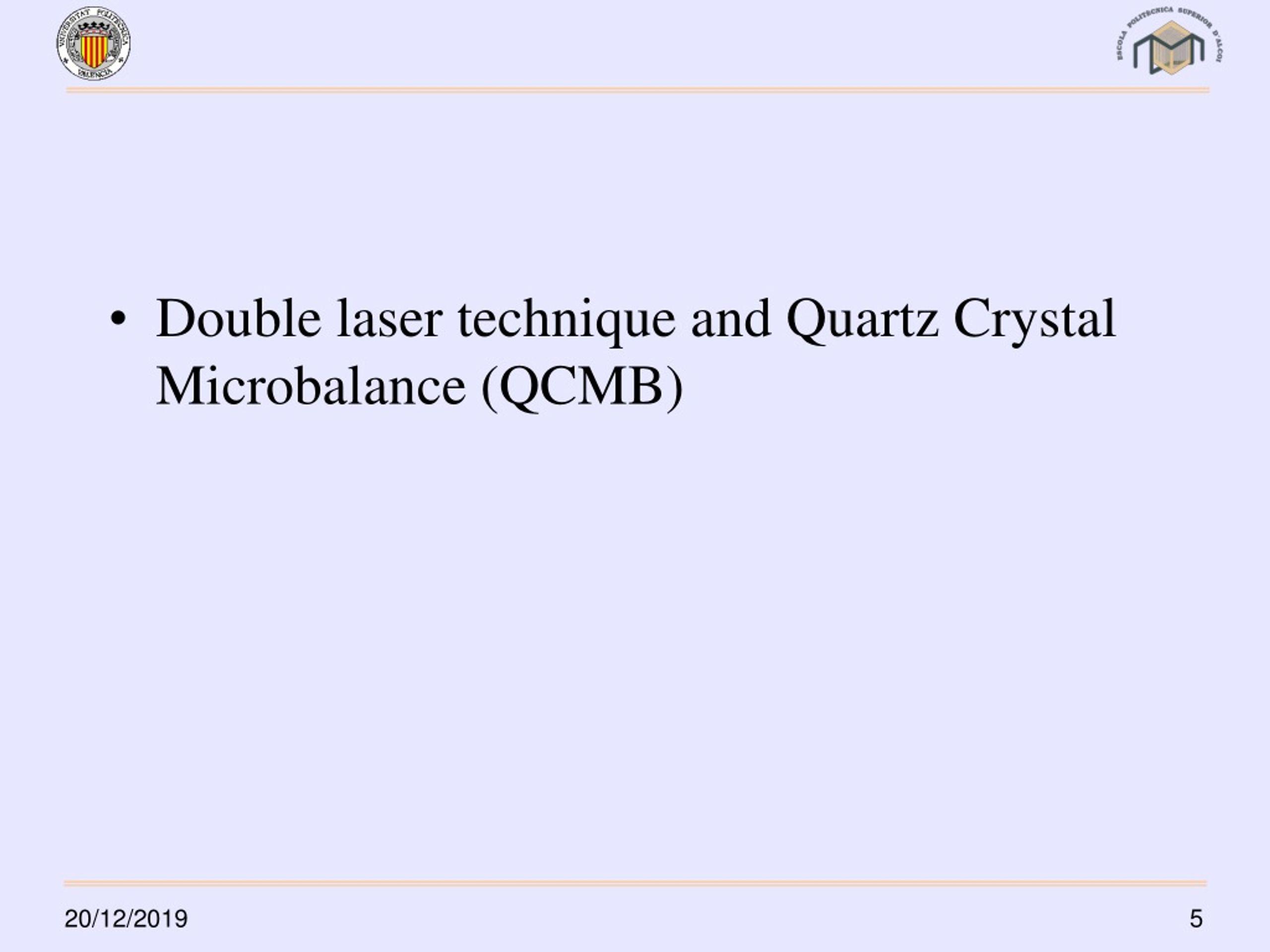

  5. Double laser technique and Quartz Crystal Microbalance (QCMB)

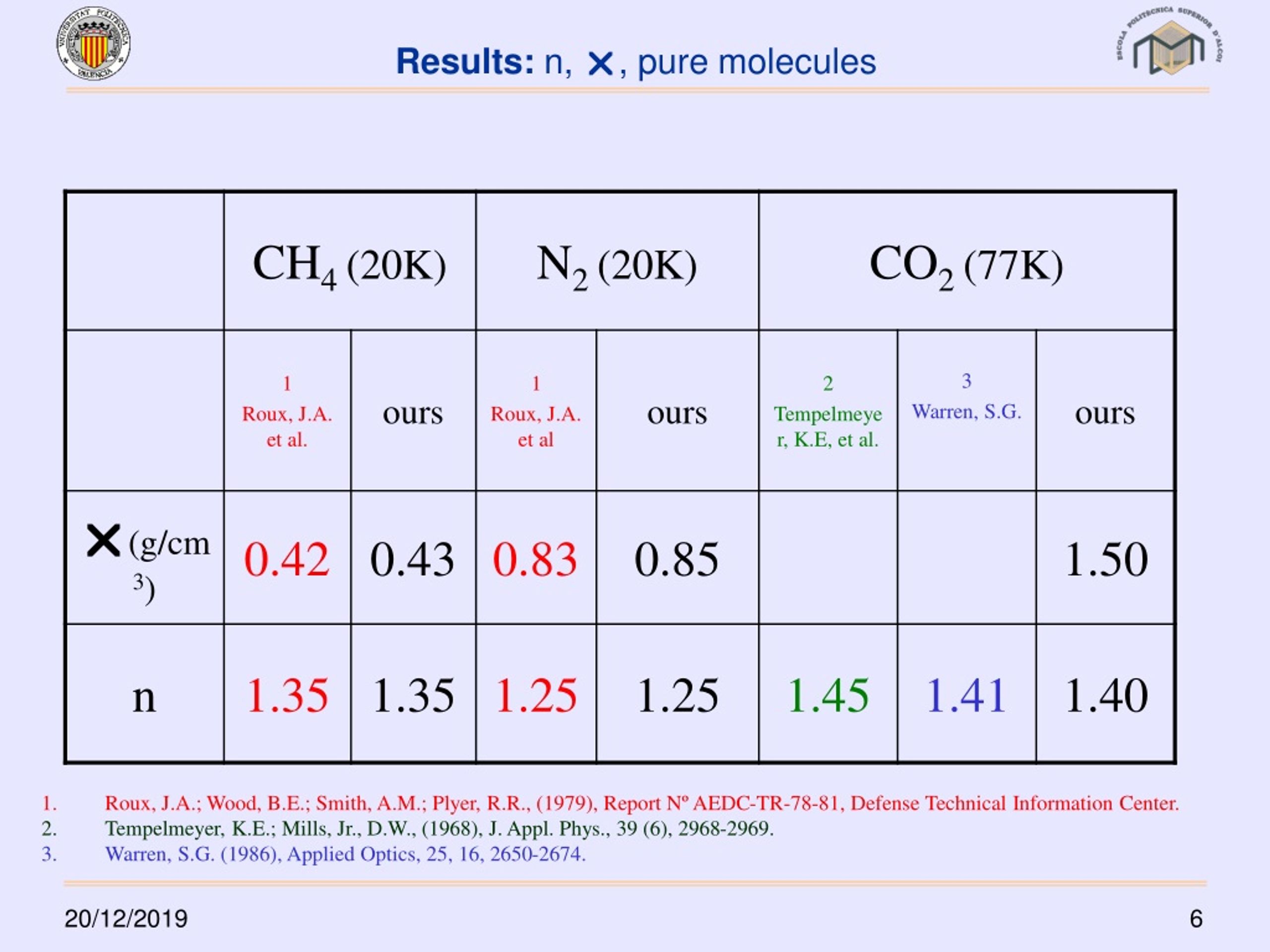

  6. Results: n, , pure molecules • Roux, J.A.; Wood, B.E.; Smith, A.M.; Plyer, R.R., (1979), Report Nº AEDC-TR-78-81, Defense Technical Information Center. • Tempelmeyer, K.E.; Mills, Jr., D.W., (1968), J. Appl. Phys., 39 (6), 2968-2969. • Warren, S.G. (1986), Applied Optics, 25, 16, 2650-2674.

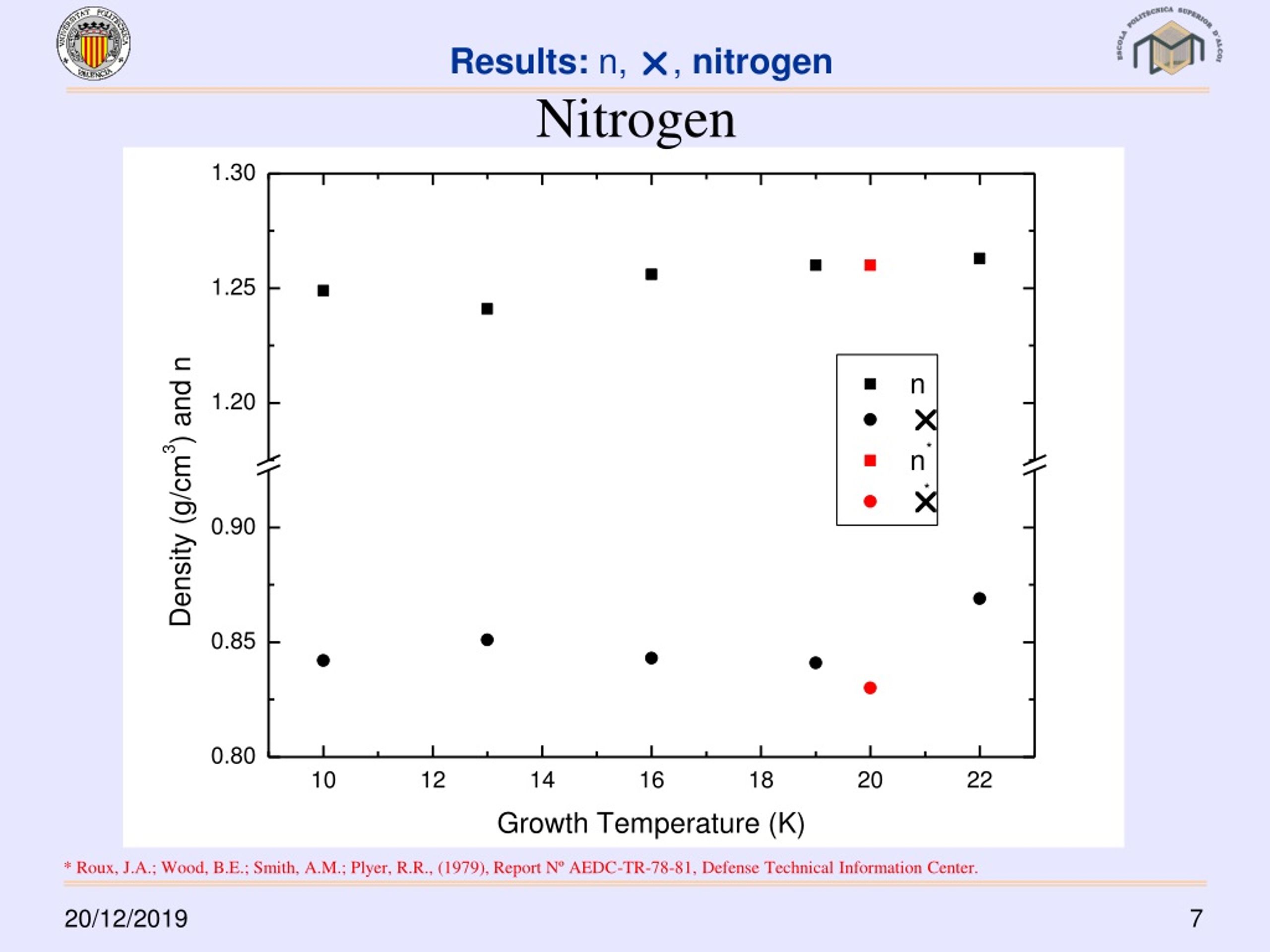

  7. Results: n, , nitrogen Nitrogen * Roux, J.A.; Wood, B.E.; Smith, A.M.; Plyer, R.R., (1979), Report Nº AEDC-TR-78-81, Defense Technical Information Center.

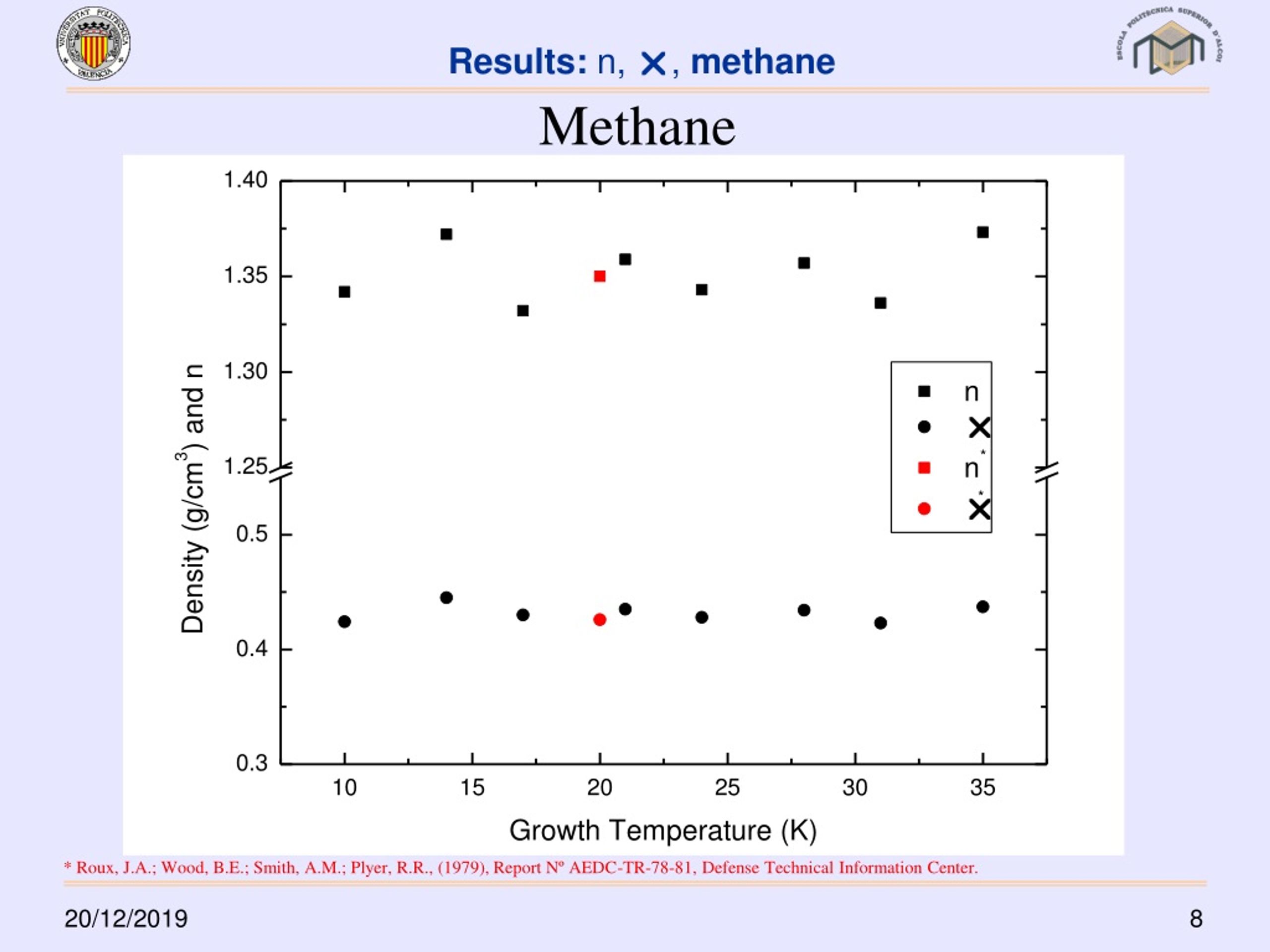

  8. Results: n, , methane Methane * Roux, J.A.; Wood, B.E.; Smith, A.M.; Plyer, R.R., (1979), Report Nº AEDC-TR-78-81, Defense Technical Information Center.

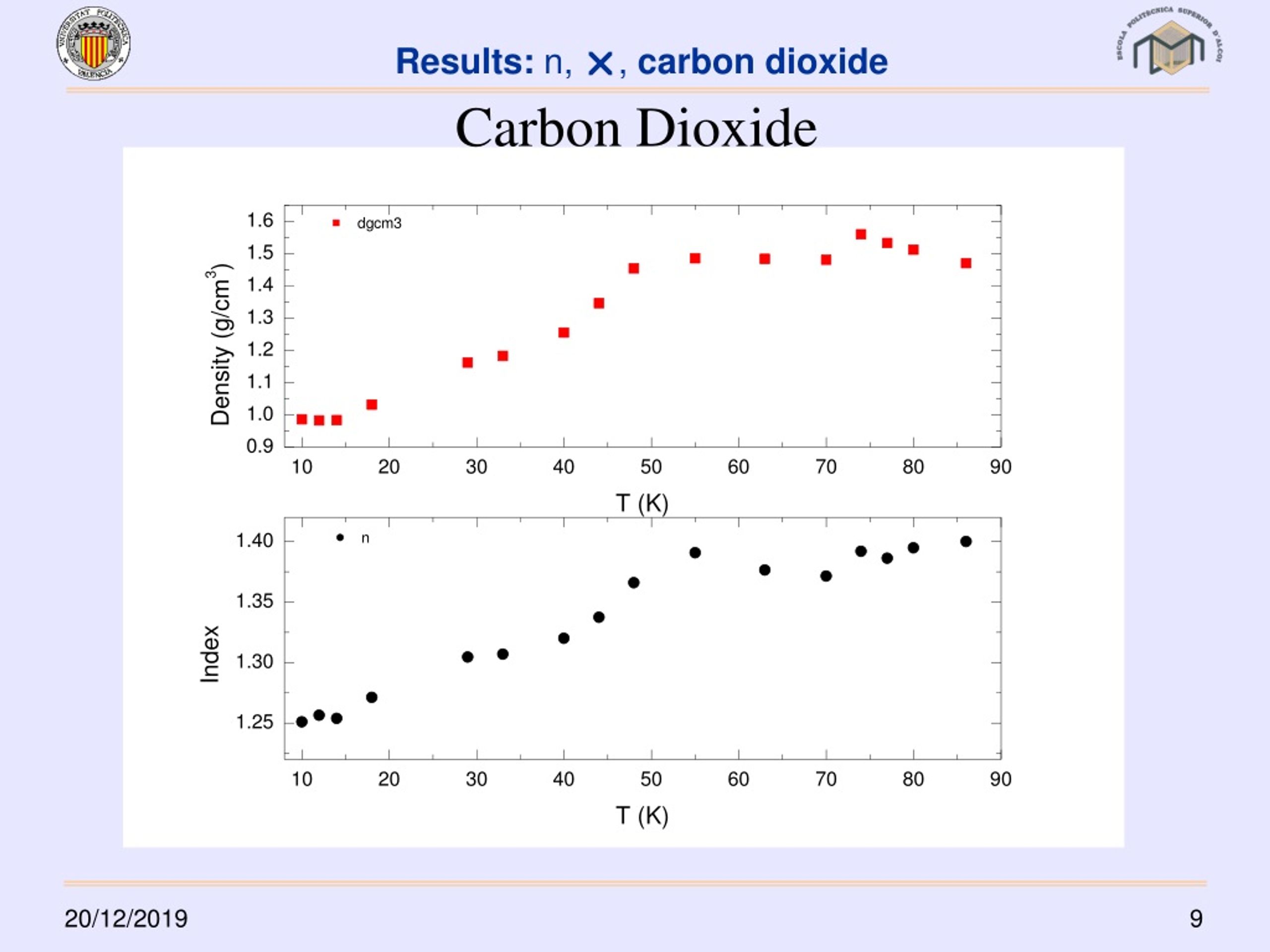

  9. Results: n, , carbon dioxide Carbon Dioxide

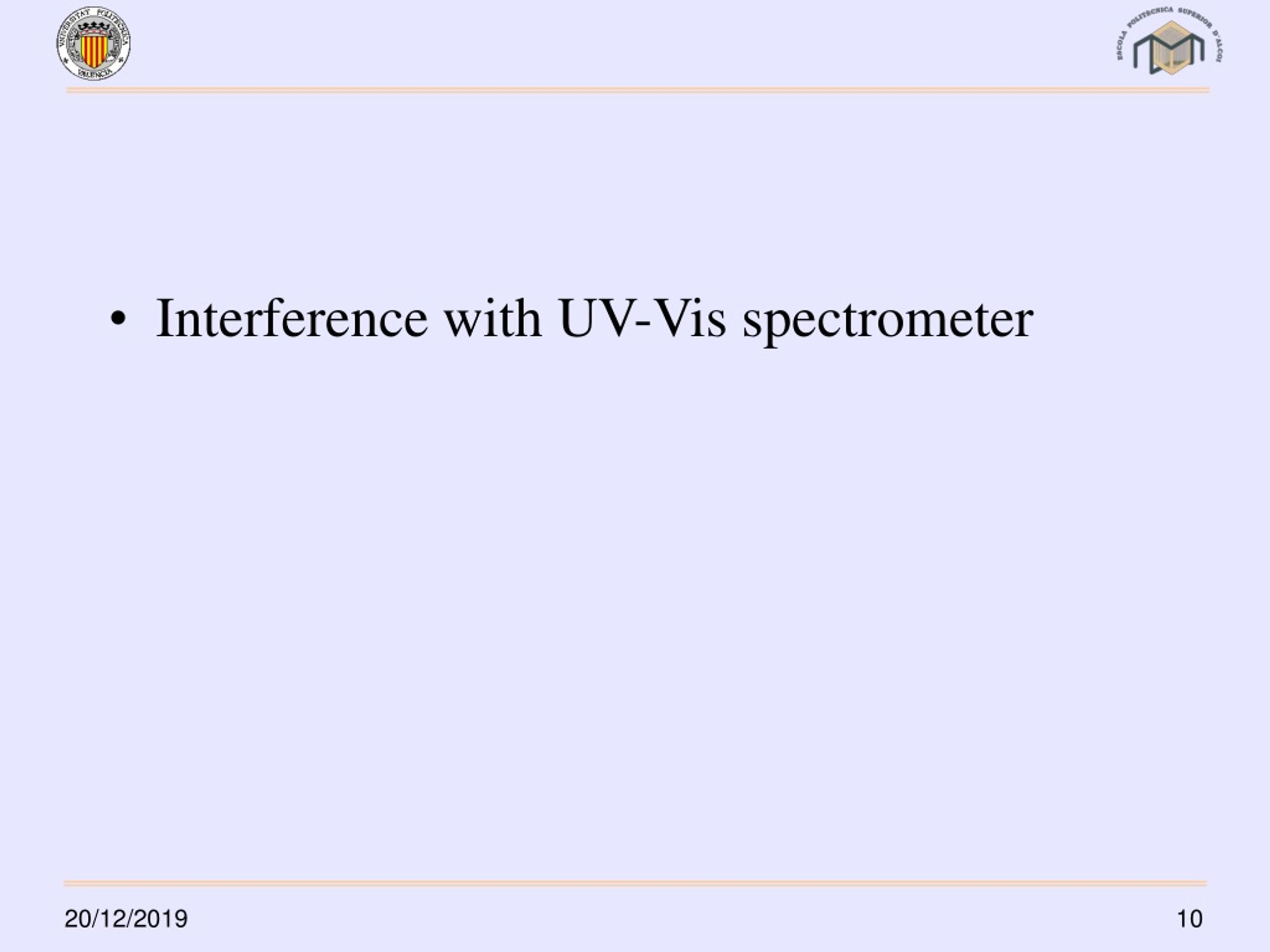

  10. Interference with UV-Vis spectrometer

  11. Results: n, carbon dioxide at different 

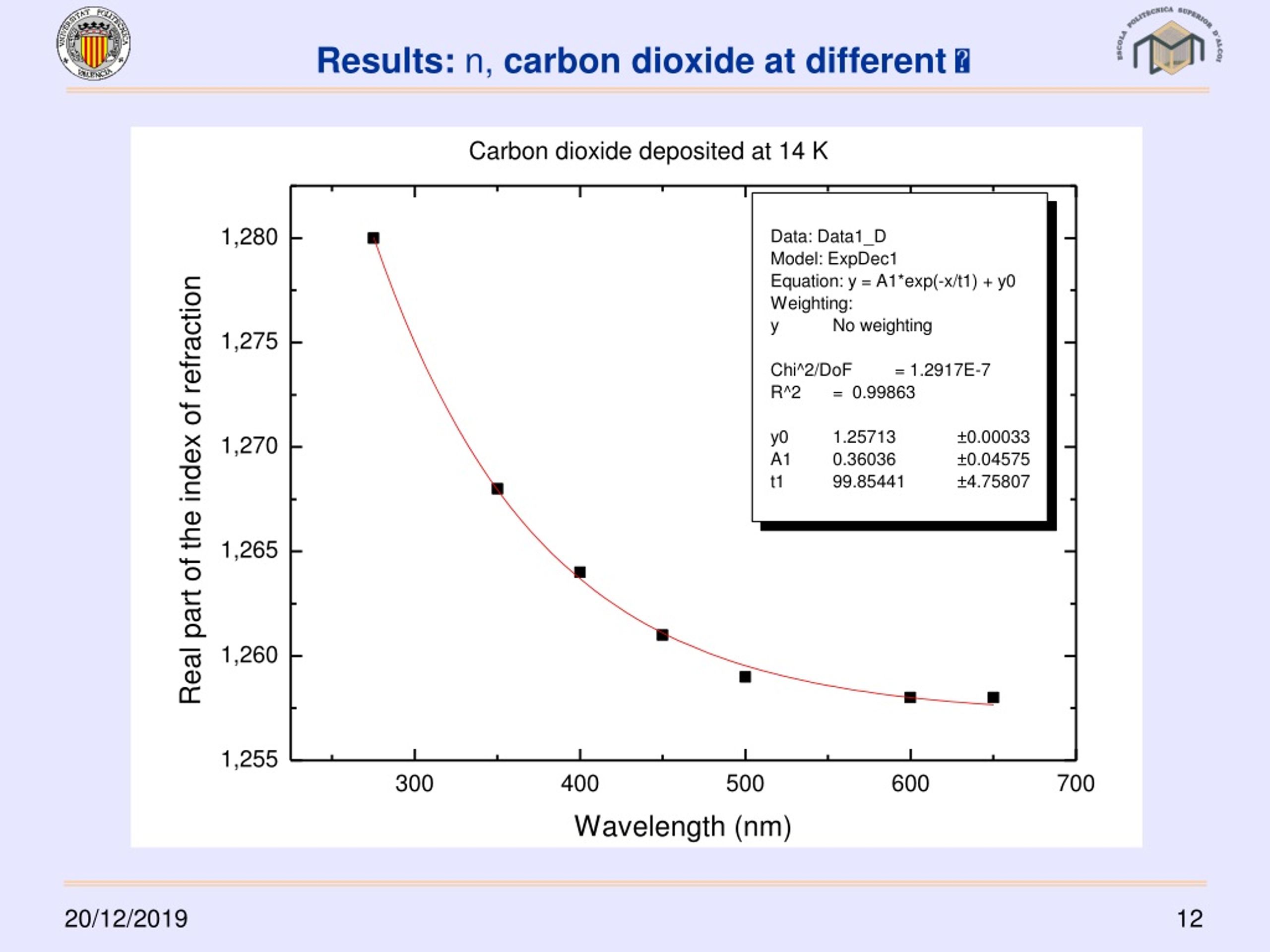

  12. Results: n, carbon dioxide at different 

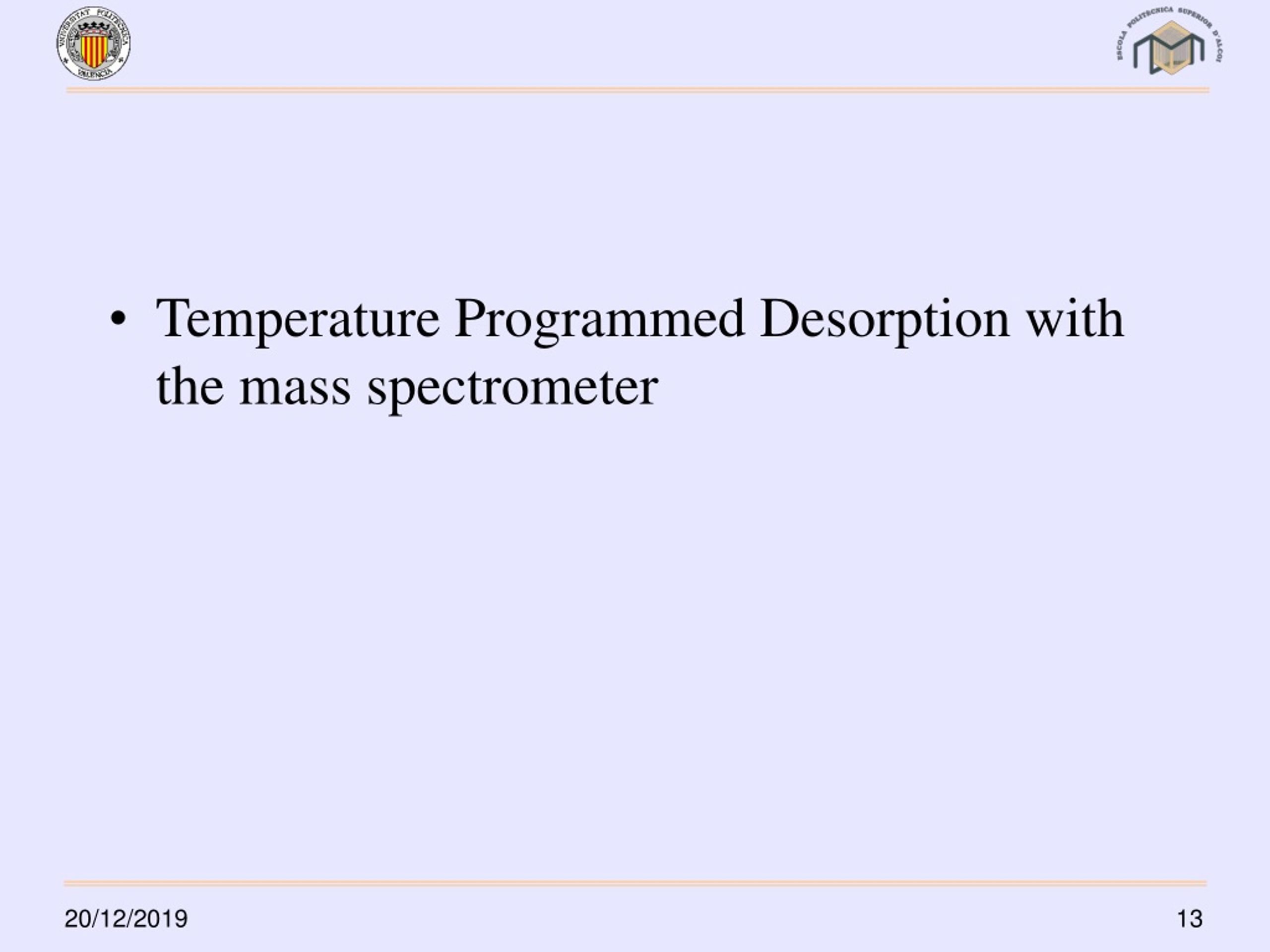

  13. Temperature Programmed Desorption with the mass spectrometer

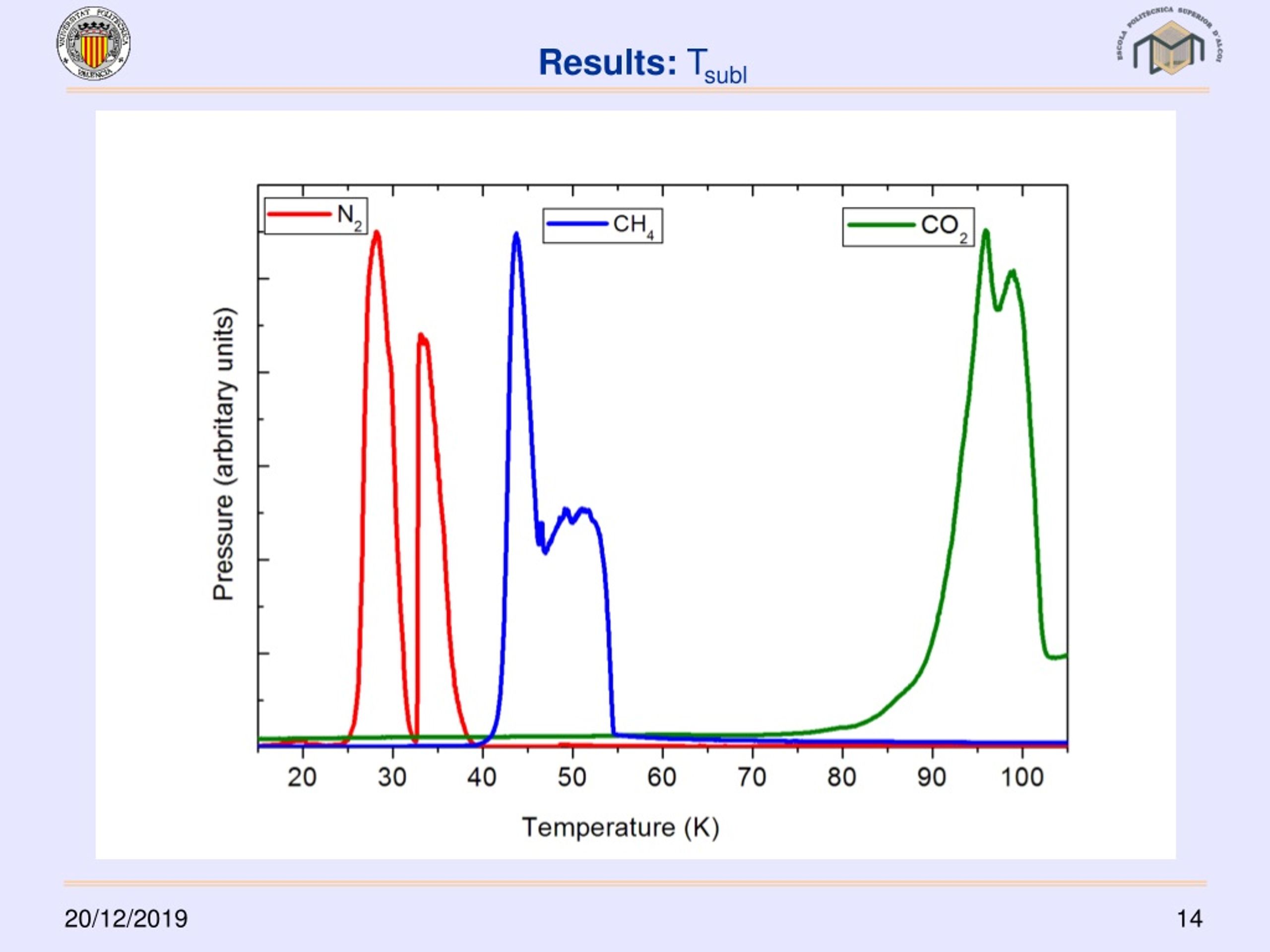

  14. Results: Tsubl

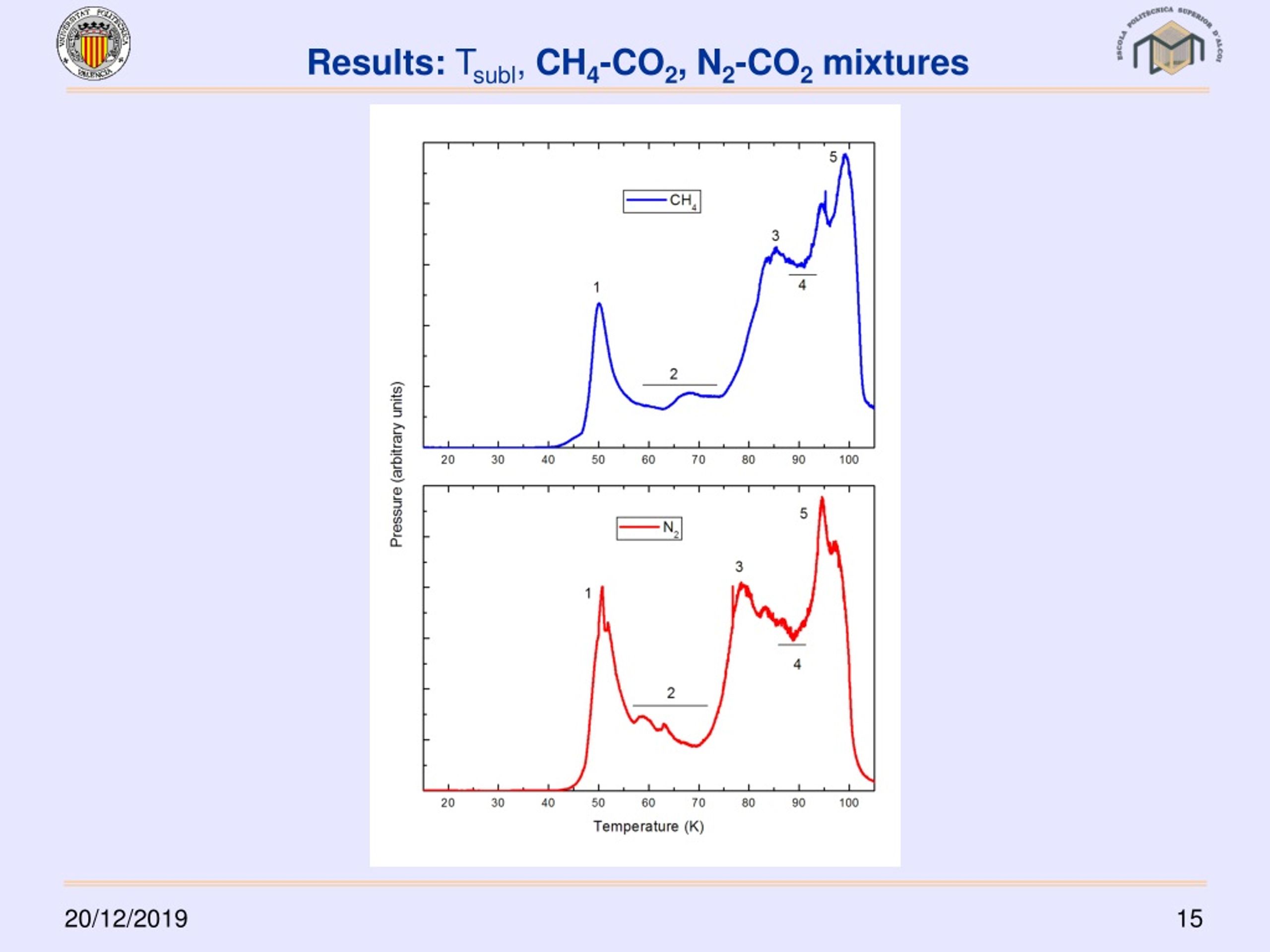

  15. Results: Tsubl, CH4-CO2, N2-CO2 mixtures

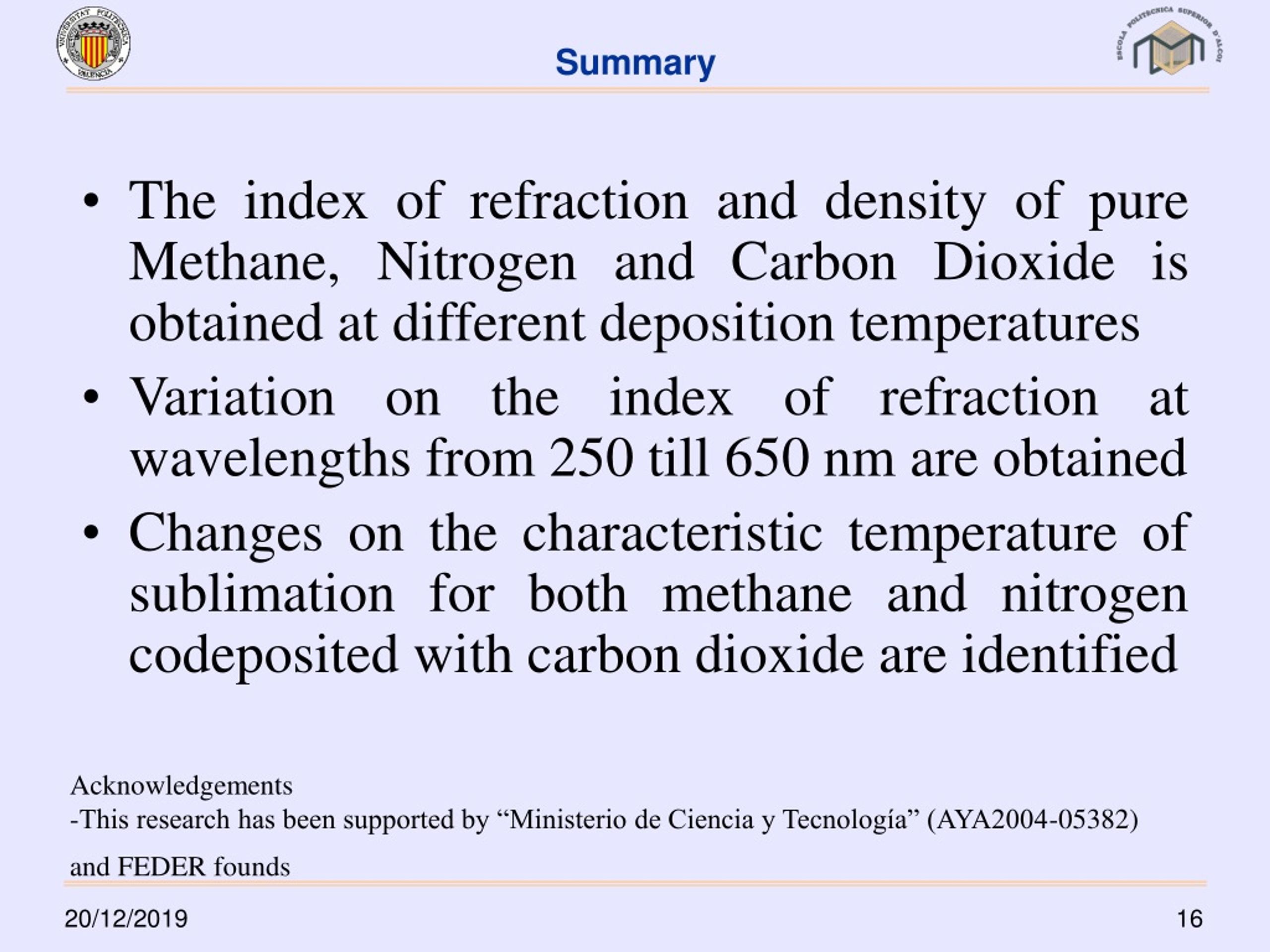

  16. Summary • The index of refraction and density of pure Methane, Nitrogen and Carbon Dioxide is obtained at different deposition temperatures • Variation on the index of refraction at wavelengths from 250 till 650 nm are obtained • Changes on the characteristic temperature of sublimation for both methane and nitrogen codeposited with carbon dioxide are identified Acknowledgements -This research has been supported by “Ministerio de Ciencia y Tecnología” (AYA2004-05382) and FEDER founds
