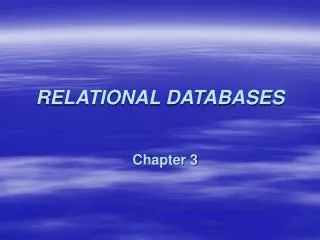

  1. RELATIONAL DATABASES Chapter 3

  2. Quick Review

  3. File-Oriented Systems Master File 1 Fact A Fact B Fact C Enrollment Program Master File 2 Fact A Fact D Fact F Fin. Aid Program Master File 1 Fact A Fact B Fact F Grades Program

  4. File-Oriented Systems Result in: • Redundancy • Inconsistency

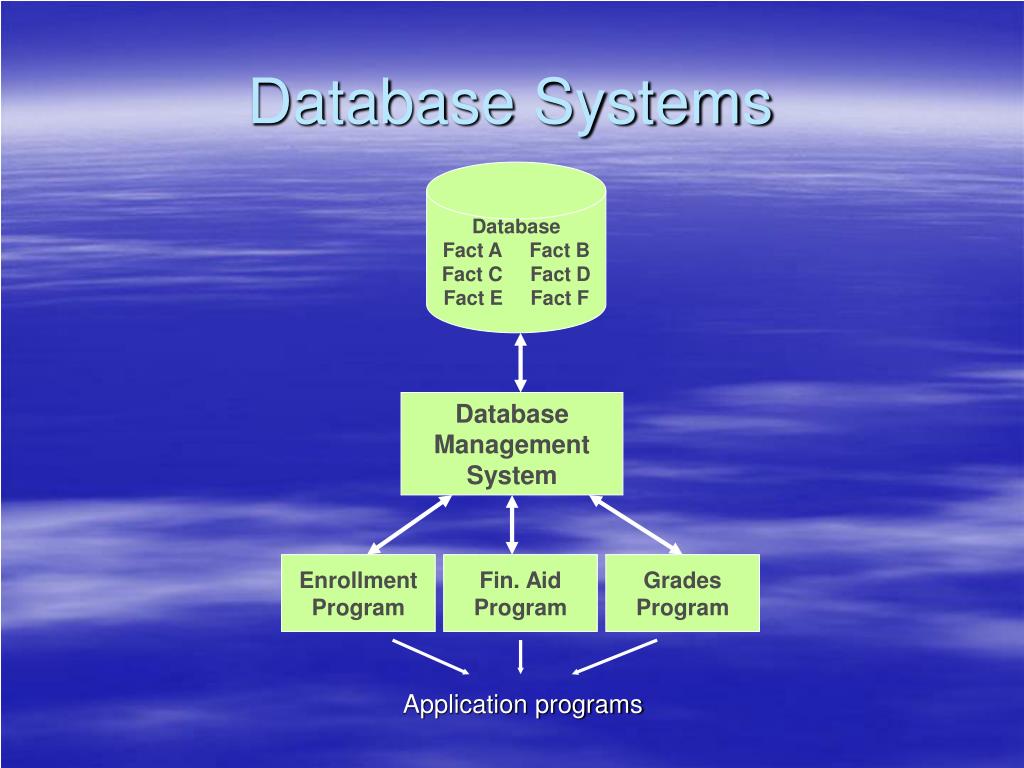

  5. Database Systems Database Fact A Fact B Fact C Fact D Fact E Fact F Application programs Database Management System Enrollment Program Fin. Aid Program Grades Program

  6. Database Systems • Benefits • Data integration • Data sharing • Reporting flexibility • Minimal data redundancy and inconsistencies • Data independence • Central management of data • Cross-functional analysis

  7. Database Systems • Two separate views of the data • Logical view -- How the user or programmer conceptually organizes and understands the data. • Physical view -- How and where the data are physically arranged and stored.

  8. Logical View—User B Logical View—User A Enrollment by Class DBMS Operating System Database

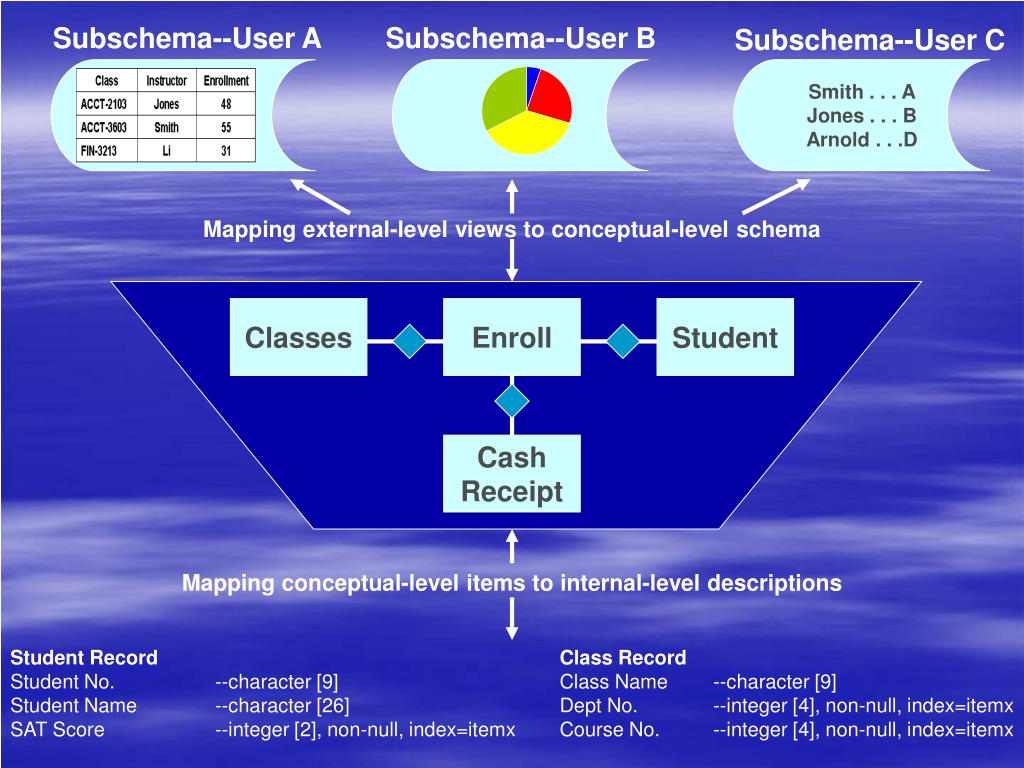

  9. Subschema--User A Subschema--User B Subschema--User C Smith . . . A Jones . . . B Arnold . . .D Mapping external-level views to conceptual-level schema Classes Enroll Student Cash Receipt Mapping conceptual-level items to internal-level descriptions Student Record Student No. --character [9] Student Name --character [26] SAT Score --integer [2], non-null, index=itemx Class Record Class Name --character [9] Dept No. --integer [4], non-null, index=itemx Course No. --integer [4], non-null, index=itemx

  10. Database Systems • Schemas • A schema describes the logical structure of a database. • There are three levels of schema. • Conceptual level • External level • Internal level

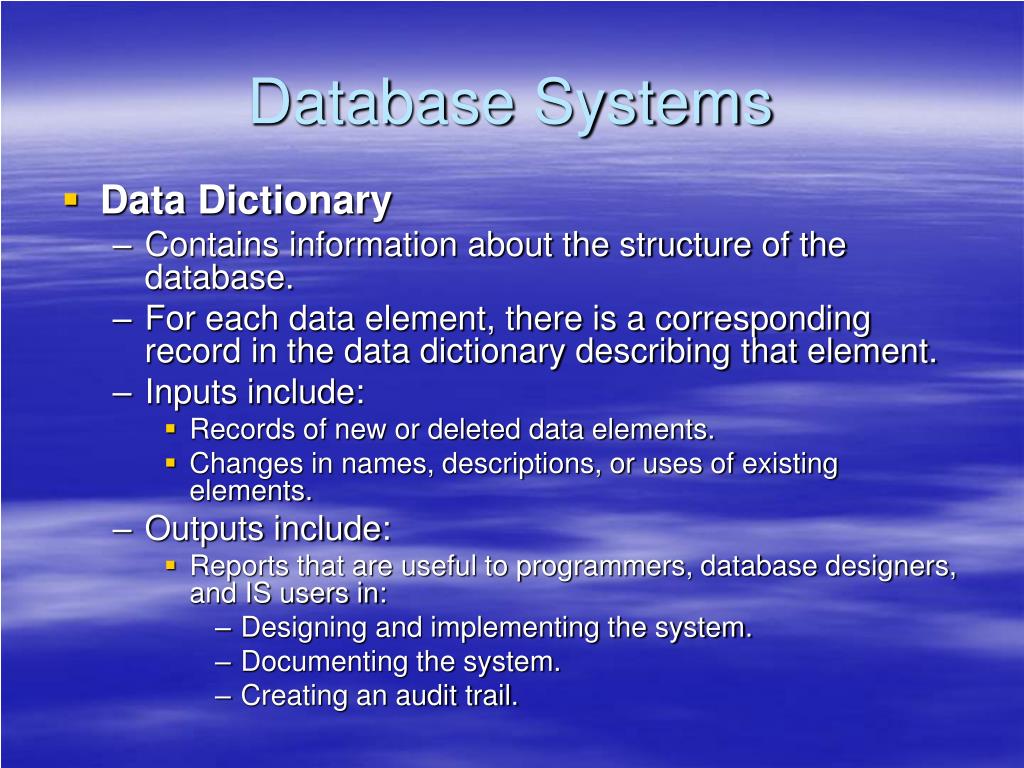

  11. Database Systems • Data Dictionary • Contains information about the structure of the database. • For each data element, there is a corresponding record in the data dictionary describing that element. • Inputs include: • Records of new or deleted data elements. • Changes in names, descriptions, or uses of existing elements. • Outputs include: • Reports that are useful to programmers, database designers, and IS users in: • Designing and implementing the system. • Documenting the system. • Creating an audit trail.

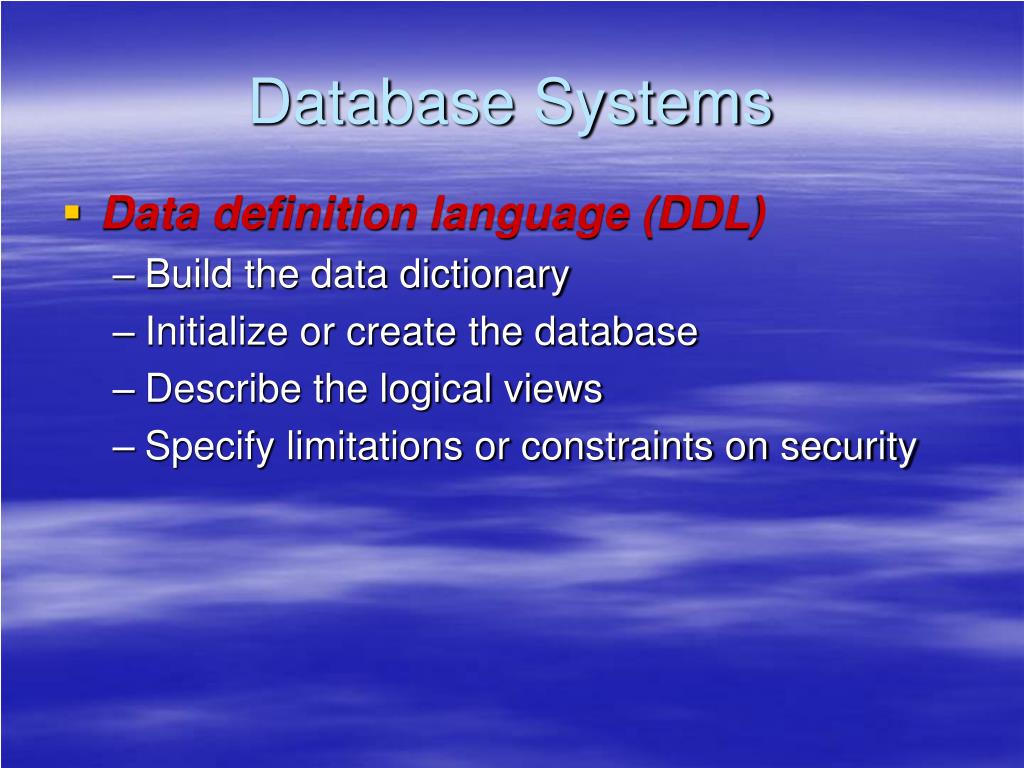

  12. Database Systems • Data definition language (DDL) • Build the data dictionary • Initialize or create the database • Describe the logical views • Specify limitations or constraints on security

  13. Database Systems • Data manipulation language (DML) • Updating data • Inserting data • Deleting segments

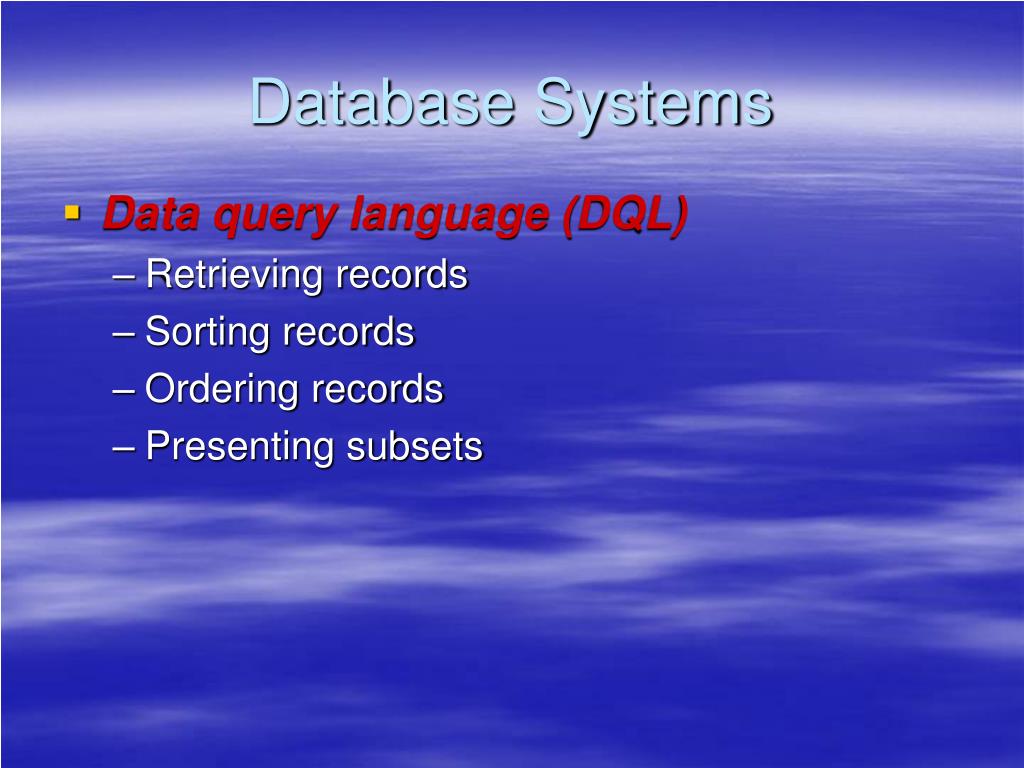

  14. Database Systems • Data query language (DQL) • Retrieving records • Sorting records • Ordering records • Presenting subsets

  15. Relational Databases • A data model is an abstract representation of the contents of a database. • The relational data model represents everything in the database as being stored in the forms of tables (aka, relations).

  16. Non-Normalized Relational Tables • Update Anomaly: Problem that arises when attributes that aren’t characteristics of the primary key are stored in that table, then the data item is stored in many different rows. • Insert Anomaly: Problem that arises when attributes that aren’t characteristics of the primary key of a relation are stored in the table. • Delete Anomaly: Problem that arises when attributes that aren’t characteristics of the primary key are stored in a table, so that deleting a row from the table may result in the loss of all information about those attributes that are not characteristics of the primary key

  17. Relational Databases • Basic Requirements of a Relational Database • Every column in a row must be single valued. • The primary key cannot be null. • A foreign key must either be null or correspond to the value of a primary key in another table. • All non-key attributes in a table should describe a characteristic of the object identified by the primary key.

  18. Relational Databases • There are two basic ways to design well-structured relational databases. • Normalization • Semantic data modeling

  19. Relational Databases • Normalization • Starts with the assumption that everything is initially stored in one large table & follows set of rules to decompose the table • Objective is to produce a set of tables in third-normal form (3NF) • Semantic data modeling • Database designer uses knowledge of business processes and information needs to draw a graphical picture of what should be included in the database. • The resulting graphic is used to create a set of relational tables that are in 3NF

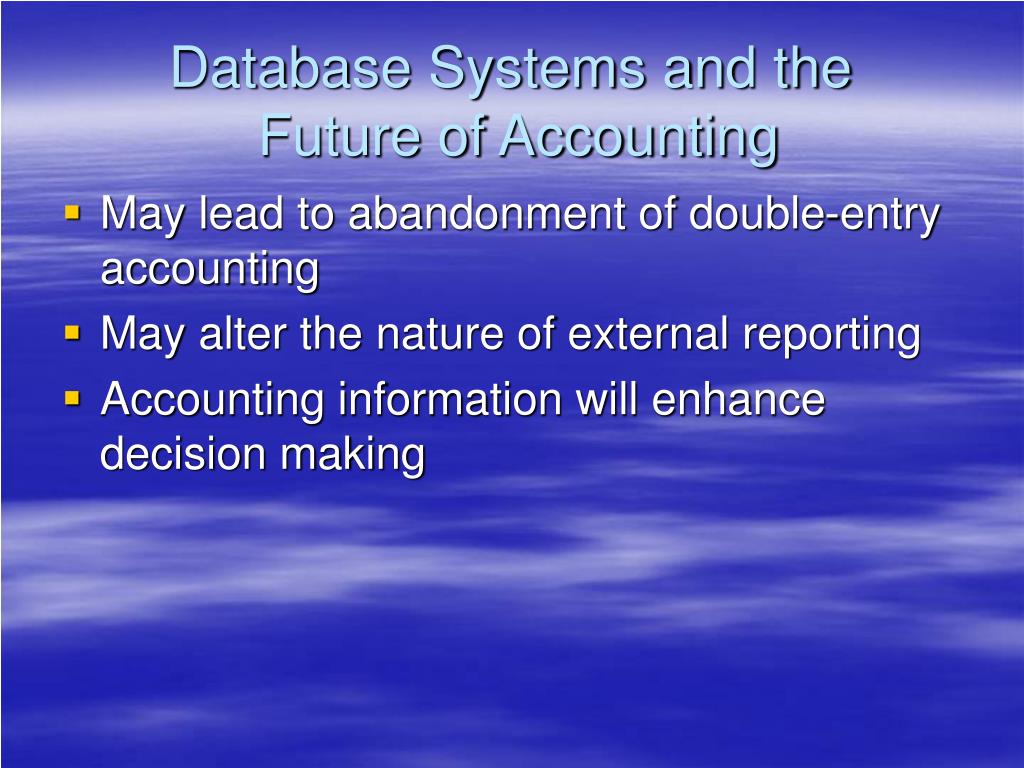

  20. Database Systems and the Future of Accounting • May lead to abandonment of double-entry accounting • May alter the nature of external reporting • Accounting information will enhance decision making

  21. Summary We have: • Compared and contrasted file-oriented systems with databases legacy systems • Determined the benefits of database systems • Defined the logical and physical views of a database • Defined a DBMS, schema, and the data dictionary • Differentiated between the three levels of schemas • Discussed the DBMS languages • Defined a relational database and how it organizes data • Determined how tables are structured to properly store data in a relational database
