Presentation Transcript
slide1

CFL

Lighting Scheme CDM based

“Bachat Lamp Yojana”

Initiated by

objective of bachat lamp yojana
Objective of Bachat Lamp Yojana

Using CDM to finance….. ..Market transformation

  • 400 million light-points in India
  • Estimated BLY projects : 400

Per Annum Project Estimates*

    • GHG reduction: 22,000 tCO2e
    • Power saving: 10 MW
bly uses pcdm approach
BLY Uses pCDM Approach

The programme itself does

not achieve the reductions,

but provides the framework

for emission reductions to

occur through certified project

activities

requirements
Requirements
  • The Investor gets empanelled with BEE
  • DISCOM identifies BEE empanelled Investor
  • Tri-partite Agreement with DISCOM, Investor and BEE
  • Investor identifies long-life IS certified CFL supplier
  • Develop project as per BLY scheme templates
specifications of cfls
Specifications of CFLs
  • Confirm to IS15111 standards and subsequent amendments
  • Lumen output equal to or greater than the ICL replaced
  • Lifetime equal to or greater than 6000 hrs
  • Power factor equal or greater than .85
  • CFLs carry a BLY logo
potential role of sdas in bly
PotentialRole of SDAs in BLY
  • SDA’s are the nodal Agencies for implementation of BEE schemes in the states
  • State level promotion of BLY Scheme.
  • Confidence building of DISCOMS and other stakeholders
  • SDA’s can play a very important role in facilitation and support of project level meeting if and so required.
  • Provide support to BEE at State Level for performing function of CME.
support by bee
Support by BEE
  • Revised Empanelment Procedure(Application form uploaded on BEE website)
  • List of CFL Investors reviewed every year
  • Model Bidding document(EOI template)
  • Bilateral Agreement:BEE-Investor
  • Bilateral Agreement:DISCOM-Investor
  • Tripartite Agreement:BEE-Investor-DISCOM
support by bee contd
Support by BEE…Contd
  • CDM-SSC-PoA
  • CDM-SSC-CPA-DD Template
  • BLY Managing Entity Administration Manual
  • BLY Communication Form
  • CPA Eligibility Checklist
  • PCN Format
  • Status of the CPAs submitted to BEE for inclusion
progress in bachat lamp yojana
Progress In Bachat Lamp Yojana
  • 18 Investors have been empanelled by BEE for the ready reference of the DISCOMS.
  • 16 states/UT have taken up steps towards implementation of scheme in their respective DISCOM regions.
  • Projects from Kerala, Karnataka, Goa ,Delhi and Andhra Pradesh received by BEE for Eligibility Check and inclusion in the registered umbrella framework.
  • Validation of 20 Kerala and 7 Karnataka projects are in the final stages of validation.
  • Nearly 200 Lakh CFLs have already been distributed in various parts of India.

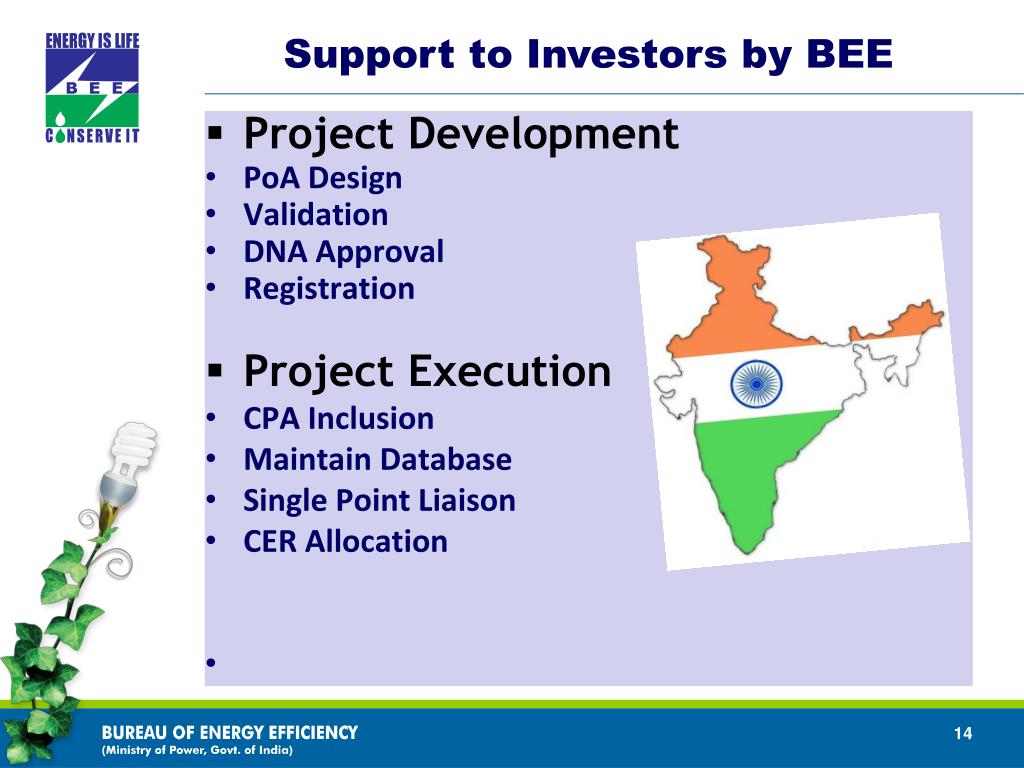

support to investors by bee
Support to Investors by BEE
  • Project Development
  • PoA Design
  • Validation
  • DNA Approval
  • Registration
  • Project Execution
  • CPA Inclusion
  • Maintain Database
  • Single Point Liaison
  • CER Allocation
enable energy efficiency using cdm
Enable energy efficiency …using CDM
  • Contact Information:
  • Bureau of Energy Efficiency

(Govt of India, Ministry of Power)

4th Floor, Sewa Bhawan,R. K. Puram

New Delhi- 110 066, India.

  • Tel: 011- 26179699
  • Fax: 011- 26178352
  • Email:vthakur@beenet.in
      • www.bee-india.nic.in

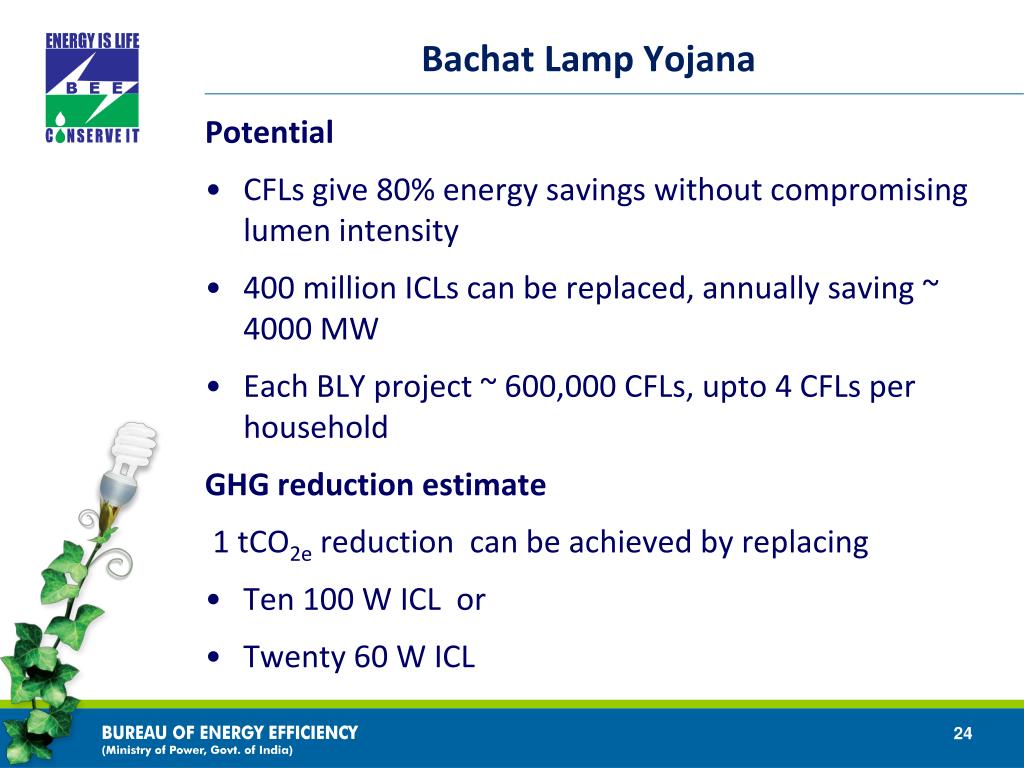

bachat lamp yojana
Bachat Lamp Yojana

Potential

  • CFLs give 80% energy savings without compromising lumen intensity
  • 400 million ICLs can be replaced, annually saving ~ 4000 MW
  • Each BLY project ~ 600,000 CFLs, upto 4 CFLs per household

GHG reduction estimate

1 tCO2e reduction can be achieved by replacing

  • Ten 100 W ICL or
  • Twenty 60 W ICL
slide25

Programme Landscape of BLY

CDM EB Communication

PoA -Manager

Buyer in Annex I

Country

Validation / Verification

PoA approval

Technically develops BLY scheme methodology and documents

DNA

Annex I & II

Payment for CERs

CERs sold

Safe disposal of returned CFL

CFL INVESTOR

HOUSEHOLD

Fused CFL’s returned

Pays Rs 15 for new CFL

Safe keeping of replaced ICL lamp for inspection

Replaced ICL lamp

  • Procures long-life CFLs and distributes to households
  • Day-to-day monitoring; Verification survey to assess lamp failure rate

CFL = Compact Florescent LampICL = Incandescent lamps

BEE = Bureau of Energy Efficiency

DISCOM = Distribution Company

DNA = Designated National Authority

EB = Executive Board

DISCOM

Each BLY project ~ 600,000 CFLs,

upto 4 CFLs per household

400 million ICLs / annum replaceable, annually saving ~ 6000 MW

Provides access to the households for installing CFLs

slide26

Monitoring & Verification

  • AMS IIJ- Simplified M&V

Total area serviced by DISCOM

  • Deemed savings approach: 3.5 hours / day/ CFL
  • Periodic CFLs survey

Project area)

MS-1

MS-2

MS = Monitoring Survey

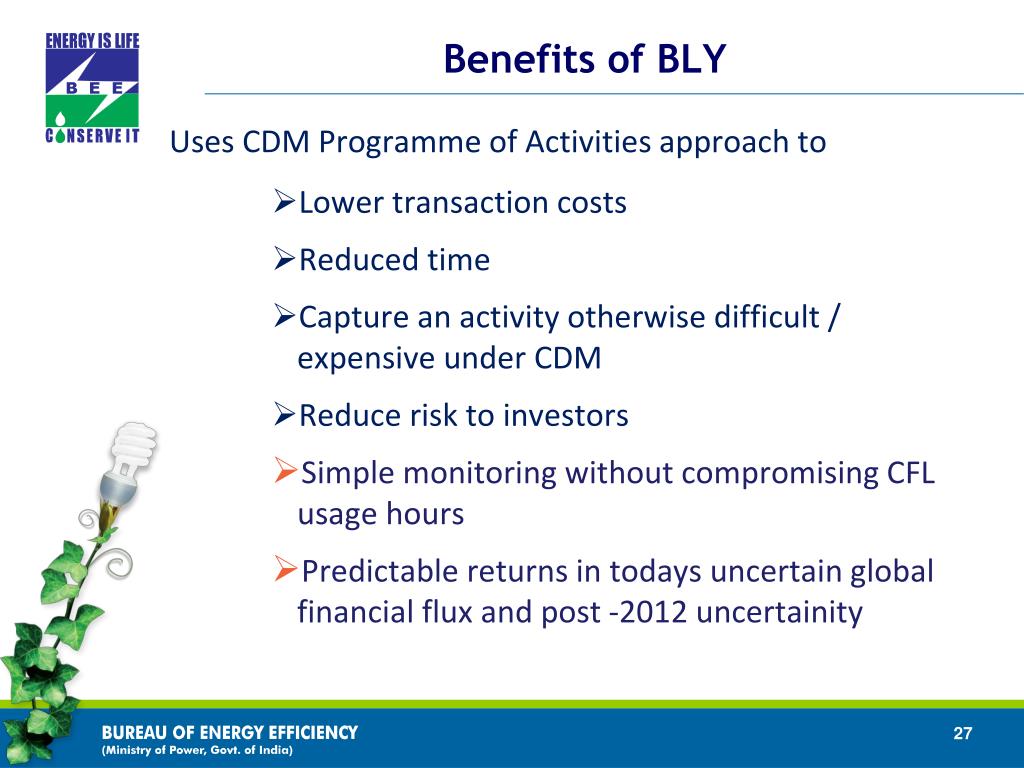

benefits of bly
Benefits of BLY

Uses CDM Programme of Activities approach to

  • Lower transaction costs
  • Reduced time
  • Capture an activity otherwise difficult / expensive under CDM
  • Reduce risk to investors
  • Simple monitoring without compromising CFL usage hours
  • Predictable returns in todays uncertain global financial flux and post -2012 uncertainity
bly chronology
BLY Chronology

April-June 2009– BLY revised as per AMS IIJ
