CPUz 4 n00bz. CPU Diagram. RAM (Memory). Control Unit (CU). Program Counter (PC). Cache. Address Bus. Instruction Register (IR). Decoder. Arithmetic Logic Unit (ALU). Data Bus. Accumulator. Additional CPU Components. Program counter (PC)
E N D
CPU Diagram RAM (Memory) Control Unit (CU) Program Counter (PC) Cache Address Bus Instruction Register (IR) Decoder Arithmetic Logic Unit (ALU) Data Bus Accumulator
Additional CPU Components • Program counter (PC) • Holds the address of the next instruction in the program sequence • Instruction register • Holds the operation code of the type of instruction to be executed (e.g. ADD, SUB) • Accumulator • ALU’s internal register that holds ongoing total
Fetch-Execute Again • Fetch instruction from the address stored in the program counter • Store instruction in instruction register • Decode instruction register • Execute operation (control unit tells ALU what to do) • ALU performs operation and uses its accumulator to remember result • Store accumulator result back to memory

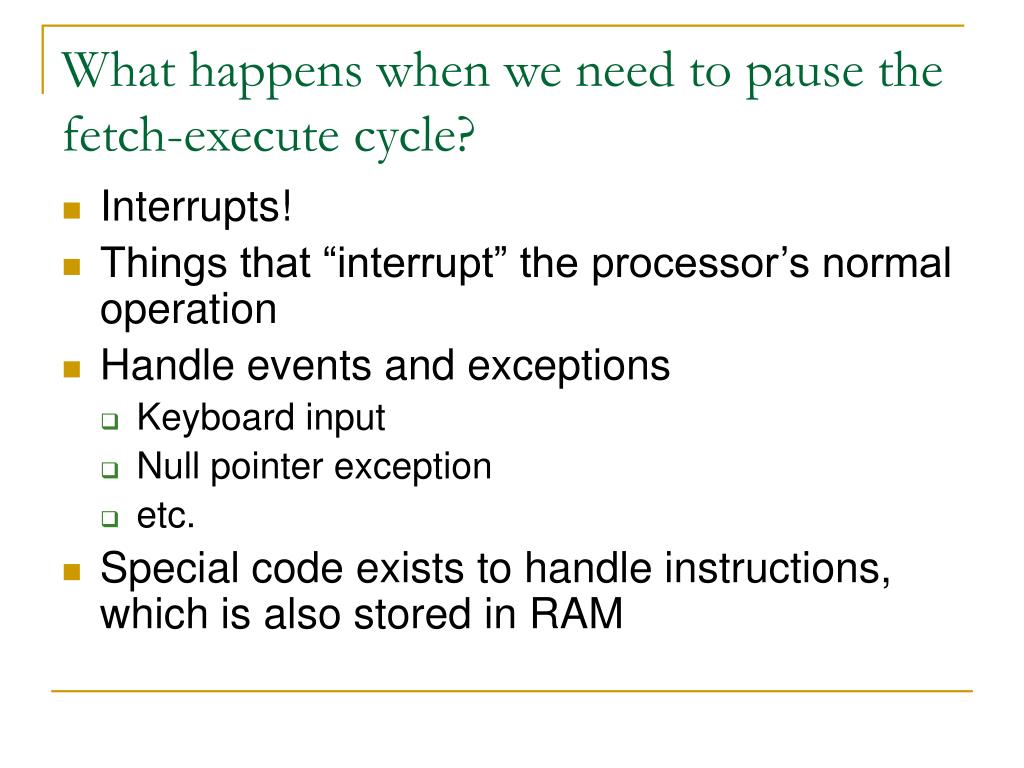

What happens when we need to pause the fetch-execute cycle? • Interrupts! • Things that “interrupt” the processor’s normal operation • Handle events and exceptions • Keyboard input • Null pointer exception • etc. • Special code exists to handle instructions, which is also stored in RAM
Interrupt Register • Stores the offset address of the special interrupt handling code • Interrupt Code Address = Base Address + Interrupt Register • Basically…it stores the location in memory of where you go to handle the interrupt
Processor Optimizations • Pipelining • Fetch-execute cycle overlapping for multiple instructions
More Cool Optimizations • Multiprocessing • Dual-core and Quad-core processors • Cell processor has 8 processors! • http://upload.wikimedia.org/wikipedia/en/d/da/Cell_Broadband_Engine_Processor.jpg
