Tutorial #7Flowcharts (reprise) Program Design
Introduction • We mentioned it already, that if we thing of an analyst as being analogous to an architect, and a developer as being analogous to a builder, then the most important thing we can do as analysts is to explain our designs to the developers in a simple and clear way. • How do architects do this?

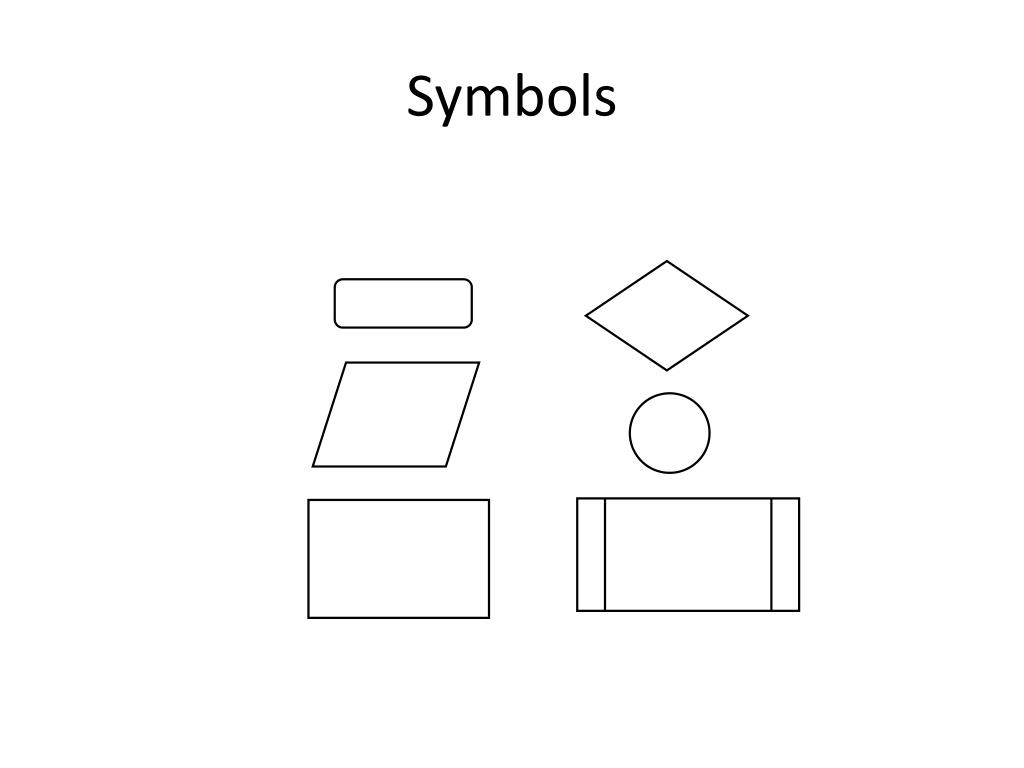

Symbols Decision Terminal Input/Output Operation Connector Module Process

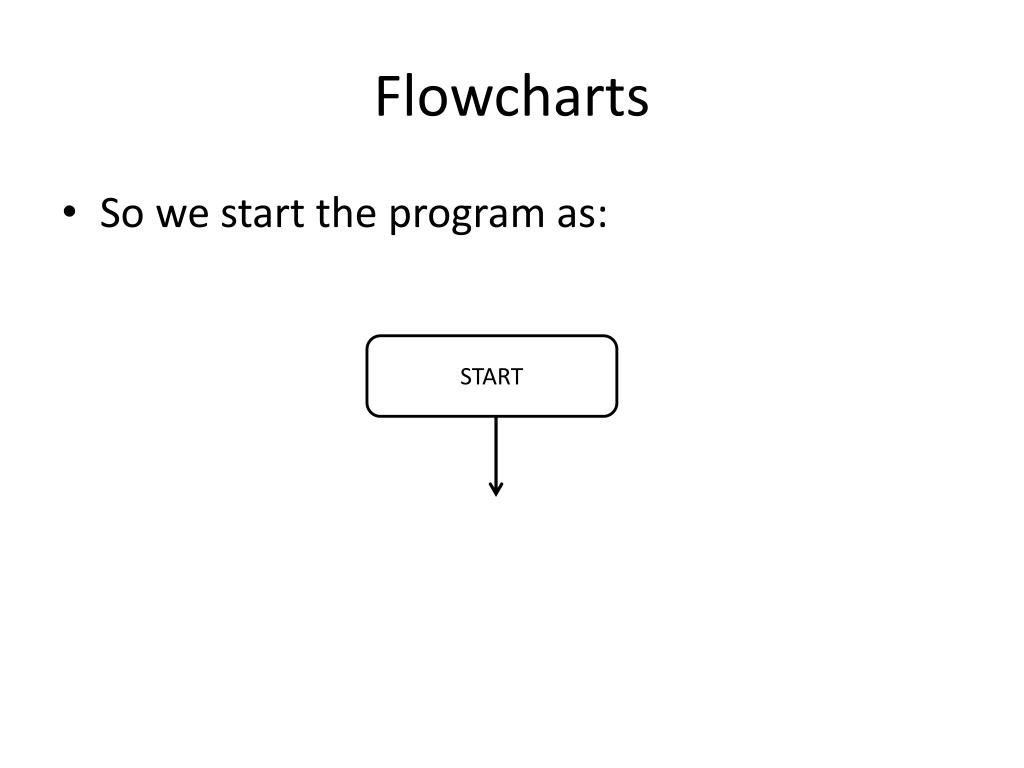

Flowcharts • So we start the program as: START
Flowcharts • Our program will finish with the following: END
Flowcharts • When we write programs, we assume that the computer executes the program starting at the beginning and working its way to the end. • This is a basic assumption of all algorithm design.
Flowcharts • When we write programs, we assume that the computer executes the program starting at the beginning and working its way to the end. • This is a basic assumption of all algorithm design. • We call this SEQUENCE.
START Statement1 Statement2 END
Flowcharts • What if we want to make a choice, for example, do we want to add sugar or not to the tea?
Flowcharts • What if we want to make a choice, for example, do we want to add sugar or not to the tea? • We call this SELECTION.
START Is Sugar required? Add Sugar Don’t Add Sugar No Yes END
Flowcharts • What if we need to tell the computer to keep doing something until some condition occurs?
Flowcharts • What if we need to tell the computer to keep doing something until some condition occurs? • Let’s say we wish to indicate that the you need to keep filling the kettle with water until it is full.
Flowcharts • What if we need to tell the computer to keep doing something until some condition occurs? • Let’s say we wish to indicate that the you need to keep filling the kettle with water until it is full. • We need a loop, or ITERATION.
START Keep Filling Kettle Kettle is not full? No Yes END
Flowcharts • So let’s say we want to express the following algorithm: • Read in a number and print it out.
START Read in A
START Read in A Print A
START Read in A Print A END

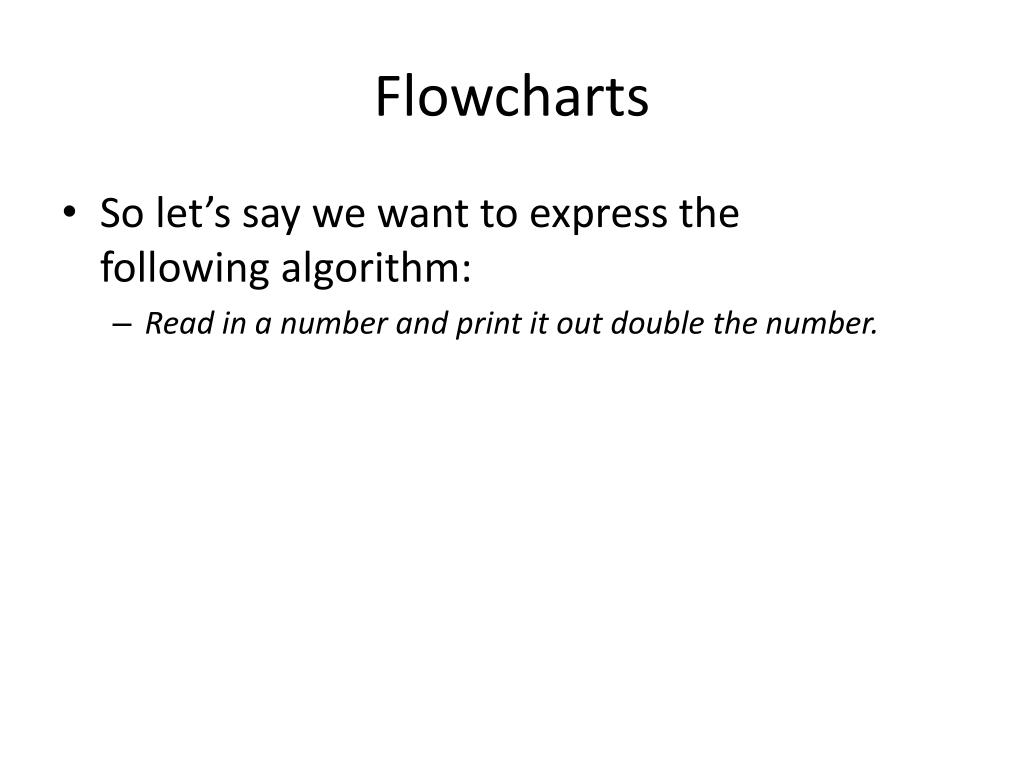

Flowcharts • So let’s say we want to express the following algorithm: • Read in a number and print it out double the number.
START Read in A
START Read in A Print A*2
START Read in A Print A*2 END
START Read in A
START Read in A B = A*2
START B = A * 2 can be read as “B gets the value of A multiplied by 2” Read in A B = A*2
START Read in A B = A*2 Print B
START Read in A B = A*2 Print B END
Flowcharts • So let’s say we want to express the following algorithm: • Read in a number, check if it is odd or even.
START Read in A
START Read in A Does A/2 give a remainder?
START Read in A Does A/2 give a remainder? Print “It’s Odd” Yes
START Read in A Does A/2 give a remainder? Print “It’s Odd” Print “It’s Even” No Yes
START Read in A Does A/2 give a remainder? Print “It’s Odd” Print “It’s Even” No Yes END
Flowcharts • So let’s say we want to express the following algorithm to print out the bigger of two numbers: • Read in two numbers, call them A and B. Is A is bigger than B, print out A, otherwise print out B.
START Read in A and B
START Read in A and B A>B?
