Presentation Transcript

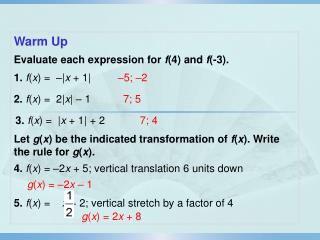

slide1

5.f(x) = x + 2; vertical stretch by a factor of 4

Warm Up

Evaluate each expression for f(4) and f(-3).

1.f(x) = –|x + 1|

–5; –2

2.f(x) = 2|x| – 1

7; 5

3.f(x) = |x + 1| + 2

7; 4

Let g(x) be the indicated transformation of f(x). Write the rule for g(x).

4. f(x) = –2x + 5; vertical translation 6 units down

g(x) = –2x– 1

g(x) = 2x + 8

2 9 absolute value functions

2-9: Absolute Value Functions

Part 1: Vertical and Horizontal Translations

definitions
Definitions

Absolute value function – an equation containing an absolute value expression. Shaped like a V.

f x x or y x
f(x) = |x| or y = |x|

Examples of absolute value functions:

f(x) = |x| + 3

f(x) = |x| - 2

f(x) = 2x + 3

f(x) = |x – 1|

f(x) = x3 – 2x + 5

f(x) = |x + 3|

slide8

Example 1

Perform the transformation on f(x) = |x|. Then graph the transformed function g(x).

5 units down

f(x) = |x|

g(x) = f(x) + k

g(x) = |x| – 5

Substitute.

The graph of g(x) = |x| – 5 is the graph of f(x) = |x| after a vertical shift of 5 units down. The vertex of g(x) is (0, –5).

slide9

Example 1 Continued

The graph of g(x) = |x|– 5 is the graph of f(x) = |x| after a vertical shift of 5 units down. The vertex of g(x) is (0, –5).

f(x)

g(x)

slide10

Example 2

Let g(x) be the indicated transformation of f(x) = |x|. Write the rule for g(x) and graph the function.

4 units down

f(x) = |x|

g(x) = f(x) + k

g(x) = |x| – 4

Substitute.

slide11

Example 2 Continued

The graph of g(x) = |x| – 4 is the graph of f(x) = |x| after a vertical shift of 4 units down. The vertex of g(x) is (0, –4).

f(x)

g(x)

slide12

Example 3

Perform the transformation on f(x) = |x|. Then graph the transformed function g(x).

3 units up

f(x) = |x|

g(x) = f(x) + k

g(x) = |x| + 3

Substitute.

The graph of g(x) = |x| + 3is the graph of f(x) = |x| after a vertical shift of 3 units up. The vertex of g(x) is (0, 3).

slide13

Example 4

Perform the transformation on f(x) = |x|. Then graph the transformed function g(x).

6 units up

f(x) = |x|

g(x) = f(x) + k

g(x) = |x| + 6

Substitute.

The graph of g(x) = |x| + 6is the graph of f(x) = |x| after a vertical shift of 6 units up. The vertex of g(x) is (0, 6).

slide15

Example 1

Perform the transformation on f(x) = |x|. Then graph the transformed function g(x).

1 unit left

f(x) = |x|

g(x) = f(x– h)

g(x) = |x – (–1)| = |x + 1|

Substitute.

slide16

Example 1 Continued

The graph of g(x) = |x + 1| is the graph of f(x) = |x| after a horizontal shift of 1 unit left. The vertex of g(x) is (–1, 0).

f(x)

g(x)

slide17

Example 2

Perform the transformation on f(x) = |x|. Then graph the transformed function g(x).

2 units right

f(x) = |x|

g(x) = f(x– h)

g(x) = |x – 2| = |x –2|

Substitute.

slide18

Example 2 Continued

The graph of g(x) = |x – 2| is the graph of f(x) = |x| after a horizontal shift of 2 units right. The vertex of g(x) is (2, 0).

f(x)

g(x)

slide19

Example 3

Perform the transformation on f(x) = |x|. Then graph the transformed function g(x).

4 unit left

f(x) = |x|

g(x) = f(x– h)

g(x) = |x – (–4)| = |x + 4|

Substitute.

slide20

Example 4

Perform the transformation on f(x) = |x|. Then graph the transformed function g(x).

7 units right

f(x) = |x|

g(x) = f(x– h)

g(x) = |x – 7| = |x –7|

Substitute.
